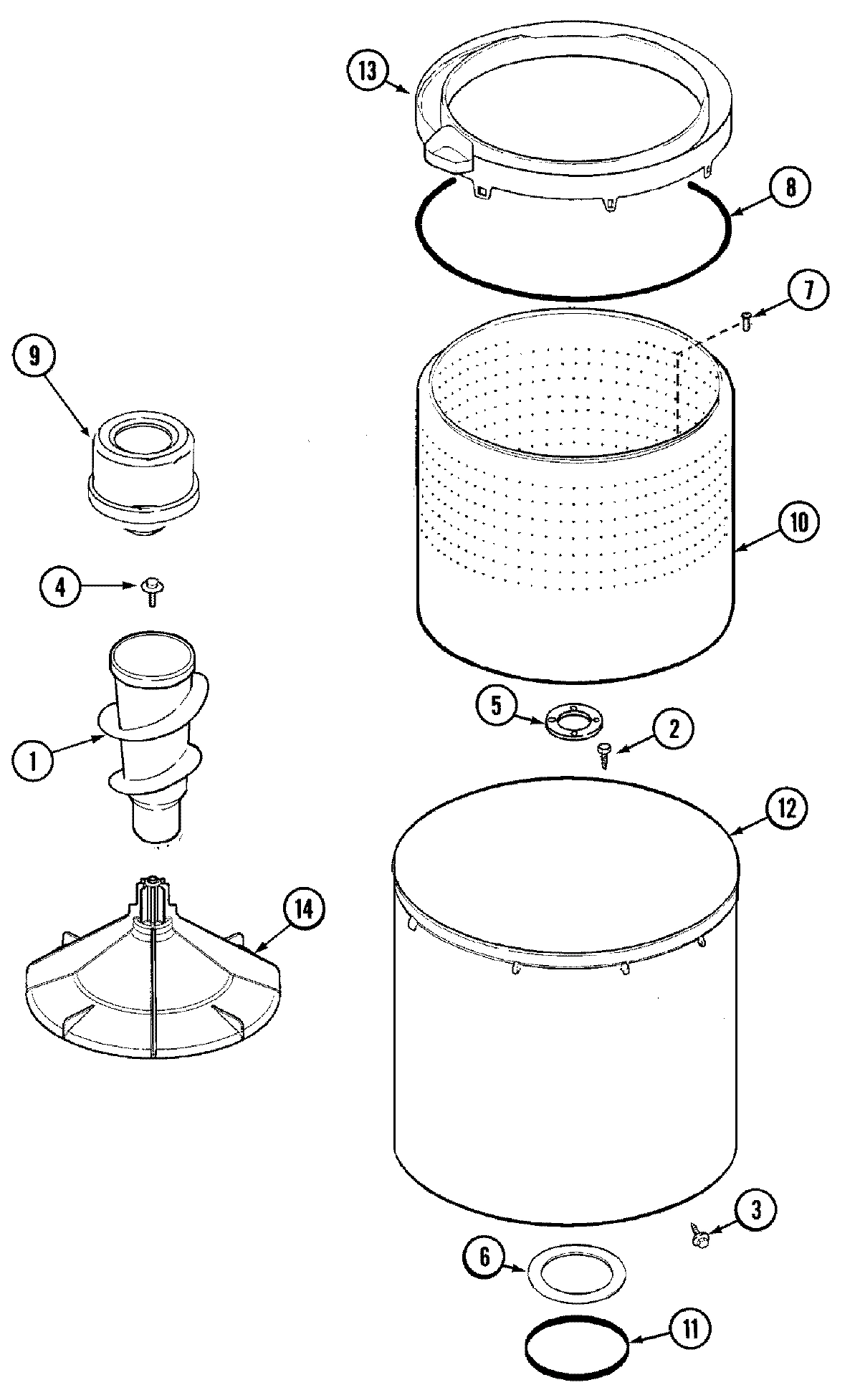

Model Whirlpool CW7500W WASHER – Common Parts &amp; Diagrams

1

LID (BSQ) WPL 21001779 Contact Us For Availability

1

LID (WHT) (DOOR) WPL 352026 Contact Us For Availability

1

SCREW WPL 257893 Contact Us For Availability

1

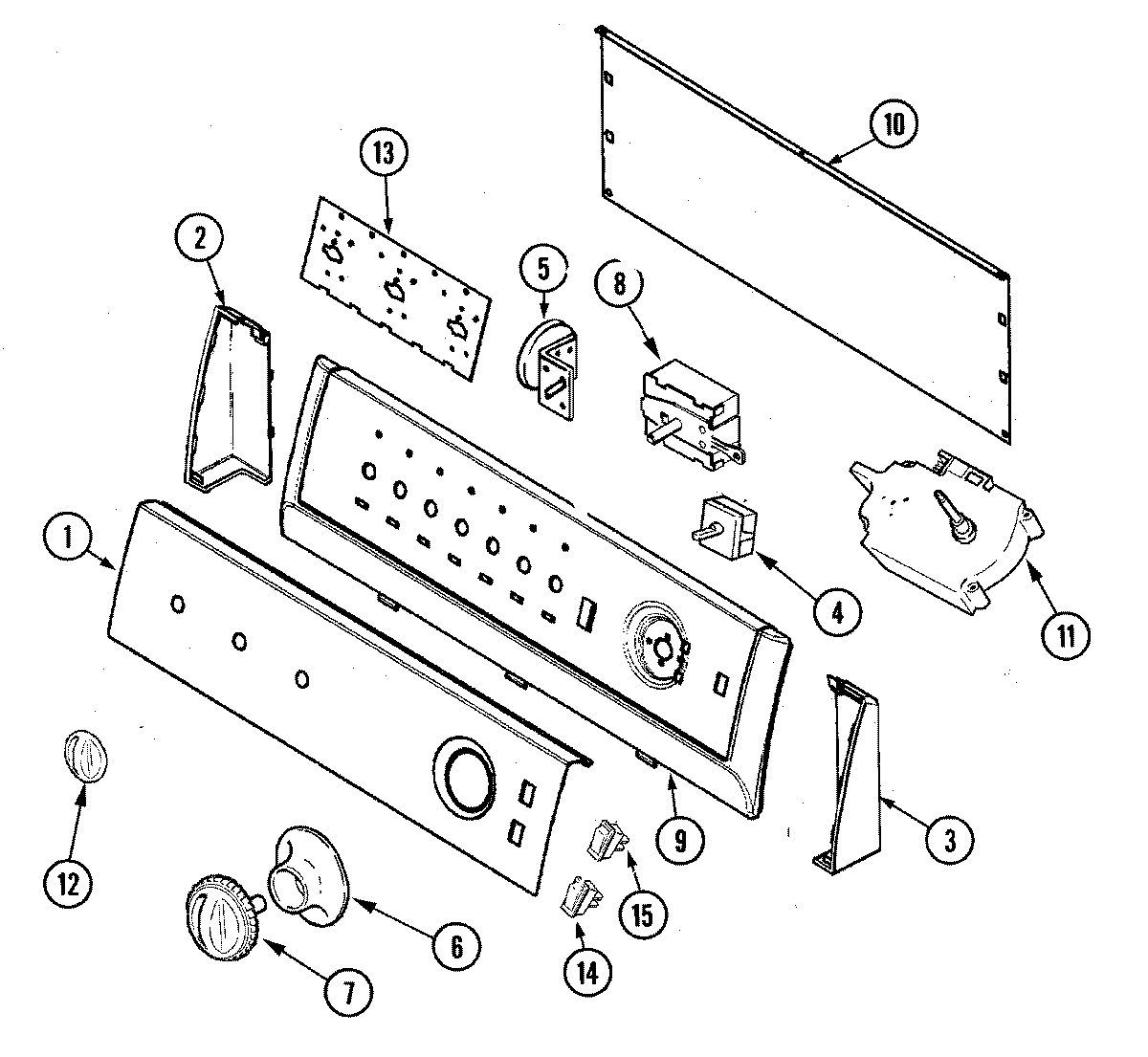

PANEL, CONTROL WPL 21001566 Contact Us For Availability

1

``O`` RING WPL 257941 Contact Us For Availability

1

ASSY, AUGER & POST(ASPK-PRFP) WPL 22003437 Contact Us For Availability

2

WP22002947 Whirlpool Screw Backorder WPL WP22002947 $7.59

2

ACTUATOR, DOOR SWITCH WPL 430057 Contact Us For Availability

2

HINGE, CABINET TOP WPL 352846 Contact Us For Availability

2

ENDCAP, PANEL (LT-WHT) WPL 21001546 Contact Us For Availability

3

12002213 Whirlpool Washer Pulley and Thrust B In Stock WPL 12002213 $34.02

3

SCREW WPL 257438 Contact Us For Availability

3

PAD, HINGE WPL 354128 Contact Us For Availability

3

ENDCAP, PANEL (RT-WHT) WPL 21001547 Contact Us For Availability

3

SLIDE, FOOT WPL 21001486 Contact Us For Availability

3

SCREW WPL 257953 Contact Us For Availability

4

WP35-6465 Whirlpool Drain Pump In Stock WPL WP35-6465 $102.53

4

WP35-6780 Whirlpool Water Pump In Stock WPL WP35-6780 $119.24

4

FLUME ASSEMBLY /WATER DIVERTER WPL 21001760 Contact Us For Availability

4

PIN, HINGE WPL 352045 Contact Us For Availability

4

SWITCH, WATER TEMP. 4 POSITION WPL 21001226 Contact Us For Availability

4

CAM REPLACEMENT KIT WPL LA2007 Contact Us For Availability

4

SCREW, AGITATOR RETENTION WPL 257948 Contact Us For Availability

5

WP21001554 Whirlpool Washer Switch Backorder WPL WP21001554 $117.81

5

SWITCH, PRESSURE (EMZ) WPL 21001882 Contact Us For Availability

5

SCREW WPL 257833 Contact Us For Availability

5

SEAL NUT ASSEMBLY WPL 21001533 Contact Us For Availability

5

GASKET, BASKET TO CENTERPOST WPL 353685 Contact Us For Availability

6

NUT, LOCATOR PIN WPL 250224 Contact Us For Availability

6

PIN, LOCATOR WPL 530643 Contact Us For Availability

6

HINGE, LID WPL 352044 Contact Us For Availability

6

SLEEVE, LOCATOR PIN WPL 530200 Contact Us For Availability

6

SKIRT, TIMER KNOB (WHT) WPL 21001520 Contact Us For Availability

6

WASHER WPL 257834 Contact Us For Availability

6

WASHER,1.25ODX.530IDX.062 WPL 352082 Contact Us For Availability

6

WASHER,1.25ODX.530IDX.032 WPL 352132 Contact Us For Availability

6

GASKET, TUB TO HOUSING WPL 353686 Contact Us For Availability

7

CLIP, CABINET TOP WPL 257220 Contact Us For Availability

7

BUMPER, DOOR (LID) WPL 350581 Contact Us For Availability

7

KNOB, TIMER (WHT) WPL 21001526 Contact Us For Availability

7

ISOLATOR, MOTOR WPL 339946 Contact Us For Availability

7

BASKET HUB ASSEMBLY WPL 21001515 Contact Us For Availability

7

SCREW, SHOULDER WPL 257967 Contact Us For Availability

7

SEAL HUB ASSEMBLY (HT TRAN) WPL 21001868 Contact Us For Availability

8

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

8

BUSHING, INSULATOR WPL 352063 Contact Us For Availability

8

SWITCH, SPEED WPL 21001173 Contact Us For Availability

8

WASHER, MOTOR PIVOT WPL 353570 Contact Us For Availability

8

RING, RETAINING WPL 257854 Contact Us For Availability

8

SEAL, TUB TOP WPL 352328 Contact Us For Availability

9

WP21001905 Whirlpool Dispenser Backorder WPL WP21001905 $53.79

9

KIT, LID SWITCH ASSY. WPL 12001187 Contact Us For Availability

9

BEARING & SEAL HOUSING ASSY. WPL 12001561 Contact Us For Availability

9

POST, LOCATING WPL 21001829 Contact Us For Availability

9

FRAME (WHT), CONTROL PANEL WPL 21001552 Contact Us For Availability

9

PLATE & SCREW ASSEMBLY WPL 21001783 Contact Us For Availability

9

PLATE, MOTOR WPL 21001366 Contact Us For Availability

9

HT TRANS/SEAL HUB ASSEMBLY WPL 21001867 Contact Us For Availability

WP3400872 Whirlpool Screw Backorder WPL WP3400872 $4.82

PAD, CABINET WPL 21002011 Contact Us For Availability

PANEL, FRONT (WHT) WPL 352084 Contact Us For Availability

DAMPER, SOUND PAD WPL 21001281 Contact Us For Availability

SHIELD, REAR (BACK PANEL) WPL 21001527 Contact Us For Availability

ISOLATOR, MOTOR PLATE WPL 353646 Contact Us For Availability

BASKET ASSEMBLY (PLASTIC) WPL 21001529 Contact Us For Availability

STATOR, BRAKE WPL 352018 Contact Us For Availability

SEAL, TUB/HOUSING WPL 352978 Contact Us For Availability

CLIP, FRONT PANEL WPL 530120 Contact Us For Availability

SWITCH, LID/DOOR SAFETY SPIN WPL 21001148 Contact Us For Availability

SCREW WPL 253092 Contact Us For Availability

TIMER WPL 21001595 Contact Us For Availability

SPACER WPL 257831 Contact Us For Availability

SNUBBER WPL 21001161 Contact Us For Availability

TUB SEAL/HUB ASSY (HT TRANS) WPL 352974 Contact Us For Availability

WP21001135 Whirlpool Housing Backorder WPL WP21001135 $2.34

WP21001950 Whirlpool Drive Motor In Stock WPL WP21001950 $204.27

BEARING ASSEMBLY (LWR) WPL 12001562 Contact Us For Availability

BUMPER, CABINET WPL 354129 Contact Us For Availability

KNOB, SELECTOR (WHT) WPL 21001544 Contact Us For Availability

BEARING, SPIN WPL 352205 Contact Us For Availability

TUB ASSEMBLY (PLASTIC) WPL 353700 Contact Us For Availability

HOUSING/LWR.BEARING ASSY. WPL 21001511 Contact Us For Availability

KIT, CABINET/REAR SHIELD (WHT) WPL 12001801 Contact Us For Availability

CORD, POWER WPL 21001592 Contact Us For Availability

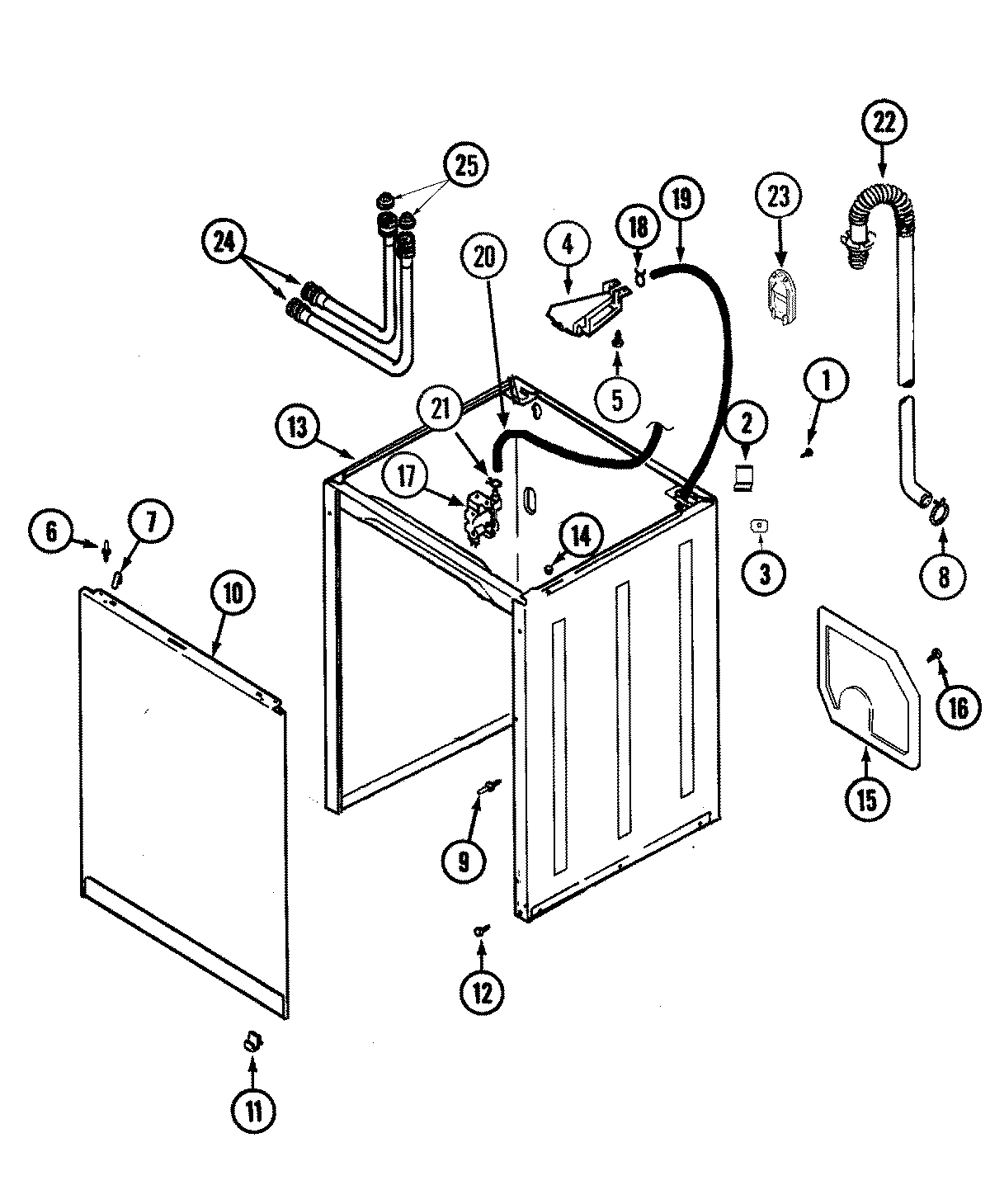

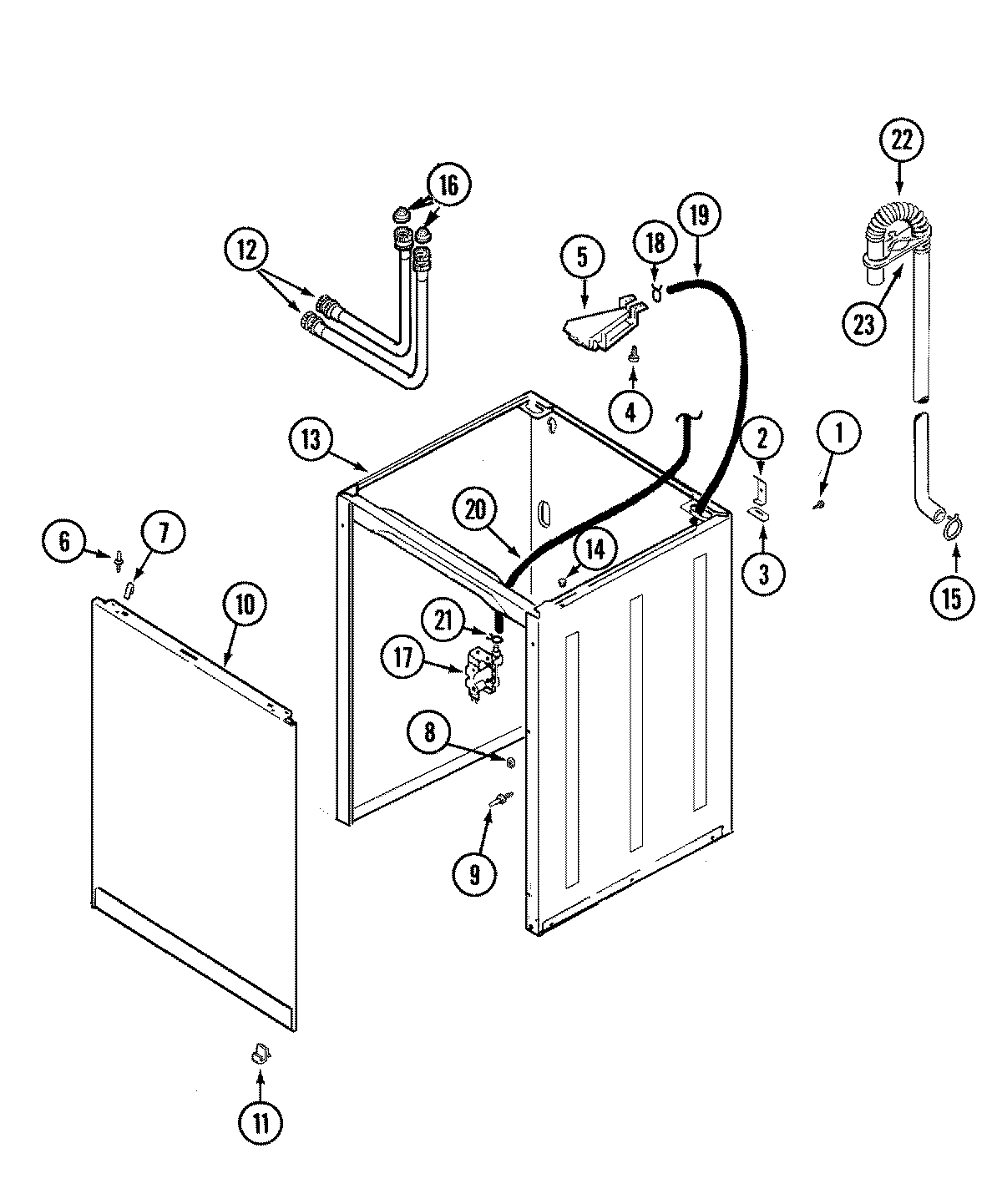

CABINET (WHT) WPL 21001871 Contact Us For Availability

SHIELD, CONTROL (3 POS.) WPL 21001603 Contact Us For Availability

SHIELD, MOTOR WPL 22002721 Contact Us For Availability

SUPPORT, TUB WPL 21001518 Contact Us For Availability

TOP, TUB (PLASTIC) WPL 21001531 Contact Us For Availability

LEVER, LID SWITCH WPL 21001134 Contact Us For Availability

BUMPER, CABINET WPL 332653 Contact Us For Availability

SWITCH, ROCKER (WHT) WPL 21001714 Contact Us For Availability

SLIDE, MOTOR PIVOT WPL 353571 Contact Us For Availability

BRACE, TUB WPL 21001532 Contact Us For Availability

BASE, AGITATOR WPL 21001530 Contact Us For Availability

CLAMP, DISCHARGE HOSE WPL 257080 Contact Us For Availability

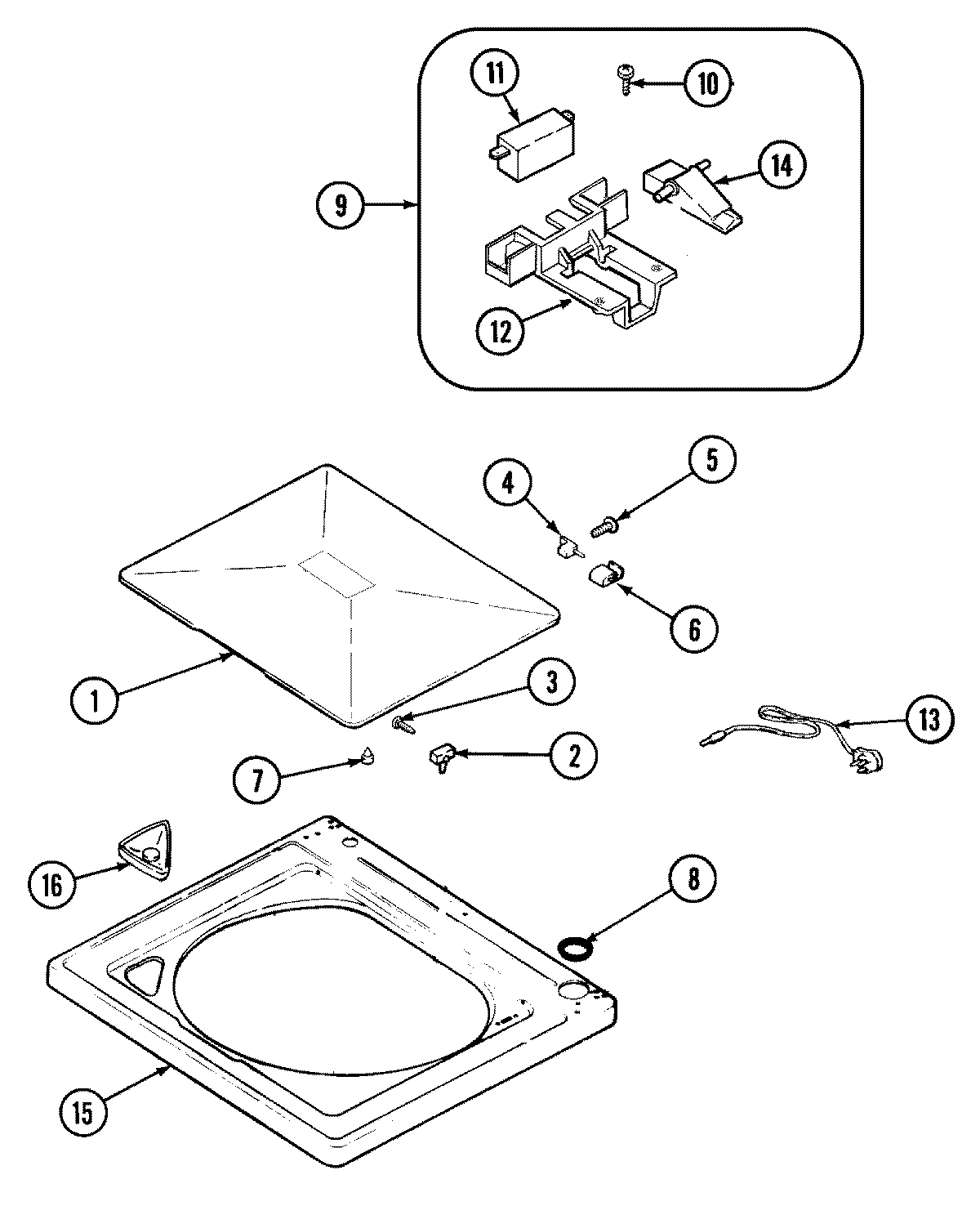

TOP, CABINET (WHT) WPL 21001602 Contact Us For Availability

SHIELD, REAR WPL 21001876 Contact Us For Availability

SWITCH, MOMENTARY (WHT) WPL 21001482 Contact Us For Availability

WASHER, MOTOR ISOLATOR WPL 339967 Contact Us For Availability

SCREW 5/16-18X1/2 WPL 21001858 Contact Us For Availability

DISPENSER, BLEACH WPL 21001597 Contact Us For Availability

SCREW WPL 257732 Contact Us For Availability

WASHER, FLAT WPL 257047 Contact Us For Availability

HOUSING, SUSPENSION WPL 21001163 Contact Us For Availability

35-2374N Whirlpool Water Mixing Valve Backorder WPL 35-2374N $205.09

WP21001932 Whirlpool Washer Water Valve In Stock WPL WP21001932 $160.23

NUT, MOTOR PLATE ASY TO MOTOR WPL 257325 Contact Us For Availability

RETAINER, BRAKE SPRING WPL 352017 Contact Us For Availability

18

12002773 Whirlpool Spring Kit (Pack of 6) In Stock WPL 12002773 $61.88

18

WP21001598 Whirlpool Suspension Spring In Stock WPL WP21001598 $5.35

18

CLAMP WPL 257867 Contact Us For Availability

19

WP21001166 Whirlpool Hook Backorder WPL WP21001166 $4.82

19

HOSE, FLUME/DIVERTER (RUBBER) WPL 352378 Contact Us For Availability

19

SCREW 5/16-18X3/4 WPL 257930 Contact Us For Availability

20

BAR, STABILIZER WPL 21001754 Contact Us For Availability

20

SCREW,HIGH PERFORMANCE PLASTIC WPL 21001509 Contact Us For Availability

21

CLAMP, PRESSURE SWITCH HOSE WPL 257796 Contact Us For Availability

21

BRACKET, STABILIZER WPL 352046 Contact Us For Availability

21

BRAKE ROTOR & LINING ASSY WPL 352948 Contact Us For Availability

22

WP21001872 Whirlpool Hose Backorder WPL WP21001872 $60.95

22

PIN, STABILIZER WPL 352052 Contact Us For Availability

RETAINER, DRAIN HOSE WPL 22002701 Contact Us For Availability

OUTLET, DRAIN HOSE WPL 21001874 Contact Us For Availability

FOOT PAD ASSY. (REAR) WPL 353020 Contact Us For Availability

STATOR, BRAKE WPL 21001761 Contact Us For Availability

SEAL,TRANSMISSION HOUSING(LIP) WPL 352010 Contact Us For Availability

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

HOSE, 5` INLET WPL 337046 Contact Us For Availability

HOSE, 4` INLET WPL 337891 Contact Us For Availability

SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability

STRAINER & WASHER KIT WPL 334264N Contact Us For Availability

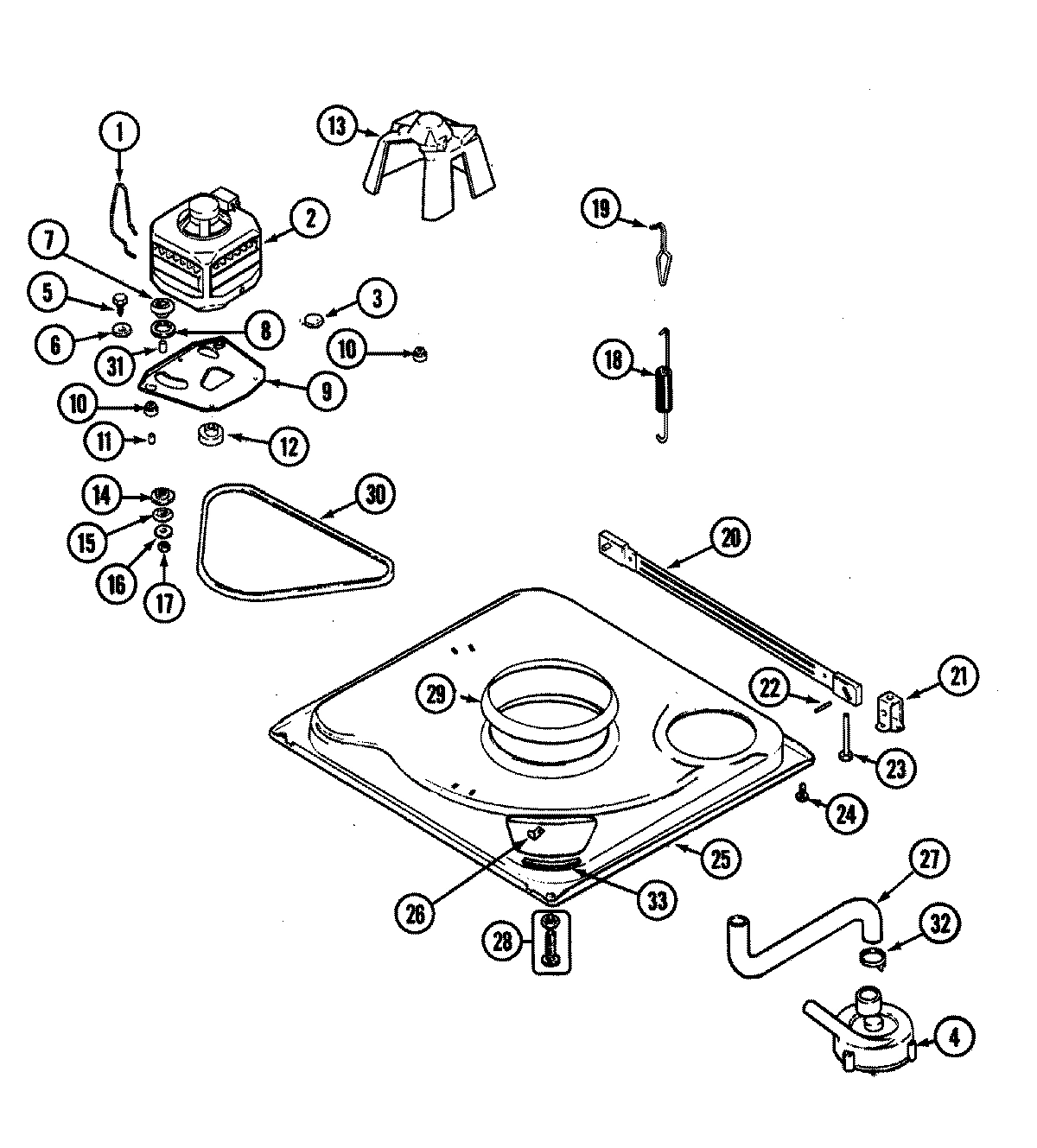

BASE, WASHER WPL 21001893 Contact Us For Availability

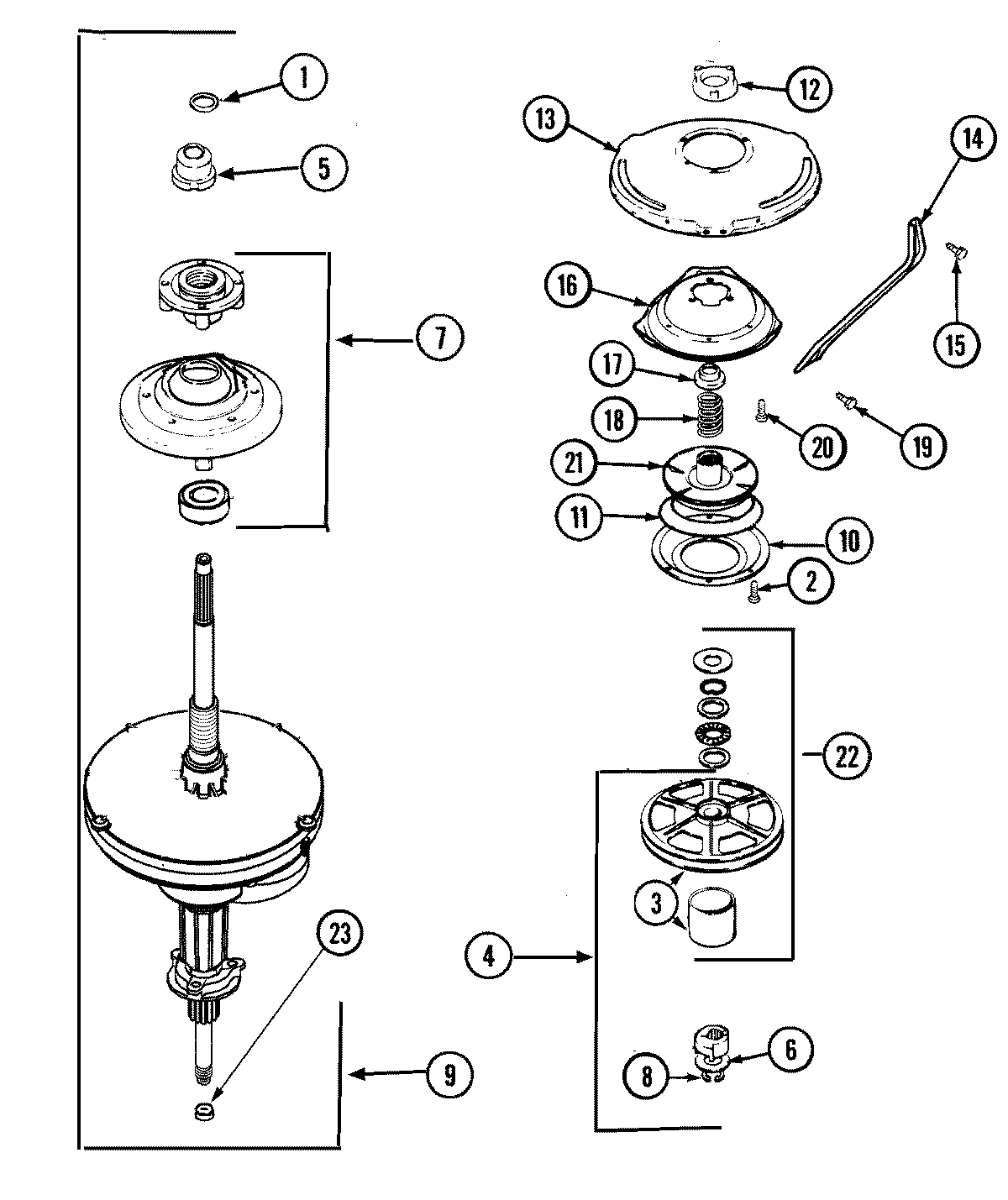

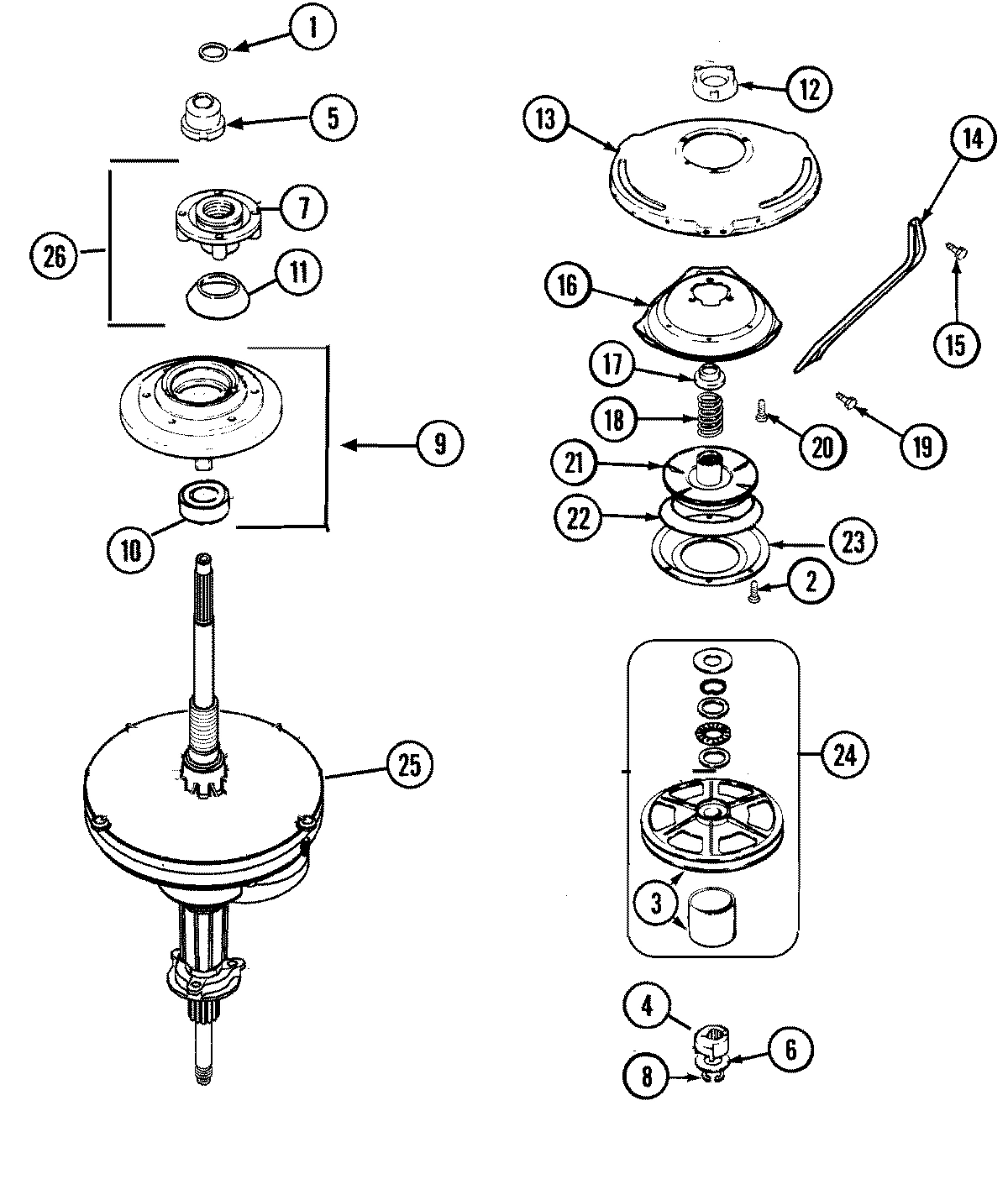

TRANS. ASSY.(W/O SEAL/BEARING) WPL 21001536 Contact Us For Availability

BASE WPL 21001169 Contact Us For Availability

26

SPEEDNUT WPL 257845 Contact Us For Availability

26

TUB SEAL ASSEMBLY WPL 12001598 Contact Us For Availability

27

WP21001915 Whirlpool Hose Tub In Stock WPL WP21001915 $19.37

27

HOSE, TUB TO PUMP WPL 353584 Contact Us For Availability

28

FOOT & PAD ASSY WPL 353507 Contact Us For Availability

30

WP21352320 Whirlpool Washer Drive Belt In Stock WPL WP21352320 $17.32

30

BELT SHIELD WPL 352512 Contact Us For Availability

31

SPACER WPL 257830 Contact Us For Availability

32

CLAMP, HOSE WPL 256068 Contact Us For Availability

33

PAD, MOTOR PLATE WPL 352065 Contact Us For Availability

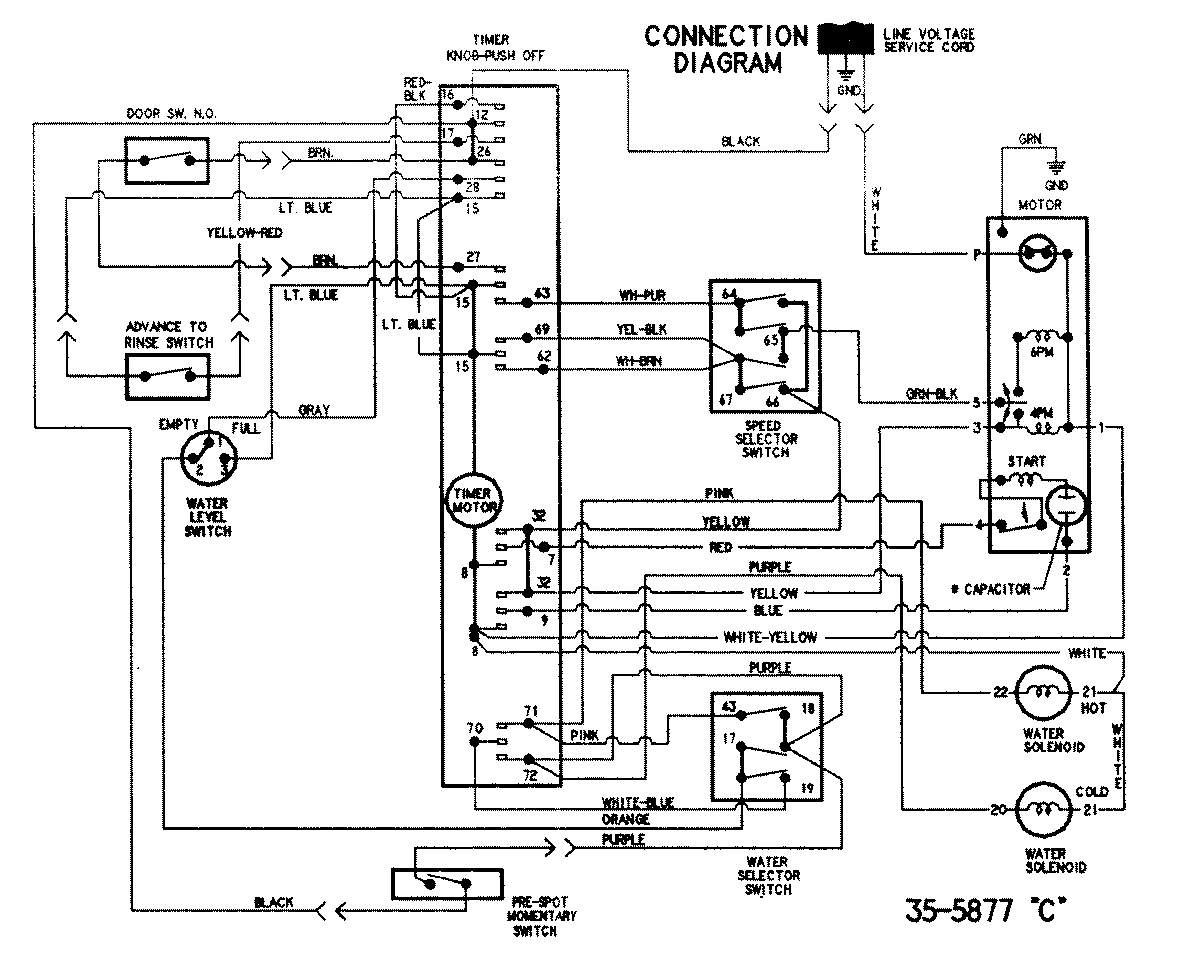

NI

HARNESS, WIRE WPL 21001788 Contact Us For Availability

NI

MANUAL, USE & CARE WPL 21001810 Contact Us For Availability

NI

HARNESS, WIRING WPL 21001935 Contact Us For Availability
