Model Whirlpool CW5000A WASHER – Common Parts & Diagrams

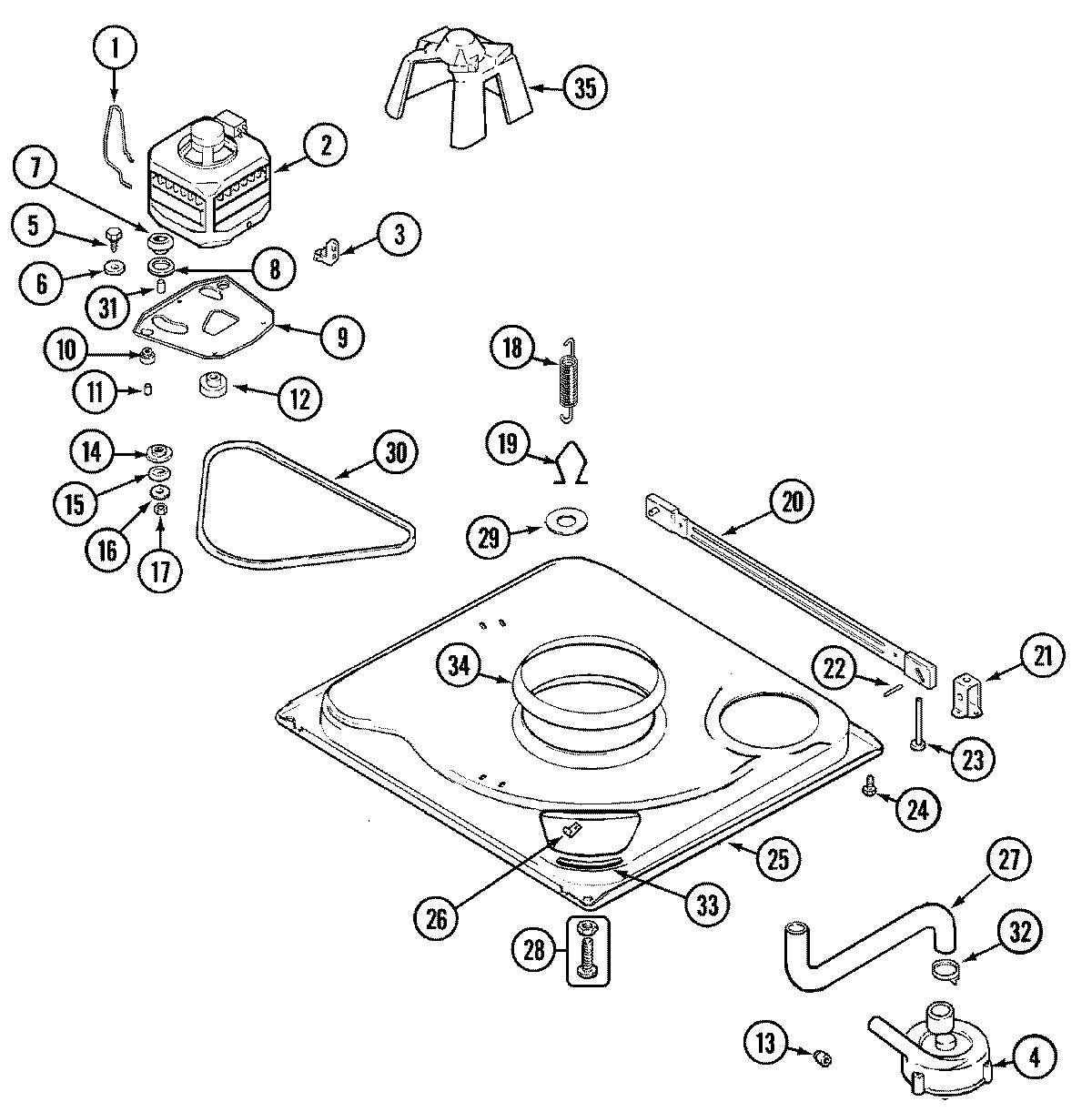

01 - BASE
03 - TRANSMISSION
02 - CABINET
04 - TUB
05 - WIRING INFORMATION
Common parts from model Whirlpool CW5000A WASHER
1
TOP, AGITATOR WPL 21001521 Contact Us For Availability
1
``O`` RING WPL 257941 Contact Us For Availability
1
SCREW WPL 257893 Contact Us For Availability
2
HINGE, CABINET TOP WPL 352846 Contact Us For Availability
3
PULLEY, DRIVE WPL 353829 Contact Us For Availability
3
PAD, HINGE WPL 354128 Contact Us For Availability
3
SCREW WPL 257953 Contact Us For Availability
4
PUMP ASSY (COMPLETE) WPL 352099 Contact Us For Availability
4
CAM REPLACEMENT KIT WPL LA2007 Contact Us For Availability
4
SCREW, AGITATOR RETENTION WPL 257948 Contact Us For Availability
5
SCREW WPL 257833 Contact Us For Availability
5
SEAL NUT ASSEMBLY WPL 21001533 Contact Us For Availability
5
PAD, FOAM WPL 350706 Contact Us For Availability
5
GASKET, BASKET TO CENTERPOST WPL 353685 Contact Us For Availability
6
WASHER WPL 257834 Contact Us For Availability
6
WASHER,1.25ODX.530IDX.062 WPL 352082 Contact Us For Availability
6
WASHER,1.25ODX.530IDX.032 WPL 352132 Contact Us For Availability
6
GASKET, TUB TO HOUSING WPL 353686 Contact Us For Availability
7
ISOLATOR, MOTOR WPL 339946 Contact Us For Availability
7
BASKET HUB ASSEMBLY WPL 21001515 Contact Us For Availability
7
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
7
SCREW, SHOULDER WPL 257967 Contact Us For Availability
8
WASHER, MOTOR PIVOT WPL 353570 Contact Us For Availability
8
RING, RETAINING WPL 257854 Contact Us For Availability
8
SEAL, TUB TOP WPL 352328 Contact Us For Availability
9
PLATE, MOTOR WPL 21001111 Contact Us For Availability
9
HOUSING/BEARING ASSY. WPL 21001508 Contact Us For Availability
9
PIN, LOCATOR WPL 530643 Contact Us For Availability
9
SLEEVE, LOCATOR PIN WPL 530200 Contact Us For Availability
10
ISOLATOR, MOTOR PLATE WPL 353646 Contact Us For Availability
10
BEARING, SPIN WPL 352205 Contact Us For Availability
10
PAD, CABINET WPL 21002011 Contact Us For Availability
10
PANEL, FRONT (ALM) WPL 35208424 Contact Us For Availability
10
BASKET ASSEMBLY (PLASTIC) WPL 21001529 Contact Us For Availability
11
SEAL, TUB/HOUSING WPL 352978 No Longer Available
11
SPACER WPL 257831 Contact Us For Availability
11
CAP, DUST WPL 352007 Contact Us For Availability
11
NOT REQUIRED PART OR SEE NOTE KITTED WITH PUL WPL W10124350 Contact Us For Availability
11
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
12
SET SCREW WPL 257117 Contact Us For Availability
12
HOUSING/LWR.BEARING ASSY. WPL 21001511 Contact Us For Availability
12
BUMPER, CABINET WPL 354129 Contact Us For Availability
12
TUB ASSEMBLY (PLASTIC) WPL 353700 Contact Us For Availability
13
RESTRICTOR, FLOW WPL 352344 Contact Us For Availability
13
SUPPORT, TUB WPL 21001518 Contact Us For Availability
13
KIT, CABINET/REAR SHIELD (ALM) WPL 12001802 Contact Us For Availability
13
TOP, TUB (PLASTIC) WPL 21001531 Contact Us For Availability
14
SLIDE, MOTOR PIVOT WPL 353571 Contact Us For Availability
14
BRACE, TUB WPL 21001532 Contact Us For Availability
14
BUMPER, CABINET WPL 332653 Contact Us For Availability
14
BASE, AGITATOR WPL 21001530 Contact Us For Availability
15
WASHER, MOTOR ISOLATOR WPL 339967 Contact Us For Availability
15
SCREW, SUSP HSG TO LWR BRG ASY WPL 257895 Contact Us For Availability
15
SHIELD,REAR(NLA,ORDER CAB KIT) WPL 352108 Contact Us For Availability
16
WASHER, FLAT WPL 257047 Contact Us For Availability
16
HOUSING, SUSPENSION WPL 21001163 Contact Us For Availability
16
SCREW WPL 257732 Contact Us For Availability
17
NUT, MOTOR PLATE ASY TO MOTOR WPL 257325 Contact Us For Availability
17
RETAINER, BRAKE SPRING WPL 352017 Contact Us For Availability
17
VALVE, WATER WPL 352374N Contact Us For Availability
18
CLAMP WPL 257867 Contact Us For Availability
19
SCREW 5/16-18X3/4 WPL 257930 Contact Us For Availability
19
HOSE, FLUME/DIVERTER (RUBBER) WPL 352378 Contact Us For Availability
20
BAR, STABILIZER (WITH GUIDE) WPL 352049 Contact Us For Availability
20
SCREW,HIGH PERFORMANCE PLASTIC WPL 21001509 Contact Us For Availability
21
BRACKET, STABILIZER WPL 352046 Contact Us For Availability
21
BRAKE ROTOR & LINING ASSY WPL 352948 Contact Us For Availability
21
CLAMP, PRESSURE SWITCH HOSE WPL 257796 Contact Us For Availability
22
PIN, STABILIZER WPL 352052 Contact Us For Availability
22
SNUBBER WPL 21001161 Contact Us For Availability
23
FOOT PAD ASSY. (REAR) WPL 353020 Contact Us For Availability
23
STATOR, BRAKE WPL 352018 Contact Us For Availability
23
RETAINER, DRAIN HOSE WPL 22002701 Contact Us For Availability
24
HOSE, INLET (COLD) WPL 353400 Contact Us For Availability
25
BASE WPL 21001169 Contact Us For Availability
25
TRANS. ASSY.(W/O SEAL/BEARING) WPL 21001536 Contact Us For Availability
25
STRAINER & WASHER KIT WPL 334264N Contact Us For Availability
26
SPEEDNUT WPL 257845 Contact Us For Availability
26
TUB SEAL ASSEMBLY WPL 12001598 Contact Us For Availability
26
CLAMP, DISCHARGE HOSE WPL 257080 Contact Us For Availability
27
HOSE, TUB TO PUMP WPL 353584 Contact Us For Availability
27
TUB SEAL/HUB ASSY (HT TRANS) WPL 352974 Contact Us For Availability
27
FLUME ASSEMBLY /WATER DIVERTER WPL 21001760 Contact Us For Availability
28
FOOT & PAD ASSY WPL 353507 Contact Us For Availability
28
SEAL,TRANSMISSION HOUSING(LIP) WPL 352010 Contact Us For Availability
28
SCREW WPL 253092 Contact Us For Availability
29
WASHER, SUSPENSION HOOK WPL Y257951 Contact Us For Availability
30
BELT SHIELD WPL 352512 Contact Us For Availability
31
SPACER WPL 257830 Contact Us For Availability
32
CLAMP, HOSE WPL 256068 Contact Us For Availability
33
PAD, MOTOR PLATE WPL 352065 Contact Us For Availability
35
SHIELD, MOTOR WPL 22002721 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002614 Contact Us For Availability
× ![]()
