  • LG CW-XC184HU Parts List

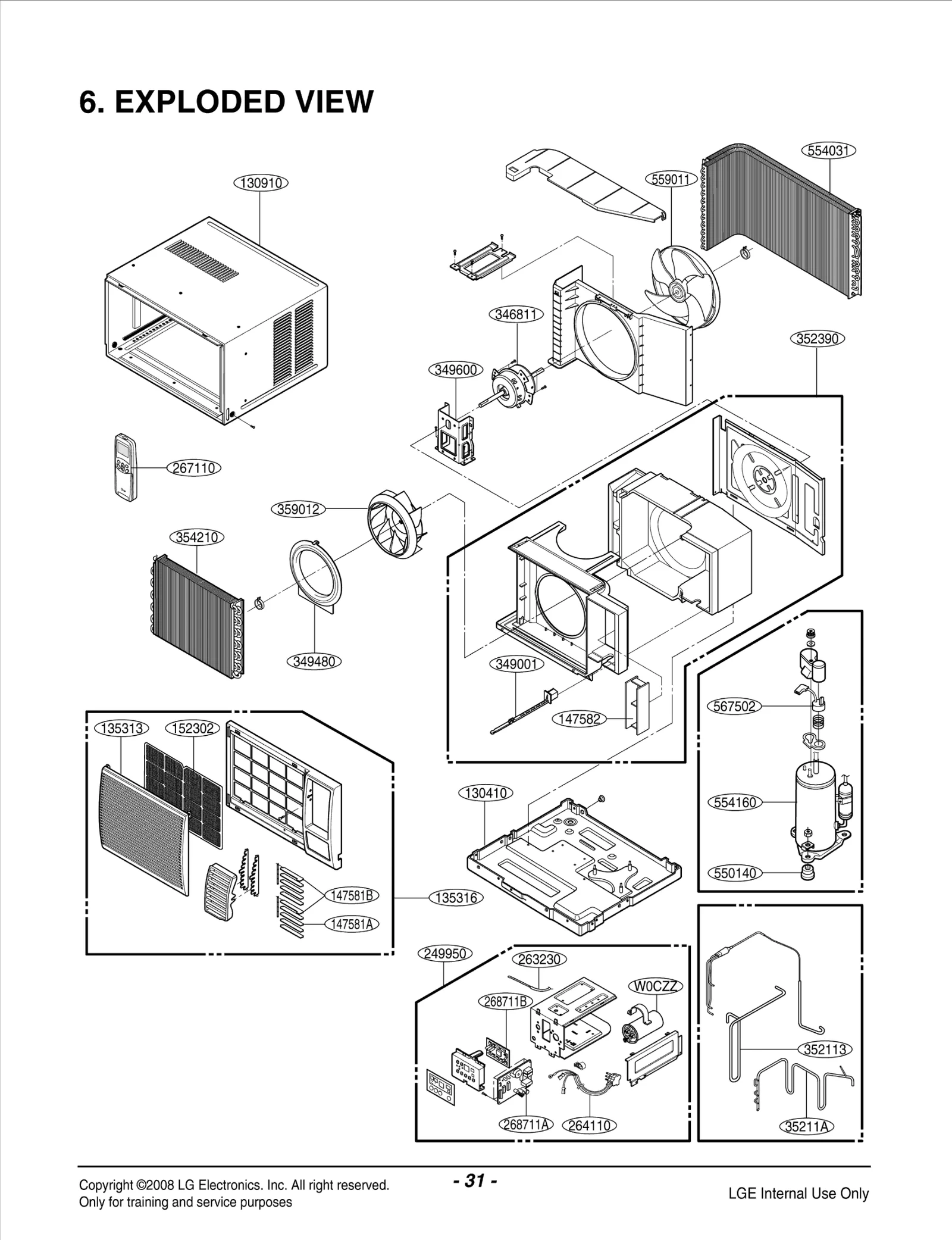

Model LG CW-XC184HU WINDOW AC – Common Parts & Diagrams

130410
Base Assembly,Single
Base Assembly,Single LGE 3041A30016B Contact Us For Availability
View on Model
130910
Cabinet Assembly,Single
Cabinet Assembly,Single LGE 3091AR6057P Contact Us For Availability
View on Model
135313
GRILLE,INLET
GRILLE,INLET LGE 3530A10139A Contact Us For Availability
View on Model
135316
GRILLE ASSEMBLY,FRONT(INDOOR)
GRILLE ASSEMBLY,FRONT(INDOOR) LGE 3531A10189A Contact Us For Availability
View on Model
147581A
LOUVER,HORIZONTAL
LOUVER,HORIZONTAL LGE 4758AR7264J Contact Us For Availability
View on Model
147581B
LOUVER,HORIZONTAL
LOUVER,HORIZONTAL LGE 4758AR7278J Contact Us For Availability
View on Model
147582
LOUVER
LOUVER LGE 4758AR6157A Contact Us For Availability
View on Model
152302
FILTER ASSEMBLY,AIR CLEANER
FILTER ASSEMBLY,AIR CLEANER LGE 5231AR6159L Contact Us For Availability
View on Model
249950
CONTROL BOX ASSEMBLY,SINGLE
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20315G Contact Us For Availability
View on Model
263230
THERMISTOR ASSY
THERMISTOR ASSY LGE 6323A20003D Contact Us For Availability
View on Model
264110
POWER CORD ASSY
POWER CORD ASSY LGE 2H00677X Contact Us For Availability
View on Model
267110
REMOTE CONTROLLER ASSEMBLY
REMOTE CONTROLLER ASSEMBLY LGE 6711A90018A Contact Us For Availability
View on Model
268711A
PWB(PCB) ASSEMBLY,MAIN
PWB(PCB) ASSEMBLY,MAIN LGE 6871A10070T Contact Us For Availability
View on Model
268711B
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20195T Contact Us For Availability
View on Model
346811
MOTOR ASSEMBLY,SINGLE
MOTOR ASSEMBLY,SINGLE LGE 4681A20011J Contact Us For Availability
View on Model
349480
ORIFICE
ORIFICE LGE 4948A20014A Contact Us For Availability
View on Model
349600
MOUNT,MOTOR
MOUNT,MOTOR LGE 4960AR2895B Contact Us For Availability
View on Model
352113
TUBE ASSY,DISCHARGE
TUBE ASSY,DISCHARGE LGE 5211A30066A Contact Us For Availability
View on Model
352390
AIR GUIDE ASSEMBLY
AIR GUIDE ASSEMBLY LGE 5239A20001V Contact Us For Availability
View on Model
354210
EVAPORATOR ASSEMBLY,FIRST
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20017N Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A90005E Contact Us For Availability
View on Model
550140
BUSH ANTI VIBRATION QJ-COMP(96
BUSH ANTI VIBRATION QJ-COMP(96 LGE 4H00982C Contact Us For Availability
View on Model
554031
CONDENSER ASSEMBLY,BENT
CONDENSER ASSEMBLY,BENT LGE 5403A20062B Contact Us For Availability
View on Model
554160
COMPRESSOR SET
COMPRESSOR SET LGE 2520UMBK2KA Contact Us For Availability
View on Model
559011
FAN ASSEMBLY,AXIAL
FAN ASSEMBLY,AXIAL LGE 5901A20010A Contact Us For Availability
View on Model
