Model LG CW-XC100HU WINDOW – Common Parts & Diagrams

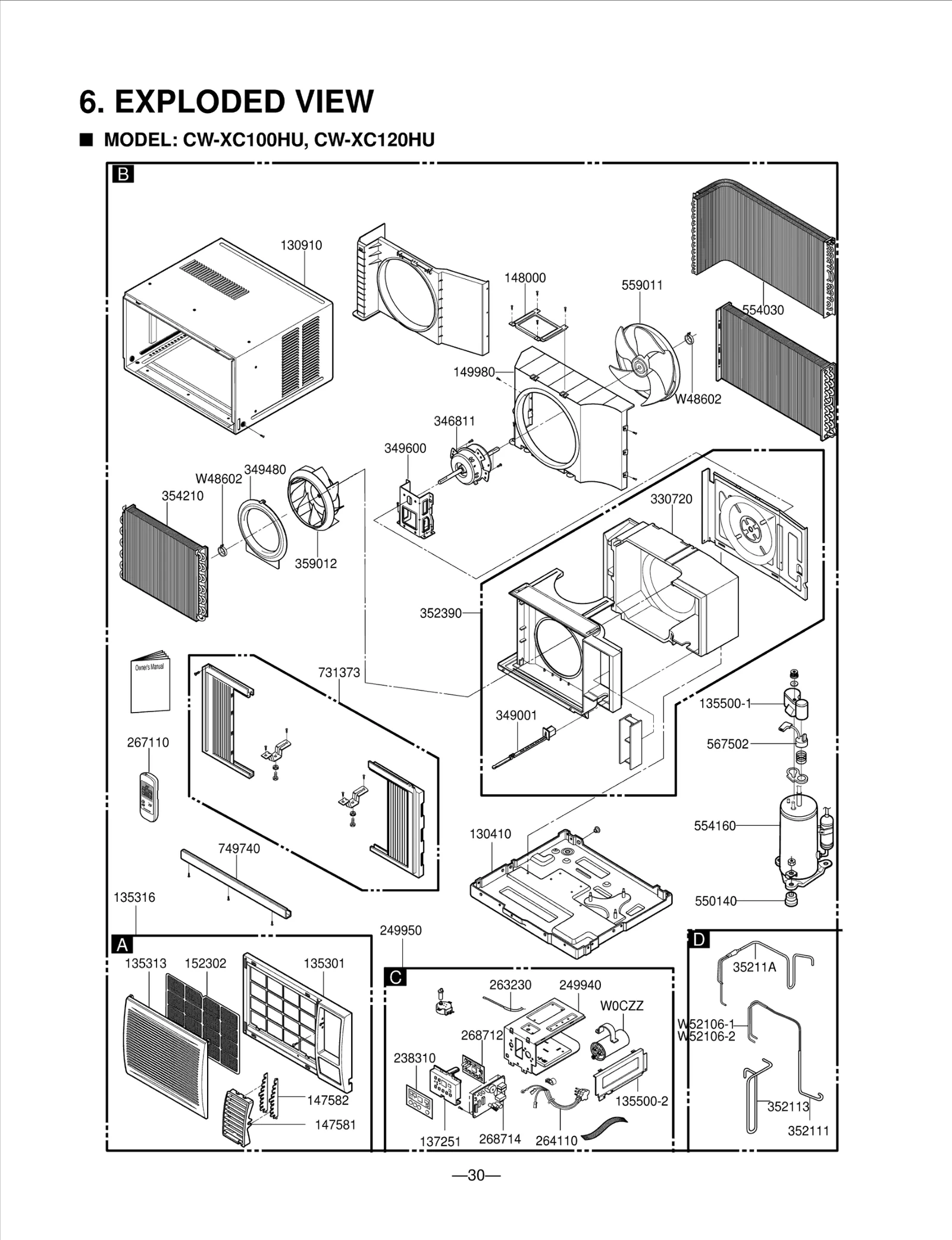

Diagram 0
Common parts from model LG CW-XC100HU WINDOW
130910
CABINET ASSEMBLY,SINGLE LGE 3091A10032R Contact Us For Availability
135301
GRILLE,FRONT LGE 3530A10136B Contact Us For Availability
135313
GRILLE,INLET LGE 3530A10137B Contact Us For Availability
135316
GRILLE ASSEMBLY,FRONT(INDOOR) LGE 3531A10188B Contact Us For Availability
135500-1
COVER,TERMINAL LGE 3550U-L006A Contact Us For Availability
137251
PANEL,CONTROL LGE 3720A10003A Contact Us For Availability
147581
LOUVER,HORIZONTAL LGE 4758AR2196B Contact Us For Availability
147582
LOUVER LGE 4758AR3307C Contact Us For Availability
152302
Filter,Air LGE 5231AR1152M Contact Us For Availability
238310
ESCUTCHEON LGE 3831A20034V Contact Us For Availability
249940
CONTROL BOX LGE 4994AR1221A Contact Us For Availability
249950
LGE 4995A20326U LGE 4995A20326U Contact Us For Availability
263230
THERMISTOR ASSY LGE 6323A20003D Contact Us For Availability
267110
REMOTE CONTROLLER ASSEMBLY LGE 6711A90018C Contact Us For Availability
268712
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20195R Contact Us For Availability
268714
PWB(PCB) ASSEMBLY,MAIN LGE 6871A10070Q Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20073E Contact Us For Availability
349001
DAMPER LGE 4900AR7024B Contact Us For Availability
349480
ORIFICE LGE 4948A10005A Contact Us For Availability
349600
MOUNT,MOTOR LGE 4960A20005A Contact Us For Availability
352390
AIR GUIDE ASSEMBLY LGE 5239A10006E Contact Us For Availability
354210
EVAPORATOR ASSY LGE 5421AR6086B Contact Us For Availability
554030
CONDENSER ASSY LGE 5403AR2921A Contact Us For Availability
554160
COMPRESSOR SET LGE 2520UKAC2JA Contact Us For Availability
731373
INSTALL PART ASSEMBLY,SINGLE LGE 3127A10015T Contact Us For Availability
749740
GUIDE UPPER LGE 4974AR3262E Contact Us For Availability
W52106-1
TUBE,EVA IN-1,2 LGE 5210AR7062A Contact Us For Availability
W52106-2
TUBE,EVA IN-1,2 LGE 5210AR7063A Contact Us For Availability
× ![]()
