Model Whirlpool CVG4380W GAS COOK-TOP – Common Parts & Diagrams

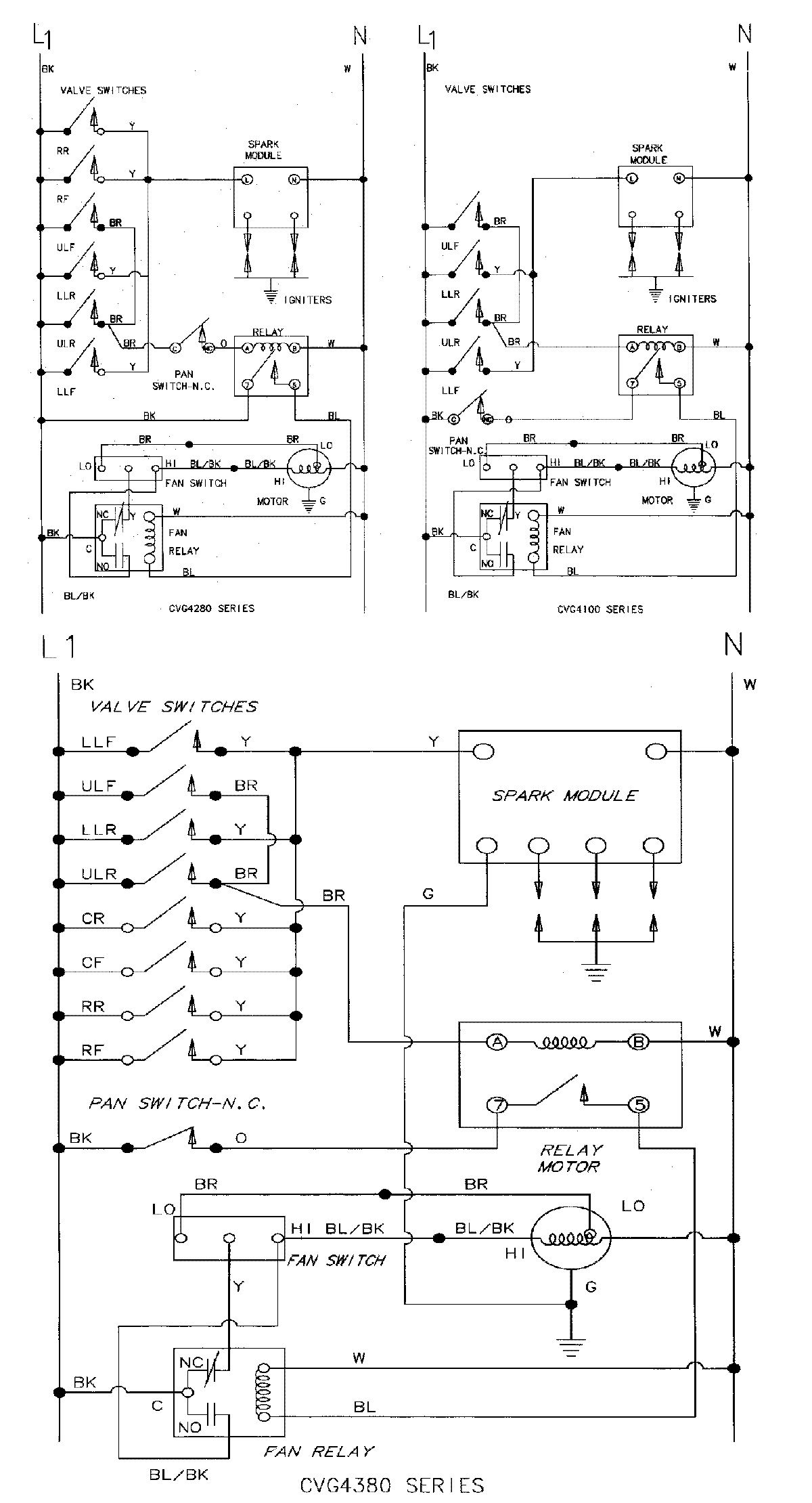

05 - WIRING INFORMATION

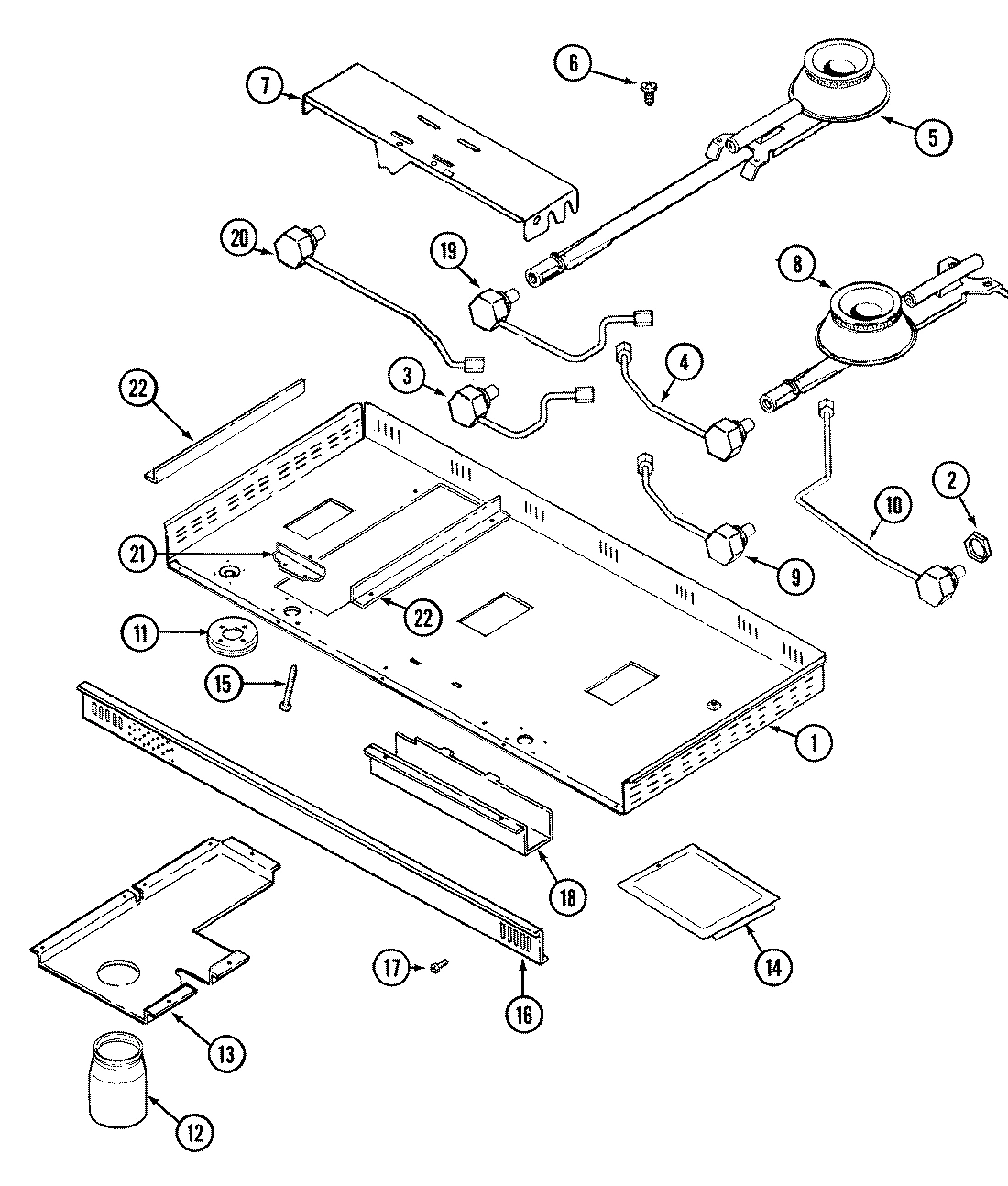

02 - BODY

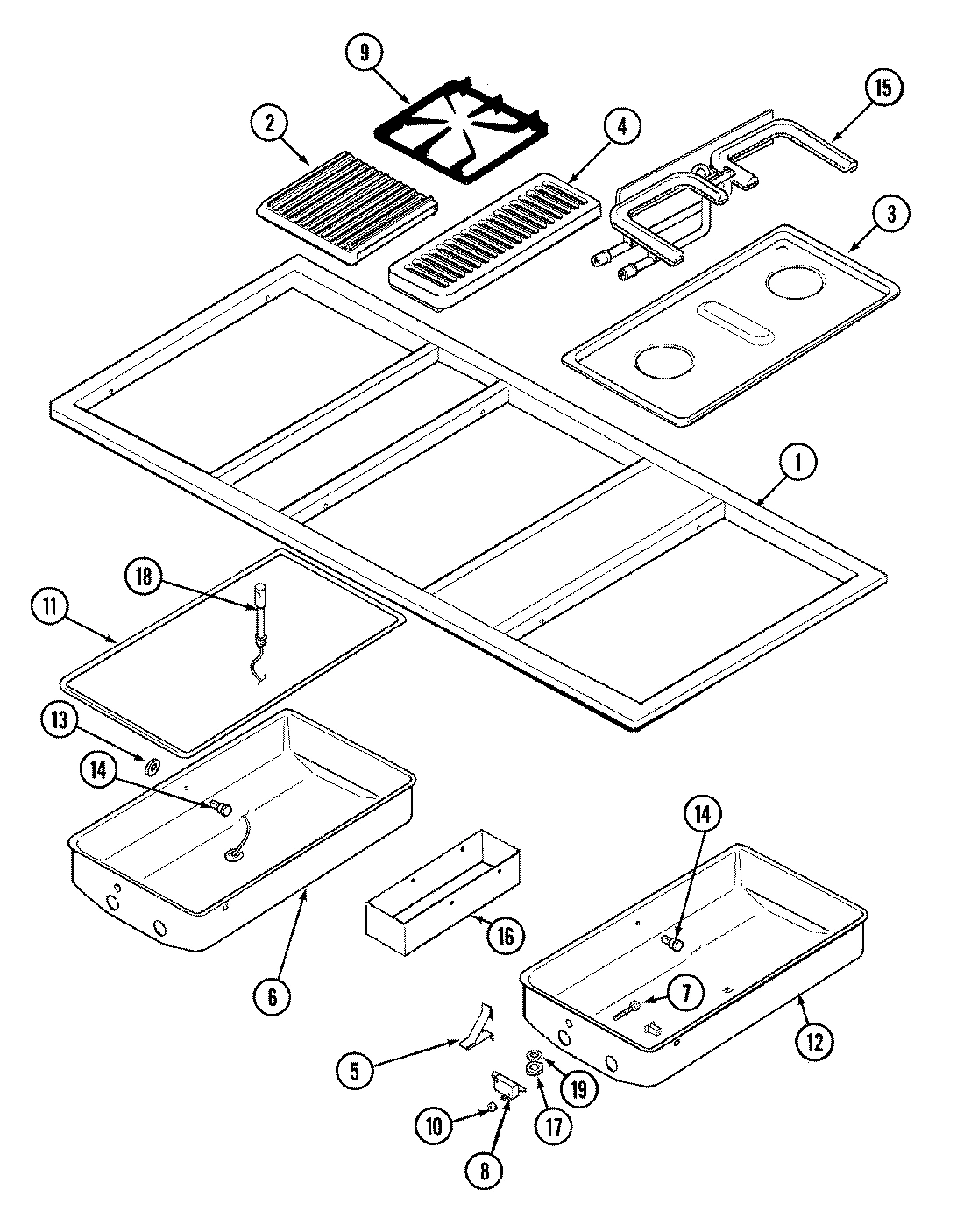

04 - TOP ASSEMBLY

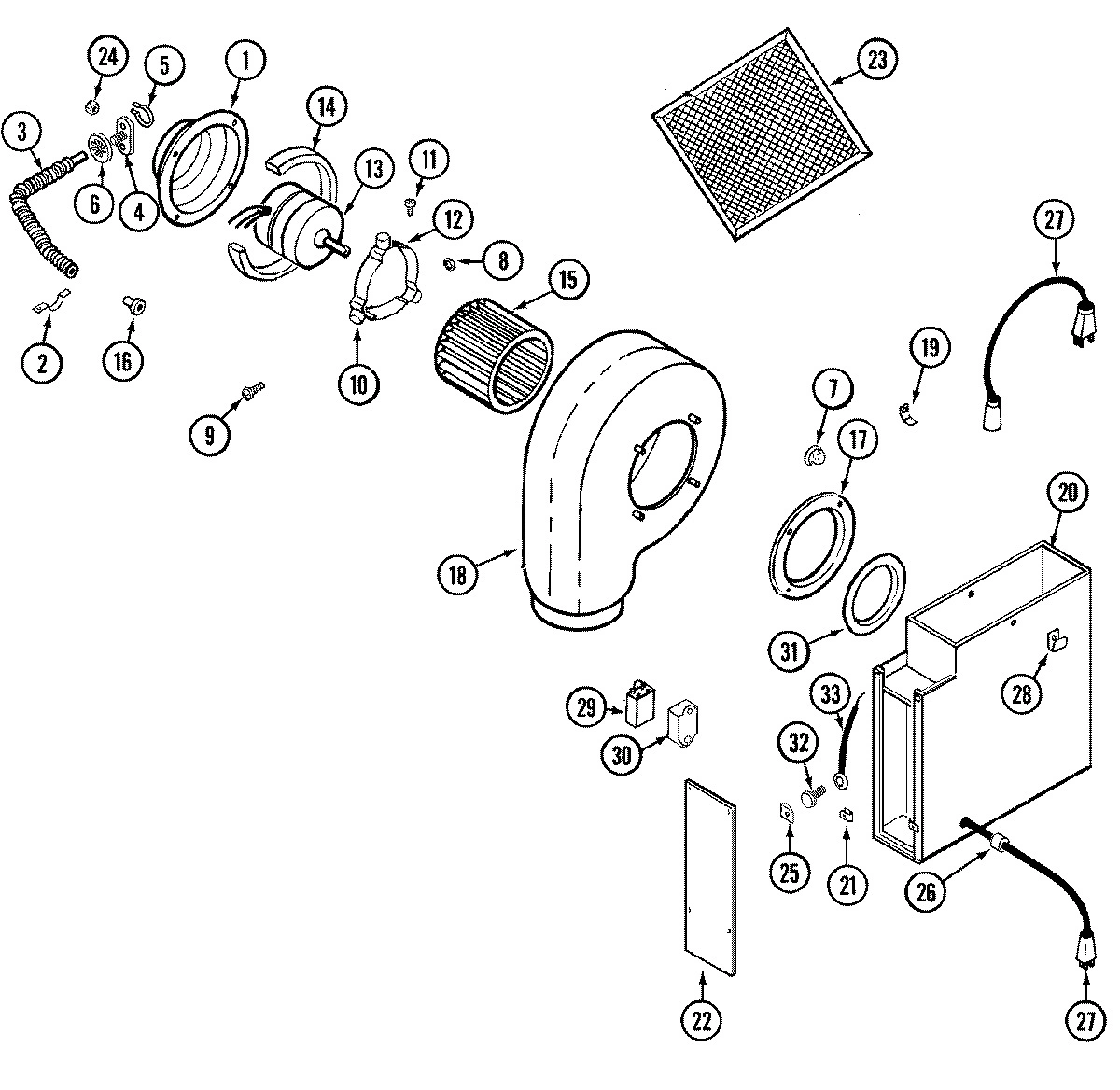

01 - BLOWER MOTOR/PLENUM

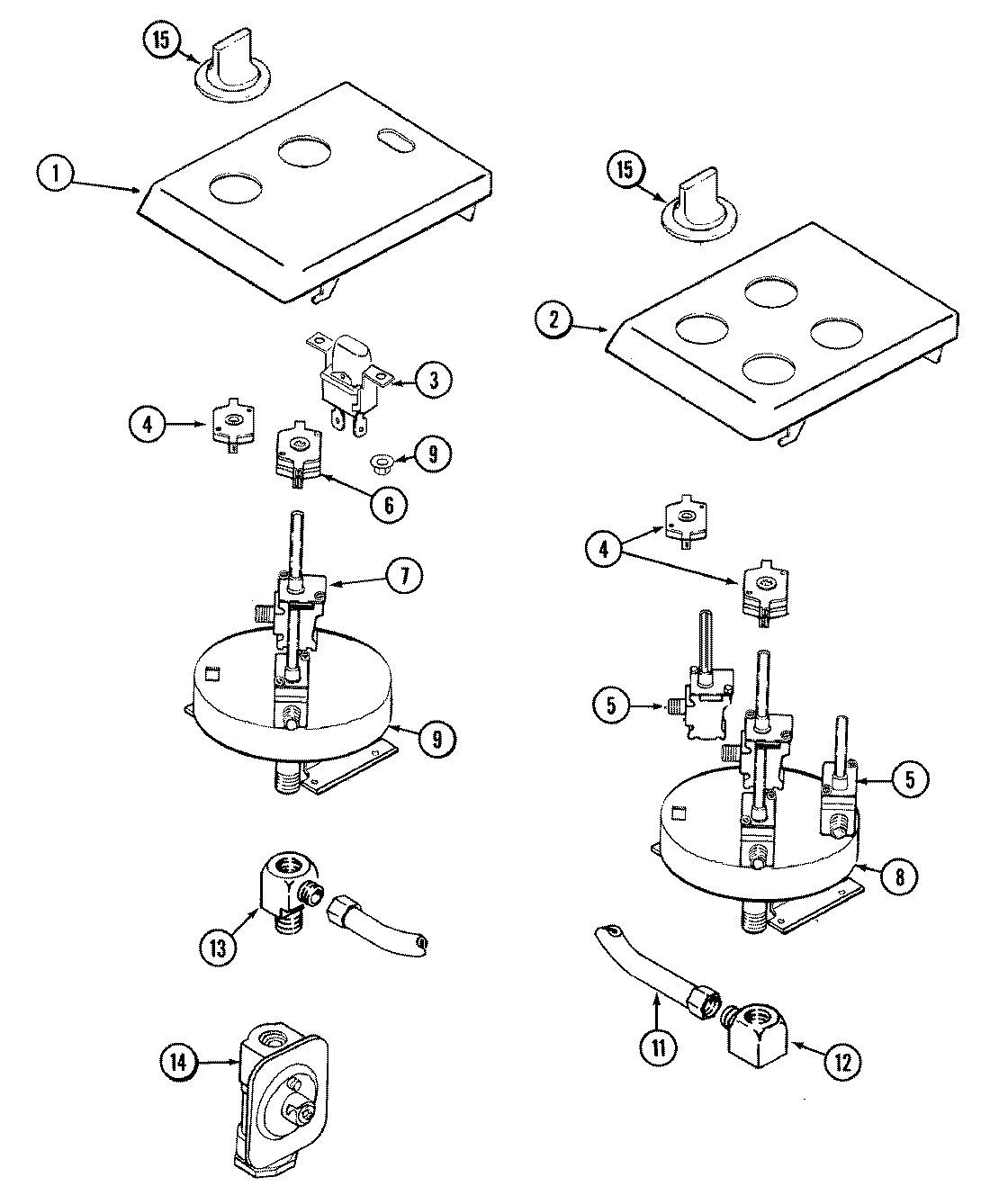

03 - CONTROL PANEL
Common parts from model Whirlpool CVG4380W GAS COOK-TOP
1
TOP WPL 701852 Contact Us For Availability
1
STANDOFF----NA WPL Y700672 Contact Us For Availability
1
COVER, MOTOR WPL Y704968 Contact Us For Availability
1
MOTOR COVER ASSY WPL Y712550 Contact Us For Availability
1
ESCUTCHEON, GAS (WHT) WPL 71001659 Contact Us For Availability
2
GRATE, GRILL WPL 71003267 Contact Us For Availability
2
GRATE, GRILL WPL Y04100054 Contact Us For Availability
2
TINNERMAN WPL 712310 Contact Us For Availability
2
ESCUTCHEON (WHT) WPL 71001656 Contact Us For Availability
3
KIT, BURNER TUBE WPL 12200043 Contact Us For Availability
3
PAN, AERATION (WHT) WPL Y704510 Contact Us For Availability
3
CONDUIT, METAL WPL Y705155 Contact Us For Availability
3
SWITCH, FAN (WHT) WPL 71001563 Contact Us For Availability
4
KIT, BURNER TUBE WPL 12200042 Contact Us For Availability
4
GRILL, AIR (WHT) WPL 71001655 Contact Us For Availability
4
CONNECTOR WPL Y705154 Contact Us For Availability
5
CLIP, STRESS WPL Y04100791 Contact Us For Availability
5
CLAMP, CABLE WPL 715780 Contact Us For Availability
5
VALVE GAS (LT) WPL 04100818 Contact Us For Availability
6
KIT GRILL PAN LH WPL 12200022 Contact Us For Availability
6
CLIP WPL Y707335 Contact Us For Availability
7
SCREW WPL 702380 Contact Us For Availability
7
LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability
8
BURNER, FRONT WPL Y705318 Contact Us For Availability
8
WASHER (TEFLON) WPL 715617 Contact Us For Availability
8
NUT WPL 707161 Contact Us For Availability
8
MANIFOLD (RIGHT) WPL 04100803 Contact Us For Availability
9
KIT, BURNER TUBE WPL 12200044 Contact Us For Availability
9
GRATE (GRAY) WPL 71001605 Contact Us For Availability
9
GRATE (LT GRY) WPL 71002313 Contact Us For Availability
9
GRATE (MEDIUM-GRY) WPL 71002973 Contact Us For Availability
9
SCREW WPL Y707402 Contact Us For Availability
9
MANIFOLD WPL Y04100807 Contact Us For Availability
10
KIT, BURNER TUBE WPL 12200045 Contact Us For Availability
10
NUT WPL Y704522 Contact Us For Availability
10
INSULATOR, SWITCH WPL Y704534 Contact Us For Availability
11
LID, JAR WPL Y706006 Contact Us For Availability
11
SEAL, PAN WPL Y704979 Contact Us For Availability
11
SCREW WPL 707407 Contact Us For Availability
11
TUBE, CROSSOVER WPL Y04100787 Contact Us For Availability
12
PAN, GRILL WPL Y04100517 Contact Us For Availability
12
BAND, MOTOR WPL Y707393 Contact Us For Availability
12
ELBOW, ADAPTER WPL Y04100790 Contact Us For Availability
13
BAFFLE, BOTTOM (LT) WPL 704527 Contact Us For Availability
13
MOTOR, BLOWER WPL 71001578 Contact Us For Availability
13
PALNUT WPL 71001561 Contact Us For Availability
13
TEE, PIPE WPL Y04100789 Contact Us For Availability
14
COVER, ACCESS(R.H) WPL 702333 Contact Us For Availability
14
FOAM, URETHANE WPL Y715957 Contact Us For Availability
16
COVER, BURNER BOX WPL Y04100726 Contact Us For Availability
16
BOX, UTENSIL WPL 04100834 Contact Us For Availability
16
BUSHING WPL 712311 Contact Us For Availability
17
RING, INLET WPL Y704758 Contact Us For Availability
18
COVER, TUBE WPL 71001537 Contact Us For Availability
18
IGNITER WPL 74004808 Contact Us For Availability
18
IGNITER WPL 74004809 Contact Us For Availability
18
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
19
KIT, BURNER TUBE WPL 12200047 Contact Us For Availability
19
LOCKWASHER WPL 704568 Contact Us For Availability
19
RETAINER, FILTER WPL Y707688 Contact Us For Availability
20
KIT, BURNER TUBE WPL 12200046 Contact Us For Availability
20
PLENUM WELD ASSY. WPL 04100812 Contact Us For Availability
21
BRACKET, PLENUM (FRT) WPL 71001536 Contact Us For Availability
21
CLIP WPL 705463 Contact Us For Availability
22
BRACKET, SIDE WPL 04100805 Contact Us For Availability
22
PLATE, COVER WPL 704547 Contact Us For Availability
25
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
26
RELIEF, STRAIN WPL Y04100254 Contact Us For Availability
27
CORD, POWER WPL Y04100253 Contact Us For Availability
28
CLIP, J WPL Y704423 Contact Us For Availability
29
RELAY WPL Y704541 Contact Us For Availability
30
BRACKET, SPARK MODULE WPL 04100809 Contact Us For Availability
31
RING, RESTRICTOR WPL Y704761 Contact Us For Availability
33
WIRE, GROUND WPL 04100248 Contact Us For Availability
33
WIRE GREEN WPL Y04100256 Contact Us For Availability
NI
HARNESS, WIRE WPL Y04100811 Contact Us For Availability
NI
CONNECTOR, CRIMP WPL Y705273 Contact Us For Availability
NI
INSULATOR, SPLICE CAP WPL Y705274 Contact Us For Availability
NI
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
NI
WIRE (BRN) WPL 71001566 Contact Us For Availability
NI
WIRE (YLW) WPL 71001567 Contact Us For Availability
NI
WIRE (BLU-BLK) WPL 71001568 Contact Us For Availability
NI
HARNESS, WIRE WPL 71001647 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 71002032 Contact Us For Availability
NI
NUT, PUSH WPL Y04100035 Contact Us For Availability
NI
LP CONVERSION KIT WPL Y04100687 Contact Us For Availability
× ![]()
