Model Whirlpool CVG4100B GAS COOK-TOP – Common Parts & Diagrams
02 - BODY

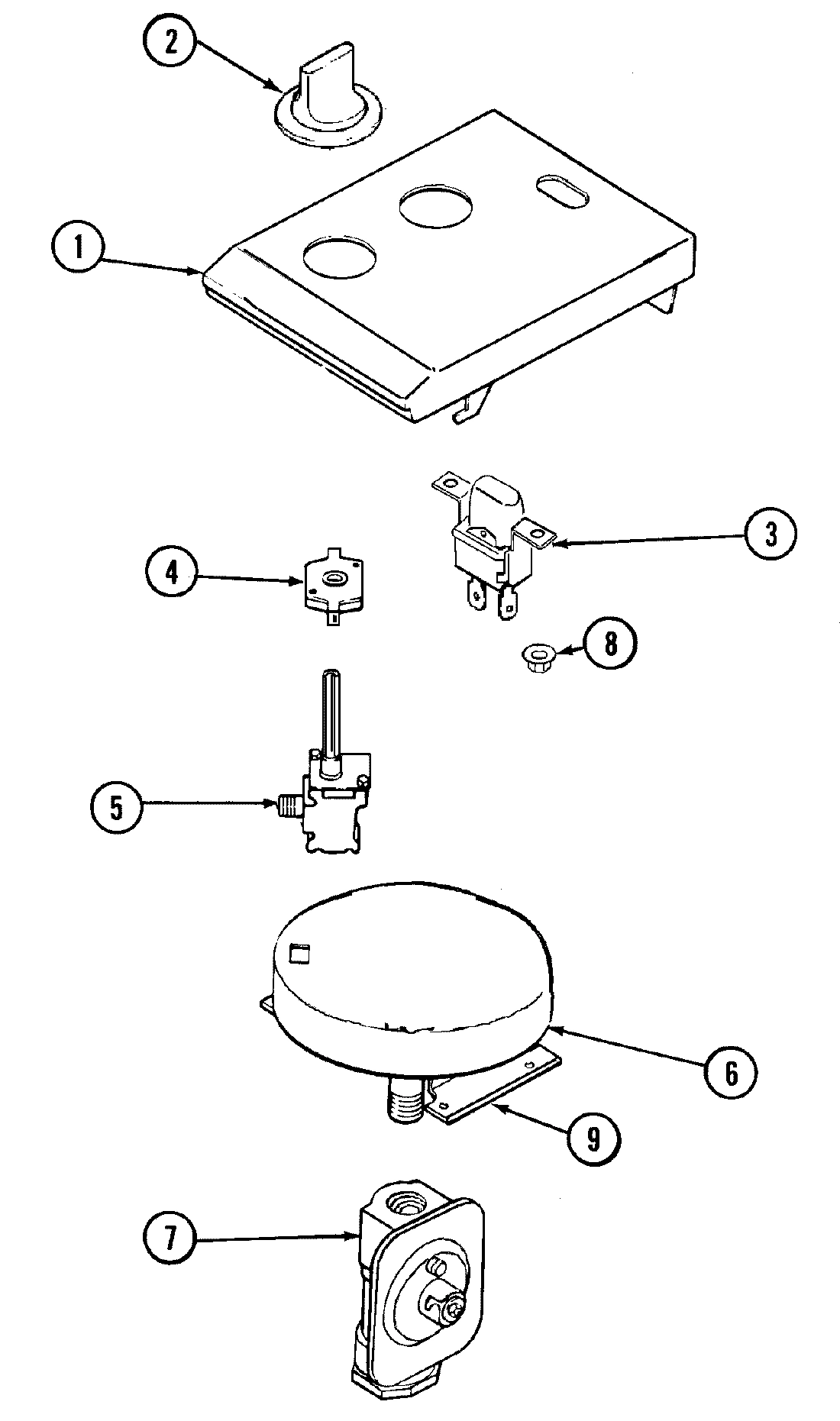

03 - CONTROL PANEL

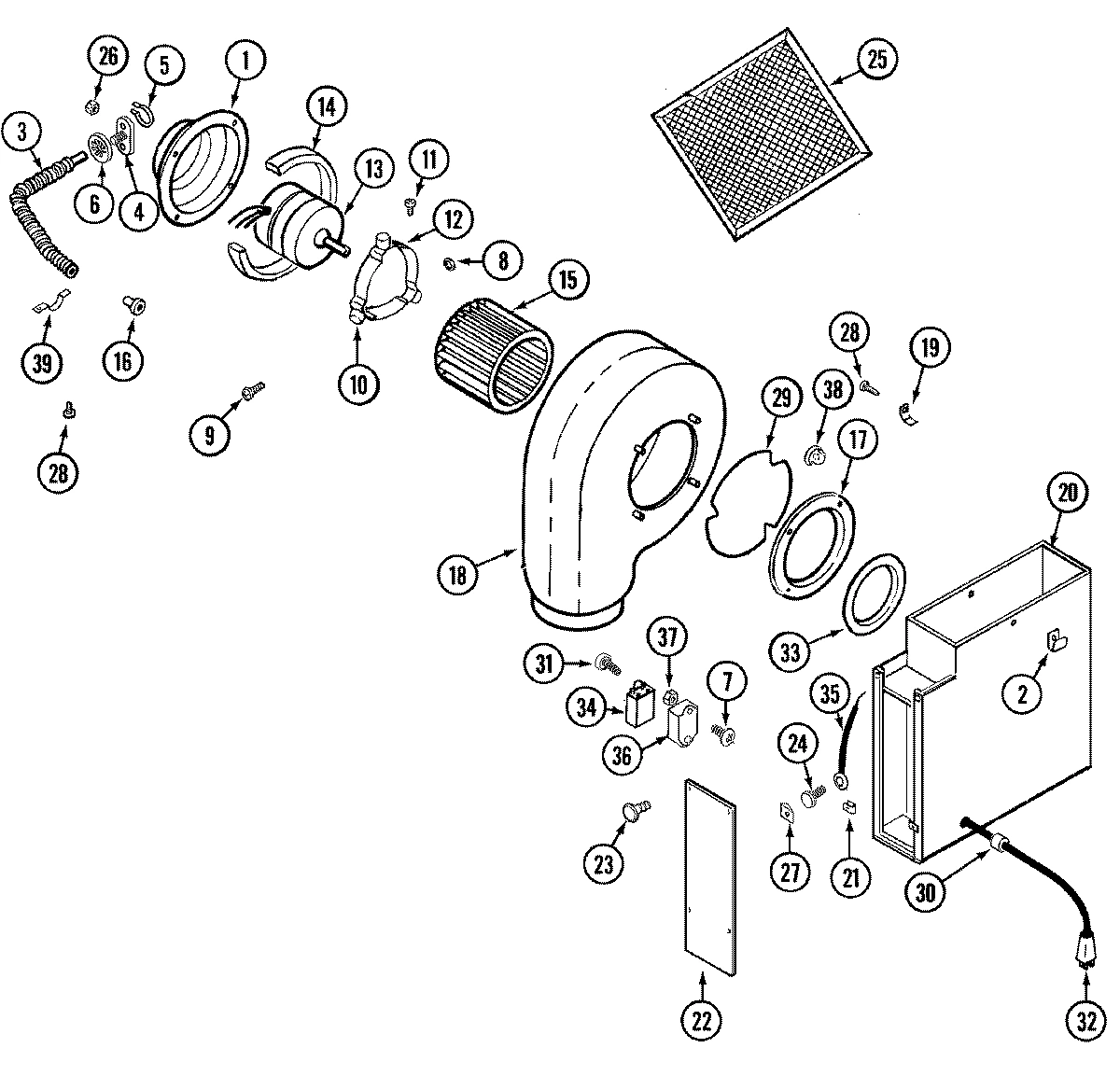

01 - BLOWER ASSEMBLY-PLENUM

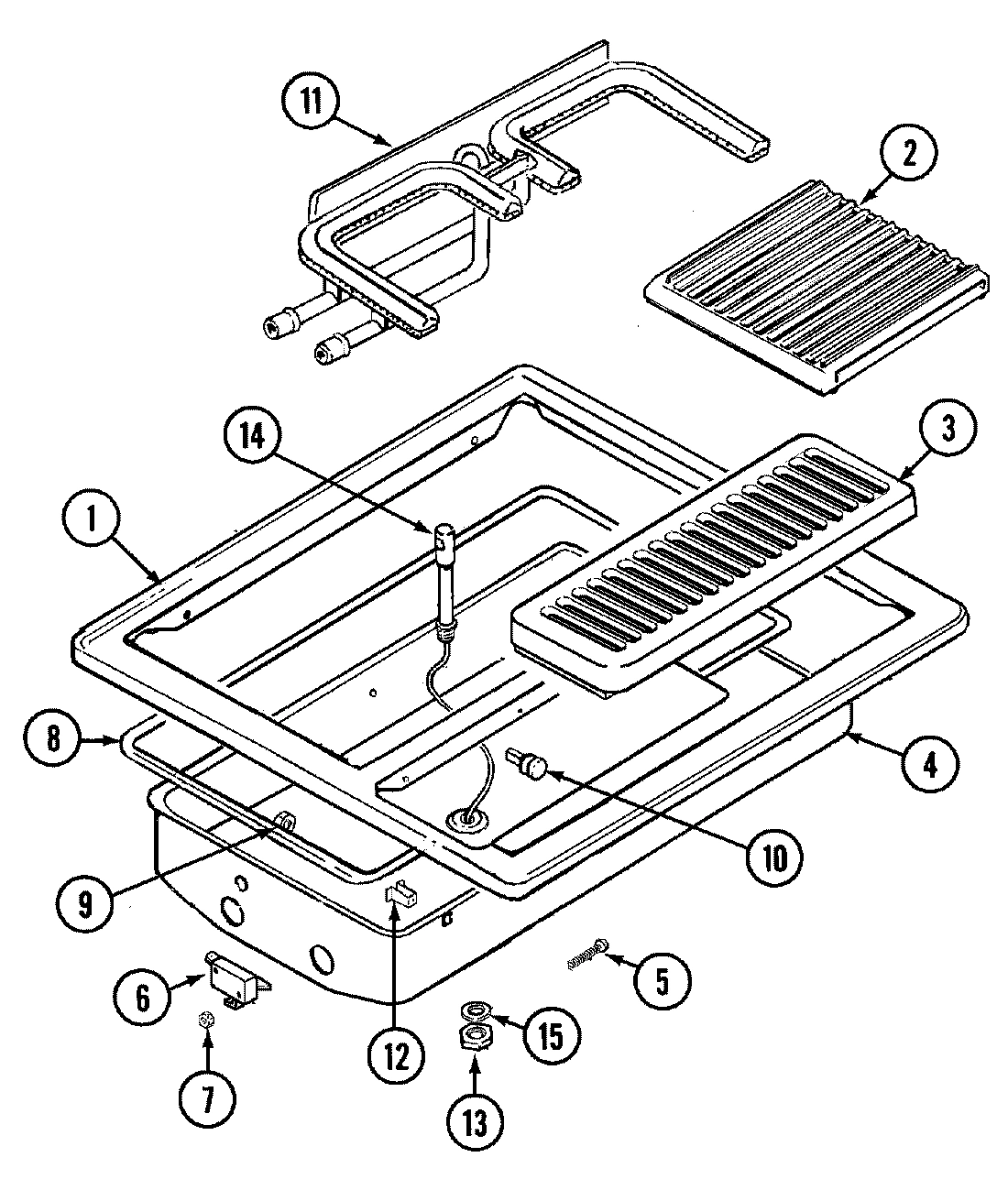

04 - TOP ASSEMBLY

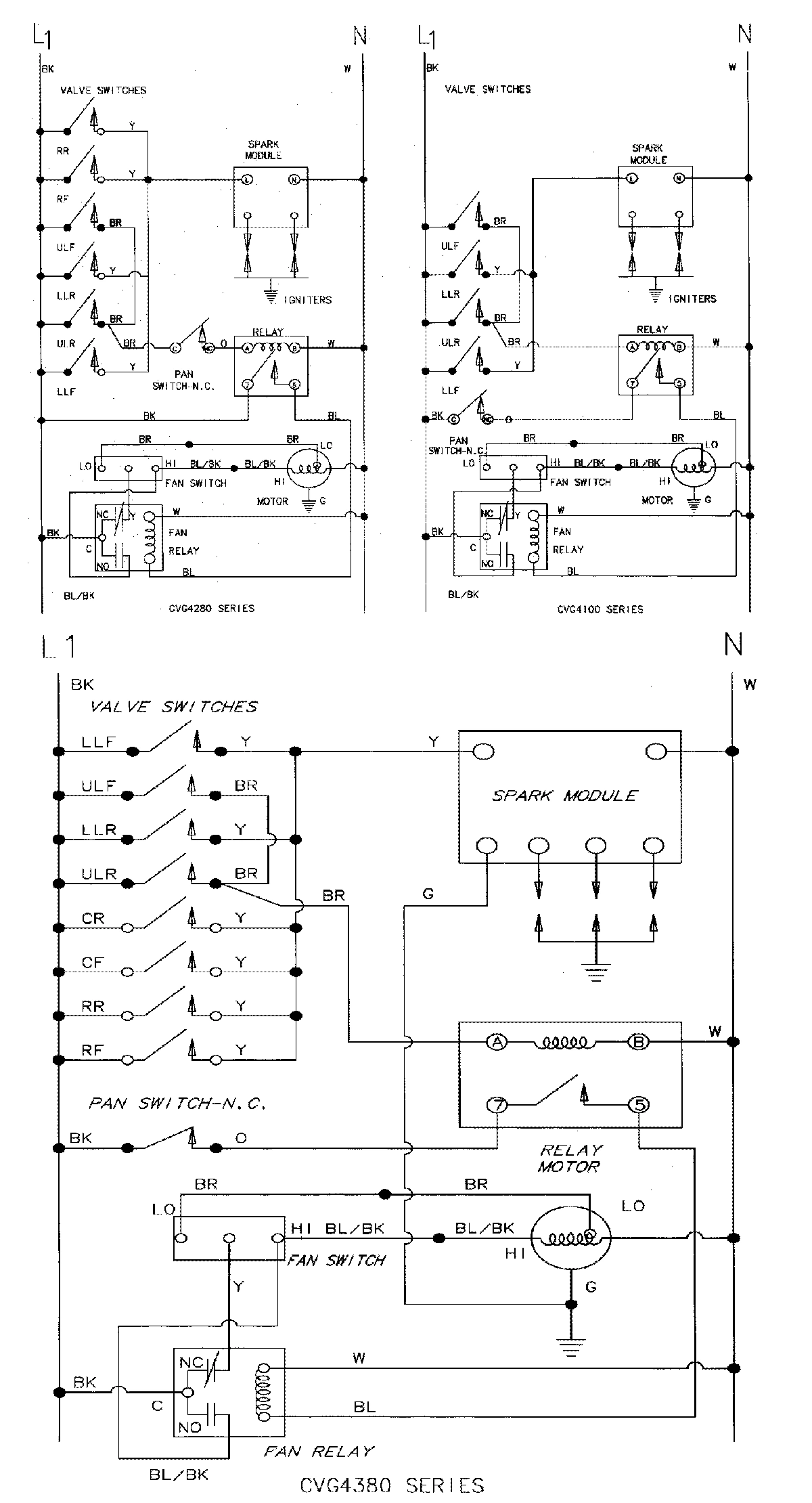

05 - WIRING INFORMATION
Common parts from model Whirlpool CVG4100B GAS COOK-TOP
1
ESCUTCHEON, GAS (BLK) WPL 71001640 Contact Us For Availability
1
COVER, MOTOR WPL Y704968 Contact Us For Availability
1
TOP, UNIT (BLK) WPL Y704992 Contact Us For Availability
2
GRATE, GRILL WPL 71003267 Contact Us For Availability
2
GRATE, GRILL WPL Y04100054 Contact Us For Availability
3
SWITCH, FAN (BLK) WPL 71001564 Contact Us For Availability
3
CONDUIT, METAL WPL Y705155 Contact Us For Availability
3
GRILL, AIR (BLK) WPL 71001648 Contact Us For Availability
4
CONNECTOR WPL Y705154 Contact Us For Availability
4
KIT GRILL PAN LH WPL 12200022 Contact Us For Availability
5
COVER, FRONT WPL Y704385 Contact Us For Availability
5
CLAMP, CABLE WPL 715780 Contact Us For Availability
5
SCREW WPL 702380 Contact Us For Availability
6
MANIFOLD WPL Y04100807 Contact Us For Availability
6
CLIP WPL Y707335 Contact Us For Availability
6
INSULATOR, SWITCH WPL Y704534 Contact Us For Availability
7
BAFFLE, BOTTOM (LT) WPL 704527 Contact Us For Availability
7
SCREW WPL Y707150 Contact Us For Availability
7
WASHER (TEFLON) WPL 715617 Contact Us For Availability
7
NUT WPL Y704522 Contact Us For Availability
8
PALNUT WPL 71001561 Contact Us For Availability
8
NUT WPL 707161 Contact Us For Availability
8
SEAL, PAN WPL Y704979 Contact Us For Availability
9
BRACKET, MANIFOLD WPL 71001642 Contact Us For Availability
9
SCREW WPL Y707402 Contact Us For Availability
10
SCREW WPL Y707121 Contact Us For Availability
11
LID, JAR WPL Y706006 Contact Us For Availability
11
SCREW WPL 707407 Contact Us For Availability
12
BAND, MOTOR WPL Y707393 Contact Us For Availability
12
CLIP, RETAINER WPL Y700503 Contact Us For Availability
13
MOTOR, BLOWER WPL 71001578 Contact Us For Availability
14
FOAM, URETHANE WPL Y715957 Contact Us For Availability
15
LOCKWASHER WPL 704568 Contact Us For Availability
16
BUSHING WPL 712311 Contact Us For Availability
17
RING, INLET WPL Y704758 Contact Us For Availability
18
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
19
RETAINER, FILTER WPL Y707688 Contact Us For Availability
20
PLENUM WPL 712434 Contact Us For Availability
21
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
22
PLATE, COVER WPL 704547 Contact Us For Availability
27
CLIP, J WPL Y704423 Contact Us For Availability
33
RING, RESTRICTOR WPL Y704761 Contact Us For Availability
34
RELAY WPL Y704541 Contact Us For Availability
35
WIRE, GROUND WPL 04100248 Contact Us For Availability
36
MODULE, SPARK WPL Y704540 Contact Us For Availability
38
LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability
39
TINNERMAN WPL 712310 Contact Us For Availability
NI
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
NI
HARNESS, WIRE WPL 704384 Contact Us For Availability
NI
WIRE (BRN) WPL 71001566 Contact Us For Availability
NI
WIRE (YLW) WPL 71001567 Contact Us For Availability
NI
WIRE (BLU-BLK) WPL 71001568 Contact Us For Availability
NI
WIRE (BLUE)----NA WPL 71001643 Contact Us For Availability
NI
WIRE (WHT) WPL 71001644 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 71001645 Contact Us For Availability
NI
HARNESS, WIRE WPL 71001647 Contact Us For Availability
NI
WIRE GREEN WPL Y04100256 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002637 Contact Us For Availability
× ![]()
