Model Whirlpool CVE4180B-C ELECTRIC COOK-TOP – Common Parts & Diagrams
05 - WIRING INFORMATION

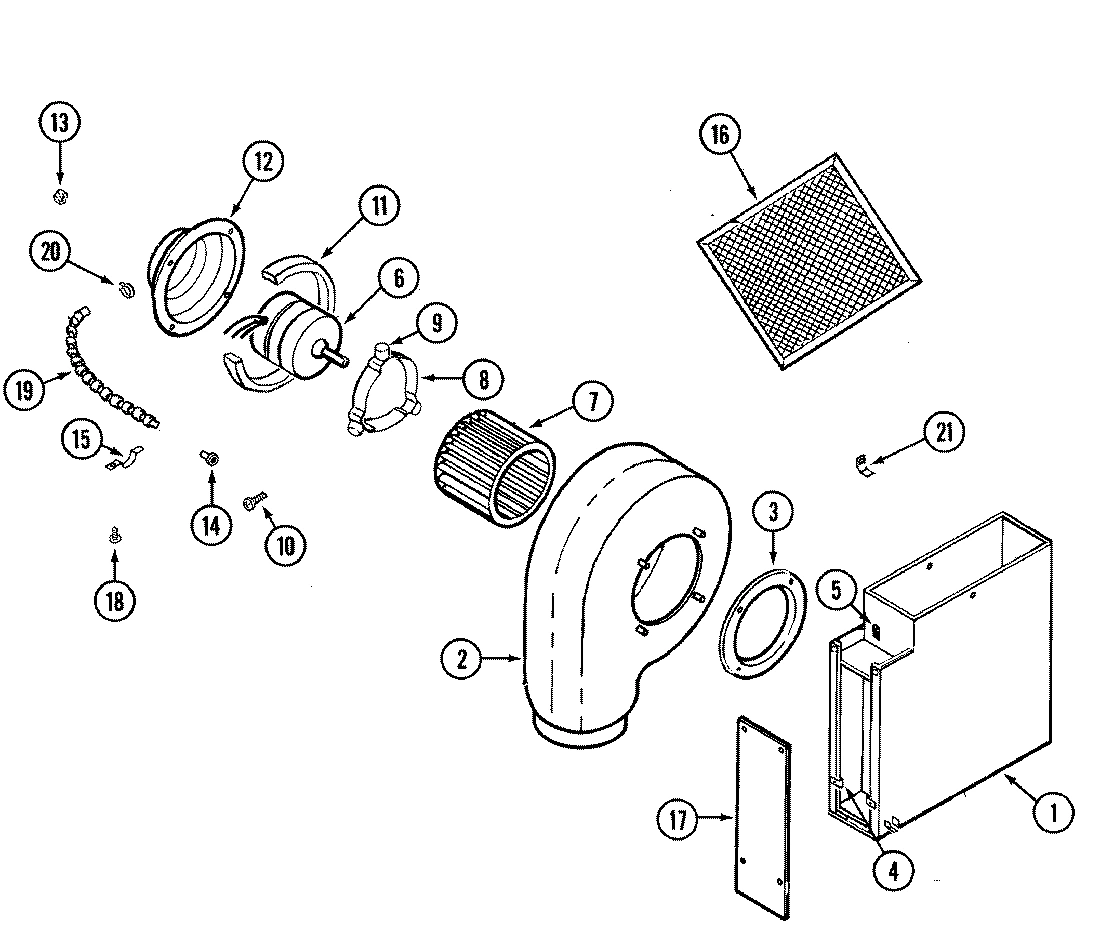

01 - BLOWER PLENUM

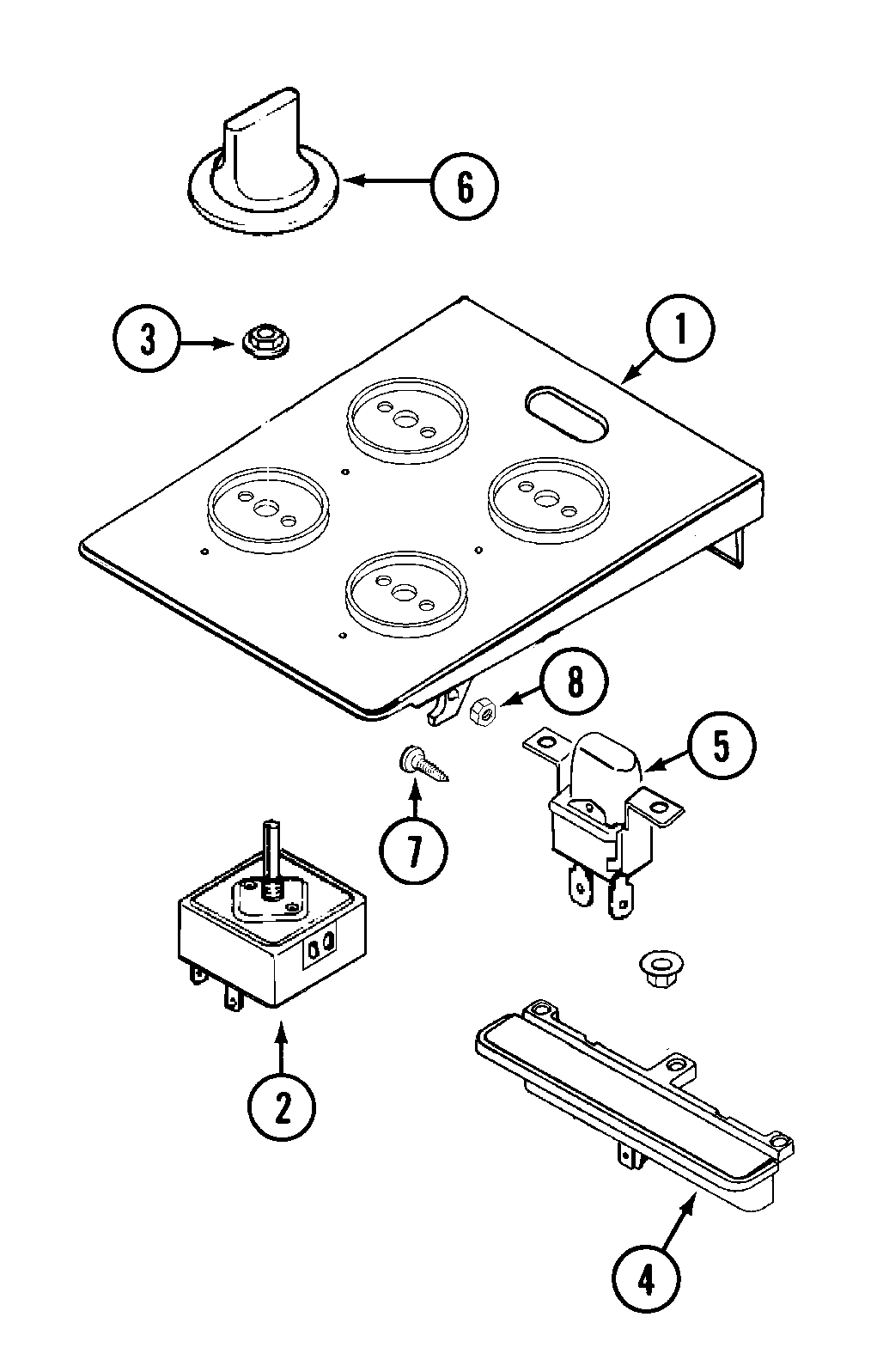

03 - CONTROL ASSEMBLY

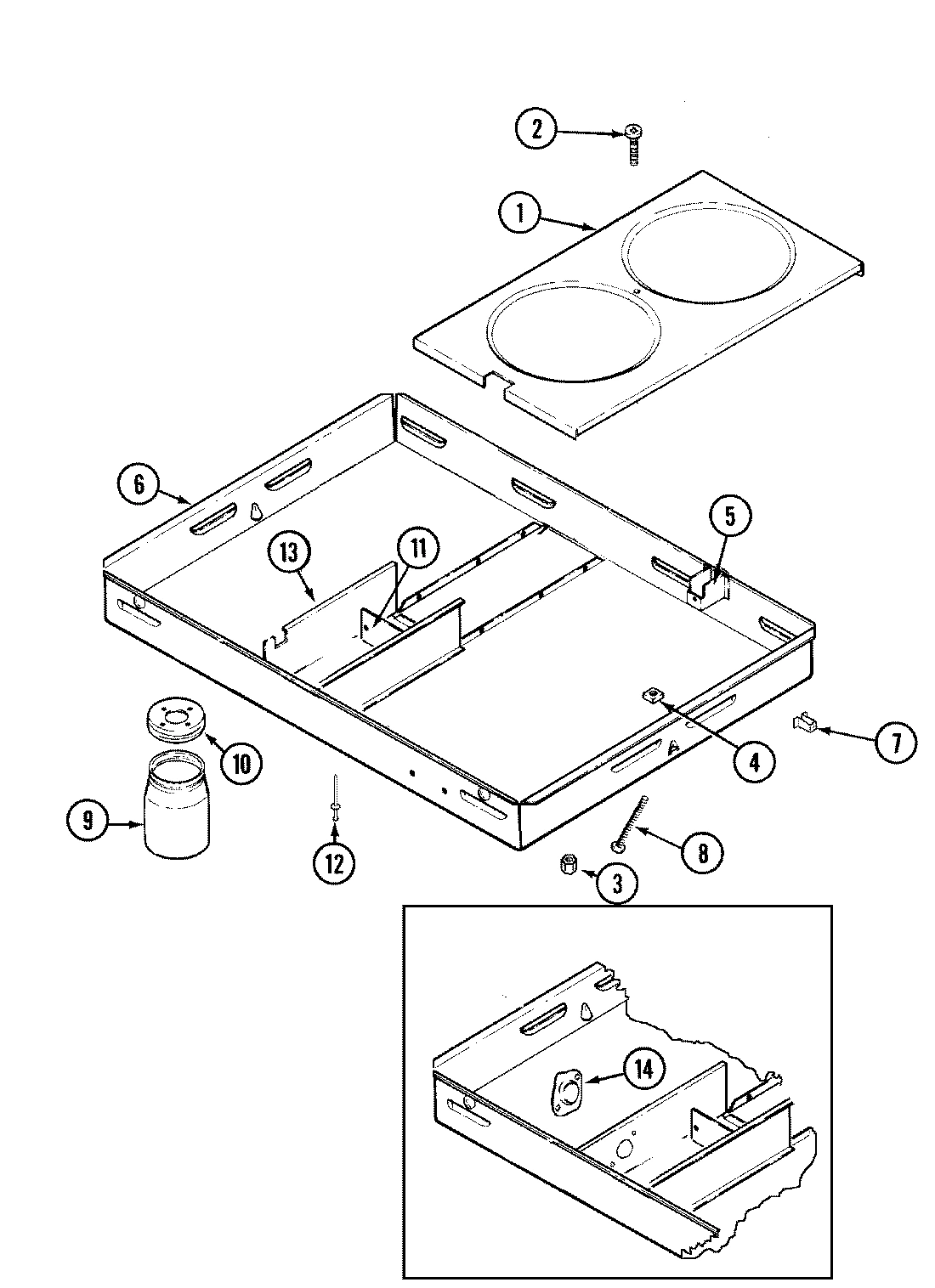

02 - BURNER BOX ASSY.

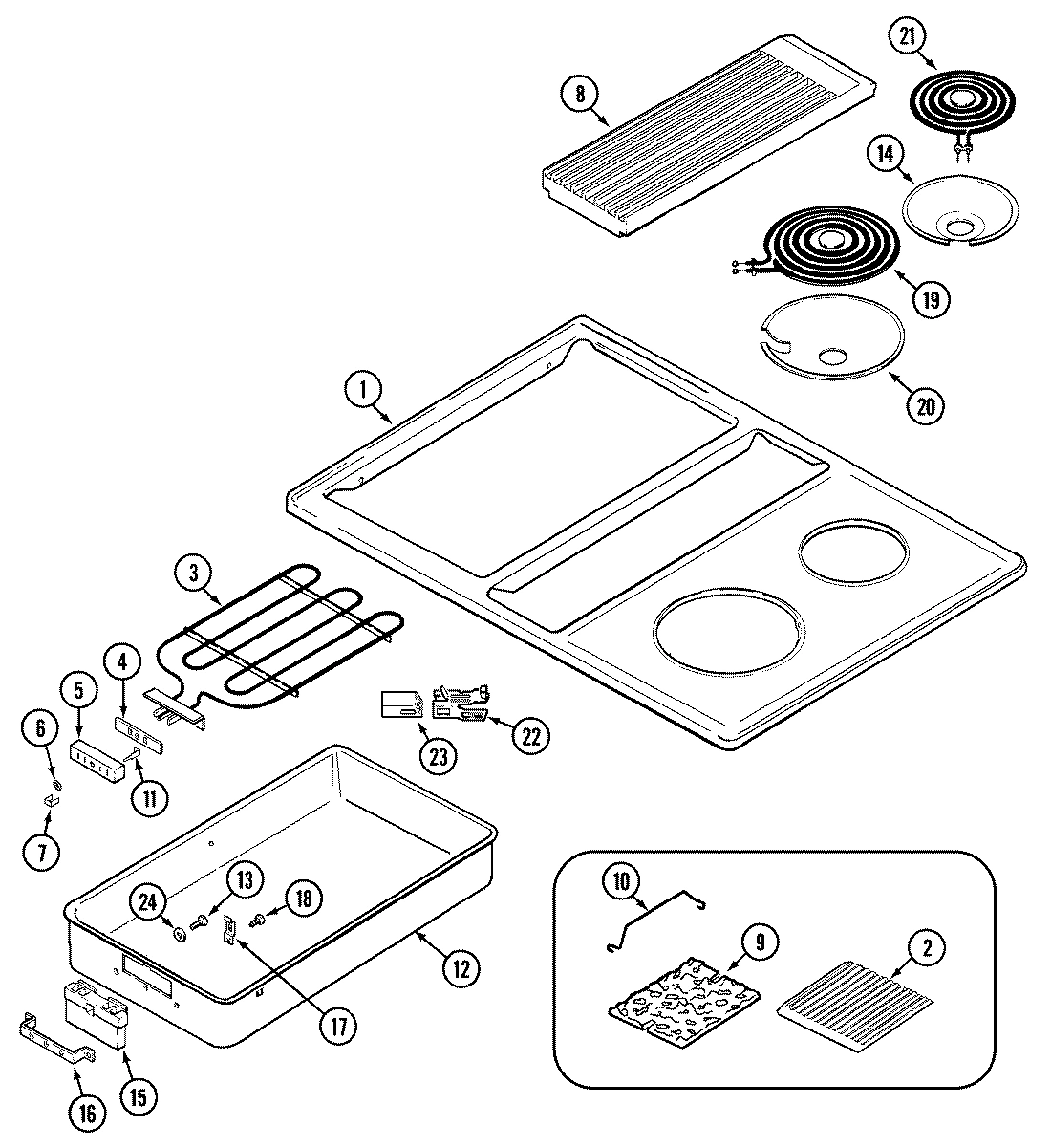

04 - MAIN TOP
Common parts from model Whirlpool CVE4180B-C ELECTRIC COOK-TOP
1
ESCUTCHEON WPL 71001559 Contact Us For Availability
1
INSERT, BURNER BOX WPL Y707822 Contact Us For Availability
1
TOP, COMBO (BLK) WPL 04100291 Contact Us For Availability
2
SCREW WPL Y707402 Contact Us For Availability
2
GRATE, GRILL (EXCALIBUR) WPL Y04100367 Contact Us For Availability
3
PALNUT WPL 71001561 Contact Us For Availability
3
PALNUT WPL 703293 Contact Us For Availability
3
PAD, SPACER WPL 715938 Contact Us For Availability
3
ELEMENT, GRILL WPL 71001573 Contact Us For Availability
3
ELEMENT, COMPLETE WPL Y712619 Contact Us For Availability
4
CLIP WPL Y707831 Contact Us For Availability
4
BOX, LIGHT ASSY. WPL 71001562 Contact Us For Availability
4
INSULATOR WPL Y700449 Contact Us For Availability
5
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
5
SWITCH, FAN (BLK) WPL 71001564 Contact Us For Availability
5
BRACKET, TOP SUPPORT WPL 703008 Contact Us For Availability
6
MOTOR, BLOWER WPL 71001578 Contact Us For Availability
6
BOX, BURNER WPL 04100395 Contact Us For Availability
7
GUARD, BLOWER WPL 71001534 Contact Us For Availability
7
CLIP, RETAINER WPL Y700503 Contact Us For Availability
7
CLIP, SHUNT WPL Y700450 Contact Us For Availability
8
BAND, MOTOR WPL Y707393 Contact Us For Availability
8
SCREW WPL Y704864 Contact Us For Availability
8
SCREW WPL Y707121 Contact Us For Availability
8
GRILL, AIR WPL 71001576 Contact Us For Availability
9
SCREW WPL 707407 Contact Us For Availability
9
PLATE, ROCK WPL 708929 Contact Us For Availability
10
SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability
10
NUT WPL 707161 Contact Us For Availability
10
LID, JAR WPL Y04100296 Contact Us For Availability
11
FOAM, URETHANE WPL Y715957 Contact Us For Availability
11
INSULATOR WPL 707746 Contact Us For Availability
12
CONNECTOR WPL 707766 Contact Us For Availability
12
COVER, MOTOR WPL Y704968 Contact Us For Availability
12
PAN, GRILL (LT) WPL 701955 Contact Us For Availability
12
CONTACT/WIRE ASSY. (BLU-RT) WPL Y701489 Contact Us For Availability
12
WIRE, BROWN WPL Y712197 Contact Us For Availability
12
WIRE, YELLOW WPL Y712200 Contact Us For Availability
12
WIRE, VIOLET WPL Y712203 Contact Us For Availability
13
BAFFLE, BURNER BOX WPL 04100396 Contact Us For Availability
14
BUSHING WPL 712311 Contact Us For Availability
14
LIMITER, THERMAL WPL 701925 Contact Us For Availability
14
LIMITER, THERMAL WPL Y704127 Contact Us For Availability
15
TINNERMAN WPL 712310 Contact Us For Availability
16
BRACKET WPL Y702698 Contact Us For Availability
17
PLATE, COVER WPL Y707681 Contact Us For Availability
19
CONDUIT, METAL WPL Y705155 Contact Us For Availability
20
CLAMP, CABLE WPL 715780 Contact Us For Availability
20
CLIP WPL Y707335 Contact Us For Availability
21
RETAINER, FILTER WPL Y707688 Contact Us For Availability
22
BRACKET, RECEPTACLE WPL Y712355 Contact Us For Availability
24
WASHER WPL Y707664 Contact Us For Availability
NI
BREAKER, CIRCUIT WPL Y715443 Contact Us For Availability
NI
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
NI
WIRE (BRN) WPL 71001566 Contact Us For Availability
NI
WIRE (YLW) WPL 71001567 Contact Us For Availability
NI
WIRE (BLU-BLK) WPL 71001568 Contact Us For Availability
NI
HARNESS, CONTROL WPL 71001569 Contact Us For Availability
NI
WIRE, PILOT LIGHT WPL 71001570 Contact Us For Availability
NI
WIRE (WHT) WPL 71001571 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 71001996 Contact Us For Availability
× ![]()
