Model Hotpoint CTFM15VBCL Refrigerator – Common Parts & Diagrams
0
1
2

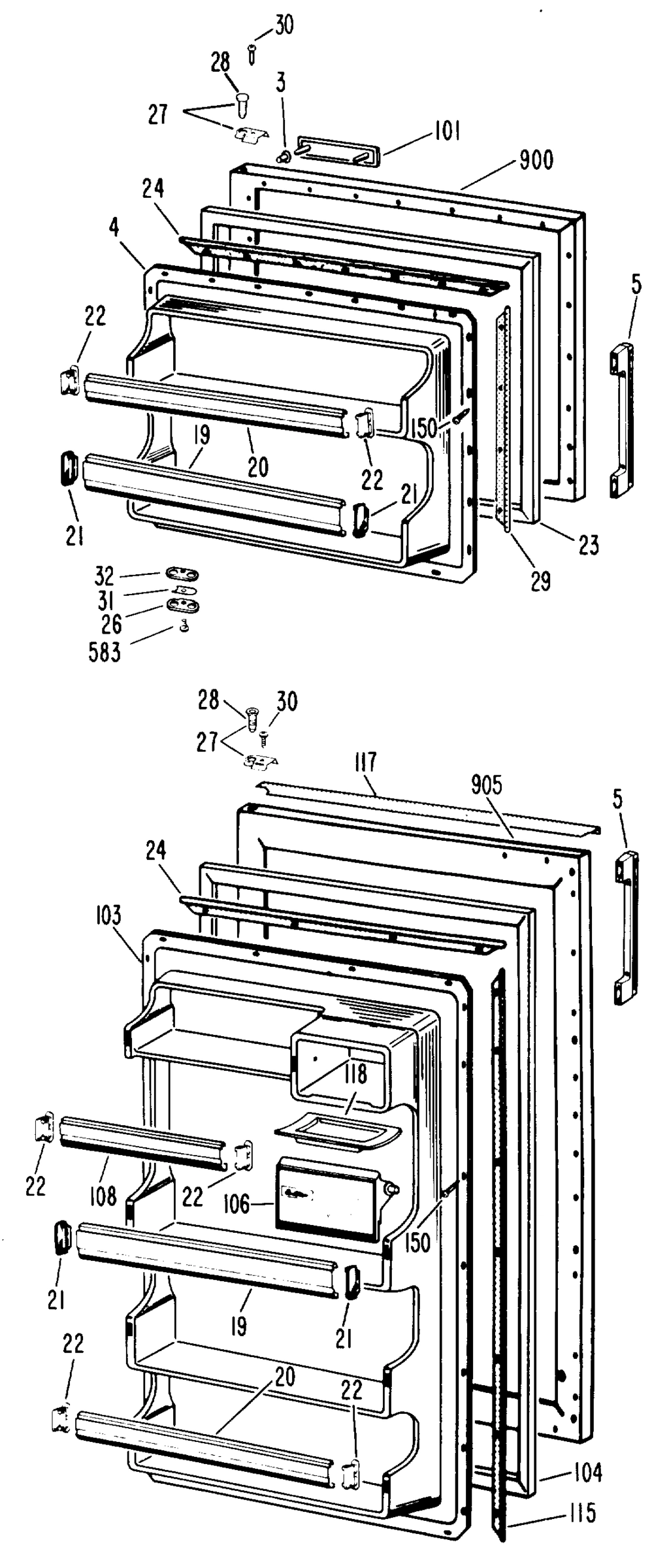

Common parts from model Hotpoint CTFM15VBCL Refrigerator
3
GEN WR02X3757 GEN WR02X3757 Contact Us For Availability
4
GEN WR77X5493 GEN WR77X5493 Contact Us For Availability
5
GEN WR12X5116 GEN WR12X5116 Contact Us For Availability
5
GEN WZ06X0112 GEN WZ06X0112 Contact Us For Availability
19
GEN WR71X5853 GEN WR71X5853 Contact Us For Availability
20
GEN WR71X5852 GEN WR71X5852 Contact Us For Availability
21
GEN WR02X4100 GEN WR02X4100 Contact Us For Availability
22
GEN WR02X5795 GEN WR02X5795 Contact Us For Availability
23
GEN WR24X0312 GEN WR24X0312 Contact Us For Availability
24
GEN WR02X4704 GEN WR02X4704 Contact Us For Availability
26
GEN WR02X6279 GEN WR02X6279 Contact Us For Availability
27
GEN WR02X6277 GEN WR02X6277 Contact Us For Availability
28
GEN WR02X6278 GEN WR02X6278 Contact Us For Availability
29
GEN WR02X4703 GEN WR02X4703 Contact Us For Availability
30
GEN WR01X5475 GEN WR01X5475 Contact Us For Availability
31
GEN WR02X4501 GEN WR02X4501 Contact Us For Availability
32
GEN WR02X6292 GEN WR02X6292 Contact Us For Availability
32
GEN WR02X7071 GEN WR02X7071 Contact Us For Availability
101
GEN WR04X5053 GEN WR04X5053 Contact Us For Availability
102
GEN WR02X4990 GEN WR02X4990 Contact Us For Availability
103
GEN WR77X5542 GEN WR77X5542 Contact Us For Availability
104
GEN WR24X0319 GEN WR24X0319 Contact Us For Availability
106
GEN WR22X5052 GEN WR22X5052 Contact Us For Availability
108
GEN WR71X5854 GEN WR71X5854 Contact Us For Availability
115
GEN WR02X7102 GEN WR02X7102 Contact Us For Availability
117
GEN WR38X5339 GEN WR38X5339 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
150
GEN WR01X5030 GEN WR01X5030 Contact Us For Availability
177
SCR 8-18 A HX 1/2 S GEN WR01X5034 Contact Us For Availability
178
PLUG BUTTON GEN WR02X6058 Contact Us For Availability
201
GEN WR40X1545 GEN WR40X1545 Contact Us For Availability
202
GEN WR40X1546 GEN WR40X1546 Contact Us For Availability
203
GEN WR17X1627 GEN WR17X1627 Contact Us For Availability
204
GEN WR02X4706 GEN WR02X4706 Contact Us For Availability
204
GEN WR02X4709 GEN WR02X4709 Contact Us For Availability
205
GEN WR40X1585 GEN WR40X1585 Contact Us For Availability
206
GEN WR40X1584 GEN WR40X1584 Contact Us For Availability
207
GEN WR02X4707 GEN WR02X4707 Contact Us For Availability
207
GEN WR40X1549 GEN WR40X1549 Contact Us For Availability
208
GEN WR51X5196 GEN WR51X5196 Contact Us For Availability
212
GEN WR71X5954 GEN WR71X5954 Contact Us For Availability
221
GEN WR02X4922 GEN WR02X4922 Contact Us For Availability
222
GROMMET DOOR STOP GEN WR13X0357 Contact Us For Availability
228
GEN WR71X5883 GEN WR71X5883 Contact Us For Availability
230
SUPPORT SHELF GEN WR02X2899 Contact Us For Availability
231
GEN WR02X3158 GEN WR02X3158 Contact Us For Availability
243
GEN WR32X5251 GEN WR32X5251 Contact Us For Availability
244
HANDLE PAN GEN WR38X5277 Contact Us For Availability
245
GEN WR32X0671 GEN WR32X0671 Contact Us For Availability
247
GEN WR02X4716 GEN WR02X4716 Contact Us For Availability
248
GEN WR02X6164 GEN WR02X6164 Contact Us For Availability
249
GEN WR02X6165 GEN WR02X6165 Contact Us For Availability
250
GEN WR02X5276 GEN WR02X5276 Contact Us For Availability
255
GEN WR04X5062 GEN WR04X5062 Contact Us For Availability
256
GEN WR02X4677 GEN WR02X4677 Contact Us For Availability
256
SWITCH POWER SAVER GEN WR23X0179 Contact Us For Availability
257
SCR 6-32 D TR 3/8 SS GEN WZ05X0160 Contact Us For Availability
260
GEN WR02X6161 GEN WR02X6161 Contact Us For Availability
261
GEN WR02X6809 GEN WR02X6809 Contact Us For Availability
263
GEN WR02X4098 GEN WR02X4098 Contact Us For Availability
263
GEN WR02X4099 GEN WR02X4099 Contact Us For Availability
264
WHEEL MOBILITY GEN WR02X5198 Contact Us For Availability
265
GEN WR01X5085 GEN WR01X5085 Contact Us For Availability
265
GEN WR01X5086 GEN WR01X5086 Contact Us For Availability
267
GEN WR82X0215 GEN WR82X0215 Contact Us For Availability
268
GEN WR02X5684 GEN WR02X5684 Contact Us For Availability
268
GEN WR17X5988 GEN WR17X5988 Contact Us For Availability
275
GEN WR13X5132 GEN WR13X5132 Contact Us For Availability
276
NUTSTRIP-TOP HINGE GEN WR02X4198 Contact Us For Availability
276
GEN WR13X5133 GEN WR13X5133 Contact Us For Availability
277
GEN WR17X5734 GEN WR17X5734 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
PIN HINGE GEN WR02X7063 Contact Us For Availability
281
GEN WR01X1355 GEN WR01X1355 Contact Us For Availability
282
GEN WR13X0519 GEN WR13X0519 Contact Us For Availability
283
GEN WR02X3856 GEN WR02X3856 Contact Us For Availability
285
GEN WR02X4720 GEN WR02X4720 Contact Us For Availability
288
GEN WR79X5147 GEN WR79X5147 Contact Us For Availability
289
GEN WR02X6383 GEN WR02X6383 Contact Us For Availability
290
GEN WR02X6384 GEN WR02X6384 Contact Us For Availability
295
GEN WR23X0162 GEN WR23X0162 Contact Us For Availability
300
CONTROL-TEMP. GEN WR09X0360 Contact Us For Availability
301
GEN WR02X4509 GEN WR02X4509 Contact Us For Availability
301
GEN WR02X4510 GEN WR02X4510 Contact Us For Availability
302
GEN WR02X3613 GEN WR02X3613 Contact Us For Availability
303
GEN WR02X7103 GEN WR02X7103 Contact Us For Availability
304
GEN WR17X1342 GEN WR17X1342 Contact Us For Availability
306
HOUSING-CONTROL GEN WR17X6015 Contact Us For Availability
307
LABEL COLD ZONE GEN WR02X4775 Contact Us For Availability
312
GEN WR02X6327 GEN WR02X6327 Contact Us For Availability
313
GEN WR17X1624 GEN WR17X1624 Contact Us For Availability
314
GEN WR02X4516 GEN WR02X4516 Contact Us For Availability
315
GEN WR02X4626 GEN WR02X4626 Contact Us For Availability
316
GEN WR02X4628 GEN WR02X4628 Contact Us For Availability
420
GEN WR30X0167 GEN WR30X0167 Contact Us For Availability
422
GEN WR01X1332 GEN WR01X1332 Contact Us For Availability
430
GEN WR51X5195 GEN WR51X5195 Contact Us For Availability
435
SOCKETLAMP GEN WR02X4049 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
SHIM HINGE BTM. GEN WR02X4497 Contact Us For Availability
452
GEN WR02X7011 GEN WR02X7011 Contact Us For Availability
453
NUT STRIP GEN WR02X4400 Contact Us For Availability
463
GEN WR02X7092 GEN WR02X7092 Contact Us For Availability
551
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
552
SCR 12-24 HXW 1 1/64 SPP GEN WR01X1587 Contact Us For Availability
560
SCR 12-24 AHXW 7/8 SPP GEN WR01X1249 Contact Us For Availability
564
SCR 1/4-14 BA HX 3/4 SN GEN WR01X1194 Contact Us For Availability
565
RIVET POP GEN WR01X1361 Contact Us For Availability
568
SCREW 8-32 X 3/4 DP HXW GEN WZ05X0137 Contact Us For Availability
579
GEN WR01X5427 GEN WR01X5427 Contact Us For Availability
580
GEN WR01X1557 GEN WR01X1557 Contact Us For Availability
581
SCR 8-18 BAT TR 3/4SSPLW GEN WZ06X0075 Contact Us For Availability
582
GEN WR01X1138 GEN WR01X1138 Contact Us For Availability
583
GEN WZ05X0200 GEN WZ05X0200 Contact Us For Availability
603
GEN WR17X1338 GEN WR17X1338 Contact Us For Availability
604
GEN WR14X0268 GEN WR14X0268 Contact Us For Availability
604
GEN WR17X1625 GEN WR17X1625 Contact Us For Availability
605
COVER EVAP ASM GEN WR17X1346 Contact Us For Availability
608
GEN WR17X1626 GEN WR17X1626 Contact Us For Availability
610
GEN WR60X0127 GEN WR60X0127 Contact Us For Availability
611
GEN WR02X6194 GEN WR02X6194 Contact Us For Availability
612
BRACKET EVAP FAN GEN WR02X6193 Contact Us For Availability
615
GEN WR02X2945 GEN WR02X2945 Contact Us For Availability
617
GEN WR02X6166 GEN WR02X6166 Contact Us For Availability
618
HEATER DEFROST GEN WR51X0211 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
622
GEN WR17X5809 GEN WR17X5809 Contact Us For Availability
628
GEN WR02X4711 GEN WR02X4711 Contact Us For Availability
628
GEN WR02X4712 GEN WR02X4712 Contact Us For Availability
631
GEN WR02X4829 GEN WR02X4829 Contact Us For Availability
634
GEN WR17X1218 GEN WR17X1218 Contact Us For Availability
635
GEN WR02X4717 GEN WR02X4717 Contact Us For Availability
636
GEN WR02X4997 GEN WR02X4997 Contact Us For Availability
639
GEN WR01X5448 GEN WR01X5448 Contact Us For Availability
640
CUP COMP & BOLT ASM GEN WR49X0166 Contact Us For Availability
643
GEN WR02X7097 GEN WR02X7097 Contact Us For Availability
643
GEN WR02X7098 GEN WR02X7098 Contact Us For Availability
644
GEN WR02X7099 GEN WR02X7099 Contact Us For Availability
644
GEN WR17X1631 GEN WR17X1631 Contact Us For Availability
647
TEST RECEPTACLE GEN WR23X0204 Contact Us For Availability
649
GEN WR02X7107 GEN WR02X7107 Contact Us For Availability
660
GEN WZ06X0135 GEN WZ06X0135 Contact Us For Availability
677
GEN WR01X1467 GEN WR01X1467 Contact Us For Availability
679
SCR 8-18 AB HX 3/8 S GEN WZ04X0287 Contact Us For Availability
681
SCR 6-18 A TR 1/2 SS GEN WZ04X0224 Contact Us For Availability
683
SCREW FAN MTR/BRKT GEN WZ05X0164 Contact Us For Availability
725
GEN WR87X0079 GEN WR87X0079 Contact Us For Availability
726
GEN WR85X0065 GEN WR85X0065 Contact Us For Availability
726
REFRIGERANT 6 3/4 OZ. GEN WR97X0155 Contact Us For Availability
730
CONDENSER ASM. GEN WR84X0042 Contact Us For Availability
731
GEN WR02X4721 GEN WR02X4721 Contact Us For Availability
731
GEN WR02X4722 GEN WR02X4722 Contact Us For Availability
732
CLIP CONDENSER-UPPER GEN WR02X7100 Contact Us For Availability
732
GEN WR02X7101 GEN WR02X7101 Contact Us For Availability
733
RELAY COMP GEN WR07X0099 Contact Us For Availability
734
GEN WR02X3583 GEN WR02X3583 Contact Us For Availability
734
COVER RELAY GEN WR02X3867 Contact Us For Availability
735
GEN WR08X0030 GEN WR08X0030 Contact Us For Availability
737
SLEEVE COMP MTG GEN WR02X2202 Contact Us For Availability
750
GEN WR82X0177 GEN WR82X0177 Contact Us For Availability
800
GEN WR57X0077 GEN WR57X0077 Contact Us For Availability
801
GEN WR62X0025 GEN WR62X0025 Contact Us For Availability
802
GEN WR01X1360 GEN WR01X1360 Contact Us For Availability
802
ELBOW WATER FITTING GEN WR57X0052 Contact Us For Availability
803
GEN WR57X0046 GEN WR57X0046 Contact Us For Availability
803
FITTING HOSE GEN WR57X0050 Contact Us For Availability
821
GEN WR29X0104 GEN WR29X0104 Contact Us For Availability
822
GEN WR29X0030 GEN WR29X0030 Contact Us For Availability
823
GEN WR29X0005 GEN WR29X0005 Contact Us For Availability
825
GEN WR29X0116 GEN WR29X0116 Contact Us For Availability
831
GEN WR02X5906 GEN WR02X5906 Contact Us For Availability
840
GEN WR01X5366 GEN WR01X5366 Contact Us For Availability
841
GEN WR01X1221 GEN WR01X1221 Contact Us For Availability
900
GEN WR78X6804 GEN WR78X6804 Contact Us For Availability
900
GEN WR78X6805 GEN WR78X6805 Contact Us For Availability
901
GEN WR78X6648 GEN WR78X6648 Contact Us For Availability
901
GEN WR78X6653 GEN WR78X6653 Contact Us For Availability
904
GEN WR78X6651 GEN WR78X6651 Contact Us For Availability
904
GEN WR78X6656 GEN WR78X6656 Contact Us For Availability
905
GEN WR78X6888 GEN WR78X6888 Contact Us For Availability
906
GEN WR78X6889 GEN WR78X6889 Contact Us For Availability
909
GEN WR78X6890 GEN WR78X6890 Contact Us For Availability
9999
GEN 39-6182 GEN 39-6182 Contact Us For Availability
× ![]()
