Model Whirlpool CT21Y7W REFRIGERATOR – Common Parts & Diagrams

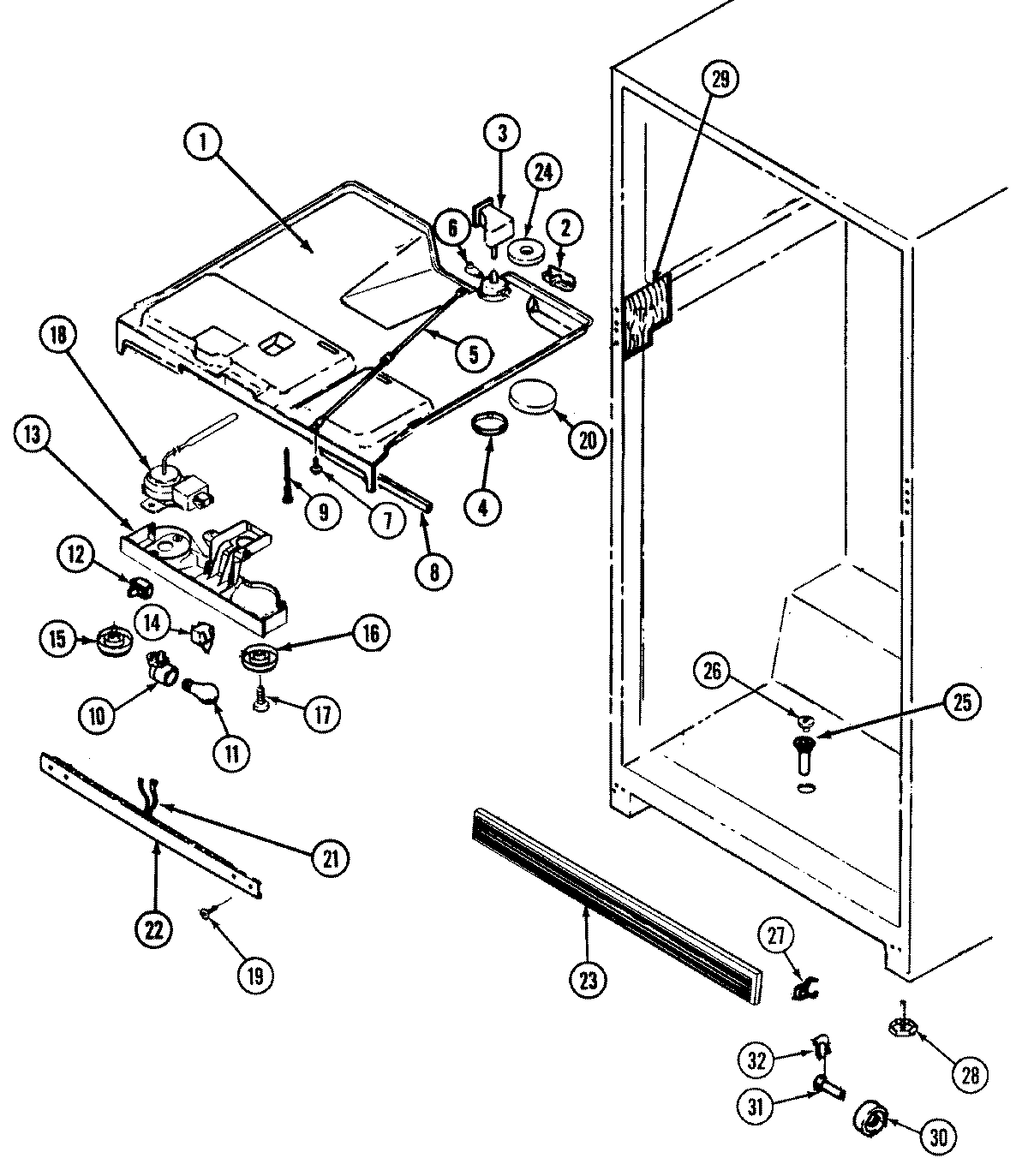

02 - FRESH FOOD COMPARTMENT

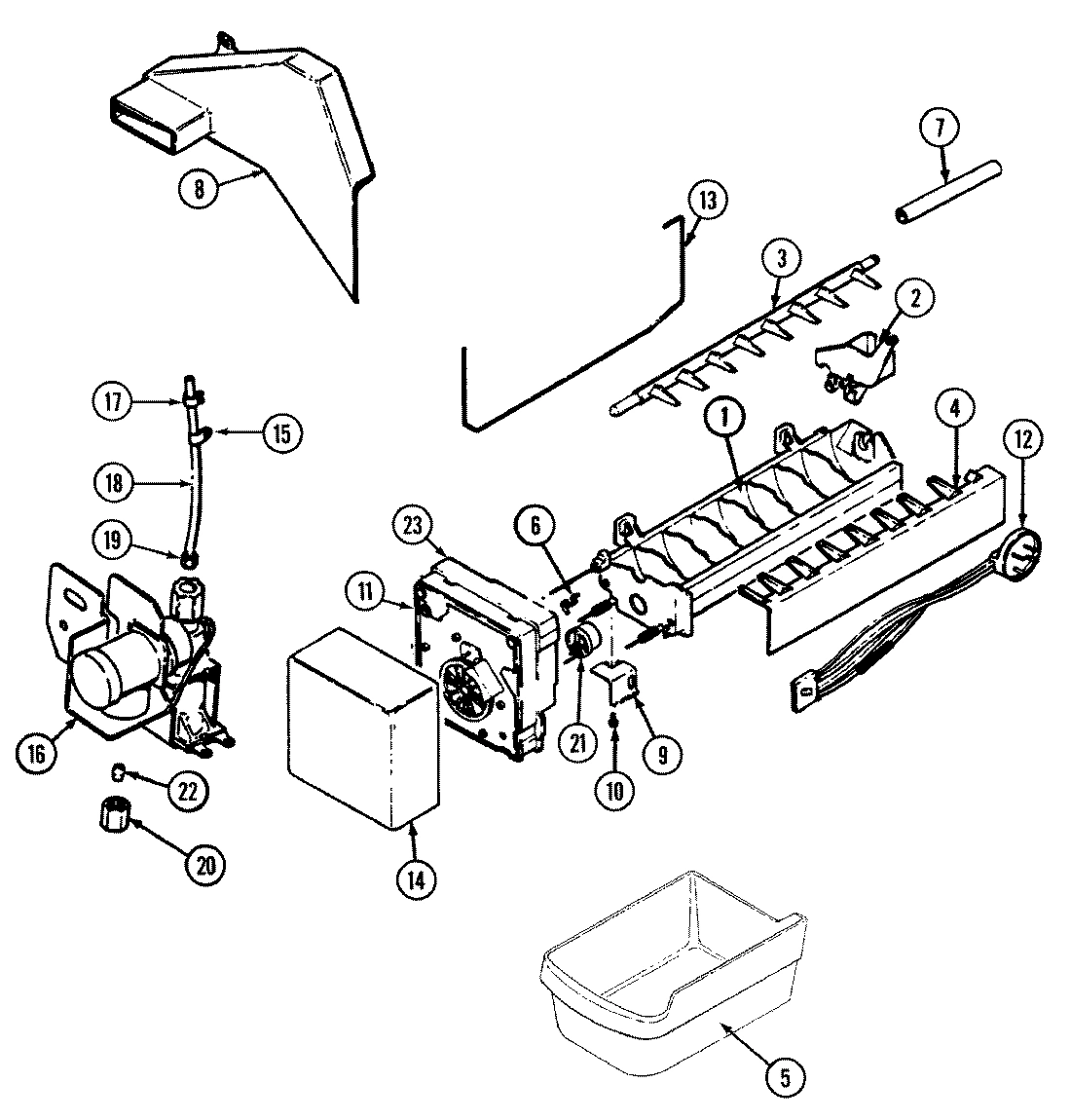

03 - OPTIONAL ICE MAKER KIT (ICE)

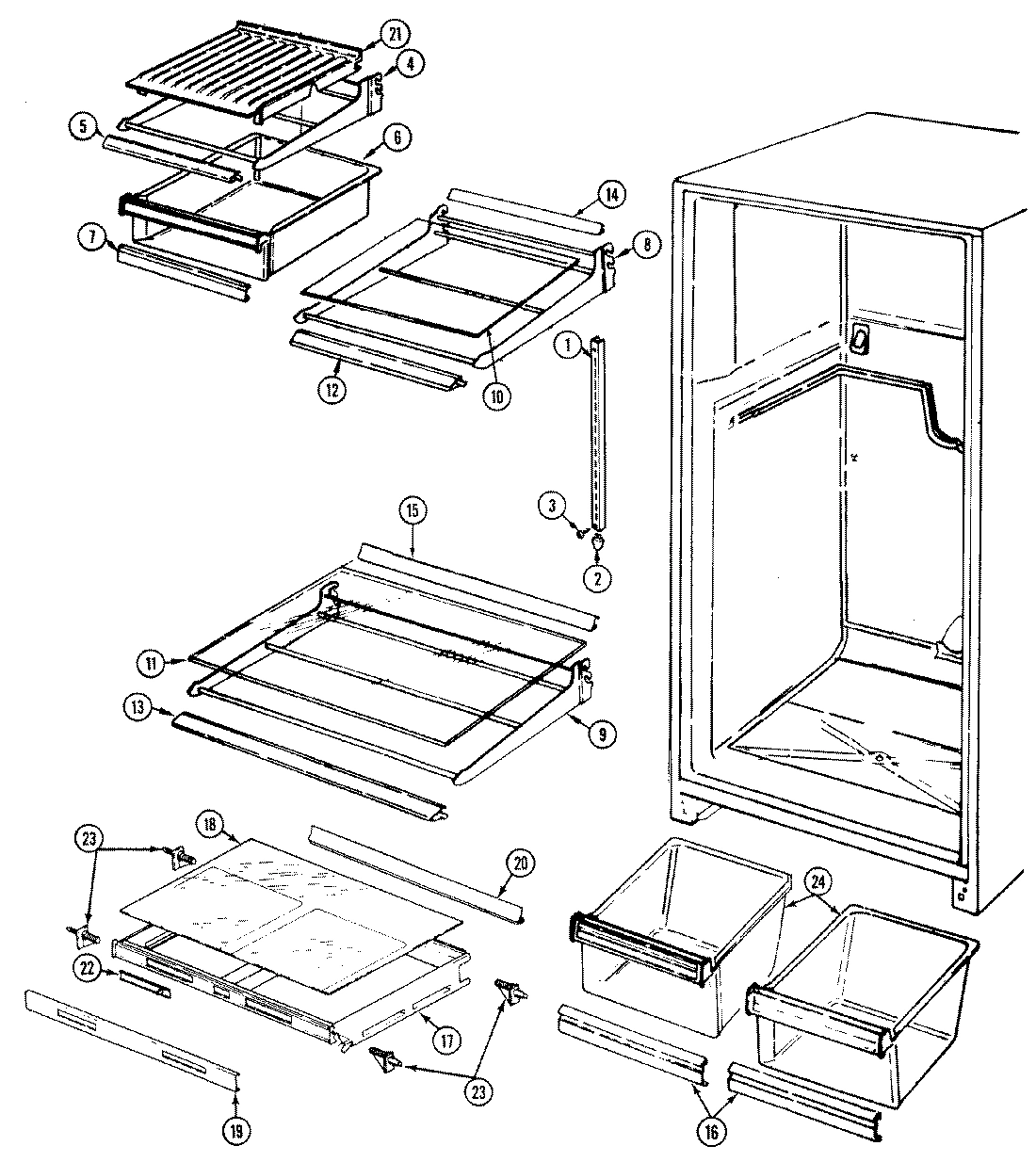

04 - SHELVES & ACCESSORIES

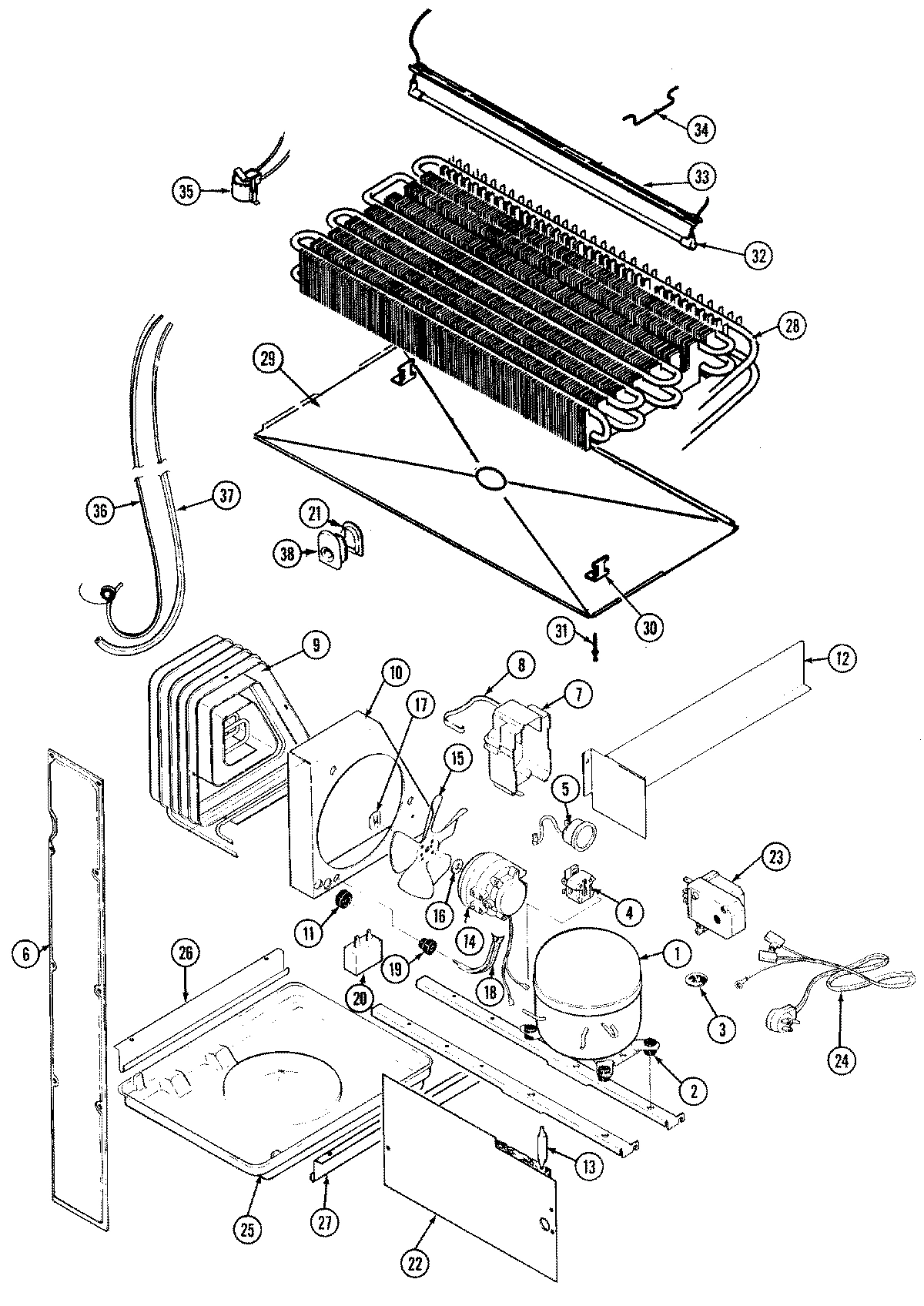

05 - UNIT COMPARTMENT & SYSTEM

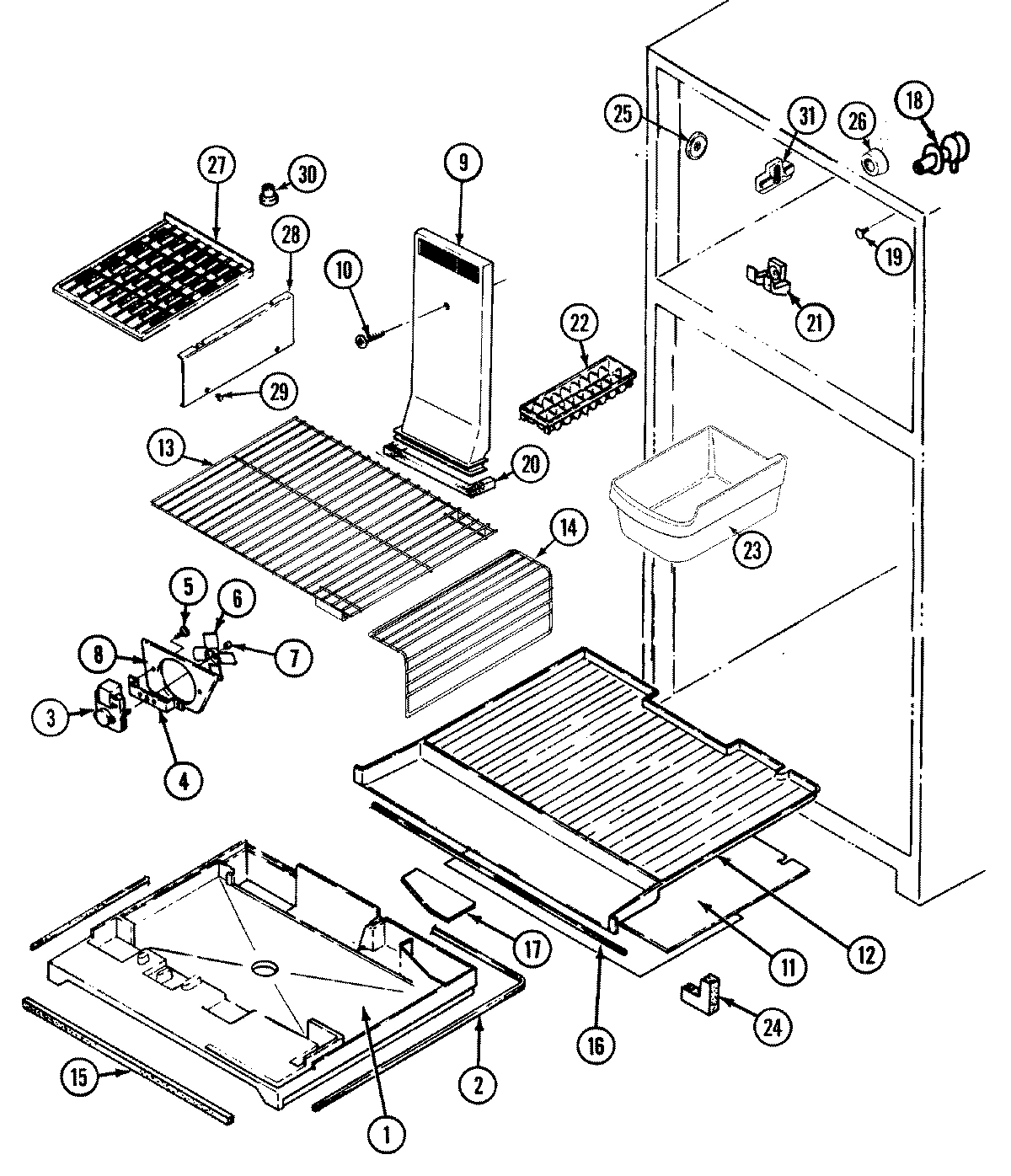

01 - FREEZER COMPARTMENT
Common parts from model Whirlpool CT21Y7W REFRIGERATOR
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 694041 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694143 Contact Us For Availability
3
ORIFICE ASSY., DAMPER WPL 698116 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SCREW WPL 40003728 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
FRAME, MEAT SHELF WPL 7010511 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694184 Contact Us For Availability
5
PAN, ICE WPL 683461 Contact Us For Availability
5
TRIM, MEAT PAN (FRT.) WPL 701082 Contact Us For Availability
5
OVERLOAD WPL 691052 Contact Us For Availability
5
SCREW WPL 40001536 Contact Us For Availability
6
COVER, CRANK WPL 674931 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
PAN, MEAT WPL 6663660 Contact Us For Availability
6
RAIL, MEAT PAN (LT) WPL 668131 Contact Us For Availability
6
RAIL, MEAT PAN (RT) WPL 668141 Contact Us For Availability
6
COVER, WIRE HARNESS WPL 61001136 Contact Us For Availability
6
SCREW WPL 6527550 Contact Us For Availability
6
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
7
TUBE, FILL WPL 676668 Contact Us For Availability
7
TRIM, MEAT PAN WPL 703158 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
8
DUCT, AIR WPL 701982 Contact Us For Availability
8
FRAME, MEAT SHELF WPL 701068 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
9
SCREW WPL 6527578 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
FRAME, FULL SHELF WPL 7010610 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL 604343 Contact Us For Availability
9
TUNNEL, AIR WPL 702083 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
GLASS, SPLIT SHELF WPL 6813913 Contact Us For Availability
10
GLASS SHELF WPL 6813926 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
SCREW WPL 40001531 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
FOIL (ABOVE LIGHT BULB) WPL 697521 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
GLASS, FULL SHELF WPL 6813932 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
12
SWITCH, HEATER WPL 692831 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
12
TRIM, SPLIT SHELF (FRONT) WPL 701072 Contact Us For Availability
12
SCREW WPL 4140011 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
BOTTOM, FRZ. WPL 693981 Contact Us For Availability
13
SCREW WPL 40501635 Contact Us For Availability
13
COVER, TEMP. CONTROL WPL 704202 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
TRIM, FULL SHELF (FRONT) WPL 701077 Contact Us For Availability
13
SHELF, FRZ. WPL 703222 Contact Us For Availability
14
SWITCH, LIGHT WPL 669871 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
TRIM, SPLIT SHELF (REAR) WPL 701102 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684451 Contact Us For Availability
14
LEG, SHELF WPL 703232 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 694177 Contact Us For Availability
15
SCREW WPL 4000161 Contact Us For Availability
15
CLAMP WPL 5351612 Contact Us For Availability
15
TRIM, FULL SHELF (REAR) WPL 701107 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
SEAL, MULLION TRAY (FRONT) WPL 695622 Contact Us For Availability
16
MAGNET WPL 694132 Contact Us For Availability
16
KNOB, FRZ. CONTROL WPL 694178 Contact Us For Availability
16
SCREW WPL 4010171 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
16
TRIM, CRISPER PAN WPL 703159 Contact Us For Availability
16
WASHER, FAN BLADE WPL 690631 Contact Us For Availability
17
SCREW, FREEZER KNOB WPL 6527583 Contact Us For Availability
17
CLAMP, SPRING WPL 603334 Contact Us For Availability
17
SHELF, CRISPER WPL 690572 Contact Us For Availability
17
COVER, PLENUM WPL 61664805 Contact Us For Availability
18
TUBE WPL 675796 No Longer Available
18
SCREW WPL 4060131 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 686017 Contact Us For Availability
18
GLASS, CRISPER SHELF WPL 6874317 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
19
SCREW WPL 6527554 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
TRIM, CRISPER SHELF (FRONT) WPL 702821 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
20
TRIM, CRISPER SHELF (REAR) WPL 687989 Contact Us For Availability
20
CAPACITOR, RUN WPL 658894 Contact Us For Availability
20
SPACER WPL 604781 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696172 Contact Us For Availability
21
WIRE HARNESS, MULLION WPL 701172 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
COVER, MEAT PAN WPL 600758 Contact Us For Availability
21
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
21
RETAINER, WIRE HARNESS WPL 601774 Contact Us For Availability
21
WIRE HARNESS, MAIN WPL 61001561 Contact Us For Availability
21
WIRE HARNESS, MAIN WPL 692922 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694202WW Contact Us For Availability
22
SLEEVE, BRASS WPL 694311 Contact Us For Availability
22
SLIDE, CONTROL WPL 695421 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663384 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
TRAY, ICE WPL 592812 Contact Us For Availability
23
KICKPLATE ASSY. W/CLIPS (WHT) WPL 701286 Contact Us For Availability
23
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
23
SCREW WPL 951061 Contact Us For Availability
23
STUD, CRISPER SUPPORT WPL 688361 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 682332 Contact Us For Availability
23
PAN, ICE WPL 606531 Contact Us For Availability
23
TRIM, ICE PAN WPL 703156 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
24
PAN, CRISPER WPL 68163125 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
SEAL, FROST CHEST BOTTOM WPL 695631 Contact Us For Availability
25
TUBE, DRAIN WPL 545317 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
CAP, CONNECTOR WPL 681871 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
CAP, GROMMET WPL 683871 Contact Us For Availability
27
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
SHELF, ICE TRAY WPL 671144 Contact Us For Availability
28
LEG, LEVELING WPL 686641 Contact Us For Availability
28
EVAPORATOR WPL 698227 Contact Us For Availability
28
DIVIDER, ICE SHELF WPL 671482 Contact Us For Availability
29
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
29
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
29
TRAY, EVAPORATOR WPL 691182 Contact Us For Availability
29
FASTENER, DIVIDER WPL 671501 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
30
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
30
SCREW WPL 4000191 Contact Us For Availability
30
SUPPORT, DIVIDER WPL 671491 Contact Us For Availability
31
PIN, WHEEL WPL 298352 Contact Us For Availability
31
SCREW WPL 4000211 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
SUPPORT, ICE SHELF WPL 700411 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
CLIP WPL 689351 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability
36
HEAT EXCHANGER WPL 6501322 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 61001042 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1083403 Contact Us For Availability
× ![]()
