Model Whirlpool CT21X7W REFRIGERATOR – Common Parts & Diagrams
06 - SHELVES & ACCESSORIES

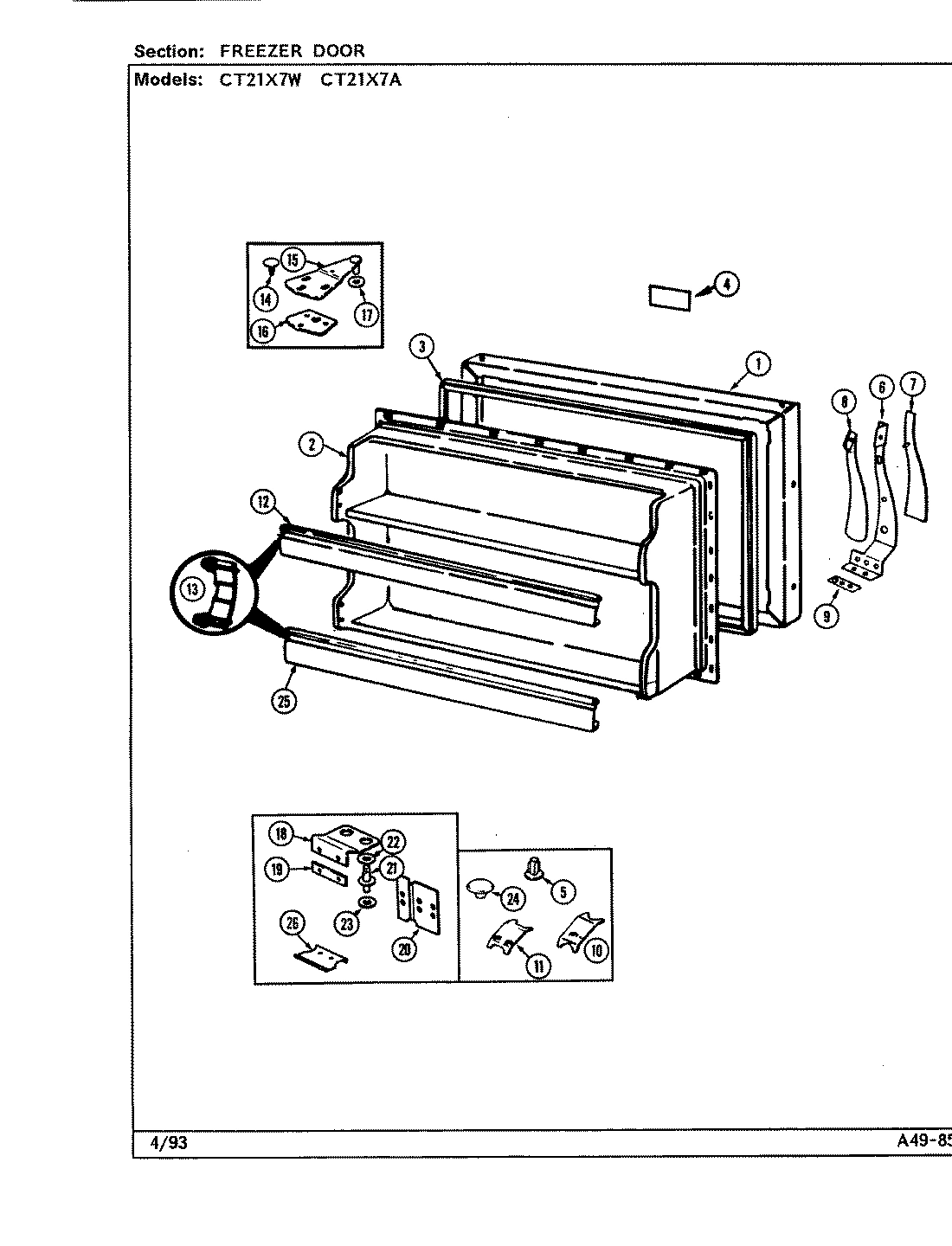

02 - FREEZER DOOR

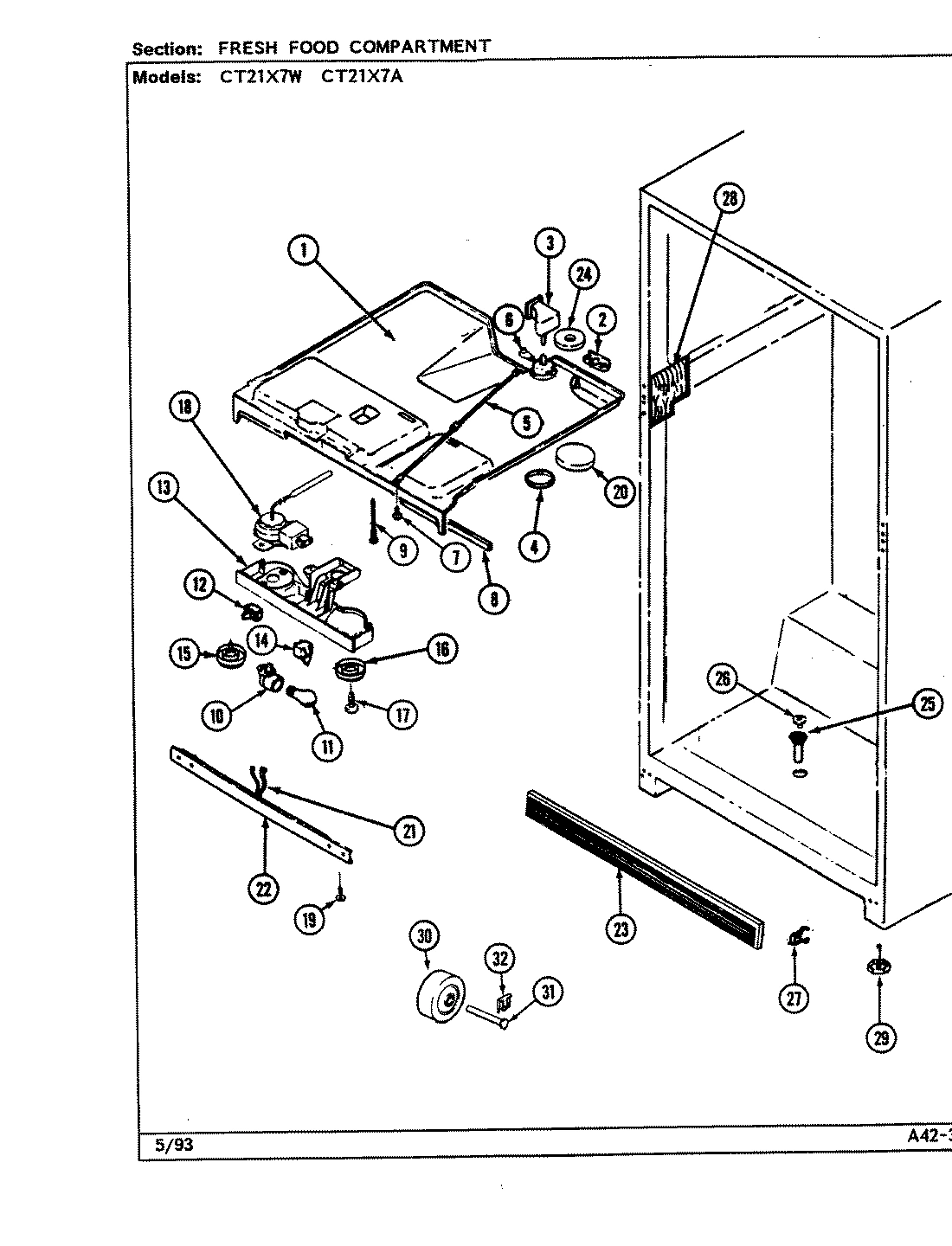

03 - FRESH FOOD COMPARTMENT

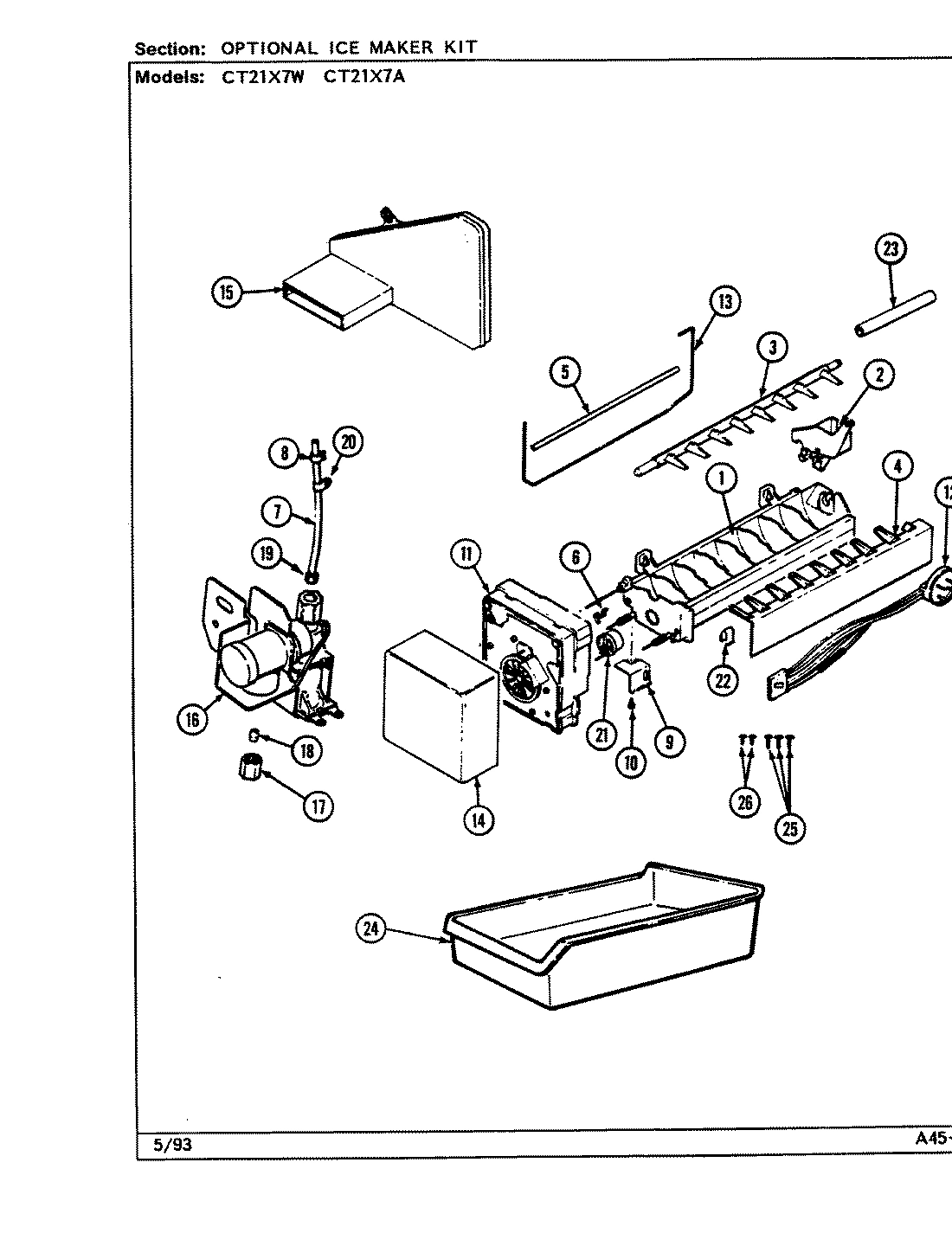

05 - OPTIONAL ICE MAKER KIT

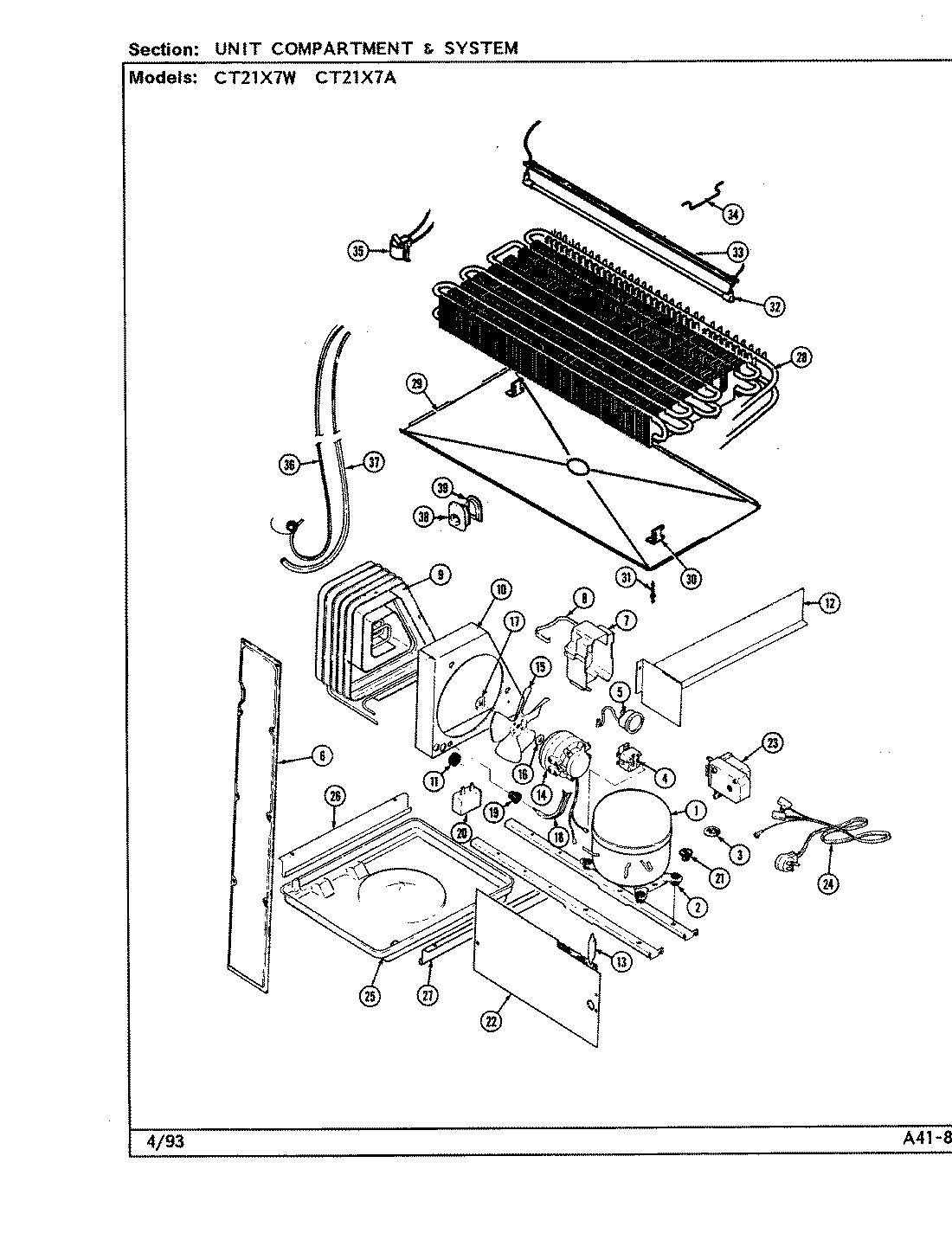

07 - UNIT COMPARTMENT & SYSTEM

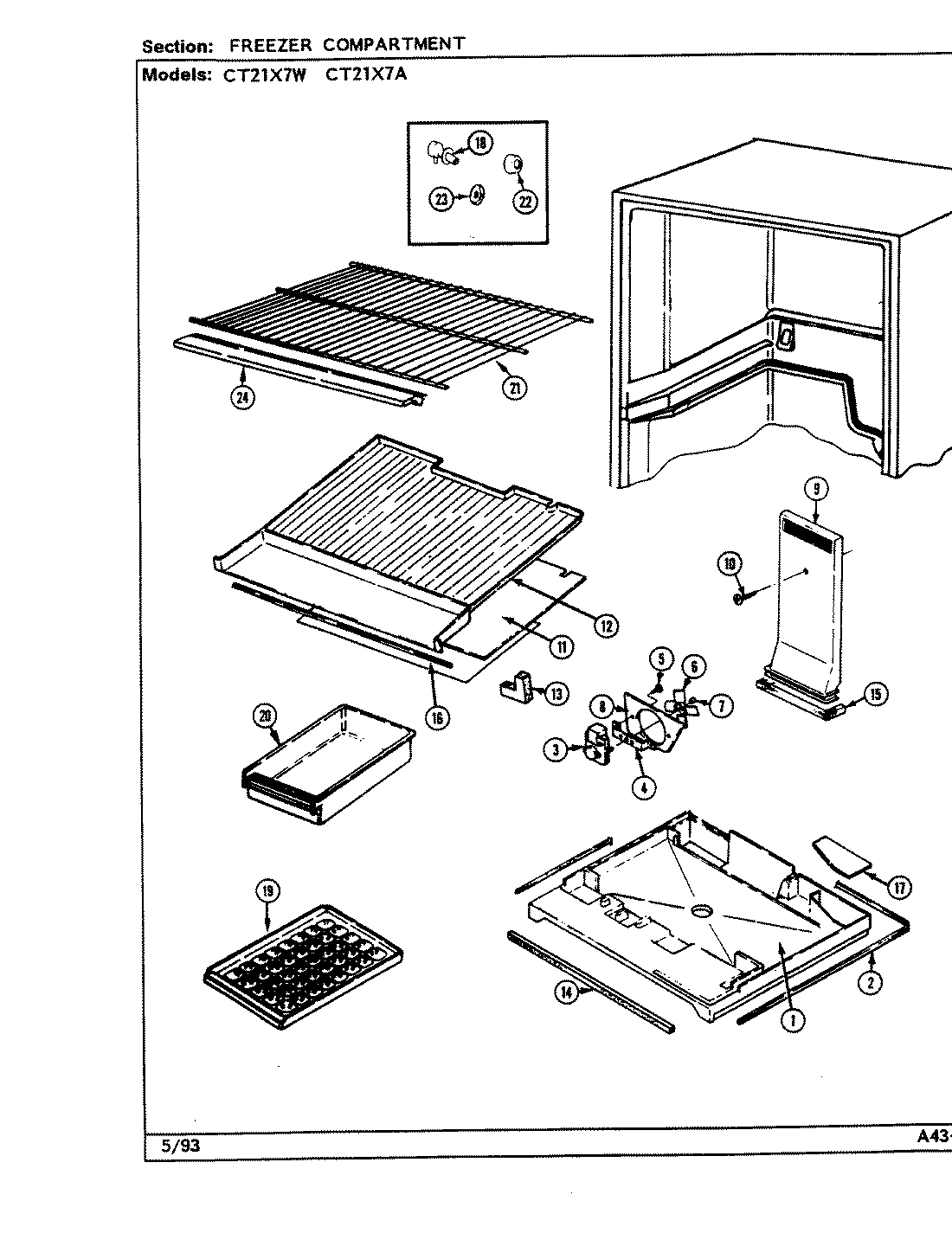

01 - FREEZER COMPARTMENT

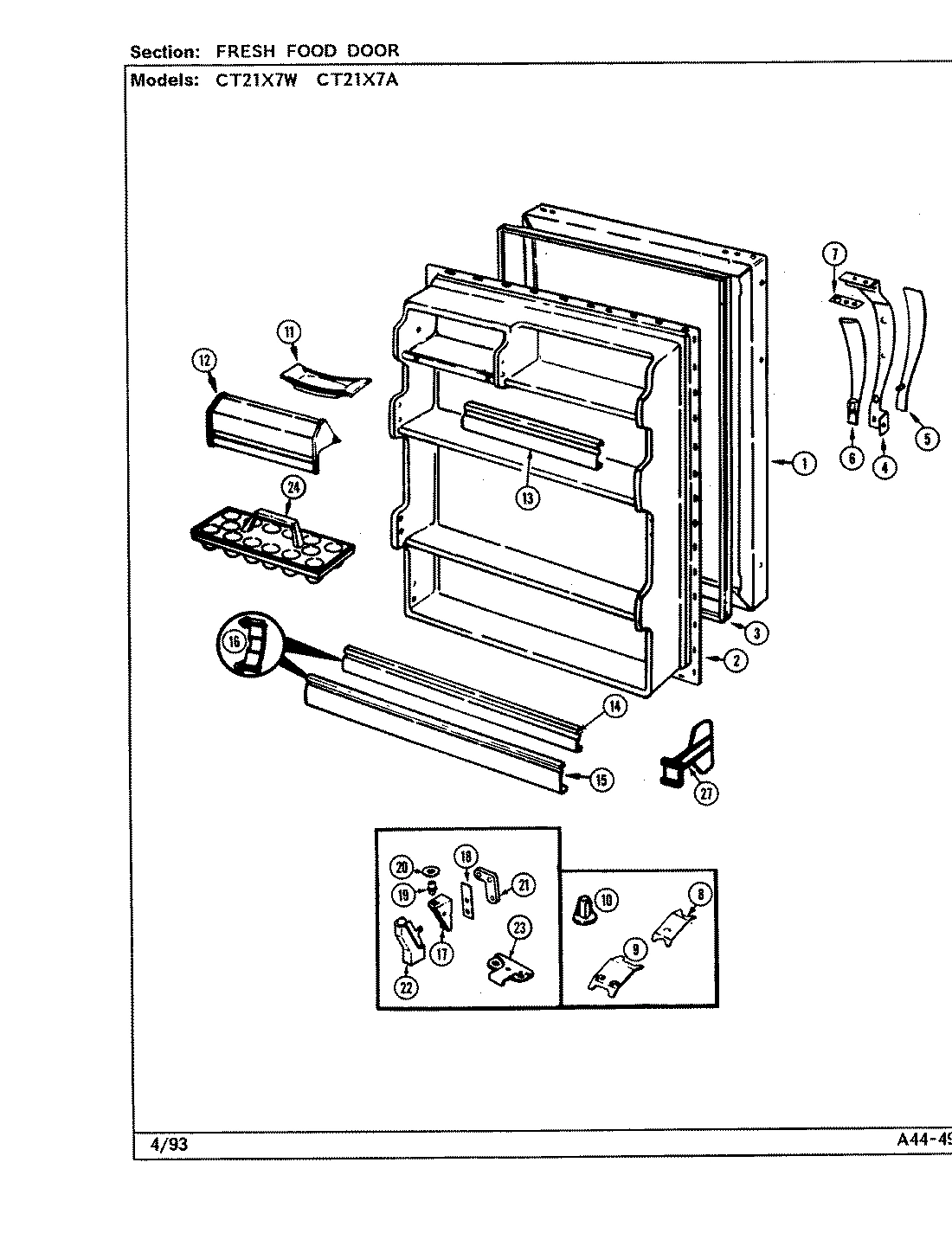

04 - FRESH FOOD DOOR
Common parts from model Whirlpool CT21X7W REFRIGERATOR
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 723451WW Contact Us For Availability
1
TOP, F.F. COMPARTMENT WPL 694101 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 694041 Contact Us For Availability
2
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
2
SCREW WPL 652755 Contact Us For Availability
2
LINER, FRZ. DOOR WPL 694701 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694143 Contact Us For Availability
2
LINER, F.F. DOOR WPL 694541 Contact Us For Availability
3
SCREW WPL 40003728 Contact Us For Availability
3
GASKET, FRZ. DOOR (WHT) WPL 700255 Contact Us For Availability
3
ORIFICE ASSY., DAMPER WPL 698114 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
GASKET, F.F. DOOR (WHT) WPL 700256 Contact Us For Availability
4
FRAME, SHELF WPL 6057036 Contact Us For Availability
4
INSERT, NAMEPLATE WPL 6698233 Contact Us For Availability
4
INSERT, NAMEPLATE WPL 6698234 Contact Us For Availability
4
SCREW WPL 6527557 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
HANDLE, DOOR WPL 693002 Contact Us For Availability
5
TRIM WPL 6041462 Contact Us For Availability
5
INSERT WPL 689591 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694184 Contact Us For Availability
5
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
5
OVERLOAD WPL 691052 Contact Us For Availability
5
SCREW WPL 40001536 Contact Us For Availability
6
PAN, MEAT WPL 6663660 Contact Us For Availability
6
HANDLE, DOOR WPL 693001 Contact Us For Availability
6
INSERT, HANDLE (BACK) WPL 604453 Contact Us For Availability
6
SCREW WPL 6527553 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
6
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
7
HANDLE, MEAT KEEPER WPL 60132102 Contact Us For Availability
7
SHIM, HANDLE WPL 693011 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
7
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
8
FRAME, SHELF----NA WPL 6057043 Contact Us For Availability
8
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
8
CLAMP, SPRING WPL 603334 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
9
FRAME, SHELF WPL 6057047 Contact Us For Availability
9
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
9
SCREW WPL 6527578 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
TUNNEL, AIR WPL 685923 Contact Us For Availability
10
GLASS, CANTILEVER SHELF WPL 6660425 Contact Us For Availability
10
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
SCREW WPL 40001531 Contact Us For Availability
11
GLASS, CANTILEVER SHELF WPL 6660424 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
11
TRAY, BUTTER WPL 299362 Contact Us For Availability
12
TRIM, MEAT SHELF (FRONT) WPL 605246 Contact Us For Availability
12
SHELF TRIM WPL 688324 Contact Us For Availability
12
SWITCH, HEATER WPL 692831 Contact Us For Availability
12
WIRE HARNESS WPL 679101 Contact Us For Availability
12
SHIELD, HEATER WPL 400171 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
12
BOTTOM, FRZ. WPL 693981 Contact Us For Availability
12
DOOR, DAIRY WPL 690583 Contact Us For Availability
13
TRIM,SHELF (FULL FRONT) WPL 6052428 Contact Us For Availability
13
SCREW WPL 4050121 Contact Us For Availability
13
COVER, TEMPERATURE CONTROL WPL 694212 Contact Us For Availability
13
FOIL (ABOVE LIGHT BULB) WPL 697521 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
SEAL WPL 689462 Contact Us For Availability
13
TRIM, SHELF WPL 6883257 Contact Us For Availability
14
TRIM, MEAT SHELF (REAR) WPL 652764 Contact Us For Availability
14
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
14
SWITCH, LIGHT WPL 669871 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684453 Contact Us For Availability
14
SEAL, MULLION TRAY (FRONT) WPL 695622 Contact Us For Availability
14
TRIM, SHELF WPL 6883293 Contact Us For Availability
15
TRIM, SHELF (FULL REAR) WPL 6527621 Contact Us For Availability
15
HINGE, UPPER WPL 5370920 Contact Us For Availability
15
SCREW WPL 6527552 Contact Us For Availability
15
COVER, UPPER HINGE (WHT) WPL 701214 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 694177 Contact Us For Availability
15
DUCT, AIR (15` & 17` MODELS) WPL 684121 Contact Us For Availability
15
DUCT, AIR (19` & 21` MODELS) WPL 684122 Contact Us For Availability
15
DUCT, AIR (23` MODELS) WPL 684123 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
15
SHELF TRIM WPL 6883221 Contact Us For Availability
15
TRIM, SHELF WPL 6883292 Contact Us For Availability
16
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
16
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
16
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
16
MAGNET WPL 694132 Contact Us For Availability
16
KNOB, FRZ. CONTROL WPL 694178 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
SHELF, CRISPER WPL 687351 Contact Us For Availability
17
WASHER WPL 542331 Contact Us For Availability
17
SCREW WPL 6527538 Contact Us For Availability
17
COVER, PLENUM WPL 664805 Contact Us For Availability
17
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
17
HINGE, LOWER WPL 689752 Contact Us For Availability
18
CRISPER, GLASS WPL 6874314 Contact Us For Availability
18
SCREW WPL 6527555 Contact Us For Availability
18
HINGE, CENTER WPL 688112 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 686016 Contact Us For Availability
18
SLEEVE, BRASS WPL 694311 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
18
SHIM WPL 690311 Contact Us For Availability
19
TRIM WPL 687442 Contact Us For Availability
19
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
19
SCREW WPL 6527567 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
TRAY, ICE WPL 592812 Contact Us For Availability
19
SHELF, ICE TRAY WPL 671141 Contact Us For Availability
19
DIVIDER, ICE SHELF WPL 671482 Contact Us For Availability
19
PIN, HINGE WPL 689771 Contact Us For Availability
20
TRIM, CRISPER SHELF (REAR) WPL 687981 Contact Us For Availability
20
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
20
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
20
CAPACITOR, RUN WPL 658894 Contact Us For Availability
20
HANDLE, ICE CUBE PAN WPL 60132101 Contact Us For Availability
20
PAN, ICE WPL 606531 Contact Us For Availability
20
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
21
SEAL WPL 687971 Contact Us For Availability
21
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696172 Contact Us For Availability
21
WIRE HARNESS, MULLION WPL 701172 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
21
SCREW WPL 4000191 Contact Us For Availability
21
CUP, SHELF WPL 603131 Contact Us For Availability
21
SHELF WPL 6043833 Contact Us For Availability
21
SCREW WPL 6527559 Contact Us For Availability
21
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
22
SLIDE, CONTROL WPL 695421 Contact Us For Availability
22
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694202WW Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
CAP, GROMMET WPL 683871 Contact Us For Availability
22
PLUG BUTTON WPL 701462 Contact Us For Availability
22
COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability
23
STUD, CRISPER SUPPORT WPL 688361 Contact Us For Availability
23
WASHER WPL 542332 Contact Us For Availability
23
SCREW WPL 6527548 Contact Us For Availability
23
KICKPLATE (BLACK) WPL 698762 Contact Us For Availability
23
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 682332 Contact Us For Availability
23
CAP, CONNECTOR WPL 681871 Contact Us For Availability
23
STOP, DOOR WPL 689871 Contact Us For Availability
24
PAN, CRISPER WPL 68163125 Contact Us For Availability
24
PLUG BUTTON, HINGE CUP (WHT) WPL 676342 Contact Us For Availability
24
ORGANIZER, SHELF WPL 6409711 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
24
PAN, ICE WPL 683271 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
SHELF TRIM WPL 6813647 Contact Us For Availability
24
TRAY, EGG WPL 600661 Contact Us For Availability
24
TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability
25
HANDLE WPL 60132106 Contact Us For Availability
25
TRIM, SHELF WPL 688327 Contact Us For Availability
25
TUBE, DRAIN WPL 545317 Contact Us For Availability
25
SCREW WPL 4000211 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
26
FRAME, MEAT SHELF WPL 6041615 Contact Us For Availability
26
STOP, DOOR WPL 689881 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
SCREW WPL 4010171 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
28
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
28
EVAPORATOR WPL 698227 Contact Us For Availability
29
LEG, LEVELING WPL 686641 Contact Us For Availability
29
TRAY, EVAPORATOR WPL 691182 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
30
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
31
PIN, WHEEL WPL 649651 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
CLIP WPL 688251 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability
36
HEAT EXCHANGER WPL 6501323 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
RETAINER, WIRE HARNESS WPL 601773 Contact Us For Availability
39
WIRE HARNESS, MAIN WPL 692922 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1083401 Contact Us For Availability
× ![]()
Login and Registration Form
