Model Whirlpool CT19X3A REFRIGERATOR – Common Parts & Diagrams

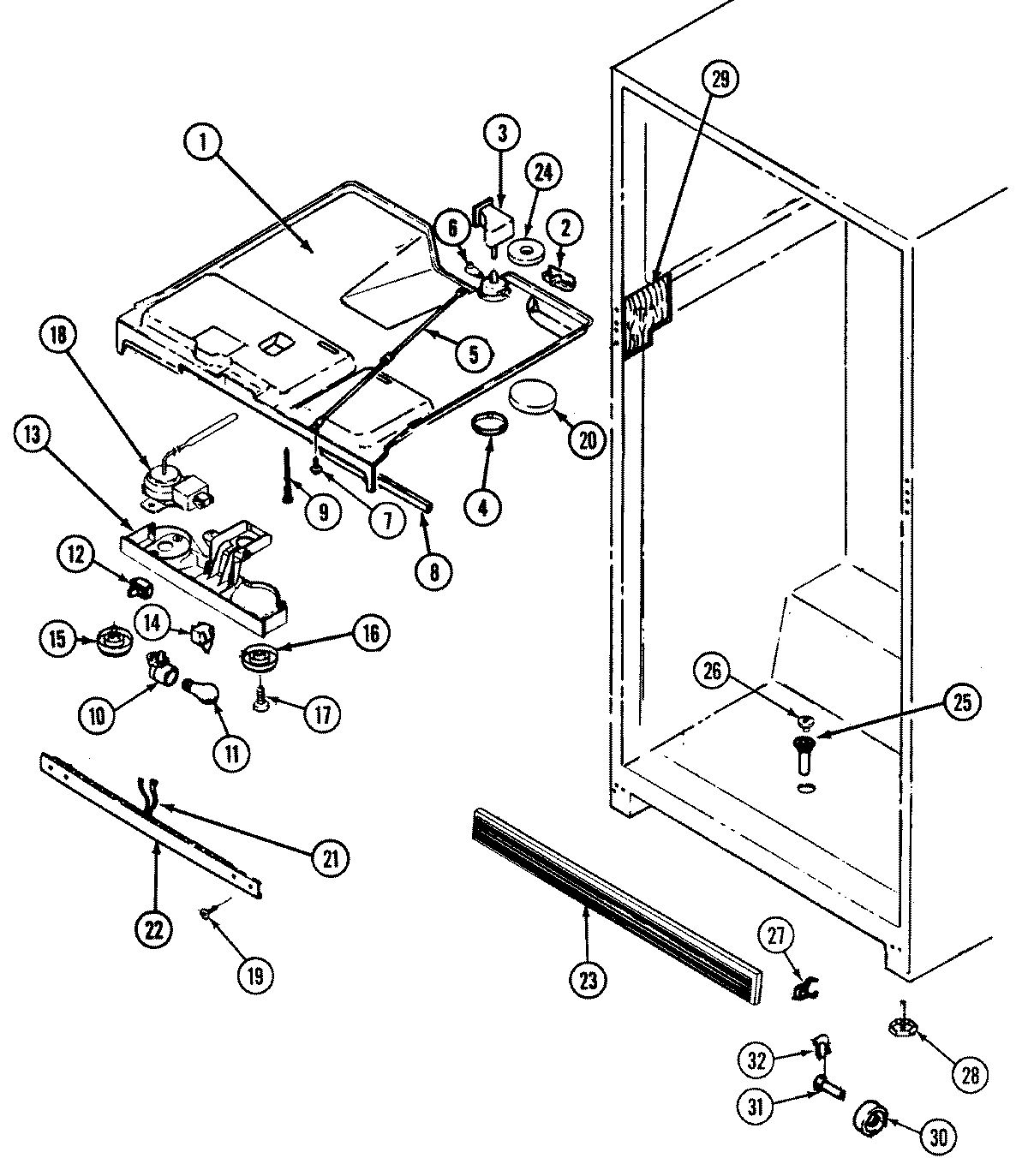

03 - FRESH FOOD COMPARTMENT

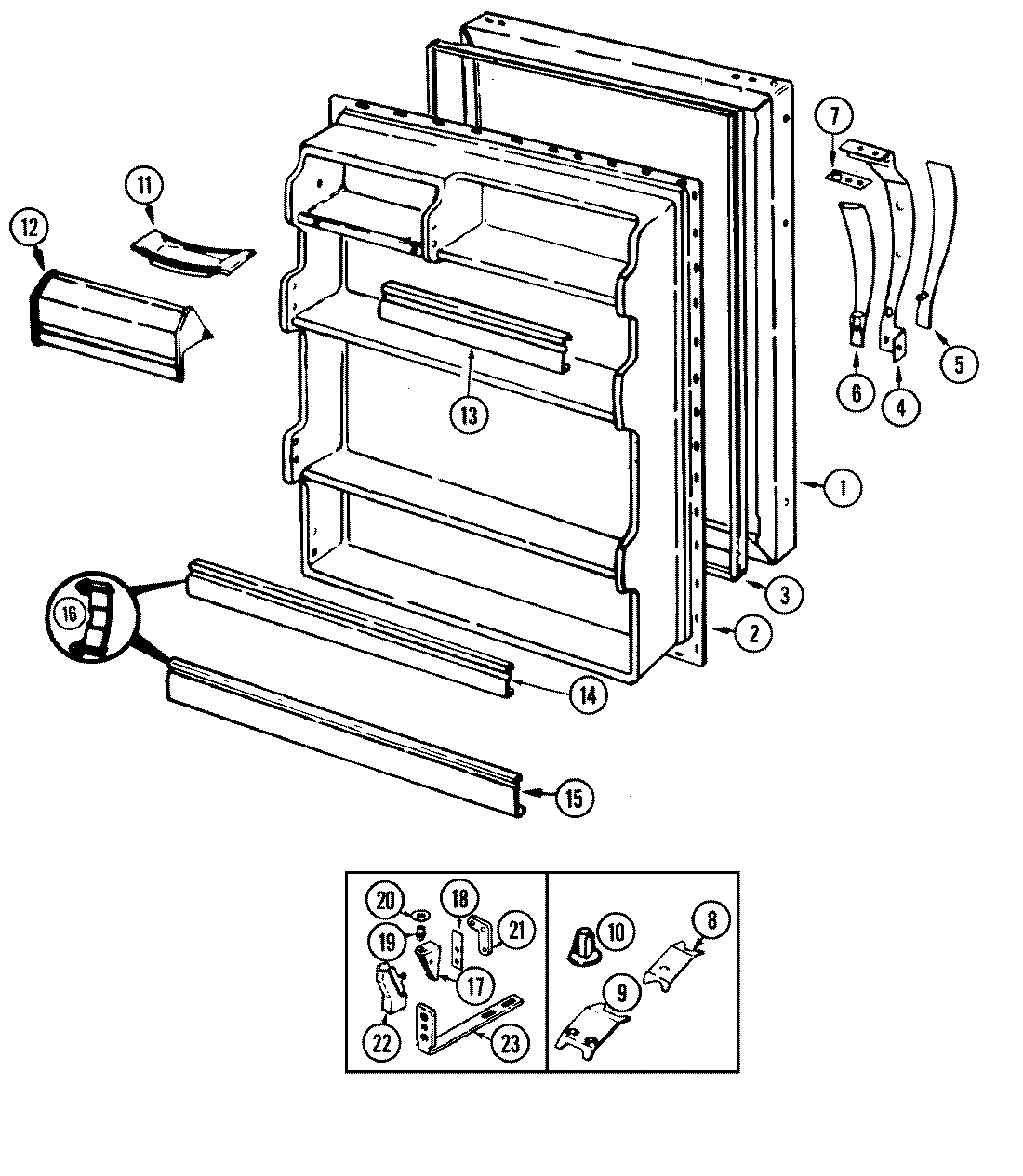

04 - FRESH FOOD DOOR

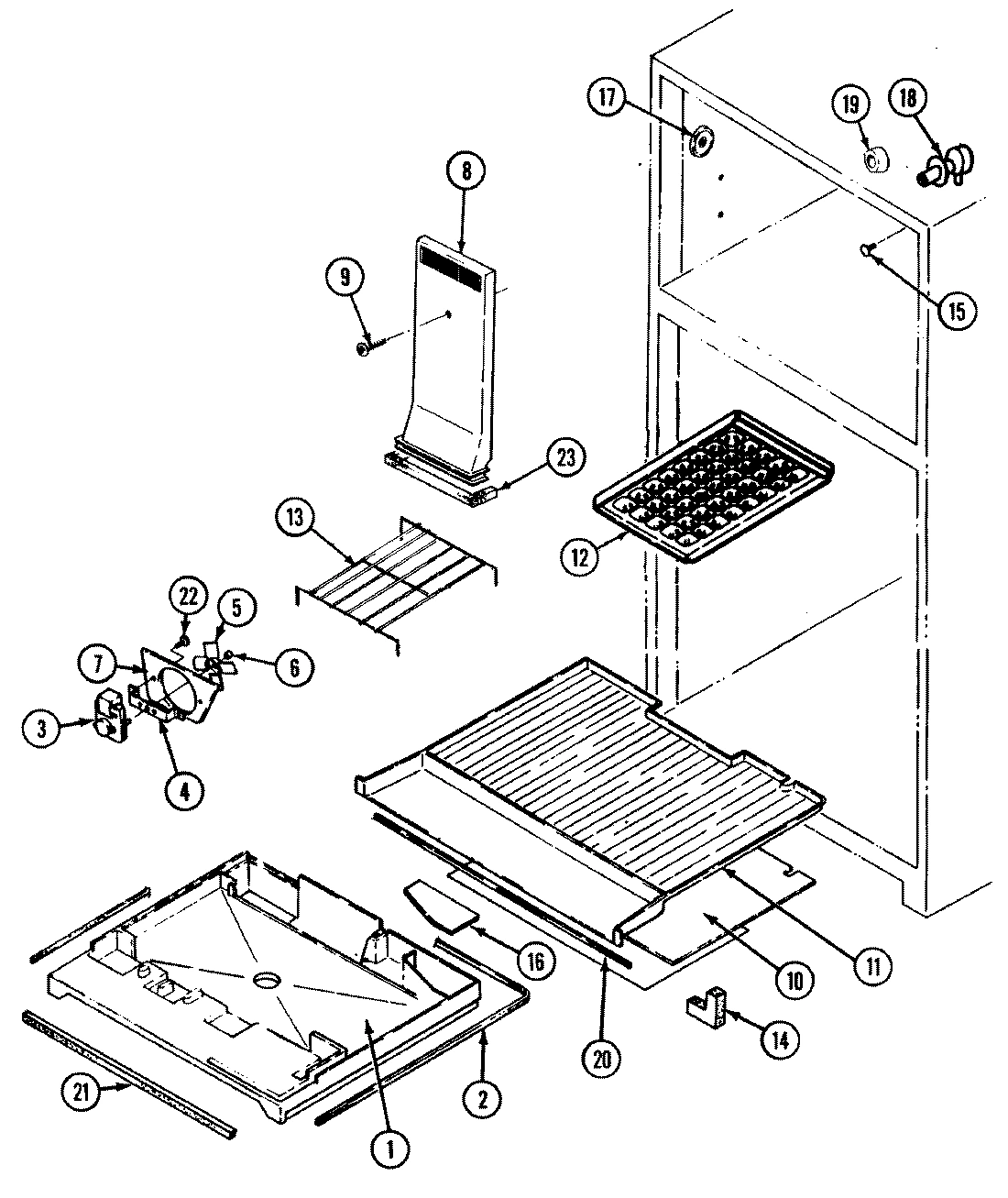

01 - FREEZER COMPARTMENT

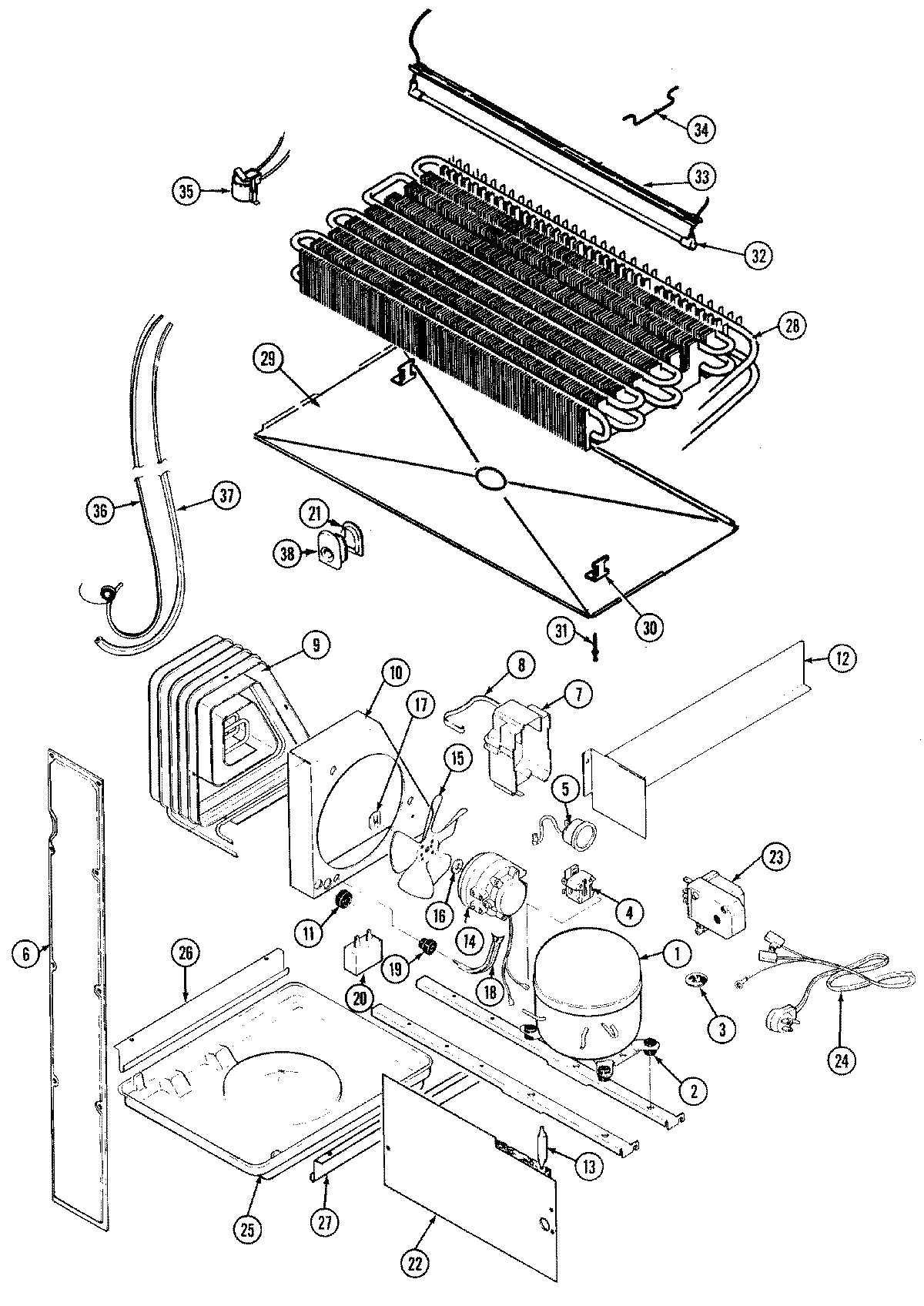

06 - UNIT COMPARTMENT & SYSTEM

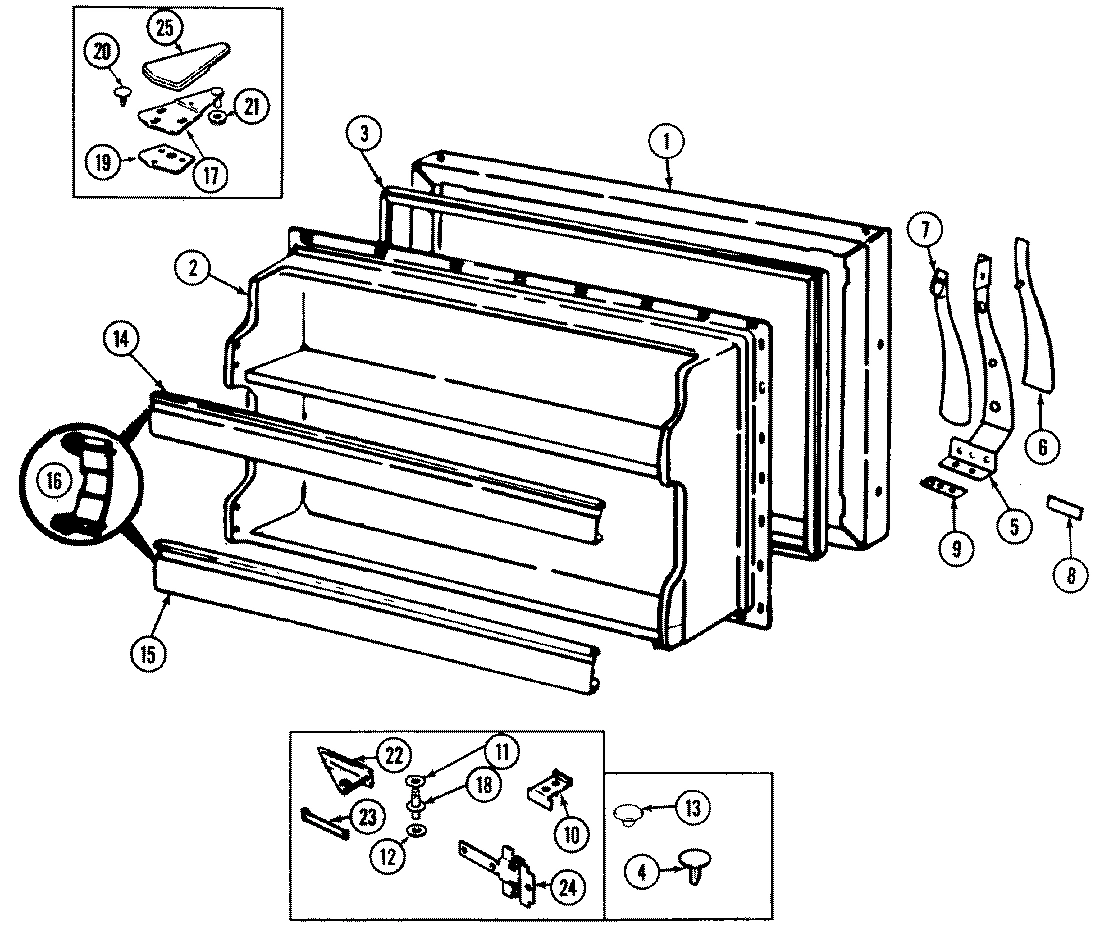

02 - FREEZER DOOR

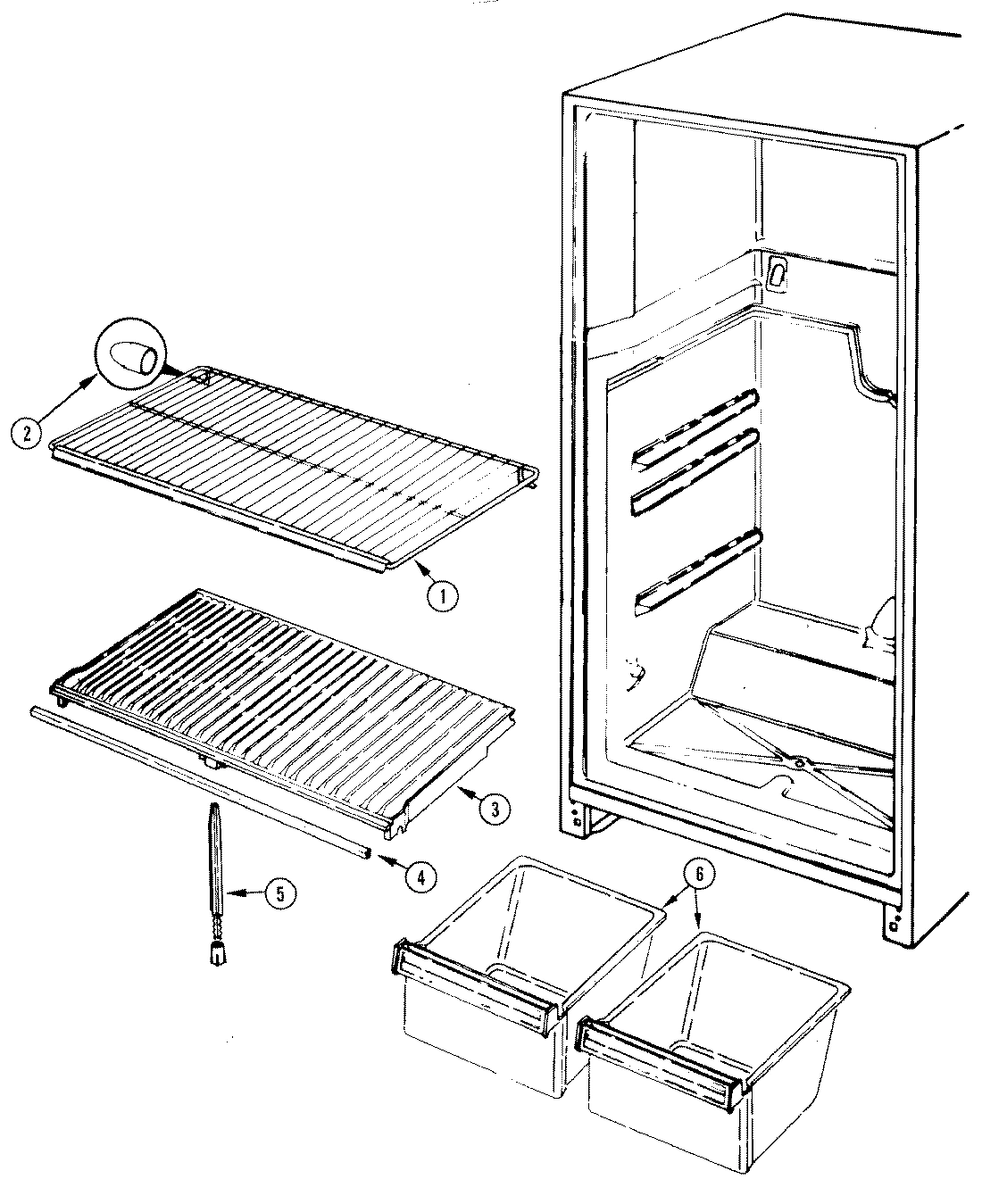

05 - SHELVES & ACCESSORIES
Common parts from model Whirlpool CT19X3A REFRIGERATOR
1
PANEL, F.F. DOOR (ALM) WPL 723492AM Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 694031 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 723451AM Contact Us For Availability
1
TRIM WPL 6041458 Contact Us For Availability
1
SHELF, WIRE WPL 662164 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
2
SCREW WPL 652755 Contact Us For Availability
2
LINER, F.F. DOOR WPL 694541 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694142 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
LINER, FRZ. DOOR WPL 694701 Contact Us For Availability
2
TIP WPL 245803 Contact Us For Availability
3
ORIFICE ASSY., DAMPER WPL 698112 Contact Us For Availability
3
GASKET, F.F. DOOR (WHT) WPL 700256 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
GASKET, FRZ. DOOR (WHT) WPL 700255 Contact Us For Availability
3
SHELF, CRISPER WPL 600196 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
4
PLUG BUTTON (ALM) WPL 694804 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
TRIM, CRISPER SHELF WPL 6045411 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
5
SCREW WPL 6527557 Contact Us For Availability
5
HANDLE, DOOR WPL 693001 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
OVERLOAD WPL 691052 Contact Us For Availability
5
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
6
INSERT WPL 689592 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
6
TRIM, CRISPER WPL 60132133 Contact Us For Availability
6
PAN, CRISPER WPL 68222136 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
7
INSERT, HANDLE (BACK) WPL 604454 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
8
SCREW WPL 6527553 Contact Us For Availability
8
CLIP, HANDLE WPL 692571 Contact Us For Availability
8
TUNNEL, AIR WPL 702083 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
INSERT, NAMEPLATE WPL 6698234 Contact Us For Availability
9
SCREW WPL 6527578 Contact Us For Availability
9
SHIM, HANDLE WPL 693011 Contact Us For Availability
9
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
PLUG BUTTON, HANDLE HOLE (WHT) WPL 694802 Contact Us For Availability
10
STOP, DOOR WPL 692562 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
SCREW WPL 6527548 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
FOIL (ABOVE LIGHT BULB) WPL 697521 Contact Us For Availability
11
TRAY, BUTTER WPL 299362 Contact Us For Availability
11
BOTTOM, FRZ. WPL 693971 Contact Us For Availability
11
SCREW WPL 4140011 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
WASHER WPL 674836 Contact Us For Availability
12
SWITCH, HEATER WPL 692831 Contact Us For Availability
12
DOOR, DAIRY WPL 690582 Contact Us For Availability
12
TRAY, ICE WPL 592812 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
WASHER WPL 542337 Contact Us For Availability
13
SCREW WPL 40501635 Contact Us For Availability
13
COVER, TEMPERATURE CONTROL WPL 694215 Contact Us For Availability
13
TRIM, DOOR SHELF WPL 65151361 Contact Us For Availability
13
TRIVET WPL 682597 Contact Us For Availability
13
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
14
SWITCH, LIGHT WPL 669871 Contact Us For Availability
14
TRIM, DOOR SHELF WPL 65151123 Contact Us For Availability
14
SEAL WPL 689461 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability
14
TRIM, DOOR SHELF WPL 65151336 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 694177 Contact Us For Availability
15
TRIM, DOOR SHELF WPL 65151134 Contact Us For Availability
15
PLUG BUTTON WPL 701462 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
TRIM, DOOR SHELF WPL 65151364 Contact Us For Availability
16
KNOB, FRZ. CONTROL WPL 694178 Contact Us For Availability
16
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
16
COVER, PLENUM WPL 664805 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
SCREW WPL 6527538 Contact Us For Availability
17
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
17
HINGE, LOWER (BLK) WPL 695162 Contact Us For Availability
17
CAP, CONNECTOR WPL 681871 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
17
HINGE, UPPER WPL 5370920 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 686017 Contact Us For Availability
18
SHIM WPL 690311 Contact Us For Availability
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
PIN, CENTER HINGE WPL 695171 Contact Us For Availability
19
SCREW WPL 6527554 Contact Us For Availability
19
PIN, HINGE WPL 689771 Contact Us For Availability
19
CAP, GROMMET WPL 683871 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
20
MAGNET WPL 694132 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
20
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
20
CAPACITOR, RUN WPL 658894 Contact Us For Availability
20
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696172 Contact Us For Availability
21
WIRE HARNESS, MULLION WPL 701172 Contact Us For Availability
21
SCREW WPL 6527559 Contact Us For Availability
21
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
21
SEAL, MULLION TRAY (FRONT) WPL 695622 Contact Us For Availability
21
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
21
WASHER WPL 542332 Contact Us For Availability
21
SCREW WPL 6527552 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694202WW Contact Us For Availability
22
COVER, LOWER HINGE (BLK) WPL 689781 Contact Us For Availability
22
SCREW WPL 40001512 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663384 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
SCREW WPL 6527562 Contact Us For Availability
22
HINGE, CENTER WPL 695142 Contact Us For Availability
23
KICKPLATE ASSY. W/CLIPS (BLK) WPL 701282 Contact Us For Availability
23
TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability
23
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 682332 Contact Us For Availability
23
SHIM, CENTER HINGE WPL 695151 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
SCREW WPL 6527561 Contact Us For Availability
24
TAPPING PLATE, CENTER HINGE WPL 694191 Contact Us For Availability
25
GROMMET WPL 545318 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
LEG, LEVELING WPL 686641 Contact Us For Availability
28
EVAPORATOR WPL 698227 Contact Us For Availability
29
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
29
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
29
TRAY, EVAPORATOR WPL 691182 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
PIN, WHEEL WPL 298352 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability
36
HEAT EXCHANGER WPL 6501322 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
38
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
38
HARNESS, WIRE WPL 701641 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1083401 Contact Us For Availability
× ![]()
