Model Whirlpool CT17Y7W REFRIGERATOR – Common Parts & Diagrams
01 - FREEZER COMPARTMENT

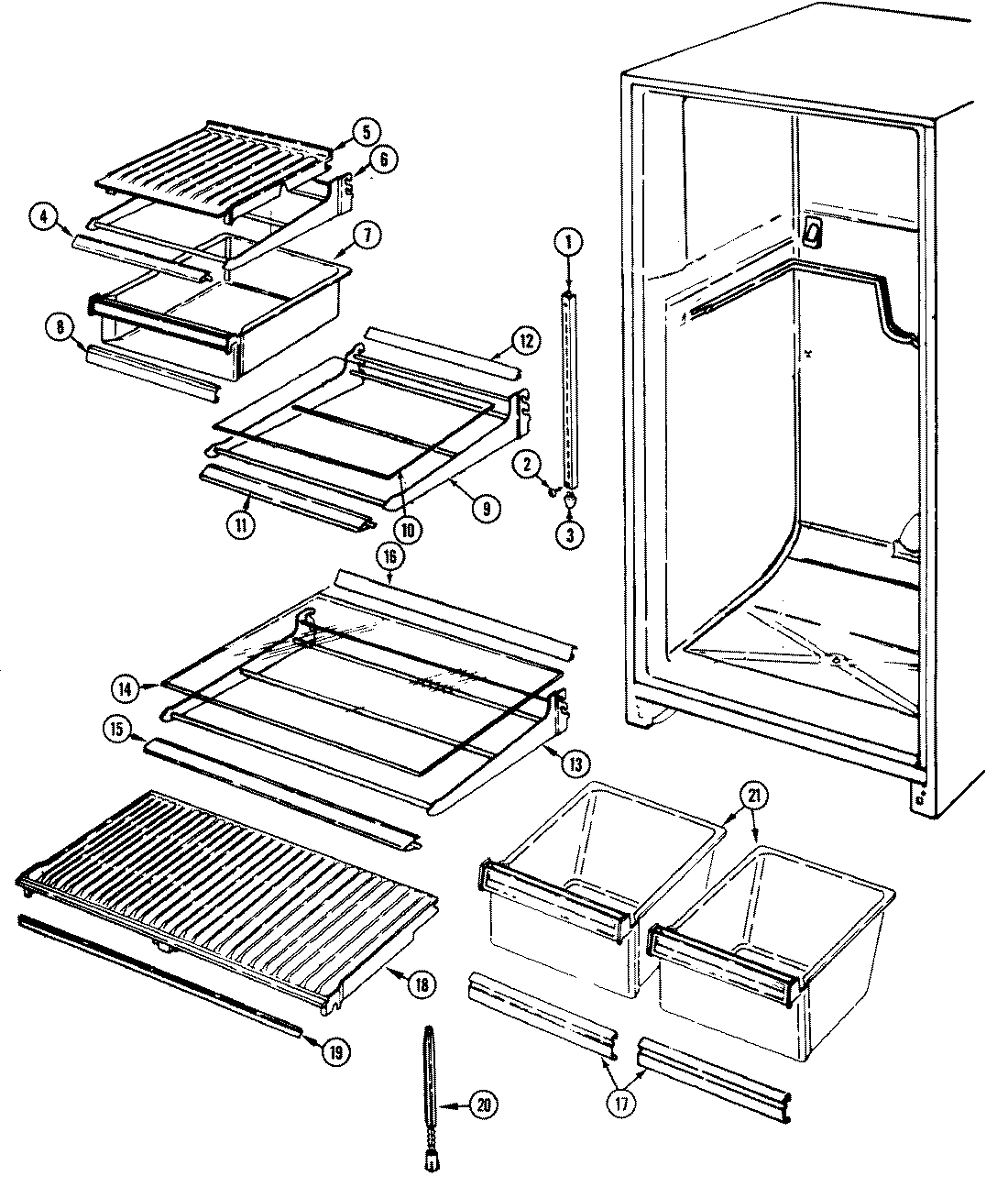

04 - SHELVES & ACCESSORIES

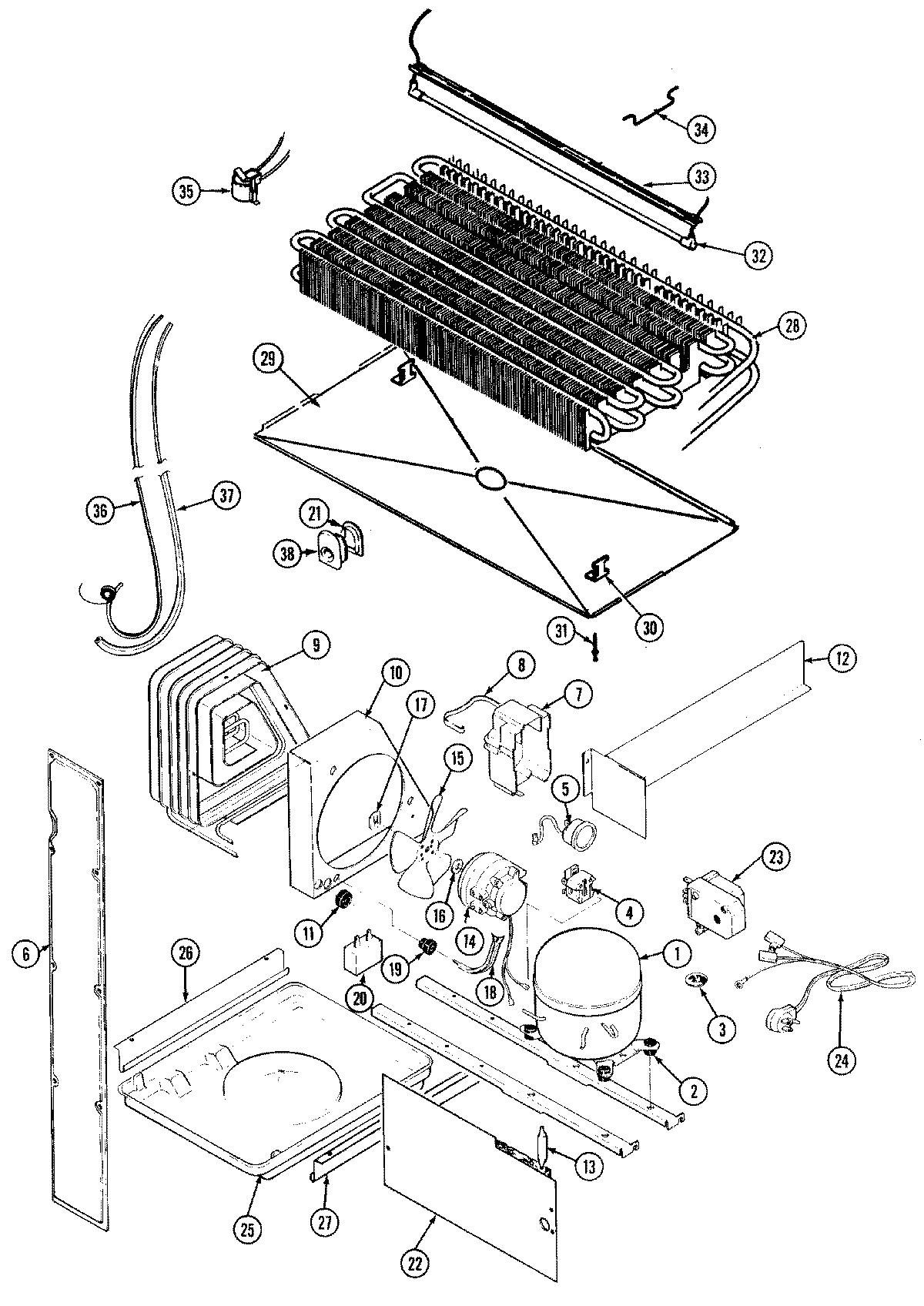

05 - UNIT COMPARTMENT & SYSTEM

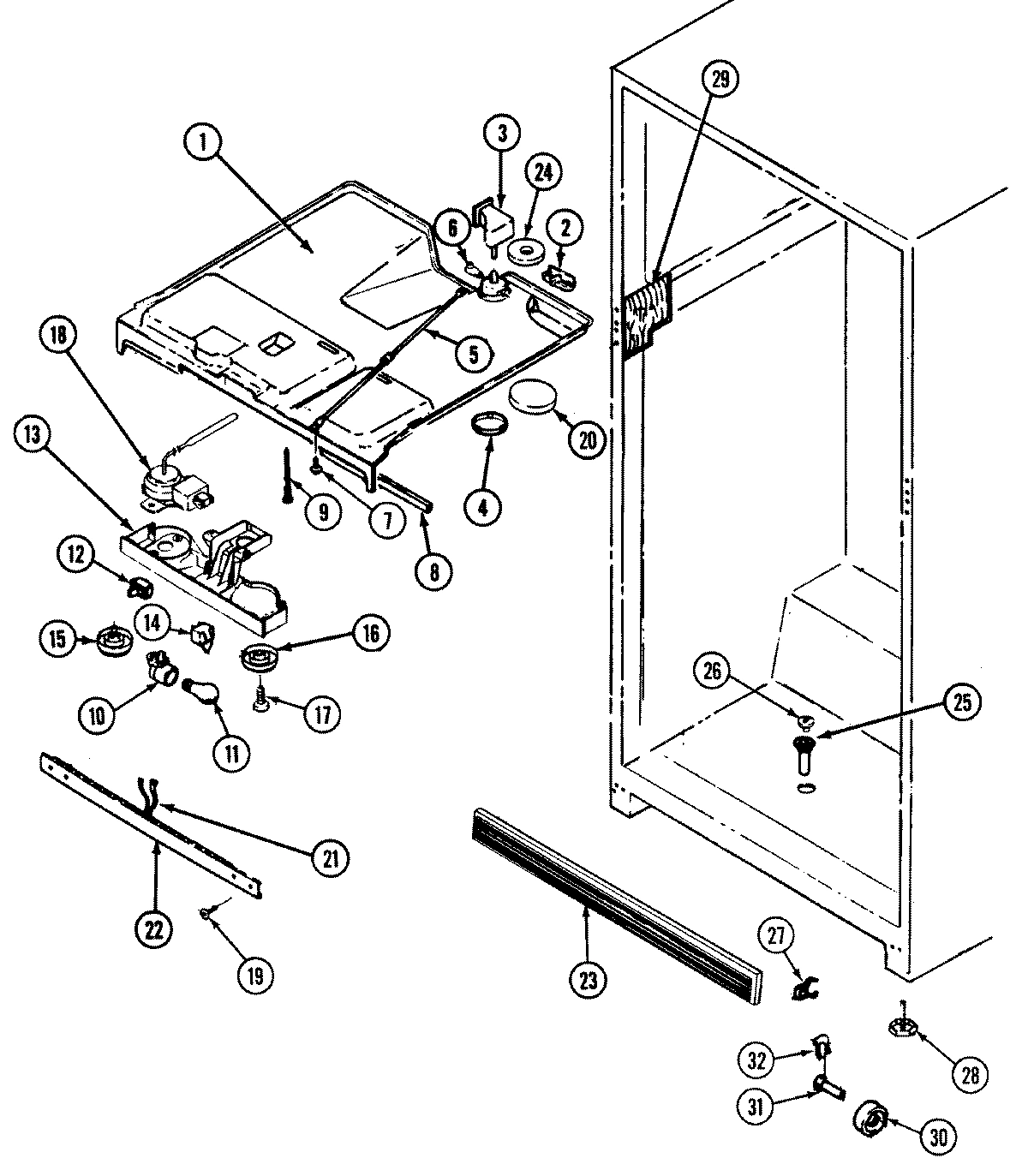

02 - FRESH FOOD COMPARTMENT

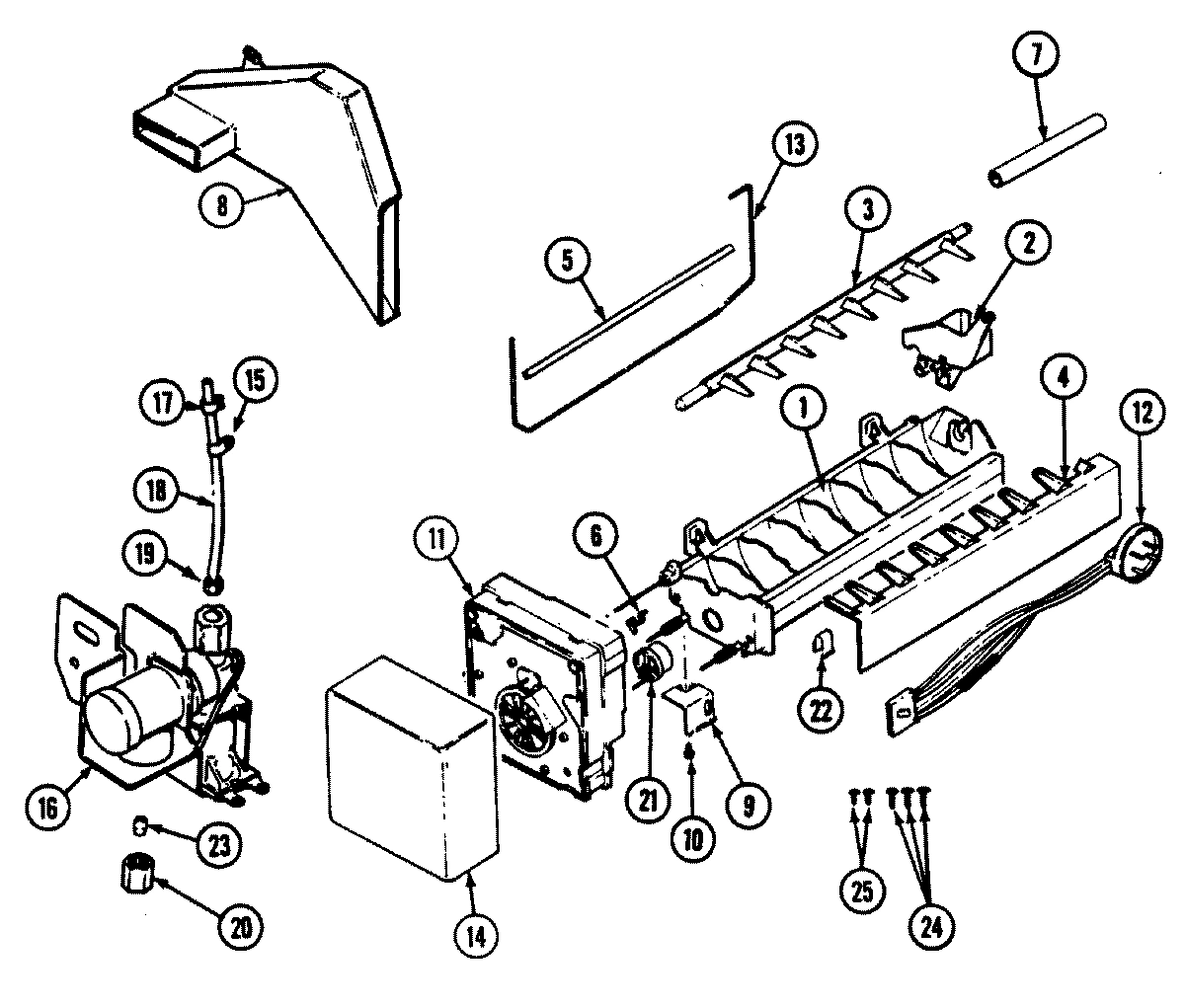

03 - OPTIONAL ICE MAKER
Common parts from model Whirlpool CT17Y7W REFRIGERATOR
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
COMPRESSOR WPL RA10111 Contact Us For Availability
1
COMPRESSOR WPL RA10321 Contact Us For Availability
1
TOP, F.F. COMPARTMENT WPL 694071 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694141 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
ORIFICE ASSY., DAMPER WPL 698118 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
TRIM, MEAT PAN (FRT.) WPL 701082 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
RELAY, START WPL 688572 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
5
SCREW WPL 40001536 Contact Us For Availability
5
COVER, MEAT PAN WPL 600757 Contact Us For Availability
5
OVERLOAD WPL 6910510 Contact Us For Availability
5
OVERLOAD WPL 691052 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
5
SLEEVE, SENSOR ARM WPL 675562 Contact Us For Availability
6
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
6
FRAME, MEAT SHELF WPL 701052 Contact Us For Availability
6
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
PAN, MEAT WPL 6663637 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
7
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
8
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
MAGNET WPL 694131 Contact Us For Availability
8
TRIM, MEAT PAN WPL 703158 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
DUCT, AIR (15` & 17` MODELS) WPL 684121 Contact Us For Availability
9
TUNNEL, AIR WPL 702082 Contact Us For Availability
9
SHELF, SPLIT WPL 701061 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL 604343 Contact Us For Availability
9
SCREW WPL 6527578 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
10
SCREW WPL 40001531 Contact Us For Availability
10
GLASS, SPLIT SHELF WPL 6813920 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
11
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
11
TRIM, SHELF (FRONT) WPL 701071 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BULB, LIGHT WPL 681231 Contact Us For Availability
11
FOIL (ABOVE LIGHT BULB) WPL 697521 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
12
BOTTOM, FRZ. WPL 693951 Contact Us For Availability
12
TRIM, SHELF (REAR) WPL 701101 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
SWITCH, HEATER WPL 692831 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
13
SHELF WPL 6043831 Contact Us For Availability
13
FRAME, FULL SHELF WPL 701063 Contact Us For Availability
13
SCREW WPL 40501635 Contact Us For Availability
13
COVER, TEMP. CONTROL WPL 704202 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
14
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
14
GLASS, FULL SHELF WPL 6813918 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684453 Contact Us For Availability
14
SWITCH, LIGHT WPL 669871 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
15
CUP, SHELF WPL 603131 Contact Us For Availability
15
TRIM, SHELF (FRONT) WPL 701076 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 694177 Contact Us For Availability
15
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
15
SCREW WPL 4000161 Contact Us For Availability
16
TRIM, SHELF (REAR) WPL 701106 Contact Us For Availability
16
WASHER, FAN BLADE WPL 690631 Contact Us For Availability
16
KNOB, FRZ. CONTROL WPL 694178 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
17
COVER, PLENUM WPL 61664804 Contact Us For Availability
17
TRIM, CRISPER PAN WPL 703157 Contact Us For Availability
17
SCREW WPL 6527538 Contact Us For Availability
17
CLAMP, SPRING WPL 603334 Contact Us For Availability
18
TUBE WPL 675796 No Longer Available
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
18
SHELF, CRISPER WPL 668341 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 686014 Contact Us For Availability
19
TRAY, ICE WPL 592812 Contact Us For Availability
19
TRIM, CRISPER SHELF WPL 604549 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SCREW WPL 6527554 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
20
PAN, ICE WPL 683461 Contact Us For Availability
20
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
20
CAPACITOR, RUN WPL 658894 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
21
SCREW WPL 4000191 Contact Us For Availability
21
PAN, CRISPER WPL 68221122 Contact Us For Availability
21
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
21
RETAINER, WIRE HARNESS WPL 601774 Contact Us For Availability
21
WIRE HARNESS, MAIN WPL 61001560 Contact Us For Availability
21
WIRE HARNESS, MAIN WPL 701621 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696171 Contact Us For Availability
21
WIRE HARNESS, MULLION WPL 701171 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663383 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694201WW Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
23
PLUG BUTTON, AIR DUCT & I/M WPL 675572 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 682331 Contact Us For Availability
23
KICKPLATE ASSY. W/CLIPS (WHT) WPL 701285 Contact Us For Availability
23
SLEEVE, BRASS WPL 694311 Contact Us For Availability
24
CAP, CONNECTOR WPL 681871 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
24
SCREW WPL 4000211 Contact Us For Availability
25
SEAL, FROST CHEST BOTTOM WPL 695631 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
TUBE, DRAIN WPL 545317 Contact Us For Availability
25
SCREW WPL 4010171 Contact Us For Availability
26
SEAL, MULLION TRAY (FRONT) WPL 695621 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
27
CAP, GROMMET WPL 683871 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
28
EVAPORATOR WPL 698221 Contact Us For Availability
28
LEG, LEVELING WPL 686641 Contact Us For Availability
29
TRAY, DRIP WPL 691181 Contact Us For Availability
29
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
29
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
30
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
30
WHEEL WPL 698121 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
PIN, WHEEL WPL 298352 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
32
CLIP WPL 602161 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
CLIP WPL 688251 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
36
HEAT EXCHANGER WPL 6501326 Contact Us For Availability
36
HEAT EXCHANGER WPL 650134 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1083403 Contact Us For Availability
× ![]()
