Model Whirlpool CT17X7W REFRIGERATOR – Common Parts & Diagrams

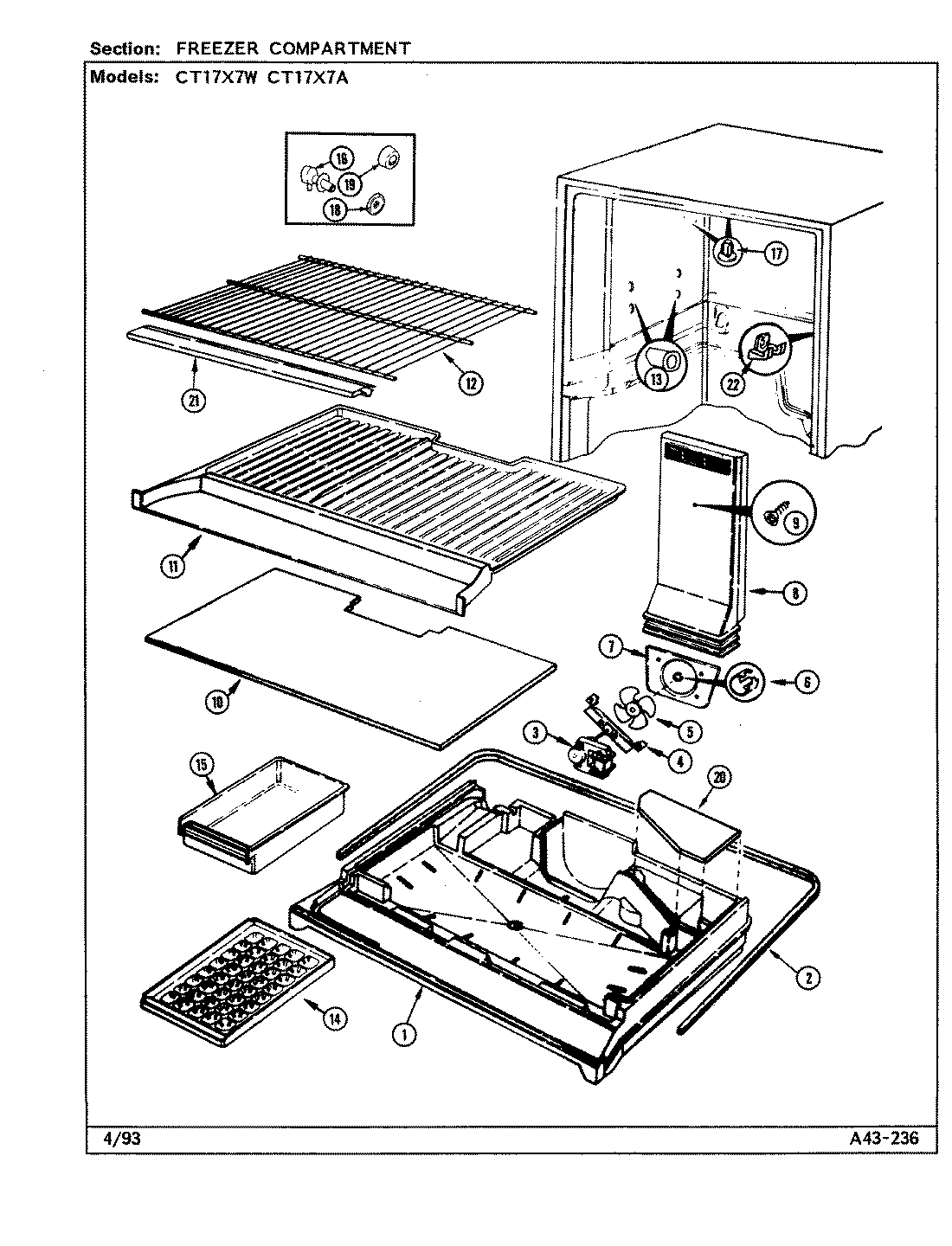

01 - FREEZER COMPARTMENT
02 - OPTIONAL ICE MAKER KIT
04 - UNIT COMPARTMENT & SYSTEM
03 - SHELVES & ACCESSORIES
Common parts from model Whirlpool CT17X7W REFRIGERATOR
1
TRAY, STYROFOAM MULLION WPL 694011 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694141 Contact Us For Availability
2
SEAL, MULLION TRAY (FRONT) WPL 695621 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
TRIM, MEAT SHELF (FRONT) WPL 605246 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
OVERLOAD WPL 691059 Contact Us For Availability
5
COVER, MEAT PAN WPL 600757 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
6
SHELF, MEAT WPL 6041613 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
PAN, MEAT WPL 6663637 Contact Us For Availability
8
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
8
TUNNEL, AIR WPL 685922 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
HANDLE, MEAT KEEPER WPL 60132102 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL 604343 Contact Us For Availability
9
FRAME, SHELF WPL 6057049 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
SHELF WPL 6660429 Contact Us For Availability
11
SEAL WPL 689461 Contact Us For Availability
11
BOTTOM, FRZ. WPL 693951 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
TRIM, SPLIT SHELF (FRONT) WPL 6052430 Contact Us For Availability
12
SHELF WPL 6043831 Contact Us For Availability
12
WIRE HARNESS WPL 679101 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
TRIM, SPLIT SHELF (REAR) WPL 652762 Contact Us For Availability
13
CUP, SHELF WPL 603131 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
FRAME, SHELF WPL 6057046 Contact Us For Availability
14
TRAY, ICE WPL 592812 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684812 Contact Us For Availability
14
SHELF WPL 6660428 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
15
BRACKET, WATER VALVE WPL 693631 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
TRIM, FULL SHELF (FRONT) WPL 6052421 Contact Us For Availability
16
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
TRIM, FULL SHELF (REAR) WPL 6527634 Contact Us For Availability
17
PLUG BUTTON WPL 675571 Contact Us For Availability
17
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
18
CAP, CONNECTOR WPL 681871 Contact Us For Availability
18
SLEEVE, BRASS WPL 694311 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
SHELF, CRISPER WPL 668341 Contact Us For Availability
19
CAP, GROMMET WPL 683871 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
TRIM, CRISPER SHELF WPL 604549 Contact Us For Availability
20
COVER, PLENUM WPL 664805 Contact Us For Availability
20
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
21
TRIM WPL 6041436 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
21
PAN, CRISPER WPL 68221122 Contact Us For Availability
22
SCREW WPL 4000191 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
HANDLE CRISPER PAN WPL 60132103 Contact Us For Availability
23
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 695432 Contact Us For Availability
24
PAN, ICE WPL 683271 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
SCREW WPL 4000211 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
26
SCREW WPL 4010171 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
28
EVAPORATOR WPL 698221 Contact Us For Availability
29
CLAMP, SPRING WPL 603334 Contact Us For Availability
29
TRAY, DRIP WPL 691181 Contact Us For Availability
30
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
CLIP WPL 689351 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
38
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
38
WIRE HARNESS, MAIN WPL 692921 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1083401 Contact Us For Availability
× ![]()
