Model Hotpoint CSXC24DMA Refrigerator – Common Parts & Diagrams

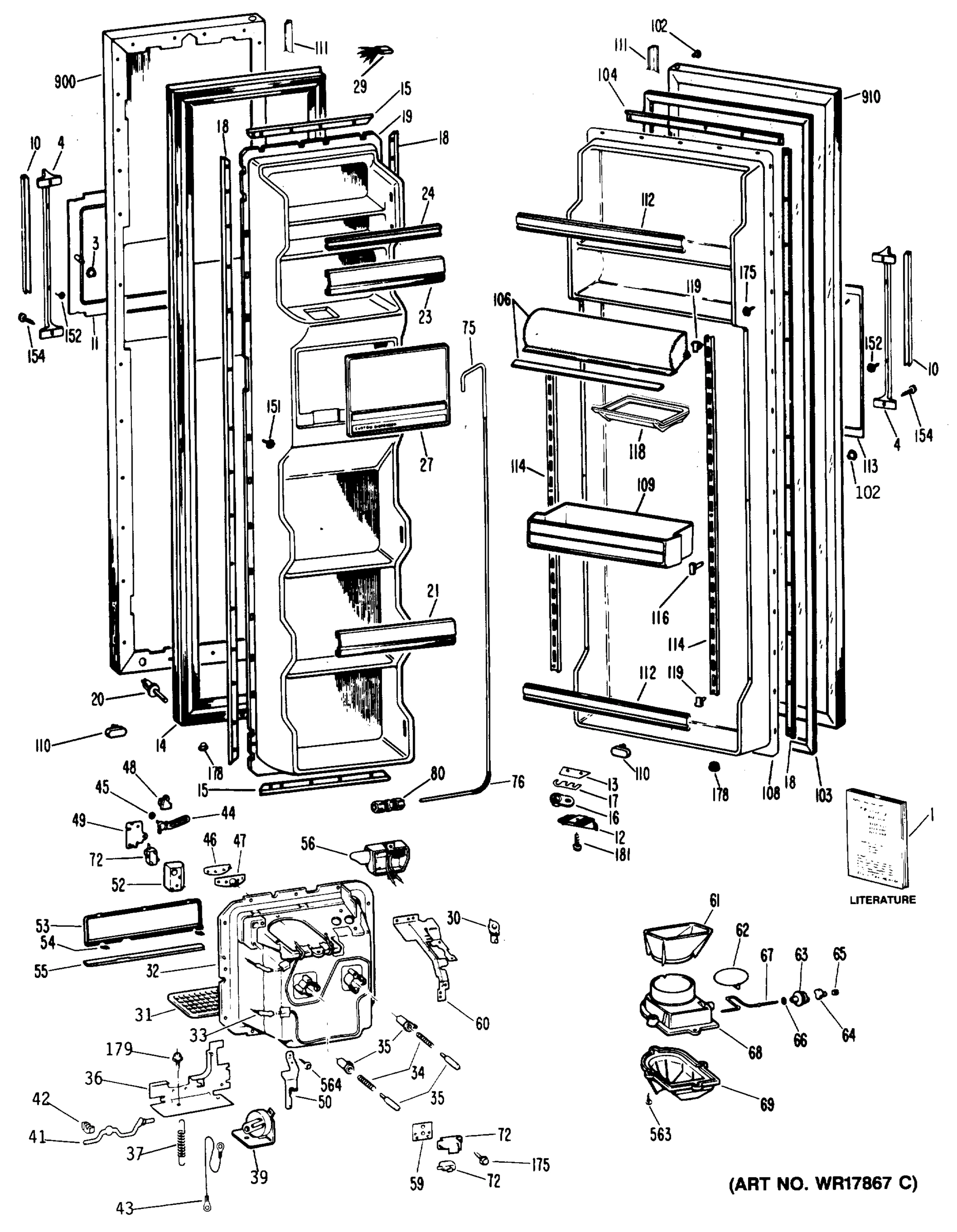

0

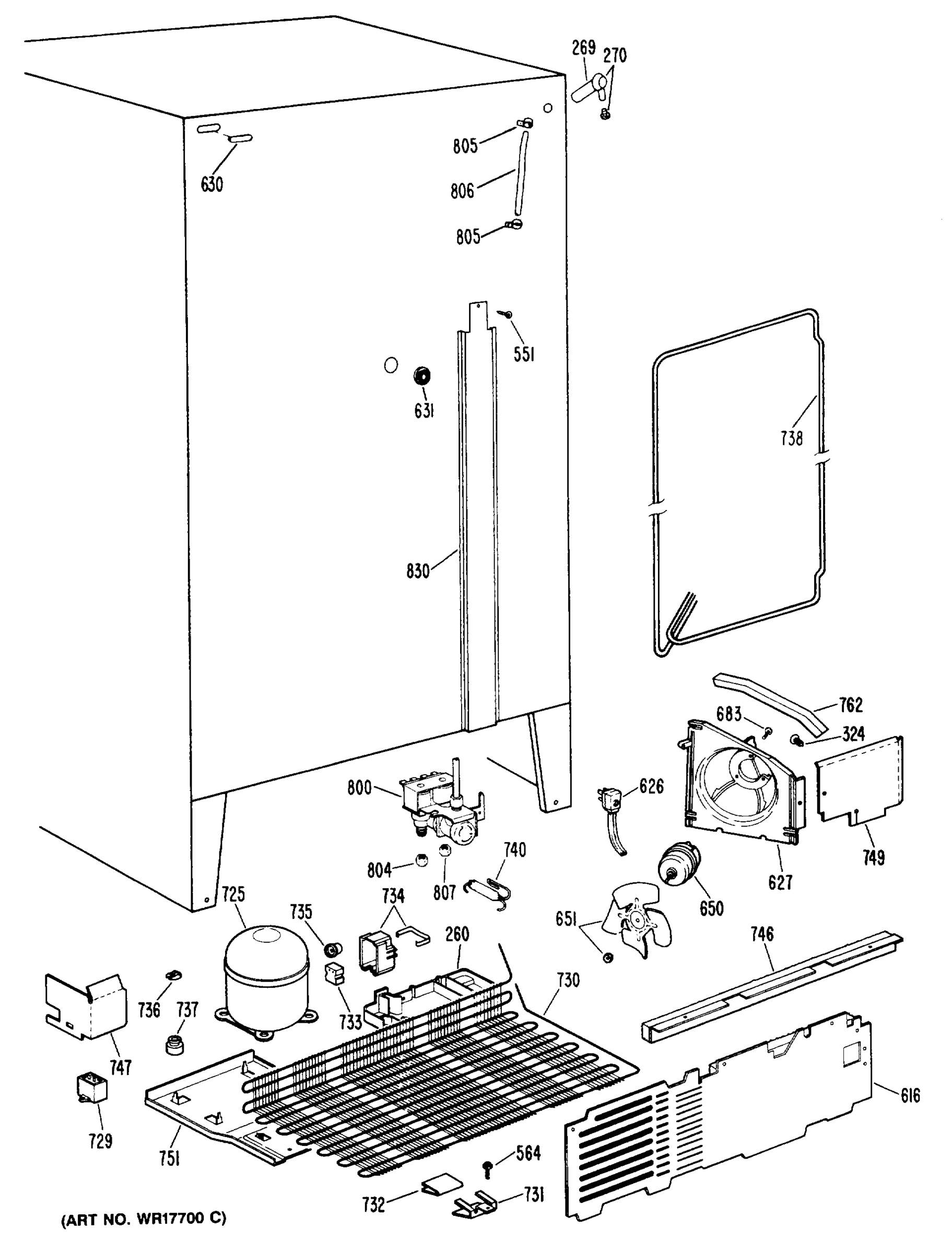

1

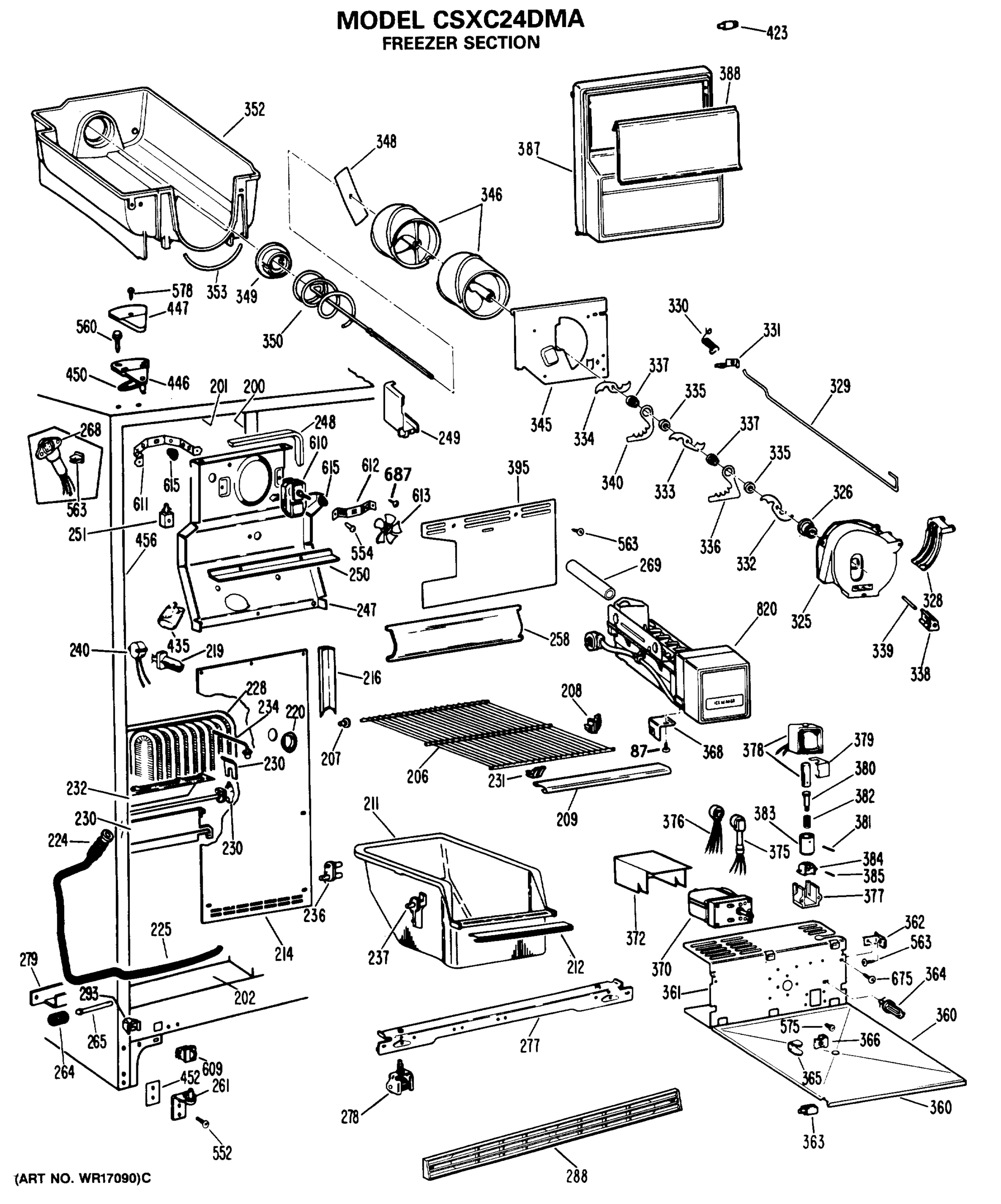

FREEZER SECTION

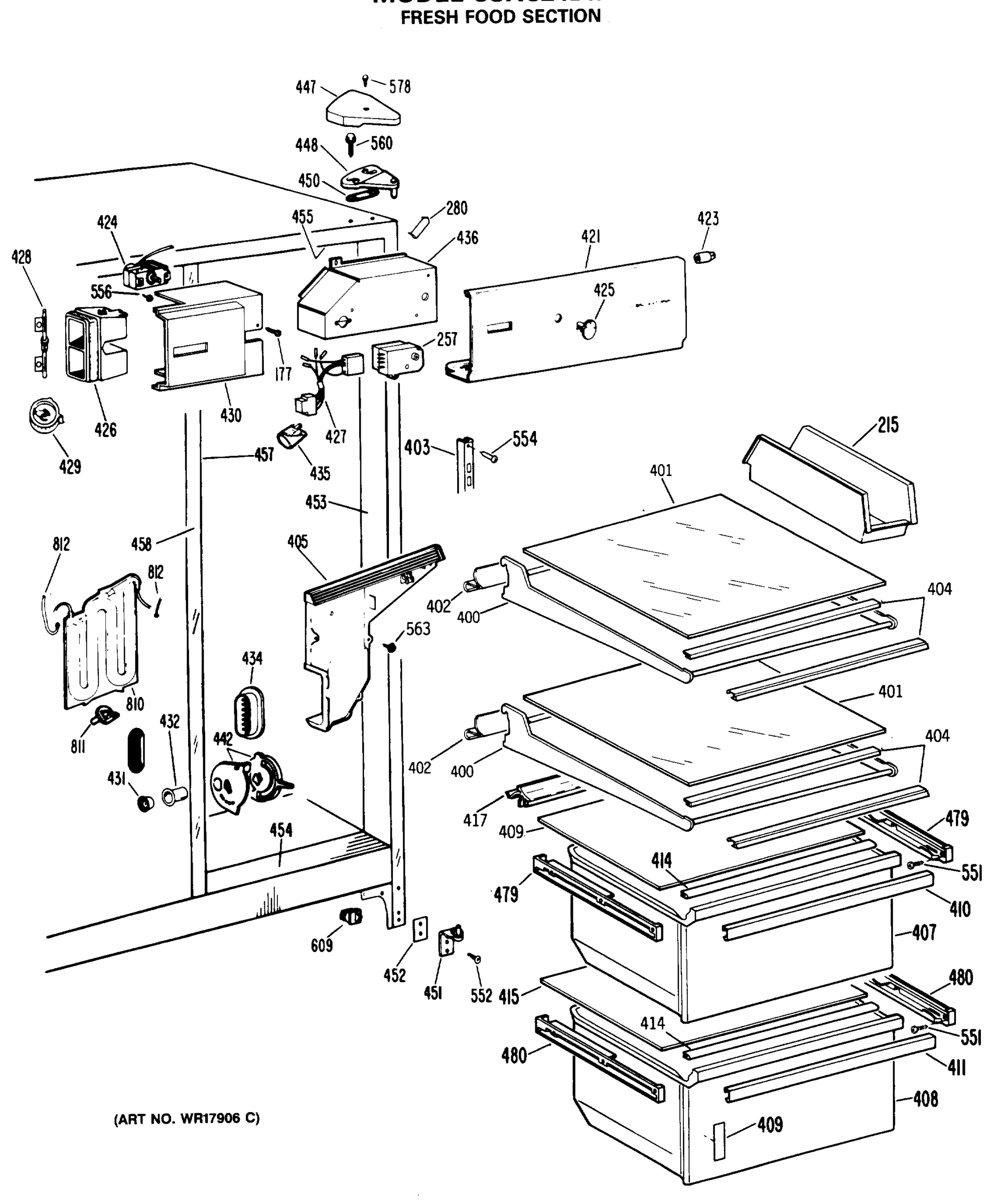

FRESH FOOD SECTION
Common parts from model Hotpoint CSXC24DMA Refrigerator
14
GEN WR24X5233 GEN WR24X5233 Contact Us For Availability
20
GEN WR23X0161 GEN WR23X0161 Contact Us For Availability
21
GEN WR17X2520 GEN WR17X2520 Contact Us For Availability
23
GEN WR17X2521 GEN WR17X2521 Contact Us For Availability
24
GEN WR17X6263 GEN WR17X6263 Contact Us For Availability
27
GEN WR17X2871 GEN WR17X2871 Contact Us For Availability
29
HARNESS RECESS GEN WR49X0201 Contact Us For Availability
29
GEN WR49X0308 GEN WR49X0308 Contact Us For Availability
29
GEN WR49X5102 GEN WR49X5102 Contact Us For Availability
30
GEN WR02X4571 GEN WR02X4571 Contact Us For Availability
31
GEN WR02X3953 GEN WR02X3953 Contact Us For Availability
32
GEN WR14X0403 GEN WR14X0403 Contact Us For Availability
32
GEN WR17X2066 GEN WR17X2066 Contact Us For Availability
33
GEN WR51X0313 GEN WR51X0313 Contact Us For Availability
34
GEN WR02X3951 GEN WR02X3951 Contact Us For Availability
35
PLUNGER SCREW & SLEEVE GEN WR02X6325 Contact Us For Availability
36
PLATE BEARING DISP GEN WR02X8414 Contact Us For Availability
37
GEN WR02X8403 GEN WR02X8403 Contact Us For Availability
39
GEN WR09X0506 GEN WR09X0506 Contact Us For Availability
41
GEN WR17X2820 GEN WR17X2820 Contact Us For Availability
42
BEARING CRANK DISP GEN WR02X4234 Contact Us For Availability
44
GEN WR02X4460 GEN WR02X4460 Contact Us For Availability
45
GEN WR02X4240 GEN WR02X4240 Contact Us For Availability
46
GEN WR02X7366 GEN WR02X7366 Contact Us For Availability
47
GEN WR02X7365 GEN WR02X7365 Contact Us For Availability
48
GEN WR02X7951 GEN WR02X7951 Contact Us For Availability
49
GEN WR02X4242 GEN WR02X4242 Contact Us For Availability
50
GEN WR17X1259 GEN WR17X1259 Contact Us For Availability
52
GEN WR02X4459 GEN WR02X4459 Contact Us For Availability
53
GEN WR17X2716 GEN WR17X2716 Contact Us For Availability
54
GEN WR02X4231 GEN WR02X4231 Contact Us For Availability
55
GEN WR38X0844 GEN WR38X0844 Contact Us For Availability
56
LAMP 7C7 GEN STD372071 Contact Us For Availability
56
GEN WR02X3959 GEN WR02X3959 Contact Us For Availability
56
GEN WR02X4570 GEN WR02X4570 Contact Us For Availability
59
GEN WR02X4244 GEN WR02X4244 Contact Us For Availability
60
GEN WR02X7244 GEN WR02X7244 Contact Us For Availability
61
GEN WR17X1261 GEN WR17X1261 Contact Us For Availability
62
GEN WR17X1586 GEN WR17X1586 Contact Us For Availability
63
PULLEY TIME DELAY DISP GEN WR17X1457 Contact Us For Availability
64
ARM TIME DELAY DISP GEN WR17X1045 Contact Us For Availability
65
GEN WR02X4595 GEN WR02X4595 Contact Us For Availability
66
GEN WR01X1385 GEN WR01X1385 Contact Us For Availability
67
GEN WR02X4814 GEN WR02X4814 Contact Us For Availability
68
GEN WR14X0246 GEN WR14X0246 Contact Us For Availability
68
GEN WR14X0247 GEN WR14X0247 Contact Us For Availability
68
GEN WR17X1257 GEN WR17X1257 Contact Us For Availability
69
SHIELD & FUNNEL ASM DISP GEN WR17X5881 Contact Us For Availability
72
GEN WR02X7942 GEN WR02X7942 Contact Us For Availability
72
SELECT SWITCH-CUBES/DISP GEN WR23X0144 Contact Us For Availability
75
GEN WR17X1408 GEN WR17X1408 Contact Us For Availability
76
GEN WR02X4633 GEN WR02X4633 Contact Us For Availability
80
GEN WR02X4265 GEN WR02X4265 Contact Us For Availability
102
GEN WR02X8162 GEN WR02X8162 Contact Us For Availability
103
GEN WR24X5231 GEN WR24X5231 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
106
GEN WR22X5080 GEN WR22X5080 Contact Us For Availability
106
GEN WR38X5404 GEN WR38X5404 Contact Us For Availability
108
GEN WR77X0552 GEN WR77X0552 Contact Us For Availability
109
GEN WR71X2090 GEN WR71X2090 Contact Us For Availability
110
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
111
GEN WR38X1425 GEN WR38X1425 Contact Us For Availability
112
GEN WR17X6362 GEN WR17X6362 Contact Us For Availability
113
GEN WR38X1038 GEN WR38X1038 Contact Us For Availability
114
GEN WR17X1391 GEN WR17X1391 Contact Us For Availability
116
GEN WR02X7507 GEN WR02X7507 Contact Us For Availability
118
GEN WR19X5003 GEN WR19X5003 Contact Us For Availability
119
GEN WR02X7508 GEN WR02X7508 Contact Us For Availability
152
GEN WZ04X0355 GEN WZ04X0355 Contact Us For Availability
154
SCR SPECIAL 10-16 GEN WR01X5477 Contact Us For Availability
175
SCREW GEN WR01X1464 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
179
GEN WZ04X0364 GEN WZ04X0364 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
GEN WR40X1641 GEN WR40X1641 Contact Us For Availability
201
GEN WR40X1638 GEN WR40X1638 Contact Us For Availability
202
GEN WR40X1637 GEN WR40X1637 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
211
GEN WR21X0172 GEN WR21X0172 Contact Us For Availability
212
GEN WR02X6061 GEN WR02X6061 Contact Us For Availability
213
GEN WR38X5226 GEN WR38X5226 Contact Us For Availability
214
GASKET EVAP COVER GEN WR14X0274 Contact Us For Availability
214
GEN WR17X2130 GEN WR17X2130 Contact Us For Availability
215
BUCKET UTILITY GEN WR32X0897 Contact Us For Availability
219
GEN WR02X4421 GEN WR02X4421 Contact Us For Availability
220
GEN WR02X7926 GEN WR02X7926 Contact Us For Availability
224
GEN WR02X4967 GEN WR02X4967 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
225
GEN WR02X8293 GEN WR02X8293 Contact Us For Availability
228
GEN WR02X4982 GEN WR02X4982 Contact Us For Availability
228
GEN WR02X4983 GEN WR02X4983 Contact Us For Availability
230
GEN WR02X8487 GEN WR02X8487 Contact Us For Availability
230
GEN WR51X0258 GEN WR51X0258 Contact Us For Availability
231
GEN WR02X5008 GEN WR02X5008 Contact Us For Availability
234
GEN WR02X4546 GEN WR02X4546 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR02X4845 GEN WR02X4845 Contact Us For Availability
247
GEN WR17X2134 GEN WR17X2134 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
249
GEN WR17X1414 GEN WR17X1414 Contact Us For Availability
250
GEN WR02X7945 GEN WR02X7945 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
258
GEN WR17X1424 GEN WR17X1424 Contact Us For Availability
260
GEN WR32X1125 GEN WR32X1125 Contact Us For Availability
265
COTTERPIN-AXLE GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
PLUG MOLDED FM IM GEN WR23X0312 Contact Us For Availability
269
FILL TUBE GEN WR02X6087 Contact Us For Availability
277
GEN WR17X2113 GEN WR17X2113 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X2743 GEN WR17X2743 Contact Us For Availability
280
GEN WR02X8417 GEN WR02X8417 Contact Us For Availability
288
GRILLE BASE GEN WR74X0199 Contact Us For Availability
293
CLIP-0. CASE-END CAP GEN WR02X7080 Contact Us For Availability
324
GEN WR02X7069 GEN WR02X7069 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
326
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X2060 Contact Us For Availability
330
SPRING DEFLECTOR GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
GEN WR02X4139 GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
PLATE FRONT DISP GEN WR17X2062 Contact Us For Availability
346
HELIX REAR-DISP GEN WR17X2056 Contact Us For Availability
346
HELIX FRONT-DISP GEN WR17X2057 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X2740 GEN WR17X2740 Contact Us For Availability
360
GEN WR02X4566 GEN WR02X4566 Contact Us For Availability
360
GEN WR71X1874 GEN WR71X1874 Contact Us For Availability
361
GEN WR17X2909 GEN WR17X2909 Contact Us For Availability
362
GEN WR02X7936 GEN WR02X7936 Contact Us For Availability
363
GEN WR02X4465 GEN WR02X4465 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X8459 GEN WR02X8459 Contact Us For Availability
370
GEN WR60X0196 GEN WR60X0196 Contact Us For Availability
375
GEN WR23X0194 GEN WR23X0194 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
387
GEN WR17X2910 GEN WR17X2910 Contact Us For Availability
388
GEN WR17X2874 GEN WR17X2874 Contact Us For Availability
388
GEN WR38X1524 GEN WR38X1524 Contact Us For Availability
395
GEN WR17X2905 GEN WR17X2905 Contact Us For Availability
400
GEN WR71X2176 GEN WR71X2176 Contact Us For Availability
401
GEN WR32X1212 GEN WR32X1212 Contact Us For Availability
402
GEN WR38X1440 GEN WR38X1440 Contact Us For Availability
403
GEN WR72X0062 GEN WR72X0062 Contact Us For Availability
404
GEN WR02X8450 GEN WR02X8450 Contact Us For Availability
404
GEN WR38X1706 GEN WR38X1706 Contact Us For Availability
404
GEN WR71X1850 GEN WR71X1850 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
GEN WR17X1523 GEN WR17X1523 Contact Us For Availability
407
GEN WR32X1053 GEN WR32X1053 Contact Us For Availability
408
GEN WR32X1052 GEN WR32X1052 Contact Us For Availability
409
GEN WR02X8476 GEN WR02X8476 Contact Us For Availability
409
GEN WR32X5177 GEN WR32X5177 Contact Us For Availability
410
GEN WR17X2313 GEN WR17X2313 Contact Us For Availability
411
GEN WR17X2314 GEN WR17X2314 Contact Us For Availability
414
GEN WR14X0339 GEN WR14X0339 Contact Us For Availability
415
GEN WR32X0886 GEN WR32X0886 Contact Us For Availability
417
GEN WR02X7359 GEN WR02X7359 Contact Us For Availability
421
GEN WR17X2501 GEN WR17X2501 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR09X0442 GEN WR09X0442 Contact Us For Availability
425
GEN WR02X7157 GEN WR02X7157 Contact Us For Availability
426
GEN WR02X4834 GEN WR02X4834 Contact Us For Availability
426
GEN WR02X8043 GEN WR02X8043 Contact Us For Availability
426
GEN WR14X0369 GEN WR14X0369 Contact Us For Availability
427
GEN WR23X0316 GEN WR23X0316 Contact Us For Availability
428
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
429
GEN WR02X4836 GEN WR02X4836 Contact Us For Availability
430
GEN WR17X2209 GEN WR17X2209 Contact Us For Availability
431
GEN WR02X8434 GEN WR02X8434 Contact Us For Availability
432
GEN WR02X3886 GEN WR02X3886 Contact Us For Availability
434
GEN WR02X4542 GEN WR02X4542 Contact Us For Availability
436
GEN WR02X7736 GEN WR02X7736 Contact Us For Availability
442
KNOB CONTROL GEN WR02X3883 Contact Us For Availability
442
GEN WR02X3884 GEN WR02X3884 Contact Us For Availability
442
GEN WR02X7035 GEN WR02X7035 Contact Us For Availability
446
GEN WR13 GEN WR13 Contact Us For Availability
448
GEN WR13X0616 GEN WR13X0616 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
SHIM HINGE BTM. GEN WR02X4497 Contact Us For Availability
452
GEN WR02X7143 GEN WR02X7143 Contact Us For Availability
453
GEN WR40X1631 GEN WR40X1631 Contact Us For Availability
454
GEN WR40X1629 GEN WR40X1629 Contact Us For Availability
455
GEN WR40X1635 GEN WR40X1635 Contact Us For Availability
457
GEN WR40X1640 GEN WR40X1640 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7031 GEN WR02X7031 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR40X1576 GEN WR40X1576 Contact Us For Availability
479
GEN WR72X0181 GEN WR72X0181 Contact Us For Availability
480
GEN WR72X0183 GEN WR72X0183 Contact Us For Availability
480
GEN WR72X0184 GEN WR72X0184 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
552
GEN WR01X1587 GEN WR01X1587 Contact Us For Availability
554
GEN WR01X1483 GEN WR01X1483 Contact Us For Availability
556
SCR 8-32 MA TR 1/4 SS GEN WZ02X0460 Contact Us For Availability
558
GEN WZ06X0107 GEN WZ06X0107 Contact Us For Availability
560
GEN WR01X1249 GEN WR01X1249 Contact Us For Availability
560
GEN WR01X1806 GEN WR01X1806 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
616
GEN WR82X0312 GEN WR82X0312 Contact Us For Availability
627
GEN WR17X2741 GEN WR17X2741 Contact Us For Availability
631
GEN WR02X4829 GEN WR02X4829 Contact Us For Availability
631
GEN WR02X4968 GEN WR02X4968 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR60X0186 GEN WR60X0186 Contact Us For Availability
683
SCREW GEN WZ05X0164 Contact Us For Availability
730
GEN WR84X0159 GEN WR84X0159 Contact Us For Availability
731
GEN WR02X8370 GEN WR02X8370 Contact Us For Availability
732
GEN WR02X8291 GEN WR02X8291 Contact Us For Availability
733
RELAY GEN WR07X0190 Contact Us For Availability
734
CLAMP RELAY COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR02X7227 GEN WR02X7227 Contact Us For Availability
735
GEN WR08X0094 GEN WR08X0094 Contact Us For Availability
736
GEN WR02X4998 GEN WR02X4998 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
GEN WR84X0046 GEN WR84X0046 Contact Us For Availability
746
GEN WR17X2703 GEN WR17X2703 Contact Us For Availability
747
GEN WR17X2680 GEN WR17X2680 Contact Us For Availability
749
GEN WR17X2702 GEN WR17X2702 Contact Us For Availability
751
GEN WR17X2701 GEN WR17X2701 Contact Us For Availability
762
GEN WR02X7493 GEN WR02X7493 Contact Us For Availability
764
GEN WR02X8222 GEN WR02X8222 Contact Us For Availability
804
GEN WR02X4046 GEN WR02X4046 Contact Us For Availability
810
GEN WR17X2890 GEN WR17X2890 Contact Us For Availability
811
GEN WR02X4469 GEN WR02X4469 Contact Us For Availability
830
GEN WR17X2602 GEN WR17X2602 Contact Us For Availability
900
GEN WR78X8292 GEN WR78X8292 Contact Us For Availability
900
GEN WR78X8293 GEN WR78X8293 Contact Us For Availability
910
GEN WR78X8342 GEN WR78X8342 Contact Us For Availability
910
GEN WR78X8343 GEN WR78X8343 Contact Us For Availability
× ![]()
