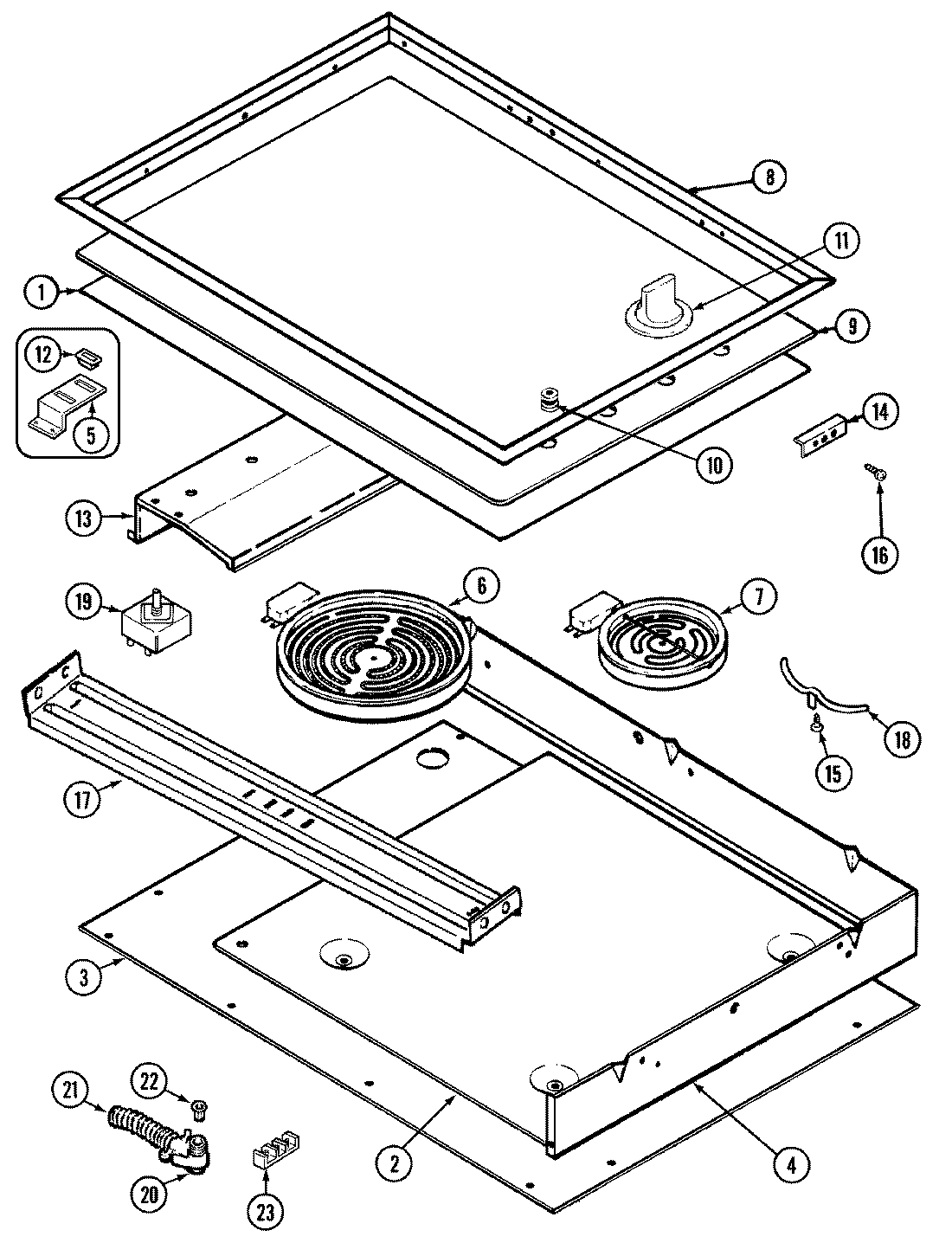

Model Whirlpool CSEA500ACE ELECTRIC COOK-TOP – Common Parts & Diagrams

1
BAFFLE, CERAMIC TOP
BAFFLE, CERAMIC TOP WPL 3601F16480 Contact Us For Availability
View on Model
2
BAFFLE, HEAT----NA
BAFFLE, HEAT----NA WPL 3601F17351 Contact Us For Availability
View on Model
3
BOTTOM, BURNER BOX
BOTTOM, BURNER BOX WPL 4011F13645 Contact Us For Availability
View on Model
4
BOTTOM, BURNER BOX-SIDES
BOTTOM, BURNER BOX-SIDES WPL 4016F02345 Contact Us For Availability
View on Model
5
BRACKET, LIGHT INDICATOR
BRACKET, LIGHT INDICATOR WPL 3801F18845 Contact Us For Availability
View on Model
6
ELEMENT W/RECEPTACLE (8``)
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
View on Model
6
LIMITER (8`` ELEMENT)
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
View on Model
7
ELEMENT W/RECEPTACLE (6``)
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
View on Model
7
LIMITER (6`` ELEMENT)
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
View on Model
8
+TAPE, SILICONE 1 IN. BY 102 I
+TAPE, SILICONE 1 IN. BY 102 I WPL 4870F00660 Contact Us For Availability
View on Model
8
FRAME, MAIN TOP
FRAME, MAIN TOP WPL 7746P02960 Contact Us For Availability
View on Model
9
NAMEPLATE, ADMIRAL (BLK)
NAMEPLATE, ADMIRAL (BLK) WPL 7719P06260 Contact Us For Availability
View on Model
9
TOP, MAIN (GLASS-WHT)
TOP, MAIN (GLASS-WHT) WPL 7918P07060 Contact Us For Availability
View on Model
9
CLEANER, ELCO
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
View on Model
9
SCRAPER, RAZOR
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
View on Model
10
GROMMET
GROMMET WPL 8008P03360 Contact Us For Availability
View on Model
11
KNOB, SWITCH
KNOB, SWITCH WPL 7737P02960 Contact Us For Availability
View on Model
12
LIGHT, INDICATOR
LIGHT, INDICATOR WPL 7407P09860 Contact Us For Availability
View on Model
13
PLATE, SWITCH MTG
PLATE, SWITCH MTG WPL 3605F17545 Contact Us For Availability
View on Model
14
RETAINER, MAIN TOP GLASS
RETAINER, MAIN TOP GLASS WPL 3804F09245 Contact Us For Availability
View on Model
15
SCREW
SCREW WPL 7101P04260 Contact Us For Availability
View on Model
16
SCREW
SCREW WPL 7101P05960 Contact Us For Availability
View on Model
17
SUPPORT, CERAMIC ELEMENT
SUPPORT, CERAMIC ELEMENT WPL 3807F32680 Contact Us For Availability
View on Model
18
SUPPORT, ELEMENT
SUPPORT, ELEMENT WPL 8004P01560 Contact Us For Availability
View on Model
19
SCREW
SCREW WPL 7101P30960 Contact Us For Availability
View on Model
19
SEAL, GASKET INF. SW.
SEAL, GASKET INF. SW. WPL 7212P03060 Contact Us For Availability
View on Model
19
SWITCH, INFINITE (1400W)
SWITCH, INFINITE (1400W) WPL 7403P26660 Contact Us For Availability
View on Model
19
SWITCH, INFINITE (2400W)
SWITCH, INFINITE (2400W) WPL 7403P26760 Contact Us For Availability
View on Model
20
CONNECTOR, RIGHT ANG
CONNECTOR, RIGHT ANG WPL 7417P00460 Contact Us For Availability
View on Model
21
TUBING, CONDUIT (FLEXIBLE)
TUBING, CONDUIT (FLEXIBLE) WPL 3414F03544 Contact Us For Availability
View on Model
21
WIRES, CONDUIT
WIRES, CONDUIT WPL 5130A01460 Contact Us For Availability
View on Model
22
SLEEVE, TUBE
SLEEVE, TUBE WPL 8018P00160 Contact Us For Availability
View on Model
23
BLOCK, TERMINAL
BLOCK, TERMINAL WPL 7401P01660 Contact Us For Availability
View on Model
NI
WIRES, LOOSE
WIRES, LOOSE WPL 5125A32760 Contact Us For Availability
View on Model
NI
HARNESS, WIRE
HARNESS, WIRE WPL 5170D18260 Contact Us For Availability
View on Model
NI
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 8110P15260 Contact Us For Availability
View on Model
NI
MANUAL, USE & CARE-INSERT
MANUAL, USE & CARE-INSERT WPL 8112P10560 Contact Us For Availability
View on Model
NI

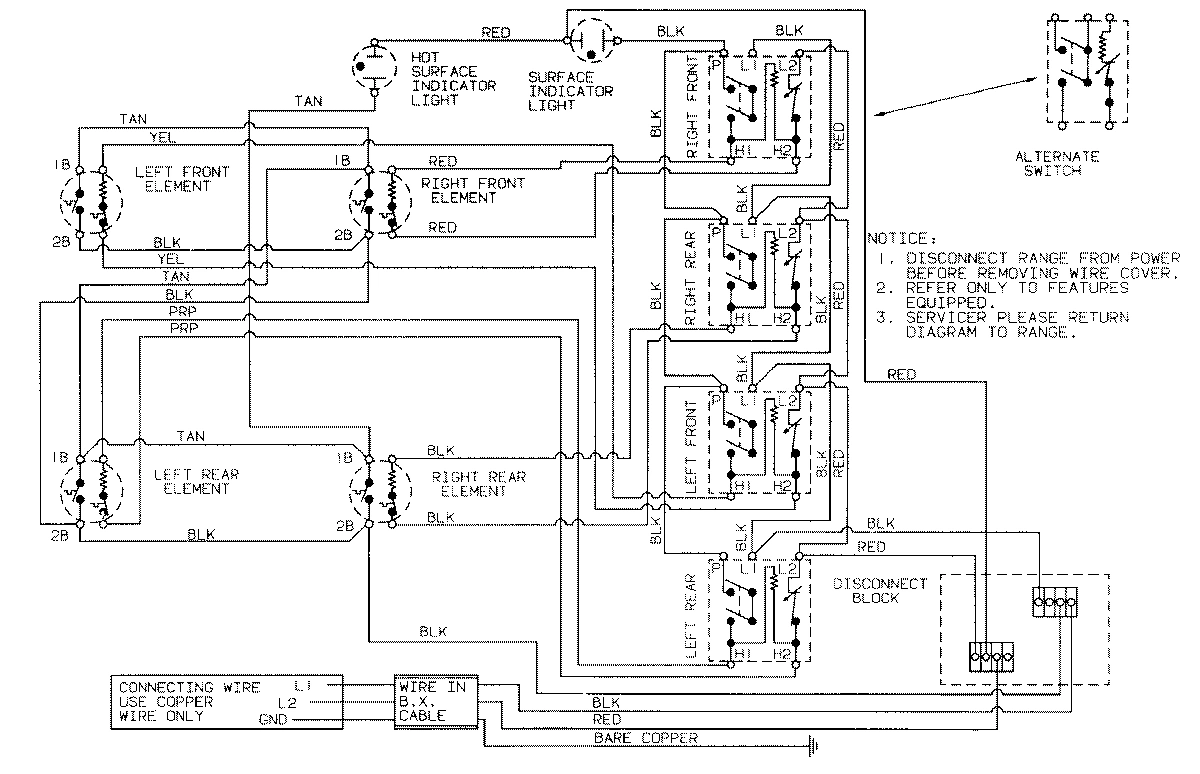

WIRING INFORMATION
WIRING INFORMATION WPL 15001150 Contact Us For Availability
