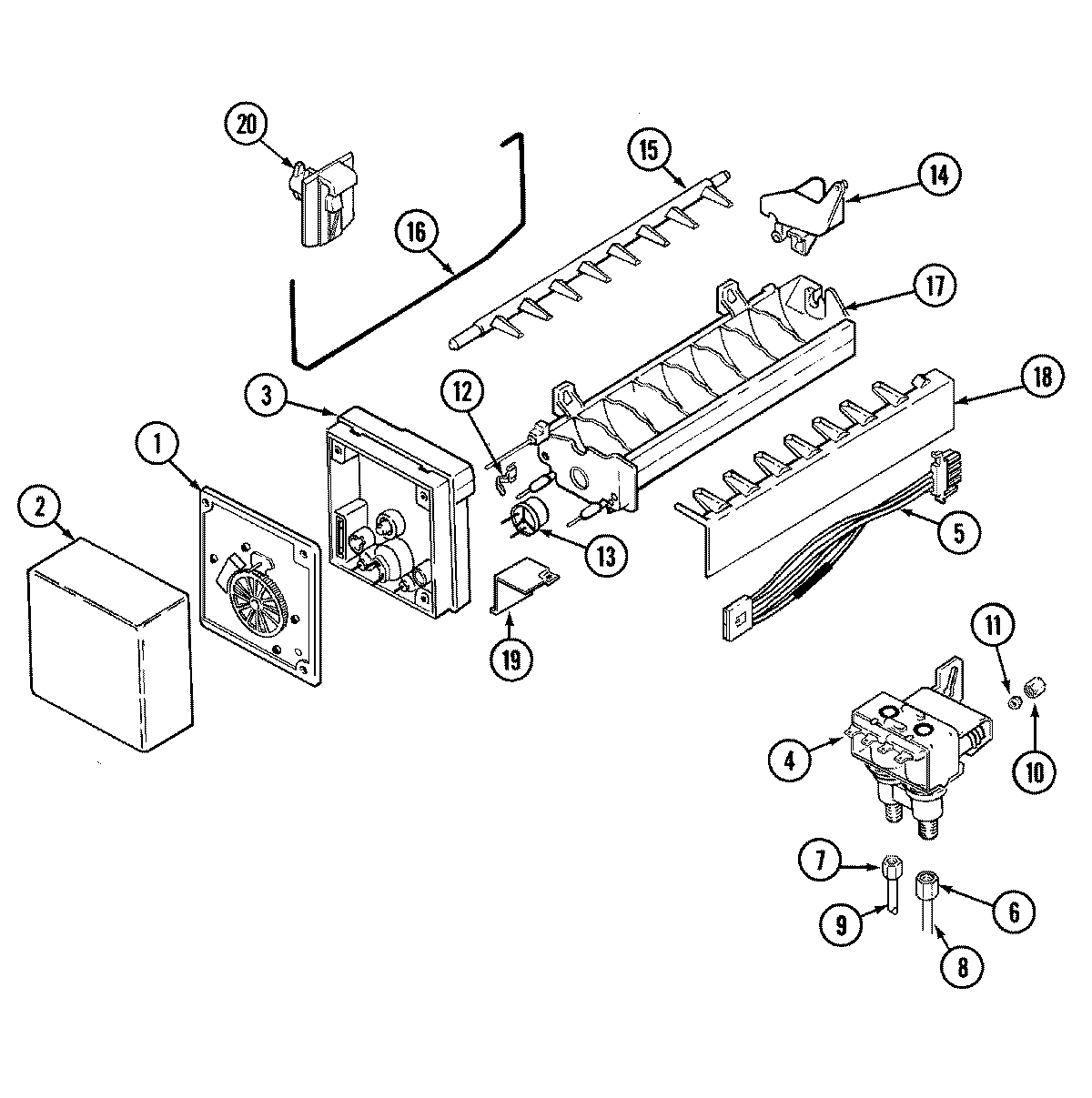

Model Whirlpool CSD2525ARB REFRIGERATOR – Common Parts &amp; Diagrams

1

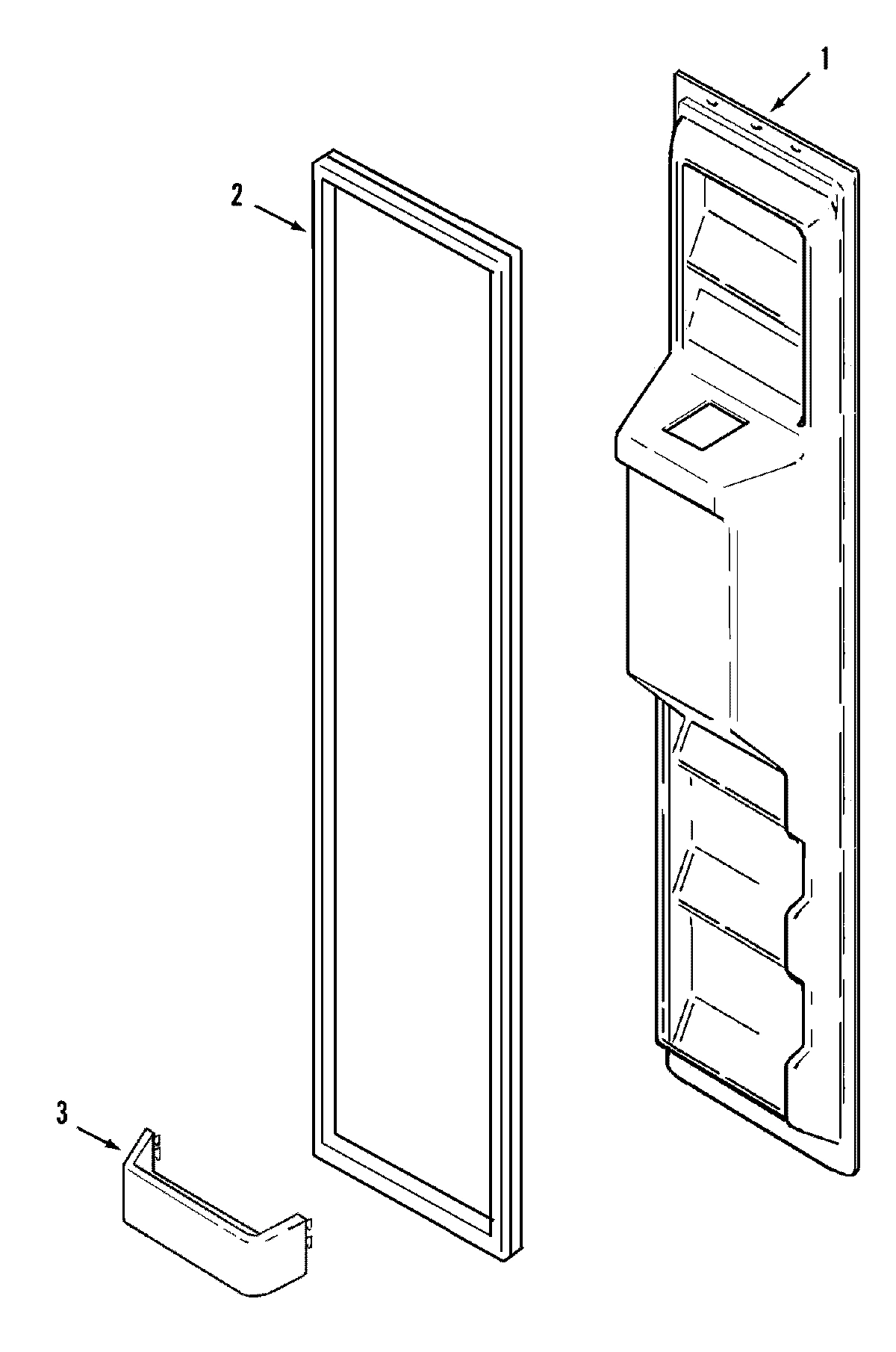

LINER, FRZ. DOOR WPL 61003476 Contact Us For Availability

1

SCREW WPL 652755 Contact Us For Availability

1

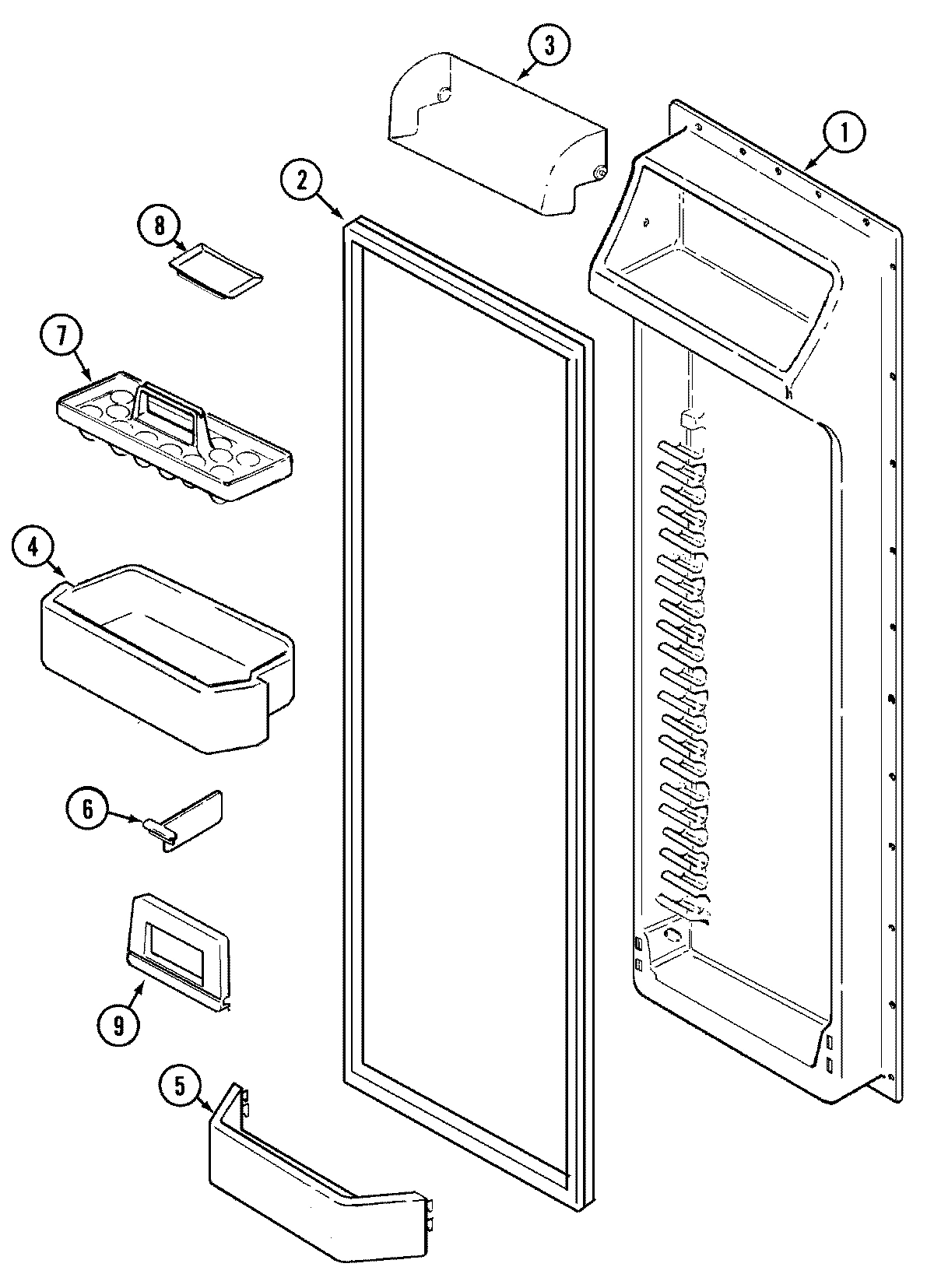

LINER, F.F. DOOR WPL 61003472 Contact Us For Availability

1

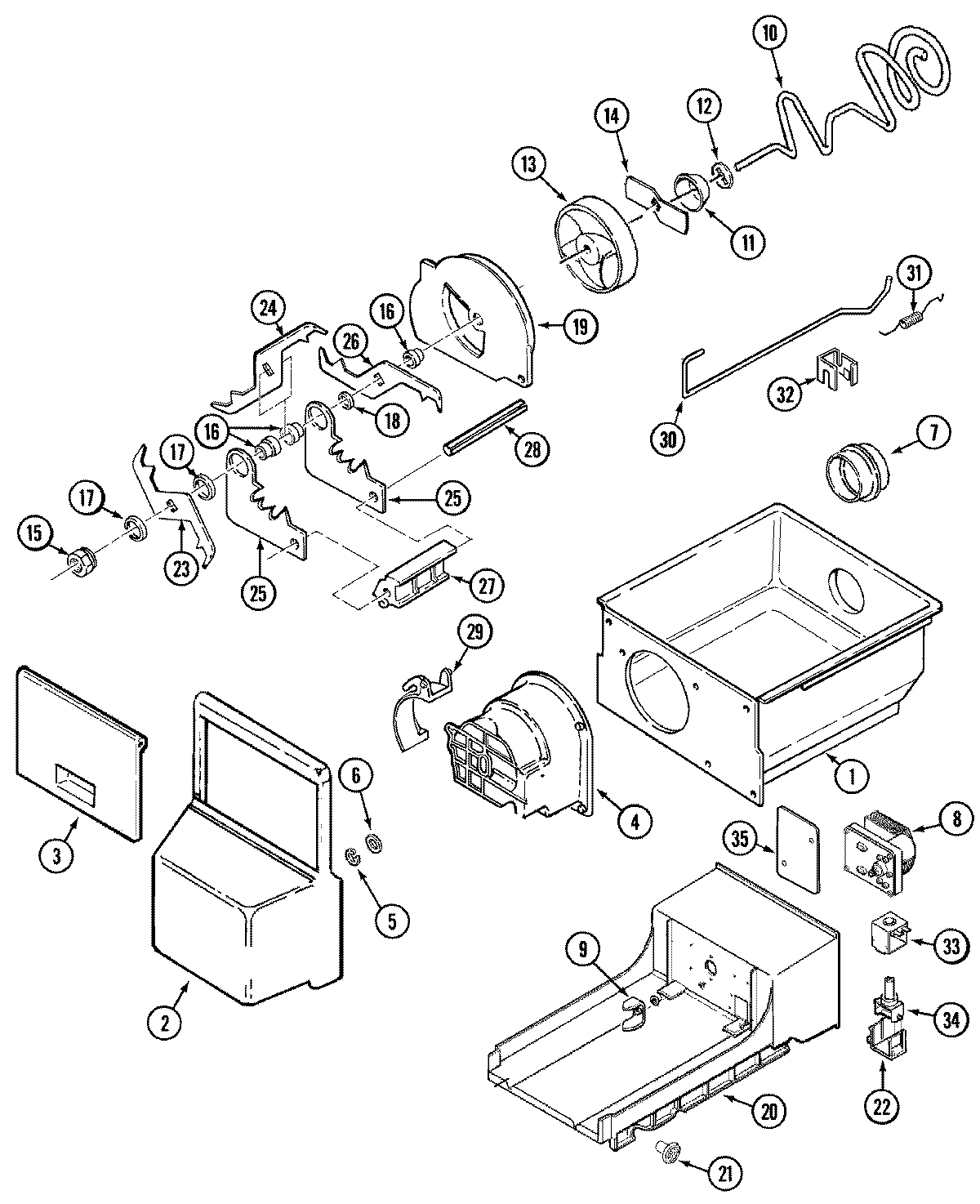

BIN, ICE WPL 61004802 Contact Us For Availability

1

SCREW WPL 4000221 Contact Us For Availability

1

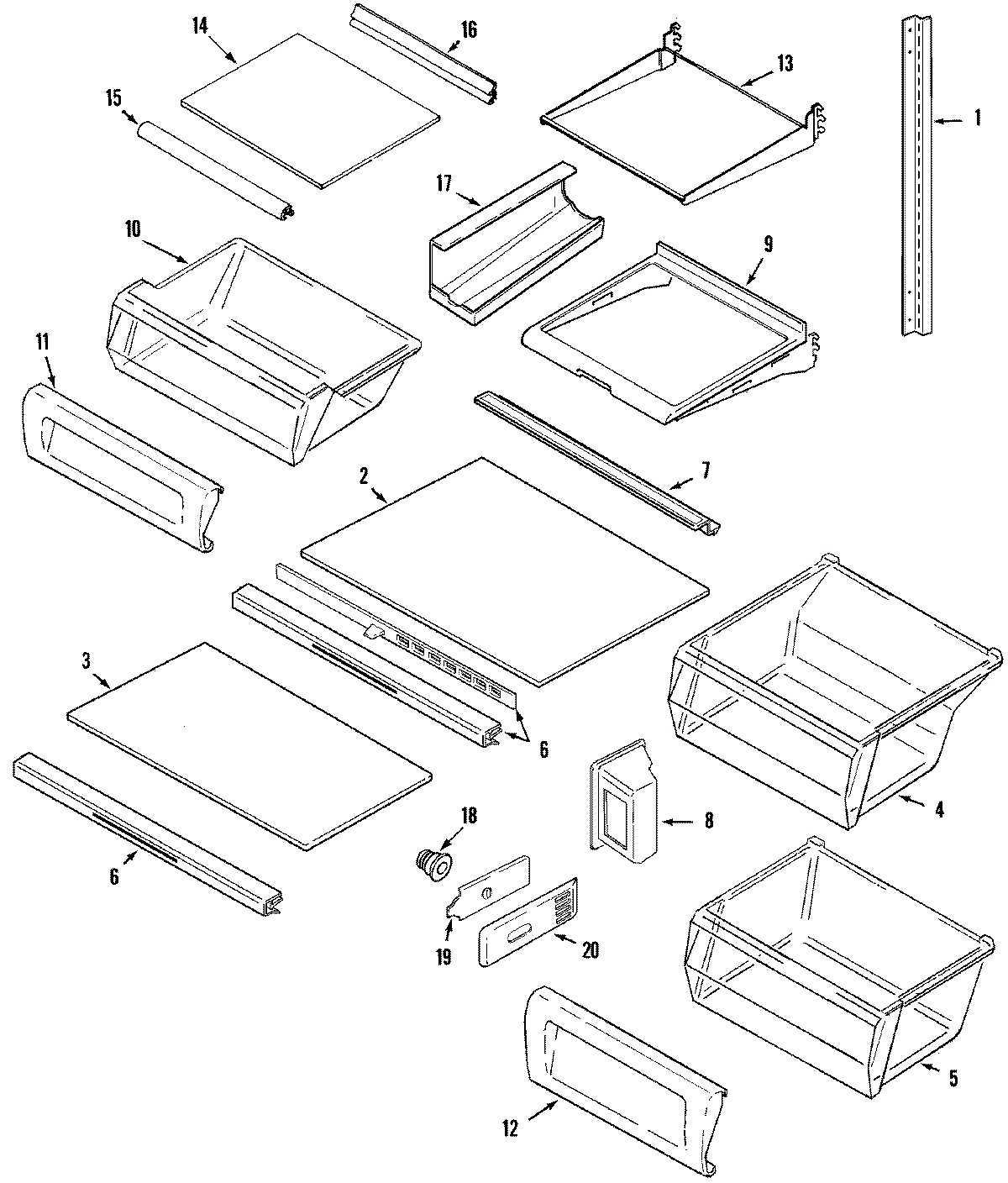

RAIL, SHELF SUPPORT WPL 61003240 Contact Us For Availability

1

SCREW WPL 4000311 Contact Us For Availability

1

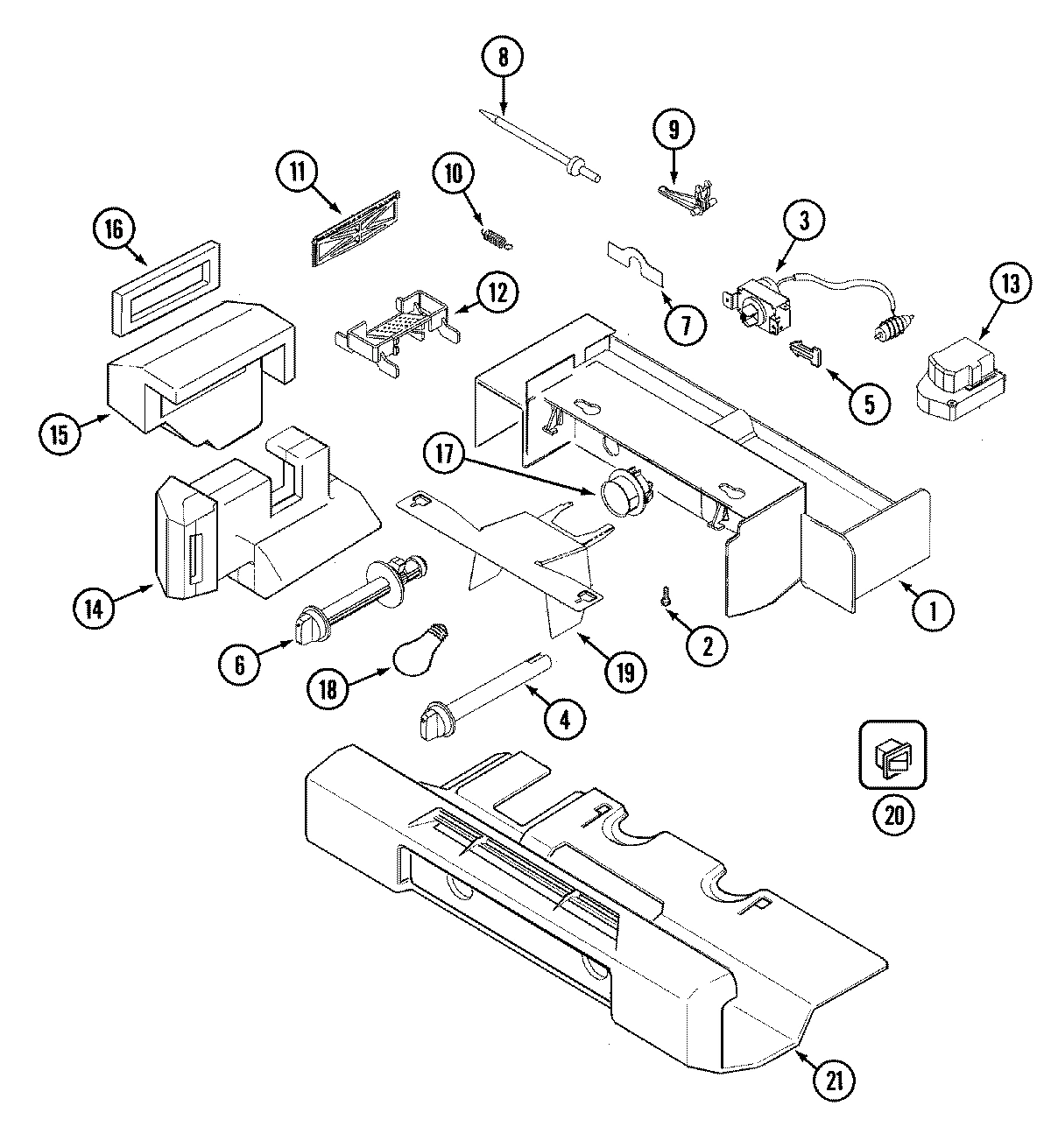

HOUSING, CONTROL WPL 61003135 Contact Us For Availability

1

FOIL, HEAT SHIELD WPL 61003152 Contact Us For Availability

1

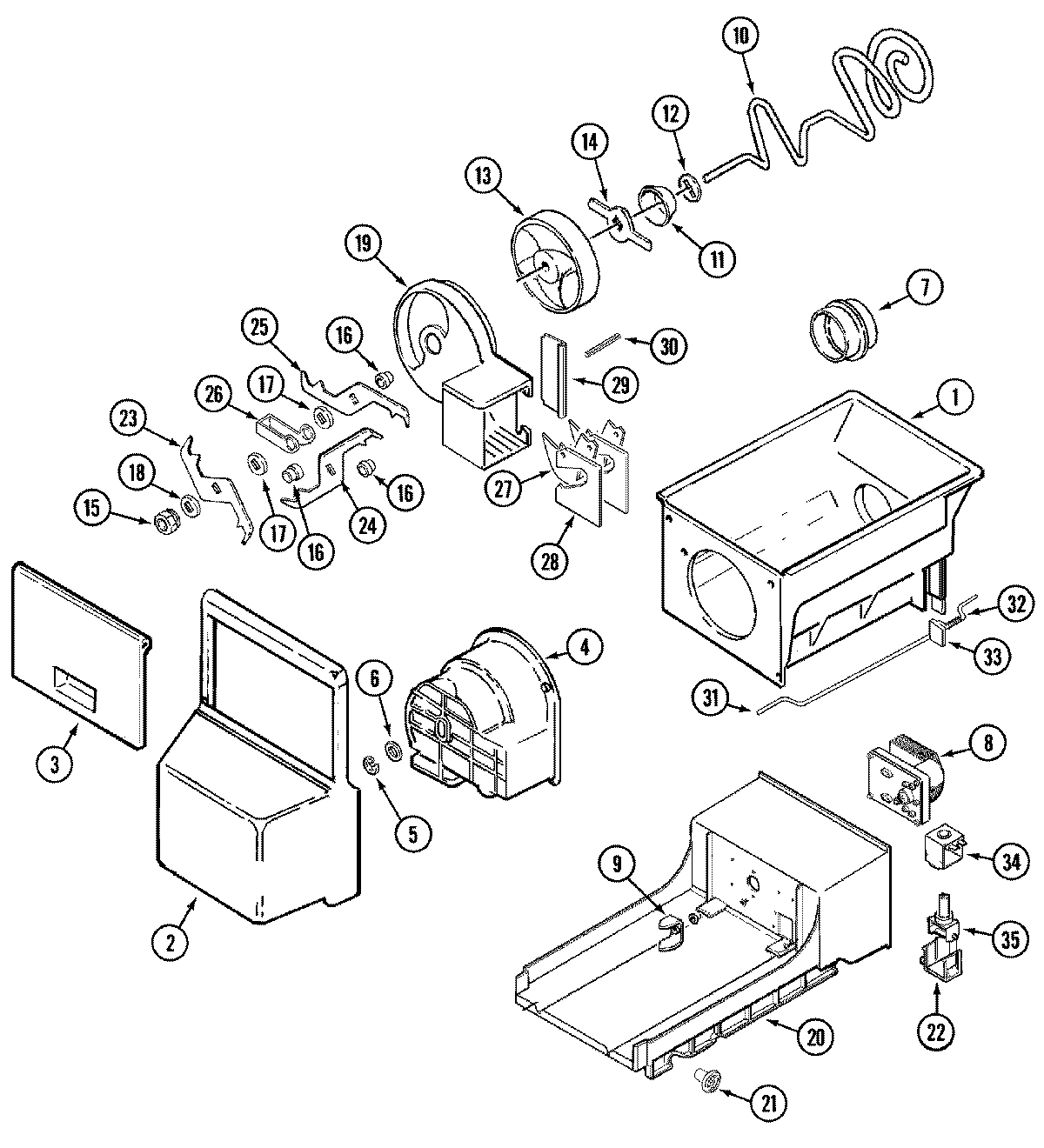

BIN, ICE WPL 61003319 Contact Us For Availability

2

SEAL, FRZ. DOOR (BLK) WPL 61003540 Contact Us For Availability

2

SEAL, F.F. DOOR (BLK) WPL 61003531 Contact Us For Availability

2

FRONT, ICE BIN WPL 61004803 Contact Us For Availability

2

GLASS, CRISPER SHELF WPL 61003337 Contact Us For Availability

2

SCREW WPL 4000191 Contact Us For Availability

2

SUPPORT, DIVIDER WPL 671491 Contact Us For Availability

2

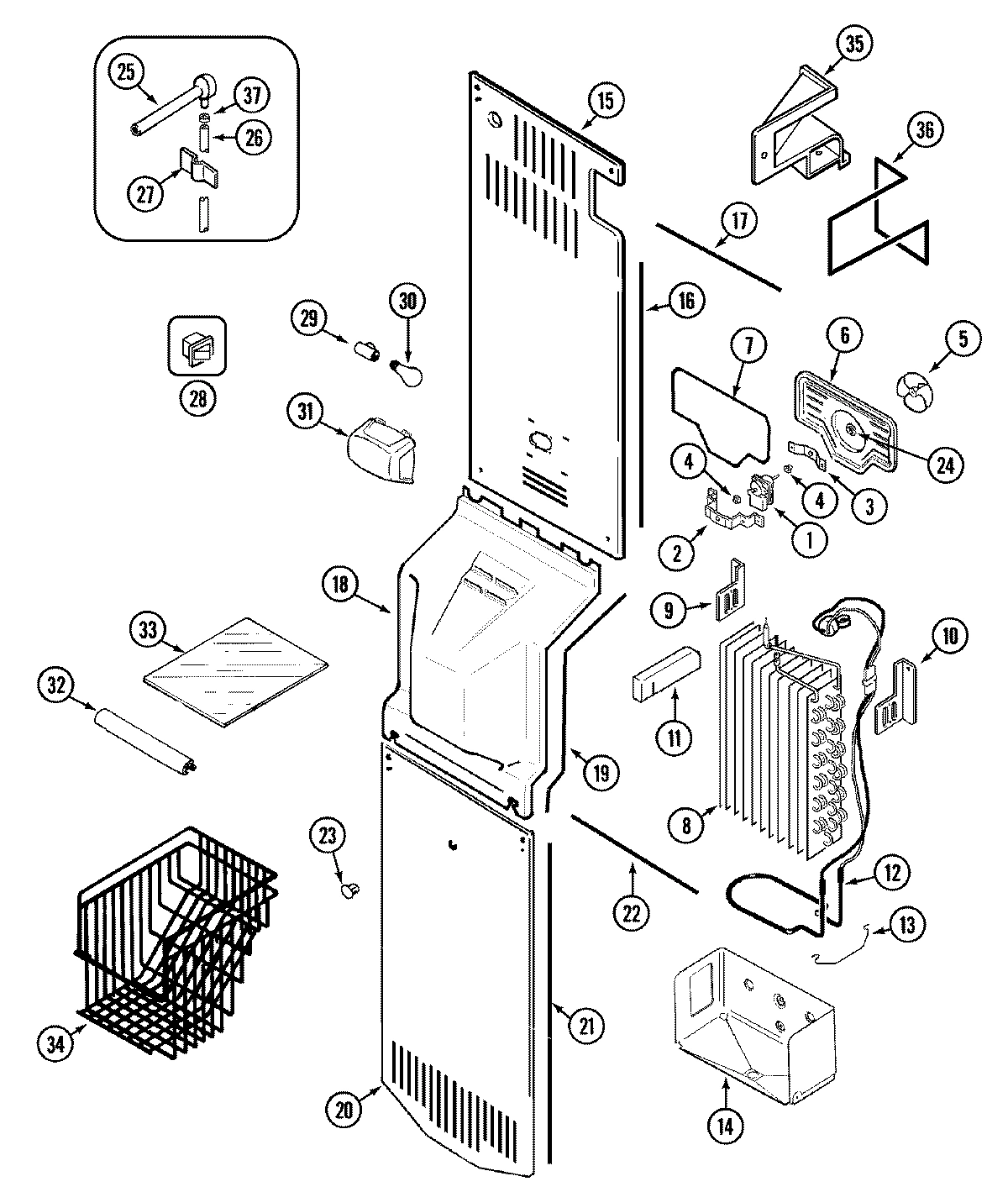

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

2

FRONT, ICE BIN WPL 61003440 Contact Us For Availability

3

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

3

WP61003456 Whirlpool Refrigerator Temperature Backorder WPL WP61003456 $161.88

3

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

3

SCREW WPL 951061 Contact Us For Availability

3

FRONT, PICK-OFF WPL 61003454 Contact Us For Availability

3

DOOR, DAIRY WPL 61003497 Contact Us For Availability

3

DOOR, ICE ACCESS WPL 61004300 Contact Us For Availability

3

GLASS, MEAT SHELF WPL 61003157 Contact Us For Availability

3

RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability

3

DOOR, ICE ACCESS WPL 61003441 Contact Us For Availability

4

61005626 Whirlpool Water Inlet Valve In Stock WPL 61005626 $82.80

4

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

4

SHELF, PICK-OFF WPL 61003498 Contact Us For Availability

4

SCREW WPL 41501335 Contact Us For Availability

4

HOUSING, CRUSHER WPL 61004804 Contact Us For Availability

4

SEAL WPL 61004869 Contact Us For Availability

4

PAN, CRISPER WPL 61003338 Contact Us For Availability

4

KNOB, TEMP. CONTROL WPL 61003136 Contact Us For Availability

4

BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability

4

HOUSING, CRUSHER WPL 61003322 Contact Us For Availability

5

WIRE HARNESS, ICE MAKER WPL 61003318 Contact Us For Availability

5

FRONT, PICK-OFF WPL 61003499 Contact Us For Availability

5

RING, SNAP WPL 697041 Contact Us For Availability

5

PAN, MEAT WPL 61003356 Contact Us For Availability

5

CLIP, TEMP. KNOB WPL 61003137 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability

6

NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability

6

ORGANIZER WPL 61002640 Contact Us For Availability

6

WASHER, RETAINER WPL 697031 Contact Us For Availability

6

TRIM WPL 61003162 Contact Us For Availability

6

TRIM, SHELF (CRISPER-W/SLIDE) WPL 61003248 Contact Us For Availability

6

KNOB, FRZ. CONTROL WPL 61003138 Contact Us For Availability

6

SHROUD, FAN WPL 61003380 Contact Us For Availability

7

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

7

TRAY, EGG WPL 600661 Contact Us For Availability

7

SEAL, CRISPER SHELF (REAR) WPL 61003161 Contact Us For Availability

7

RETAINER, FRZ. KNOB WPL 61003139 Contact Us For Availability

8

12001773 Whirlpool Refrigerator Primary Auger Backorder WPL 12001773 $232.42

8

SEE NOTE (MUST ORDER TANK ASSY. PART NO. WPL Y00000000 Contact Us For Availability

8

TRAY, BUTTER WPL 299362 Contact Us For Availability

8

WIRE HARNESS, AUGER MOTOR WPL 61004805 Contact Us For Availability

8

ROD, DAMPER CAM WPL 61003155 Contact Us For Availability

8

EVAP/HEAT EXCH ASSY23/24/25SXS WPL 12001640 Contact Us For Availability

8

WIRE HARNESS, AUGER MOTOR WPL 61003442 Contact Us For Availability

9

FUNNEL-KIT WPL 675792 Contact Us For Availability

9

RETAINER, BOTTLE WPL 61002502 Contact Us For Availability

9

YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability

9

SHELF, SPILL PROOF WPL 61003494 Contact Us For Availability

9

FOLLOWER, CAM WPL 61003140 Contact Us For Availability

9

BRACKET, EVAPORATOR (LT) WPL 61003215 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

AUGER WPL 61003326 Contact Us For Availability

PAN, DELI WPL 61003375 Contact Us For Availability

SPRING, DAMPER DOOR WPL 61003141 Contact Us For Availability

BRACKET, EVAPORATOR (RT) WPL 61003216 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

CONE, ICE DEFLECTOR WPL 696991 Contact Us For Availability

FRONT, DELI PAN WPL 61003428 Contact Us For Availability

DOOR, DAMPER WPL 61003424 Contact Us For Availability

BLOCK, AIR WPL 61003213 Contact Us For Availability

WP61006116 Whirlpool Refrigerator Heater In Stock WPL WP61006116 $62.69

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

WASHER, CONE STOP WPL 696981 Contact Us For Availability

FRONT, PAN (CRISPER) WPL 61003429 Contact Us For Availability

FRONT, PAN (MEAT) WPL 61003430 Contact Us For Availability

BRACKET, MASS HOLDER WPL 61003143 Contact Us For Availability

WP67005457 Whirlpool Refrigerator Clip Backorder WPL WP67005457 $6.88

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

IMPELLER WPL 700361 Contact Us For Availability

FRAME, SHELF WPL 61003373 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682332 Contact Us For Availability

IMPELLER WPL 61003327 Contact Us For Availability

INLET, WATER WPL 951001 Contact Us For Availability

PLATE, DRIVE WPL 697551 Contact Us For Availability

GLASS, DELI SHELF WPL 61003427 Contact Us For Availability

INSULATION, DISCHARGE (LT) WPL 61003144 Contact Us For Availability

INSULATION, DISCHARGE (RT) WPL 61003145 Contact Us For Availability

HOUSING, EVAPORATOR WPL 61003382 Contact Us For Availability

PLATE, DRIVE WPL 61003328 Contact Us For Availability

EJECTOR, ICE WPL 951011 Contact Us For Availability

NUT, AUGER WPL 697091 Contact Us For Availability

TRIM, SHELF WPL 61003245 Contact Us For Availability

TUNNEL, CONTROL HOUSING WPL 61003146 Contact Us For Availability

SEAL, TUNNEL TO HOUSING WPL 61003147 Contact Us For Availability

COVER, COIL (UPR) WPL 61003383 Contact Us For Availability

ARM, SENSOR WPL 701421 Contact Us For Availability

BEARING, SPACER WPL 696971 Contact Us For Availability

TRIM, SHELF WPL 61003244 Contact Us For Availability

SEAL, TUNNEL TO WALL WPL 61003148 Contact Us For Availability

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $71.05

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

SPACER, CRUSHER BLADE WPL 696961 Contact Us For Availability

HOLDER, BEVERAGE WPL 61002657 Contact Us For Availability

SEAL, UPPER COVER (TOP) WPL 61003386 Contact Us For Availability

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $10.86

STRIPPER, ICE WPL 951021 Contact Us For Availability

SPACER, BLADE WPL 696962 Contact Us For Availability

TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability

COVER, EVAPORATOR FAN WPL 61003387 Contact Us For Availability

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

SCREW, BRACKET WPL 951081 Contact Us For Availability

PLATE, IMPELLER WPL 697011 Contact Us For Availability

SLIDE, CONTROL (MEAT) WPL 61003249 Contact Us For Availability

SHIELD, HEAT WPL 61003149 Contact Us For Availability

MANDIPLATE WPL 61003334 Contact Us For Availability

61005614 Whirlpool Refrigerator Ice Enclosure Backorder WPL 61005614 $141.40

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

RETAINER, CONTROL SLIDE WPL 61003250 Contact Us For Availability

SWITCH, LIGHT WPL 669871 Contact Us For Availability

COVER, COIL (LWR) WPL 61003388 Contact Us For Availability

ENCLOSURE, ICE - SEE NOTES WPL 61003443 Contact Us For Availability

21

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $5.02

21

SUPPORT, ENCLOSURE WPL 61003333 Contact Us For Availability

21

SHIELD, LIGHT WPL 61003217 Contact Us For Availability

22

SCREW WPL 40002612 Contact Us For Availability

22

GUIDE, YOKE WPL 697151 Contact Us For Availability

22

SEAL, LOWER COVER WPL 61003389 Contact Us For Availability

23

BLADE, CRUSHER WPL 697023 Contact Us For Availability

23

PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability

24

BLADE, CRUSHER WPL 697022 Contact Us For Availability

24

SLINGER, DISC WPL 61003198 Contact Us For Availability

BLADE, CRUSHER WPL 697061 Contact Us For Availability

GROMMET, FILL TUBE WPL 61003253 Contact Us For Availability

CLIP, FILL TUBE WPL 678771 Contact Us For Availability

BLADE, CRUSHER WPL 61003451 Contact Us For Availability

26

BLADE, CRUSHER WPL 697021 Contact Us For Availability

26

DIVERTER, ICE WPL 61003445 Contact Us For Availability

27

LOCK, FIXED BLADE WPL 697081 Contact Us For Availability

27

CLIP, WATER LINE (ADHESIVE) WPL 61001889 Contact Us For Availability

27

BLADE, ACTUATED WPL 61003448 Contact Us For Availability

28

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

28

PIN, BLADE LOCK WPL 697051 Contact Us For Availability

28

SUPPORT, CONTROL ROD WPL 61003446 Contact Us For Availability

29

DOOR, ICE CRUSHER WPL 697181 Contact Us For Availability

29

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

29

SHIELD, SNOW WPL 61003444 Contact Us For Availability

30

ROD, CRUSHER CONTROL WPL 61004807 Contact Us For Availability

30

BULB, LIGHT WPL 319561 Contact Us For Availability

30

PIN, MANDIBLE WPL 61003449 Contact Us For Availability

31

SPRING, CONTROL ROD WPL 61004808 Contact Us For Availability

31

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

31

ROD, CRUSHER CONTROL WPL 61003450 Contact Us For Availability

32

BRACKET, CONTROL ROD WPL 61004809 Contact Us For Availability

32

TRIM, SHELF (FRT) WPL 61003390 Contact Us For Availability

32

SPRING, CONTROL ROD WPL 61003447 Contact Us For Availability

33

SHELF, FRZ. (SHALLOW) WPL 61003461 Contact Us For Availability

33

SHELF, FRZ. (DEEP) WPL 61003462 Contact Us For Availability

33

BRACKET, CONTROL ROD WPL 697161 Contact Us For Availability

34

2006253 Whirlpool Refrigerator Screw Backorder WPL 2006253 $8.89

34

SOLENOID WPL 61003118 Contact Us For Availability

34

BASKET, FRZ. WPL 61003393 Contact Us For Availability

YOKE ASSY. WPL 61003539 Contact Us For Availability

SHIELD, WIRE WPL 61004850 Contact Us For Availability

SCREW WPL 4000171 Contact Us For Availability

DIVERTER, AIR WPL 61003205 Contact Us For Availability

36

SEAL, AIR DIVERTER WPL 61003206 Contact Us For Availability

37

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

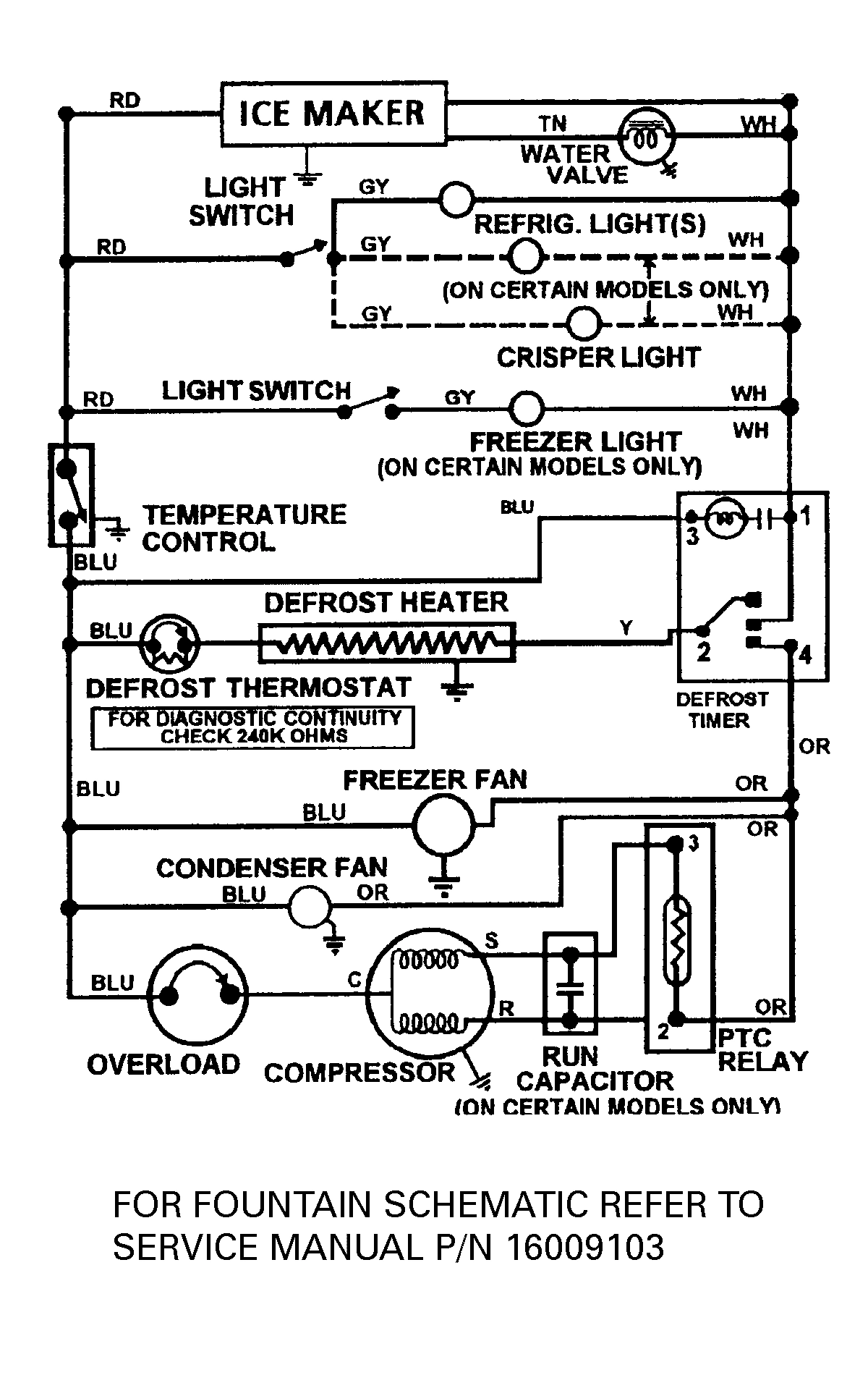

WIRE HARNESS, CONTROLS WPL 61003153 Contact Us For Availability

WIRE HARNESS, FRZ./F.F. WPL 61003154 Contact Us For Availability

WIRE HARNESS, FAN & HEATER WPL 61003204 Contact Us For Availability

WIRE HARNESS, FRZ. WPL 61003259 Contact Us For Availability
