Model Whirlpool CSD2122ARA REFRIGERATOR – Common Parts &amp; Diagrams

1

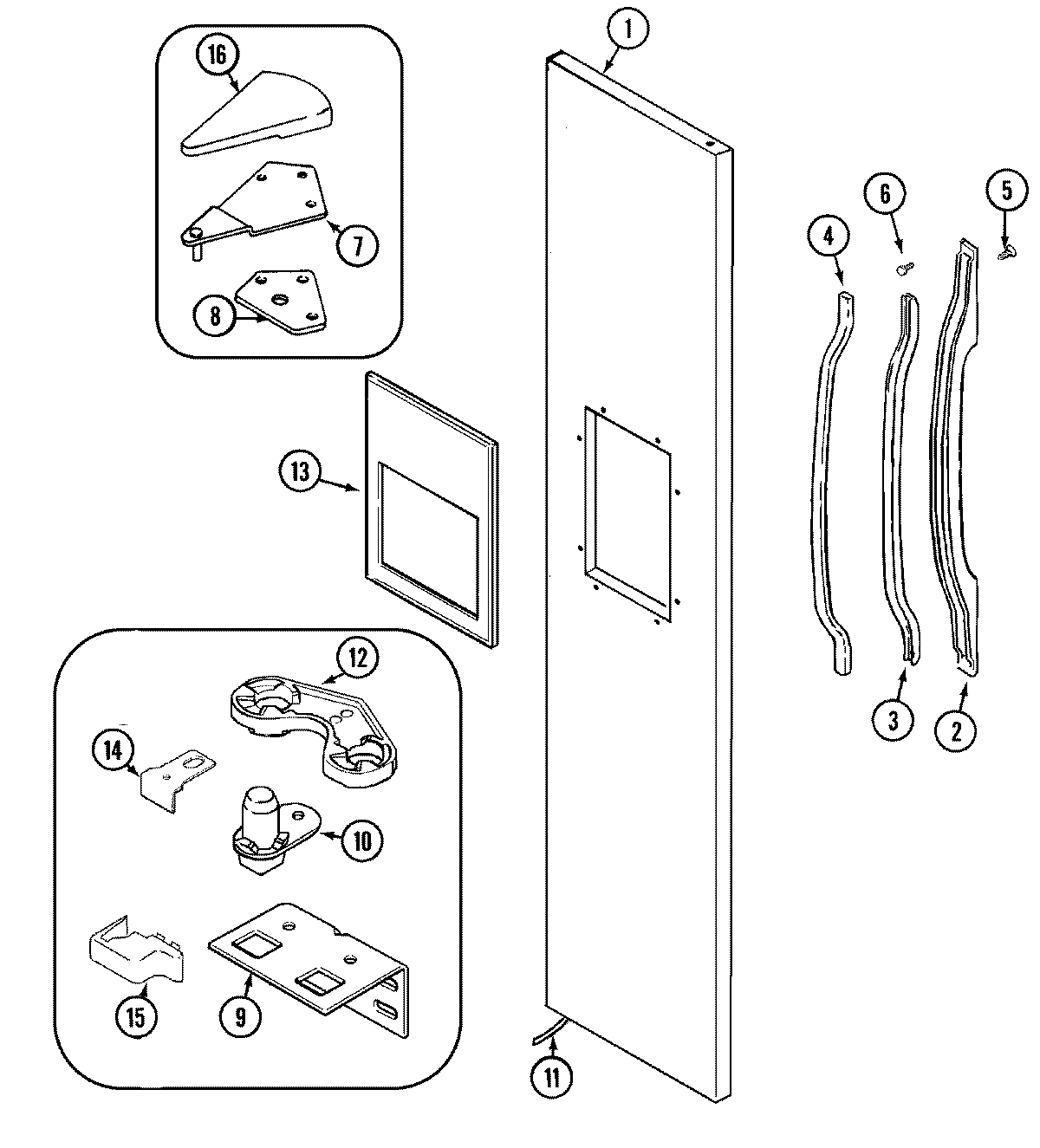

PANEL, FRZ. DOOR (ALM) WPL 61003513 Contact Us For Availability

1

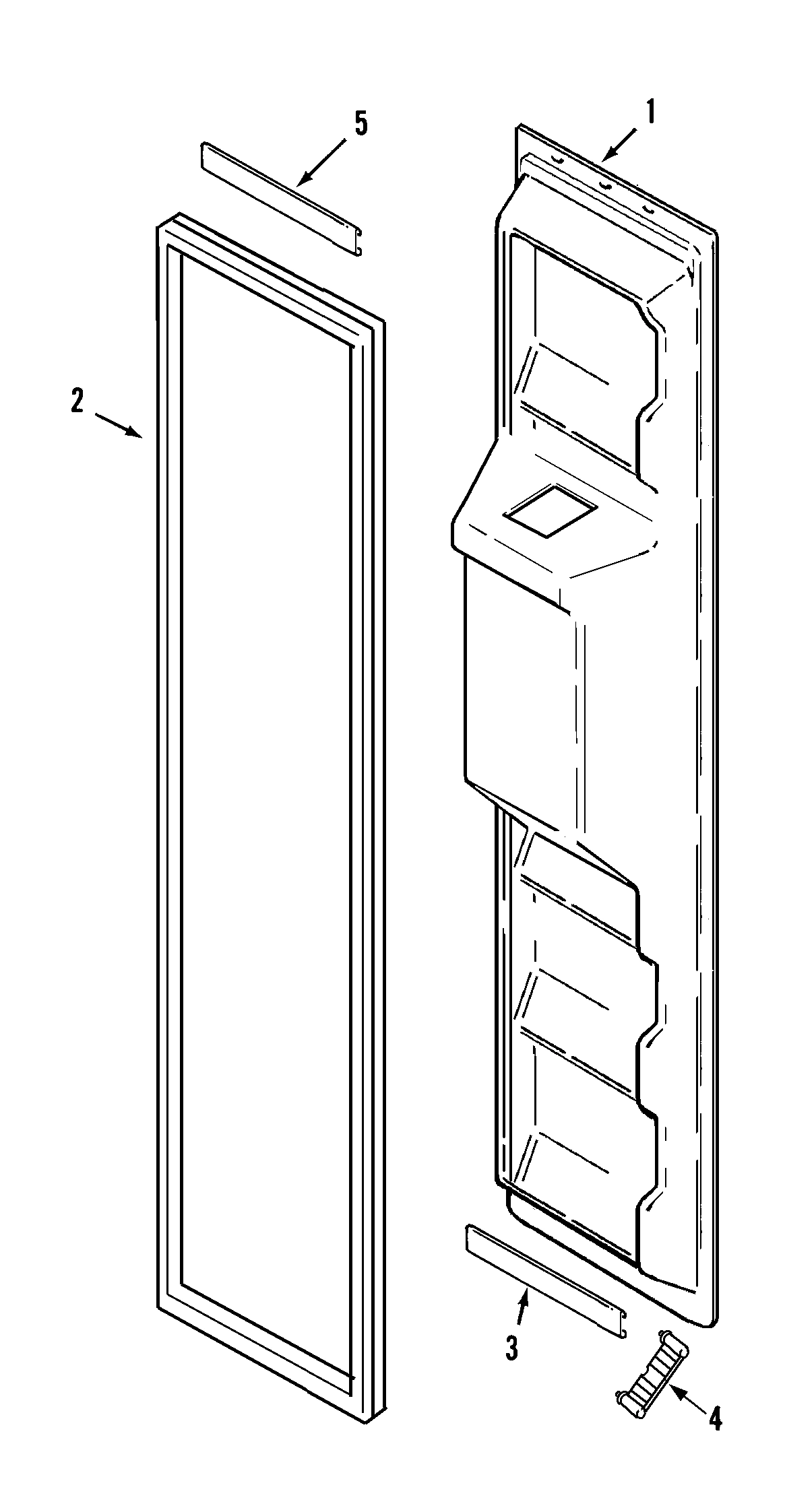

LINER, FRZ. DOOR WPL 61003225 Contact Us For Availability

1

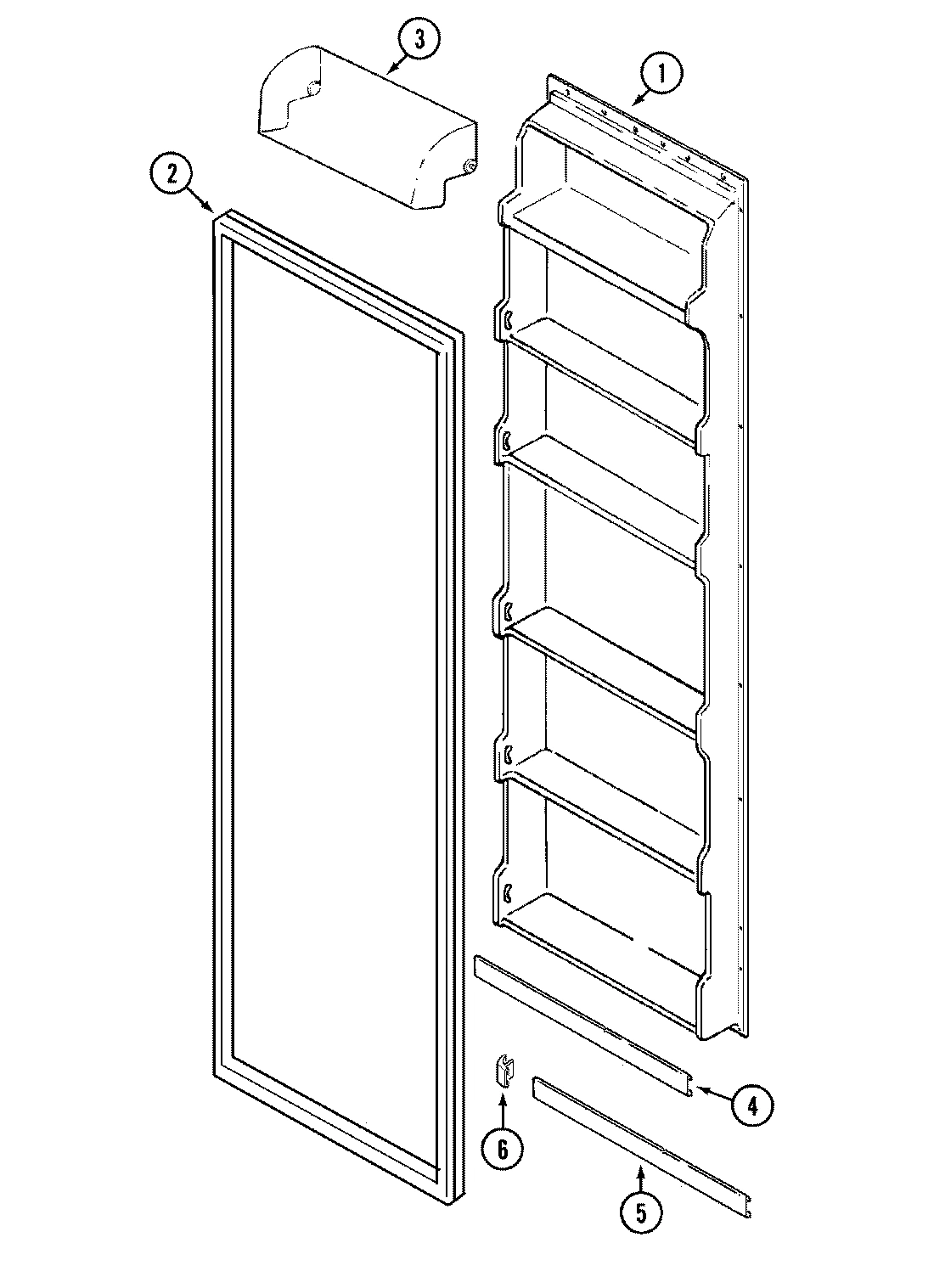

LINER, F.F. DOOR WPL 61003179 Contact Us For Availability

1

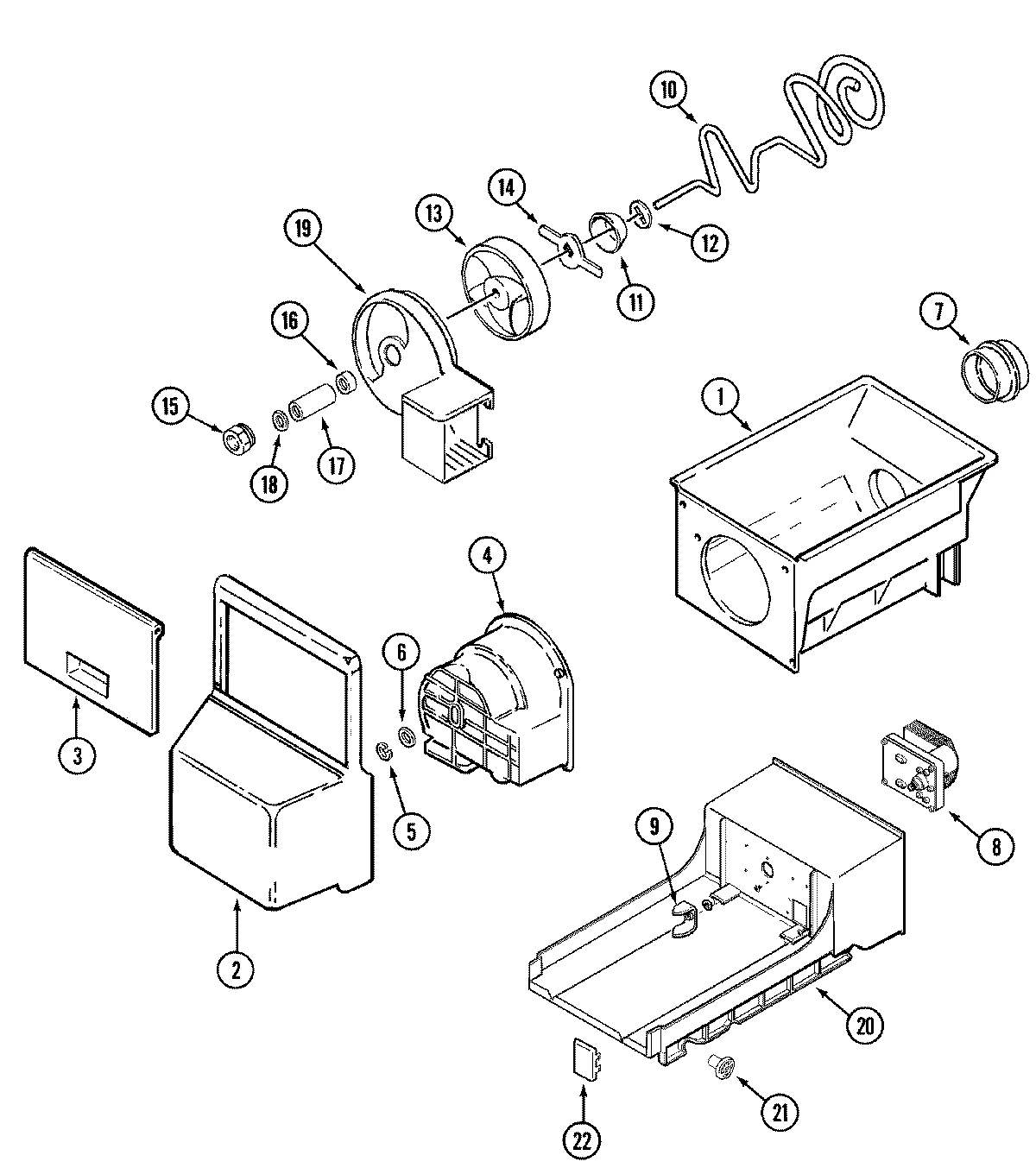

BIN, ICE WPL 61003319 Contact Us For Availability

1

SCREW WPL 4000221 Contact Us For Availability

1

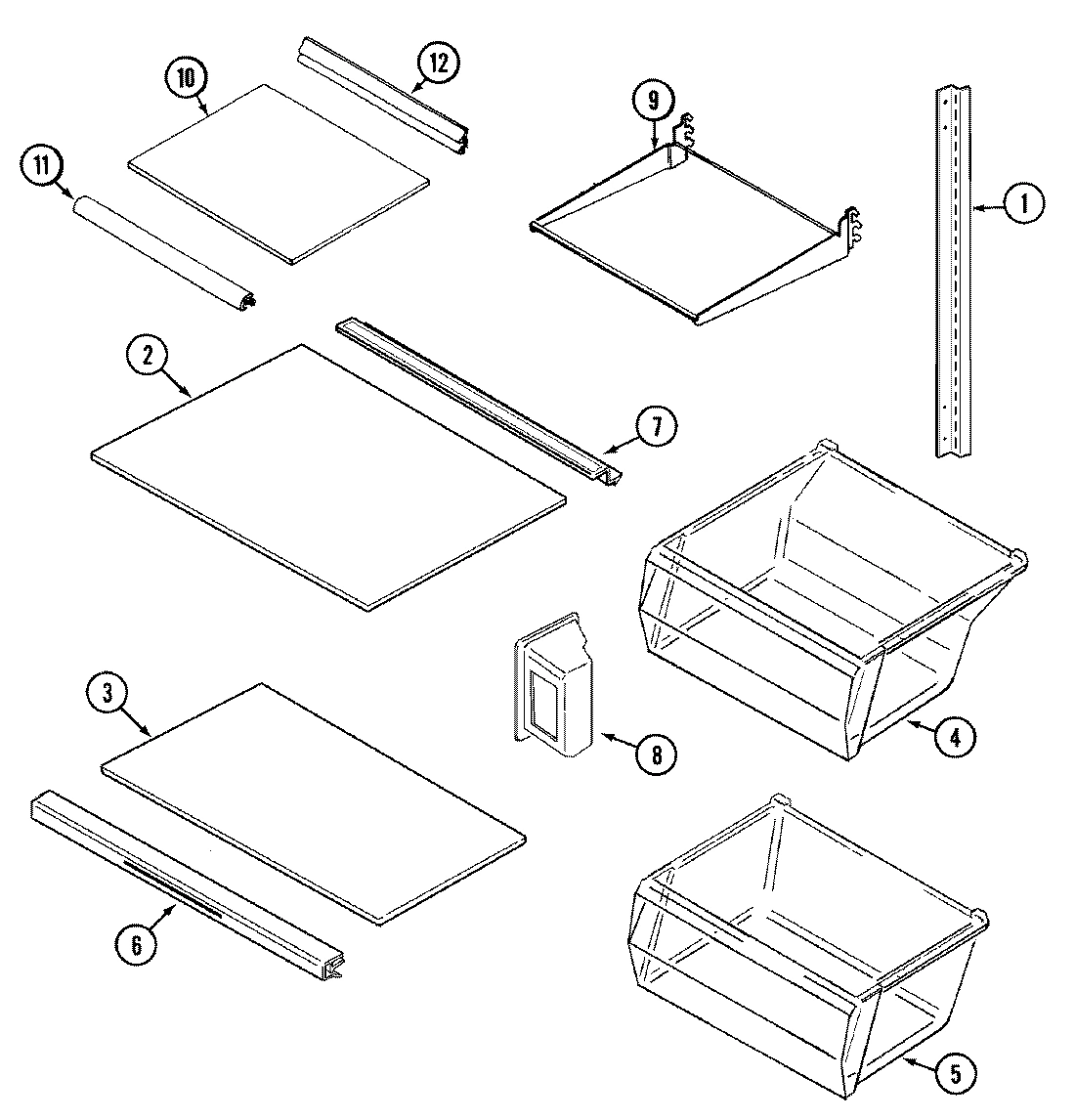

RAIL, SHELF SUPPORT WPL 61003240 Contact Us For Availability

1

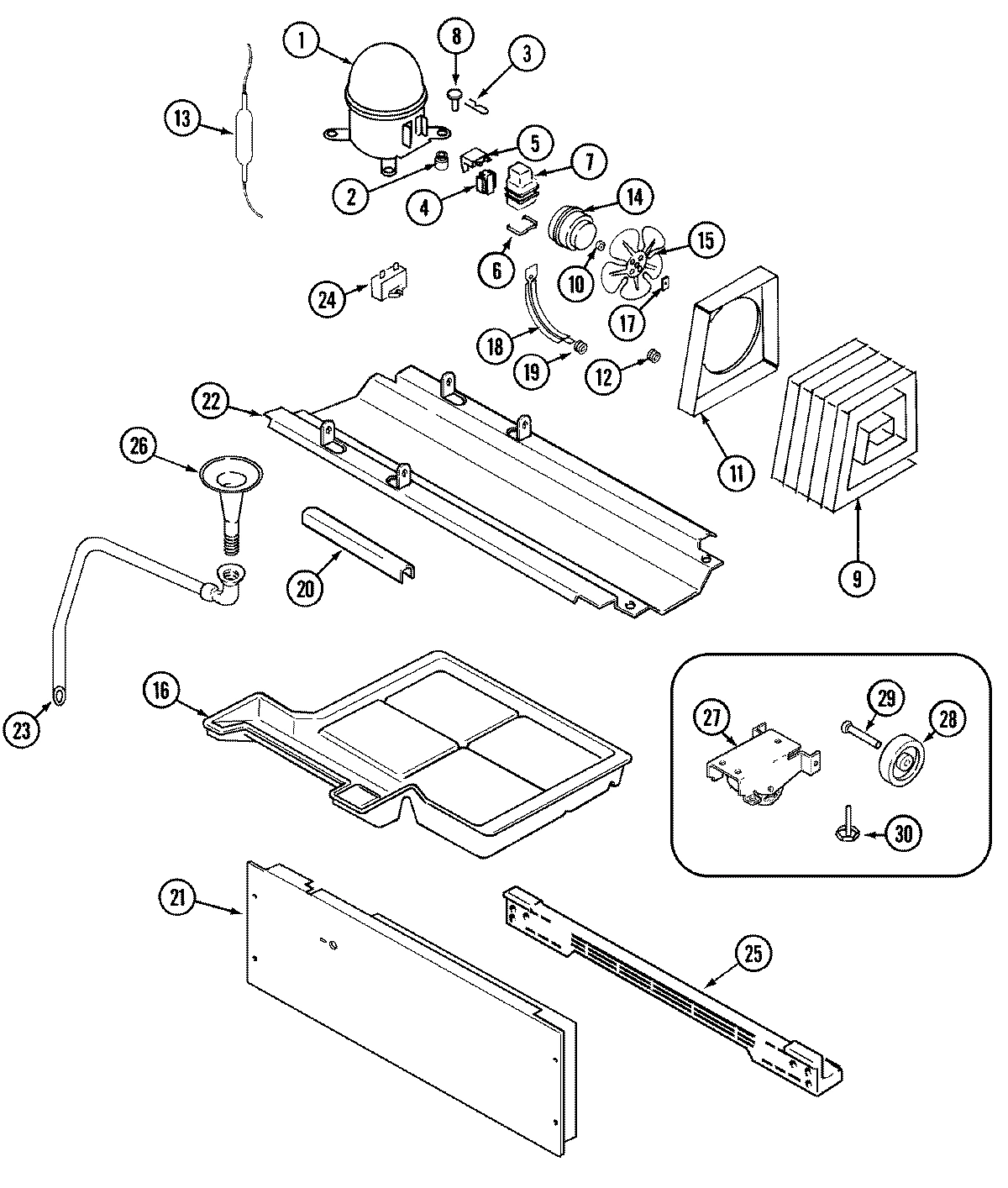

WIRE HARNESS, COMPRESSOR WPL 61002223 Contact Us For Availability

1

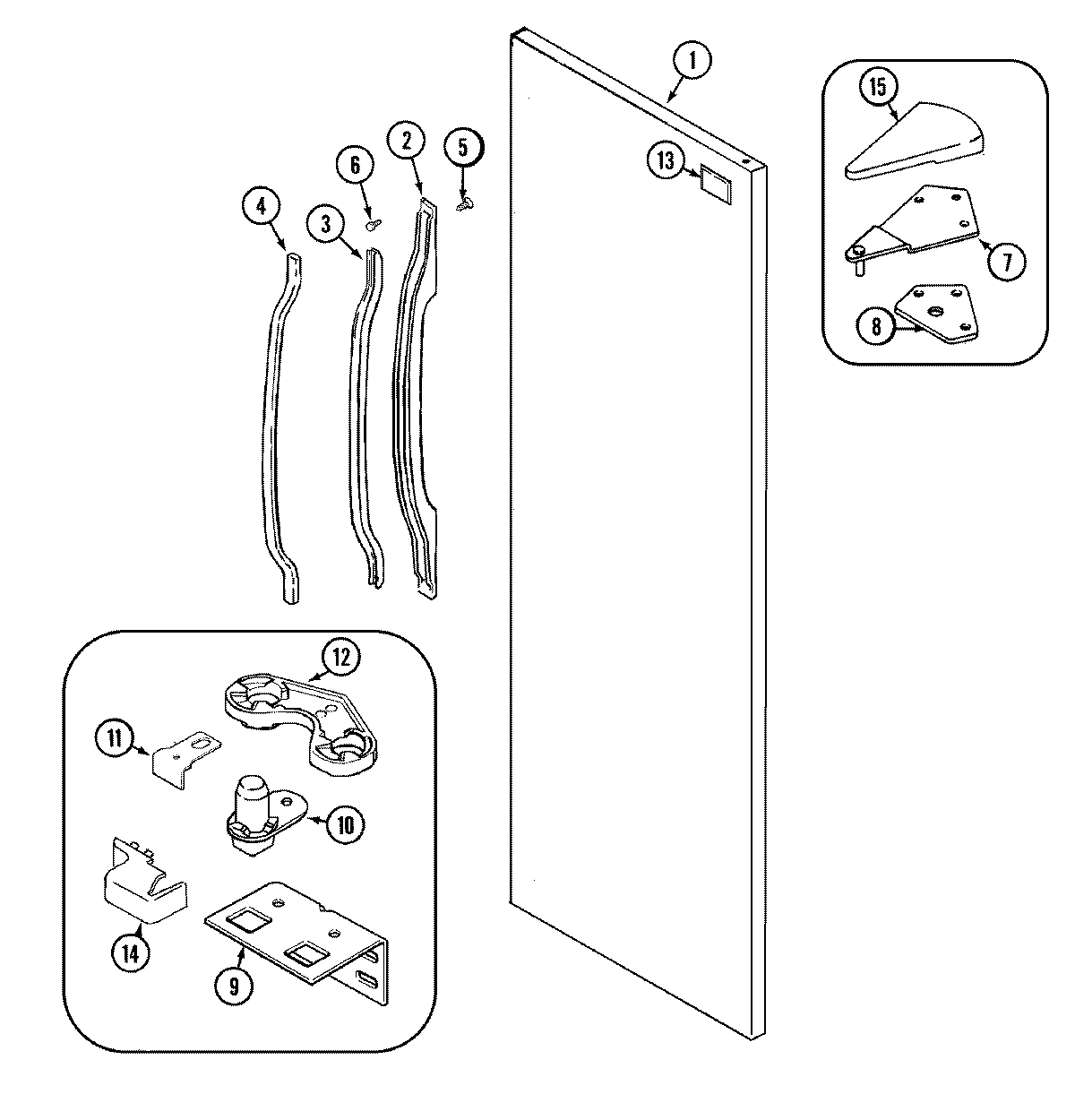

PANEL, F.F. DOOR (ALM) WPL 61003166 Contact Us For Availability

1

SCREW WPL 4000211 Contact Us For Availability

1

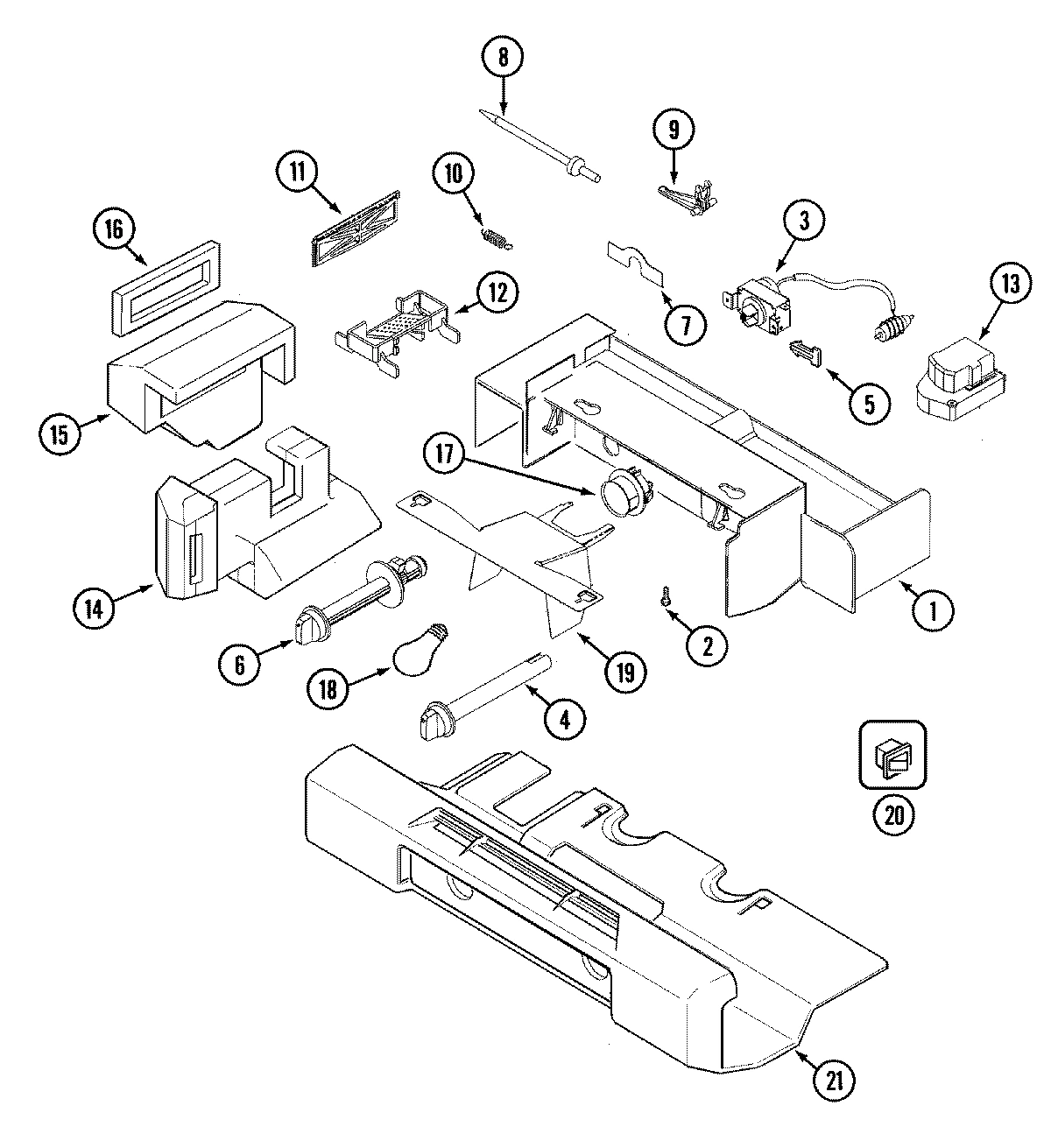

HOUSING, CONTROL WPL 61003135 Contact Us For Availability

1

FOIL, HEAT SHIELD WPL 61003152 Contact Us For Availability

1

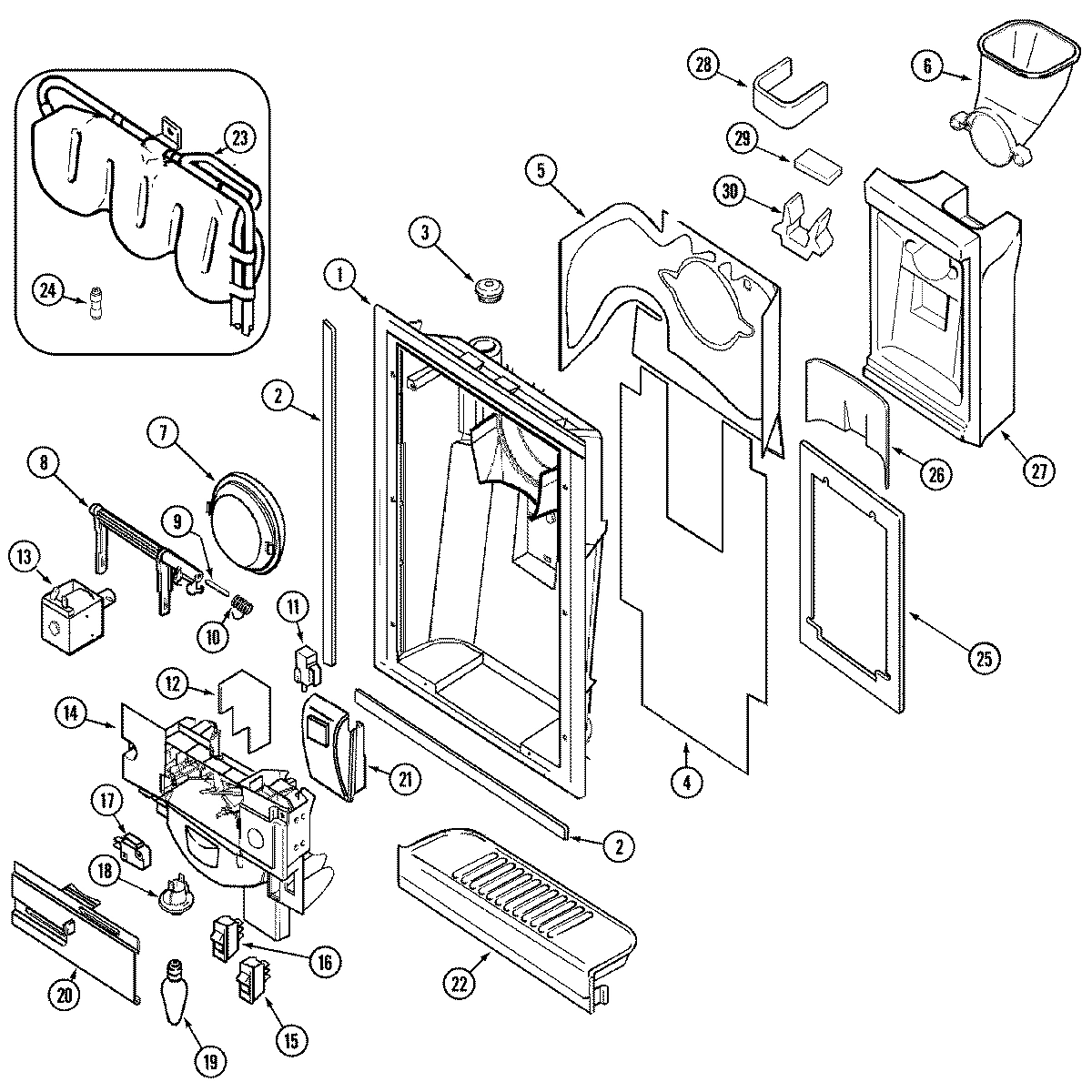

KIT, FOUNTAIN HSG (ALM-21`) WPL 12001755 Contact Us For Availability

1

SCREW WPL 61003307 Contact Us For Availability

1

SCREW WPL 4000171 Contact Us For Availability

1

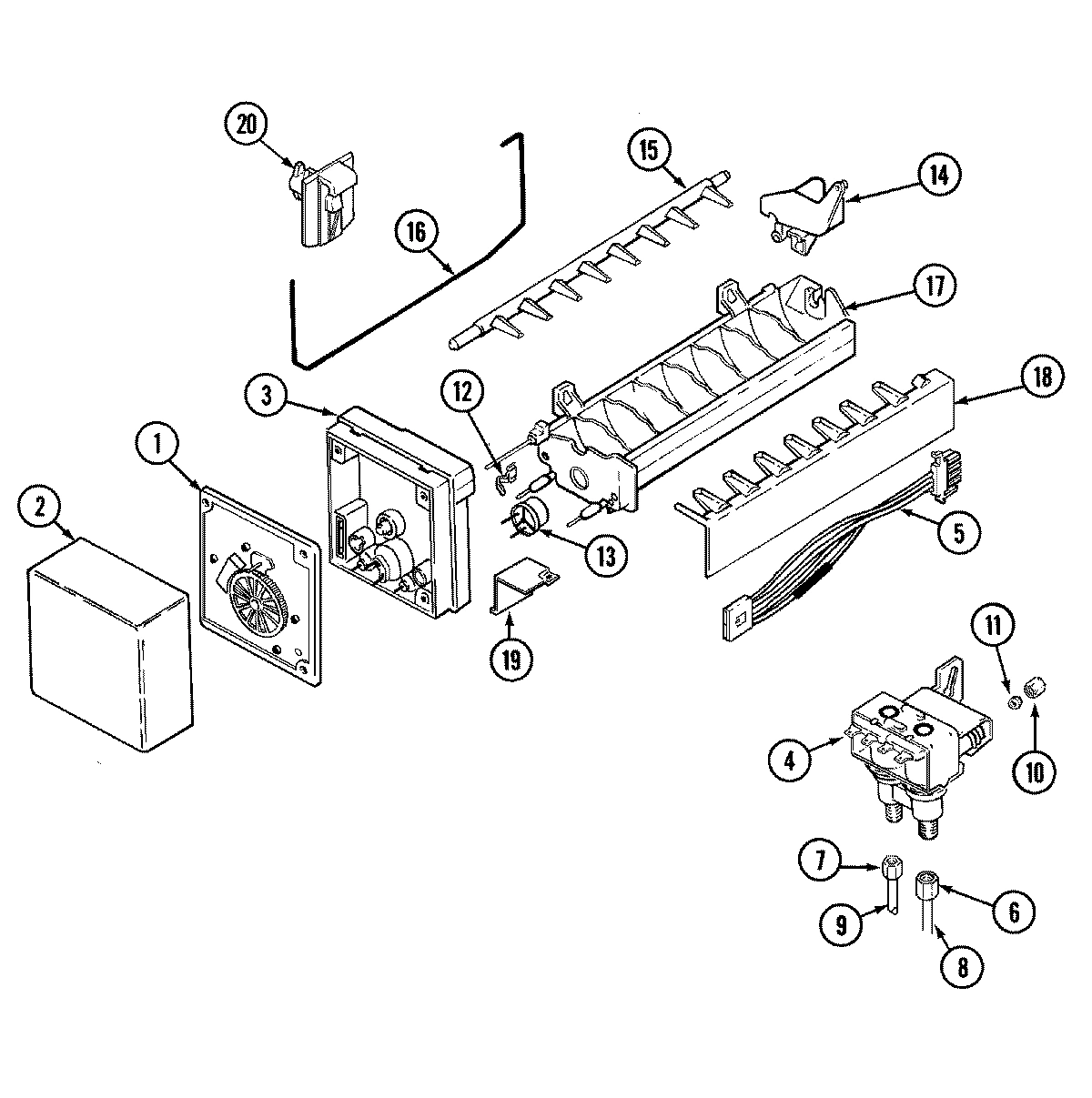

ICEMAKER WPL 951091 Contact Us For Availability

2

HANDLE (ALM) WPL 61003171 Contact Us For Availability

2

SEAL, FRZ. DOOR (WHT) WPL 61003188 Contact Us For Availability

2

SEAL, F.F. DOOR (WHT) WPL 61003180 Contact Us For Availability

2

FRONT, ICE BIN WPL 61003320 Contact Us For Availability

2

GLASS, CRISPER SHELF WPL 61003241 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability

2

SCREW WPL 4000191 Contact Us For Availability

2

SUPPORT, DIVIDER WPL 671491 Contact Us For Availability

2

TAPE (1FT.) WPL 61003286 Contact Us For Availability

2

COVER, ICE MAKER WPL 61001239 Contact Us For Availability

3

WP61003456 Whirlpool Refrigerator Temperature Backorder WPL WP61003456 $161.88

3

RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability

3

FRAME, HANDLE WPL 61003168 Contact Us For Availability

3

TRIM, DOOR SHELF WPL 61003226 Contact Us For Availability

3

DOOR, DAIRY WPL 61003181 Contact Us For Availability

3

DOOR, ICE ACCESS WPL 61003321 Contact Us For Availability

3

GLASS, MEAT SHELF WPL 61003157 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability

3

GROMMET, WATER TUBE WPL 61003300 Contact Us For Availability

3

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

3

SCREW WPL 951061 Contact Us For Availability

4

61005626 Whirlpool Water Inlet Valve In Stock WPL 61005626 $82.80

4

WP10097204 Whirlpool Start Relay Backorder WPL WP10097204 $90.53

4

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

4

BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability

4

INSERT, HANDLE (ALM) WPL 61003170 Contact Us For Availability

4

RETAINER, SHELF TRIM WPL 61003190 Contact Us For Availability

4

TRIM, DOOR SHELF WPL 61003278 Contact Us For Availability

4

HOUSING, CRUSHER WPL 61003322 Contact Us For Availability

4

PAN, CRISPER WPL 61003159 Contact Us For Availability

4

KNOB, TEMP. CONTROL WPL 61003136 Contact Us For Availability

4

FOIL, FTN. BACK WPL 61003304 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability

5

SCREW WPL 61003172 Contact Us For Availability

5

TRIM, DOOR SHELF WPL 61003227 Contact Us For Availability

5

TRIM, DOOR SHELF WPL 61003277 Contact Us For Availability

5

RING, SNAP WPL 697041 Contact Us For Availability

5

PAN, UTILITY WPL 61003158 Contact Us For Availability

5

OVERLOAD WPL 61001785 Contact Us For Availability

5

CLIP, TEMP. KNOB WPL 61003137 Contact Us For Availability

5

HEATER, FOUNTAIN WPL 61003125 Contact Us For Availability

5

WIRE HARNESS, ICE MAKER WPL 61003318 Contact Us For Availability

6

SHROUD, FAN WPL 61003199 Contact Us For Availability

6

END CAP, SHELF TRIM (LT) WPL 61003279 Contact Us For Availability

6

END CAP, SHELF TRIM (RT) WPL 61003280 Contact Us For Availability

6

WASHER, RETAINER WPL 697031 Contact Us For Availability

6

TRIM WPL 61003162 Contact Us For Availability

6

CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability

6

KNOB, FRZ. CONTROL WPL 61003138 Contact Us For Availability

6

CHUTE, ICE WPL 61003302 Contact Us For Availability

6

NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability

7

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

7

HINGE, UPPER WPL 61001971 Contact Us For Availability

7

SCREW, UPPER HINGE WPL 6527586 Contact Us For Availability

7

SEAL, CRISPER SHELF (REAR) WPL 61003161 Contact Us For Availability

7

COVER, TERMINAL WPL 665891 Contact Us For Availability

7

RETAINER, FRZ. KNOB WPL 61003139 Contact Us For Availability

7

DOOR ASSY., ICE WPL 61003507 Contact Us For Availability

7

NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability

8

12001773 Whirlpool Refrigerator Primary Auger Backorder WPL 12001773 $232.42

8

2006253 Whirlpool Refrigerator Screw Backorder WPL 2006253 $8.89

8

EVAP/HEAT EXCH,ASSY 21 SXS APD WPL 12001639 Contact Us For Availability

8

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

8

WIRE HARNESS, AUGER MOTOR WPL 61003325 Contact Us For Availability

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

ROD, DAMPER CAM WPL 61003155 Contact Us For Availability

8

STRIKE, ICE DOOR WPL 61003311 Contact Us For Availability

8

SEE NOTE (MUST ORDER TANK ASSY. PART NO. WPL Y00000000 Contact Us For Availability

9

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $51.24

9

WP9705445 Whirlpool Refrigerator Roll Pin Backorder WPL WP9705445 $4.82

9

FUNNEL-KIT WPL 675792 Contact Us For Availability

9

BRACKET, EVAPORATOR (LT) WPL 61003215 Contact Us For Availability

9

HINGE, LOWER (ALM) WPL 61001919 Contact Us For Availability

9

YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability

9

FRAME, SHELF WPL 61003246 Contact Us For Availability

9

CONDENSER WPL 61003130 Contact Us For Availability

9

FOLLOWER, CAM WPL 61003140 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

BRACKET, EVAPORATOR (RT) WPL 61003216 Contact Us For Availability

PIN, LOWER HINGE WPL 61003174 Contact Us For Availability

AUGER WPL 61003326 Contact Us For Availability

GLASS, SHELF WPL 61003247 Contact Us For Availability

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

SPRING, DAMPER DOOR WPL 61003141 Contact Us For Availability

BLOCK, AIR WPL 61003213 Contact Us For Availability

TUBING, FOUNTAIN WPL 61003506 Contact Us For Availability

STOP, DOOR WPL 61003273 Contact Us For Availability

CONE, ICE DEFLECTOR WPL 696991 Contact Us For Availability

TRIM, SHELF WPL 61003245 Contact Us For Availability

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

DOOR, DAMPER WPL 61003142 Contact Us For Availability

SWITCH, LIMIT WPL 61003124 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

WP61006116 Whirlpool Refrigerator Heater In Stock WPL WP61006116 $62.69

WASHER, CONE STOP WPL 696981 Contact Us For Availability

TRIM, SHELF WPL 61003244 Contact Us For Availability

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

BRACKET, MASS HOLDER WPL 61003143 Contact Us For Availability

BOARD, DELAY WPL 61003288 Contact Us For Availability

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

12001991 Whirlpool Ice Door Kit In Stock WPL 12001991 $134.08

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

WP67005457 Whirlpool Refrigerator Clip Backorder WPL WP67005457 $6.88

COVER, LOWER HINGE (ALM) WPL 61003221 Contact Us For Availability

IMPELLER WPL 61003327 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

NAMEPLATE (ALM) WPL 6698232 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682332 Contact Us For Availability

THERMOSTAT WPL 950921 Contact Us For Availability

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $60.81

HOUSING, EVAPORATOR WPL 61003203 Contact Us For Availability

SCREW WPL 41501335 Contact Us For Availability

PLATE, DRIVE WPL 61003328 Contact Us For Availability

SCREW WPL 6527533 Contact Us For Availability

COVER, LOWER HINGE (ALM) WPL 61003222 Contact Us For Availability

INSULATION, DISCHARGE (LT) WPL 61003144 Contact Us For Availability

INSULATION, DISCHARGE (RT) WPL 61003145 Contact Us For Availability

BRACKET, FOUNTAIN (ALM) WPL 61003294 Contact Us For Availability

INLET, WATER WPL 951001 Contact Us For Availability

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

COVER, COIL (UPR) WPL 61003252 Contact Us For Availability

COVER, UPPER HINGE (ALM) WPL 61004666 Contact Us For Availability

NUT, AUGER WPL 697091 Contact Us For Availability

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

COVER, UPPER HINGE (ALM) WPL 61004665 Contact Us For Availability

TUNNEL, CONTROL HOUSING WPL 61003146 Contact Us For Availability

SEAL, TUNNEL TO HOUSING WPL 61003147 Contact Us For Availability

PLUG, HOLE (FILLS SWITCH HOLE) WPL 61003289 Contact Us For Availability

EJECTOR, ICE WPL 951011 Contact Us For Availability

ESCUTCHEON (ALM) WPL 61003282 Contact Us For Availability

BEARING, SPACER WPL 696971 Contact Us For Availability

PAN, DRAIN WPL 61002649 Contact Us For Availability

SEAL, TUNNEL TO WALL WPL 61003148 Contact Us For Availability

SWITCH, LIGHT WPL 61003290 Contact Us For Availability

ARM, SENSOR WPL 701421 Contact Us For Availability

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $71.05

SEAL WPL 61003207 Contact Us For Availability

SPACER, BLADE WPL 61003329 Contact Us For Availability

SCREW WPL 41504135 Contact Us For Availability

SWITCH WPL 554403 Contact Us For Availability

MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $10.86

COVER, EVAPORATOR FAN WPL 61003193 Contact Us For Availability

SPACER, BLADE WPL 696962 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

RECEPTACLE, BULB WPL 701191 Contact Us For Availability

STRIPPER, ICE WPL 951021 Contact Us For Availability

MANDIPLATE WPL 61003334 Contact Us For Availability

GROMMET, BRACKET WPL 569331 Contact Us For Availability

SHIELD, HEAT WPL 61003149 Contact Us For Availability

BULB, LIGHT WPL 631791 Contact Us For Availability

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

SCREW, BRACKET WPL 951081 Contact Us For Availability

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

COVER, COIL (LWR) WPL 61003194 Contact Us For Availability

ENCLOSURE, ICE WPL 61003335 Contact Us For Availability

ISOLATOR, CONDENSER WPL 61001974 Contact Us For Availability

SWITCH, LIGHT WPL 669871 Contact Us For Availability

SELECTOR, SLIDE (ALM) WPL 61003299 Contact Us For Availability

SCREW WPL 6527574 Contact Us For Availability

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $5.02

SCREW WPL 652755 Contact Us For Availability

SUPPORT, ENCLOSURE WPL 61003333 Contact Us For Availability

COVER, COMPRESSOR COMPARTMENT WPL 61003131 Contact Us For Availability

SHIELD, LIGHT WPL 61003217 Contact Us For Availability

PAD, ACTUATOR (ALM) WPL 61003296 Contact Us For Availability

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

SEAL WPL 61003214 Contact Us For Availability

COVER, SOLENOID WPL 61003330 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61003132 Contact Us For Availability

GRILL (ALM) WPL 61003310 Contact Us For Availability

23

PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability

23

HOSE, DRAIN WPL 61003133 Contact Us For Availability

24

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $20.55

24

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $47.85

24

SLINGER, DISC WPL 61003198 Contact Us For Availability

25

GROMMET, FILL TUBE WPL 61003253 Contact Us For Availability

25

CLIP, FILL TUBE WPL 678771 Contact Us For Availability

25

KICKPLATE (ALM) WPL 61004305 Contact Us For Availability

26

TUBE, DRAIN WPL 61004751 Contact Us For Availability

26

INSULATION WPL 61003340 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61001889 Contact Us For Availability

SCREW WPL 4000161 Contact Us For Availability

WHEEL ASSY. (FRT) WPL 61003163 Contact Us For Availability

INSULATION, STYROFOAM WPL 61003341 Contact Us For Availability

28

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

28

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $4.82

28

INSULATION WPL 61003342 Contact Us For Availability

29

RECEPTACLE, BULB WPL 689743 Contact Us For Availability

29

INSULATION WPL 61003343 Contact Us For Availability

30

BULB, LIGHT WPL 319561 Contact Us For Availability

30

LEG, LEVELING WPL 61002014 Contact Us For Availability

30

INSULATION WPL 61003308 Contact Us For Availability

31

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

32

TRIM, SHELF WPL 61003255 Contact Us For Availability

33

SHELF, FRZ. WPL 61003256 Contact Us For Availability

33

SHELF, FRZ. WPL 61003257 Contact Us For Availability

34

DRAWER, FRZ. WPL 61003218 Contact Us For Availability

35

DIVERTER, AIR WPL 61003205 Contact Us For Availability

36

SEAL, AIR DIVERTER WPL 61003206 Contact Us For Availability

37

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

WIRE HARNESS, FAN & HEATER WPL 61003204 Contact Us For Availability

WIRE HARNESS, FRZ. WPL 61003259 Contact Us For Availability

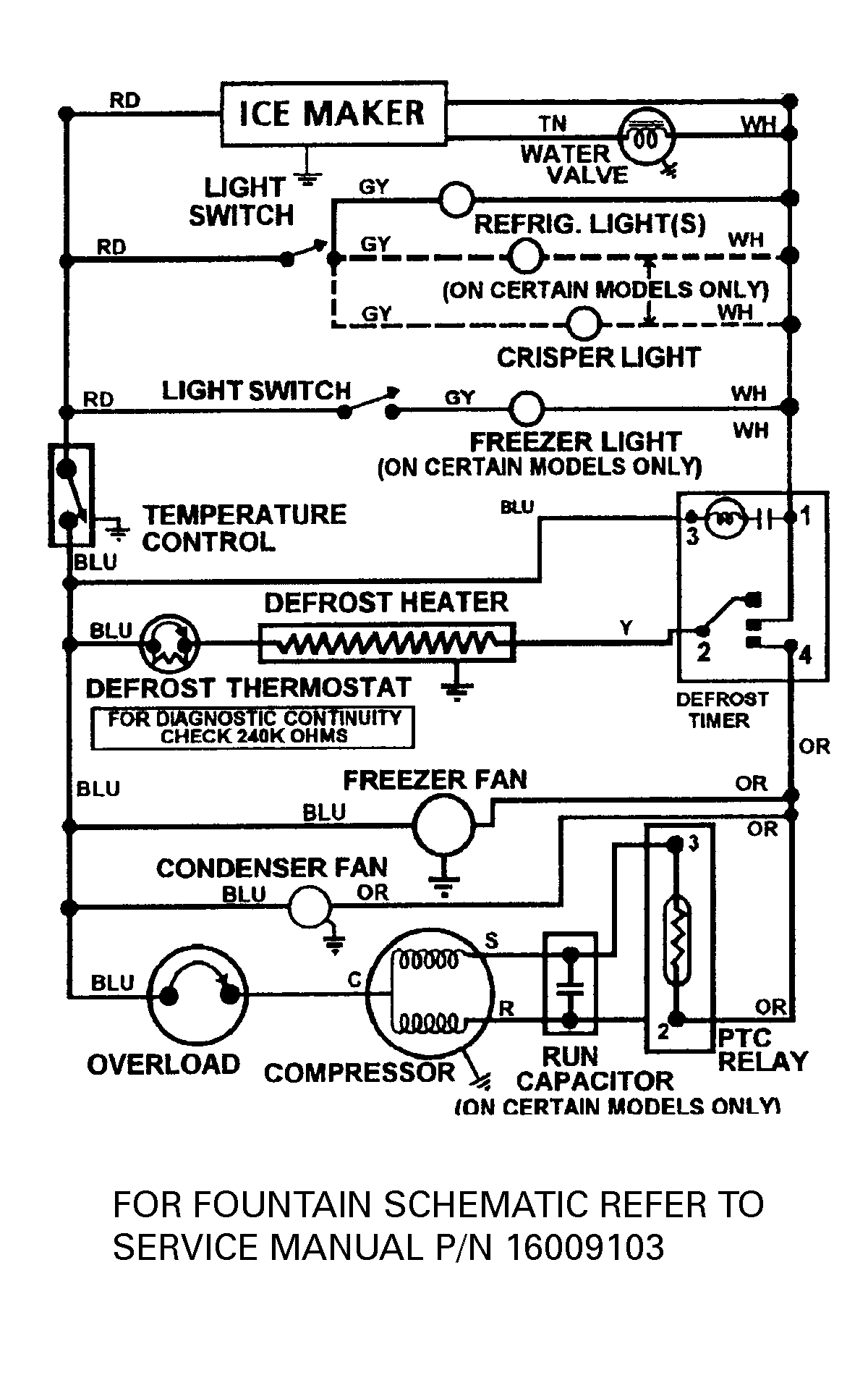

WIRING INFORMATION WPL 15002403 Contact Us For Availability

YODER LOOP HTR (115V)21,23,25 WPL 12001547 Contact Us For Availability

MANUAL, SERVICE SXS APD WPL 16009103 Contact Us For Availability

MANUAL, USE & CARE WPL 61003134 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61003153 Contact Us For Availability

WIRE HARNESS, FRZ./F.F. WPL 61003154 Contact Us For Availability

WIRE HARNESS, FTN. SWITCH WPL 61003312 Contact Us For Availability

WIRE HARNESS, FTN. SLIDE WPL 61003313 Contact Us For Availability
