Model Whirlpool CS25A7DB REFRIGERATOR – Common Parts & Diagrams
06 - ICE BIN (REV 10)

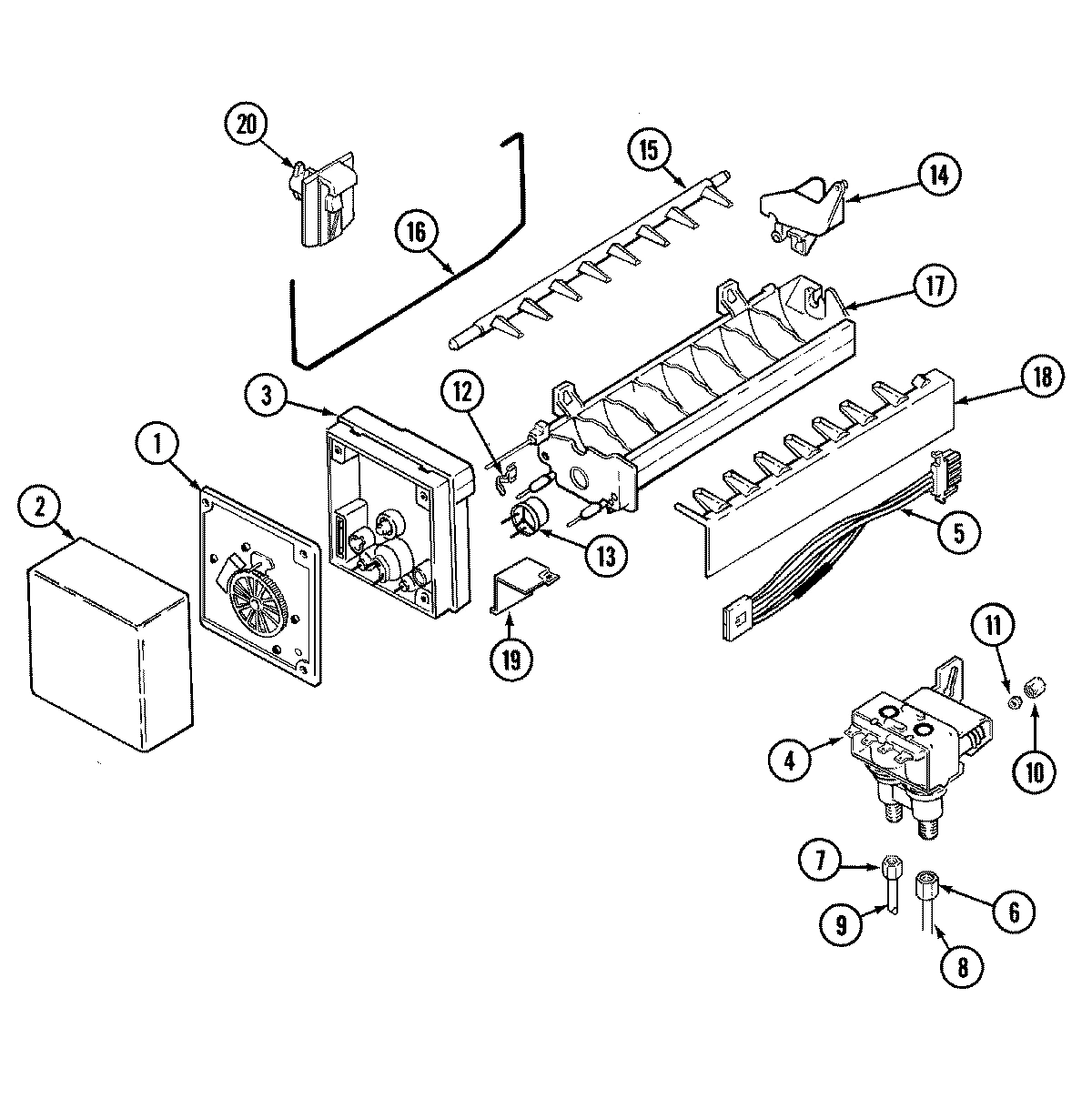

08 - ICE MAKER

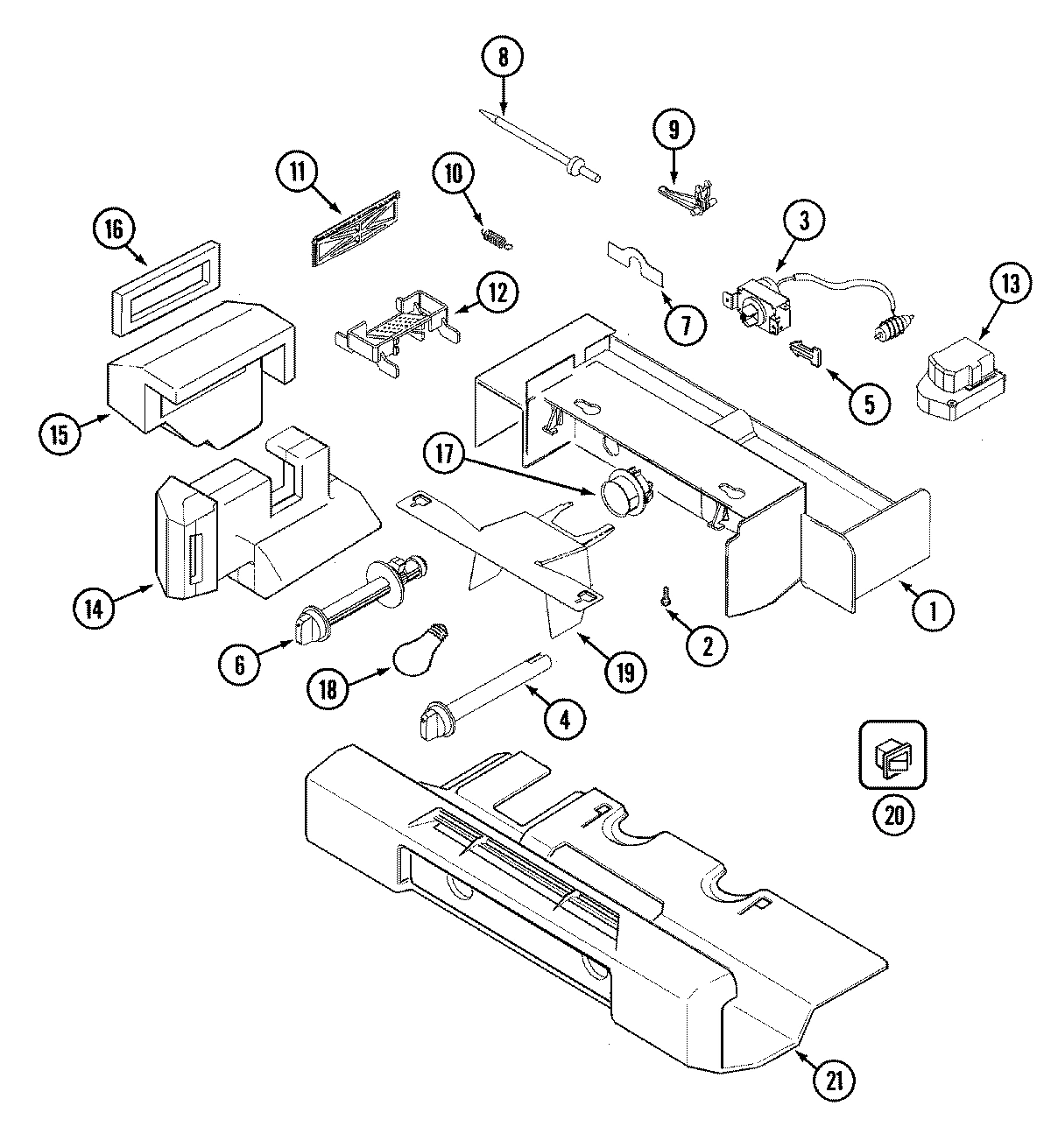

02 - CONTROLS

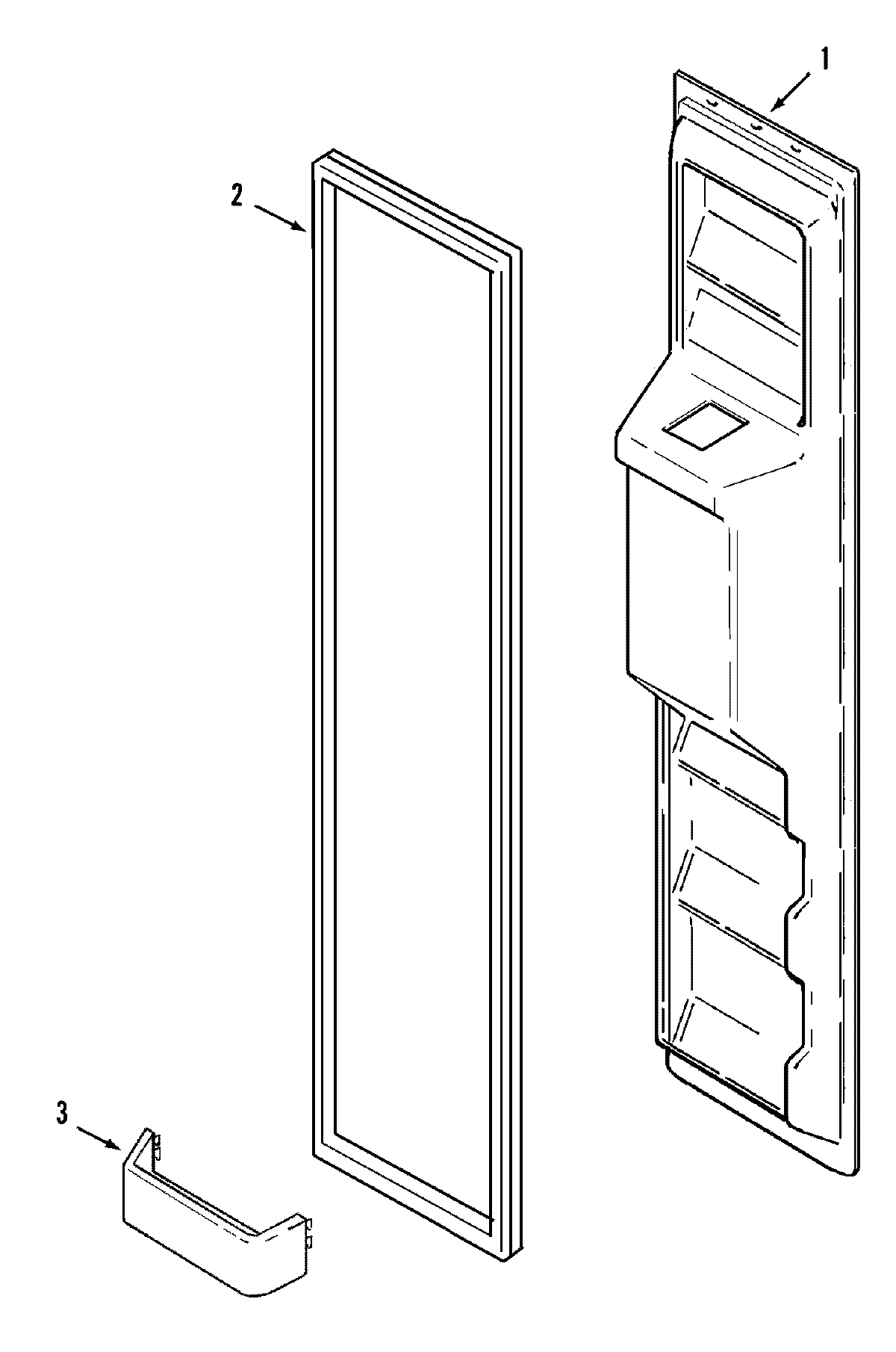

04 - FREEZER INNER DOOR

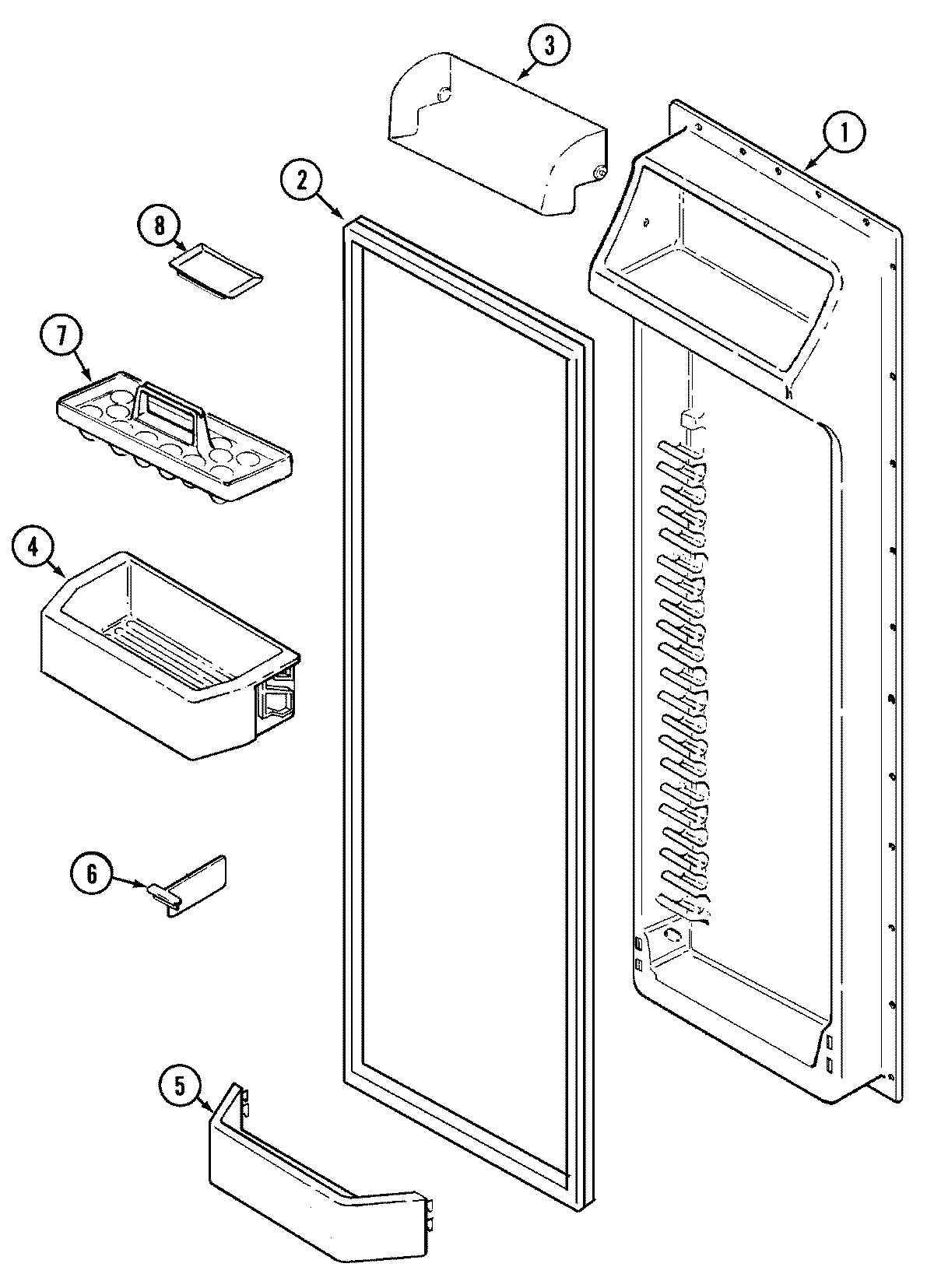

05 - FRESH FOOD INNER DOOR

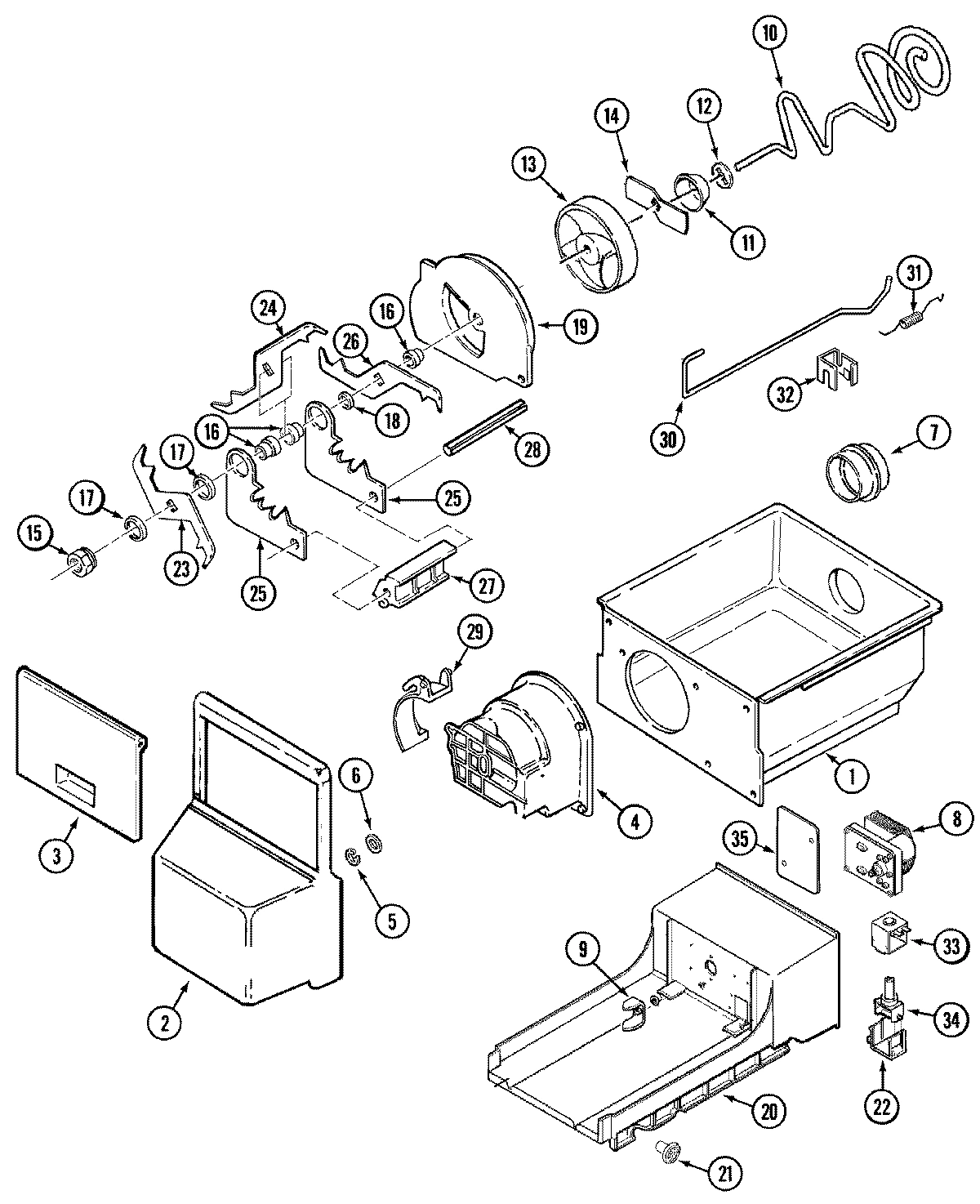

07 - ICE BIN (REV 12)

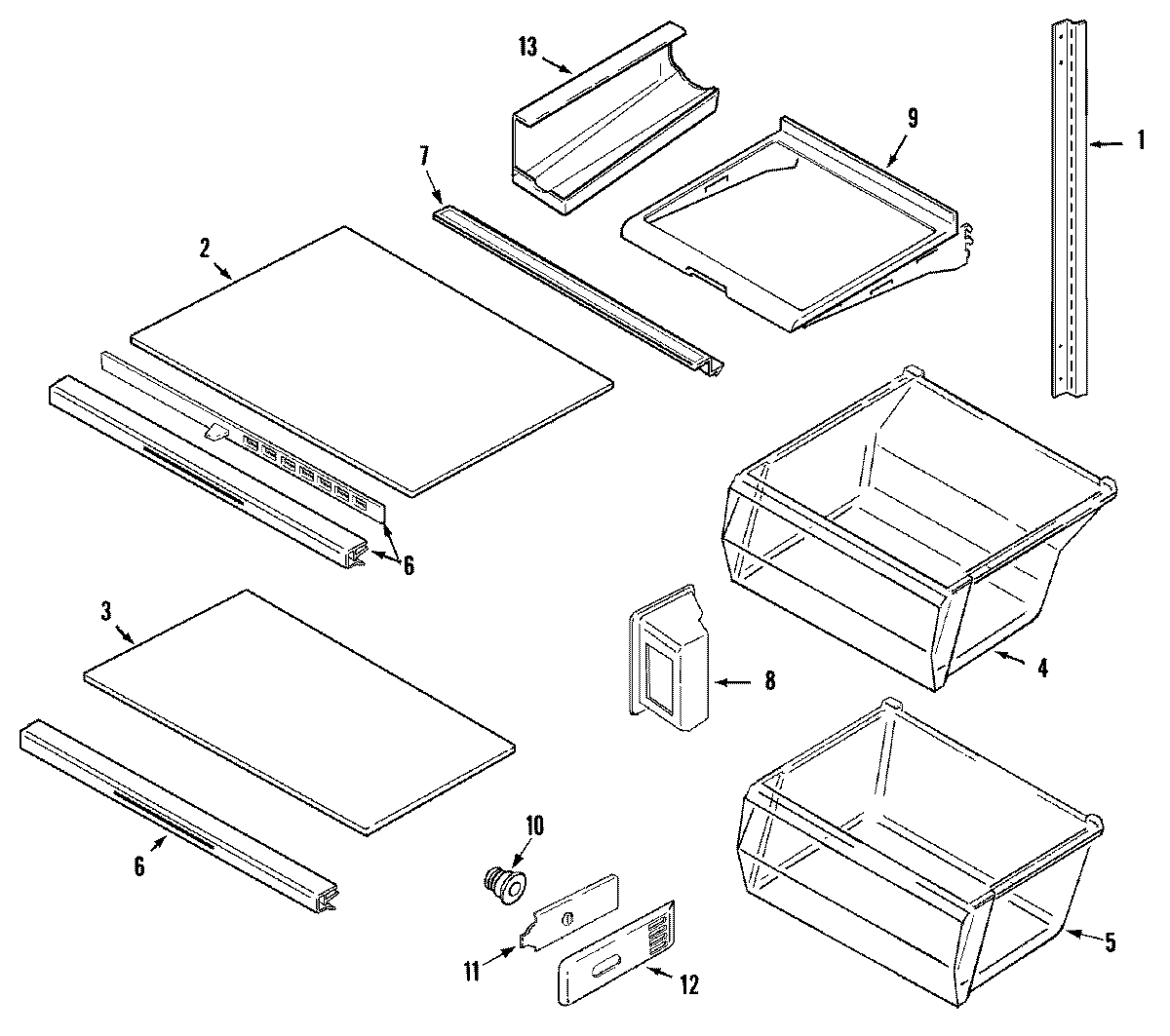

09 - SHELVES & ACCESSORIES

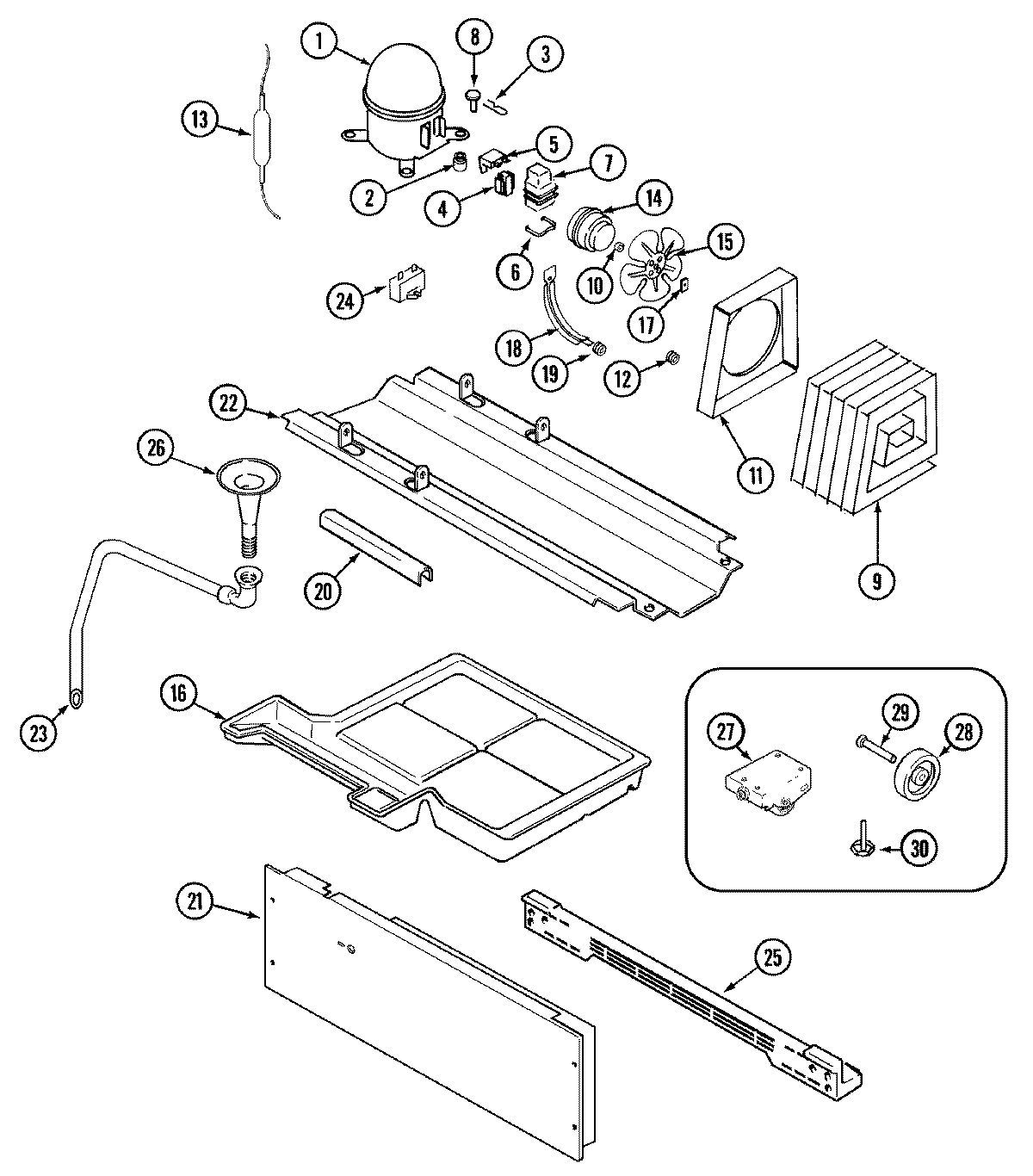

01 - COMPRESSOR

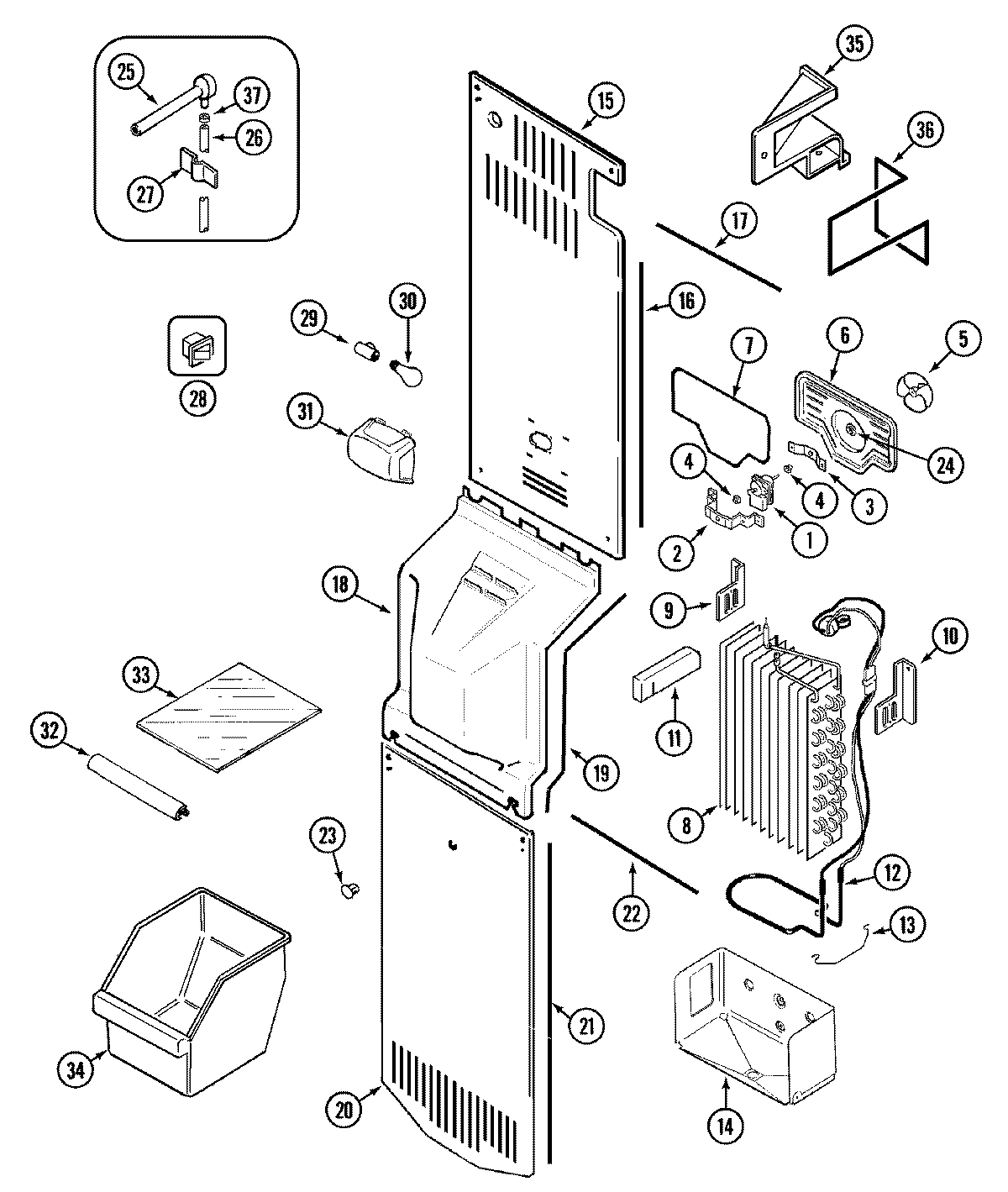

03 - FREEZER COMPARTMENT

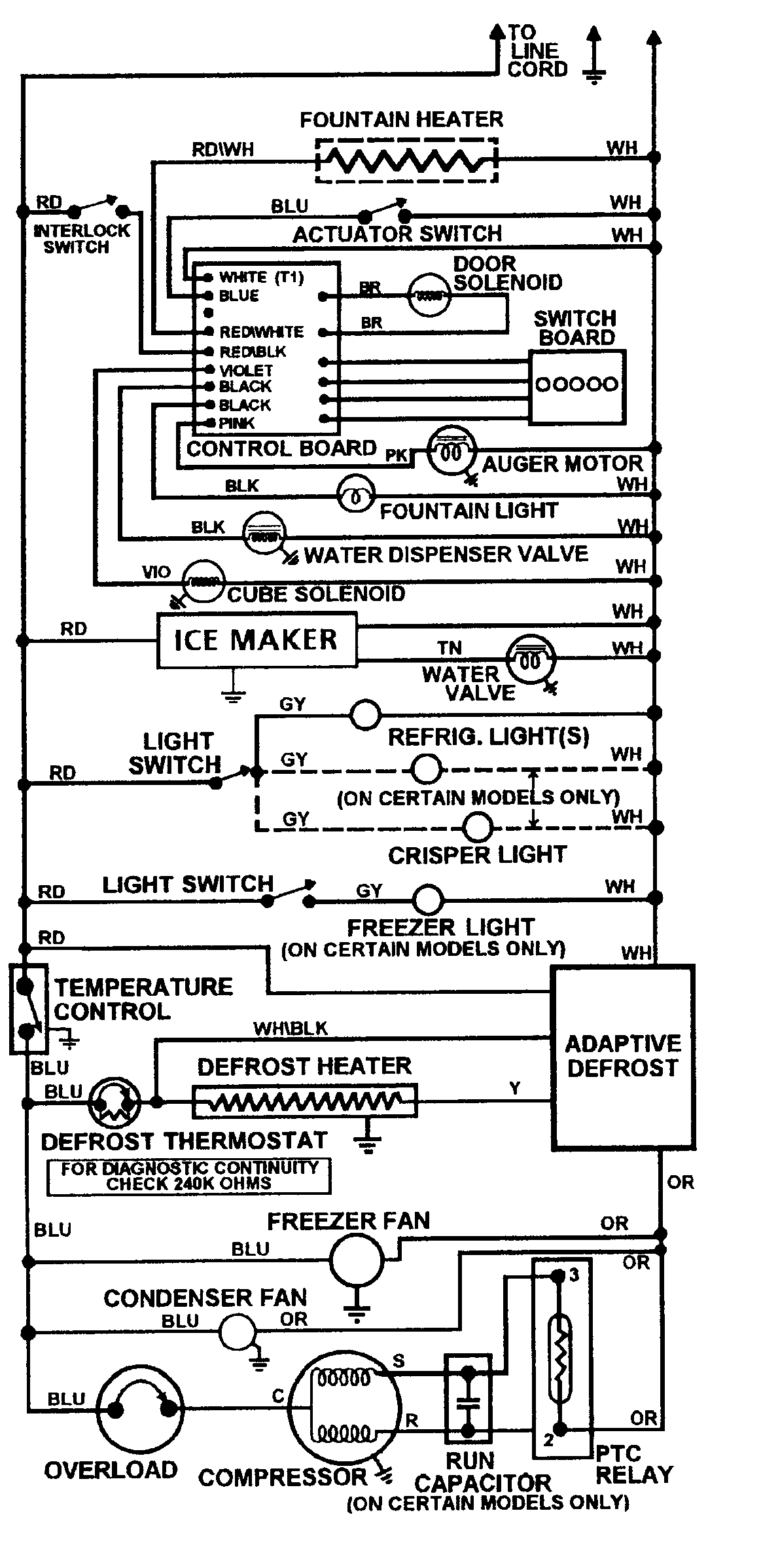

10 - WIRING INFORMATION
Common parts from model Whirlpool CS25A7DB REFRIGERATOR
1
ICEMAKER WPL 951091 Contact Us For Availability
1
SCREW WPL 4000311 Contact Us For Availability
1
HOUSING, CONTROL WPL 61003135 Contact Us For Availability
1
FOIL, HEAT SHIELD WPL 61003152 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 61003476 Contact Us For Availability
1
LINER, F.F. DOOR WPL 61003472 Contact Us For Availability
1
BIN, ICE WPL 61004802 Contact Us For Availability
1
SCREW WPL 4000221 Contact Us For Availability
1
RAIL, SHELF SUPPORT WPL 61003240 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61002223 Contact Us For Availability
2
COVER, ICE MAKER WPL 61001239 Contact Us For Availability
2
SCREW WPL 4000191 Contact Us For Availability
2
SUPPORT, DIVIDER WPL 671491 Contact Us For Availability
2
SEAL, FRZ. DOOR (BLK) WPL 61003540 Contact Us For Availability
2
SEAL, F.F. DOOR (BLK) WPL 61003531 Contact Us For Availability
2
FRONT, ICE BIN WPL 61004803 Contact Us For Availability
2
GLASS, CRISPER SHELF WPL 61003241 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability
3
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
3
SCREW WPL 951061 Contact Us For Availability
3
FRONT, PICK-OFF WPL 61003454 Contact Us For Availability
3
DOOR, DAIRY WPL 61003497 Contact Us For Availability
3
DOOR, ICE ACCESS WPL 61004300 Contact Us For Availability
3
GLASS, MEAT SHELF WPL 61003157 Contact Us For Availability
3
CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability
3
RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability
4
HOUSING, CRUSHER WPL 61003322 Contact Us For Availability
4
KNOB, TEMP. CONTROL WPL 61003136 Contact Us For Availability
4
SHELF, PICK-OFF WPL 61003498 Contact Us For Availability
4
SCREW WPL 41501335 Contact Us For Availability
4
HOUSING, CRUSHER WPL 61004804 Contact Us For Availability
4
SEAL WPL 61004869 Contact Us For Availability
4
PAN, CRISPER WPL 61003459 Contact Us For Availability
4
BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability
5
RING, SNAP WPL 697041 Contact Us For Availability
5
WIRE HARNESS, ICE MAKER WPL 61003318 Contact Us For Availability
5
CLIP, TEMP. KNOB WPL 61003137 Contact Us For Availability
5
FRONT, PICK-OFF WPL 61003499 Contact Us For Availability
5
PAN, MEAT WPL 61003460 Contact Us For Availability
5

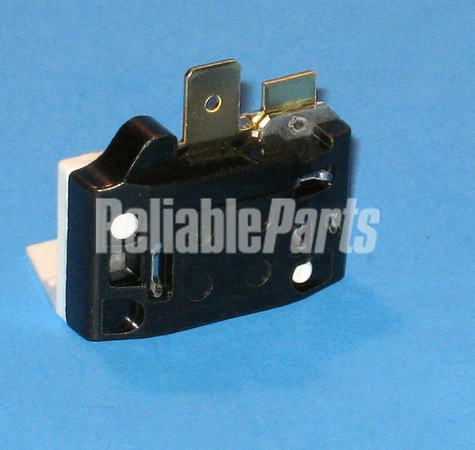

OVERLOAD WPL 61001785 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability
6
WASHER, RETAINER WPL 697031 Contact Us For Availability
6
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
6
KNOB, FRZ. CONTROL WPL 61003423 Contact Us For Availability
6
ORGANIZER WPL 61002640 Contact Us For Availability
6
TRIM WPL 61003162 Contact Us For Availability
6
TRIM, SHELF (CRISPER-W/SLIDE) WPL 61003248 Contact Us For Availability
6
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
6
SHROUD, FAN WPL 61003380 Contact Us For Availability
7
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
7
RETAINER, FRZ. KNOB WPL 61003139 Contact Us For Availability
7
TRAY, EGG WPL 600661 Contact Us For Availability
7
SEAL, CRISPER SHELF (REAR) WPL 61003161 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
8
WIRE HARNESS, AUGER MOTOR WPL 61003442 Contact Us For Availability
8
SEE NOTE (MUST ORDER TANK ASSY. PART NO. WPL Y00000000 Contact Us For Availability
8
ROD, DAMPER CAM WPL 61003155 Contact Us For Availability
8
TRAY, BUTTER WPL 299362 Contact Us For Availability
8
WIRE HARNESS, AUGER MOTOR WPL 61004805 Contact Us For Availability
8
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
8
EVAP/HEAT EXCH ASSY23/24/25SXS WPL 12001640 Contact Us For Availability
9
FUNNEL-KIT WPL 675792 Contact Us For Availability
9
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
9
FOLLOWER, CAM WPL 61003140 Contact Us For Availability
9
SHELF, SPILL PROOF WPL 61003494 Contact Us For Availability
9
CONDENSER WPL 61003130 Contact Us For Availability
9
BRACKET, EVAPORATOR (LT) WPL 61003215 Contact Us For Availability
10
AUGER WPL 61003326 Contact Us For Availability
10
SPRING, DAMPER DOOR WPL 61003141 Contact Us For Availability
10
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
10
BRACKET, EVAPORATOR (RT) WPL 61003216 Contact Us For Availability
11
CONE, ICE DEFLECTOR WPL 696991 Contact Us For Availability
11
SLEEVE, BRASS WPL 694311 Contact Us For Availability
11
DOOR, DAMPER WPL 61003424 Contact Us For Availability
11
SLIDE, CONTROL (MEAT) WPL 61003249 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001941 Contact Us For Availability
11
BLOCK, AIR WPL 61003213 Contact Us For Availability
12
WASHER, CONE STOP WPL 696981 Contact Us For Availability
12
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
12
BRACKET, MASS HOLDER WPL 61003143 Contact Us For Availability
12
RETAINER, CONTROL SLIDE WPL 61003250 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability
13
IMPELLER WPL 61003327 Contact Us For Availability
13
THERMOSTAT WPL 950921 Contact Us For Availability
13
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
13
SCREW WPL 4050071 Contact Us For Availability
13
TIMER, DEFROST WPL 682332 Contact Us For Availability
13
IMPELLER WPL 700361 Contact Us For Availability
13
HOLDER, BEVERAGE WPL 61002657 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
14
PLATE, DRIVE WPL 61003328 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
INSULATION, DISCHARGE (LT) WPL 61003144 Contact Us For Availability
14
INSULATION, DISCHARGE (RT) WPL 61003145 Contact Us For Availability
14
PLATE, DRIVE WPL 697551 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
HOUSING, EVAPORATOR WPL 61003382 Contact Us For Availability
15
NUT, AUGER WPL 697091 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
TUNNEL, CONTROL HOUSING WPL 61003146 Contact Us For Availability
15
SEAL, TUNNEL TO HOUSING WPL 61003147 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
15
COVER, COIL (UPR) WPL 61003383 Contact Us For Availability
16
BEARING, SPACER WPL 696971 Contact Us For Availability
16
ARM, SENSOR WPL 701421 Contact Us For Availability
16
SEAL, TUNNEL TO WALL WPL 61003148 Contact Us For Availability
16
PAN, DRAIN WPL 61002649 Contact Us For Availability
17
SPACER, CRUSHER BLADE WPL 696961 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
17
SEAL, UPPER COVER (TOP) WPL 61003386 Contact Us For Availability
18
SPACER, BLADE WPL 696962 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
COVER, EVAPORATOR FAN WPL 61003387 Contact Us For Availability
19
MANDIPLATE WPL 61003334 Contact Us For Availability
19
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
19
SCREW, BRACKET WPL 951081 Contact Us For Availability
19
SHIELD, HEAT WPL 61003149 Contact Us For Availability
19
PLATE, IMPELLER WPL 697011 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
ENCLOSURE, ICE - SEE NOTES WPL 61003443 Contact Us For Availability
20
SWITCH, LIGHT WPL 669871 Contact Us For Availability
20
ISOLATOR, CONDENSER WPL 61001974 Contact Us For Availability
20
COVER, COIL (LWR) WPL 61003388 Contact Us For Availability
21
SUPPORT, ENCLOSURE WPL 61003333 Contact Us For Availability
21
SHIELD, LIGHT WPL 61003217 Contact Us For Availability
21
SCREW WPL 652755 Contact Us For Availability
21
COVER, COMPRESSOR COMPARTMENT WPL 61003370 Contact Us For Availability
22
SCREW WPL 40002612 Contact Us For Availability
22
GUIDE, YOKE WPL 697151 Contact Us For Availability
22
PAN, COMPRESSOR MTG. WPL 61003371 Contact Us For Availability
22
SEAL, LOWER COVER WPL 61003389 Contact Us For Availability
23
BLADE, CRUSHER WPL 697023 Contact Us For Availability
23
CLAMP WPL 535169 Contact Us For Availability
23
HOSE, DRAIN WPL 61003133 Contact Us For Availability
23
PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability
24
BLADE, CRUSHER WPL 697022 Contact Us For Availability
24
CAPACITOR, RUN WPL 61002137 Contact Us For Availability
24
CAPACITOR, RUN WPL 658898 Contact Us For Availability
24
SLINGER, DISC WPL 61003198 Contact Us For Availability
25
BLADE, CRUSHER WPL 61003451 Contact Us For Availability
25
BLADE, CRUSHER WPL 697061 Contact Us For Availability
25
KICKPLATE (BLK) WPL 61004067 Contact Us For Availability
25
GROMMET, FILL TUBE WPL 61003253 Contact Us For Availability
25
CLIP, FILL TUBE WPL 678771 Contact Us For Availability
26
DIVERTER, ICE WPL 61003445 Contact Us For Availability
26
BLADE, CRUSHER WPL 697021 Contact Us For Availability
26
TUBE, DRAIN WPL 61004751 Contact Us For Availability
27
BLADE, ACTUATED WPL 61003448 Contact Us For Availability
27
LOCK, FIXED BLADE WPL 697081 Contact Us For Availability
27
SCREW WPL 4000161 Contact Us For Availability
27
WHEEL ASSY. (FRT) WPL 61002066 Contact Us For Availability
27
CLIP, WATER LINE (ADHESIVE) WPL 61001889 Contact Us For Availability
28
SUPPORT, CONTROL ROD WPL 61003446 Contact Us For Availability
28
PIN, BLADE LOCK WPL 697051 Contact Us For Availability
29
SHIELD, SNOW WPL 61003444 Contact Us For Availability
29
DOOR, ICE CRUSHER WPL 697181 Contact Us For Availability
29
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
30
PIN, MANDIBLE WPL 61003449 Contact Us For Availability
30
ROD, CRUSHER CONTROL WPL 61004807 Contact Us For Availability
30
LEG, LEVELING WPL 61002014 Contact Us For Availability
30
BULB, LIGHT WPL 319561 Contact Us For Availability
31
ROD, CRUSHER CONTROL WPL 61003450 Contact Us For Availability
31
SPRING, CONTROL ROD WPL 61004808 Contact Us For Availability
31
SHIELD, LIGHT WPL 61002272 Contact Us For Availability
32
SPRING, CONTROL ROD WPL 61003447 Contact Us For Availability
32
BRACKET, CONTROL ROD WPL 61004809 Contact Us For Availability
32
TRIM, SHELF (FRT) WPL 61003390 Contact Us For Availability
33
BRACKET, CONTROL ROD WPL 697161 Contact Us For Availability
33
SOLENOID WPL 61003118 Contact Us For Availability
33
SHELF, FRZ. (SHALLOW) WPL 61003461 Contact Us For Availability
33
SHELF, FRZ. (DEEP) WPL 61003462 Contact Us For Availability
34
YOKE ASSY. WPL 61003539 Contact Us For Availability
34
DRAWER, FRZ. WPL 61003463 Contact Us For Availability
35
SCREW WPL 4000171 Contact Us For Availability
35
SHIELD, WIRE WPL 61004850 Contact Us For Availability
35
DIVERTER, AIR WPL 61003205 Contact Us For Availability
36
SEAL, AIR DIVERTER WPL 61003206 Contact Us For Availability
NI
WIRE HARNESS, CONTROLS WPL 61003153 Contact Us For Availability
NI
WIRE HARNESS, FRZ./F.F. WPL 61003154 Contact Us For Availability
NI
YODER LOOP HTR (115V)21,23,25 WPL 12001547 Contact Us For Availability
NI
MANUAL, SERVICE SXS APD WPL 16009103 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 61003134 Contact Us For Availability
NI
WIRE HARNESS, FAN & HEATER WPL 61003204 Contact Us For Availability
NI
WIRE HARNESS, FRZ. WPL 61003259 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002403 Contact Us For Availability
× ![]()
Login and Registration Form
