Model Whirlpool CS23B6DQ REFRIGERATOR – Common Parts & Diagrams

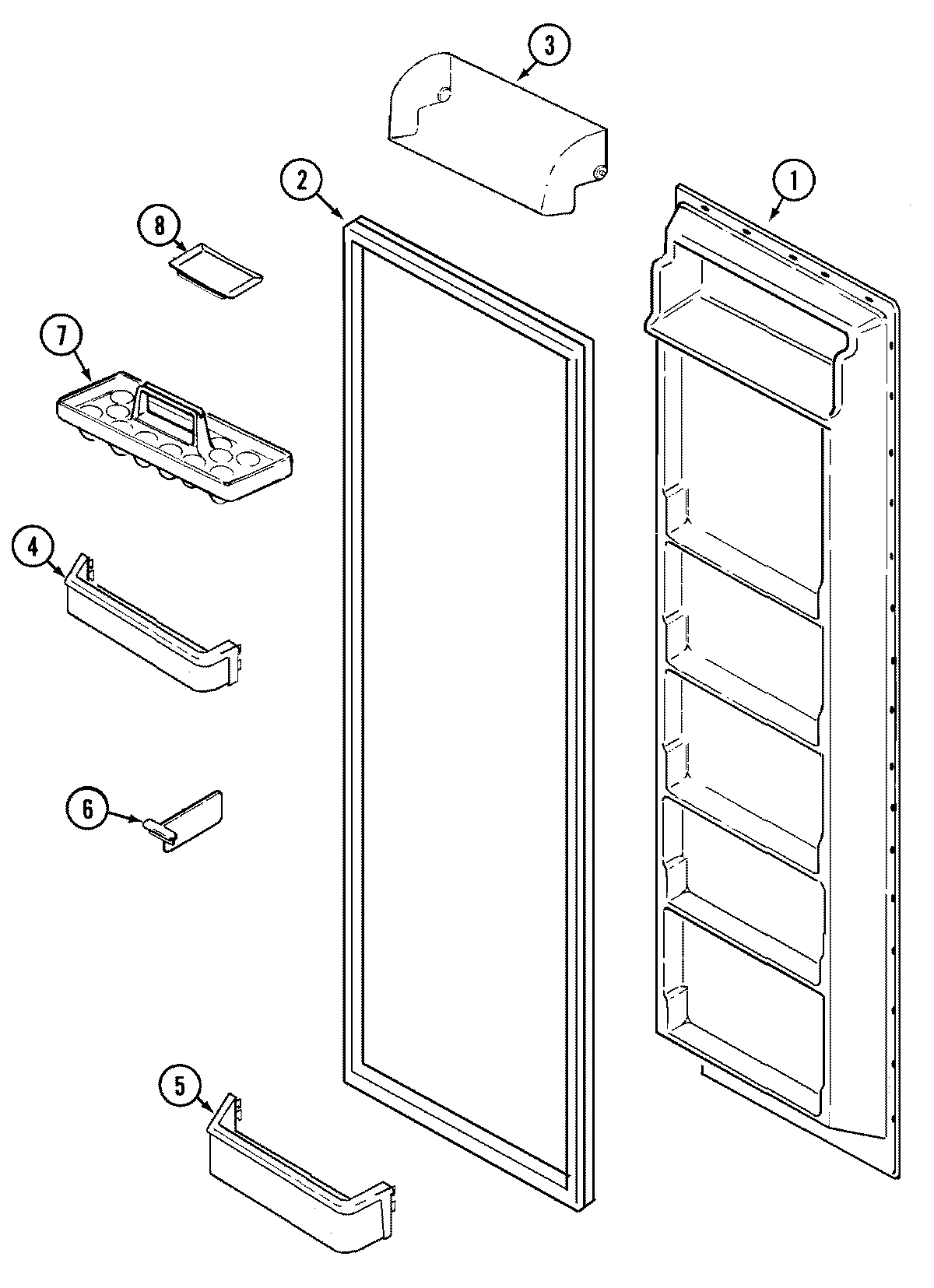

07 - FRESH FOOD INNER DOOR (BISQUE)

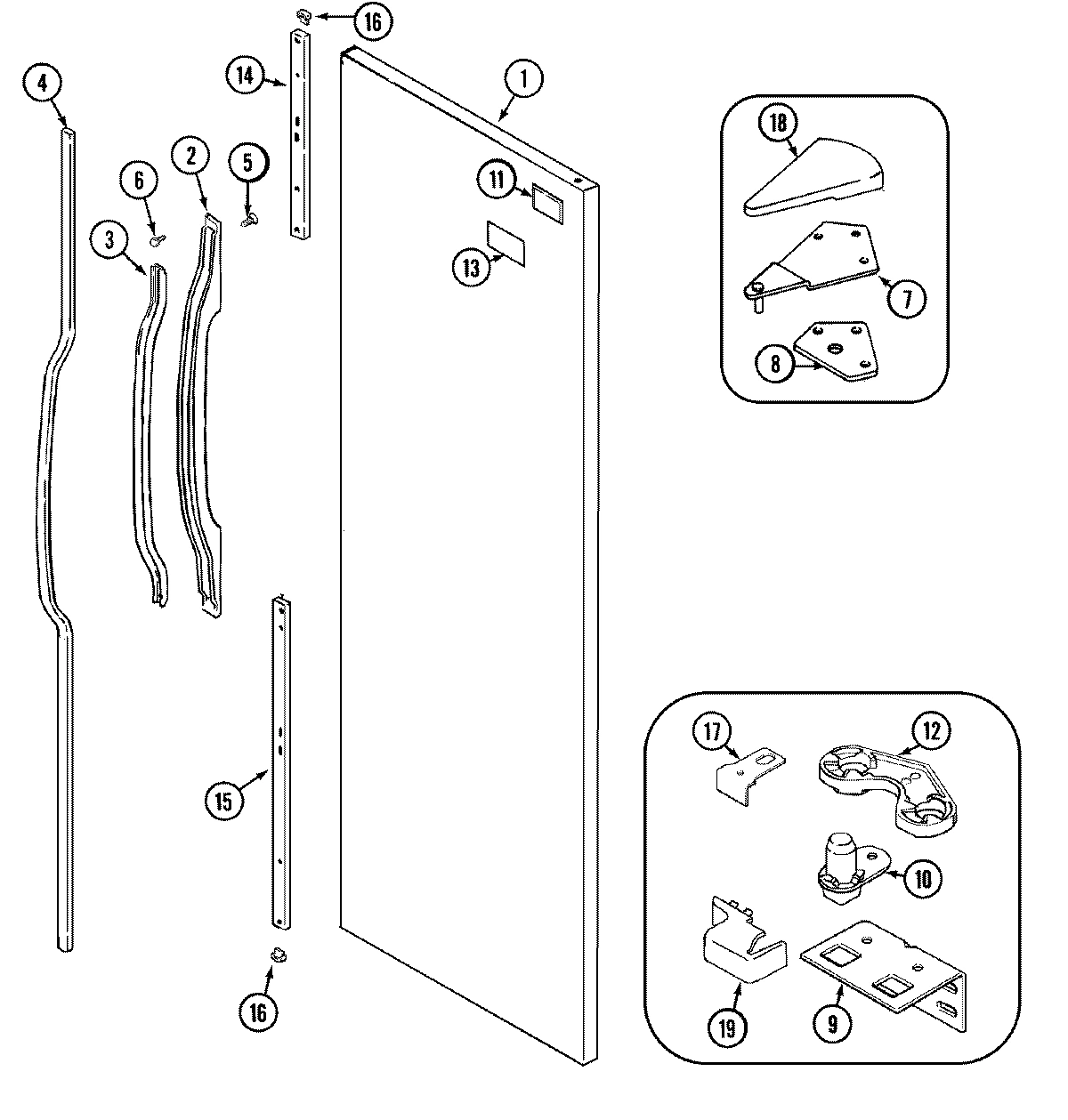

08 - FRESH FOOD OUTER DOOR (BISQUE)

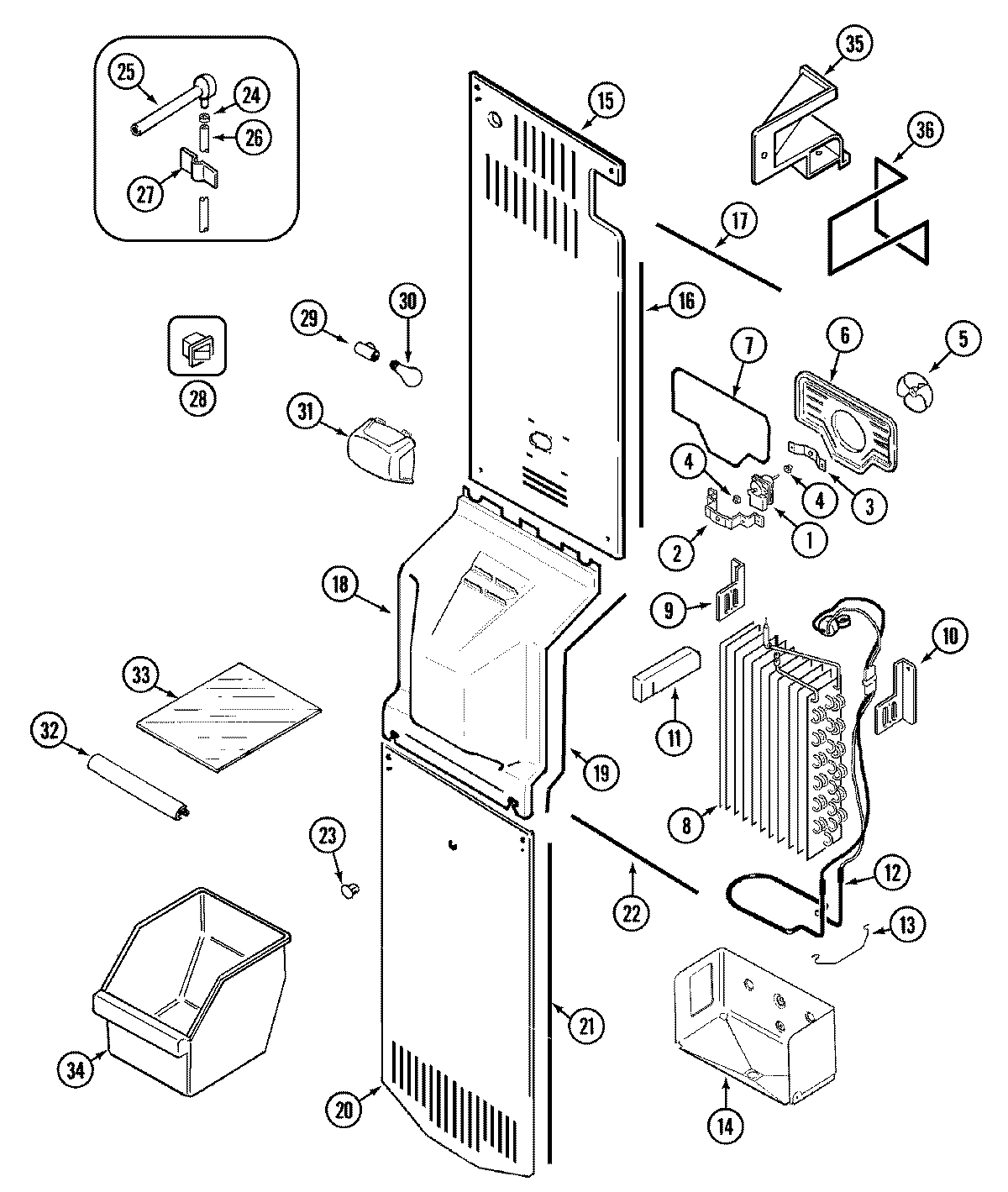

04 - FREEZER COMPARTMENT (BISQUE)

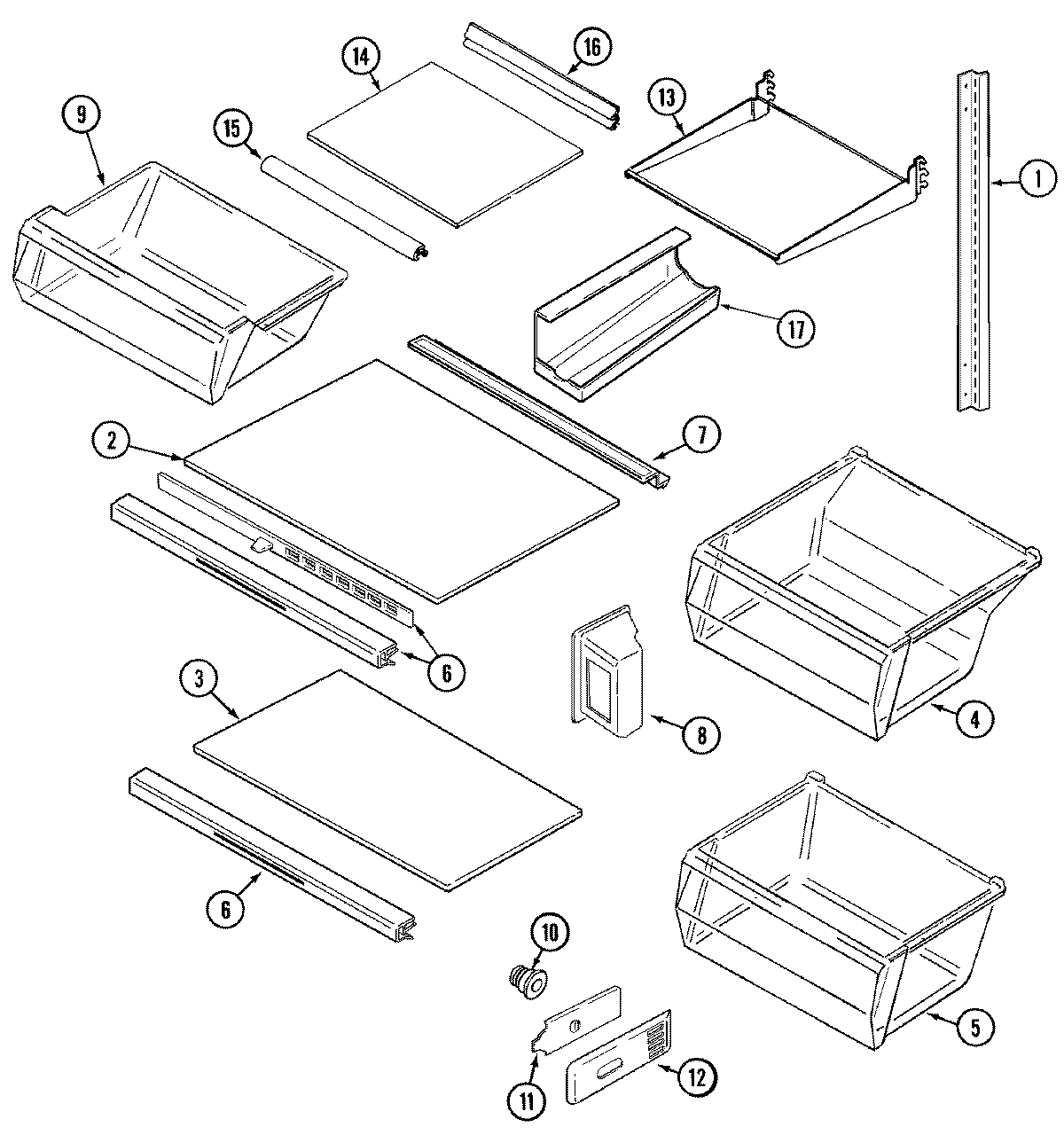

11 - SHELVES & ACCESSORIES (BISQUE)

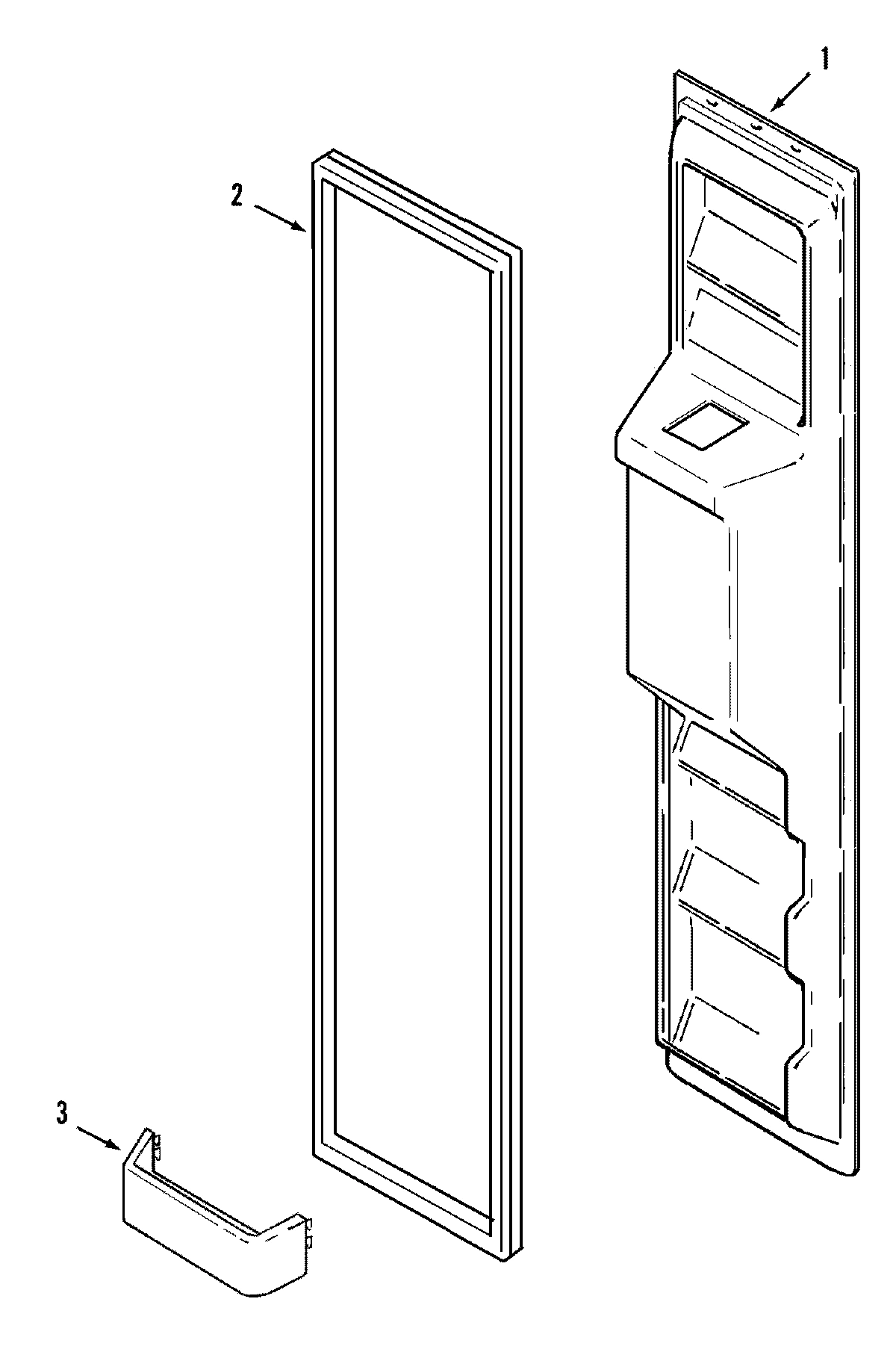

05 - FREEZER INNER DOOR (BISQUE)

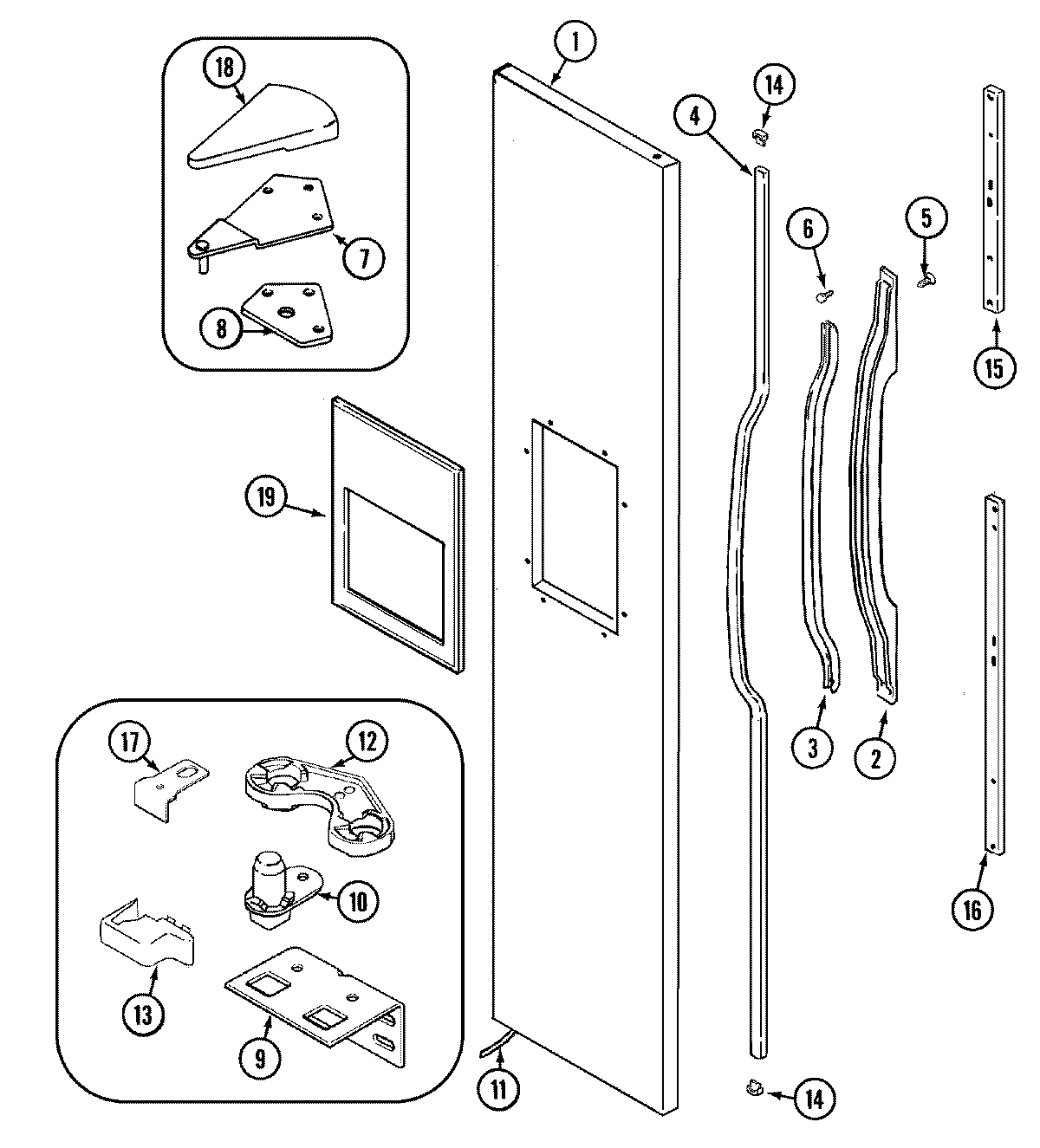

06 - FREEZER OUTER DOOR (BISQUE)

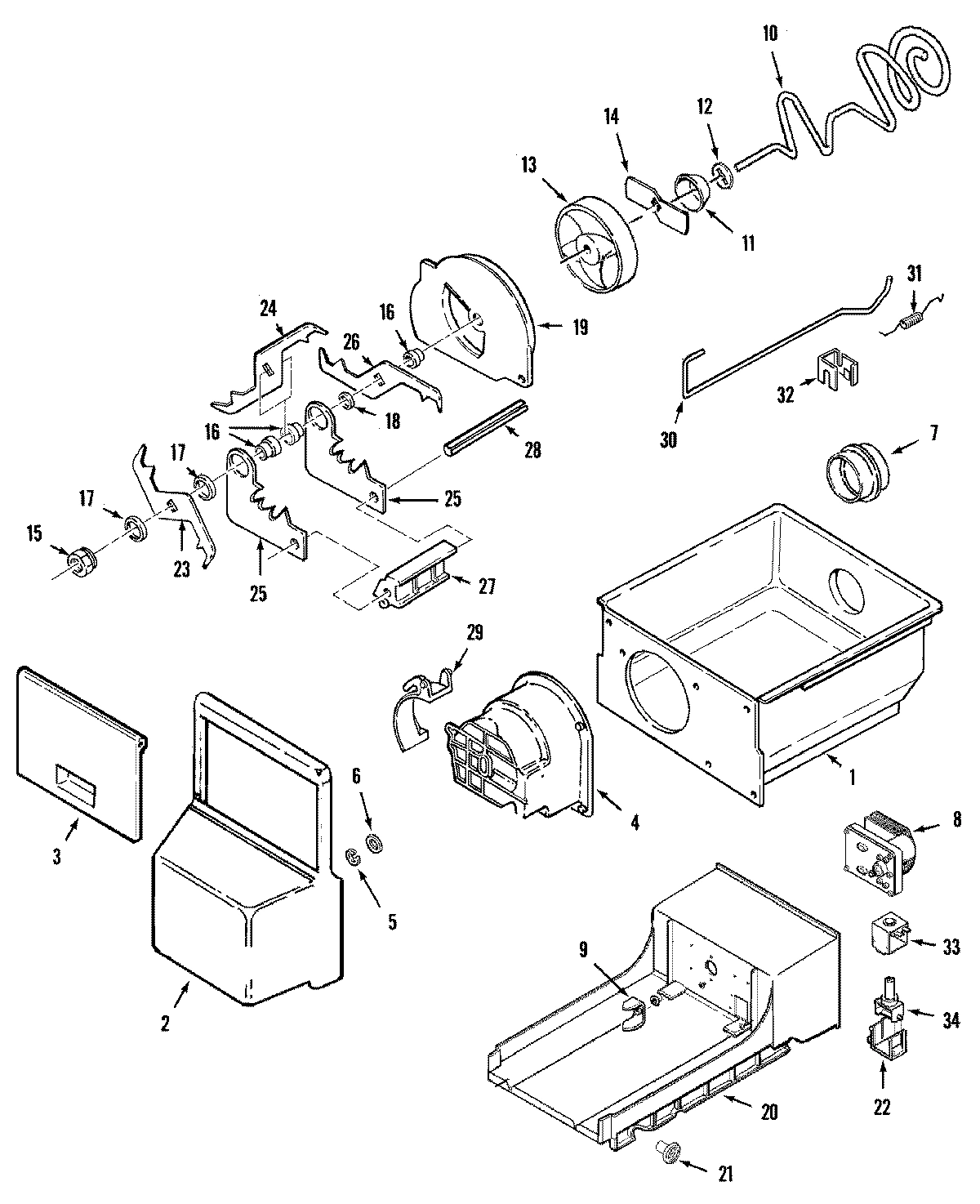

09 - ICE BIN (BISQUE)

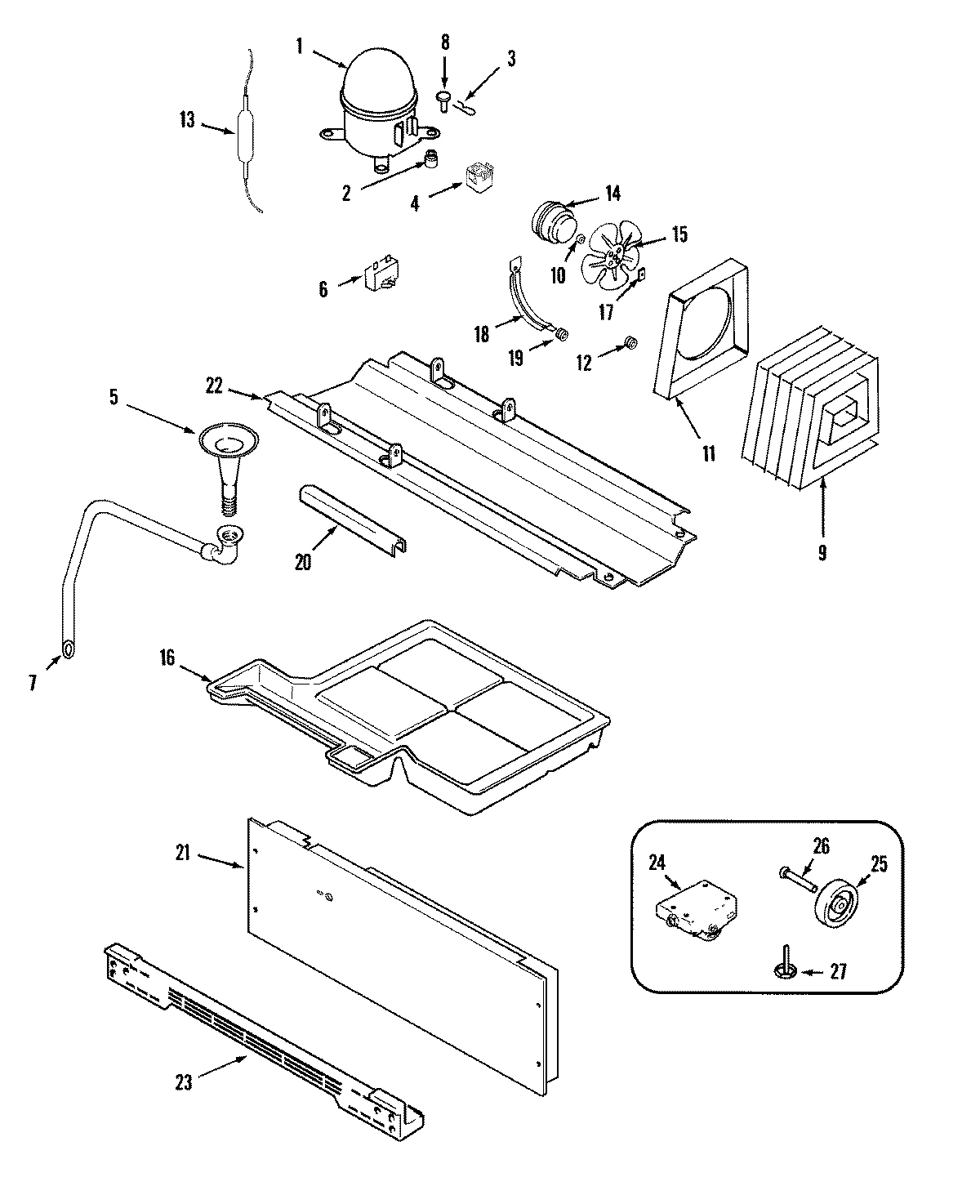

01 - COMPRESSOR (BISQUE)

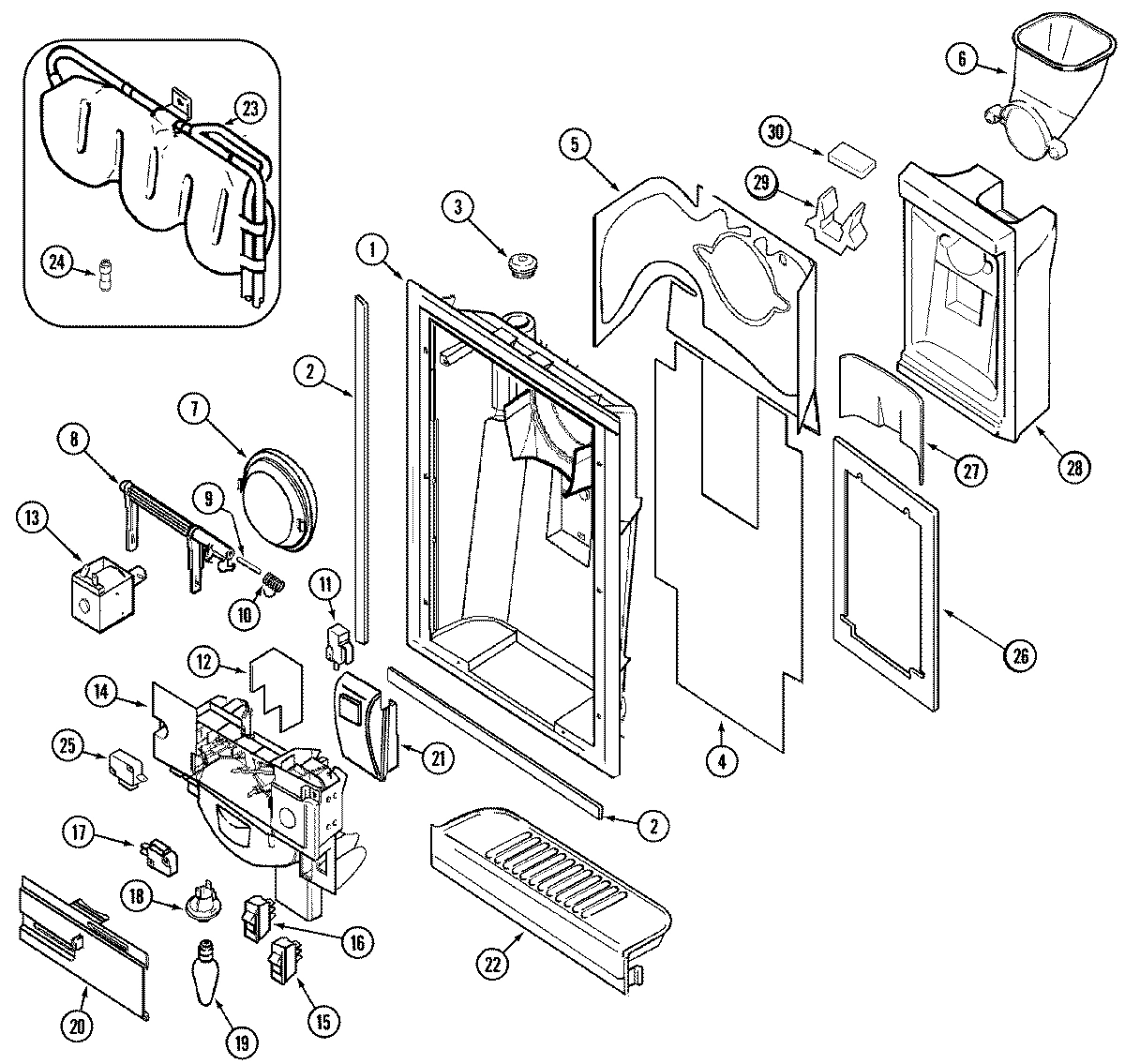

03 - FOUNTAIN (BISQUE)

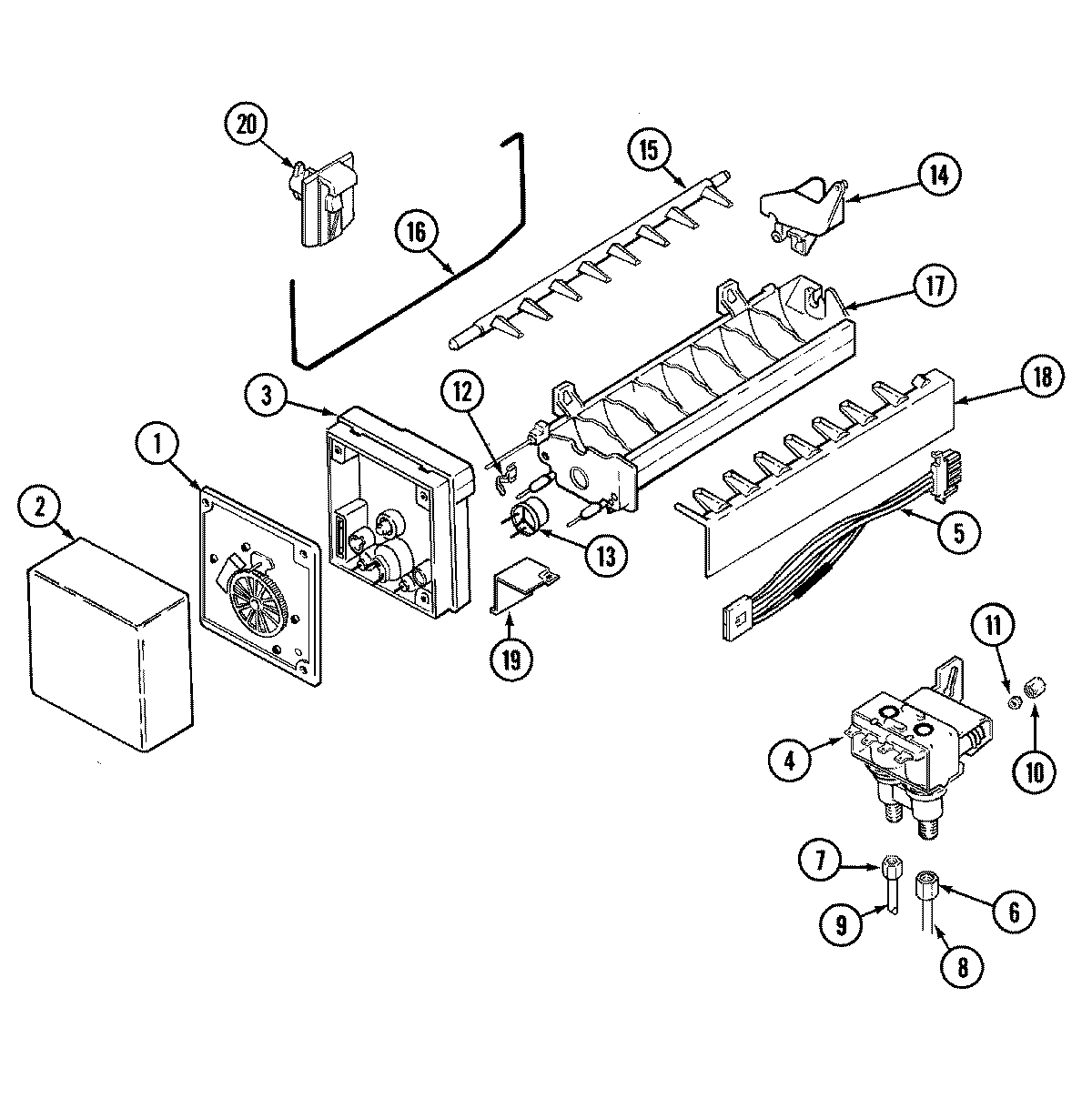

10 - ICE MAKER (BISQUE)

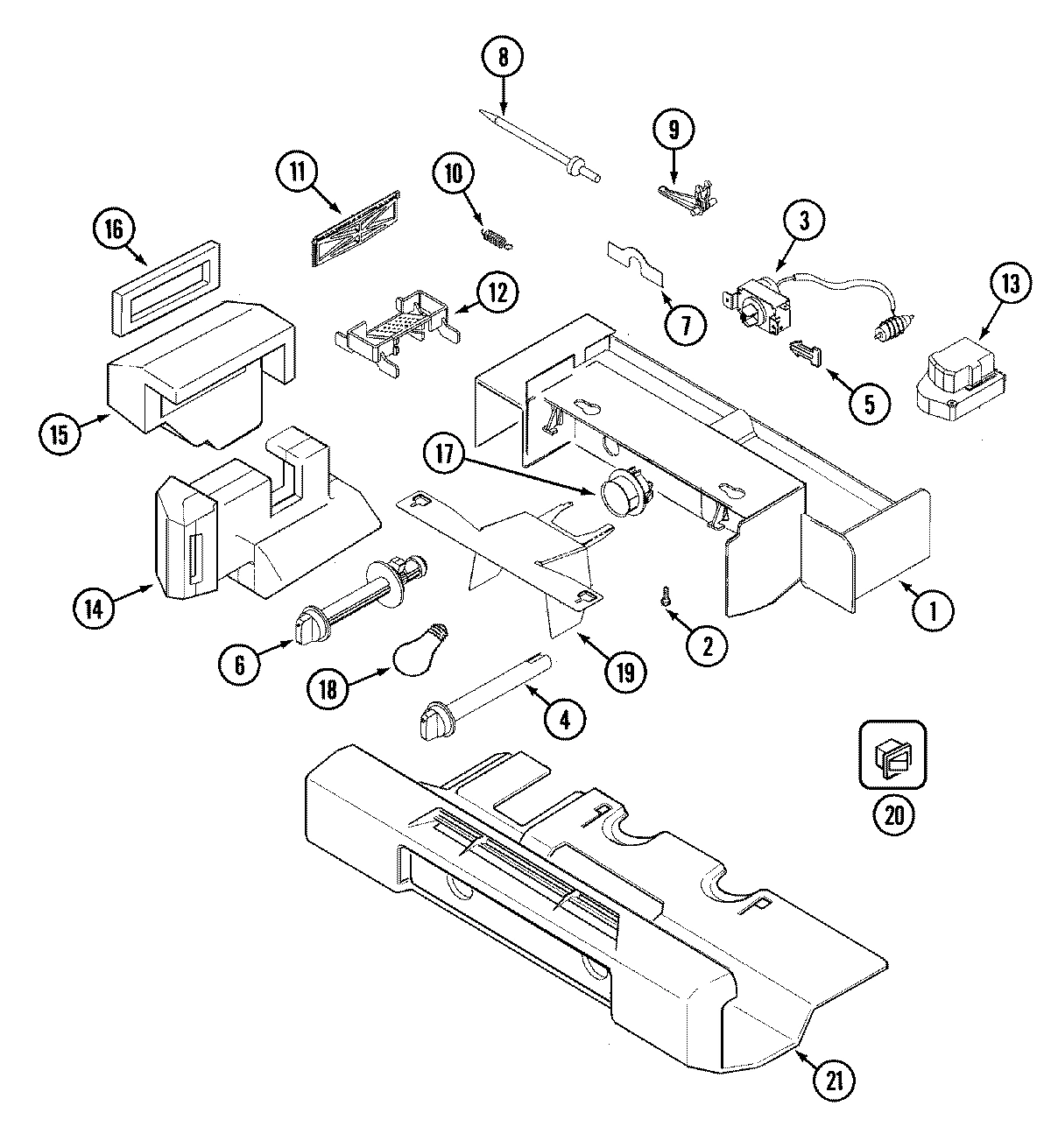

02 - CONTROLS (BISQUE)
Common parts from model Whirlpool CS23B6DQ REFRIGERATOR
1
PANEL, F.F. DOOR (BSQ) WPL 61005023 Contact Us For Availability
1
SCREW WPL 4000171 Contact Us For Availability
1
RAIL, SHELF SUPPORT WPL 61003577 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 61003403 Contact Us For Availability
1
SCREW WPL 652755 Contact Us For Availability
1
PANEL, FRZ. DOOR (BSQ) WPL 61005026 Contact Us For Availability
1
BIN, ICE WPL 61004802 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61004917 Contact Us For Availability
1
SCREW WPL 61003307 Contact Us For Availability
1
HOUSING, FOUNTAIN (BSQ) WPL 61004772 Contact Us For Availability
1
ICEMAKER WPL 951091 Contact Us For Availability
1
SCREW WPL 4000311 Contact Us For Availability
1
HOUSING, CONTROL WPL 61003135 Contact Us For Availability
1
FOIL, HEAT SHIELD WPL 61003152 Contact Us For Availability
2
HANDLE, F.F. DOOR (BSQ) WPL 61004921 Contact Us For Availability
2
BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability
2
GLASS, CRISPER SHELF WPL 61003241 Contact Us For Availability
2
SEAL, FRZ. DOOR (WHT) WPL 61003404 Contact Us For Availability
2
FRONT, ICE BIN WPL 61004803 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
TAPE (1FT.) WPL 61003286 Contact Us For Availability
2
COVER, ICE MAKER WPL 61004594 Contact Us For Availability
3
FRAME, HANDLE WPL 61003168 Contact Us For Availability
3
RETAINER, EVAPORATOR FAN WPL 61002234 Contact Us For Availability
3
GLASS, MEAT SHELF WPL 61003157 Contact Us For Availability
3
FRONT, PICK-OFF WPL 61003454 Contact Us For Availability
3
DOOR, ICE ACCESS WPL 61004300 Contact Us For Availability
3
CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability
3
GROMMET, WATER TUBE WPL 61003300 Contact Us For Availability
3
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
3
SCREW WPL 951061 Contact Us For Availability
4
INSERT, HANDLE (BSQ) WPL 61004922 Contact Us For Availability
4
BUSHING, EVAPORATOR FAN WPL 61002235 Contact Us For Availability
4
PAN, CRISPER WPL 61003459 Contact Us For Availability
4
HOUSING, CRUSHER WPL 61004804 Contact Us For Availability
4
SEAL WPL 61004869 Contact Us For Availability
4
RELAY/OVERLOAD ASSY. WPL 61004918 Contact Us For Availability
4
FOIL, FTN. BACK WPL 61003304 Contact Us For Availability
4
KNOB, TEMP. CONTROL WPL 61003136 Contact Us For Availability
5
SCREW WPL 61003172 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 61001935 Contact Us For Availability
5
PAN, MEAT WPL 61003460 Contact Us For Availability
5
RING, SNAP WPL 697041 Contact Us For Availability
5
TUBE, DRAIN WPL 61004751 Contact Us For Availability
5
HEATER, FOUNTAIN WPL 61003125 Contact Us For Availability
5
WIRE HARNESS, ICE MAKER WPL 61003318 Contact Us For Availability
5
CLIP, TEMP. KNOB WPL 61003137 Contact Us For Availability
6
SHROUD, FAN WPL 61003380 Contact Us For Availability
6
TRIM WPL 61003162 Contact Us For Availability
6
TRIM, SHELF (CRISPER-W/SLIDE) WPL 61003248 Contact Us For Availability
6
WASHER, RETAINER WPL 697031 Contact Us For Availability
6
CAPACITOR, RUN WPL 658894 Contact Us For Availability
6
CHUTE, ICE WPL 61004677 Contact Us For Availability
6
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
6
KNOB, FRZ. CONTROL WPL 61003138 Contact Us For Availability
7
TRAY, EGG WPL 600661 Contact Us For Availability
7
HINGE, UPPER WPL 61004896 Contact Us For Availability
7
SEAL, CRISPER SHELF (REAR) WPL 61003161 Contact Us For Availability
7
CLAMP WPL 535169 Contact Us For Availability
7
HOSE, DRAIN WPL 61003133 Contact Us For Availability
7
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
7
RETAINER, FRZ. KNOB WPL 61003139 Contact Us For Availability
8
TRAY, BUTTER WPL 299362 Contact Us For Availability
8
SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability
8
EVAP/HEAT EXCH ASSY23/24/25SXS WPL 12001640 Contact Us For Availability
8
WIRE HARNESS, AUGER MOTOR WPL 61004805 Contact Us For Availability
8
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
8
SEE NOTE (MUST ORDER TANK ASSY. PART NO. WPL Y00000000 Contact Us For Availability
8
ROD, DAMPER CAM WPL 61003155 Contact Us For Availability
9
FUNNEL-KIT WPL 675792 Contact Us For Availability
9
HINGE, LOWER (BSQ) WPL 61004764 Contact Us For Availability
9
BRACKET, EVAPORATOR (LT) WPL 61003215 Contact Us For Availability
9
PAN, DELI WPL 61004556 Contact Us For Availability
9
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
9
CONDENSER WPL 61003130 Contact Us For Availability
9
FOLLOWER, CAM WPL 61003140 Contact Us For Availability
10
SPRING, FTN. RETURN WPL 61004388 Contact Us For Availability
10
PIN, LOWER HINGE WPL 61003174 Contact Us For Availability
10
BRACKET, EVAPORATOR (RT) WPL 61003216 Contact Us For Availability
10
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
10
AUGER WPL 61003326 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
10
SPRING, DAMPER DOOR WPL 61003141 Contact Us For Availability
11
BEZEL, NAMEPLATE (BSQ) WPL 61004894 Contact Us For Availability
11
BLOCK, AIR WPL 61003213 Contact Us For Availability
11
SLIDE, CONTROL (MEAT) WPL 61003249 Contact Us For Availability
11
TUBING, FOUNTAIN WPL 61004557 Contact Us For Availability
11
CONE, ICE DEFLECTOR WPL 696991 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001941 Contact Us For Availability
11
SWITCH, LIMIT WPL 61003124 Contact Us For Availability
11
SLEEVE, BRASS WPL 694311 Contact Us For Availability
11
DOOR, DAMPER WPL 61003424 Contact Us For Availability
12
RETAINER, CONTROL SLIDE WPL 61003250 Contact Us For Availability
12
WASHER, CONE STOP WPL 696981 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability
12
BOARD, DELAY WPL 61003288 Contact Us For Availability
12
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
12
BRACKET, MASS HOLDER WPL 61004278 Contact Us For Availability
13
NAMEPLATE (BSQ) WPL 61004949 Contact Us For Availability
13
FRAME, SHELF WPL 61003246 Contact Us For Availability
13
FRAME, SHELF WPL 61003373 Contact Us For Availability
13
COVER, LOWER HINGE (BSQ) WPL 61004769 Contact Us For Availability
13
IMPELLER WPL 700361 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
13
THERMOSTAT WPL 950921 Contact Us For Availability
13
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
13
SCREW WPL 4050071 Contact Us For Availability
13
TIMER, DEFROST WPL 682332 Contact Us For Availability
14
END CAP, HANDLE (BSQ) WPL 61004924 Contact Us For Availability
14
HOUSING, EVAPORATOR WPL 61003382 Contact Us For Availability
14
GLASS, SHELF WPL 61003247 Contact Us For Availability
14
GLASS, DELI SHELF WPL 61003427 Contact Us For Availability
14
SCREW WPL 41501335 Contact Us For Availability
14
PLATE, DRIVE WPL 697551 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
BRACKET, FOUNTAIN (BSQ) WPL 61004930 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
INSULATION, DISCHARGE (LT) WPL 61003144 Contact Us For Availability
14
INSULATION, DISCHARGE (RT) WPL 61004279 Contact Us For Availability
15
TRIM, HANDLE EXT. (UPR-BSQ) WPL 61004928 Contact Us For Availability
15
COVER, COIL (UPR) WPL 61003383 Contact Us For Availability
15
TRIM, SHELF WPL 61003245 Contact Us For Availability
15
NUT, AUGER WPL 697091 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
15
SWITCH, SAFETY WPL 699041 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
TUNNEL, CONTROL HOUSING WPL 61003146 Contact Us For Availability
15
SEAL, TUNNEL WPL 61004696 Contact Us For Availability
16
TRIM, HANDLE EXT. (LWR-BSQ) WPL 61004923 Contact Us For Availability
16
TRIM, SHELF WPL 61003244 Contact Us For Availability
16
BEARING, SPACER WPL 696971 Contact Us For Availability
16
PAN, DRAIN WPL 61002649 Contact Us For Availability
16
SWITCH, LIGHT WPL 61003290 Contact Us For Availability
16
ARM, SENSOR WPL 61004136 Contact Us For Availability
16
SEAL, TUNNEL WPL 61003819 Contact Us For Availability
17
STOP, DOOR WPL 61003273 Contact Us For Availability
17
SEAL, UPPER COVER (TOP) WPL 61003386 Contact Us For Availability
17
HOLDER, BEVERAGE WPL 61002657 Contact Us For Availability
17
SPACER, CRUSHER BLADE WPL 696961 Contact Us For Availability
17
SWITCH WPL 554403 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
18
COVER, UPPER HINGE (BSQ) WPL 61004766 Contact Us For Availability
18
COVER, EVAPORATOR FAN WPL 61003387 Contact Us For Availability
18
COVER, UPPER HINGE (BSQ) WPL 61004771 Contact Us For Availability
18
SPACER, BLADE WPL 696962 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
RECEPTACLE, BULB WPL 701191 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
19
COVER, LOWER HINGE (BSQ) WPL 61004765 Contact Us For Availability
19
ESCUTCHEON (BSQ) WPL 61005034 Contact Us For Availability
19
PLATE, IMPELLER WPL 697011 Contact Us For Availability
19
GROMMET, BRACKET WPL 61004743 Contact Us For Availability
19
BULB, LIGHT WPL 631791 Contact Us For Availability
19
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
19
SCREW, BRACKET WPL 951081 Contact Us For Availability
19
SHIELD, HEAT WPL 61003149 Contact Us For Availability
20
SCREW WPL 61004424 Contact Us For Availability
20
COVER, COIL (LWR) WPL 61003388 Contact Us For Availability
20
ISOLATOR, CONDENSER WPL 61004584 Contact Us For Availability
20
SCREW WPL 61004052 Contact Us For Availability
20
SELECTOR, SLIDE (BSQ) WPL 61004931 Contact Us For Availability
20
SWITCH, LIGHT WPL 669871 Contact Us For Availability
21
SUPPORT, ENCLOSURE WPL 61003333 Contact Us For Availability
21
COVER, COMPRESSOR COMPARTMENT WPL 61004699 Contact Us For Availability
21
SCREW WPL 6527550 Contact Us For Availability
21
PAD, ACTUATOR (GRY) WPL 61003802 Contact Us For Availability
21
SHIELD, LIGHT WPL 61003217 Contact Us For Availability
22
SEAL, LOWER COVER WPL 61003389 Contact Us For Availability
22
SCREW WPL 40002612 Contact Us For Availability
22
GUIDE, YOKE WPL 697151 Contact Us For Availability
22
PAN, COMPRESSOR MTG. WPL 61003371 Contact Us For Availability
22
PAN, COMPRESSOR MTG. WPL 61005268 Contact Us For Availability
22
GRILL (BSQ) WPL 61004932 Contact Us For Availability
23
PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability
23
SCREW WPL 4000221 Contact Us For Availability
23
BLADE, CRUSHER WPL 697023 Contact Us For Availability
23
SCREW WPL 4000161 Contact Us For Availability
23
KICKPLATE (BSQ) WPL 61004919 Contact Us For Availability
24
BLADE, CRUSHER WPL 697022 Contact Us For Availability
24
WHEEL ASSY. (FRT) WPL 61002066 Contact Us For Availability
24
WHEEL ASSY. (FRT) WPL 61005232 Contact Us For Availability
25
GROMMET, FILL TUBE WPL 61003253 Contact Us For Availability
25
CLIP, FILL TUBE WPL 678771 Contact Us For Availability
25
BLADE, CRUSHER WPL 697061 Contact Us For Availability
25
SCREW WPL 41504135 Contact Us For Availability
25
SWITCH, CRUSHER WPL 554401 Contact Us For Availability
26
BLADE, CRUSHER WPL 697021 Contact Us For Availability
27
CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability
27
LOCK, FIXED BLADE WPL 697081 Contact Us For Availability
27
LEG, LEVELING WPL 61002014 Contact Us For Availability
27
INSULATION WPL 61003340 Contact Us For Availability
28
PIN, BLADE LOCK WPL 697051 Contact Us For Availability
28
INSULATION, FTN. (STYROFOAM) WPL 61004700 Contact Us For Availability
29
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
29
DOOR, ICE CRUSHER WPL 697181 Contact Us For Availability
29
INSULATION WPL 61003308 Contact Us For Availability
30
BULB, LIGHT WPL 319561 Contact Us For Availability
30
ROD, CRUSHER CONTROL WPL 61004807 Contact Us For Availability
30
INSULATION WPL 61003343 Contact Us For Availability
31
SHIELD, LIGHT WPL 61002272 Contact Us For Availability
31
SPRING, CONTROL ROD WPL 61004808 Contact Us For Availability
32
TRIM, SHELF (FRT) WPL 61003390 Contact Us For Availability
32
BRACKET, CONTROL ROD WPL 61004809 Contact Us For Availability
33
SHELF, FRZ. (SHALLOW) WPL 61003461 Contact Us For Availability
33
SHELF, FRZ. (DEEP) WPL 61003462 Contact Us For Availability
33
SOLENOID WPL 61003118 Contact Us For Availability
34
DRAWER, FRZ. WPL 61003463 Contact Us For Availability
34
YOKE ASSY. WPL 61003539 Contact Us For Availability
35
DIVERTER, AIR WPL 61003205 Contact Us For Availability
36
SEAL, AIR DIVERTER WPL 61003206 Contact Us For Availability
NI
WIRE HARNESS, FAN & HEATER WPL 61003204 Contact Us For Availability
NI
WIRE HARNESS, FRZ. WPL 61003259 Contact Us For Availability
NI
YODER LOOP HTR (115V)21,23,25 WPL 12001547 Contact Us For Availability
NI
MANUAL, SERVICE SXS APD WPL 16009103 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 61003134 Contact Us For Availability
NI
WIRE HARNESS, FTN. SWITCHES WPL 61003455 Contact Us For Availability
NI
WIRE HARNESS, FTN. SLIDE WPL 61003468 Contact Us For Availability
NI
WIRE HARNESS, FRZ./F.F. WPL 61003154 Contact Us For Availability
NI
WIRE HARNESS, CONTROLS WPL 61004280 Contact Us For Availability
× ![]()
Login and Registration Form
