Model Whirlpool CS21A2Q REFRIGERATOR – Common Parts & Diagrams

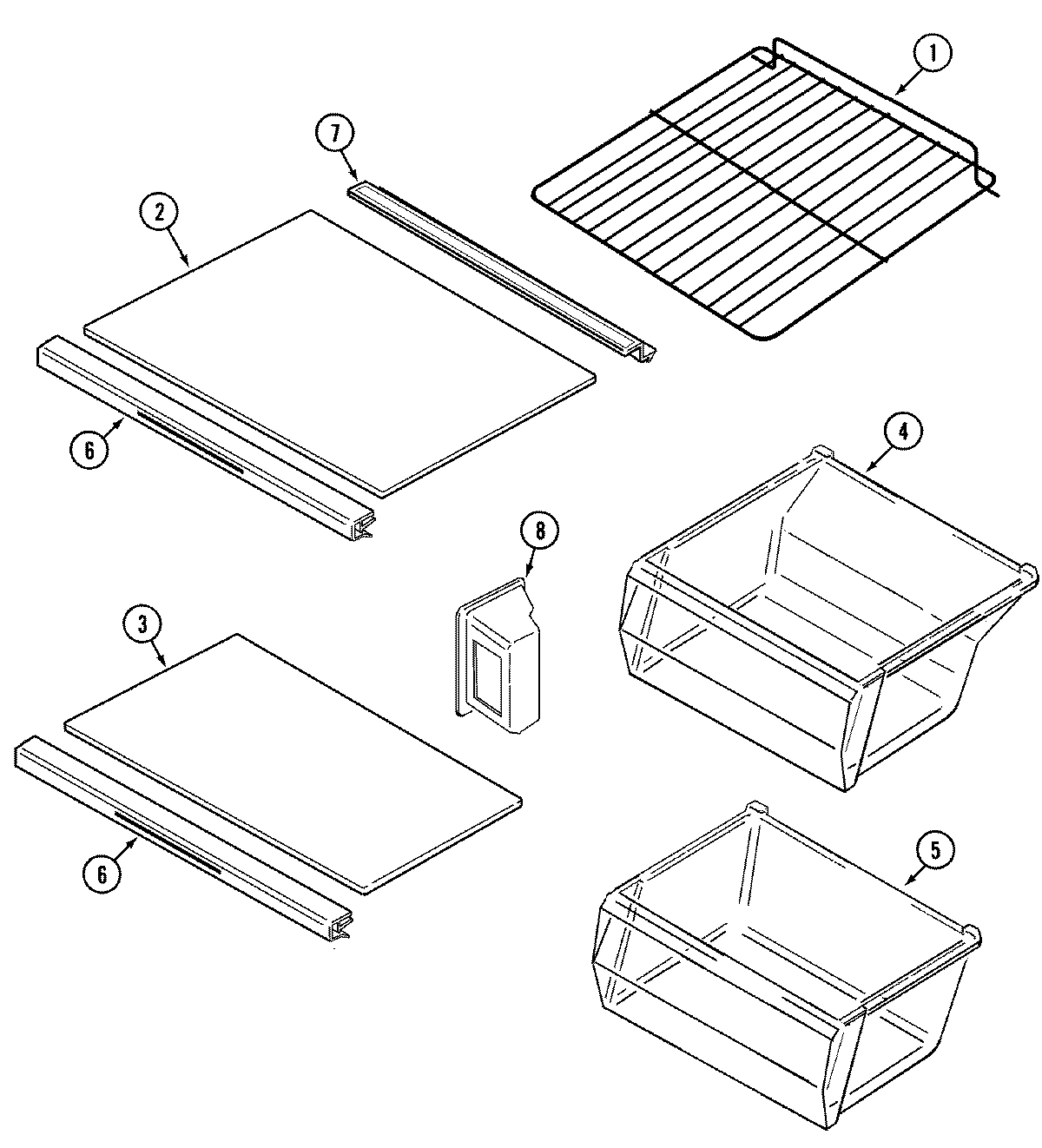

06 - SHELVES & ACCESSORIES

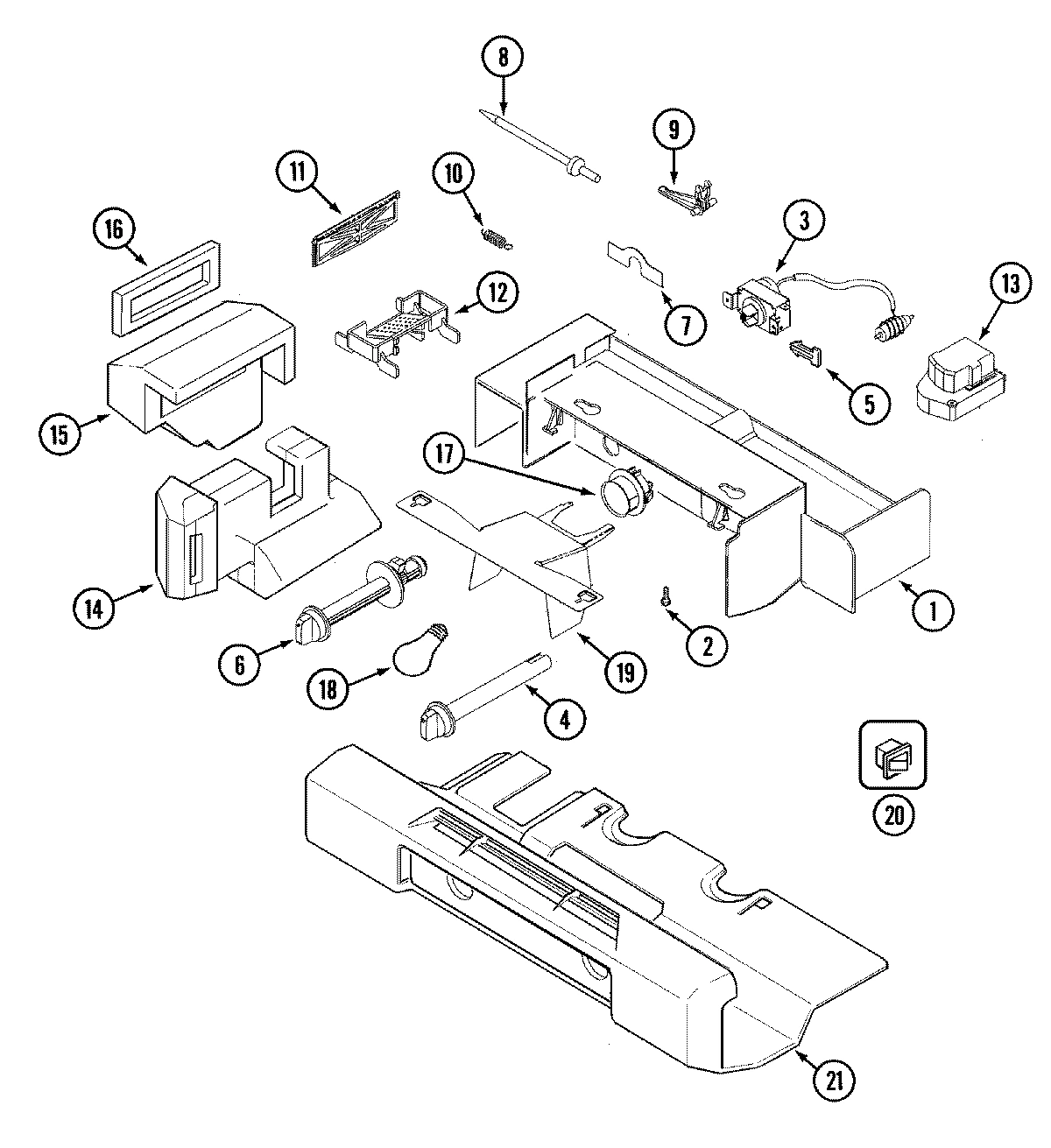

02 - CONTROLS

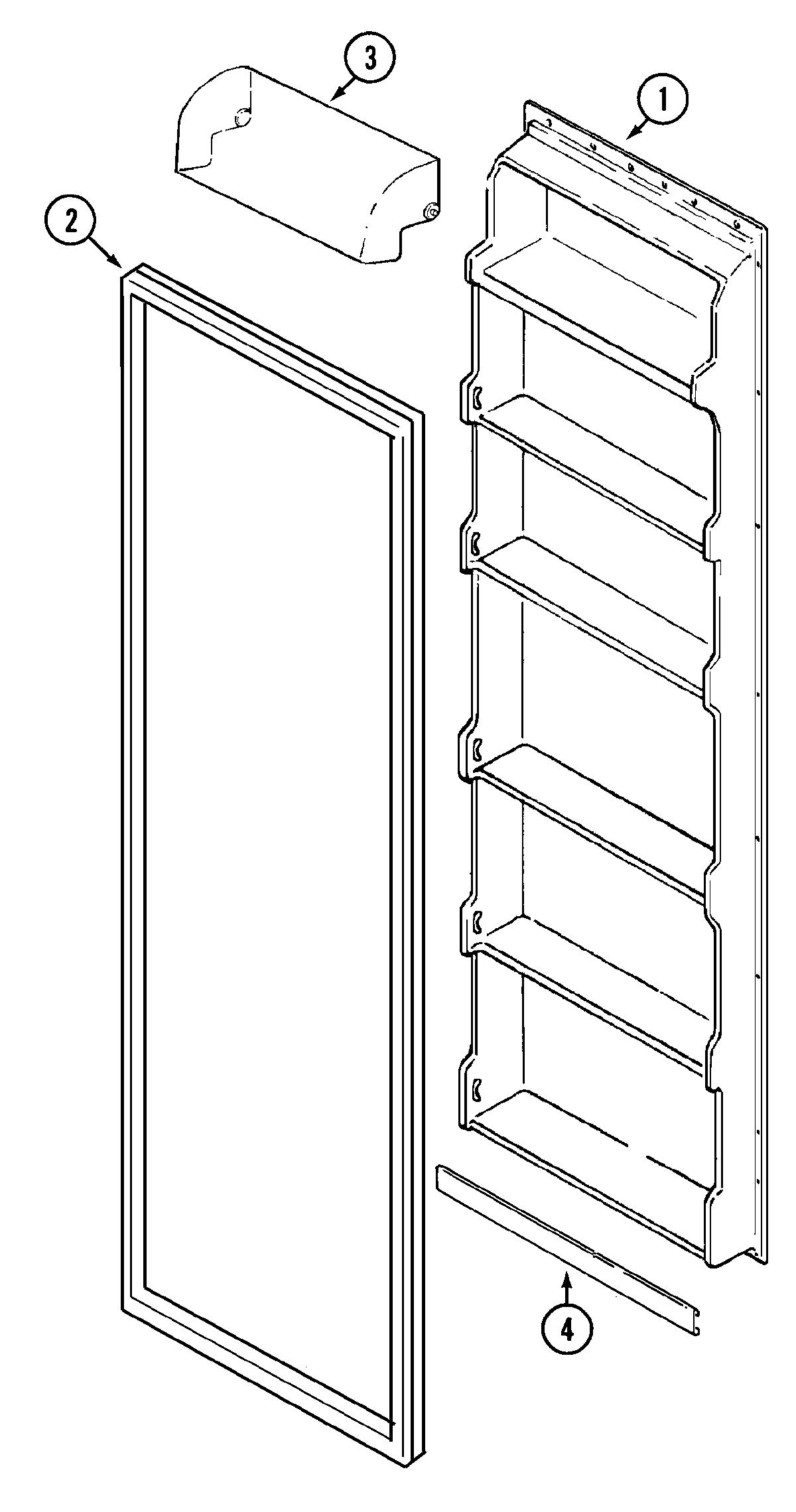

04 - FRESH FOOD INNER DOOR

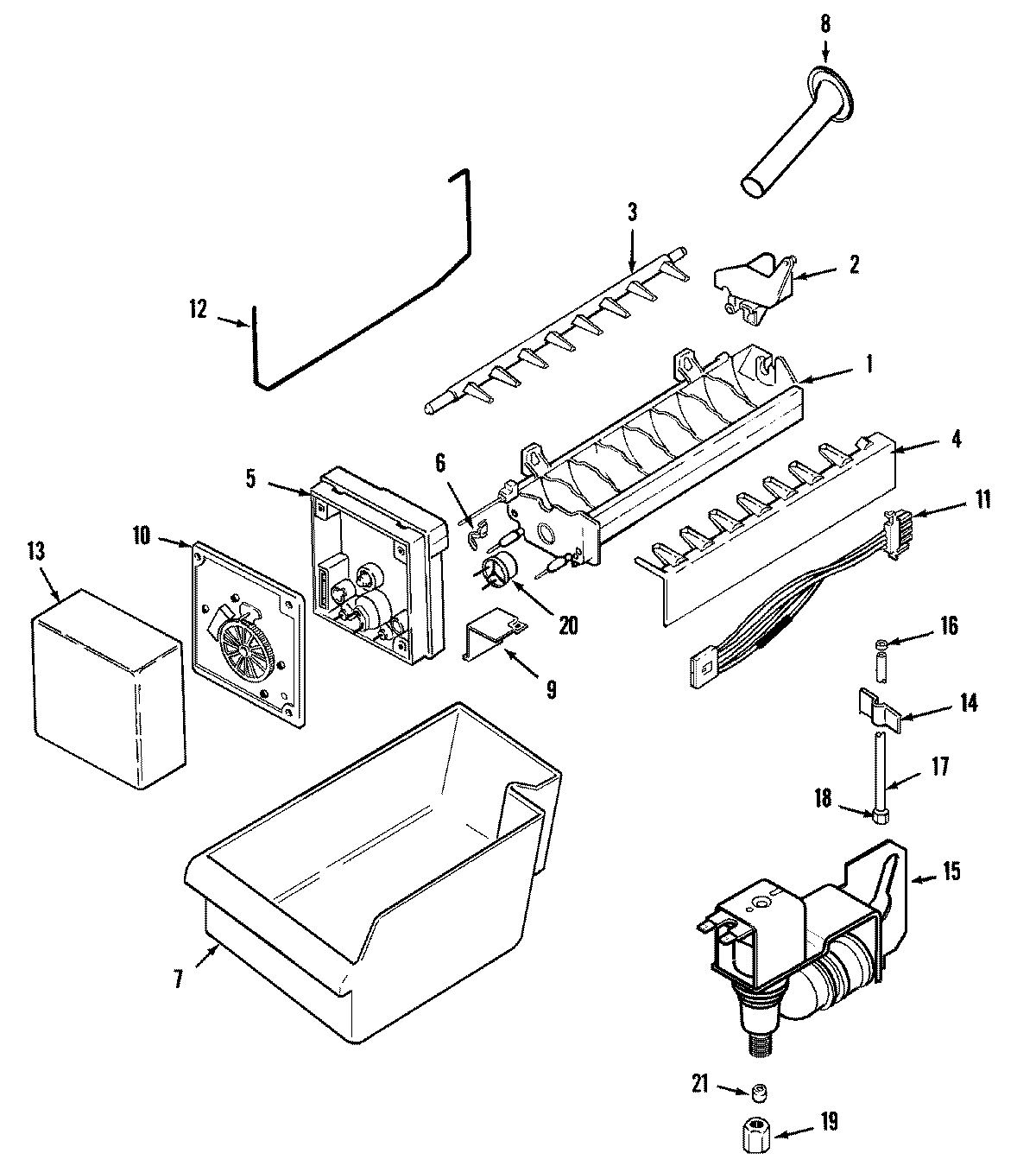

05 - OPTIONAL ICE MAKER KIT-UKI2000AXX

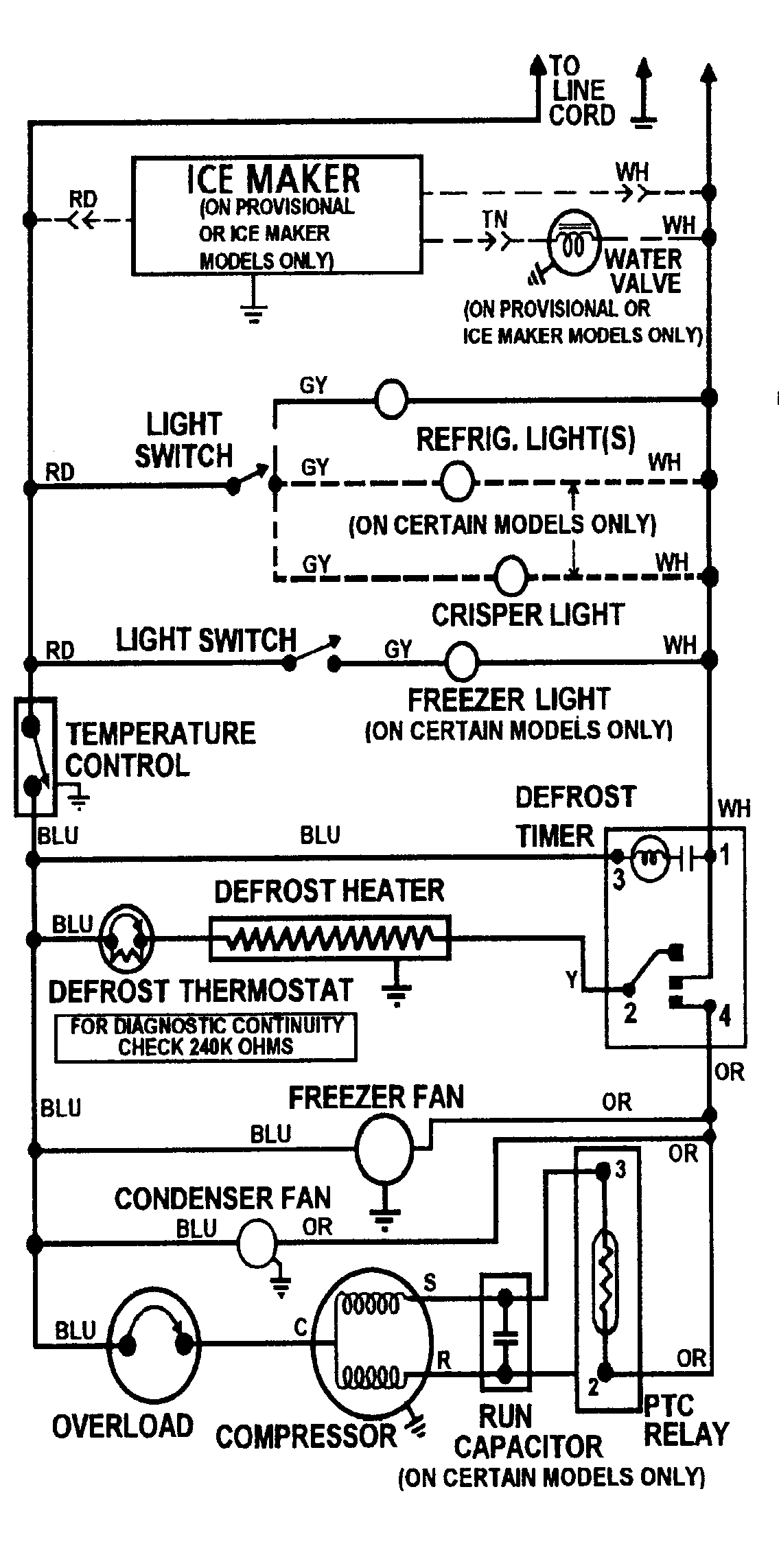

07 - WIRING INFORMATION
03 - FREEZER INNER DOOR

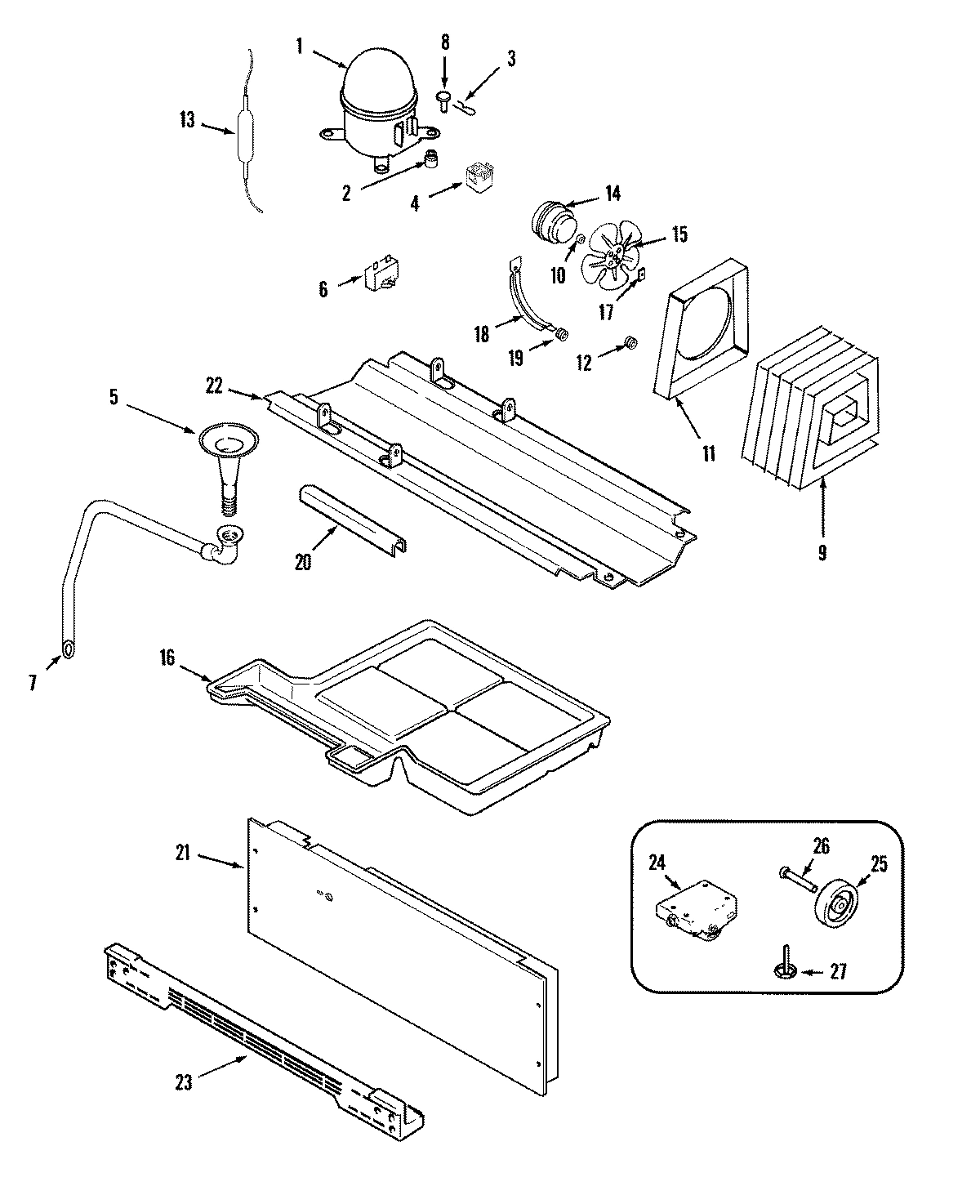

01 - COMPRESSOR (BISQUE)
Common parts from model Whirlpool CS21A2Q REFRIGERATOR
1
SHELF, SLIDE-OUT WPL 61003156 Contact Us For Availability
1
SCREW WPL 4000311 Contact Us For Availability
1
HOUSING, CONTROL WPL 61003135 Contact Us For Availability
1
FOIL, HEAT SHIELD WPL 61003152 Contact Us For Availability
1
LINER, F.F. DOOR WPL 61003179 Contact Us For Availability
1
SCREW WPL 652755 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 61003187 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61004917 Contact Us For Availability
2
GLASS, CRISPER SHELF WPL 61003160 Contact Us For Availability
2
SEAL, F.F. DOOR (WHT) WPL 61003180 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
SEAL, FRZ. DOOR (WHT) WPL 61003188 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
GLASS, MEAT SHELF WPL 61003157 Contact Us For Availability
3
DOOR, DAIRY WPL 61003181 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
TRIM, DOOR SHELF WPL 61003189 Contact Us For Availability
3
CLIP, COMPRESSOR WPL 61003099 Contact Us For Availability
4
PAN, CRISPER WPL 61003159 Contact Us For Availability
4
KNOB, TEMP. CONTROL WPL 61003136 Contact Us For Availability
4
TRIM, DOOR SHELF WPL 61003182 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
RETAINER, SHELF TRIM WPL 61003190 Contact Us For Availability
4
RELAY/OVERLOAD ASSY. WPL 61004918 Contact Us For Availability
4
CLIP, RELAY/OVERLOAD ASSY.-NA WPL 61005620 Contact Us For Availability
5
PAN, UTILITY WPL 61003158 Contact Us For Availability
5
CLIP, TEMP. KNOB WPL 61003137 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
SCREW WPL 951061 Contact Us For Availability
5
TUBE, DRAIN WPL 61004751 Contact Us For Availability
6
TRIM WPL 61003162 Contact Us For Availability
6
KNOB, FRZ. CONTROL WPL 61003138 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
CAPACITOR, RUN WPL 658894 Contact Us For Availability
7
SEAL, CRISPER SHELF (REAR) WPL 61003161 Contact Us For Availability
7
RETAINER, FRZ. KNOB WPL 61003139 Contact Us For Availability
7
PAN, ICE WPL 61001886 Contact Us For Availability
7
CLAMP WPL 535169 Contact Us For Availability
7
HOSE, DRAIN WPL 61003133 Contact Us For Availability
8
ROD, DAMPER CAM WPL 61003155 Contact Us For Availability
8
GROMMET, WATER ENTRY WPL 61003571 Contact Us For Availability
8
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
9
FOLLOWER, CAM WPL 61003140 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW, BRACKET WPL 951081 Contact Us For Availability
9
CONDENSER WPL 61003130 Contact Us For Availability
10
SPRING, DAMPER DOOR WPL 61003141 Contact Us For Availability
10
SCREW WPL 4000211 Contact Us For Availability
10
ICEMAKER WPL 951091 Contact Us For Availability
10
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
11
DOOR, DAMPER WPL 61003142 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 61003572 Contact Us For Availability
11
WIRE HARNESS, ICE MAKER WPL 61003575 Contact Us For Availability
11
SHROUD, CONDENSER WPL 61001941 Contact Us For Availability
12
BRACKET, MASS HOLDER WPL 61004278 Contact Us For Availability
12
ARM, SENSOR WPL 681121 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability
13
SCREW WPL 4050071 Contact Us For Availability
13
TIMER, DEFROST WPL 682332 Contact Us For Availability
13
COVER, ICE MAKER WPL 61001239 Contact Us For Availability
13
DRIER WPL 139001 Contact Us For Availability
14
INSULATION, DISCHARGE (LT) WPL 61003144 Contact Us For Availability
14
INSULATION, DISCHARGE (RT) WPL 61004279 Contact Us For Availability
14
CLAMP, TUBING WPL 535168 Contact Us For Availability
14
CLIP, WATER LINE (ADHESIVE) WPL 61001889 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
15
TUNNEL, CONTROL HOUSING WPL 61003146 Contact Us For Availability
15
SEAL, TUNNEL WPL 61004696 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
16
SEAL, TUNNEL WPL 61003819 Contact Us For Availability
16
CLAMP, SPRING WPL 603334 Contact Us For Availability
16
SCREW WPL 4000171 Contact Us For Availability
16
PAN, DRAIN WPL 61002649 Contact Us For Availability
17
TUBING WPL 6757926 Contact Us For Availability
18
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
19
SHIELD, HEAT WPL 61003149 Contact Us For Availability
19
GROMMET, BRACKET WPL 61004743 Contact Us For Availability
20
SWITCH, LIGHT WPL 669871 Contact Us For Availability
20
THERMOSTAT WPL 950921 Contact Us For Availability
20
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
20
ISOLATOR, CONDENSER WPL 61001974 Contact Us For Availability
21
SHIELD, LIGHT WPL 61003217 Contact Us For Availability
21
SLEEVE, BRASS WPL 694311 Contact Us For Availability
21
COVER, COMPRESSOR COMPARTMENT WPL 61004725 Contact Us For Availability
21
SCREW WPL 6527550 Contact Us For Availability
22
PAN, COMPRESSOR MTG. WPL 61003132 Contact Us For Availability
22
PAN, COMPRESSOR MTG. WPL 61005262 Contact Us For Availability
23
KICKPLATE (BSQ) WPL 61005092 Contact Us For Availability
24
SCREW WPL 4000161 Contact Us For Availability
24
WHEEL ASSY. (FRT) WPL 61003163 Contact Us For Availability
24
WHEEL ASSY. (FRT) WPL 61005216 Contact Us For Availability
27
LEG, LEVELING WPL 61002014 Contact Us For Availability
NI
WIRE HARNESS, FRZ./F.F. WPL 61003154 Contact Us For Availability
NI
WIRE HARNESS, CONTROLS WPL 61004280 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002401 Contact Us For Availability
NI
YODER LOOP HTR (115V)21,23,25 WPL 12001547 Contact Us For Availability
NI
MANUAL, SERVICE SXS APD WPL 16009103 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 61003134 Contact Us For Availability
× ![]()
