Model Whirlpool CRGA800AAW GAS RANGE – Common Parts & Diagrams

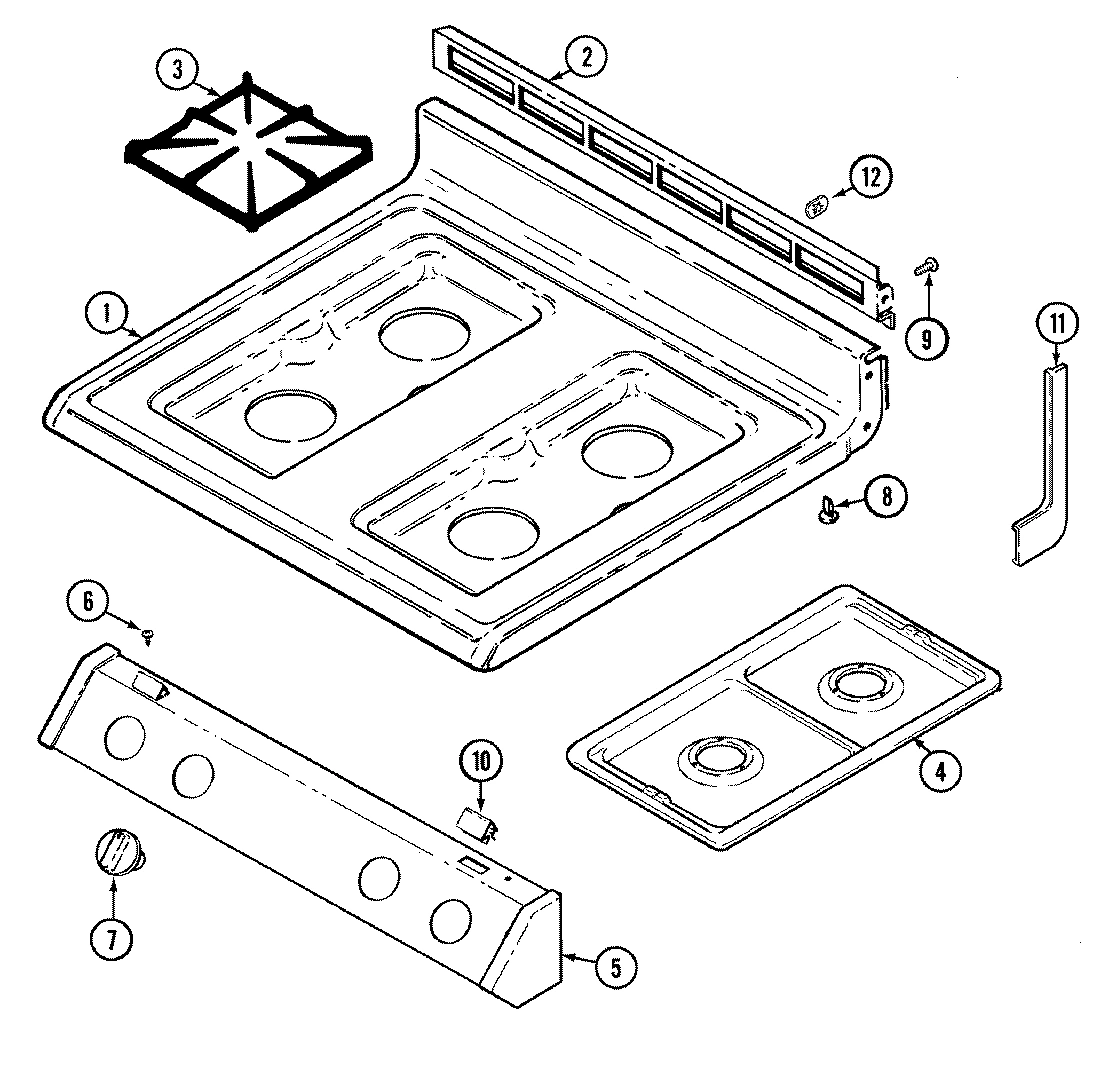

06 - TOP ASSEMBLY

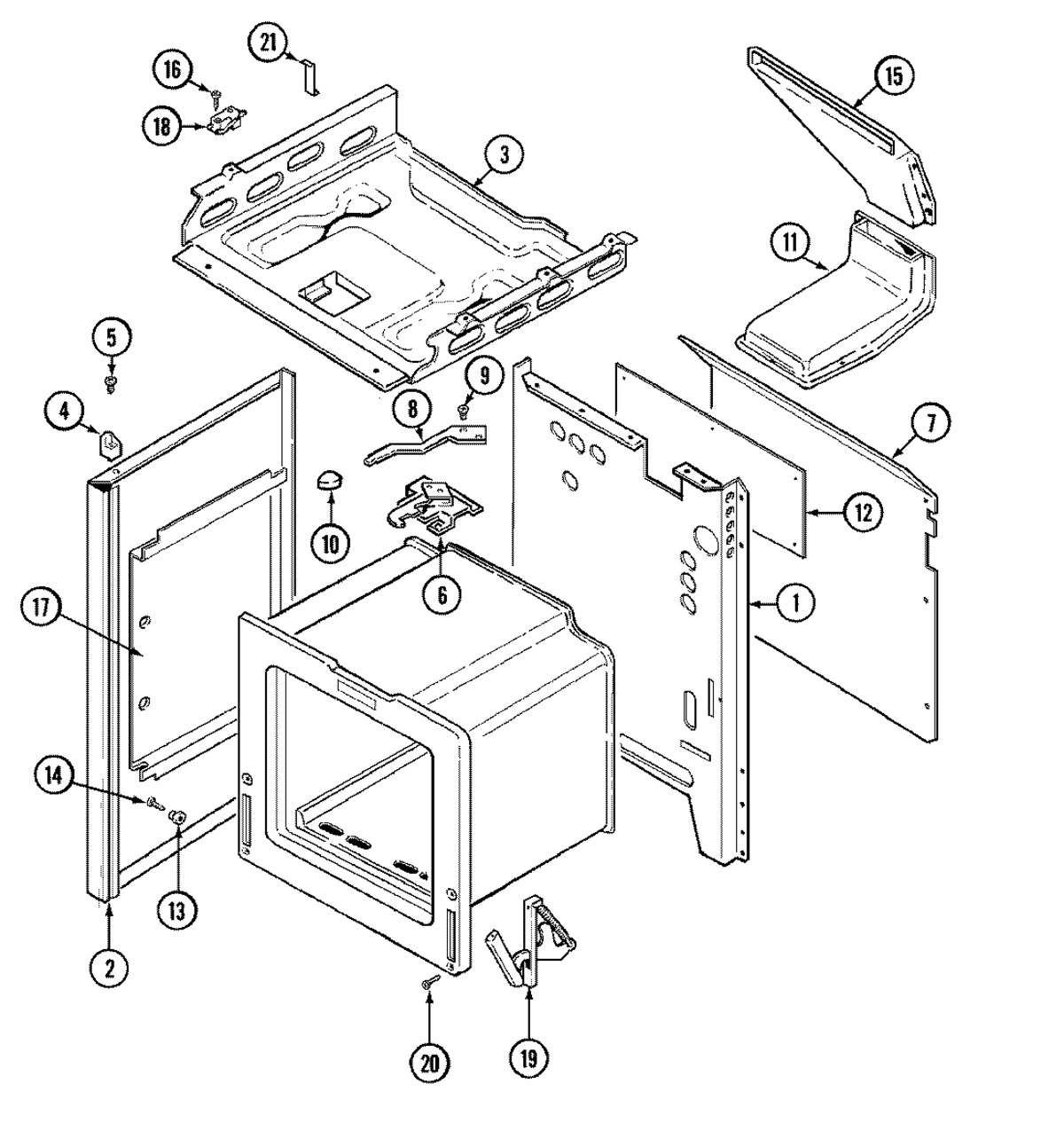

01 - BODY

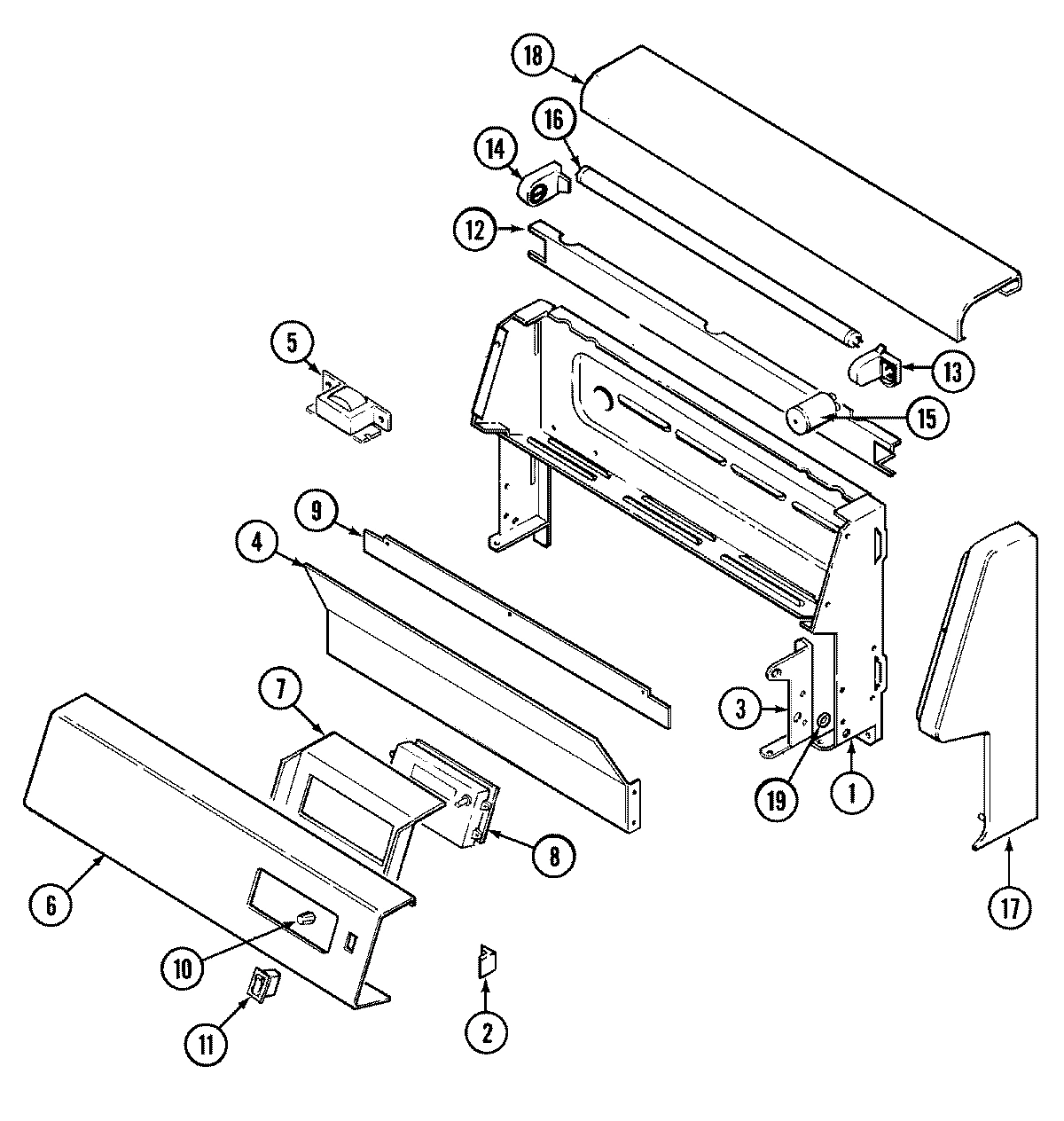

02 - CONTROL PANEL

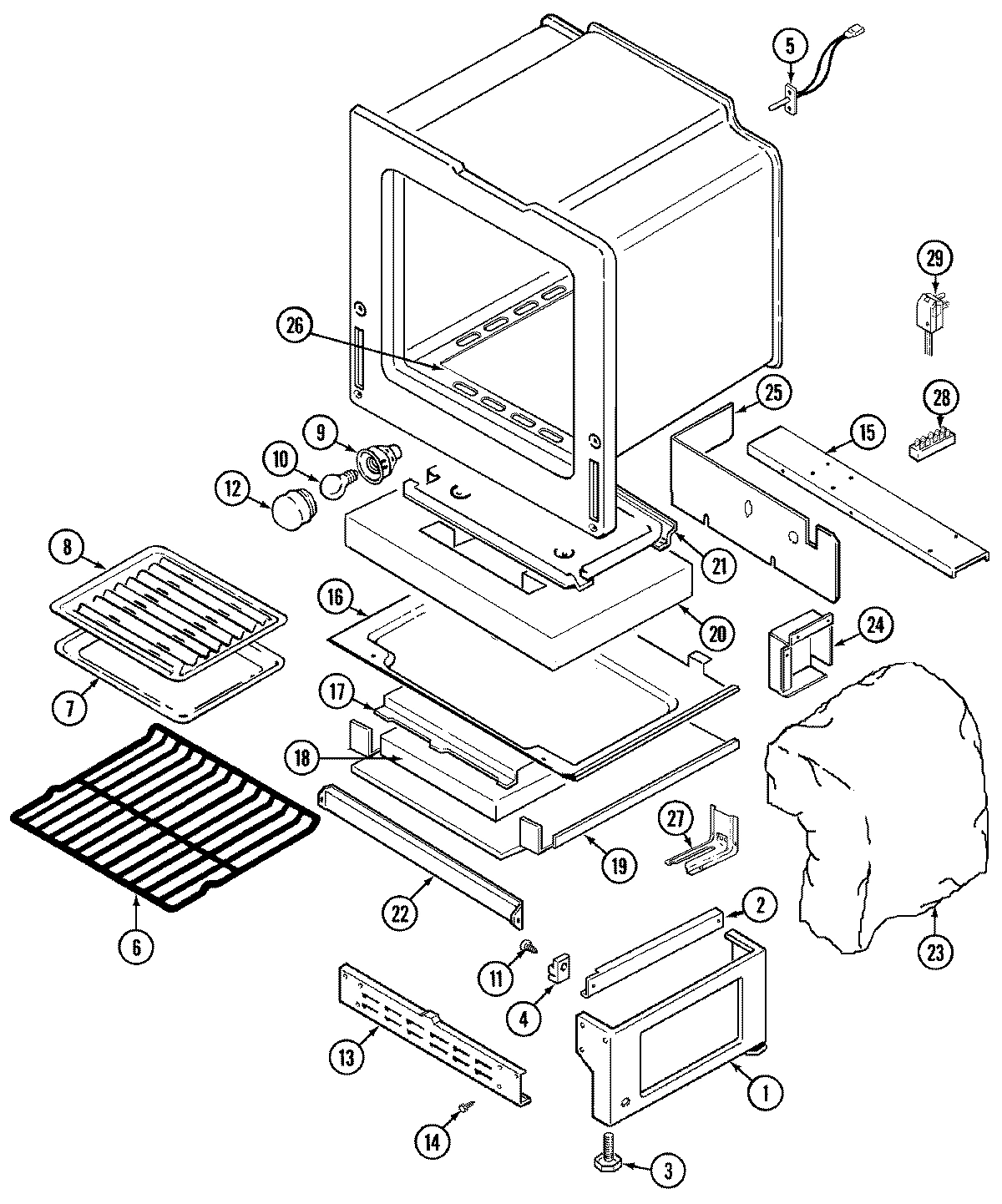

05 - OVEN/BASE

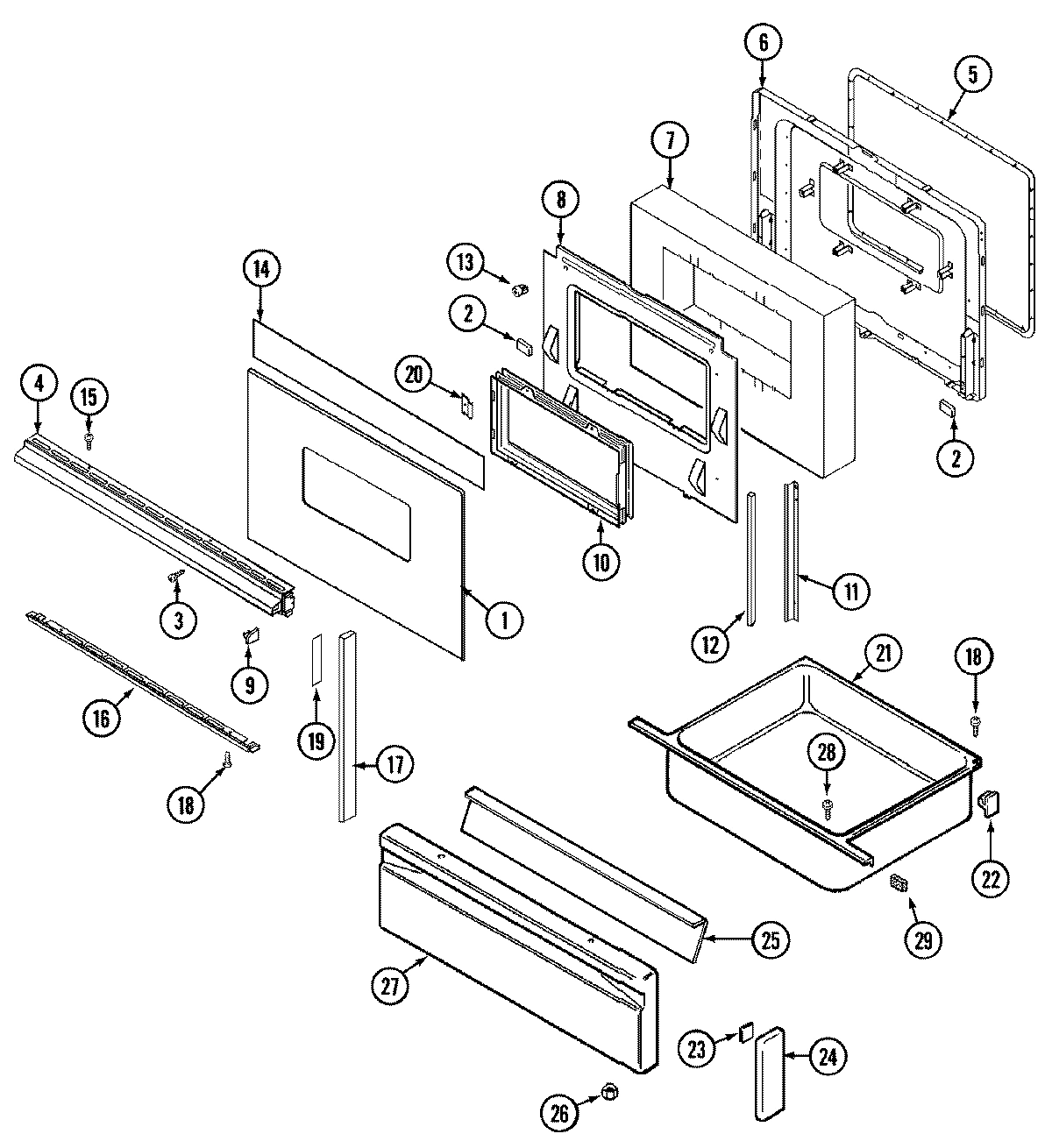

03 - DOOR/DRAWER

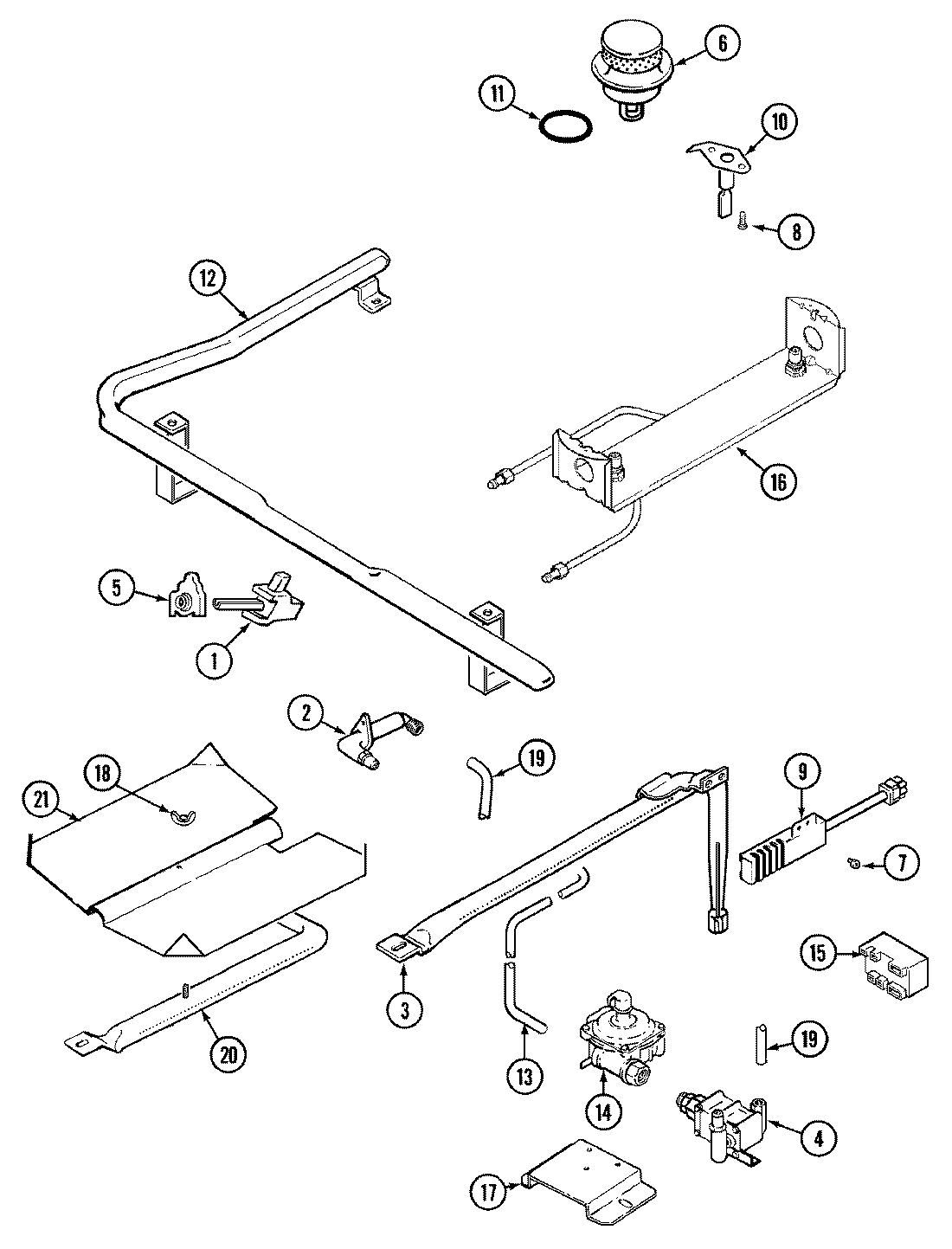

04 - GAS CONTROLS

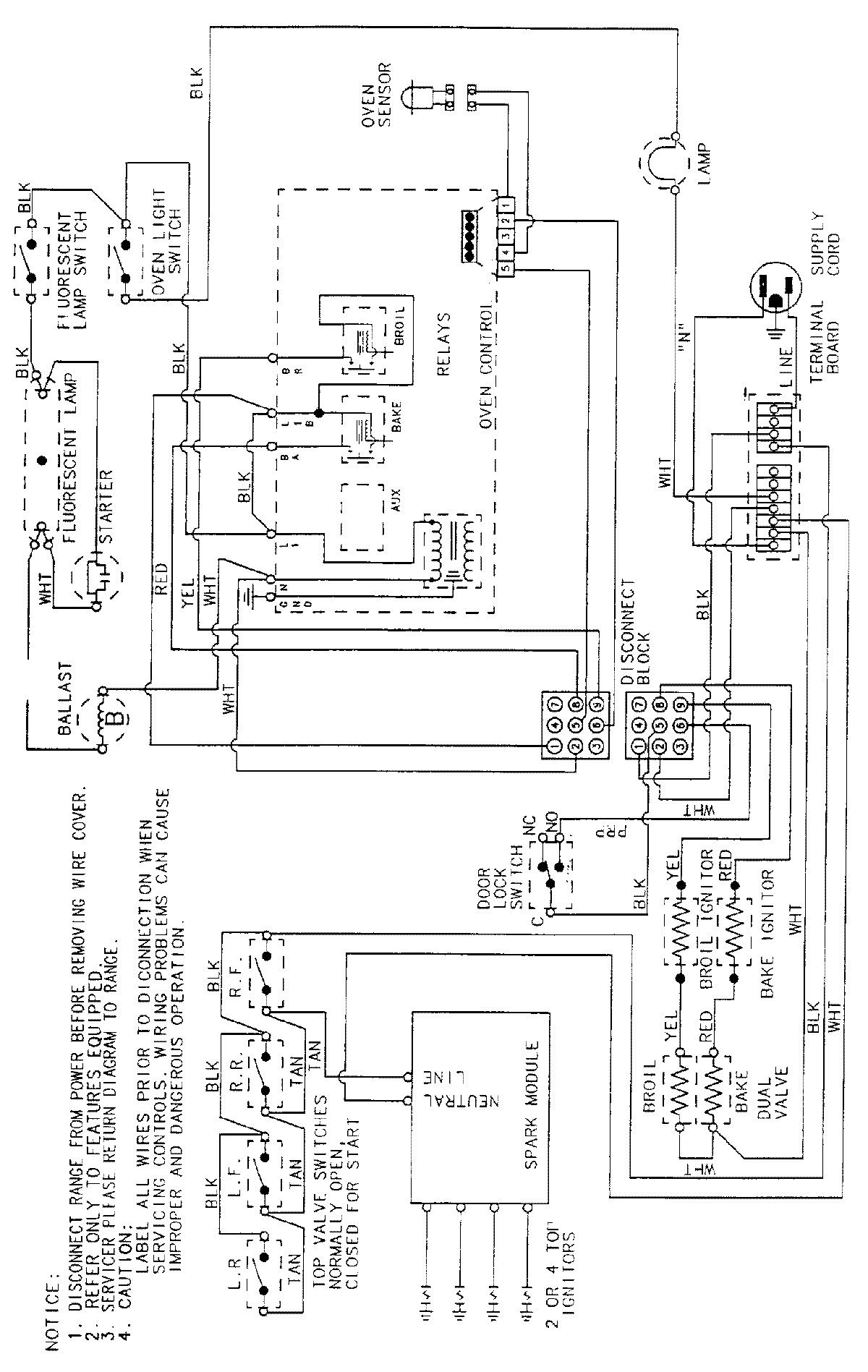

07 - WIRING INFORMATION
Common parts from model Whirlpool CRGA800AAW GAS RANGE
1
TOP, MAIN (WHT) WPL 2001W08581 Contact Us For Availability
1
BACK, MAIN WPL 4002F21180 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
COVER, WIRE WPL 4005F44845 Contact Us For Availability
1
PEDESTAL, SIDES WPL 4020W01580 Contact Us For Availability
1
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
1
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
1
VALVE, BURNER WPL 7502P25060 Contact Us For Availability
2
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 2618F11070 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
2
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
3
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
3
BOX, BURNER WPL 4011F23180 Contact Us For Availability
3
BOX, BURNER WPL 4011F25080 Contact Us For Availability
3
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
3
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
3
LEG, LEVELING WPL 74001311 Contact Us For Availability
3
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
3
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
3
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
4
DRIP BOWL KIT (ACCESSORY) WPL 5401A45260 Contact Us For Availability
4
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
4
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
4
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
4
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
4
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
5
PANEL, MANIFOLD (BLK) WPL 7712P19060 Contact Us For Availability
5
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
5
BALLAST WPL 7412P00760 Contact Us For Availability
5
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
6
SCREW WPL 7101P32960 Contact Us For Availability
6
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
6
LATCH ASSY. WPL 8002P02760 Contact Us For Availability
6
SCREW, SPECIAL WPL 7101P02260 Contact Us For Availability
6
PANEL, CONTROL (BLK) WPL 74001507 Contact Us For Availability
6
RACK, OVEN WPL 7801P04760 Contact Us For Availability
6
LINING, DOOR WPL 2402W20919 Contact Us For Availability
6
SEALED BURNER ASSY. (BLK) WPL 3412D01809 Contact Us For Availability
7
KNOB, VALVE WPL 7733P07860 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F33151 Contact Us For Availability
7
BRACKET, CLOCK WPL 74001506 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
INSULATION, DOOR WPL 7002P15560 Contact Us For Availability
7
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
8
GLIDE WPL 8016P01560 Contact Us For Availability
8
LEVER, LATCH ASSY. WPL 8009P02360 Contact Us For Availability
8
LEVER, LATCH ASSY. WPL 8009P02960 Contact Us For Availability
8
CLOCK WPL 7601P23960 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
8
SCREW WPL 7101P31560 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
9
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
9
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
9
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
9
END CAP (RT) WPL 7744P07560 Contact Us For Availability
9
END CAP (LT) WPL 7744P07660 Contact Us For Availability
9
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
10
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
10
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
10
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
10
KNOB, CLOCK (BLK) WPL 7711P49260 Contact Us For Availability
10
BULB-OVEN WPL 7407P10360 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
11
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
11
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
11
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
11
BOX, VENT WPL 4006W11345 Contact Us For Availability
11
SCREW WPL 7101P10360 Contact Us For Availability
11
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
11
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
12
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
12
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
12
COVER, BULB WPL 7724P04760 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P12060 Contact Us For Availability
13
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
13
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
NUT, NYLON WPL 7103P04560 Contact Us For Availability
13
TUBING, REGULATOR/PIPE (3/8``) WPL 3414F10344 Contact Us For Availability
13
LOXIT NUT WPL 7103P12160 Contact Us For Availability
14
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
14
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P06760 Contact Us For Availability
15
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
15
STARTER WPL 7415P00160 Contact Us For Availability
15
SUPPORT, VALVE & REGULATOR WPL 3807F44751 Contact Us For Availability
15
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
15
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
16
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
16
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
16
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
16
COVER, LAMP WIRE WPL 7724P06260 Contact Us For Availability
16
RETAINER, INSULATION WPL 3804F11247 Contact Us For Availability
16
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
16
ORIFICE FITTING ASSEMBLY WPL 5187D03460 Contact Us For Availability
16
ORIFICE FITTING ASSEMBLY WPL 5187D03560 Contact Us For Availability
17
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
17
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
17
END CAP (RT-BLK) WPL 7726P04760 Contact Us For Availability
17
END CAP (LT-BLK) WPL 7726P04860 Contact Us For Availability
17
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
17
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
17
BRACKET, REGULATOR WPL 8020P00760 Contact Us For Availability
18
BRACKET, SWITCH WPL 3801F26745 Contact Us For Availability
18
INSULATOR, DOOR LOCK SWITCH WPL 7003P06360 Contact Us For Availability
18
SWITCH, DOOR LATCH WPL 7403P36160 Contact Us For Availability
18
SWITCH, DOOR LATCH WPL 7403P36360 Contact Us For Availability
18
COVER, LIGHT (BLK) WPL 7724P05460 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
18
NUT, WING WPL 7103P03060 Contact Us For Availability
19
NUT, SPEED WPL 7103P04460 Contact Us For Availability
19
HINGE WPL 7106P05660 Contact Us For Availability
19
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
19
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
19
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
20
SCREW WPL 7101P11560 Contact Us For Availability
20
INSULATION, OVEN BOTTOM WPL 4804F01460 Contact Us For Availability
20
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
20
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
21
SUPPORT, MAIN TOP WPL 3807F43145 Contact Us For Availability
21
PAN, BAKE BURNER WPL 3401F02547 Contact Us For Availability
21
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
21
BAFFLE, BROIL WPL 3601F21745 Contact Us For Availability
22
BAFFLE, OVEN FRONT WPL 3601F20845 Contact Us For Availability
22
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
23
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
23
INSULATION, BACK WPL 74001159 Contact Us For Availability
23
TAPE WPL 8270P09860 Contact Us For Availability
24
SUPPORT, SPARK MODULE WPL 3807F47351 Contact Us For Availability
24
END CAP (BLK) WPL 7744P06860 Contact Us For Availability
25
COVER, VALVE WPL 4005F42951 Contact Us For Availability
25
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
26
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
26
NUT, LOCK WPL 7103P08560 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
27
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
27
PANEL, DRAWER (BLK) WPL 2416F03865 Contact Us For Availability
28
SCREW WPL 7101P29060 Contact Us For Availability
28
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
29
CORD, POWER WPL 7402P04360 Contact Us For Availability
29
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
NI
GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability
NI
WIRES, LOOSE (2 CTRL PANEL) WPL 5125A35360 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 5170P20460 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5180D15160 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P06660 Contact Us For Availability
NI
HARNESS, SPARK MODULE/TOP WPL 5120D01960 Contact Us For Availability
NI
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
NI
WIRES, IGNITER WPL 5140D03560 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001191 Contact Us For Availability
× ![]()
