Model Whirlpool CRGA350AAL GAS RANGE – Common Parts & Diagrams
05 - OVEN/BASE

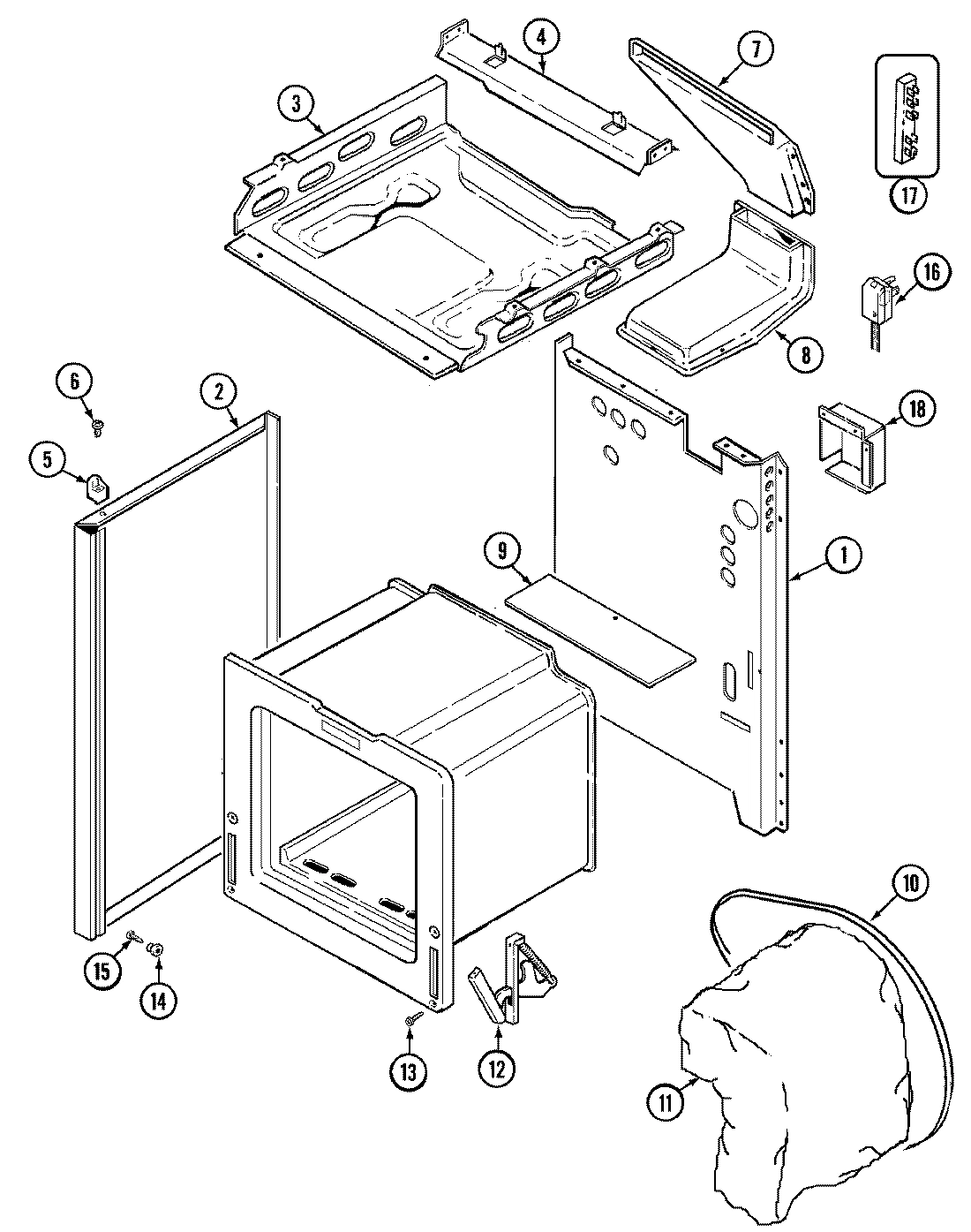

01 - BODY

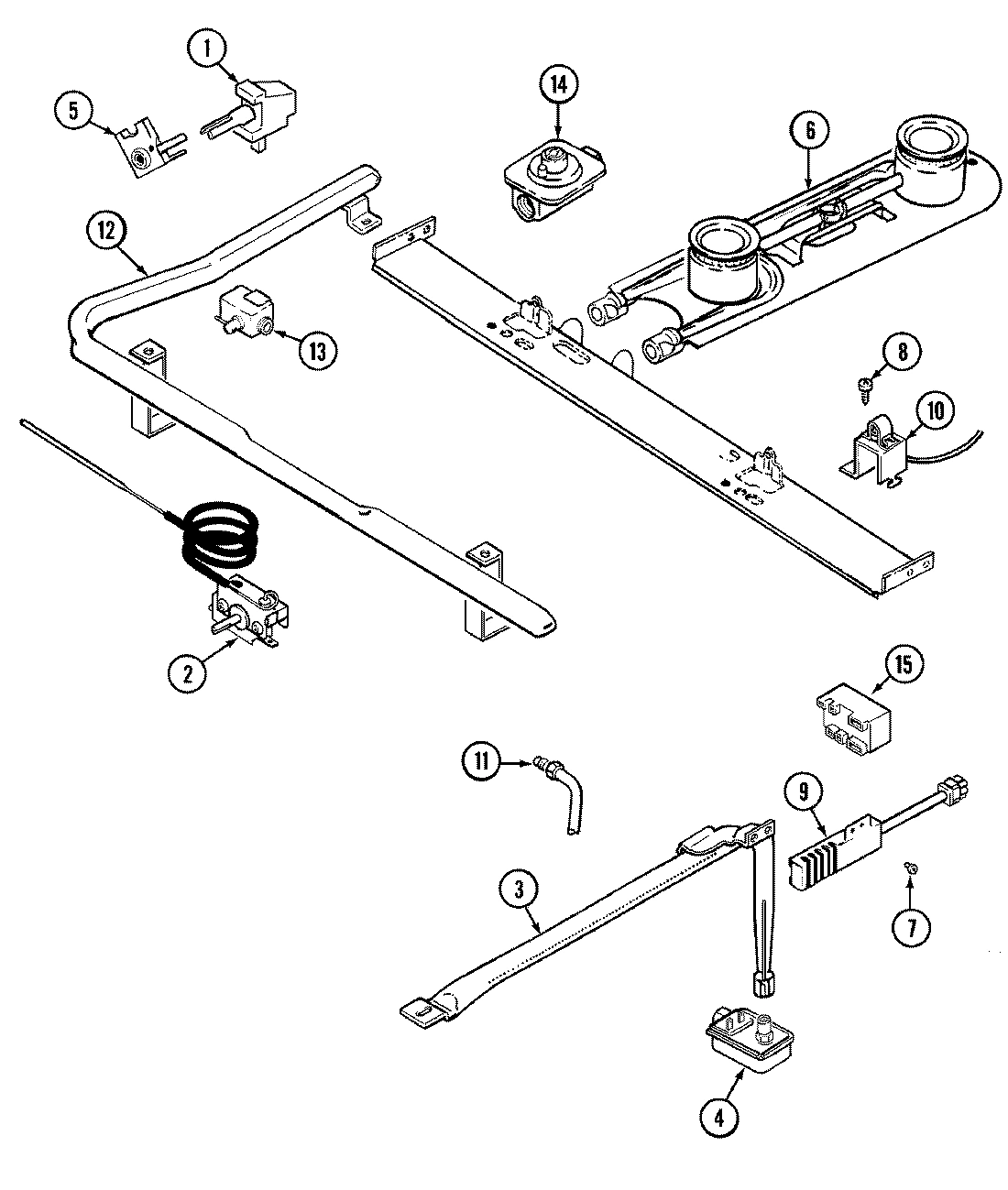

04 - GAS CONTROLS

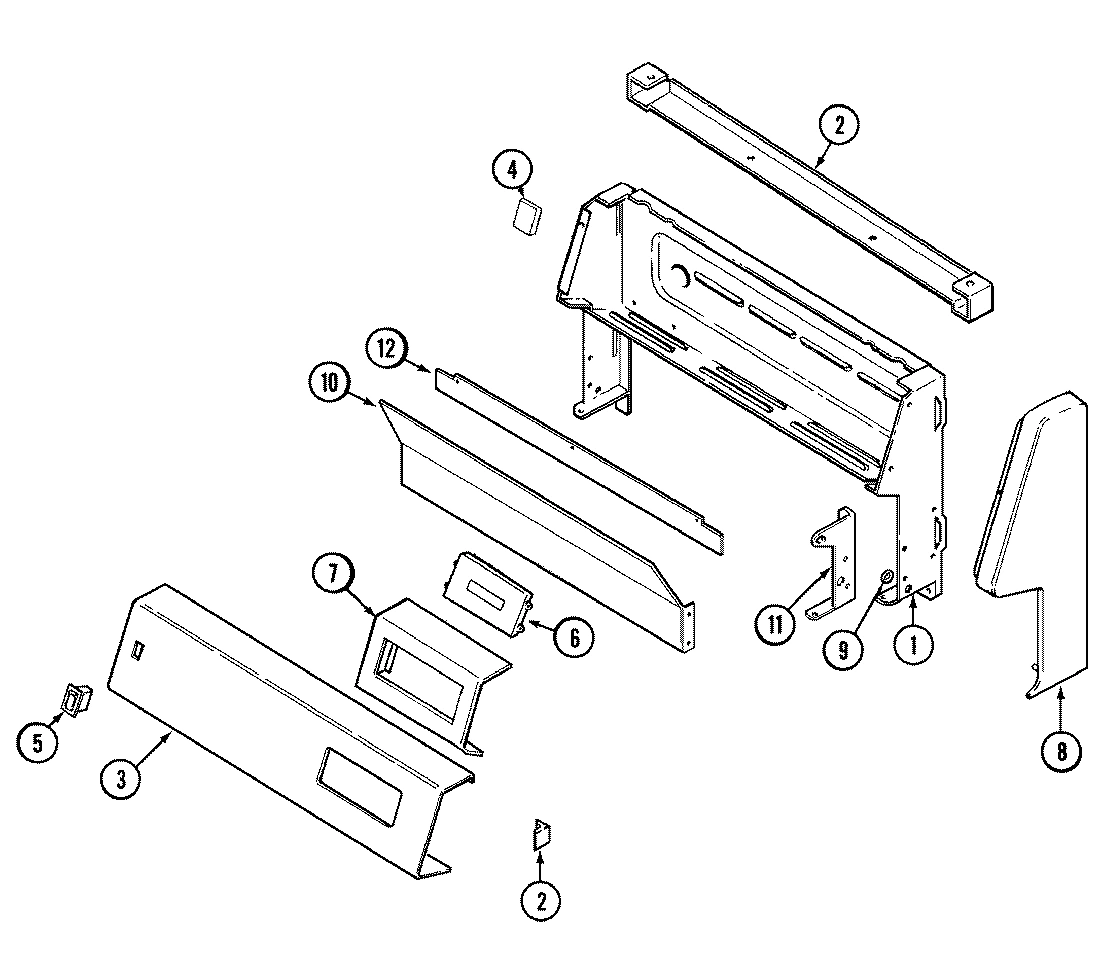

02 - CONTROL PANEL

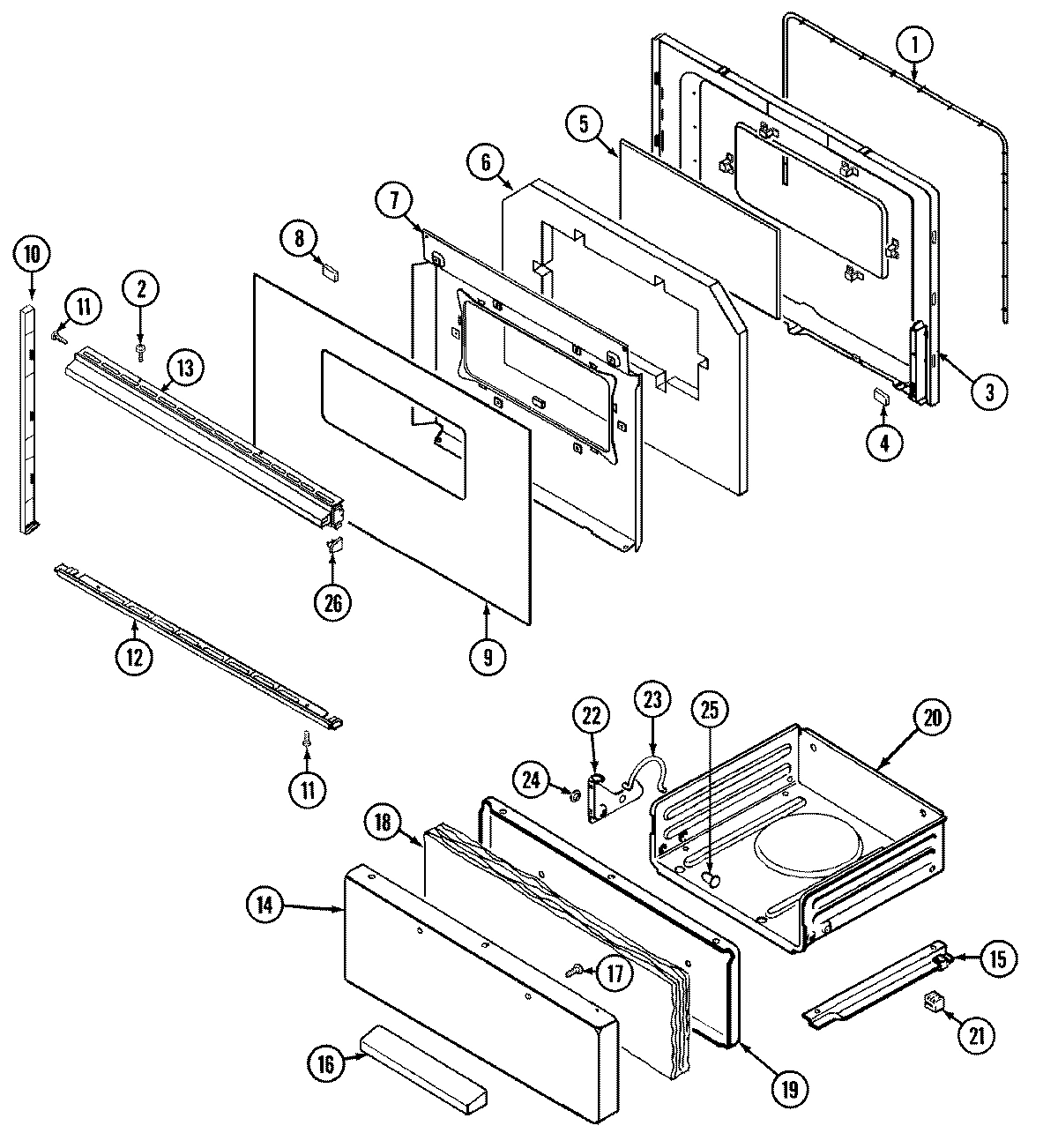

03 - DOOR/DRAWER

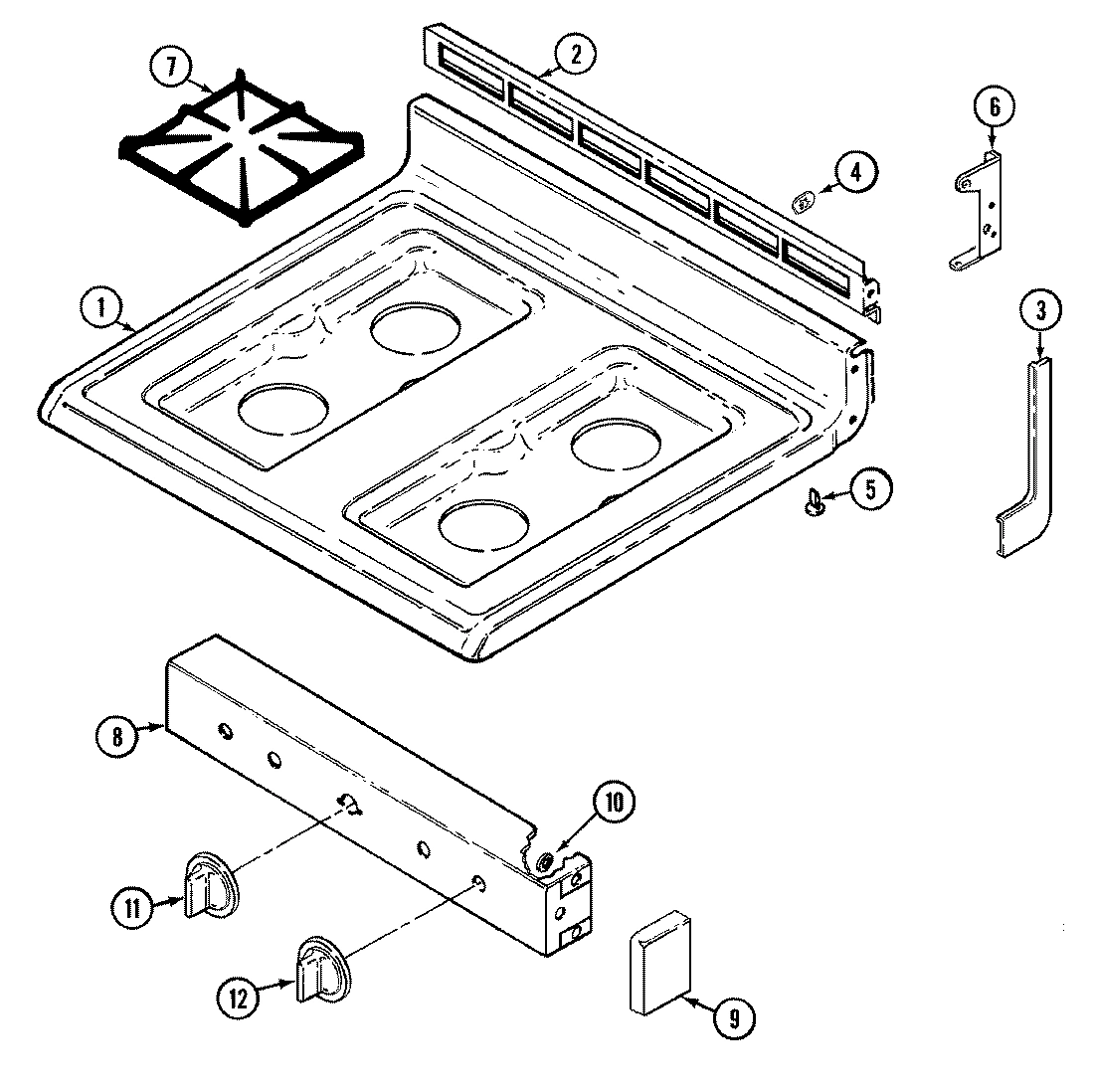

06 - TOP ASSEMBLY
Common parts from model Whirlpool CRGA350AAL GAS RANGE
1
BASE WPL 4003W02980 Contact Us For Availability
1
BACK, MAIN WPL 4002F21180 Contact Us For Availability
1
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P17460 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
1
TOP, MAIN (ALM) WPL 2001W08684 Contact Us For Availability
2
LEG, LEVELING WPL 74001311 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F11074 Contact Us For Availability
2
SHIELD, THERMOSTAT WPL 3604F17751 Contact Us For Availability
2
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
2
THERMOSTAT WPL 7404P08760 Contact Us For Availability
2
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
2
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
2
TRIM, VENT (BLK) WPL 3608F04209 Contact Us For Availability
2
SCREW (10ABX1/4P TR ZN) WPL 7101P20860 Contact Us For Availability
3
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
3
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
3
BOX, BURNER WPL 4011F23080 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02345 Contact Us For Availability
3
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
3
PANEL, CONTROL WPL 7703P63260 Contact Us For Availability
3
LINING, DOOR WPL 2402W21319 Contact Us For Availability
3
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
3
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
4
TRACK, DRAWER (RT) WPL 3404F01851 Contact Us For Availability
4
TRACK, DRAWER (LT) WPL 3404F02151 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F41151 Contact Us For Availability
4
COVER, VALVE WPL 4005F43351 Contact Us For Availability
4
VALVE, OVEN WPL 7501P14460 Contact Us For Availability
4
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
NUT, SPEED WPL 7103P12960 Contact Us For Availability
5
GLIDE, BROILER TRACK WPL 8016P01060 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SWITCH, BURNER WPL 7403P28460 Contact Us For Availability
5
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
5
GLASS, DOOR (INNER)----NA WPL 7902P31960 Contact Us For Availability
5
GLIDE WPL 8016P01360 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
BURNER, TOP WPL 3412A00419 Contact Us For Availability
6
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
6
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
6
CLOCK (BLK) WPL 7602P11860 Contact Us For Availability
6
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
6
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
6
INSULATION, DOOR WPL 7002P15860 Contact Us For Availability
7
RACK, OVEN WPL 7801P04760 Contact Us For Availability
7
EXTENSION, FLUE BOX WPL 4022W00519 Contact Us For Availability
7
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
7
BRACKET, CLOCK WPL 3801F34045 Contact Us For Availability
7
SCREW WPL 7101P33160 Contact Us For Availability
7
BAFFLE, DOOR WPL 3601F24080 Contact Us For Availability
7
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
8
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
8
FRONT, BROILER WPL 2201F07719 Contact Us For Availability
8
BOX, VENT WPL 4006W11345 Contact Us For Availability
8
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7726P05960 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7726P06060 Contact Us For Availability
8
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
8
PANEL, MANIFOLD (BLK) WPL 2616F10209 Contact Us For Availability
8
SCREW WPL 7101P32960 Contact Us For Availability
9
SIDES, BROILER WPL 4016F04445 Contact Us For Availability
9
SUPPORT, OVEN BACK WPL 3807F41645 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
9
NUT, SPEED WPL 7103P04460 Contact Us For Availability
9
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
9
END CAP, PANEL (BLK) WPL 7713P01860 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
10
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
10
IGNITER, TOP (RT) WPL 7432P03160 Contact Us For Availability
10
SHIELD, FLUE WPL 3604F18809 Contact Us For Availability
10
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
10
CLIP, SPRING GRIP WPL 7112P09260 Contact Us For Availability
11
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
11
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
11
INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability
11
TUBING WPL 3414F11444 Contact Us For Availability
11
KNOB, THERMOSTAT WPL 7731P09560 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
HINGE WPL 7106P05560 Contact Us For Availability
12
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P15960 Contact Us For Availability
12
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
12
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
12
KNOB, VALVE WPL 7733P05760 Contact Us For Availability
13
SCREW WPL 7101P29060 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
13
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
14
BAFFLE, OVEN BOTTOM WPL 3601F23945 Contact Us For Availability
14
BOTTOM, OVEN WPL 5504A00321 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P04960 Contact Us For Availability
14
PANEL, DRAWER (ALM) WPL 2403F02874 Contact Us For Availability
15
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
15
SCREW WPL 7101P30060 Contact Us For Availability
15
SUPPORT, SPARK MODULE WPL 3807F43245 Contact Us For Availability
15
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
15
TRACK, DRAWER (LT) WPL 3404F02251 Contact Us For Availability
15
TRACK, DRAWER (RT) WPL 3404F02351 Contact Us For Availability
15
SCREW WPL 7101P06160 Contact Us For Availability
16
BULB-OVEN WPL 7407P10360 Contact Us For Availability
16
CORD, POWER WPL 7402P04360 Contact Us For Availability
16
HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability
16
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
17
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
17
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
18
COVER, BACK WIRE WPL 4005F38551 Contact Us For Availability
18
INSULATION WPL 4804F02560 Contact Us For Availability
19
LINING, BROILER DRAWER WPL 2404F03519 Contact Us For Availability
20
DRAWER, BROILER WPL 3407F01219 Contact Us For Availability
21
GLIDE, DRAWER WPL 8016P01160 Contact Us For Availability
22
HINGE, DRAWER (LT) WPL 3418F07951 Contact Us For Availability
22
HINGE, DRAWER (RT) WPL 3418F08051 Contact Us For Availability
23
SPRING, HINGE (LT) WPL 7803P06460 Contact Us For Availability
23
SPRING, HINGE (RT) WPL 7803P06560 Contact Us For Availability
24
NUT, GRIP WPL 7103P02260 Contact Us For Availability
25
PIN, BROILER HINGE WPL 7113P01260 Contact Us For Availability
26
END CAP (RT) WPL 7744P07560 Contact Us For Availability
26
END CAP (LT) WPL 7744P07660 Contact Us For Availability
NI
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
NI
HARNESS, BURNER BOX WPL 5195D07860 Contact Us For Availability
NI
GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5180D13860 Contact Us For Availability
NI
HARNESS, SUPPLY WPL 5185D25060 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P04260 Contact Us For Availability
× ![]()
