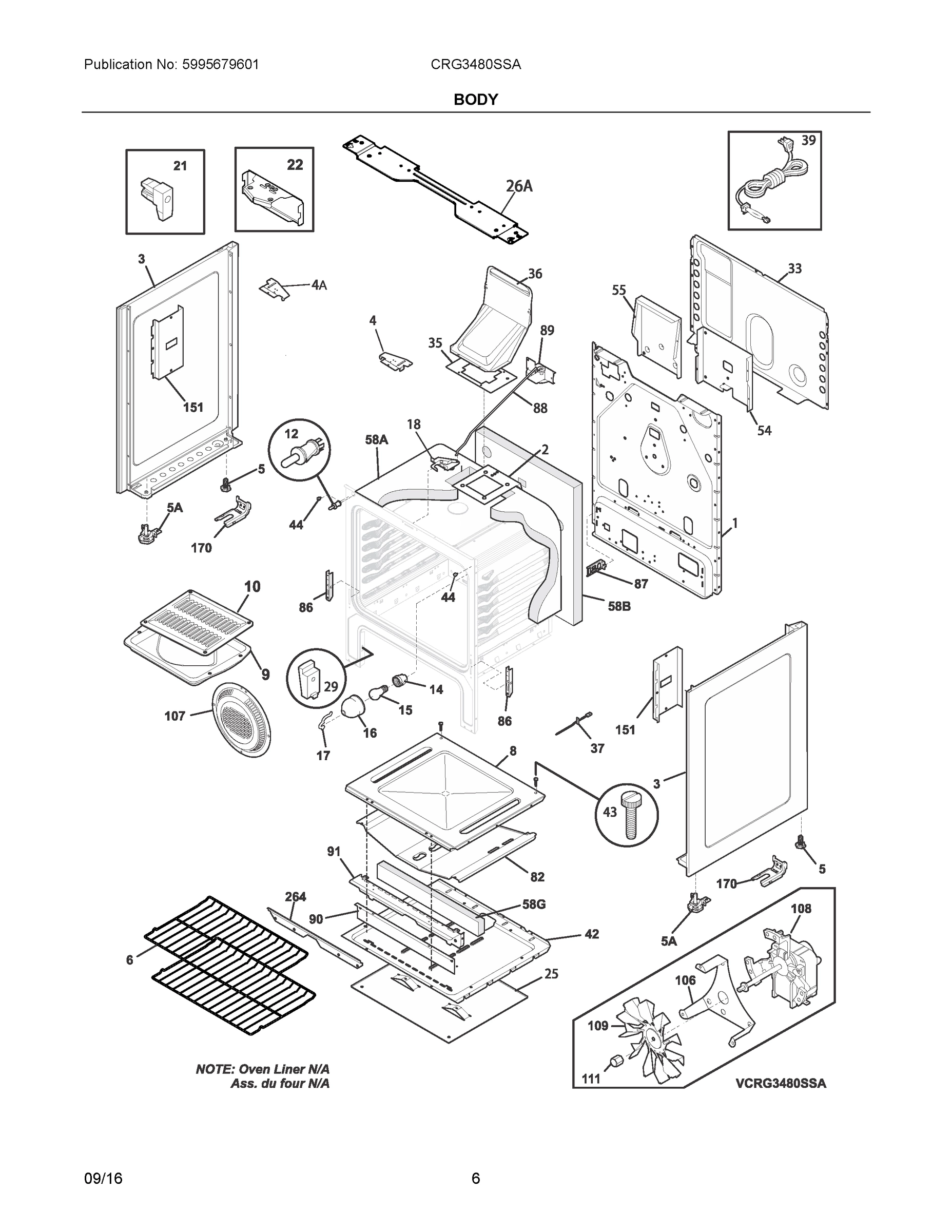

Model Electrolux CRG3480SSA RANGE/OVEN, GAS, FREESTANDING – Common Parts &amp; Diagrams

1

316408706 Frigidaire Oven Drawer Assembly In Stock WCI 316408706 $82.61

1

316417900 Frigidaire Pipe Manifold Backorder WCI 316417900 $101.43

2

5303935306 Frigidaire Oven Valve Backorder WCI 5303935306 $63.23

2

5304527988 Frigidaire Liner Backorder WCI 5304527988 $19.40

2

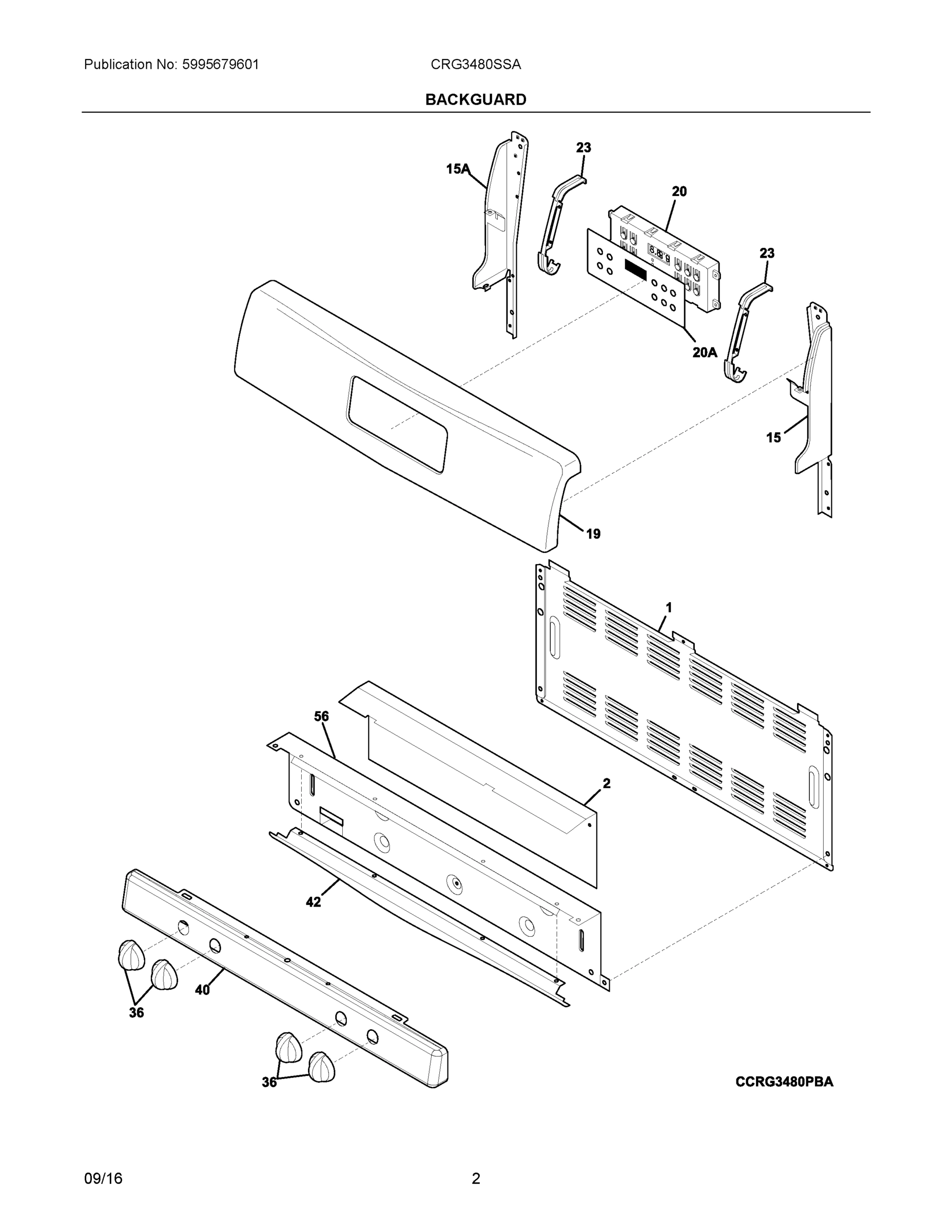

SHIELD, BACKGUARD, INNER WCI 316497600 Contact Us For Availability

2A

5303935308 Frigidaire Oven Valve Backorder WCI 5303935308 $55.47

2C

5303935305 Frigidaire Oven Valve Backorder WCI 5303935305 $60.47

3

316580611 Frigidaire Harness Igniters In Stock WCI 316580611 $68.34

3

5303935378 Frigidaire Oven Door Trim Kit (Bla In Stock WCI 5303935378 $49.38

4

316453033 Frigidaire Assembly Glass Backorder WCI 316453033 $195.22

4

DRAWER PANEL, ASSY, STAINLESS, W/OVERLAY WCI 316581601 Contact Us For Availability

5

316272900 Frigidaire Oven Leg Levelling Plast In Stock WCI 316272900 $10.53

5

316446401 Frigidaire Oven Glass In Stock WCI 316446401 $91.53

6

316402316 Frigidaire Shield Backorder WCI 316402316 $64.89

6

316496201 Frigidaire Oven Rack In Stock WCI 316496201 $73.67

7

316403900 Frigidaire Insulation Backorder WCI 316403900 $56.58

7

316407402 Frigidaire Range Drawer Glide In Stock WCI 316407402 $7.20

8

316400603 Frigidaire Oven Stove Bottom Panel Backorder WCI 316400603 $136.43

8

808608802 Frigidaire Oven Spark Ignition Four In Stock WCI 808608802 $64.91

9

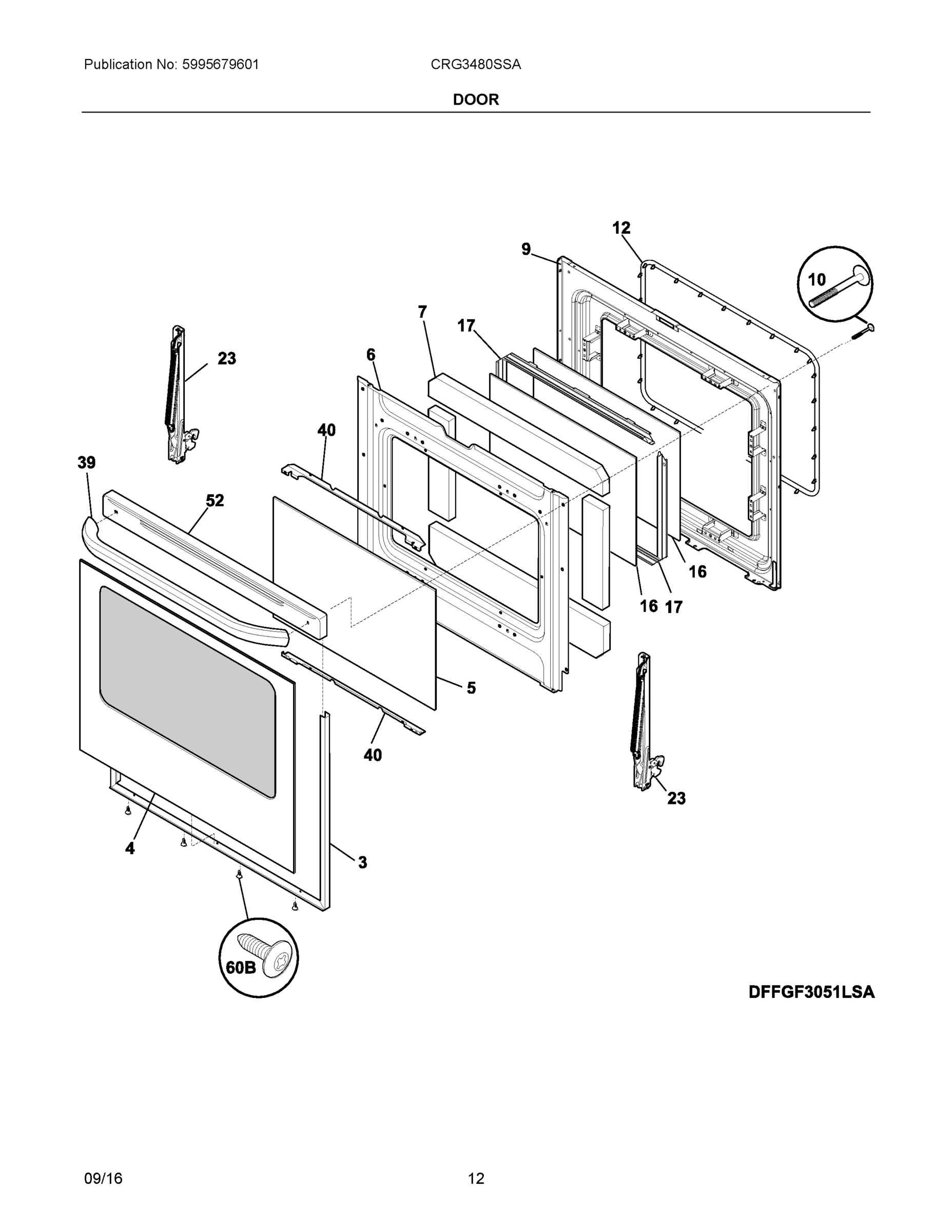

316423807 Frigidaire Oven Door Liner Backorder WCI 316423807 $125.36

9

PAN, BROILER OPTIONAL ACCESSORY WCI 316081900 Contact Us For Availability

10

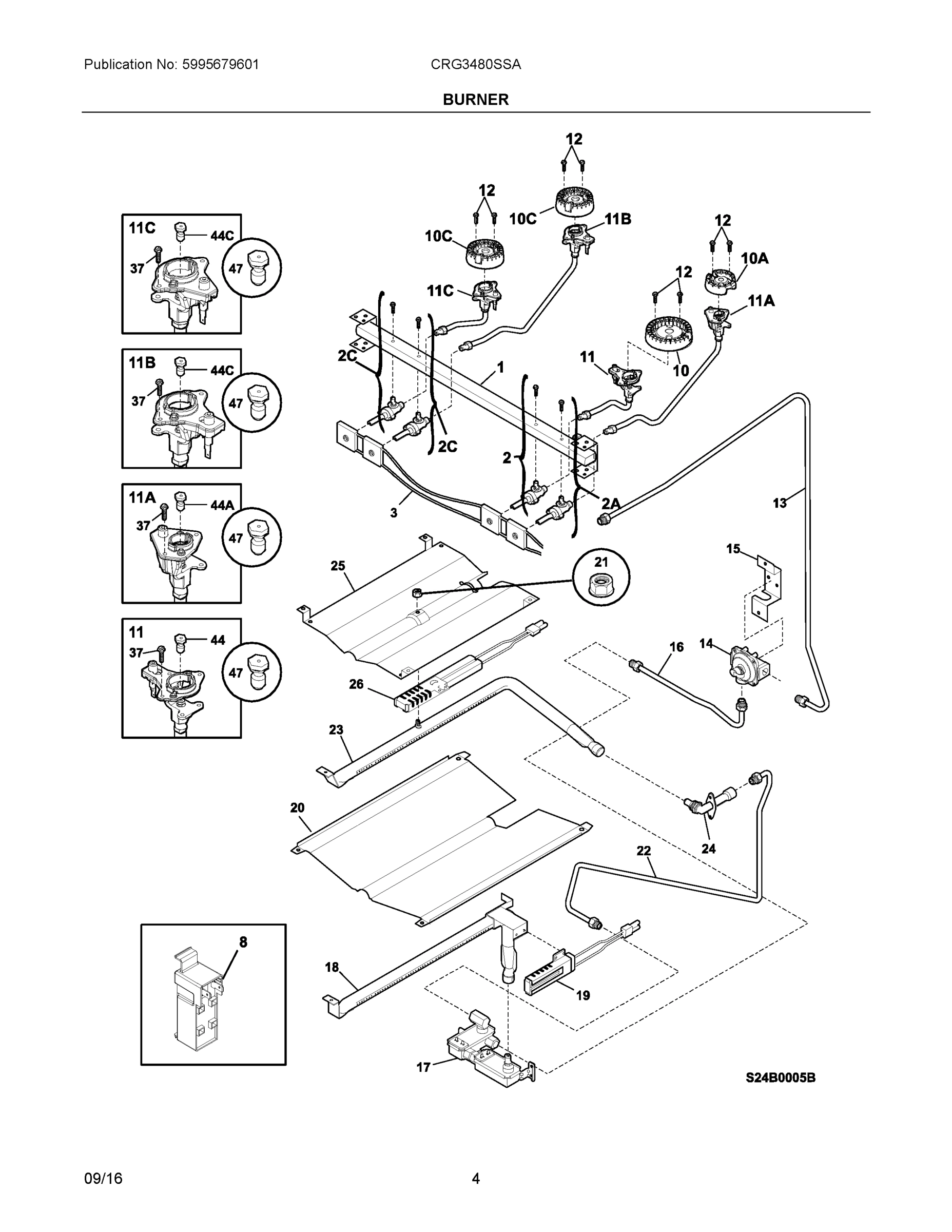

316438600 Frigidaire Range Sealed Burner, 14K Backorder WCI 316438600 $62.12

10

5304507924 Frigidaire Oven Screw In Stock WCI 5304507924 $5.55

10

INSERT, BROILER PAN OPTIONAL ACCESSORY WCI 316082000 Contact Us For Availability

10A

316438200 Frigidaire Range Sealed Burner, 5K In Stock WCI 316438200 $44.37

10C

316558300 Frigidaire Oven 9.5L Sealed Burner In Stock WCI 316558300 $41.02

11

316536614 Frigidaire Igniter/Orifice Assembly Backorder WCI 316536614 $87.62

11A

316536610 Frigidaire Igniter Assembly/Orifice In Stock WCI 316536610 $72.11

11B

316536600 Frigidaire Igniter Assembly In Stock WCI 316536600 $97.08

11C

316536602 Frigidaire Oven Igniter/Orifice Ass In Stock WCI 316536602 $97.06

12

316445500 Frigidaire Oven Switch Backorder WCI 316445500 $47.16

12

316540900 Frigidaire Oven Screw In Stock WCI 316540900 $11.07

12

5304498835 Frigidaire Oven Seal In Stock WCI 5304498835 $78.74

13

316489100 Frigidaire Oven Tube Backorder WCI 316489100 $60.99

14

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $46.03

14

5304521339 Frigidaire Regulator In Stock WCI 5304521339 $72.10

15

316091600 Frigidaire Oven Bracket Backorder WCI 316091600 $53.82

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $14.94

15

SUPPORT, BACKGUARD, BLACK, RH WCI 316411405 Contact Us For Availability

15A

SUPPORT, BACKGUARD, BLACK, LH WCI 316411404 Contact Us For Availability

5304503232 Frigidaire Oven Inner Door Glass In Stock WCI 5304503232 $91.51

5304507348 Frigidaire Oven Tube Backorder WCI 5304507348 $34.39

5304524341 Frigidaire Lens In Stock WCI 5304524341 $9.98

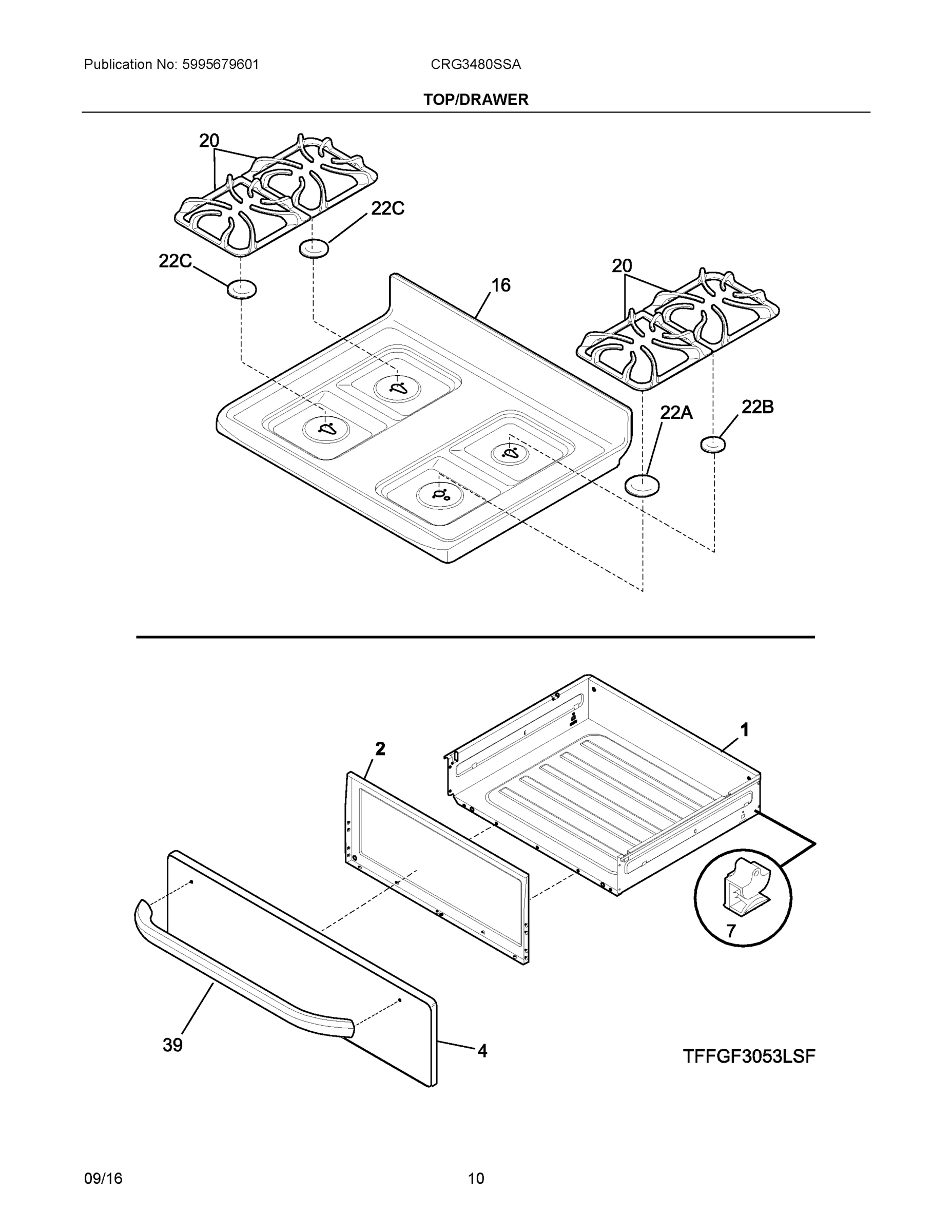

MAINTOP, ASSEMBLY, BLACK WCI 316254505 Contact Us For Availability

17

316031501 Frigidaire Oven Valve In Stock WCI 316031501 $231.81

17

316087500 Frigidaire Oven Retainer Backorder WCI 316087500 $44.37

17

5304504811 Frigidaire Glass Spacer In Stock WCI 5304504811 $18.29

18

316404400 Frigidaire Oven Burner In Stock WCI 316404400 $81.53

18

316405800 Frigidaire Assembly Latch Backorder WCI 316405800 $47.16

19

316489403 Frigidaire Range Bake Igniter In Stock WCI 316489403 $107.45

20

5304509231 Frigidaire Refrigerator Clock In Stock WCI 5304509231 $235.73

20

5304519024 Frigidaire Oven Baffle Backorder WCI 5304519024 $58.77

20

GRATE, BLACK, (4) WCI 316248508 Contact Us For Availability

21

316408000 Frigidaire Oven Clip Assembly Backorder WCI 316408000 $13.29

21

5303013272 Frigidaire Oven Nut Backorder WCI 5303013272 $13.83

22

316286300 Frigidaire Bodyside Bracket Backorder WCI 316286300 $13.86

22

5304507768 Frigidaire Oven Tube Backorder WCI 5304507768 $36.61

22A

5304508443 Frigidaire Oven Surface Burner Cap In Stock WCI 5304508443 $32.71

22B

5304508441 Frigidaire Oven Surface Burner Cap In Stock WCI 5304508441 $24.95

22C

5304508442 Frigidaire Oven Surface Burner Cap In Stock WCI 5304508442 $26.08

23

316404302 Frigidaire Oven Burner Backorder WCI 316404302 $81.50

23

316575909 Frigidaire Range Door Hinge In Stock WCI 316575909 $72.09

24

5304516894 Frigidaire Oven Elbow Assembly Backorder WCI 5304516894 $63.78

25

316406200 Frigidaire Oven Shield Assembly Backorder WCI 316406200 $64.34

25

5304497666 Frigidaire Oven Baffle Backorder WCI 5304497666 $68.76

26

5304506545 Frigidaire Gas Oven Range Igniter In Stock WCI 5304506545 $88.16

26A

316498200 Frigidaire Oven Bracket Backorder WCI 316498200 $38.24

29

807047102 Frigidaire Oven Front Drawer Glide In Stock WCI 807047102 $8.85

33

316402500 Frigidaire Oven Shield Backorder WCI 316402500 $94.27

35

316542102 Frigidaire Flue Gasket Backorder WCI 316542102 $8.85

36

316220009 Frigidaire Oven Black Range Top Bur In Stock WCI 316220009 $40.41

37

316240600 Frigidaire Igniter Mounting Screw In Stock WCI 316240600 $8.85

37

316490000 Frigidaire Oven Range Temperature S In Stock WCI 316490000 $44.90

39

316558201 Frigidaire Oven Handle Backorder WCI 316558201 $133.67

39

5304515659 Frigidaire Oven Power Cord In Stock WCI 5304515659 $31.61

40

BRACKET, GLASS, AIRWASH, (2) WCI 316446301 Contact Us For Availability

42

316416204 Frigidaire Oven Trim Backorder WCI 316416204 $32.17

43

316282700 Frigidaire Oven Screw Backorder WCI 316282700 $7.74

44

316517600 Frigidaire Oven Spacer Backorder WCI 316517600 $9.42

44

316527502 Frigidaire Oven Orifice In Stock WCI 316527502 $17.75

44A

316527504 Frigidaire Oven Orifice Assembly In Stock WCI 316527504 $17.73

44C

316527500 Frigidaire Oven Burner Orifice Asse In Stock WCI 316527500 $16.62

47

GRLP4 Frigidaire Oven LP Conversion Kit In Stock WCI GRLP4 $39.94

52

316575501 Frigidaire Oven Cap In Stock WCI 316575501 $80.96

56

316230708 Frigidaire Oven Shield Backorder WCI 316230708 $48.25

58A

316403700 Frigidaire Insulation Backorder WCI 316403700 $237.95

58B

INSULATION, OVEN BACK WCI 316403600 Contact Us For Availability

58G

08067973 Frigidaire 0 Insulation Backorder WCI 08067973 $40.48

60B

316021109 Frigidaire Oven Screw In Stock WCI 316021109 $11.09

82

316400801 Frigidaire Oven Shield Backorder WCI 316400801 $120.35

86

316441300 Frigidaire Receptacle Backorder WCI 316441300 $17.18

88

316232702 Frigidaire Rod Backorder WCI 316232702 $9.40

89

5304528973 Frigidaire Motor In Stock WCI 5304528973 $39.19

106

316404100 Frigidaire Oven Bracket Backorder WCI 316404100 $46.59

107

316026701 Frigidaire Oven Cover Assembly Backorder WCI 316026701 $305.62

108

316256900 Frigidaire Oven Fan Motor In Stock WCI 316256900 $136.99

109

318398302 Frigidaire Stove Oven Range Convect In Stock WCI 318398302 $18.84

111

316136600 Frigidaire Oven Range Lock Nut Backorder WCI 316136600 $14.94

241853202 Frigidaire Refrigerator Screw Backorder WCI 241853202 $7.74

316001017 Frigidaire Screw Backorder WCI 316001017 $2.24

316021105 Frigidaire Oven Screw Backorder WCI 316021105 $8.85

316089500 Frigidaire Oven Screw In Stock WCI 316089500 $9.31

316215600 Frigidaire Oven Screw Backorder WCI 316215600 $9.79

316418901 Frigidaire Oven Screw Backorder WCI 316418901 $11.09

5303285179 Frigidaire Oven Door Screw Backorder WCI 5303285179 $10.53

5304535516 Frigidaire Range Igniter Harness Backorder WCI 5304535516 $47.50

SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability

NIA

316021104 Frigidaire Oven Screw Assembly Backorder WCI 316021104 $6.09

NIA

316401500 Frigidaire Oven Cover Backorder WCI 316401500 $9.40

NIA

316418900 Frigidaire Oven Screw In Stock WCI 316418900 $11.09
