Model Whirlpool CRE9800BCB ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY

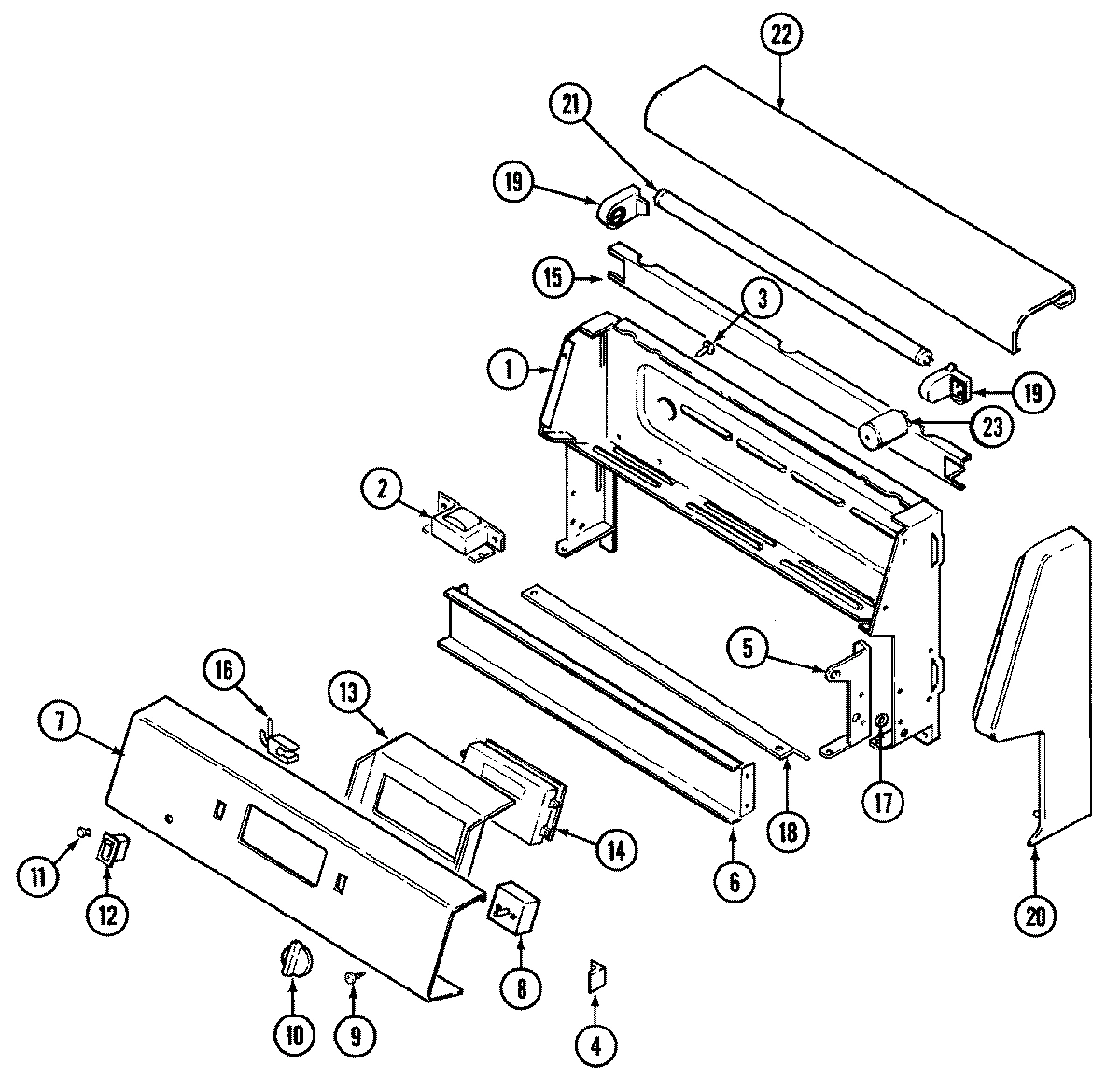

02 - CONTROL PANEL

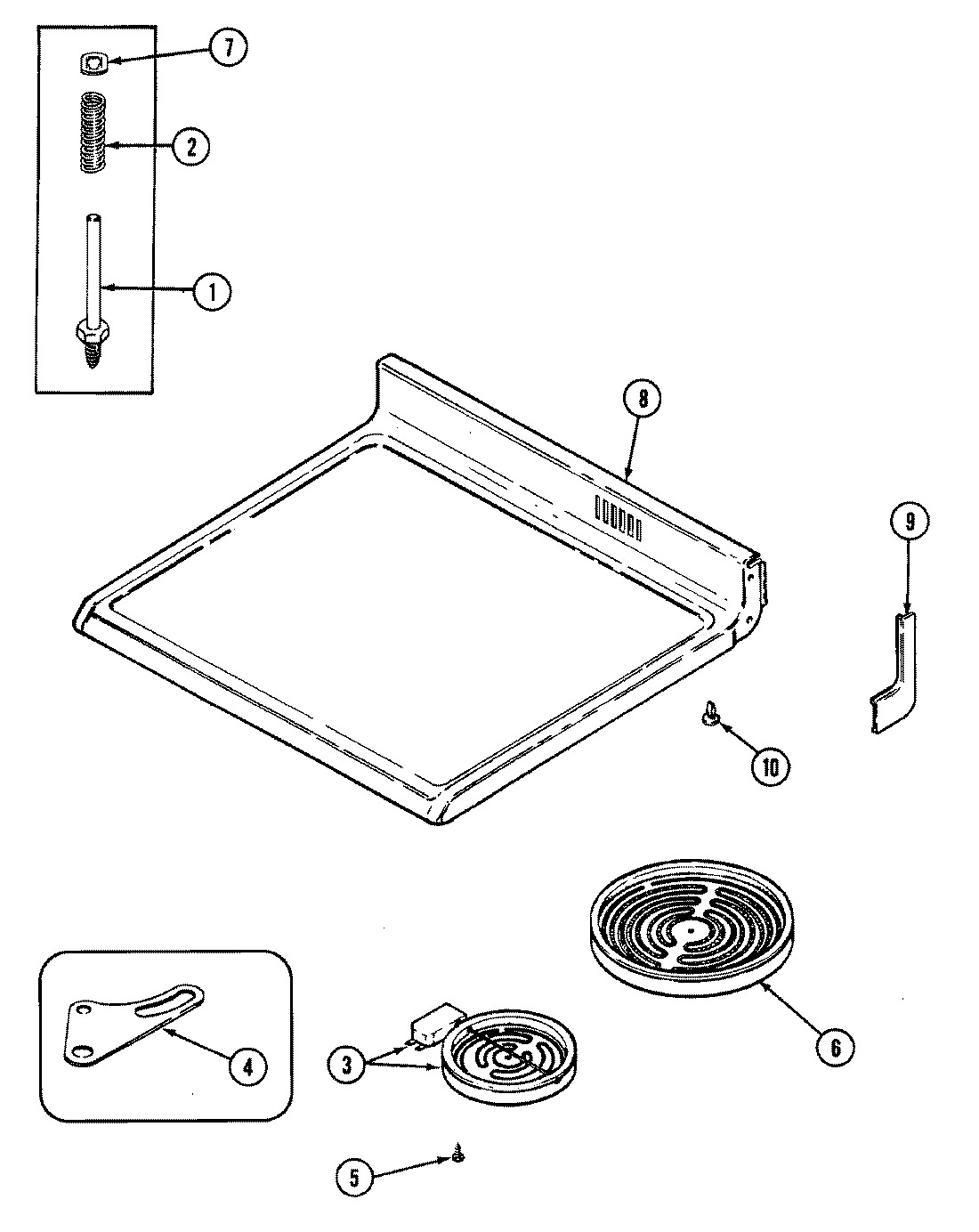

05 - TOP ASSEMBLY

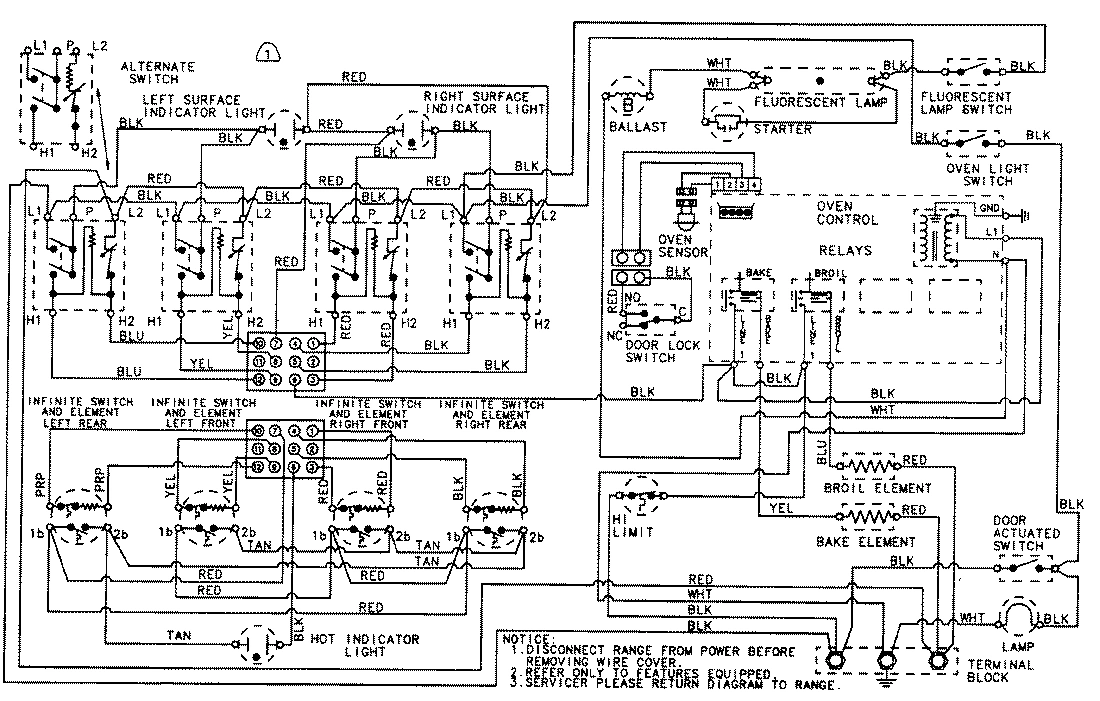

06 - WIRING INFORMATION

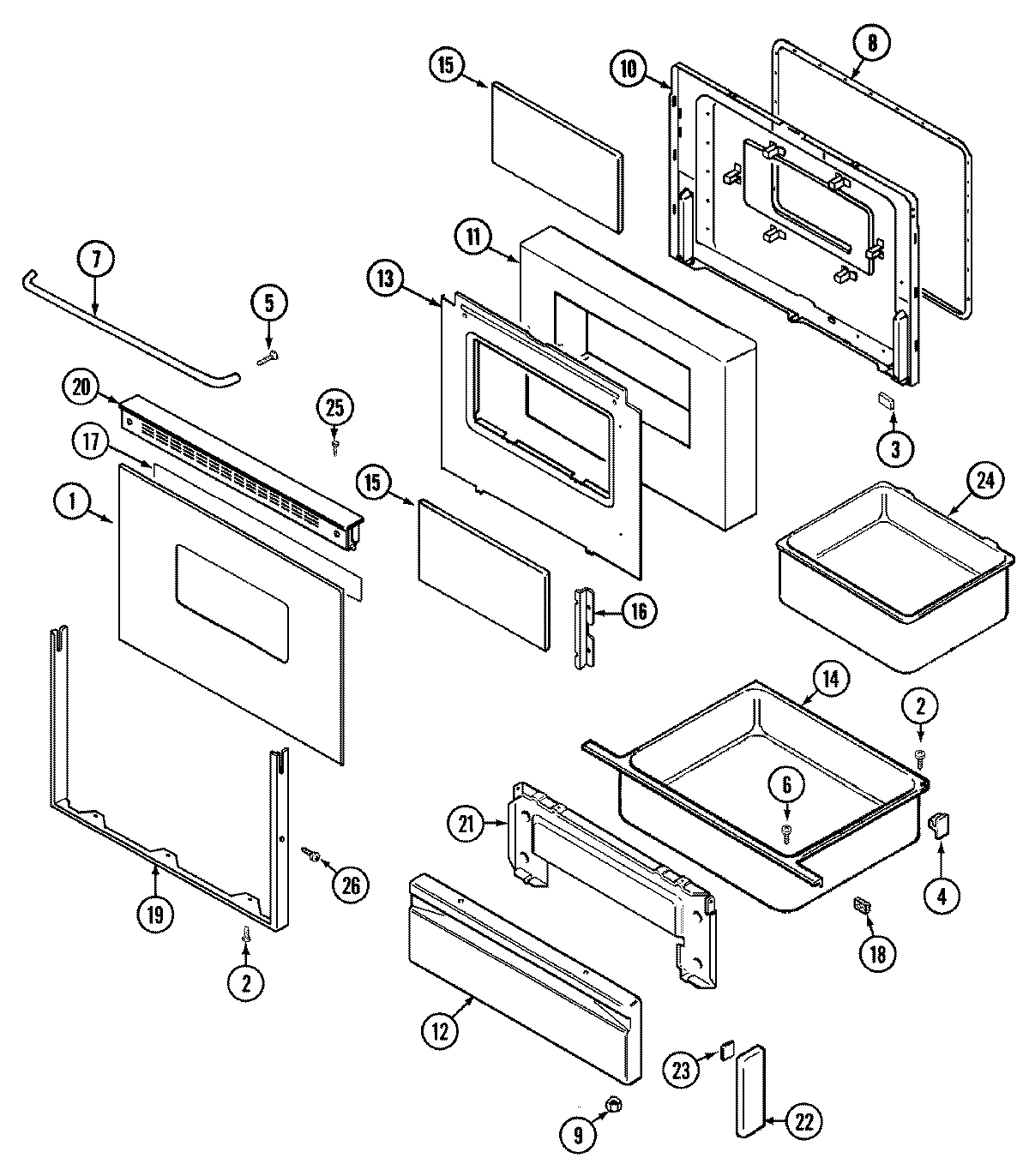

03 - DOOR/DRAWER (CRE9800BCB SER. PRE. 15)

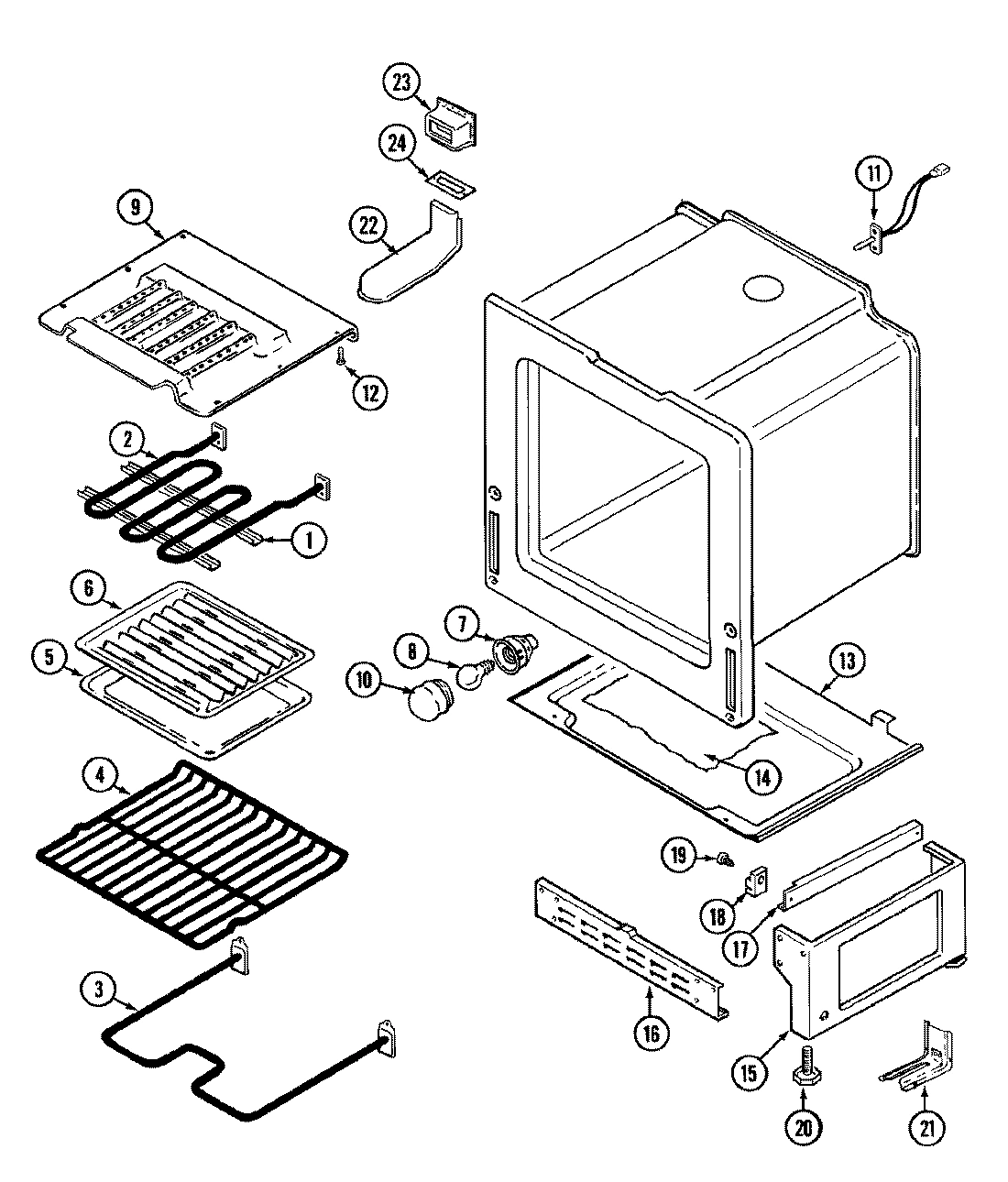

04 - OVEN/BASE
Common parts from model Whirlpool CRE9800BCB ELECTRIC RANGE
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
1
GLASS, DOOR (OUTER/BLK) WPL 7902P36160 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P33460 Contact Us For Availability
2
PANEL, SIDE (BLK) WPL 2618F11070 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
2
BALLAST WPL 7412P00760 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
3
BOX, BURNER WPL 4011F23819 Contact Us For Availability
3
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
3
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P09260 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SPACER WPL 8010P08360 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
RACK WPL 7801P04660 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SUPPORT, MAIN TOP (RT) WPL 3807F45360 Contact Us For Availability
5
SUPPORT, LEFT WPL 3807F45460 Contact Us For Availability
5
SCREW WPL 7101P34960 Contact Us For Availability
5
SCREW WPL 7101P32660 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
6
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
6
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
6
SCREW WPL 7101P07260 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
COVER, WIRE WPL 4005F45551 Contact Us For Availability
7
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
7
PANEL, CONTROL WPL 7703P55360 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
7
HANDLE, OVEN DOOR (BLK) WPL 7701P14960 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
TOP ASSY. (BLK FRM/BLK GLASS) WPL 74001499 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
9
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
9
SCREW WPL 7101P30960 Contact Us For Availability
9
END CAP (RT-CHR)----NA WPL 7746P03460 Contact Us For Availability
9
END CAP (LT-CHR) WPL 7746P03560 Contact Us For Availability
9
NUT, LOCK WPL 7103P13960 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
10
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
10
KNOB, VALVE (BLK) WPL 7737P03660 Contact Us For Availability
10
GLIDE WPL 8016P01660 Contact Us For Availability
10
LINING, DOOR WPL 2402W20919 Contact Us For Availability
10
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
10
NUT, SNAP WPL 7103P11460 Contact Us For Availability
10
NUT, SNAP WPL 7103P13660 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
11
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
11
INSULATION, DOOR WPL 74001842 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
12
INSULATION, BACK WPL 4804F03860 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P30960 Contact Us For Availability
12
PANEL ASSY, BROILER DOOR WPL 2416W00270 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
BRACKET, CLOCK WPL 3801F27645 Contact Us For Availability
13
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11247 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
SCREW WPL 7118P01360 Contact Us For Availability
14
CLOCK (BLK) WPL 74001318 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
15
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
15
GLASS, INNER WPL 74001841 Contact Us For Availability
15
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
16
SCREW WPL 7101P29060 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
16
RETAINER, GLASS WPL 74001844 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 8009P02460 Contact Us For Availability
17
NUT, SPEED WPL 7103P04460 Contact Us For Availability
17
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
18
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
18
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
18
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
19
SCREW WPL 7101P34560 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
19
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
19
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
19
FRAME, DOOR (CHR) WPL 7706P30860 Contact Us For Availability
20
HINGE WPL 7106P05660 Contact Us For Availability
20
END CAP, CONTROL PANEL WPL 7726P06560 Contact Us For Availability
20
END CAP, CONTROL PANEL WPL 7726P06660 Contact Us For Availability
20
TRIM, DOOR (UPPER-BLK) WPL 7706P30560 Contact Us For Availability
20
LEG, LEVELING WPL 74001311 Contact Us For Availability
21
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
21
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
21
LINING WPL 2404F04380 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
22
INSULATOR WPL 74001722 Contact Us For Availability
22
PLATE, LATCH SWITCH WPL 74001744 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 7403P36360 Contact Us For Availability
22
COVER, LIGHT WPL 7724P05860 Contact Us For Availability
22
TRIM, DRAWER WPL 7744P09960 Contact Us For Availability
22
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
23
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
23
STARTER WPL 7415P00160 Contact Us For Availability
23
TAPE WPL 8270P09860 Contact Us For Availability
23
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
24
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
24
BASKET, DRAWER WPL 74001458 Contact Us For Availability
24
GASKET, VENT WPL 7201P05460 Contact Us For Availability
25
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
25
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
26
LIGHT, INDICATOR WPL 7407P10660 Contact Us For Availability
26
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
27
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
28
BRACKET, LIGHT SWITCH WPL 3801F35451 Contact Us For Availability
28
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
29
SWITCH, DOOR LIGHT WPL 4874F00160 Contact Us For Availability
29
SWITCH, DOOR LIGHT WPL 74001628 Contact Us For Availability
30
INSULATOR, SWITCH WPL 7003P06260 Contact Us For Availability
30
INSULATOR, DOOR SWITCH WPL 74001626 Contact Us For Availability
31
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
32
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
32
SPRING WPL 7803P06760 Contact Us For Availability
33
WASHER WPL 7109P02060 Contact Us For Availability
33
ROD, DOOR LIGHT SWITCH WPL 74001630 Contact Us For Availability
33
ROD, LIGHT SWITCH WPL 7809P02260 Contact Us For Availability
34
BUMPER, ROD WPL 74001631 Contact Us For Availability
34
BUMPER WPL 8003P01260 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D19760 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 5170P20660 Contact Us For Availability
NI
HARNESS, BURNER BOX WPL 5175D05260 Contact Us For Availability
NI
HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74001180 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP) WPL 74001473 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74001500 Contact Us For Availability
NI
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
NI
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001197 Contact Us For Availability
× ![]()
