Model Whirlpool CRE9600ADE ELECTRIC RANGE – Common Parts & Diagrams

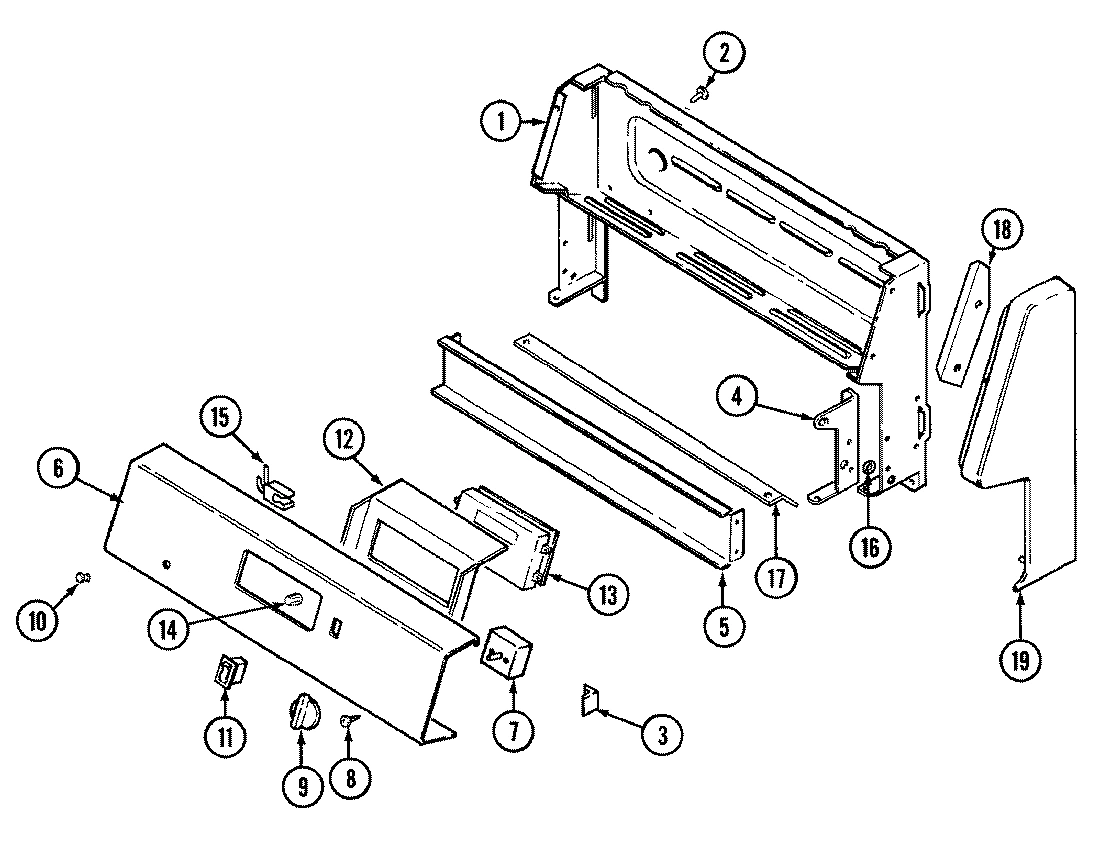

02 - CONTROL PANEL

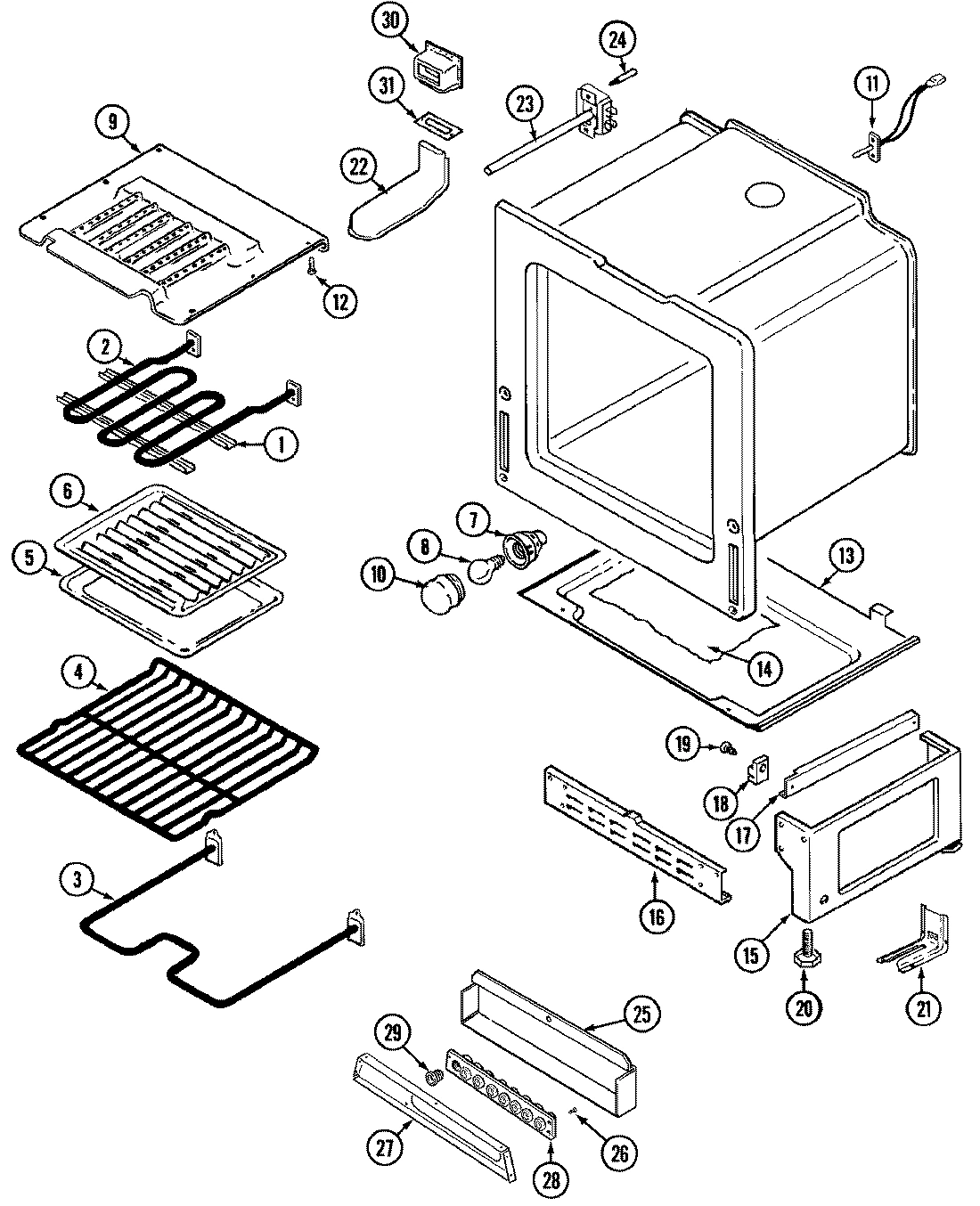

04 - OVEN/BASE

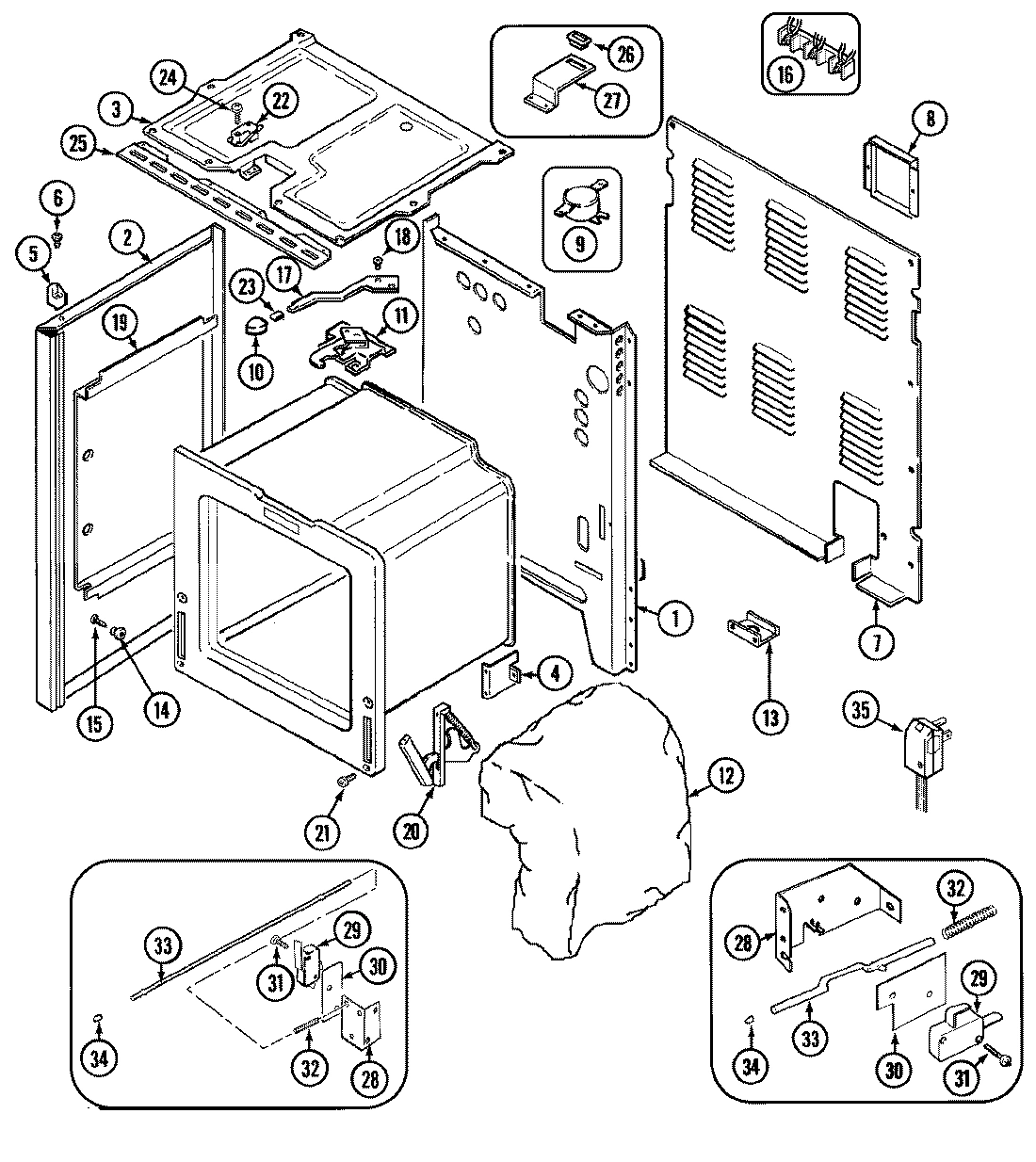

01 - BODY

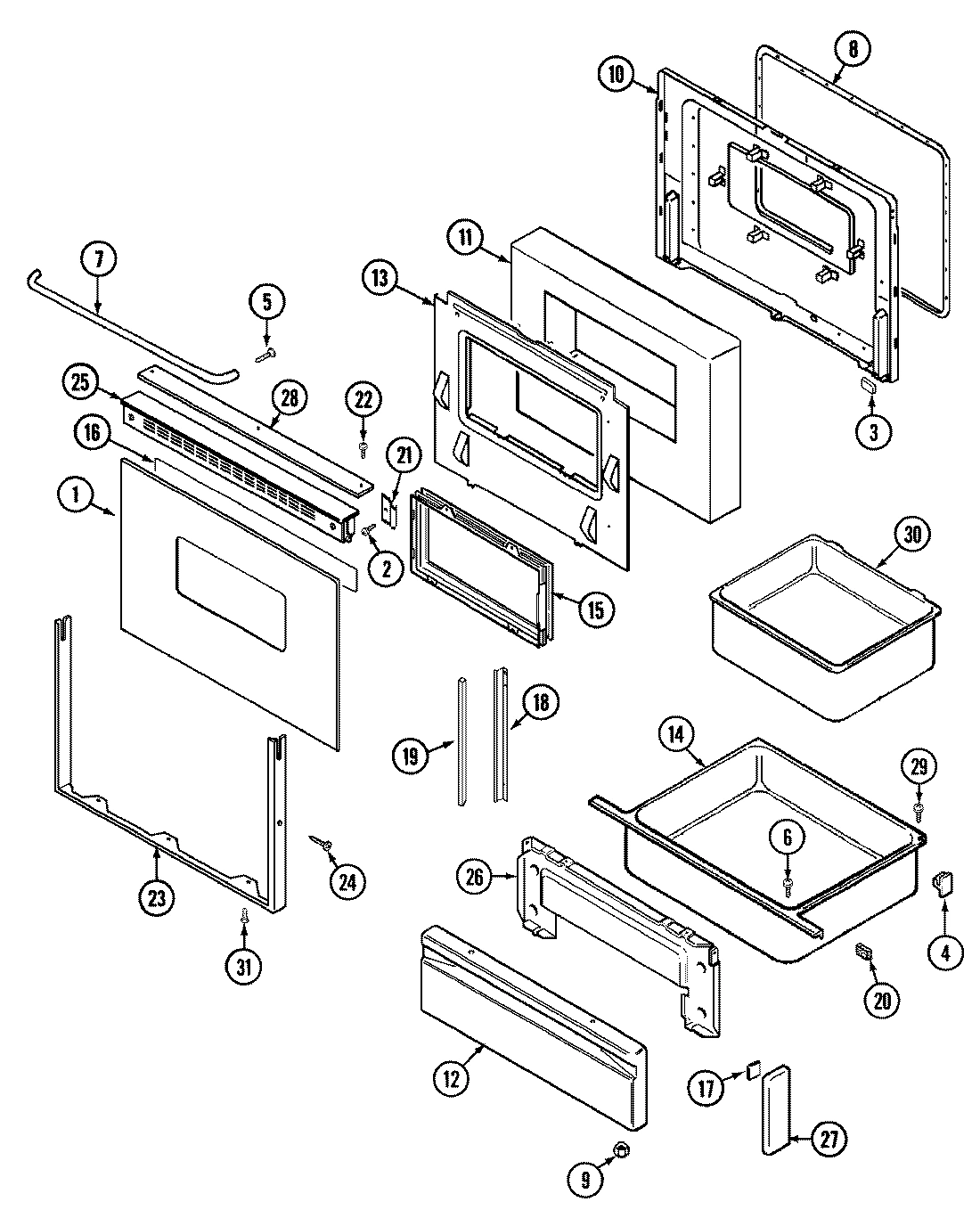

03 - DOOR/DRAWER

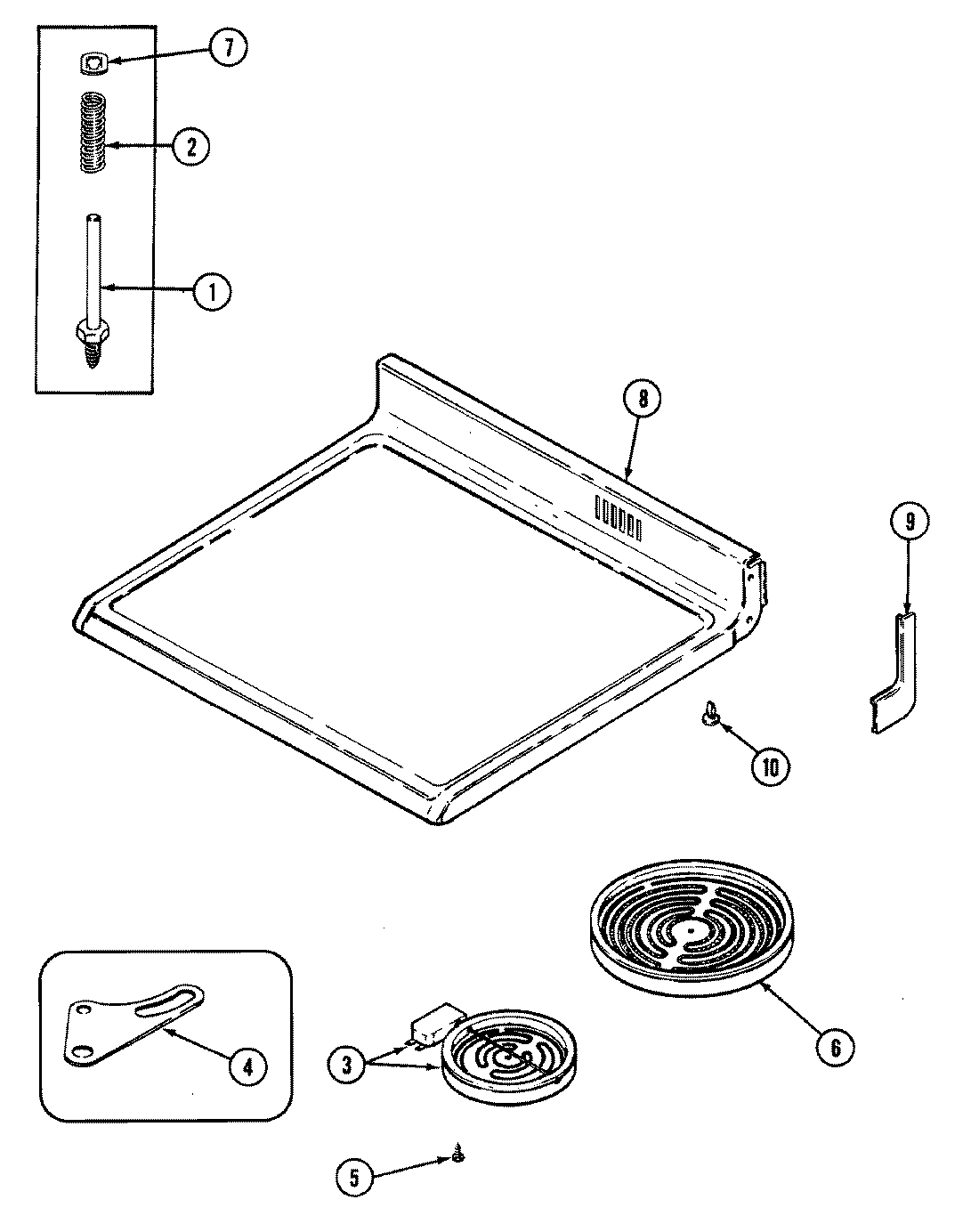

05 - TOP ASSEMBLY
Common parts from model Whirlpool CRE9600ADE ELECTRIC RANGE
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
BACK, MAIN WPL 74001341 Contact Us For Availability
1
GLASS, DOOR (WHT) WPL 7902P36060 Contact Us For Availability
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
2
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F11071 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
2
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
2
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
3
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
3
SPACER WPL 8010P08360 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P09260 Contact Us For Availability
3
BOX, BURNER WPL 74001707 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
3
LIMITER (6`` ELEMENT) WPL Y04000064 Contact Us For Availability
4
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
4
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
4
RACK WPL 7801P04660 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
5
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SCREW WPL 7101P32660 Contact Us For Availability
5
SCREW WPL 7101P07660 Contact Us For Availability
6
PANEL, CONTROL (WHT) WPL 7703P67560 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
6
LIMITER (8`` ELEMENT) WPL Y04000063 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
COVER, WIRE WPL 4005F45551 Contact Us For Availability
7
HANDLE, OVEN DOOR (WHT) WPL 7701P15060 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
8
SCREW WPL 7101P30960 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
MAIN TOP ASSY. WPL 5706S08060 Contact Us For Availability
8
CLEANER, ELCO WPL 8308P00260 Contact Us For Availability
8
SCRAPER, RAZOR WPL 8312P00160 Contact Us For Availability
9
KNOB, VALVE (WHT) WPL 7737P03760 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
9
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
END CAP (RT-CHR)----NA WPL 7746P03460 Contact Us For Availability
9
END CAP (LT-CHR) WPL 7746P03560 Contact Us For Availability
10
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
HANDLE, DOOR LATCH (WHT) WPL 7701P15360 Contact Us For Availability
10
LINING, DOOR WPL 2402W20919 Contact Us For Availability
10
GLIDE WPL 8016P01660 Contact Us For Availability
11
SWITCH, ROCKER (WHT) WPL 7403P31060 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
11
INSULATION, DOOR WPL 4804F03460 Contact Us For Availability
12
BRACKET, CLOCK WPL 3801F27545 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
12
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
12
PANEL, STORAGE DRAWER (WHT) WPL 2416W00171 Contact Us For Availability
13
CLOCK WPL 7601P19560 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23651 Contact Us For Availability
14
KNOB, CLOCK (WHT) WPL 7711P48760 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
15
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
15
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
15
SCREW WPL 7101P33460 Contact Us For Availability
15
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
16
NUT, SPEED WPL 7103P12960 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
17
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
17
TAPE WPL 8270P09860 Contact Us For Availability
18
SUPPORT, CONTROL PNL (RT) WPL 3807F44945 Contact Us For Availability
18
SUPPORT, CONTROL PNL (LT) WPL 3807F45045 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
18
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
18
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
19
END CAP (RT-CHR) WPL 7726P06360 Contact Us For Availability
19
END CAP (LT-CHR) WPL 7726P06460 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
19
SEAL WPL 7208P00260 Contact Us For Availability
20
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
20
HINGE WPL 7106P05660 Contact Us For Availability
20
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
21
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
21
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
22
VENT BOX ASSY. WPL 4006W10745 Contact Us For Availability
22
PLATE, SW MTG WPL 3605F18551 Contact Us For Availability
22
SWITCH, LOCK WPL 7403P31760 Contact Us For Availability
22
SWITCH, LOCK----NA WPL 7403P32360 Contact Us For Availability
22
SCREW (WHT) WPL 74001278 Contact Us For Availability
23
THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability
23
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
23
FRAME, DOOR (WHT) WPL 7706P29860 Contact Us For Availability
23
FRAME, DOOR (WHT) WPL 7706P31060 Contact Us For Availability
24
SCREW STANDOFF WPL 7118P02060 Contact Us For Availability
24
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
24
SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability
25
COVER, FUSE BLOCK WPL 4005F44551 Contact Us For Availability
25
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
25
TRIM, DOOR (UPPER-WHT) WPL 7706P30660 Contact Us For Availability
25
TRIM, DOOR (UPPER-WHT) WPL 7744P12960 Contact Us For Availability
26
SCREW WPL 7101P06860 Contact Us For Availability
26
LIGHT, INDICATOR (HOT SURFACE) WPL 7407P09760 Contact Us For Availability
26
LINING WPL 2404F04380 Contact Us For Availability
27
BRACKET, FUSE HOLDER WPL 74001339 Contact Us For Availability
27
BRACKET, INDICATOR LIGHT WPL 3801F31245 Contact Us For Availability
27
END CAP (WHT) WPL 7744P09360 Contact Us For Availability
28
BLOCK, FUSE ASSY. WPL 7401A03260 Contact Us For Availability
28
BRACKET, LIGHT SWITCH WPL 3801F35451 Contact Us For Availability
28
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
28
INSERT, DOOR TRIM (WHT) WPL 7728P09460 Contact Us For Availability
29
FUSE, 125V 20A WPL 7416P00560 Contact Us For Availability
29
FUSE, 125V 15A WPL 7416P00660 Contact Us For Availability
29
SWITCH, DOOR LIGHT WPL 4874F00160 Contact Us For Availability
29
SWITCH, DOOR LIGHT WPL 74001628 Contact Us For Availability
29
SCREW WPL 7101P32960 Contact Us For Availability
30
EXTENSION, VENT WPL 3826W01445 Contact Us For Availability
30
INSULATOR, SWITCH WPL 7003P06260 Contact Us For Availability
30
INSULATOR, DOOR SWITCH WPL 74001626 Contact Us For Availability
30
BASKET, DRAWER WPL 8312P07960 Contact Us For Availability
31
SCREW WPL 7101P29060 Contact Us For Availability
31
GASKET, VENT WPL 7201P05460 Contact Us For Availability
31
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
32
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
32
SPRING WPL 7803P06760 Contact Us For Availability
33
ROD, DOOR LIGHT SWITCH WPL 74001630 Contact Us For Availability
33
ROD, LIGHT SWITCH WPL 7809P02260 Contact Us For Availability
34
BUMPER, ROD WPL 74001631 Contact Us For Availability
34
BUMPER WPL 8003P01260 Contact Us For Availability
35
CORD, POWER WPL 7402P05060 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
HARNESS, WIRE WPL 5170P18760 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8111P02560 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP) WPL 74001473 Contact Us For Availability
× ![]()
