Model Whirlpool CRE8700ADW ELECTRIC RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

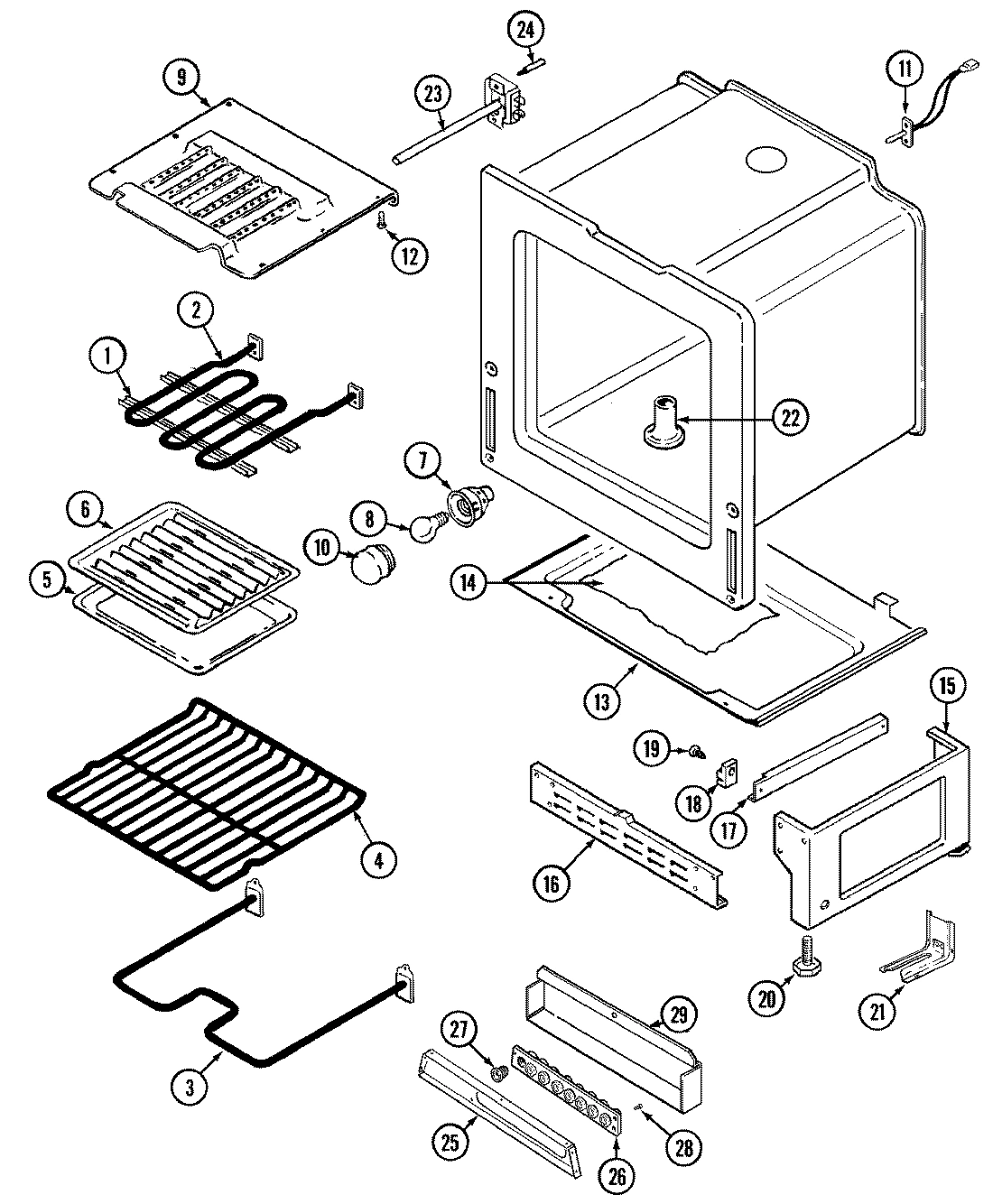

03 - OVEN/BASE

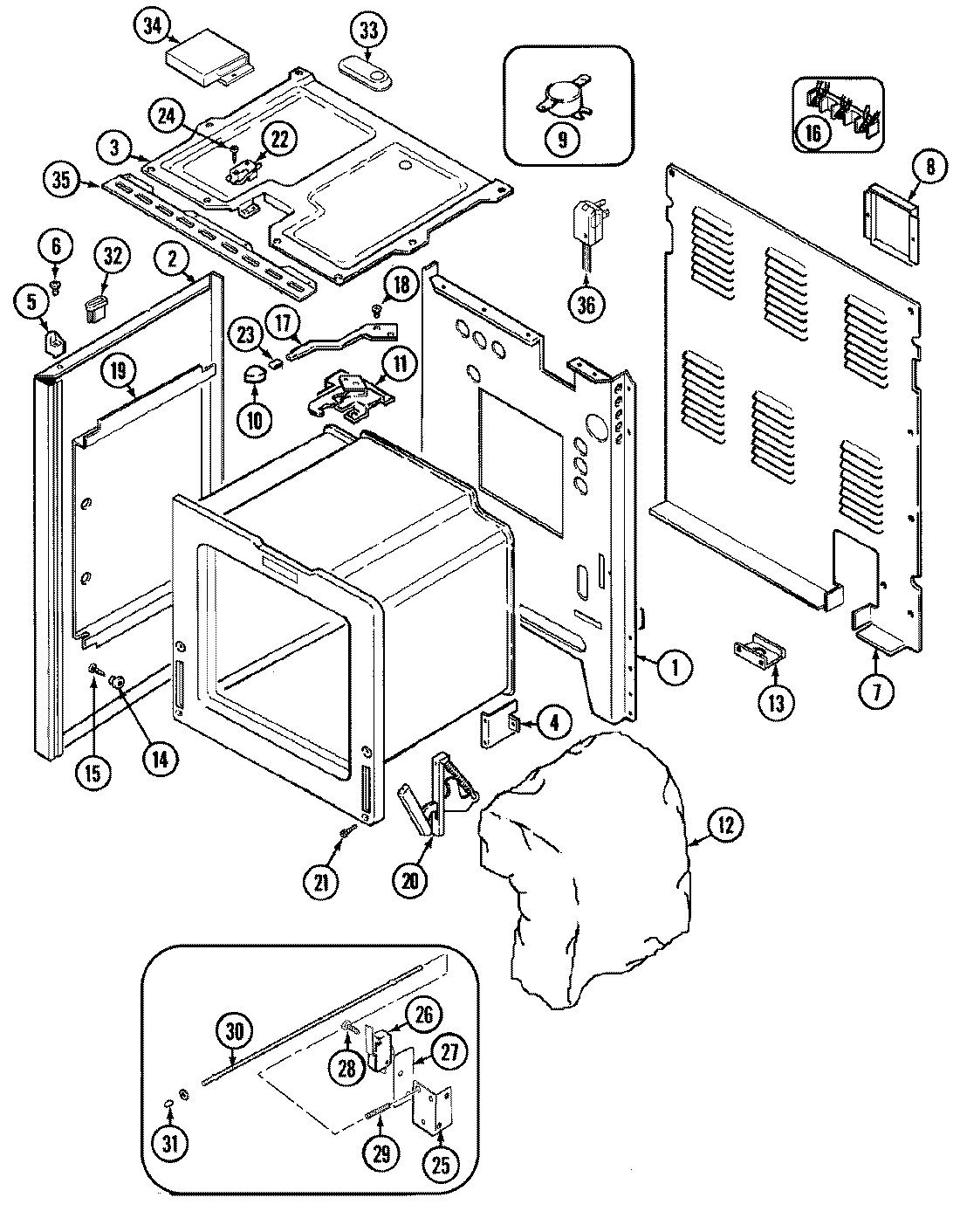

01 - BODY

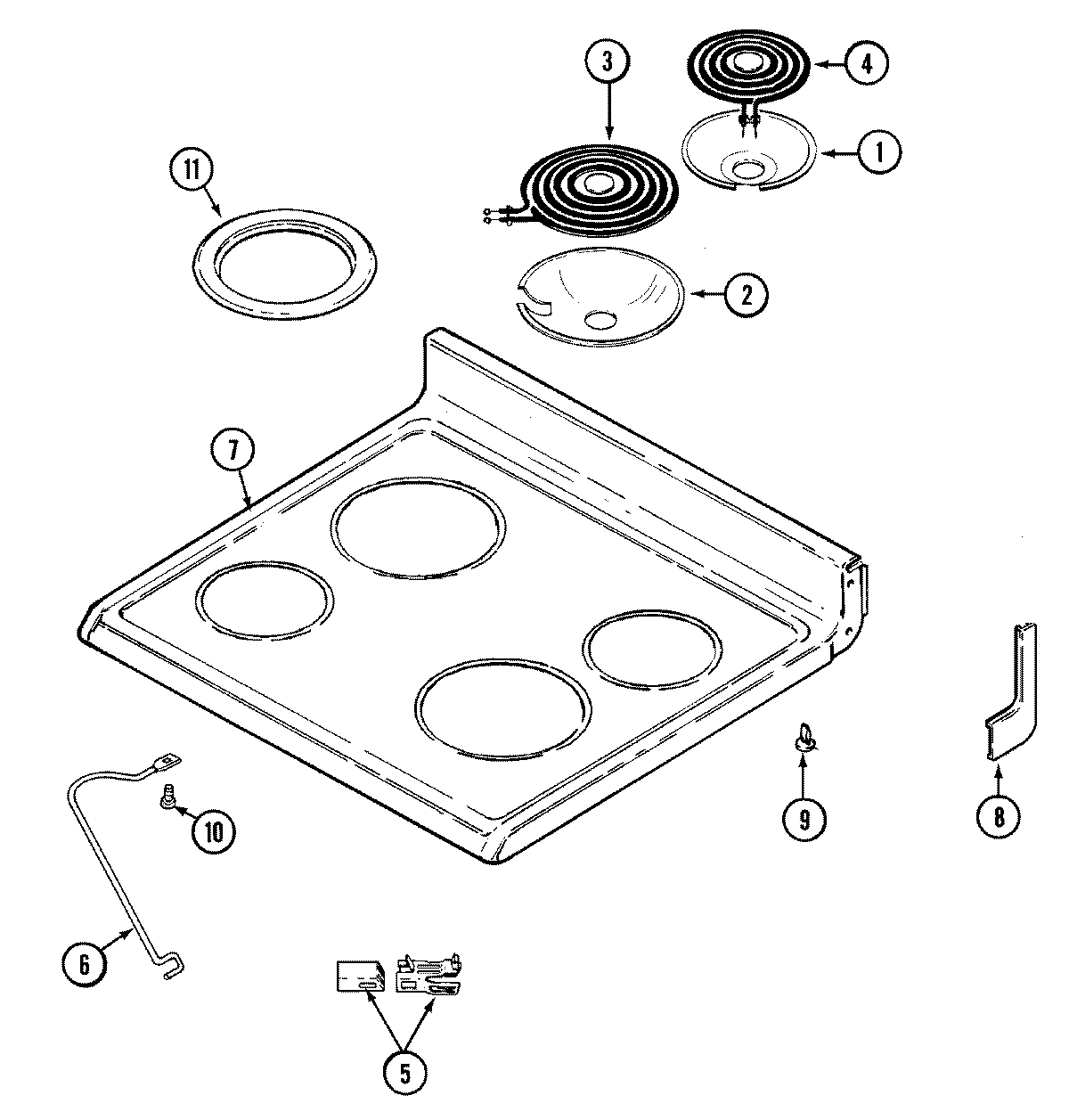

04 - TOP ASSEMBLY
Common parts from model Whirlpool CRE8700ADW ELECTRIC RANGE
1
HOUSING, CONTROL PANEL WPL 4001F09451 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P30060 Contact Us For Availability
1
BACK, MAIN WPL 4002F18960 Contact Us For Availability
1
BOWL, DRIP (6``) (BLK) WPL 7725P03660 Contact Us For Availability
2
BALLAST WPL 7412P00760 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
2
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
2
BOWL, DRIP (8``-BLK) WPL 7725P03760 Contact Us For Availability
3
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
3
BOX, BURNER WPL 4011F21919 Contact Us For Availability
3
ELEMENT (8``) WPL 7406P07060 Contact Us For Availability
3
ELEMENT (8``) WPL 7406P08060 Contact Us For Availability
4
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
4
SPACER WPL 8010P08360 Contact Us For Availability
4
RACK----NA WPL 7801P03960 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
ELEMENT (6``) WPL 7406P06960 Contact Us For Availability
4
ELEMENT (6``) WPL 7406P08160 Contact Us For Availability
5
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
5
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
5
SCREW WPL 7118P01360 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
7
SCREW WPL 7118P01960 Contact Us For Availability
7
PANEL, CONTROL WPL 7703P55360 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W07881 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
8
BULB, OVEN WPL 7407P09560 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
END CAP (RT-CHR)----NA WPL 7746P03460 Contact Us For Availability
8
END CAP (LT-CHR) WPL 7746P03560 Contact Us For Availability
9
SCREW WPL 7101P30960 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
9
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
9
GLIDE WPL 8016P01360 Contact Us For Availability
10
KNOB, VALVE (BLK) WPL 7737P03660 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01060 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
11
SCREW WPL 7101P29060 Contact Us For Availability
11
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
11
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
11
RING, TRIM (6``) WPL 7744P05360 Contact Us For Availability
11
RING, TRIM (8``) WPL 7744P05460 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P30960 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
12
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
13
BRACKET, CLOCK WPL 3801F27645 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
14
CLOCK WPL 7601P22360 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
15
KNOB, CLOCK (BLK) WPL 7711P47560 Contact Us For Availability
15
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
15
SCREW WPL 7101P33460 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P07760 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
WASHER WPL 7109P01560 Contact Us For Availability
17
LEVER, LOCK WPL 8009P01660 Contact Us For Availability
18
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
18
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
19
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
20
END CAP, CONTROL PANEL WPL 7726P06560 Contact Us For Availability
20
END CAP, CONTROL PANEL WPL 7726P06660 Contact Us For Availability
20
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
20
HINGE, DOOR WPL 7106P04960 Contact Us For Availability
21
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
21
SCREW WPL 7101P11560 Contact Us For Availability
22
COVER, LIGHT WPL 7724P05860 Contact Us For Availability
22
COVER, LAMP WIRE WPL 7724P06260 Contact Us For Availability
22
TUBE, VENT WPL 8026P01960 Contact Us For Availability
22
SWITCH, LOCK----NA WPL 7403P32360 Contact Us For Availability
23
STARTER WPL 7415P00160 Contact Us For Availability
23
THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability
23
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
24
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
24
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
24
SCREW WPL 7101P33760 Contact Us For Availability
24
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
25
BRACKET, FUSE WPL 3801F30980 Contact Us For Availability
25
BRACKET, LIGHT SWITCH WPL 3801F31651 Contact Us For Availability
26
BLOCK, FUSE WPL 7401P03160 Contact Us For Availability
26
SWITCH, MICRO WPL 7403P28160 Contact Us For Availability
27
BLOCK, FUSE ASSY. WPL 7401A03260 Contact Us For Availability
27
INSULATOR, SWITCH WPL 7003P04760 Contact Us For Availability
28
SCREW WPL 7101P06860 Contact Us For Availability
28
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
29
COVER, FUSE BLOCK WPL 4005F41751 Contact Us For Availability
29
SPRING WPL 7803P06760 Contact Us For Availability
30
WASHER WPL 7109P02060 Contact Us For Availability
30
ROD, LIGHT SWITCH WPL 7809P01760 Contact Us For Availability
31
BUMPER WPL 8003P01260 Contact Us For Availability
32
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
33
COVER, VENT WPL 4005F43245 Contact Us For Availability
34
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
35
BRACKET, MAIN TOP WPL 3801F30580 Contact Us For Availability
36
CORD, POWER WPL 7402P05060 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D15960 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 5170P16160 Contact Us For Availability
NI
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
NI
HARNESS, BURNER BOX WPL 5175D05260 Contact Us For Availability
NI
HARNESS, COIL TOP WPL 5175D07160 Contact Us For Availability
NI
HARNESS, DOOR LATCH WPL 5195D08260 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8111P00260 Contact Us For Availability
× ![]()
