Model Whirlpool CRE7700ADE ELECTRIC RANGE – Common Parts & Diagrams

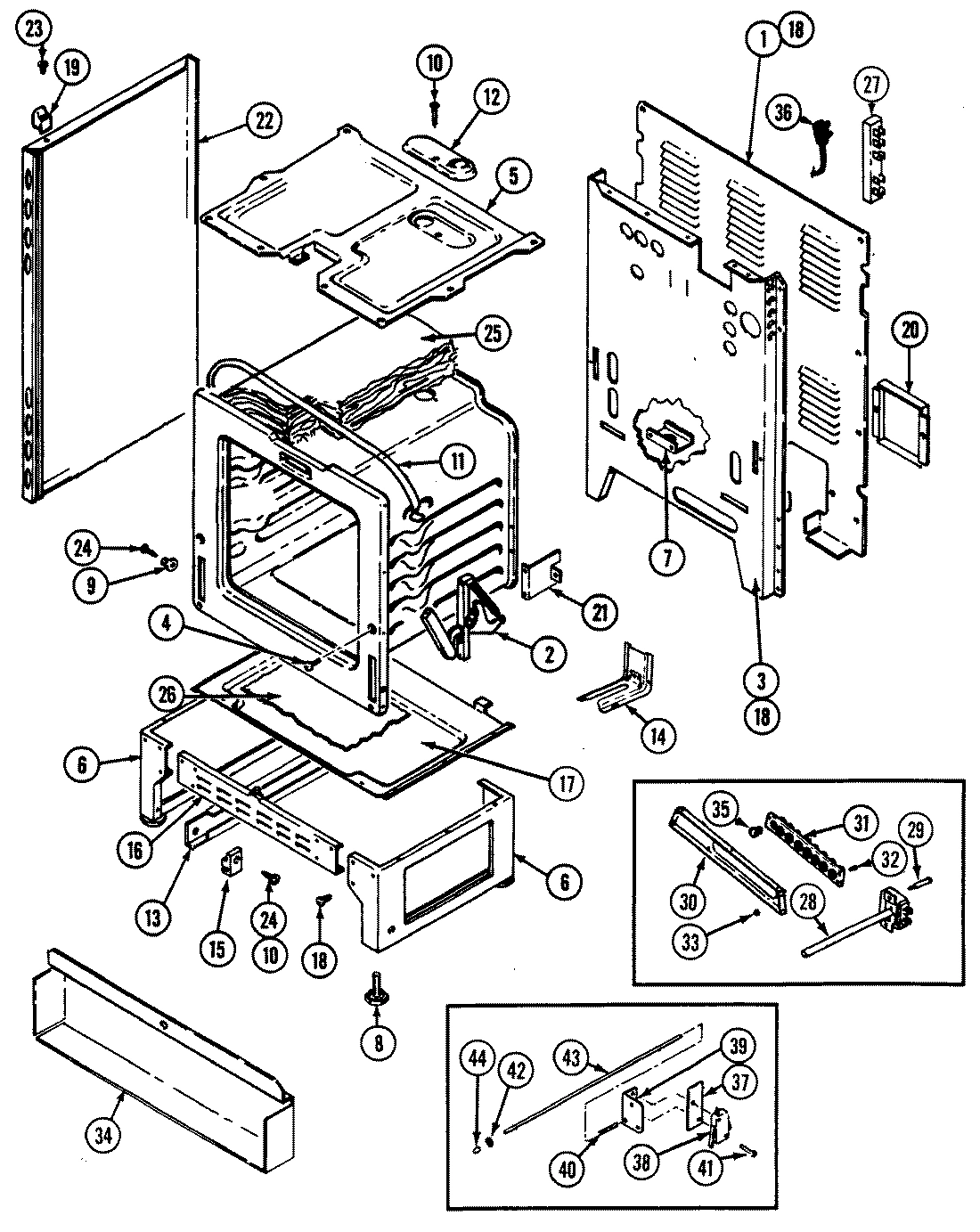

01 - BODY

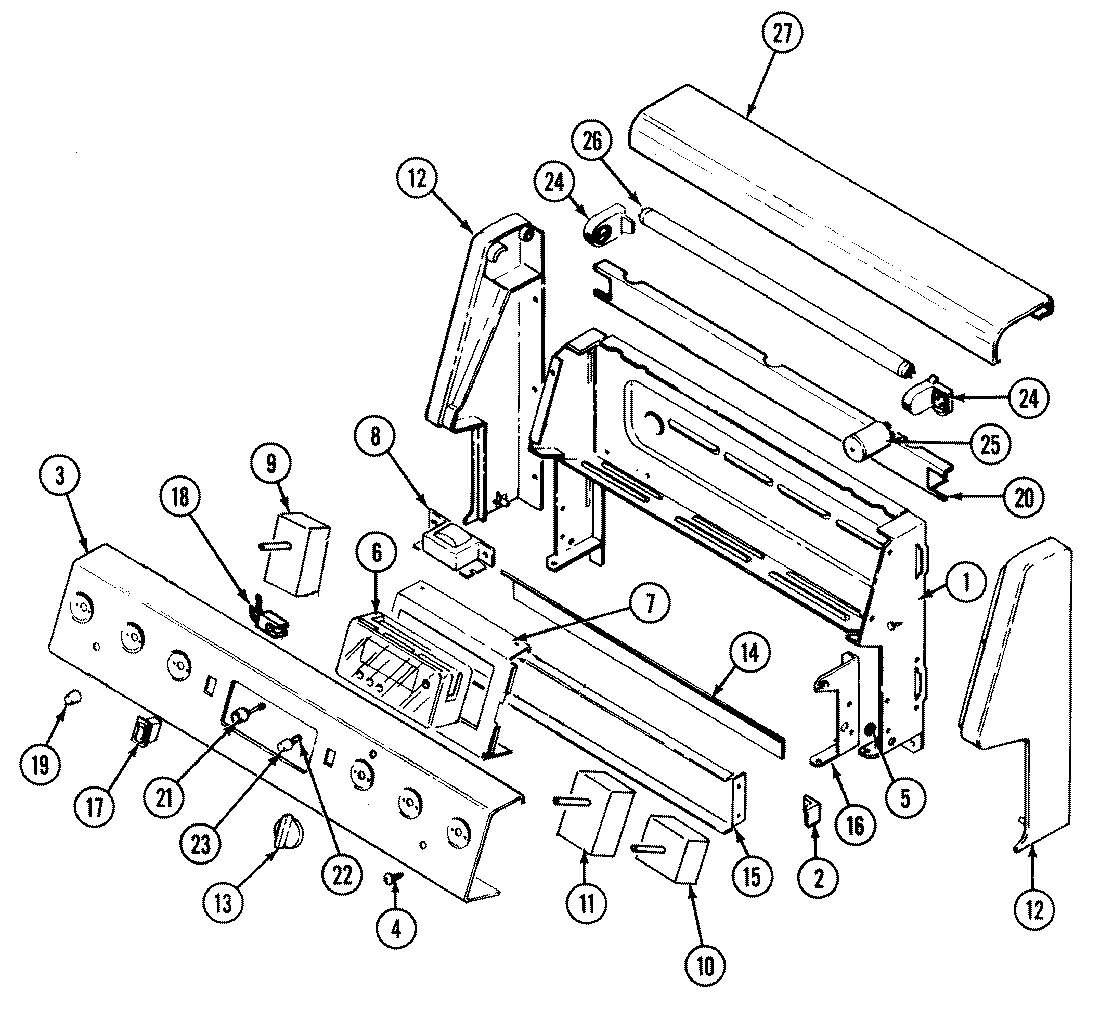

02 - CONTROL PANEL (CRE7700ADE)

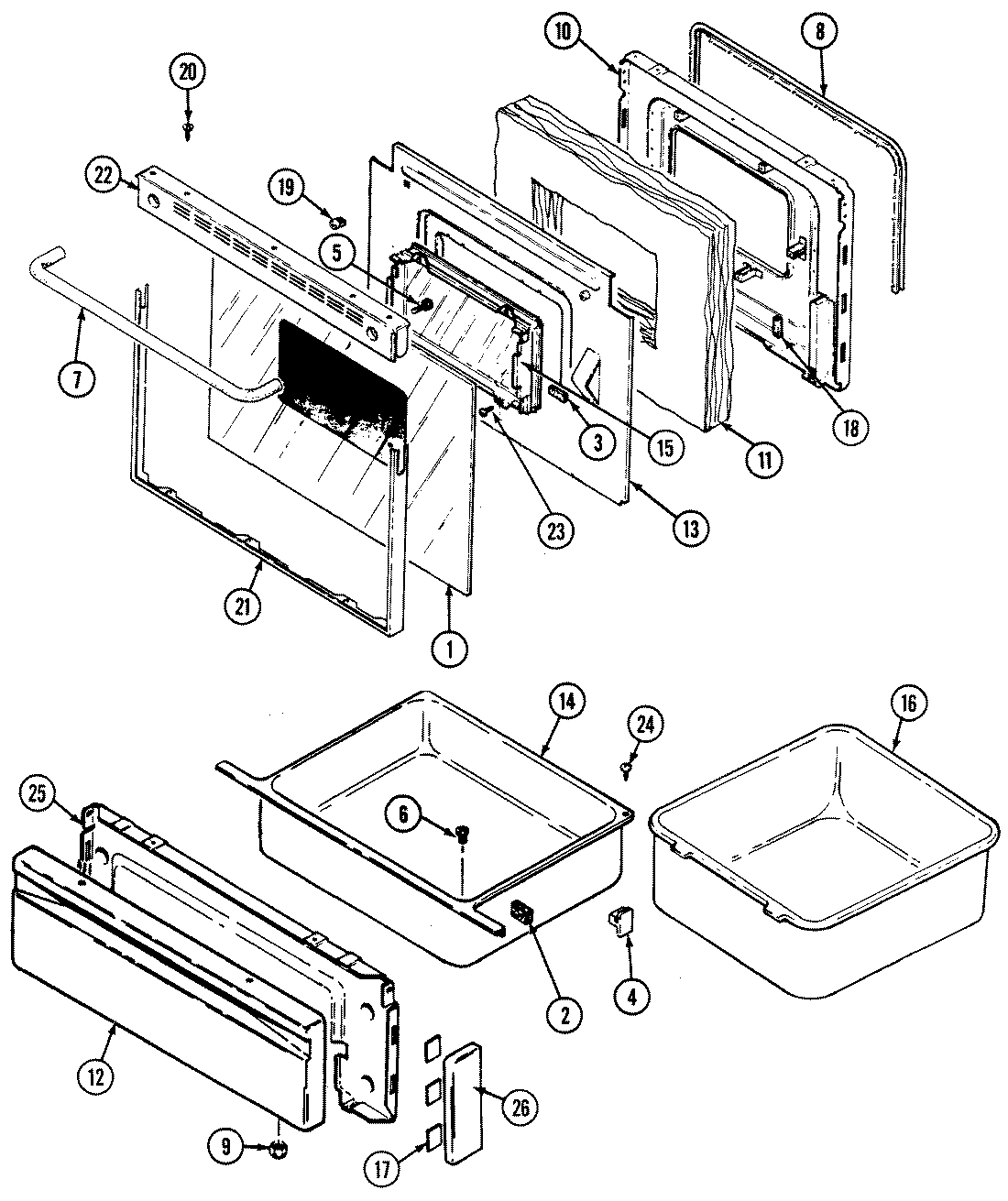

03 - DOOR/DRAWER
05 - TOP ASSEMBLY

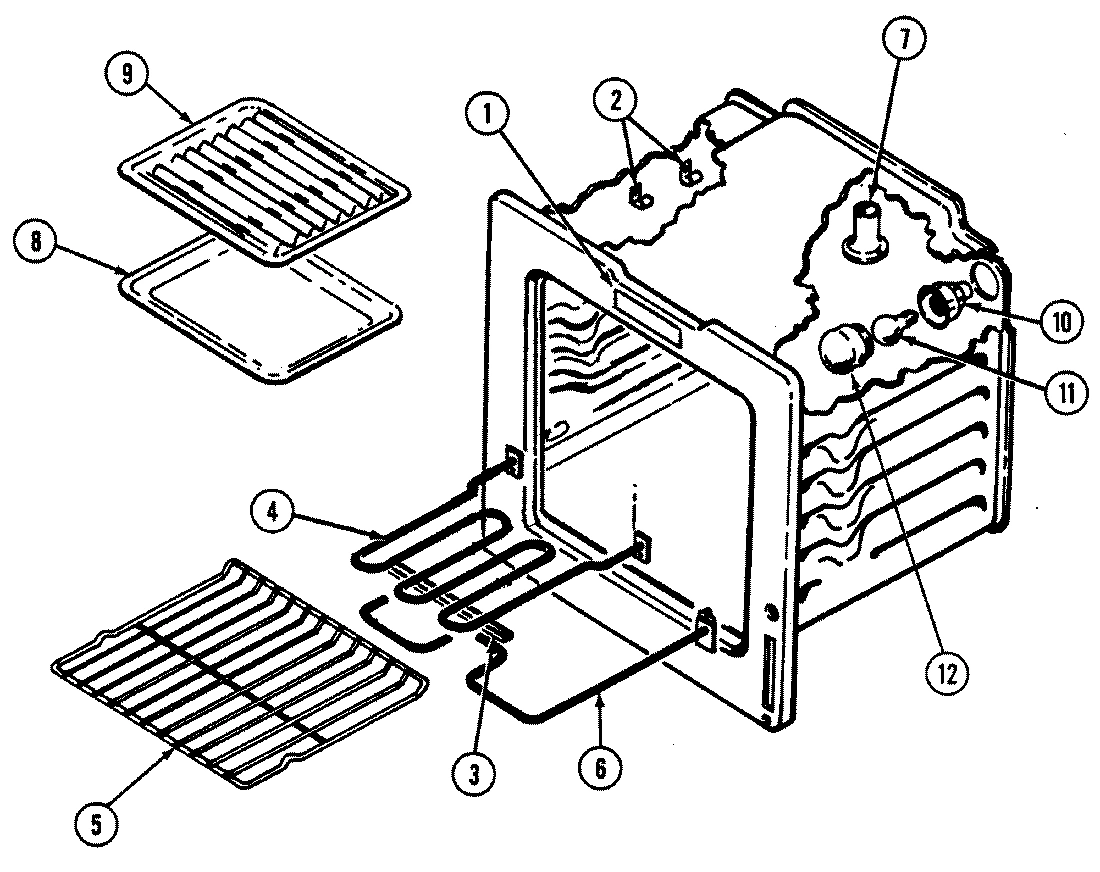

04 - OVEN
Common parts from model Whirlpool CRE7700ADE ELECTRIC RANGE
1
COVER, MAIN BACK WIRE WPL 4005F38151 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09451 Contact Us For Availability
1
NUT, SNAP WPL 7103P13660 Contact Us For Availability
1
GLASS, DOOR (WHT) WPL 7902P36060 Contact Us For Availability
1
BOWL, DRIP (6``) (BLK) WPL 7725P03660 Contact Us For Availability
1
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
2
HINGE, DOOR WPL 7106P04860 Contact Us For Availability
2
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
2
SPACER WPL 8010P08360 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08660 Contact Us For Availability
2
BOWL, DRIP (8``-BLK) WPL 7725P03760 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
3
BACK, MAIN WPL 4002F18980 Contact Us For Availability
3
SCREW WPL 7101P33460 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
ELEMENT (6``) WPL 7406P06960 Contact Us For Availability
3
ELEMENT (6``) WPL 7406P08160 Contact Us For Availability
3
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
4
SCREW WPL 7118P01960 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P07060 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P08060 Contact Us For Availability
4
ELEMENT, BROIL WPL 7406P07260 Contact Us For Availability
5
BOX, BURNER WPL 4011F20819 Contact Us For Availability
5
SCREW WPL 7101P32660 Contact Us For Availability
5
RACK----NA WPL 7801P03960 Contact Us For Availability
6
SCREW WPL 7101P11560 Contact Us For Availability
6
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
6
SCREW WPL 7101P29060 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
CLOCK WPL 7601P22760 Contact Us For Availability
6
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
7
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
7
BRACKET, CLOCK WPL 3801F27245 Contact Us For Availability
7
HANDLE, DOOR----NA WPL 7701P12860 Contact Us For Availability
7
TUBE, VENT WPL 8026P01960 Contact Us For Availability
8
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
8
BALLAST WPL 7412P00760 Contact Us For Availability
8
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
8
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
8
END CAP (RT-CHR)----NA WPL 7746P03460 Contact Us For Availability
8
END CAP (LT-CHR) WPL 7746P03560 Contact Us For Availability
8
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
9
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
9
SWITCH WPL 7403P25460 Contact Us For Availability
9
NUT, LOCK WPL 7103P08560 Contact Us For Availability
9
GLIDE WPL 8016P01360 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
10
SCREW WPL 7101P10360 Contact Us For Availability
10
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
10
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
10
LINING, DOOR WPL 2402W20319 Contact Us For Availability
10
SUPPORT, HOUSING (RT) WPL 3807F42351 Contact Us For Availability
10
SUPPORT, HOUSING (LT) WPL 3807F42451 Contact Us For Availability
10
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
10
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
11
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
11
THERMOSTAT WPL 7404P08160 Contact Us For Availability
11
INSULATION, DOOR WPL 4804F03360 Contact Us For Availability
11
HARNESS, COIL TOP WPL 5175D07160 Contact Us For Availability
11
RING, TRIM (6``) WPL 7744P05360 Contact Us For Availability
11
RING, TRIM (8``) WPL 7744P05460 Contact Us For Availability
11
BULB, OVEN WPL 7407P09560 Contact Us For Availability
12
COVER, VENT WPL 4005F43245 Contact Us For Availability
12
END CAP, CONTROL PANEL WPL 7726P06560 Contact Us For Availability
12
END CAP, CONTROL PANEL WPL 7726P06660 Contact Us For Availability
12
COVER, BULB WPL 7724P04760 Contact Us For Availability
13
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
13
SCREW WPL 7101P30960 Contact Us For Availability
13
KNOB, VALVE (WHT) WPL 7737P03760 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
14
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
14
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
14
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
15
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
15
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
HINGE, MAIN TOP (RT) WPL 3418A08734 Contact Us For Availability
16
HINGE, MAIN TOP (LT) WPL 3418A08834 Contact Us For Availability
16
BASKET, DRAWER WPL 8312P07360 Contact Us For Availability
17
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
17
SWITCH, ROCKER (WHT) WPL 7403P31060 Contact Us For Availability
18
LIGHT, INDICATOR WPL 7407P07760 Contact Us For Availability
18
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
18
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
19
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
19
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
19
LENS, INDICATOR LIGHT WPL 7730P01060 Contact Us For Availability
19
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
19
NUT, NYLON WPL 7103P04560 Contact Us For Availability
20
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
20
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
21
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
21
KNOB, CLOCK (BUTTON-WHT) WPL 7711P42060 Contact Us For Availability
21
SCREW WPL 7101P32160 Contact Us For Availability
21
FRAME, DOOR (WHT) WPL 7706P29860 Contact Us For Availability
22
PANEL, SIDE (WHT) WPL 2618F08571 Contact Us For Availability
22
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
22
PANEL, SIDE (WHT) WPL 2618F09971 Contact Us For Availability
22
PANEL, SIDE (ALM) WPL 2618F09974 Contact Us For Availability
22
SHAFT, BIT GENERATOR WPL 8312P01960 Contact Us For Availability
22
TRIM, TOP WPL 7744P08960 Contact Us For Availability
23
KNOB, CLOCK WPL 7711P47960 Contact Us For Availability
24
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
24
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
24
COVER, WIRE (LIGHT) WPL 7724P06660 Contact Us For Availability
24
SCREW WPL 7101P32960 Contact Us For Availability
25
INSULATION, OVEN BACK WPL 4804F03160 Contact Us For Availability
25
INSULATION, OVEN WRAPPER WPL 4804F03260 Contact Us For Availability
25
STARTER WPL 7415P00160 Contact Us For Availability
25
LINING, DRAWER WPL 2404F03380 Contact Us For Availability
26
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
26
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
26
END CAP (WHT) WPL 7744P09360 Contact Us For Availability
27
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
27
COVER, LAMP WPL 7724P06060 Contact Us For Availability
28
THERMOSTAT, REDUNDANT WPL 7404P05760 Contact Us For Availability
29
SCREW STANDOFF WPL 7118P02060 Contact Us For Availability
30
BRACKET, FUSE WPL 3801F30980 Contact Us For Availability
31
BLOCK, FUSE WPL 7401P03160 Contact Us For Availability
32
SCREW WPL 7101P06860 Contact Us For Availability
33
SCREW WPL 7101P26360 Contact Us For Availability
33
NUT WPL 7103P06460 Contact Us For Availability
34
COVER, FUSE BLOCK WPL 4005F41751 Contact Us For Availability
35
FUSE, 125V 20A WPL 7416P00560 Contact Us For Availability
35
FUSE, 125V 15A WPL 7416P00660 Contact Us For Availability
36
CORD, POWER WPL 7402P03660 Contact Us For Availability
37
INSULATOR, SWITCH WPL 7003P04760 Contact Us For Availability
38
SWITCH, MICRO WPL 7403P28160 Contact Us For Availability
39
BRACKET, LIGHT SWITCH WPL 3801F31651 Contact Us For Availability
40
SPRING WPL 7803P06760 Contact Us For Availability
41
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
42
WASHER WPL 7109P02060 Contact Us For Availability
43
ROD, LIGHT SWITCH WPL 7809P01760 Contact Us For Availability
44
HARNESS, FUSE WPL 5175D08060 Contact Us For Availability
44
BUMPER WPL 8003P01260 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
WIRES, LOOSE WPL 5125A34760 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D15660 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8111P00360 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8111P01860 Contact Us For Availability
× ![]()
