Model Whirlpool CRE355 ELECTRIC RANGE – Common Parts & Diagrams

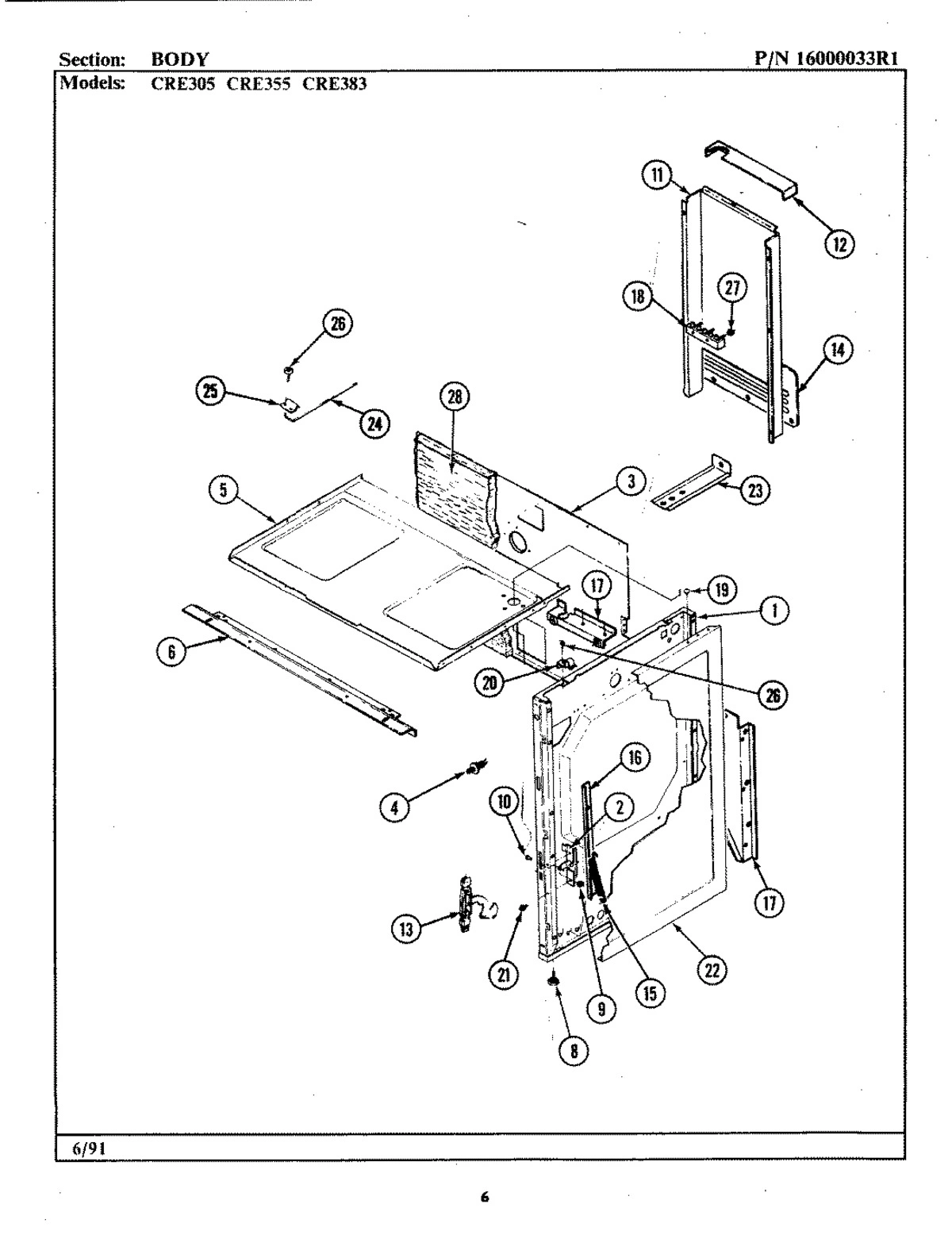

01 - BODY

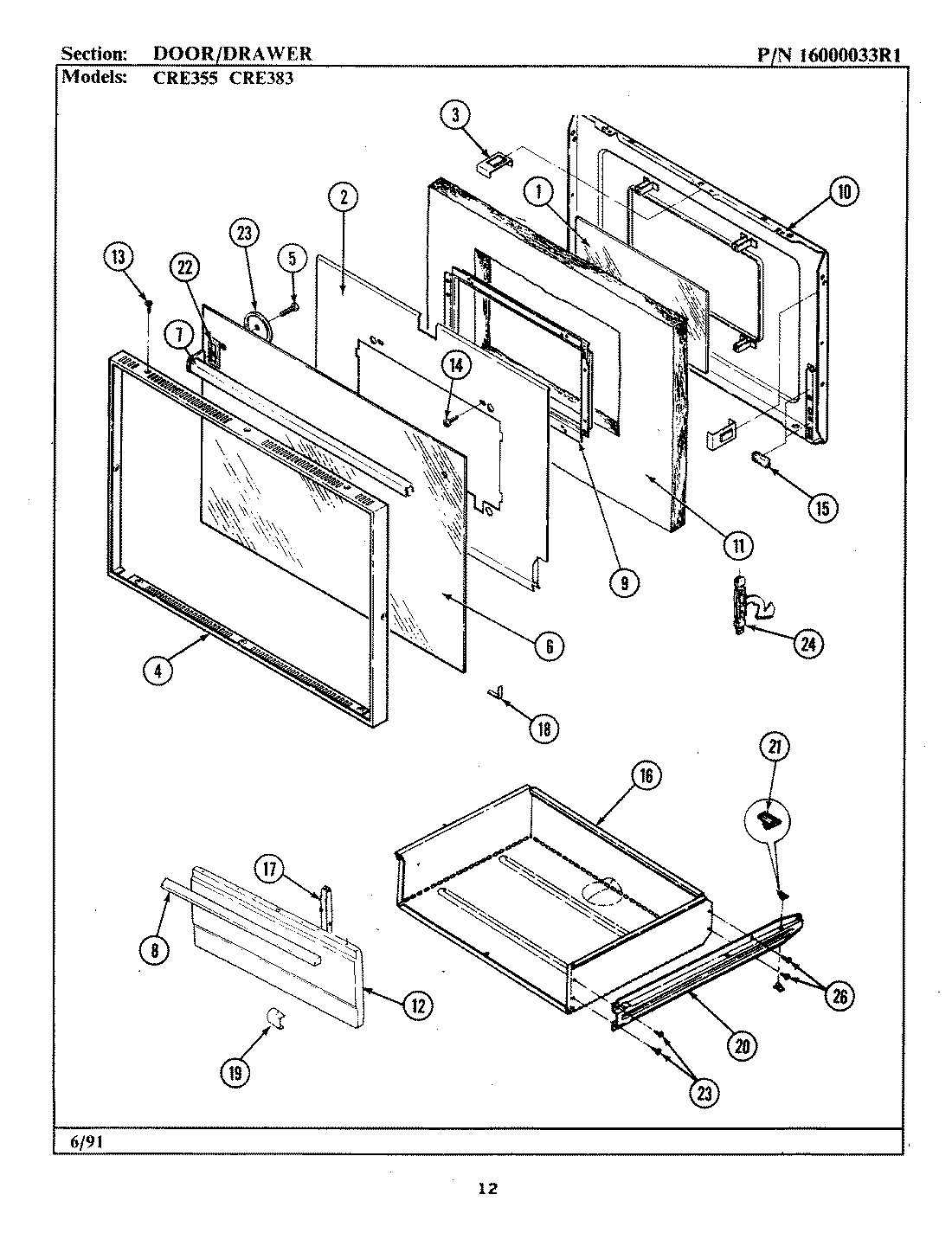

03 - DOOR/DRAWER

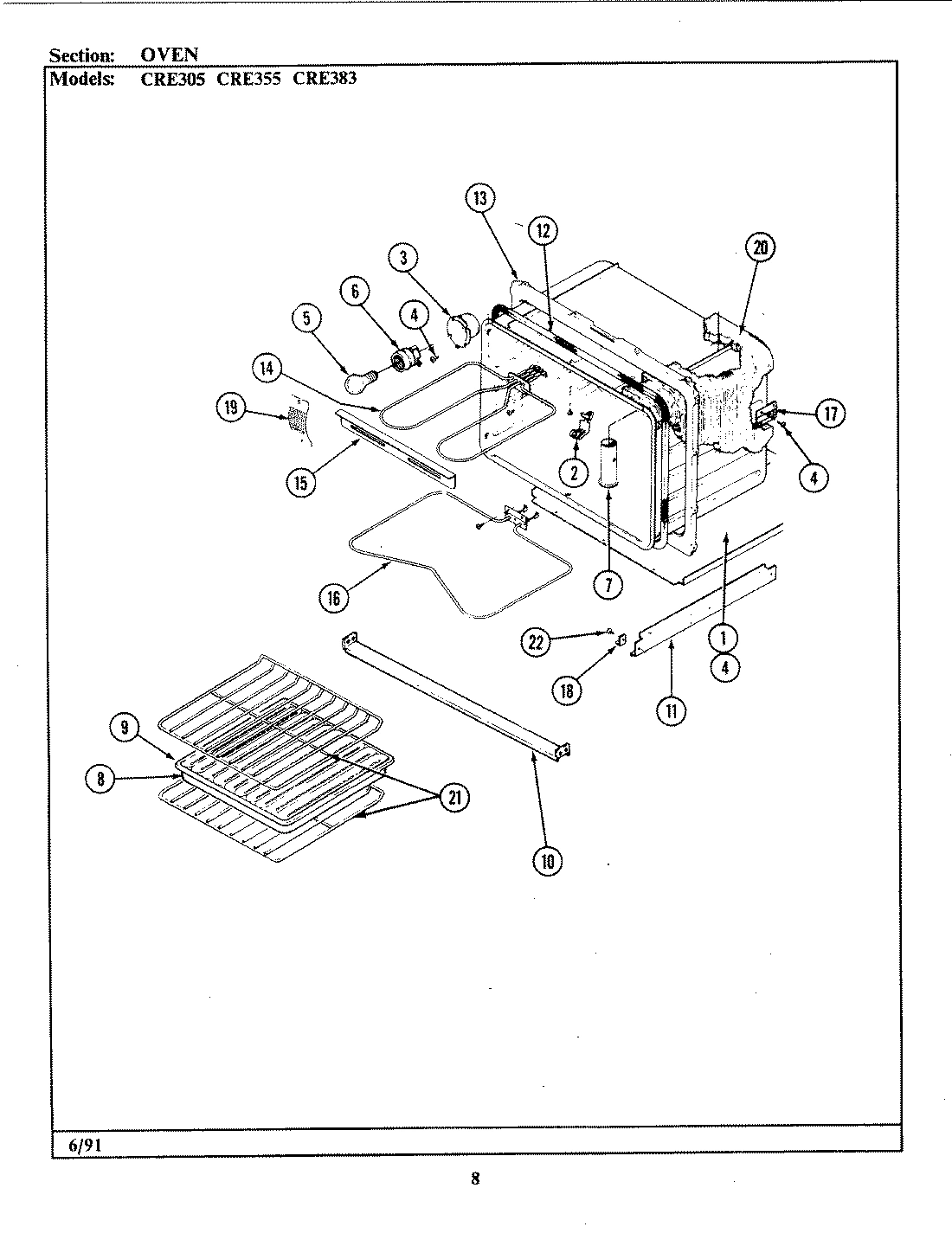

04 - OVEN

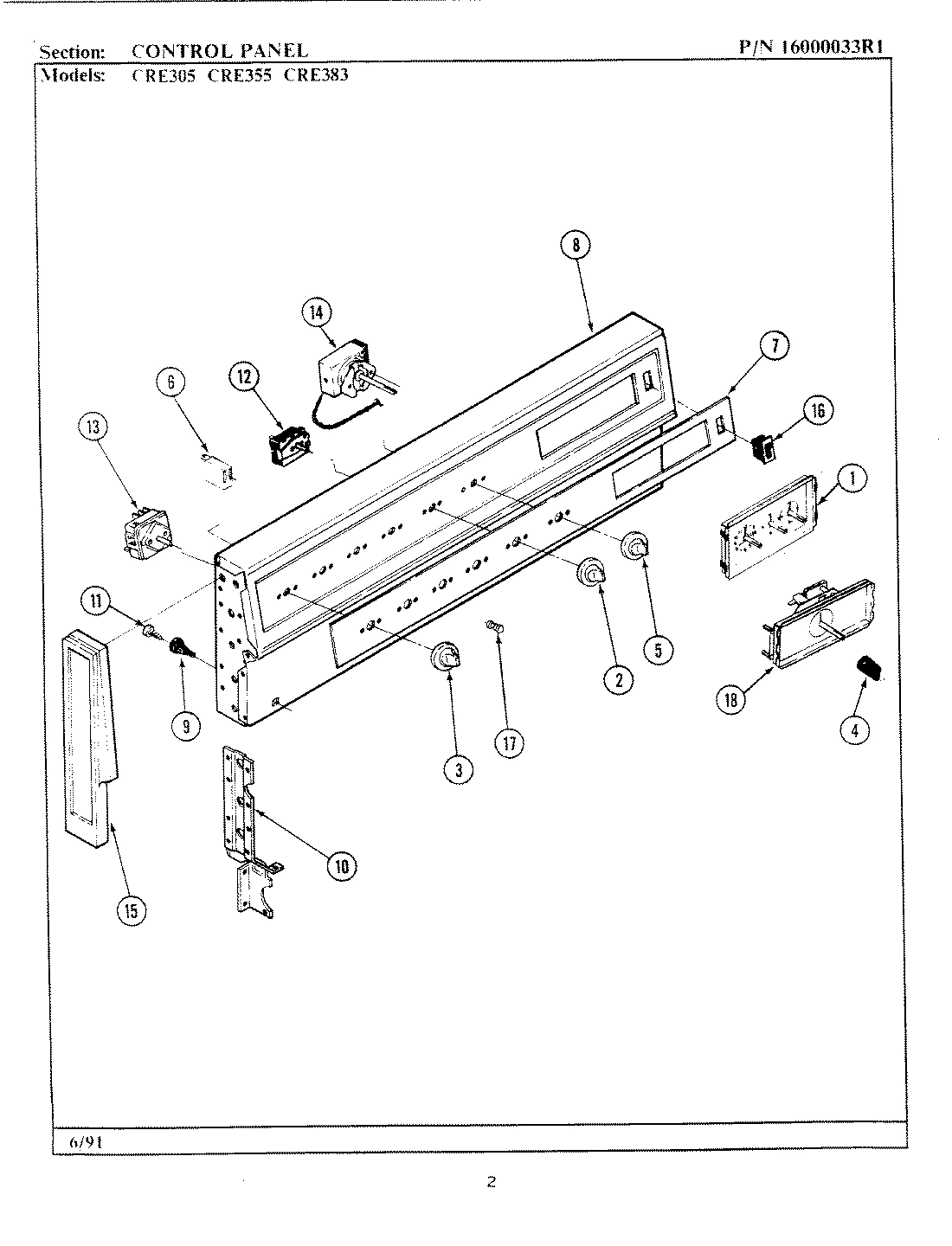

02 - CONTROL PANEL

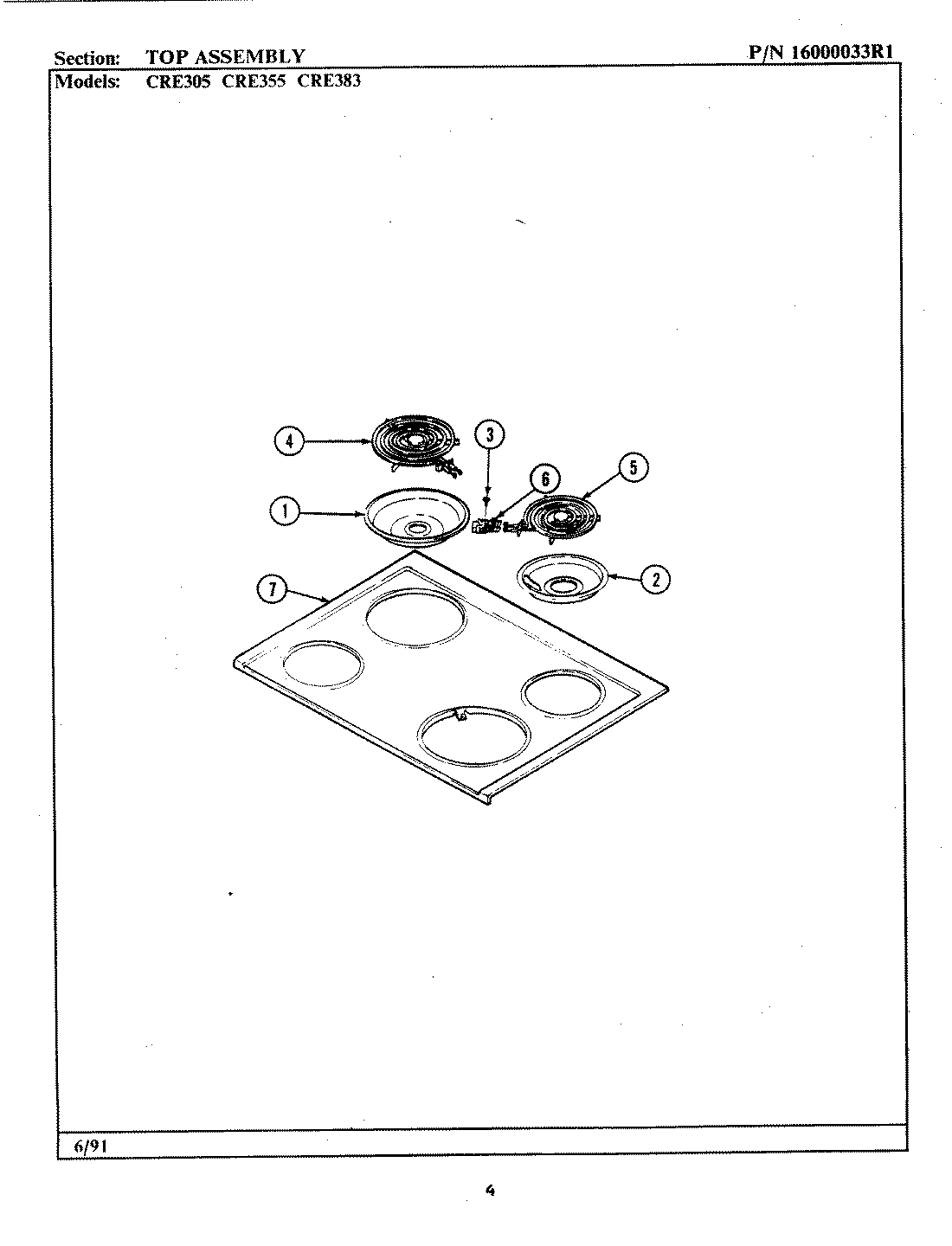

05 - TOP ASSEMBLY
Common parts from model Whirlpool CRE355 ELECTRIC RANGE
1
LINING ASSY, INNER SIDE WPL 4009W02980 Contact Us For Availability
1
LINING ASSY, INNER SIDE WPL 4009W03580 Contact Us For Availability
1
NUT, NYLON WPL 7103P04560 Contact Us For Availability
1
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
1
RETAINER, BOTTOM INS. WPL 3804F09380 Contact Us For Availability
1
RETAINER, BOTTOM INSULATION WPL 3804F10280 Contact Us For Availability
1
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
2
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
2
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
2
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
2
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
2
KNOB, SELECTOR WPL 7739P02960 Contact Us For Availability
2
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
3
BACK, MAIN WPL 4002F10880 Contact Us For Availability
3
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
3
KNOB, CONTROL WPL 7737P02460 Contact Us For Availability
3
SCREW WPL 7118P01060 Contact Us For Availability
4
SWITCH, PUSH (OVEN LAMP) WPL 7403P10560 Contact Us For Availability
4
FRAME, DOOR WPL 7706P24660 Contact Us For Availability
4
KNOB, CLOCK WPL 7711P35960 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P05960 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P06360 Contact Us For Availability
4
ELEMENT (8``) WPL 7406P07060 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F12823 Contact Us For Availability
5
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
5
BULB, OVEN WPL 7407P02660 Contact Us For Availability
5
KNOB, THERMOSTAT WPL 7735P02560 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P06060 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P06260 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P06960 Contact Us For Availability
6
FRAME, BURNER BOX WPL 4012F00780 Contact Us For Availability
6
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
6
GLASS, OVEN DOOR WPL 7902P29760 Contact Us For Availability
6
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
6
LIGHT, INDICATOR WPL 7407P07760 Contact Us For Availability
7
HANDLE, DOOR WPL 7701P04560 Contact Us For Availability
7
TUBE, OVEN VENT WPL 8026P00360 Contact Us For Availability
7
TRIM WPL 7703P21860 Contact Us For Availability
7
TOP, MAIN (WHITE) WPL 2002W02881 Contact Us For Availability
7
TOP ASSY, MAIN WPL 2002W02884 Contact Us For Availability
7
BRACE, MAIN TOP WPL 3802F02980 Contact Us For Availability
7
SCREW WPL 7118P00460 Contact Us For Availability
8
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
8
HANDLE, DRAWER WPL 7701P08460 Contact Us For Availability
8
PAN, BROILER WPL 3401F01519 Contact Us For Availability
8
PAN, BROIL WPL 3401F01523 Contact Us For Availability
8
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
PANEL, WHT WPL 2601W28181 Contact Us For Availability
8
PANEL, ALM WPL 2601W28184 Contact Us For Availability
8
COVER, BKGD WIRE WPL 4005F00480 Contact Us For Availability
9
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
9
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
9
INSERT PAN WPL 3413F01219 Contact Us For Availability
9
TRAY, BROILER WPL 3413F01223 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
10
PIN, HINGE WPL 7113P00260 Contact Us For Availability
10
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
10
LINING, OVEN DOOR WPL 2402W15419 Contact Us For Availability
10
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
10
SUPPORT BKGD LF WPL 3807W35551 Contact Us For Availability
10
SUPPORT BKGD RT WPL 3807W35651 Contact Us For Availability
10
SCREW WPL 7101P07460 Contact Us For Availability
11
HOUSING, WIRE WPL 4011F05180 Contact Us For Availability
11
INSULATION, DOOR WPL 7002P01260 Contact Us For Availability
11
RUNNER,OUTER WPL 3406F02551 Contact Us For Availability
11
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
11
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
12
COVER, HOUSING WPL 4005F08280 Contact Us For Availability
12
PANEL, DRAWER (BLK) WPL 2416F02970 Contact Us For Availability
12
PANEL, DRAWER WHT WPL 2416F02971 Contact Us For Availability
12
PANEL, DRAWER ALM WPL 2416F02974 Contact Us For Availability
12
SEAL, OVEN WPL 7212P00260 Contact Us For Availability
12
SWITCH, SELECTOR WPL 7403P17160 Contact Us For Availability
13
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
13
FRAME, LWR OVEN WPL 2201F06019 Contact Us For Availability
13
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
13
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
13
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
13
SWITCH, INF. 250V WPL 7403P18160 Contact Us For Availability
13
SWITCH, INFINITE (1400W) WPL 7403P26260 Contact Us For Availability
13
SWITCH, INFINITE (2400W) WPL 7403P26360 Contact Us For Availability
14
COVER ACCESS WPL 4005F30251 Contact Us For Availability
14
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
14
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
14
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
14
THERMOSTAT WPL 7404P02960 Contact Us For Availability
15
SPRING, OV DR WPL 7803P05560 Contact Us For Availability
15
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
15
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
15
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
15
END CAP, BACKGUARD (LT-CHR) WPL 7726P01060 Contact Us For Availability
15
END CAP, BACKGUARD (RT-CHR) WPL 7726P02160 Contact Us For Availability
16
BAFFLE, OVEN DOOR WPL 3601F16180 Contact Us For Availability
16
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
16
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
16
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
16
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
16
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
17
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
17
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
17
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
17
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
17
LENS, INDICATOR LIGHT WPL 7730P00760 Contact Us For Availability
18
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
18
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
18
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
18
CLOCK, AUTOMATIC WPL 7601P13560 Contact Us For Availability
18
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
19
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
19
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
19
SCREW WPL 7101P06160 Contact Us For Availability
19
BRACKET WPL 3801F03151 Contact Us For Availability
19
SHIELD WPL 3604F01745 Contact Us For Availability
20
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
20
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
20
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
20
INSULATION, WRAPPER WPL 7002P04060 Contact Us For Availability
21
SCREW WPL 7101P11260 Contact Us For Availability
21
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
21
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
21
RACK, OVEN WPL 7801P03060 Contact Us For Availability
22
PANEL, SIDE BLACK WPL 2618F05270 Contact Us For Availability
22
PANEL, SIDE (WHT) WPL 2618F05271 Contact Us For Availability
22
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
22
PANEL, SIDE (BLACK) WPL 2618F07370 Contact Us For Availability
22
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
22
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
22
SPACER, DOOR HANDLE WPL 8010P05260 Contact Us For Availability
22
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
23
BRACKET, TIE DOWN WPL 3801F19845 Contact Us For Availability
23
SPACER, BAFFLE WPL 8010P05160 Contact Us For Availability
24
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
24
PROP, MAIN TOP WPL 3807F22634 Contact Us For Availability
25
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
27
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
28
INSULATION, REAR WPL 7002P02860 Contact Us For Availability
NI
PLATE,CONDUIT WPL 3605F15651 Contact Us For Availability
NI
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
NI
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
NI
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
× ![]()
