Model Whirlpool CRD22EY-3A REFRIGERATOR – Common Parts & Diagrams

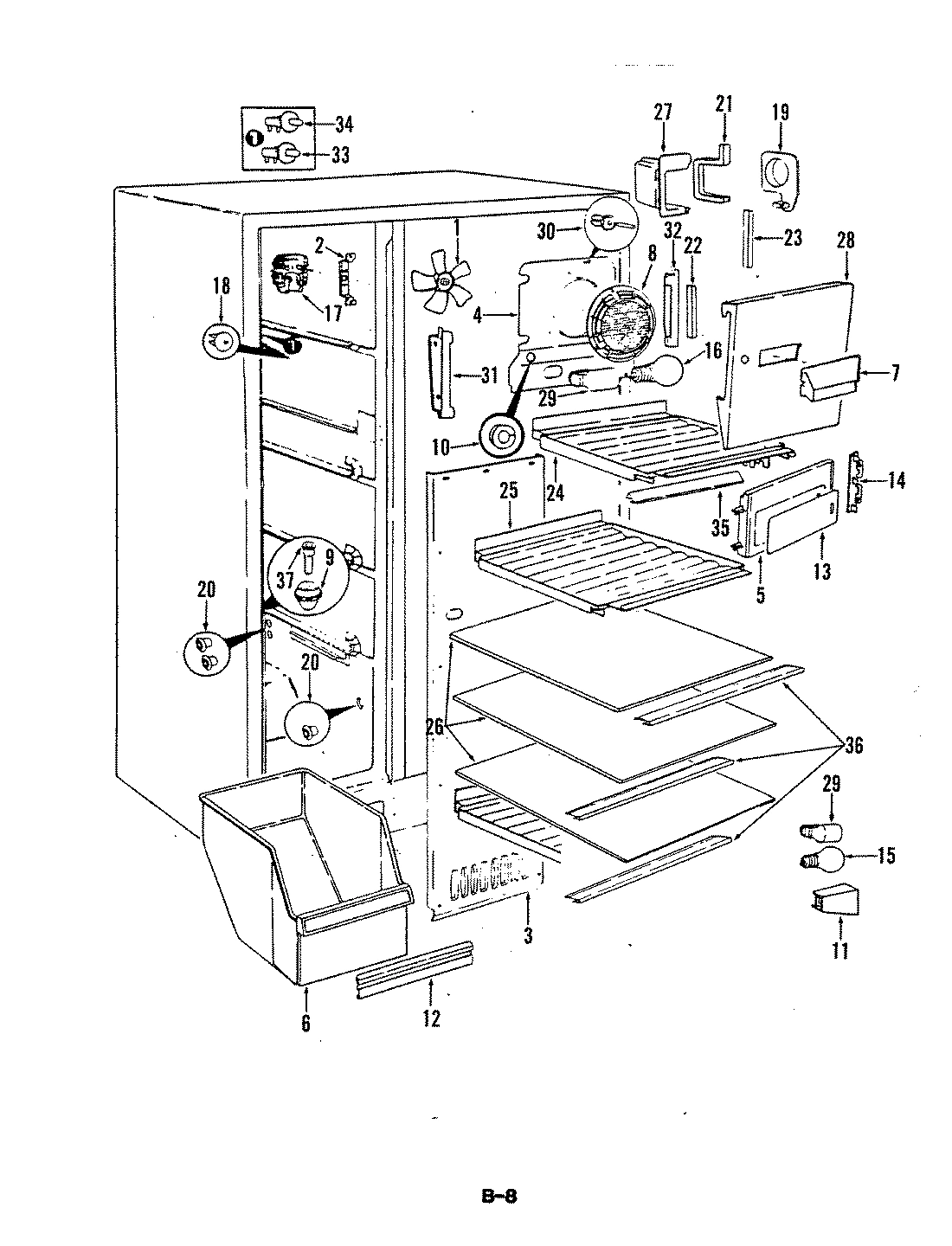

01 - FREEZER COMPARTMENT
04 - FRESH FOOD DOOR
03 - FRESH FOOD COMPARTMENT
05 - UNIT COMPARTMENT & SYSTEM
02 - FREEZER DOOR
Common parts from model Whirlpool CRD22EY-3A REFRIGERATOR
1
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
1
BRACKET, CLOSER WPL 526141 Contact Us For Availability
1
BUSHING, UPPER HINGE WPL 660362 Contact Us For Availability
1
DAMPER WPL 525872 Contact Us For Availability
1
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
2
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
2
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
2
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
2
BOARD, TERMINAL WPL 558781 Contact Us For Availability
3
COVER, COIL WPL 6522410 Contact Us For Availability
3
BRACKET, WHEEL WPL 627941 Contact Us For Availability
3
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
3
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
4
CUP, SHELF WPL 603131 Contact Us For Availability
4
COVER, COIL WPL 6269036 Contact Us For Availability
4
DIVIDER WPL 656232 Contact Us For Availability
4
MULLION WPL 590261HW Contact Us For Availability
4
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
4
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
5
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
5
IM DOOR WPL 656291 Contact Us For Availability
5
DOOR, DAIRY WPL 65589204 Contact Us For Availability
5
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
5
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
5
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
6
DRAWER, FRZ. WPL 655774 Contact Us For Availability
6
CLIP WPL 653581 Contact Us For Availability
6
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
7
IM DUCT WPL 656521 Contact Us For Availability
7
CLOSER, DOOR WPL 544851 Contact Us For Availability
7
CLIP WPL 621651 Contact Us For Availability
8
FAN GRID WPL 626891 Contact Us For Availability
8
SHELF FRONT WPL 657814 Contact Us For Availability
8
CLIP WPL 566864 Contact Us For Availability
8
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
9
GROMMET WPL 525261 Contact Us For Availability
9
GASKET WPL 537122 Contact Us For Availability
9
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
9
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
10
BUSHING WPL 590901 Contact Us For Availability
10
HANDLE WPL 636863 Contact Us For Availability
10
CONTROL, TEMPERATURE WPL 652682 Contact Us For Availability
10
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
10
END CAP WPL 579472 Contact Us For Availability
11
GUARD WPL 521971 Contact Us For Availability
11
HINGE, LOWER WPL 6063012 Contact Us For Availability
11
COVER, MEAT PAN WPL 656082 Contact Us For Availability
11
CLIP, OVERLOAD WPL 651901 Contact Us For Availability
11
END CAP WPL 579471 Contact Us For Availability
12
INSERT WPL 6558320 Contact Us For Availability
12
INSERT WPL 6558331 Contact Us For Availability
12
AIR DEFLECTOR WPL 621281 Contact Us For Availability
12
CLIP, TERMINAL COVER WPL 651911 Contact Us For Availability
12
SHELF FRONT WPL 657018 Contact Us For Availability
13
INSERT WPL 656284 Contact Us For Availability
13
FRAME, SHELF WPL 656182 Contact Us For Availability
13
EVAPORATOR WPL RA436434 Contact Us For Availability
13
GASKET WPL 5371215 Contact Us For Availability
14
IM ENCL LATCH WPL 656301 Contact Us For Availability
14
LINER, DOOR WPL 656403 Contact Us For Availability
14
GROMMET WPL 555121 Contact Us For Availability
14
COMPRESSOR WPL RA990 Contact Us For Availability
14
GASKET WPL 537128 Contact Us For Availability
15
NAMEPLATE WPL 657911 Contact Us For Availability
15
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
15
CONDENSER WPL RA436444 Contact Us For Availability
15
HANDLE WPL 5683537 Contact Us For Availability
16
PANEL, OUTER DOOR WPL 6239113HW Contact Us For Availability
16
HOUSING, LIGHT SOCKET & WIRES WPL 597402 Contact Us For Availability
16
CORD, POWER WPL 528902 Contact Us For Availability
16
HANDLE WPL 5683538 Contact Us For Availability
17
MOTOR, FAN FREEZER WPL 564883 Contact Us For Availability
17
CONTROL HOUSING WPL 657371 Contact Us For Availability
17
SLEEVE WPL 2608811 Contact Us For Availability
17
COVER, TERMINAL WPL 651891 Contact Us For Availability
17
HINGE WPL 543906 Contact Us For Availability
18
NUT WPL 538211 Contact Us For Availability
18
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
18
COVER WPL 632131 Contact Us For Availability
18
HINER, LOWER (CHROME) WPL 6063010 Contact Us For Availability
19
ORIFICE WPL 544231 Contact Us For Availability
19
UPPER HINGE,(CHROME) WPL 5370916 Contact Us For Availability
19
INSERT WPL 6558317 Contact Us For Availability
19
BAFFLE WPL 298384 Contact Us For Availability
20
SCREW WPL 4000151 Contact Us For Availability
20
SCREW WPL 4000221 Contact Us For Availability
20
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
20
INSERT WPL 655719 Contact Us For Availability
20
INSERT WPL 6558319 Contact Us For Availability
21
SEAL WPL 5207710 Contact Us For Availability
21
INSERT WPL 6558318 Contact Us For Availability
21
GROMMET WPL 172453 Contact Us For Availability
21
KICKPLATE WPL 564778 Contact Us For Availability
22
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
22
INSULATION, HOUSING WPL 587671 Contact Us For Availability
22
GROMMET, BRACKET WPL 569331 Contact Us For Availability
22
LINER, DOOR WPL 656964 Contact Us For Availability
23
COIL SEAL WPL 528246 Contact Us For Availability
23
INSERT WPL 657533 Contact Us For Availability
23
HEAT EXCHANGER WPL RA436454 Contact Us For Availability
23
LINER, DOOR WPL 656954 Contact Us For Availability
24
SHELF, FRZ. WPL 656518 Contact Us For Availability
24
TRAY, BUTTER WPL 299362 Contact Us For Availability
24
INSERT WPL 657537 Contact Us For Availability
24
HEATER, DEFROST WPL 5276414 Contact Us For Availability
24
OUTER PANEL WPL 5558345HW Contact Us For Availability
25
SHELF, FRZ. WPL 656517 Contact Us For Availability
25
TRAY, EGG WPL 600665 Contact Us For Availability
25
KNOB WPL 298936 Contact Us For Availability
25
HOSE, DRAIN WPL 2691118 Contact Us For Availability
25
PANEL, DOOR WPL 5558328HW Contact Us For Availability
26
GLASS SHELF WPL 6559818 Contact Us For Availability
26
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
26
KNOB WPL 298935 Contact Us For Availability
26
HOUSING, FREEZER COIL WPL 650331 Contact Us For Availability
27
SHIELD WPL 538371 Contact Us For Availability
27
HANDLE EXT WPL 657745 Contact Us For Availability
27
HANDLE EXT WPL 657746 Contact Us For Availability
27
LEG, LEVELING WPL 60128 Contact Us For Availability
27
FAN MOTOR WPL 280569 Contact Us For Availability
27
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
27
TAPPING PLATE WPL 540312 Contact Us For Availability
28
SHIELD, LIGHT WPL 656542 Contact Us For Availability
28
TAPPING PLATE, LOWER HINGE WPL 659641 Contact Us For Availability
28
TRIM WPL 6577313 Contact Us For Availability
28
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
28
OVERLOAD WPL 5306772 Contact Us For Availability
29
SCREW WPL 4030625 Contact Us For Availability
29
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
29
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
29
SCREW WPL 998687 Contact Us For Availability
29
WASHER WPL 542331 Contact Us For Availability
29
NYLON NUT WPL 195302 Contact Us For Availability
29
PAN, DRAIN WPL 298394 Contact Us For Availability
29
SCREW WPL 4020777 Contact Us For Availability
29
SCREW WPL 9986110 Contact Us For Availability
29
SCREW WPL 9986122 Contact Us For Availability
30
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
30
SEAL SLEEVE WPL 559901 Contact Us For Availability
30
WASHER WPL 521851 Contact Us For Availability
30
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
30
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
31
SUPPORT WPL 536872 Contact Us For Availability
31
FASTENER WPL 434003506 Contact Us For Availability
31
INSERT WPL 655834 Contact Us For Availability
31
REFLECTOR WPL 2991512 Contact Us For Availability
31
SPACER WPL 543864 Contact Us For Availability
32
SUPPORT WPL 544242 Contact Us For Availability
32
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
32
PAN, DELI WPL 655764 Contact Us For Availability
32
SCREW WPL 4000171 Contact Us For Availability
32
SCREW WPL 4050071 Contact Us For Availability
32
SCREW WPL 641391 Contact Us For Availability
32
RELAY WPL 9286106 Contact Us For Availability
33
SWITCH WPL 564321 Contact Us For Availability
33
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
33
PAN, MEAT WPL 655754 Contact Us For Availability
33
SEAL,HOUSING TO LINER WPL 520779 Contact Us For Availability
34
PIN, WHEEL WPL 649651 Contact Us For Availability
34
SEAL WPL 640777 Contact Us For Availability
35
TRIM WPL 655682 Contact Us For Availability
35
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
35
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
36
TRIM, SHELF WPL 65561411 Contact Us For Availability
36
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
36
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
37
DRAIN TUBE WPL 265275 Contact Us For Availability
37
WIRE HARNESS WPL 651362 Contact Us For Availability
37
RACK, WINE WPL 565194 Contact Us For Availability
37
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
38
CLIP WPL 530604 Contact Us For Availability
38
RAIL, SLIDE WPL 656041 Contact Us For Availability
38
TIMER WPL 541134 Contact Us For Availability
39
SCREW WPL 4000271 Contact Us For Availability
39
SCREW WPL 40003728 Contact Us For Availability
39
SCREW WPL 402005103 Contact Us For Availability
39
RETAINER WPL 574111 Contact Us For Availability
39
TROUGH, DRAIN WPL 535231 Contact Us For Availability
39
WASHER WPL 4200631 Contact Us For Availability
40
SEAL WPL 655932 Contact Us For Availability
40
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
40
WIRE HARNESS WPL 599401 Contact Us For Availability
40
FLANGE HEATER WPL RA436841 Contact Us For Availability
40
WASHER WPL 521852 Contact Us For Availability
41
SEAL, CRISPER PAN (FRONT) WPL 656502 Contact Us For Availability
41
WASHER WPL 542332 Contact Us For Availability
42
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
43
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
44
GLASS SHELF WPL 6559814 Contact Us For Availability
45
SHELF, CRISPER WPL 656874 Contact Us For Availability
46
GLASS SHELF WPL 6559816 Contact Us For Availability
47
SHIELD, LIGHT WPL 655784 Contact Us For Availability
48
TUBE WPL 555131 Contact Us For Availability
49
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
49
SPACER WPL 655121 Contact Us For Availability
50
SPRING, BAFFLE WPL 526481 Contact Us For Availability
51
SPRING, WINE RACK WPL 580571 Contact Us For Availability
52
STUD, DIVIDER CHANNEL MOUNTING WPL 599203 Contact Us For Availability
52
STUD (ALM) WPL 599206 Contact Us For Availability
52
SUB 19529-19 WPL 599207 Contact Us For Availability
52
RIVET, P.O. HOOK WPL 599208 Contact Us For Availability
52
STUD, (ALM) WPL 599209 Contact Us For Availability
53
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
54
SUPPORT WPL 536862 Contact Us For Availability
55
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
56
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
57
SWITCH WPL 564322 Contact Us For Availability
58
TRIM WPL 656142 Contact Us For Availability
59
TRIM WPL 6527614 Contact Us For Availability
60
AIR TUNNEL WPL 537261 Contact Us For Availability
61
TUNNEL, AIR (ME WPL 537262 Contact Us For Availability
62
WPL 574101 WPL 574101 Contact Us For Availability
63
WPL 298342 WPL 298342 Contact Us For Availability
63
WPL 652872 WPL 652872 Contact Us For Availability
× ![]()
Login and Registration Form
