Model Whirlpool CR151WH MICROWAVE – Common Parts & Diagrams
02 - CONTROL PANEL

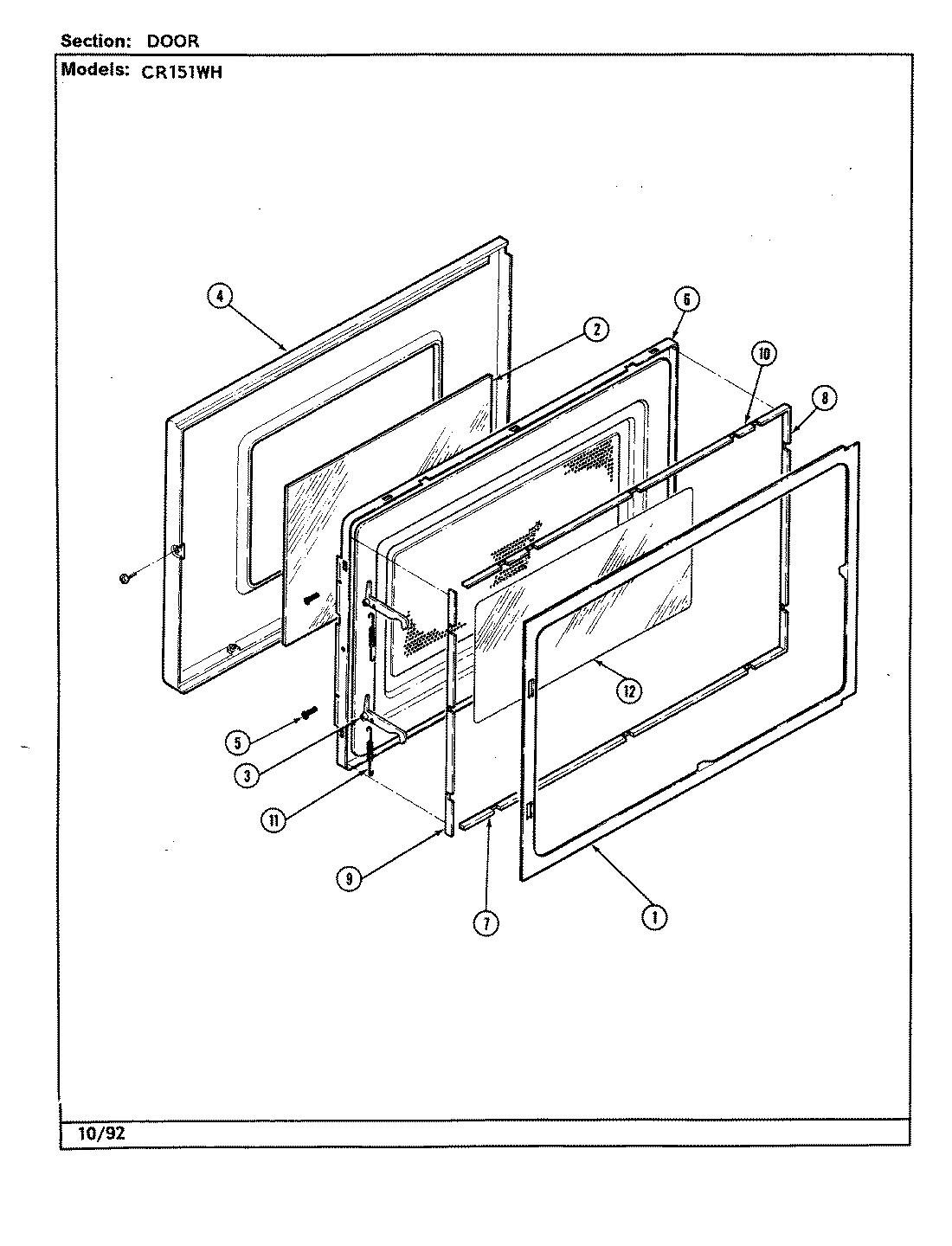

03 - DOOR

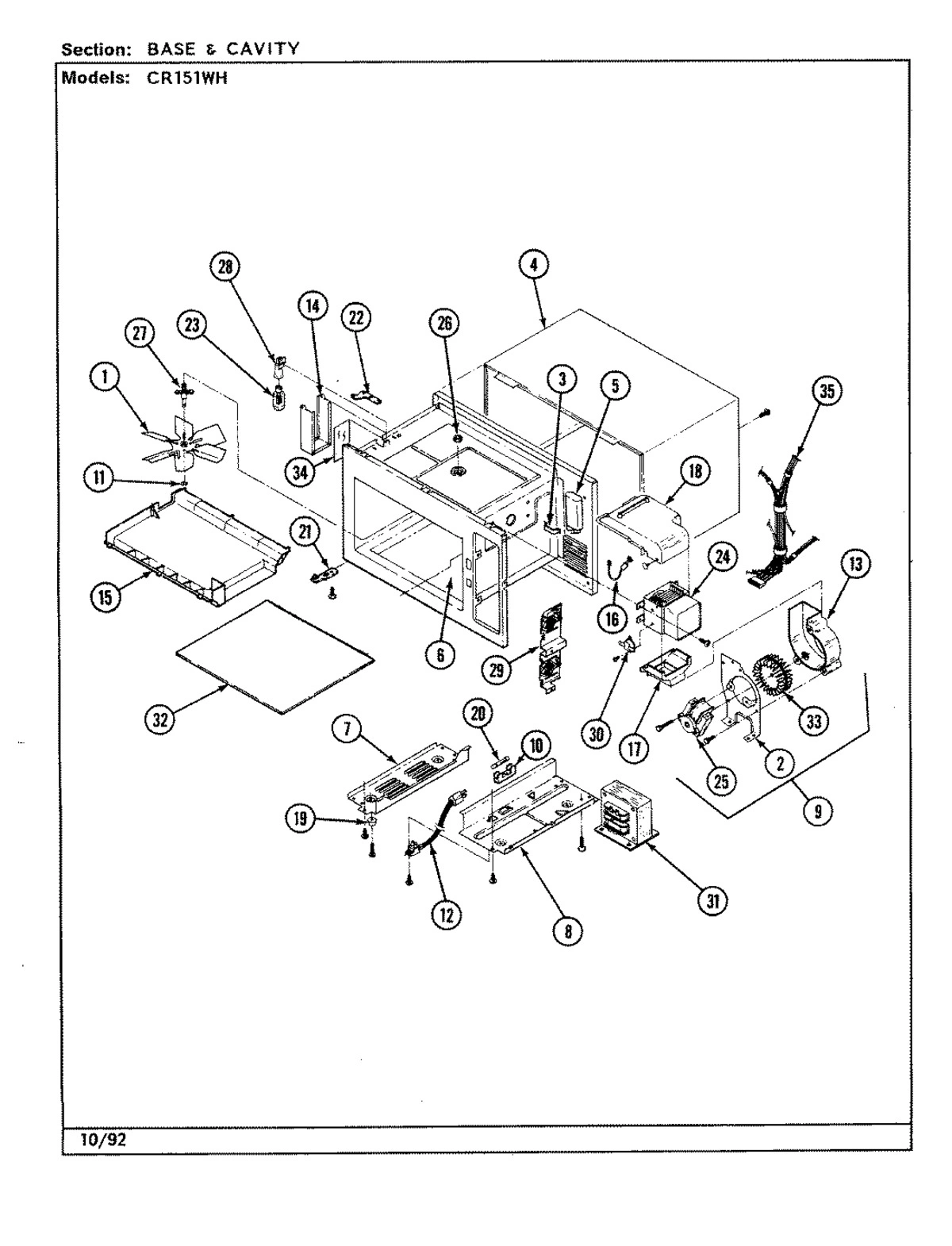

01 - BASE & CAVITY
Common parts from model Whirlpool CR151WH MICROWAVE
1
KNOB CONTROL WPL Y02330058 Contact Us For Availability
1
CHOKE, FILLER WPL 02100141 Contact Us For Availability
1
STIRRER BLADE ASSY WPL 04021532 Contact Us For Availability
2
MOUNTING PLATE WPL 02040080 Contact Us For Availability
2
CLIP, GLASS WPL 03110068 Contact Us For Availability
2
GLASS, DOOR WPL Y02220099 Contact Us For Availability
2
BRACKET WPL Y02030136 Contact Us For Availability
3
PANEL, CONTROL (WHITE) WPL 02100142 Contact Us For Availability
3
LATCH, PAWL WPL 02190062 Contact Us For Availability
3
BRACKET WPL 02030123 Contact Us For Availability
4
TIMER, 15 MINUTE WPL 01070043 Contact Us For Availability
4
PANEL, OUTER DOOR WPL 02100276 Contact Us For Availability
4
COVER, DOOR SCREW WPL 02300062 Contact Us For Availability
4
CABINET WPL 02140072 Contact Us For Availability
5
PIN, LATCH PAWL WPL Y03070040 Contact Us For Availability
6
PLATE, DOOR CKOKE ASSY WPL 04021348 Contact Us For Availability
6
CAVITY WPL 04021555 Contact Us For Availability
7
SEAL, BOTTOM WPL Y02120162 Contact Us For Availability
7
CHANNEL BASE, LEFT WPL 02090010 Contact Us For Availability
8
SEAL HINGE WPL Y02120160 Contact Us For Availability
8
CHANNEL BASE, RIGHT WPL 02090011 Contact Us For Availability
9
SEAL, LATCH WPL Y02120159 Contact Us For Availability
9
CLIP, CANOE WPL 03110061 Contact Us For Availability
9
BLOWER ASSEMBLY WPL Y04021539 Contact Us For Availability
10
SEAL, TOP WPL Y02120161 Contact Us For Availability
11
SPRING WPL 03180032 Contact Us For Availability
11
CLIP, STIRRER WPL 03110066 Contact Us For Availability
12
WINDOW, POLYESTER WPL 02220103 Contact Us For Availability
12
CORD WPL 01080053 Contact Us For Availability
12
COVER, AIR INTAKE WPL 02300040 Contact Us For Availability
13
COVER WPL Y02300032 Contact Us For Availability
14
COVER, MAGNETRON WPL 02300034 Contact Us For Availability
14
COVER, LAMP WPL Y02300049 Contact Us For Availability
15
COVER, STIRRER WPL Y02300029 Contact Us For Availability
16
DIODE ASSY. WPL Y04010219 Contact Us For Availability
17
DUCT WPL 02170123 Contact Us For Availability
18
DUCT STIRRER AIR WPL 02170133 Contact Us For Availability
19
FOOT, BASE WPL Y02230008 Contact Us For Availability
20
GASKET WPL 02310157 Contact Us For Availability
20
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
21
HINGE ASSY, LOWER WPL 04021343 Contact Us For Availability
22
BRACKET, HINGE (UPPER) WPL 04021344 Contact Us For Availability
23
BULB, LIGHT WPL Y01060024 Contact Us For Availability
24
MAGNETRON WPL 01040005 Contact Us For Availability
25
MOTOR, BLOWER WPL Y01110040 Contact Us For Availability
26
PLATE, POPCORN WPL 02040094 Contact Us For Availability
26
NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability
27
SHAFT, STIRRER WPL 02360058 Contact Us For Availability
28
RECEPTACLE, BULB WPL Y01100040 Contact Us For Availability
29
INTERLOCK SWITCH ASSY WPL 04021483 Contact Us For Availability
29
LOWER SWITCH WPL Y01140077 Contact Us For Availability
29
UPPER SWITCH WPL Y01140078 Contact Us For Availability
30
1/4X1/4 X 18`` WPL 8270P00360 Contact Us For Availability
30
1/2X1/2X18 FOAM TAPE WPL 8270P00560 Contact Us For Availability
30
1/2X1/2X36 FOAM TAPE WPL 8270P00660 Contact Us For Availability
30
SWITCH, TEMPERATURE LIMIT WPL Y01180008 Contact Us For Availability
31
TRANSFORMER WPL Y01130040 Contact Us For Availability
32
TRAY, MICROWAVE WPL Y02280039 Contact Us For Availability
33
WHEEL, BLOWER WPL Y01110017 Contact Us For Availability
34
WINDOW WPL 02220084 Contact Us For Availability
35
6A X 3/8 PHSMS WPL 03020047 Contact Us For Availability
35
WIRE HARNESS WPL 04010276 Contact Us For Availability
35
WIRE, LEAD HV WPL 04060538 Contact Us For Availability
35
WIRE, LEAD HV WPL 04060539 Contact Us For Availability
35
CLIP WPL Y03110078 Contact Us For Availability
NI
MANUAL, USE & CARE WPL Y06010340 Contact Us For Availability
× ![]()
