Model Electrolux CPLMV169DCA OVER-RANGE – Common Parts & Diagrams

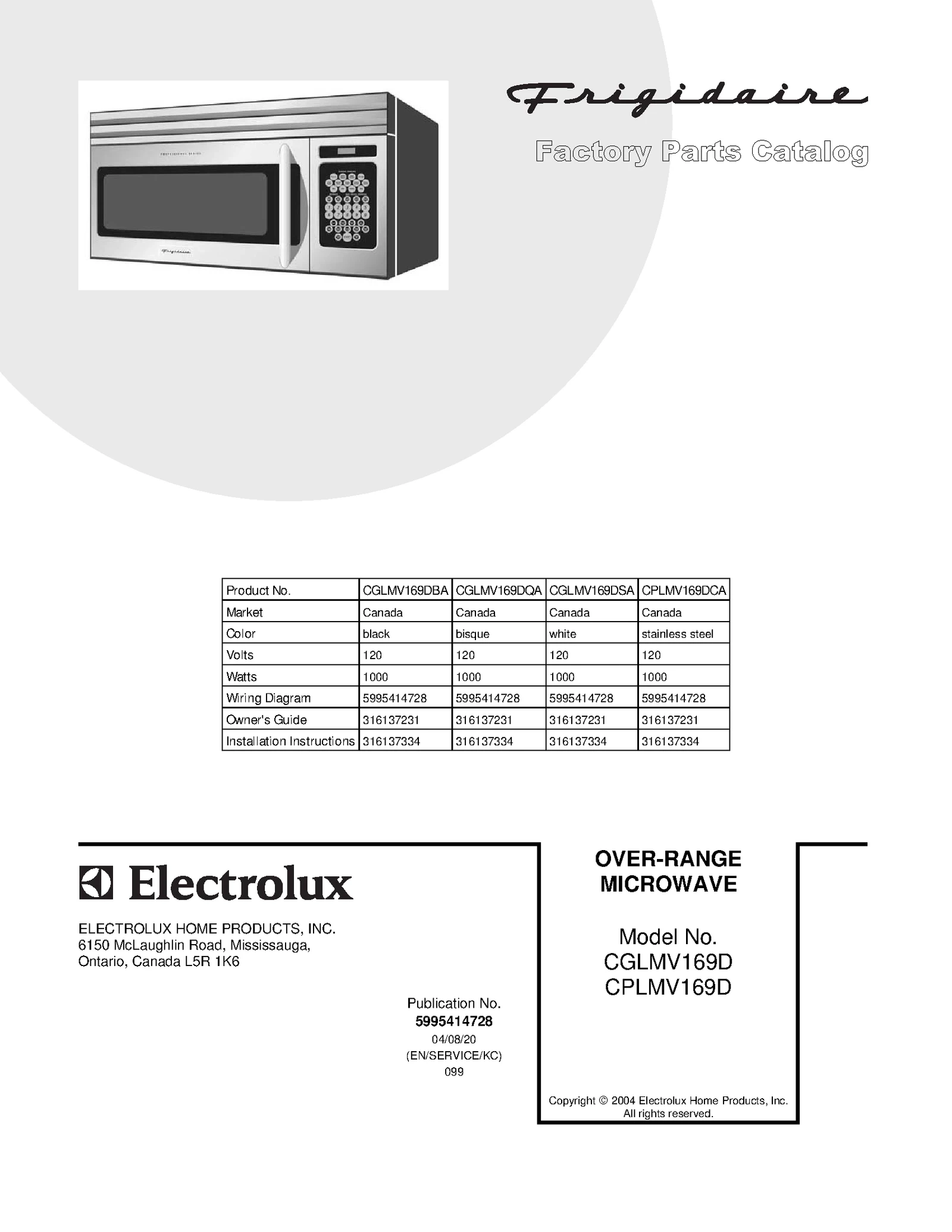

COVER
COVER
OVEN, CABINET
OVEN, CABINET
OVEN, CABINET
OVEN, CABINET
WIRING SCHEMATIC
WIRING SCHEMATIC
Common parts from model Electrolux CPLMV169DCA OVER-RANGE
4
Motor, stirrer fan WCI 5304440022 Contact Us For Availability
5
Thermal Cutout, hood, N.O.60 deg C WCI 5304440023 Contact Us For Availability
10
Power Cord, electric WCI 5304440028 Contact Us For Availability
12
Motor, hood fan WCI 5304440029 Contact Us For Availability
15
Thermal Cutout, oven cavity, N.C. 145 deg C WCI 5304440032 Contact Us For Availability
17
Sensor, abs. humidity WCI 5304440033 Contact Us For Availability
20
Base, transformer mtg, right side WCI 5304440236 Contact Us For Availability
21
Cushion, cabinet WCI 5304440237 Contact Us For Availability
22
Casing, wrapper, black, outer cabinet WCI 5304440238 Contact Us For Availability
23
Wiring Diagram, schematic WCI 5304440344 Contact Us For Availability
24
Lens/Frame Assy, oven lamp WCI 5304440242 Contact Us For Availability
25
Frame, lens holder WCI 5304440243 Contact Us For Availability
26
Lens, cooktop lamp, glass WCI 5303319575 Contact Us For Availability
27
Cover, unit base WCI 5304440244 Contact Us For Availability
28
Cushion, base cover pad WCI 5304441368 Contact Us For Availability
29
Cushion, cavity top pnl WCI 5304441369 Contact Us For Availability
30
Cushion, magnetron pad WCI 5304441370 Contact Us For Availability
40
Tray, turntable, glass WCI 5304440285 Contact Us For Availability
41
Retainer, capacitor strap WCI 5303319587 Contact Us For Availability
42
Cover, stirrer fan WCI 5304440286 Contact Us For Availability
43
Stirrer Assembly WCI 5304440287 Contact Us For Availability
45
Bushing, motor shaft, turntable WCI 5304440288 Contact Us For Availability
46
Latch Hook WCI 5304440289 Contact Us For Availability
48
Fan Blade, mag cooling fan WCI 5304440291 Contact Us For Availability
49
Bushing, power cord WCI 5303319605 Contact Us For Availability
50
Cover, oven lamp WCI 5304440292 Contact Us For Availability
51
Duct, hood intake, right side WCI 5304440293 Contact Us For Availability
52
Cushion, intake duct WCI 5304440294 Contact Us For Availability
53
Lens, lamp filter WCI 5304440295 Contact Us For Availability
54
Support, chassis, left side WCI 5304440296 Contact Us For Availability
55
Support, chassis, left side WCI 5304440297 Contact Us For Availability
56
Duct, exhaust hood WCI 5304440298 Contact Us For Availability
57
Support, rack, front WCI 5304440299 Contact Us For Availability
59
Cover A, grille louver WCI 5304440301 Contact Us For Availability
60
Cover B, grille louver WCI 5304440302 Contact Us For Availability
61
Cover C, grille louver WCI 5304440303 Contact Us For Availability
62
Bracket, air guide, magnetron WCI 5304440304 Contact Us For Availability
63
Support, rack, left rear WCI 5304441371 Contact Us For Availability
64
Support, rack, right rear WCI 5304441372 Contact Us For Availability
94
Label, Caution-NHW WCI 5304440348 Contact Us For Availability
99
Wire, sensor ground WCI 5304440339 Contact Us For Availability
102
Screw, 4mm x 8mm WCI 5303319637 Contact Us For Availability
105
Screw, unit mounting WCI 5304440341 Contact Us For Availability
106
Screw, 3mm x 8mm WCI 5303319633 Contact Us For Availability
107
Screw WCI 5303319636 Contact Us For Availability
× ![]()
