Model Whirlpool CP31200ADV GAS RANGE – Common Parts &amp; Diagrams

1

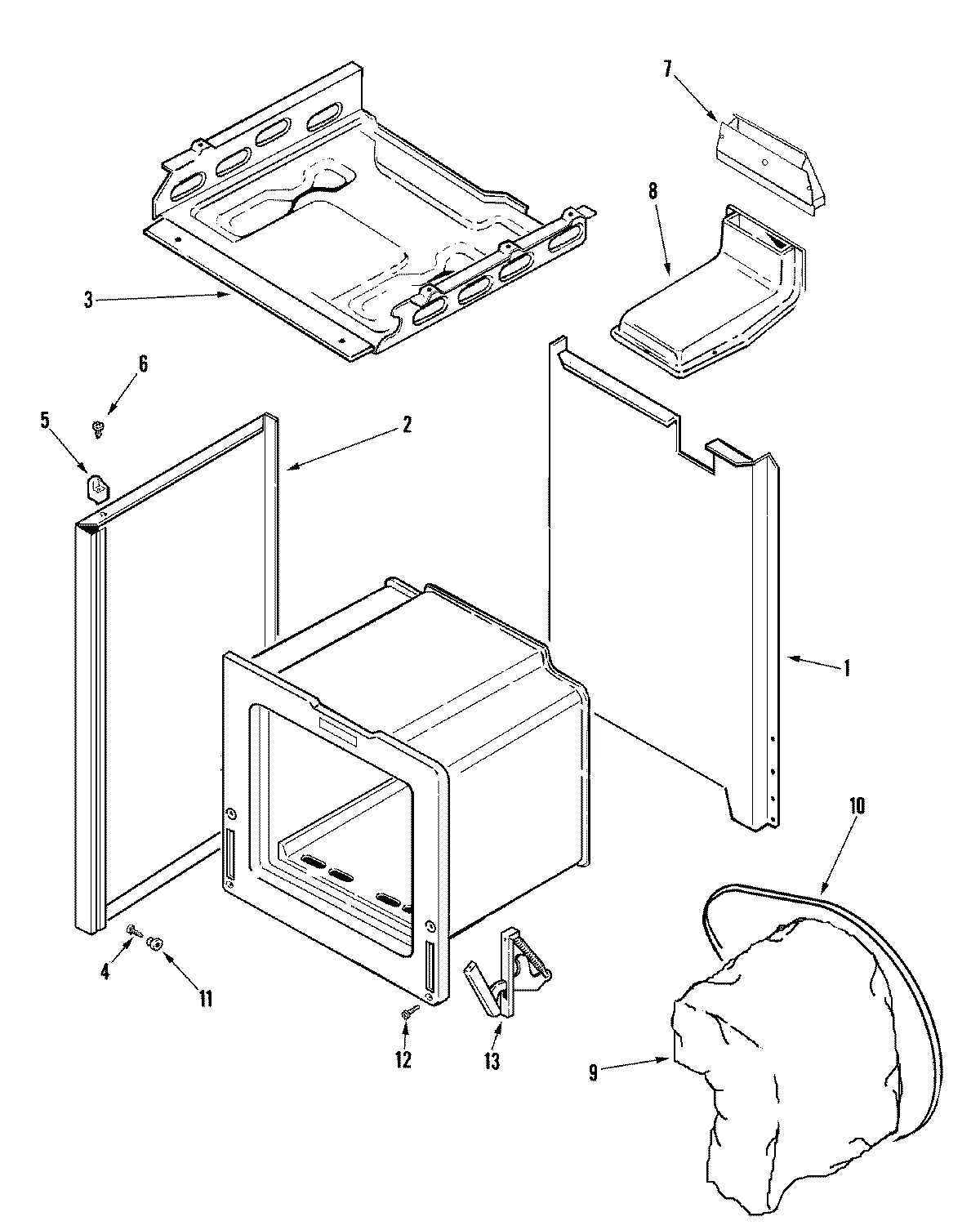

BACK, MAIN (GAS) WPL 74009884 Contact Us For Availability

1

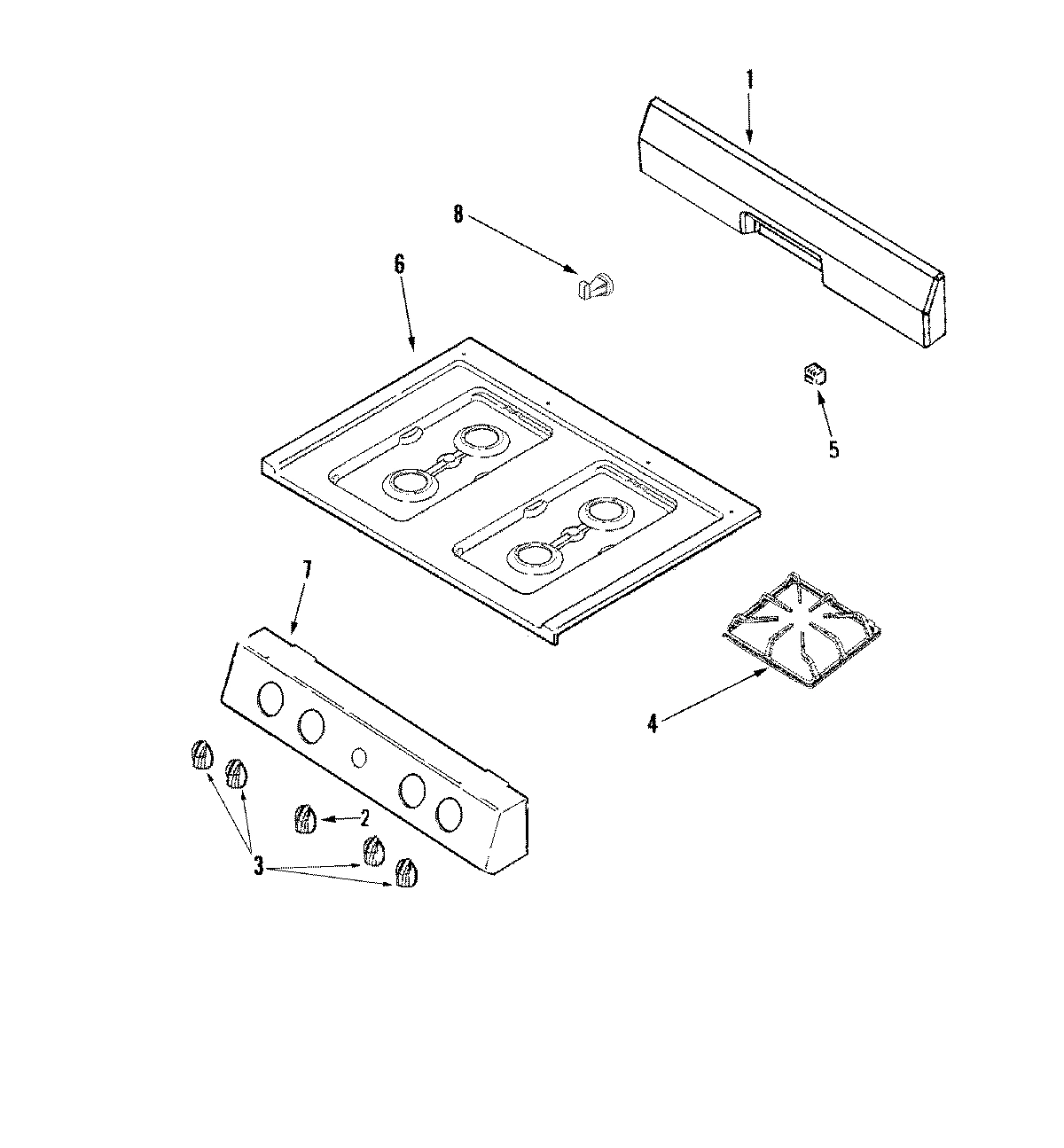

PANEL, BACKGUARD (WHT) WPL 74010449 Contact Us For Availability

1

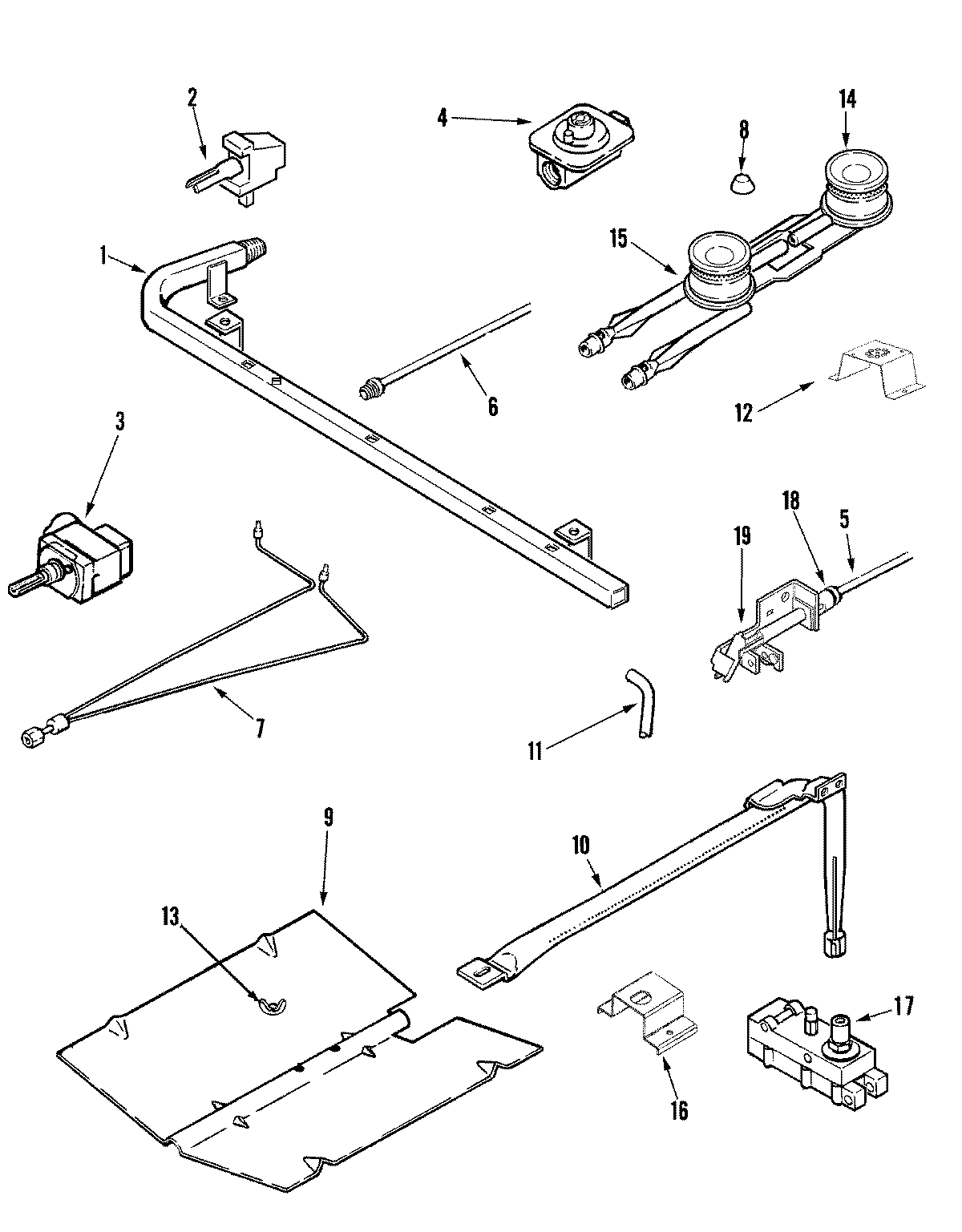

PIPE, MANIFOLD WPL 74002424 Contact Us For Availability

1

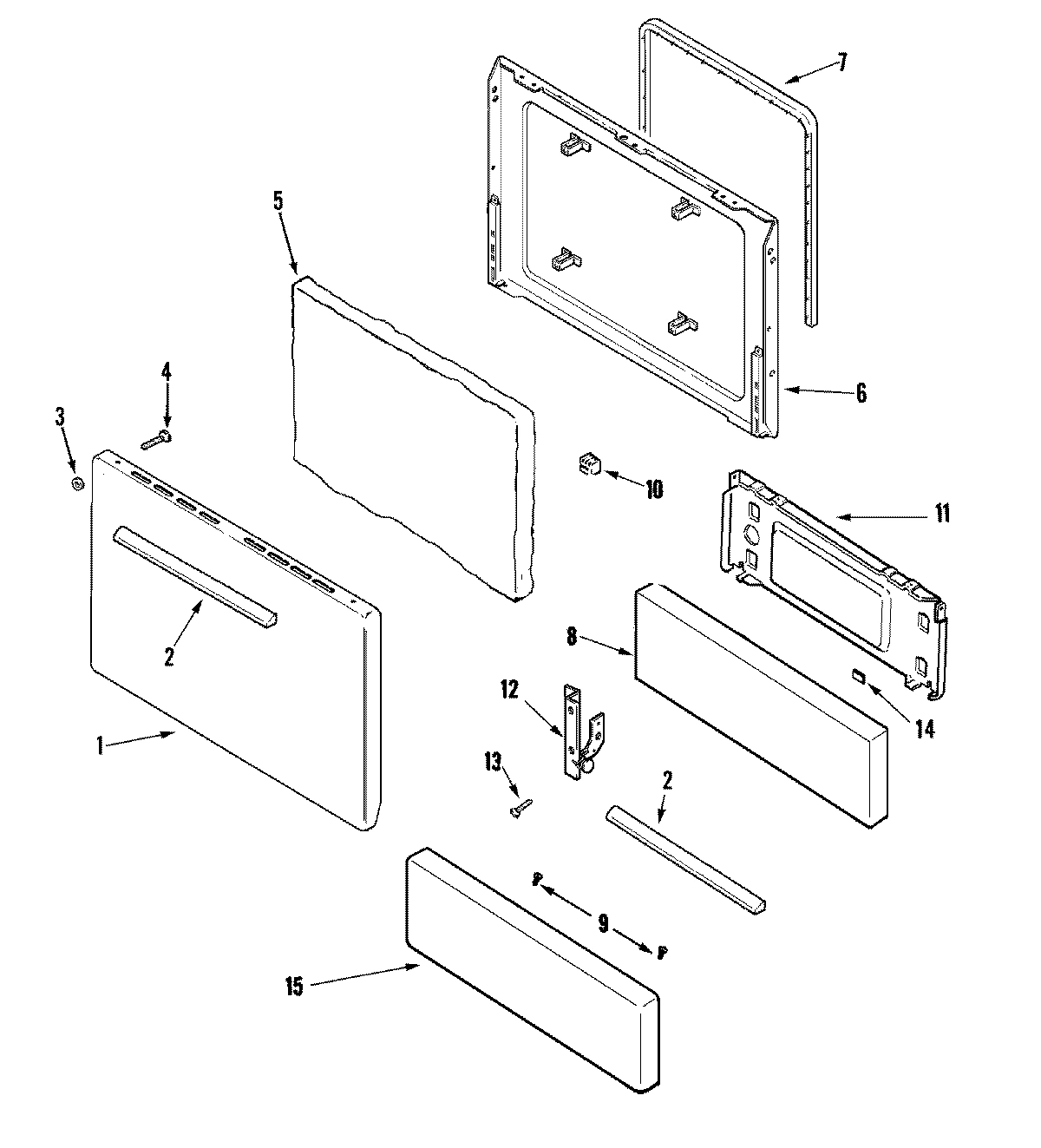

CLIP, DOOR WPL 7112P03460 Contact Us For Availability

1

PANEL, DOOR (WHT) WPL 74003137 Contact Us For Availability

2

PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability

2

KNOB, THERMOSTAT (WHT) WPL 74002496 Contact Us For Availability

2

VALVE, BURNER (LP) WPL 74002673 Contact Us For Availability

2

SCREW WPL 74009416 Contact Us For Availability

2

VALVE, TOP BURNER (LP) WPL 74010643 Contact Us For Availability

2

HANDLE, DOOR (WHT) WPL 74010424 Contact Us For Availability

3

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

3

WP74009857 Whirlpool Screw Backorder WPL WP74009857 $4.55

3

SCREW WPL 7101P35260 Contact Us For Availability

3

BOX, BURNER WPL 74010038 Contact Us For Availability

3

KNOB, BURNER VALVE (WHT) WPL 74002497 Contact Us For Availability

3

THERMOSTAT WPL 74006182 Contact Us For Availability

3

SPACER, HANDLE (WHT) WPL 8010P08960 Contact Us For Availability

4

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

4

WP2003X030-00 Whirlpool Burner Grate Backorder WPL WP2003X030-00 $122.78

4

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.65

4

COVER, HOLE WPL 74002380 Contact Us For Availability

4

REGULATOR, PRESSURE (L.P.) WPL 74007524 Contact Us For Availability

5

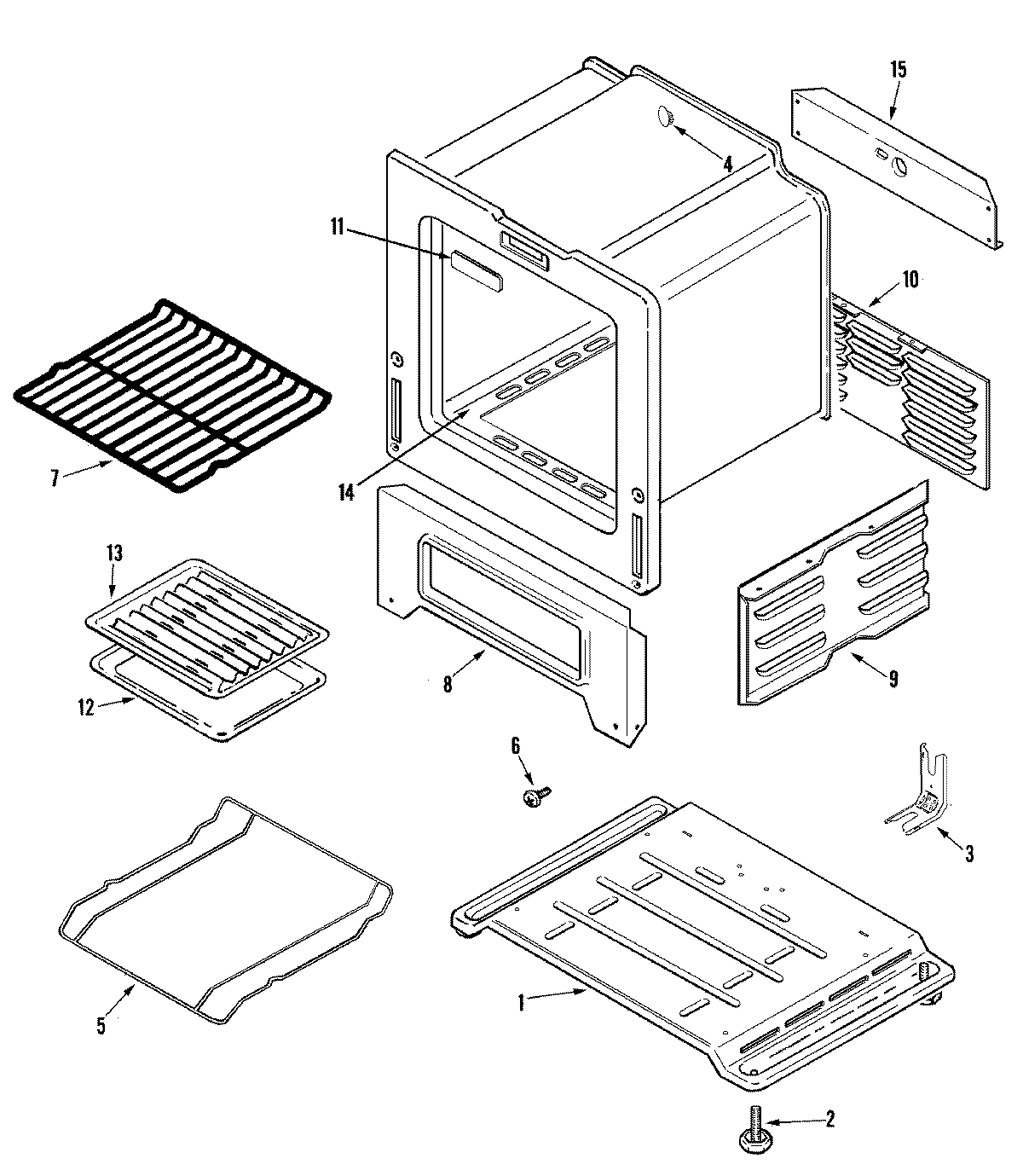

RACK, BROILER WPL 74002381 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

5

SHIELD, WIRE WPL 74009708 Contact Us For Availability

5

TUBING, PILOT WPL 74006184 Contact Us For Availability

5

INSULATION, DOOR 2`` WPL 4804F05060 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

6

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $11.88

6

TOP, MAIN (WHT) WPL 2001F09881 Contact Us For Availability

6

TUBING, OVEN PILOT (W/NUT) WPL 74009922 Contact Us For Availability

6

LINING, DOOR WPL 74003240 Contact Us For Availability

7

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

7

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

7

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

7

EXTENSION, VENT BOX WPL 74002366 Contact Us For Availability

7

COVER, BROIL ACCESS FITTING WPL 74009653 Contact Us For Availability

7

PANEL, MANIFOLD (WHT) WPL 74010470 Contact Us For Availability

7

PILOT TUBING, TOP BURNER (LP) WPL 74002660 Contact Us For Availability

7

SEAL, DOOR WPL 7212P04360 Contact Us For Availability

8

FRONT, OVEN (LWR) WPL 74002327 Contact Us For Availability

8

BOX, VENT WPL 74006420 Contact Us For Availability

8

SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability

8

CONE, BURNER PILOT WPL 74002435 Contact Us For Availability

8

INSULATION, BROILER DRAWER WPL 74001814 Contact Us For Availability

9

SIDE, BROILER (RT) WPL 74002374 Contact Us For Availability

9

SIDE, BROILER (LT) WPL 74002375 Contact Us For Availability

9

BAFFLE, OVEN BURNER WPL 74002393 Contact Us For Availability

9

INSULATION, OVEN WRAP WPL 74002370 Contact Us For Availability

9

INSULATION, OVEN BACK WPL 74002634 Contact Us For Availability

BACK, BROILER WPL 74002379 Contact Us For Availability

STRAP, INSULATION RETAINER WPL 74002369 Contact Us For Availability

BURNER, OVEN WPL 74002434 Contact Us For Availability

GLIDE WPL 74001663 Contact Us For Availability

PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability

SCREW, W/SHOULDER WPL 74007476 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

TUBING, OVEN VALVE WPL 74006185 Contact Us For Availability

LINING, DRAWER WPL 74007553 Contact Us For Availability

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

SUPPORT, TOP BURNER WPL 74010150 Contact Us For Availability

HINGE, DRAWER WPL 74007560 Contact Us For Availability

W10876639 Whirlpool Door Hinge Assembly Backorder WPL W10876639 $91.57

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.67

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

NUT, WING WPL 7103P03060 Contact Us For Availability

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $4.82

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

BOTTOM, OVEN WPL 74002376 Contact Us For Availability

CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability

BOTTOM, OVEN ASSY. WPL 74011347 Contact Us For Availability

BURNER, TOP (REAR) WPL 74010148 Contact Us For Availability

15

SHIELD, BROILER (BACK/SIDE) WPL 74010139 Contact Us For Availability

15

BURNER, TOP (FRT) WPL 74010149 Contact Us For Availability

15

PANEL, DRAWER (WHT) WPL 74001729 Contact Us For Availability

16

BRACKET, ORIFICE HOLDER WPL 74010236 Contact Us For Availability

17

VALVE, OVEN (LP) WPL 74002672 Contact Us For Availability

17

VALVE, SAFETY (LP) WPL 74011144 Contact Us For Availability

18

NUT, TOP PILOT WPL 7103P07060 Contact Us For Availability

19

PILOT, OVEN WPL 74006183 Contact Us For Availability

CONVERSION KIT (LP) WPL 12002560 Contact Us For Availability

CONVERSION KIT (NAT) WPL 12002561 Contact Us For Availability

SVC MAN, RANGE, GAS WPL 16023522 Contact Us For Availability

MANUAL, USE & CARE WPL 74005909 Contact Us For Availability

BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability

MANUAL, USE & CARE WPL 8113P51160 Contact Us For Availability

MANUAL, USE & CARE WPL 8113P55960 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
