Model Whirlpool CP220B-EM ELECTRIC COOK-TOP – Common Parts & Diagrams

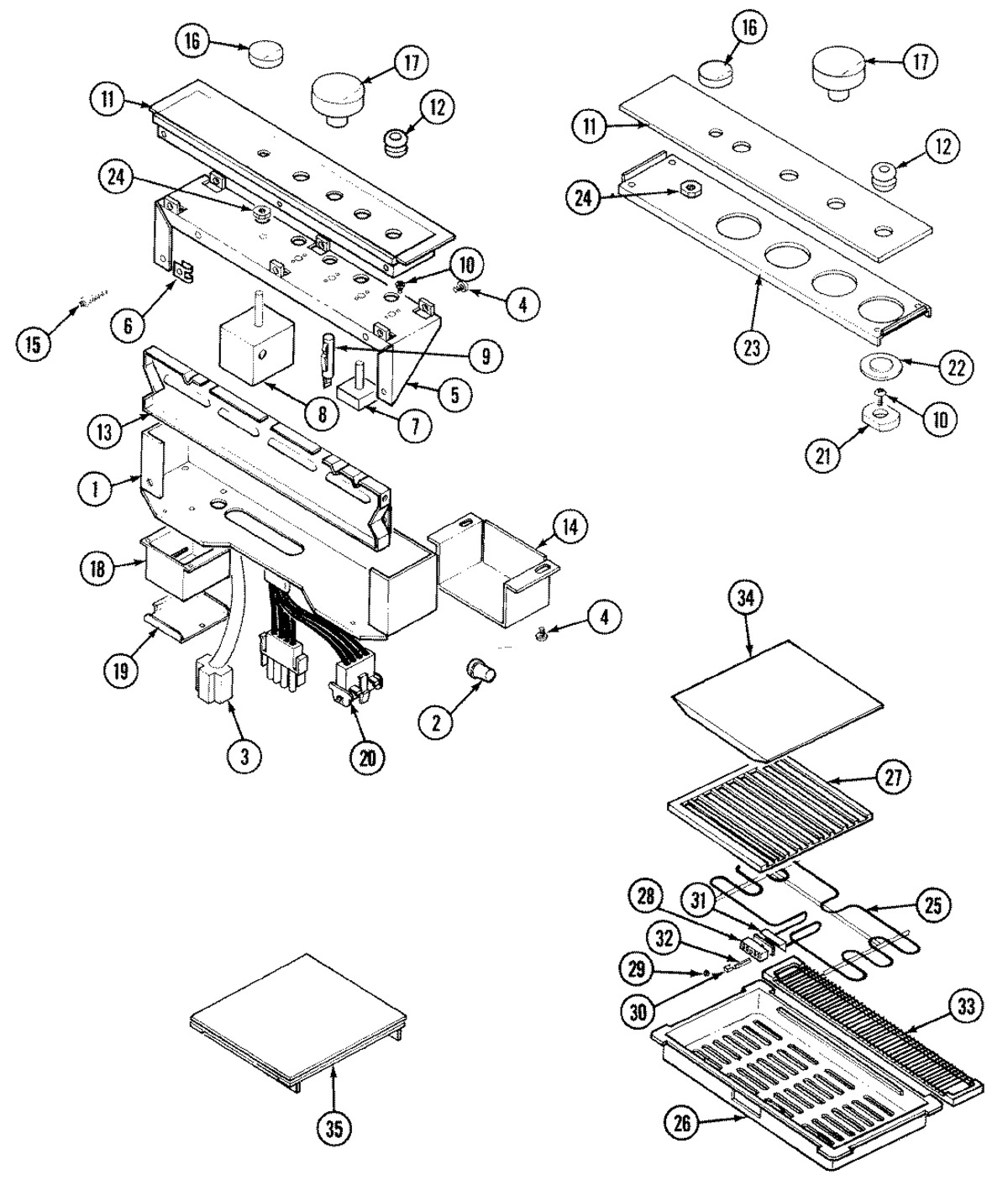

01 - CONTROL PANEL
Common parts from model Whirlpool CP220B-EM ELECTRIC COOK-TOP
3
CORD, RECEPTACLE WPL Y706084 Contact Us For Availability
4
SCREW WPL 715798 Contact Us For Availability
4
STRAIN, RELIEF WPL Y702696 Contact Us For Availability
6
CLIP, J WPL Y700556 Contact Us For Availability
7
SWITCH, INFINITE WPL 71001493 Contact Us For Availability
8
CONTROL, FAN WPL 71001494 Contact Us For Availability
10
SCREW WPL Y704864 Contact Us For Availability
11
FRAME, CONTROL ASSY. WPL 706056 Contact Us For Availability
11
FRAME, GLASS ASSY. (BLK) WPL 71001747 Contact Us For Availability
12
GROMMET, FAN SWITCH WPL Y706103 Contact Us For Availability
12
WIRE, PILOT LIGHT WPL Y706091 Contact Us For Availability
13
DIVIDER WPL 706026 Contact Us For Availability
14
COVER, WIRE HARNESS WPL Y706118 Contact Us For Availability
15
SCREW WPL 706113 Contact Us For Availability
17
INSULATOR, SPLICE CAP WPL Y705274 Contact Us For Availability
18
BOX, JUNCTION WPL 71001498 Contact Us For Availability
19
WIRE, WHITE WPL 706065 Contact Us For Availability
19
COVER, JUNCTION WPL 71001499 Contact Us For Availability
20
HARNESS, WIRE DOUBLE WPL 71002780 Contact Us For Availability
20
HARNESS, CONTROL (DOUBLE) WPL Y706085 Contact Us For Availability
21
BOX, LIGHT WPL 71001495 Contact Us For Availability
26
LINER, PAN WPL Y706003 Contact Us For Availability
27
GRATE, GRILL (EXCALIBUR) WPL Y706059 Contact Us For Availability
30
CLIP, SHUNT WPL Y700450 Contact Us For Availability
33
GRILL, AIR (BRUSH CHROME) WPL 706116 Contact Us For Availability
34
COVER, GRILL(BRUSH CHROME)--NA WPL 706157 Contact Us For Availability
35
RELAY WPL 71001500 Contact Us For Availability
35
CAPACITOR WPL 71001501 Contact Us For Availability
35
BOX, MOTOR RECEPTICAL WPL 71001751 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 71001752 Contact Us For Availability
× ![]()
