Model Whirlpool CP120W ELECTRIC COOK-TOP – Common Parts & Diagrams

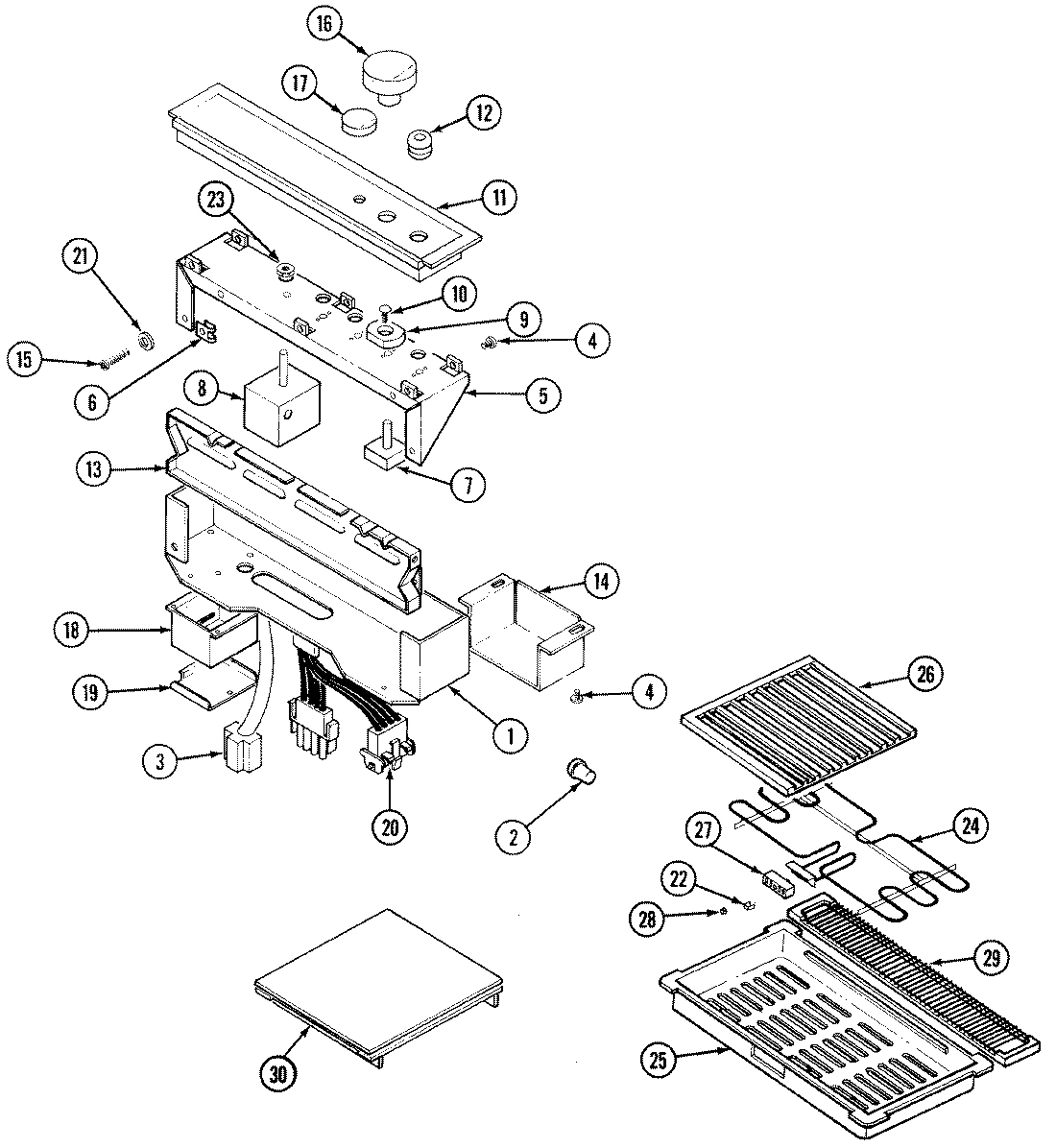

01 - CONTROL PANEL
Common parts from model Whirlpool CP120W ELECTRIC COOK-TOP
4
STRAIN, RELIEF WPL Y702696 Contact Us For Availability
5
PLATE, SWITCH WPL 706054 Contact Us For Availability
6
CLIP, J WPL Y700556 Contact Us For Availability
8
CONTROL, FAN WPL 706171 Contact Us For Availability
9
BOX, LIGHT WPL Y706061 Contact Us For Availability
10
SCREW WPL Y704864 Contact Us For Availability
11
PANEL, CONTROL (WHT) WPL 04100049 Contact Us For Availability
11
FRAME, CONTROL ASSY. WPL 706056 Contact Us For Availability
11
LENS, BURNER (CP1) WPL 71002551 Contact Us For Availability
12
GROMMET, FAN SWITCH WPL Y706103 Contact Us For Availability
12
WIRE, PILOT LIGHT WPL Y706091 Contact Us For Availability
13
DIVIDER WPL 706026 Contact Us For Availability
14
COVER, WIRE HARNESS WPL Y706118 Contact Us For Availability
15
SCREW WPL 706113 Contact Us For Availability
16
KNOB, FAN SWITCH (GRY) WPL Y706097 Contact Us For Availability
17
KNOB, INFINITE SWITCH (GRAY) WPL Y706096 Contact Us For Availability
18
BOX, JUNCTION WPL Y706173 Contact Us For Availability
19
COVER, JUNCTION BOX WPL Y706174 Contact Us For Availability
20
HARNESS, SINGLE WPL 706086 Contact Us For Availability
20
HARNESS, CONTROL (SINGLE) WPL Y706087 Contact Us For Availability
21
WASHER WPL Y700446 Contact Us For Availability
22
CLIP, SHUNT WPL Y700450 Contact Us For Availability
25
LINER, PAN WPL Y706003 Contact Us For Availability
26
GRATE, GRILL (EXCALIBUR) WPL Y706059 Contact Us For Availability
29
GRILL, AIR (WHT) WPL Y706115 Contact Us For Availability
30
COVER, GRILL (WHITE) WPL 12200018 Contact Us For Availability
NI
MANUAL, USE & CARE WPL CU1200UA Contact Us For Availability
× ![]()
