Model LG CP05N10 – Common Parts & Diagrams

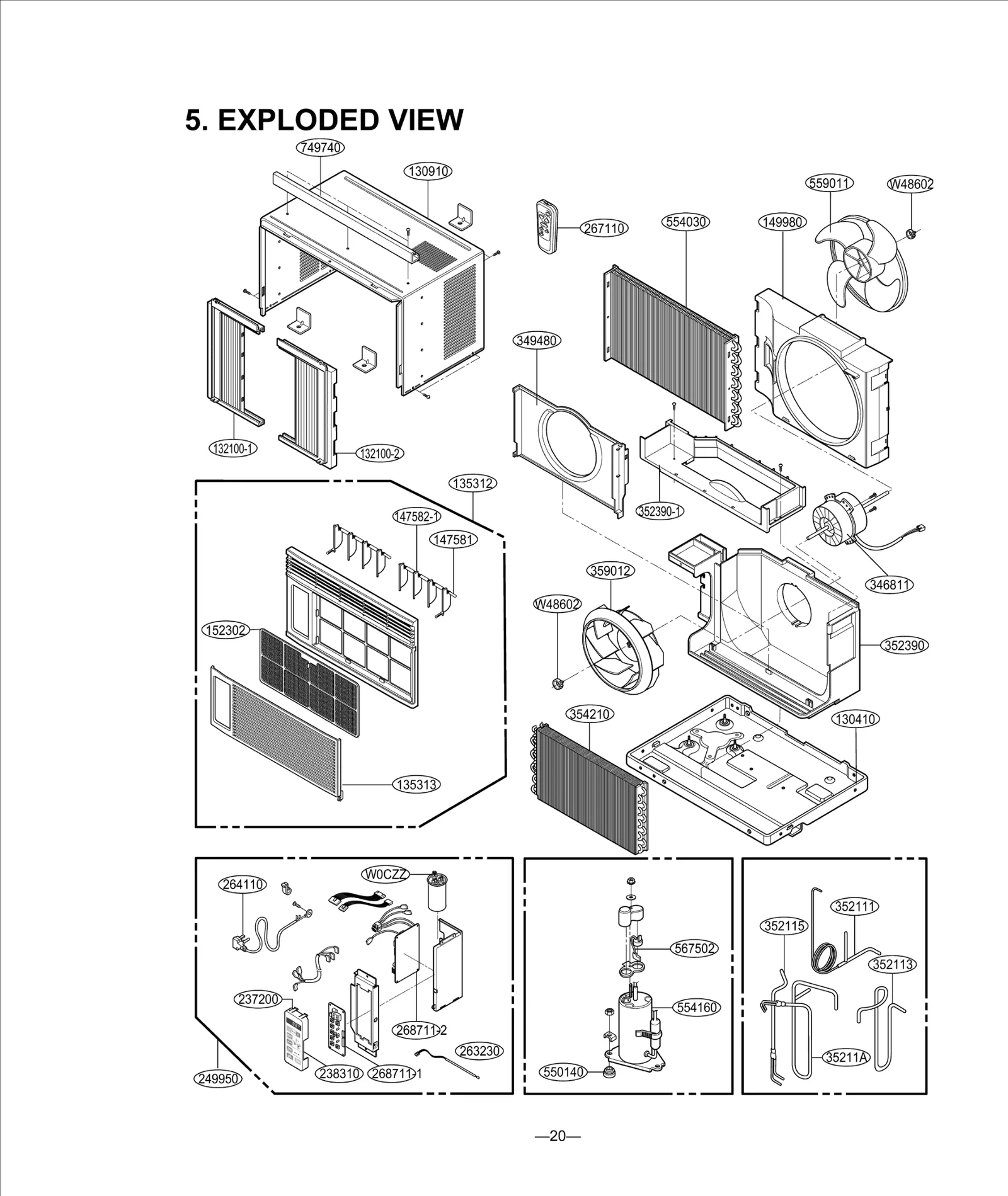

Diagram 0
Diagram 1
Common parts from model LG CP05N10
135312
GRILLE ASSEMBLY,FRONT(SINGLE) LGE 3531A10130D Contact Us For Availability
135500
COVER,TERMINAL LGE 3550UTL006A Contact Us For Availability
147581
LINK HOLDER PP JI-350 LW-A0512 LGE 4520AR3191A Contact Us For Availability
147582-1
VANE PP JI-350 LW-A0510/511/51 LGE 5990AR3190A Contact Us For Availability
149980
SHROUD LGE 4998A10025A Contact Us For Availability
237200
PANEL,CONTROL LGE 3720A20017A Contact Us For Availability
238310
Escutcheon LGE MDD38978002 Contact Us For Availability
249950
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20309Y Contact Us For Availability
267110
Remote Controller Assembly LGE 6711A20103P Contact Us For Availability
268711-1
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20432B Contact Us For Availability
268711-2
PWB(PCB) ASSEMBLY,MAIN(AC) LGE 6871A20599N Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A10016M Contact Us For Availability
352111
Tube Assembly,Capillary LGE 5211A20743B Contact Us For Availability
352113
LGE 5210A21748B LGE 5210A21748B Contact Us For Availability
352113
Tube Assembly,Discharge(Outdoor) LGE 5211A21785A Contact Us For Availability
352115
Tube Assembly,Evaporator(In) LGE 5211A10063G Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A10008C Contact Us For Availability
554160
COMPRESSOR SET LGE 2520UABC2JA Contact Us For Availability
567502
O.L.P LGE 6750U-L050A Contact Us For Availability
749740
UPPER GUIDE LW-A0510/511CL LGE 5210AR3196C Contact Us For Availability
× ![]()
