Model Whirlpool CNT21V8A REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER COMPARTMENT

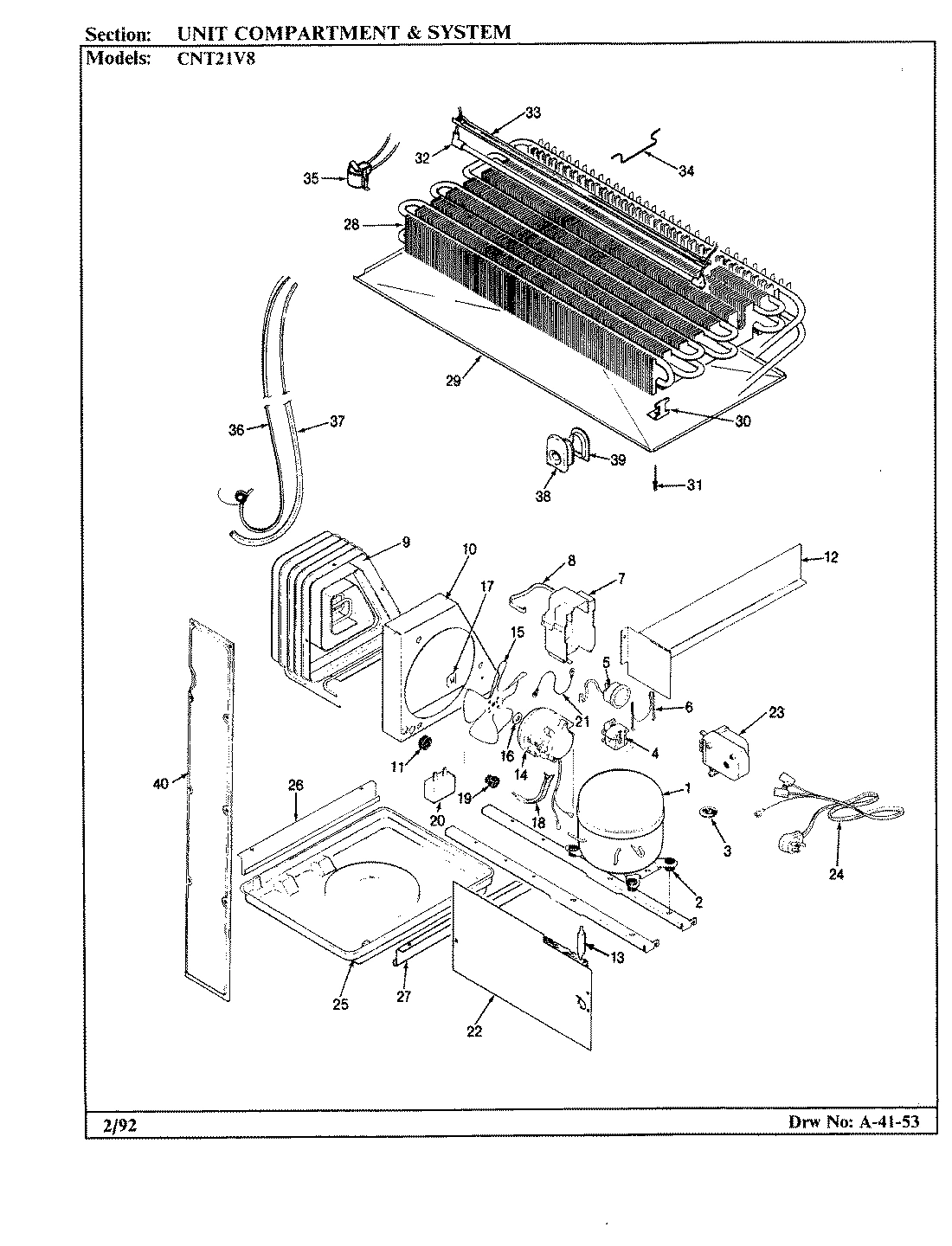

04 - UNIT COMPARTMENT & SYSTEM

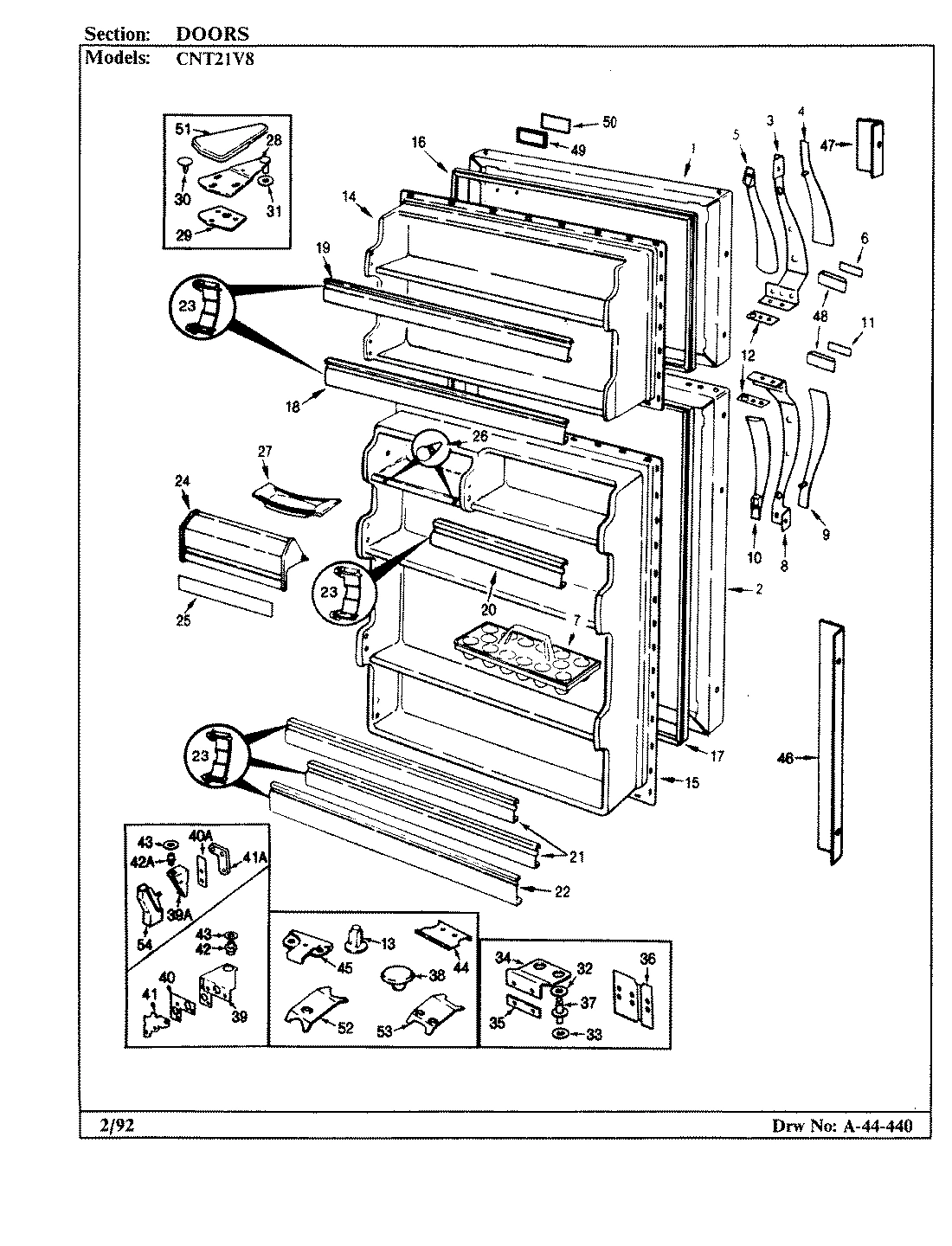

01 - DOORS

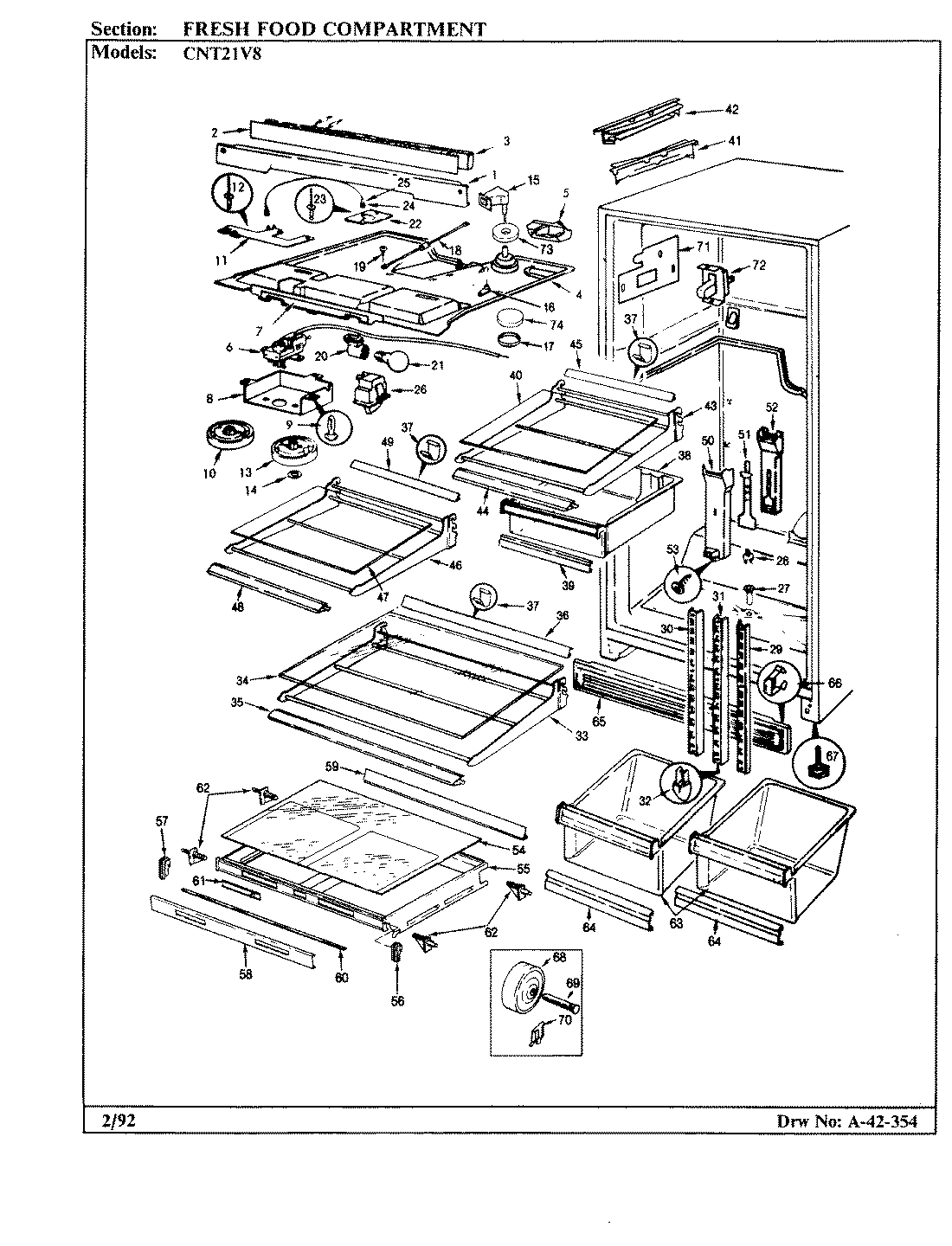

03 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool CNT21V8A REFRIGERATOR
1
FOAM TRAY WPL 675202 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 684743AM Contact Us For Availability
1
SCREW WPL 6527554 Contact Us For Availability
1
DIVIDER, MULLION (ALM) WPL 684342AM Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
FOAM SEAL WPL 688663 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
PANEL, F.F. DOOR (ALM) WPL 684733AM Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
HEATER WPL 688292 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
DOOR HANDLE WPL 662551 Contact Us For Availability
3
INSULATION WPL 601402 Contact Us For Availability
3
WIRE HARNESS WPL 686852 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 685322 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
OVERLOAD WPL 6329410 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
INSERT WPL 653409 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 681193 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
TRAY, EGG WPL 600669 Contact Us For Availability
7
INSERT, TRIM ESCUTCHEON WPL 6057159 Contact Us For Availability
8
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
8
TUNNEL, AIR WPL 685923 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SCREW WPL 6527557 Contact Us For Availability
8
DOOR HANDLE WPL 662552 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
INSERT WPL 606874 Contact Us For Availability
9
SCREW WPL 6527553 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
INSERT WPL 606882 Contact Us For Availability
10
KNOB, CONTROL WPL 686007 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664781 Contact Us For Availability
11
SEAL WPL 689462 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
INSERT WPL 653406 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
12
SHELF WPL 6043811 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
12
SHIM HANDLE----NA WPL 687761 Contact Us For Availability
13
SCREW WPL 4000191 Contact Us For Availability
13
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
13
KNOB, TEMP. CONTROL WPL 686008 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability
14
LINER, FRZ. DOOR WPL 659285 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
SCREW WPL 652755 Contact Us For Availability
15
INNER PANEL WPL 688871 Contact Us For Availability
15
DAMPER ASSY WPL 675585 Contact Us For Availability
16
HANDLE ICE CUBE PAN WPL 662309 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
17
COVER, PLENUM WPL 664805 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
GASKET, F.F. DOOR WPL 661996 Contact Us For Availability
17
COVER, CRANK WPL 674931 Contact Us For Availability
18
TRIM,FREEZER SHELF WPL 6041438 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
ROD WPL 674994 Contact Us For Availability
19
CUP, SHELF WPL 603131 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
TRIM, DOOR SHELF WPL 65151286 Contact Us For Availability
19
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
19
SCREW WPL 6527513 Contact Us For Availability
20
PLUG BUTTON WPL 669202 Contact Us For Availability
20
PLUG BUTTON WPL 675571 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
TRIM, DOOR SHELF WPL 65151287 Contact Us For Availability
20
SOCKET, LIGHT WPL 605771 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
TRIM, DOOR SHELF WPL 65151285 Contact Us For Availability
22
SCREW WPL 652751 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
TRIM, DOOR SHELF WPL 65151335 Contact Us For Availability
22
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
23
CLAMP, SPRING WPL 603334 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665562 Contact Us For Availability
23
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
23
RIVET WPL 263972 Contact Us For Availability
24
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
DOOR, DAIRY WPL 6040643 Contact Us For Availability
24
GROUND WIRE WPL 2967528 Contact Us For Availability
25
CAP, CONNECTOR WPL 681871 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
GROUND WIRE WPL 2967522 Contact Us For Availability
26
CAP, GROMMET WPL 683871 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
26
SWITCH, LIGHT WPL 557321 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
TRAY, BUTTER WPL 299362 Contact Us For Availability
27
GROMMET WPL 545318 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
28
HINGE, UPPER WPL 5370920 Contact Us For Availability
28
SCREW WPL 6527552 Contact Us For Availability
28
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
29
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
29
SUPPORT WPL 600965 Contact Us For Availability
30
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
30
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
30
SUPPORT WPL 600964 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
WASHER WPL 542331 Contact Us For Availability
31
SCREW WPL 4000371 Contact Us For Availability
31
SUPPORT WPL 600966 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
32
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
32
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
33
WASHER WPL 542332 Contact Us For Availability
33
FRAME, SHELF WPL 605701 Contact Us For Availability
34
CLIP WPL 688251 Contact Us For Availability
34
SCREW WPL 6527555 Contact Us For Availability
34
HINGE, CENTER WPL 688112 Contact Us For Availability
34
GLASS, CANTILEVER SHELF WPL 6660424 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
35
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
35
TRIM,SHELF (FULL FRONT) WPL 6052428 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
36
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
36
TRIM, SHELF (FULL REAR) WPL 6527621 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
37
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
37
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
37
CLIP WPL 663332 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
38
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
38
PAN, MEAT WPL 6652310 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
WIRE HARNESS WPL 688393 Contact Us For Availability
39
HINGE, LOWER WPL 677146 Contact Us For Availability
39
TRIM WPL 6623013 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
40
SHELF, MEAT WPL 6660439 Contact Us For Availability
41
SCREW WPL 4031001 Contact Us For Availability
41
TAPPING PLATE WPL 657903 Contact Us For Availability
41
RAIL, MEAT PAN (RT) WPL 668141 Contact Us For Availability
42
HINGE PIN WPL 687881 Contact Us For Availability
42
RAIL, MEAT PAN (LT) WPL 668131 Contact Us For Availability
43
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
44
DOOR STOP WPL 600301 Contact Us For Availability
45
DOOR STOP WPL 6041910 Contact Us For Availability
45
SCREW WPL 9986108 Contact Us For Availability
46
HANDLE EXT TRIM WPL 6045323 Contact Us For Availability
46
FRAME, SHELF WPL 6057010 Contact Us For Availability
47
HANDLE EXT TRIM WPL 6045324 Contact Us For Availability
47
GLASS, CANTILEVER SHELF WPL 6660425 Contact Us For Availability
48
BEZEL WPL 606861 Contact Us For Availability
48
TRIM, MEAT SHELF (FRONT) WPL 605246 Contact Us For Availability
49
INSERT, NAMEPLATE WPL 669814 Contact Us For Availability
49
TRIM, MEAT SHELF (REAR) WPL 652764 Contact Us For Availability
50
INSERT, NAMEPLATE WPL 6698211 Contact Us For Availability
50
TUNNEL WPL 6009421 Contact Us For Availability
51
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
51
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
51
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
52
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
52
FOAM INSULATOR, AIR TUNNEL WPL 600921 Contact Us For Availability
53
SCREW WPL 40001531 Contact Us For Availability
53
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
54
CRISPER, GLASS WPL 6874314 Contact Us For Availability
55
SHELF, CRISPER WPL 687352 Contact Us For Availability
57
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
58
TRIM WPL 687444 Contact Us For Availability
59
TRIM, CRISPER SHELF WPL 687981 Contact Us For Availability
60
WPL 687971 WPL 687971 Contact Us For Availability
61
WPL 687422 WPL 687422 Contact Us For Availability
62
WPL 688361 WPL 688361 Contact Us For Availability
63
WPL 68163416 WPL 68163416 Contact Us For Availability
64
WPL 6623014 WPL 6623014 Contact Us For Availability
65
WPL 6013810 WPL 6013810 Contact Us For Availability
66
WPL 4000171 WPL 4000171 Contact Us For Availability
66
WPL 601001 WPL 601001 Contact Us For Availability
67
WPL 686641 WPL 686641 Contact Us For Availability
68
WPL 298342 WPL 298342 Contact Us For Availability
69
WPL 298352 WPL 298352 Contact Us For Availability
70
WPL 602161 WPL 602161 Contact Us For Availability
71
WPL 4020131 WPL 4020131 Contact Us For Availability
71
WPL 605831 WPL 605831 Contact Us For Availability
72
WPL 605851 WPL 605851 Contact Us For Availability
73
WPL 689891 WPL 689891 Contact Us For Availability
74
WPL 690371 WPL 690371 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1070993 Contact Us For Availability
× ![]()
Login and Registration Form
