Model Whirlpool CNT19V8IMA REFRIGERATOR – Common Parts & Diagrams

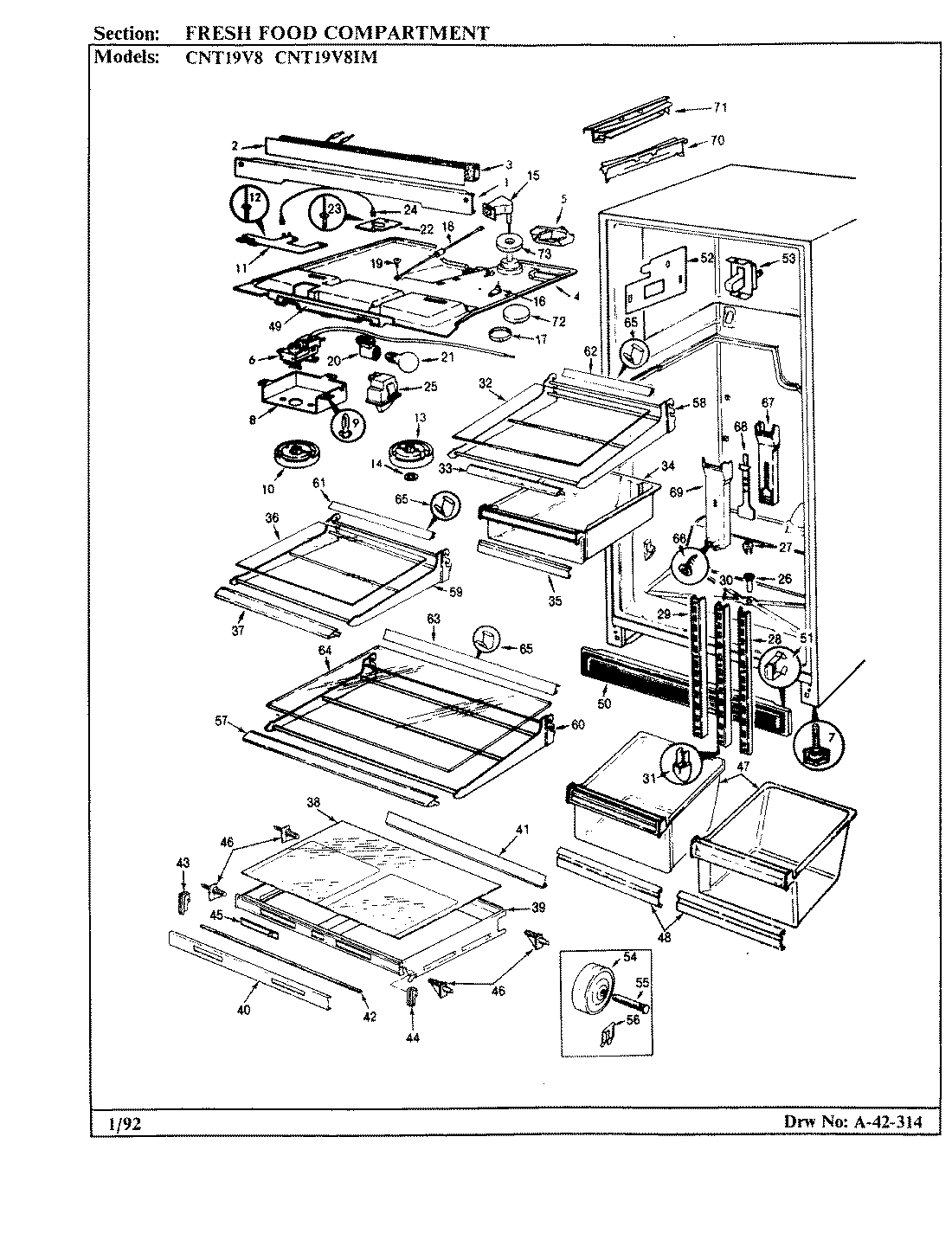

03 - FRESH FOOD COMPARTMENT

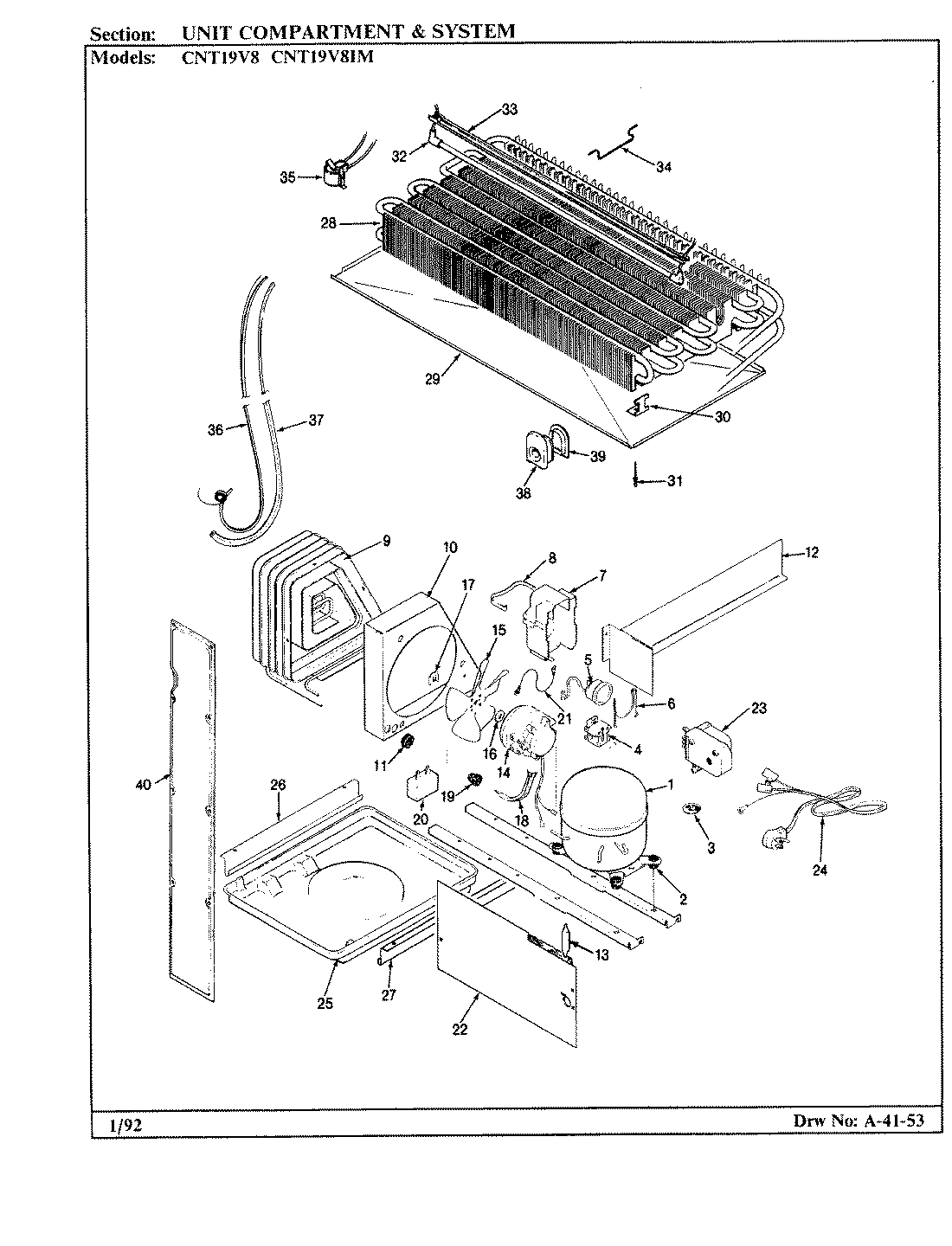

05 - UNIT COMPARTMENT & SYSTEM

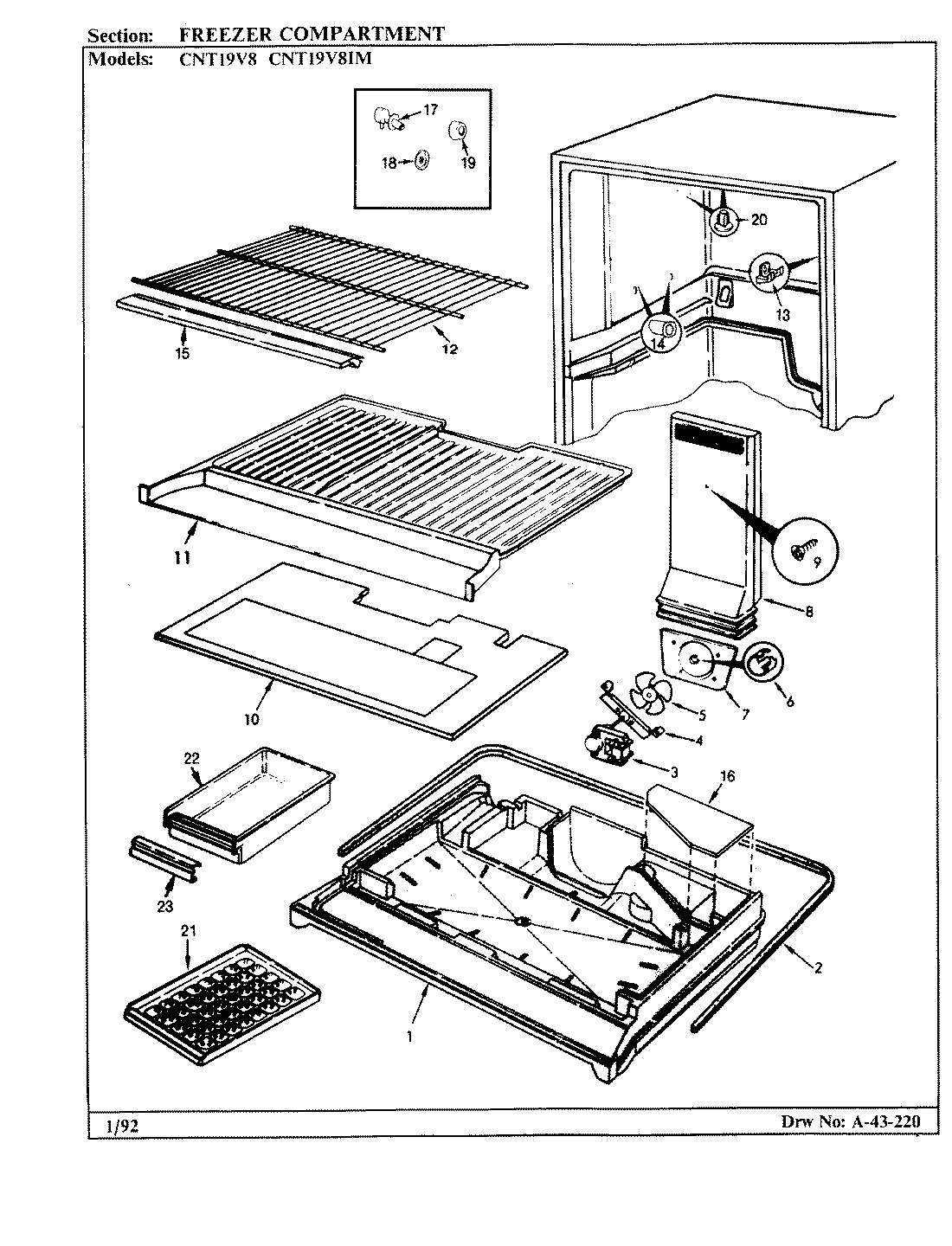

02 - FREEZER COMPARTMENT

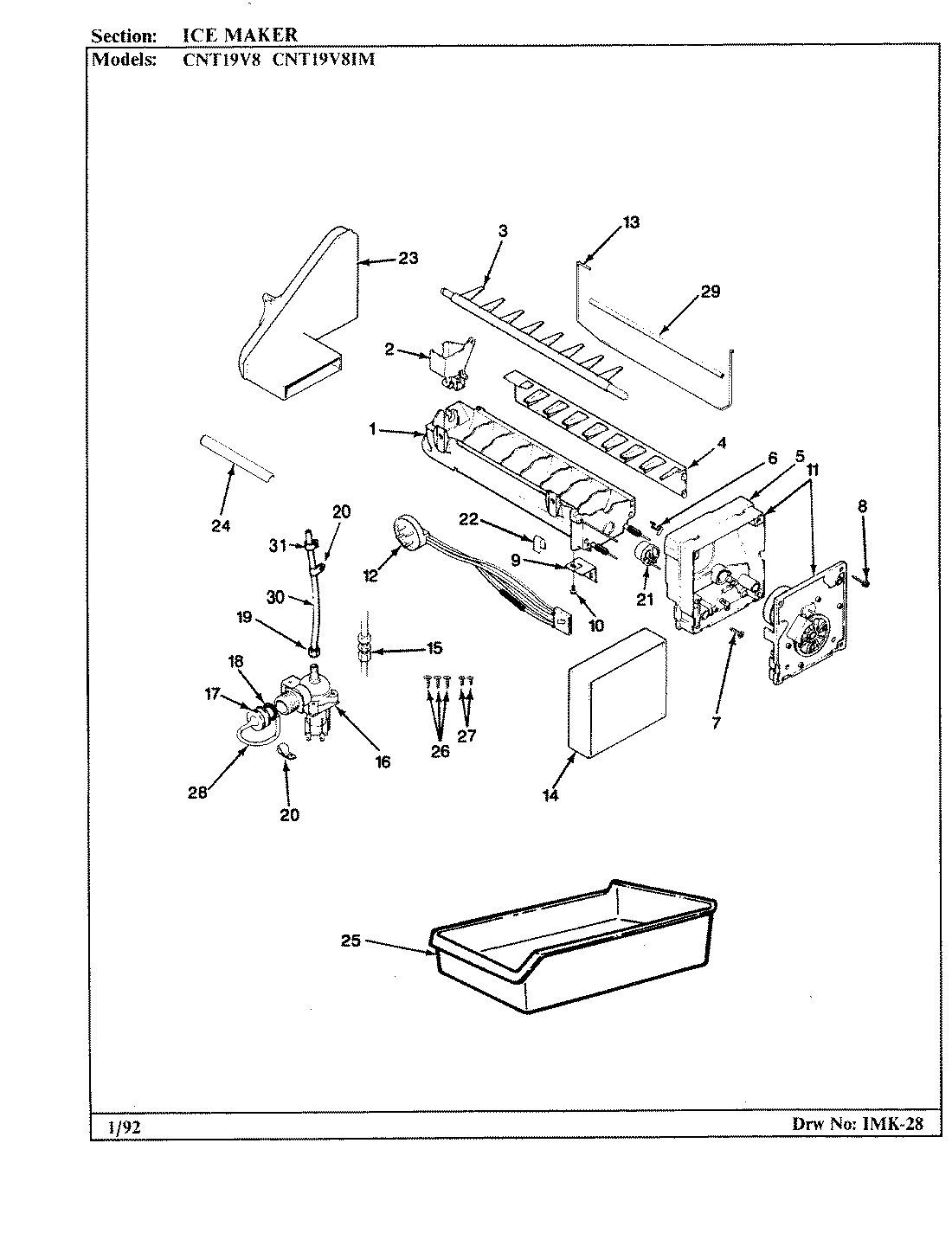

04 - ICE MAKER

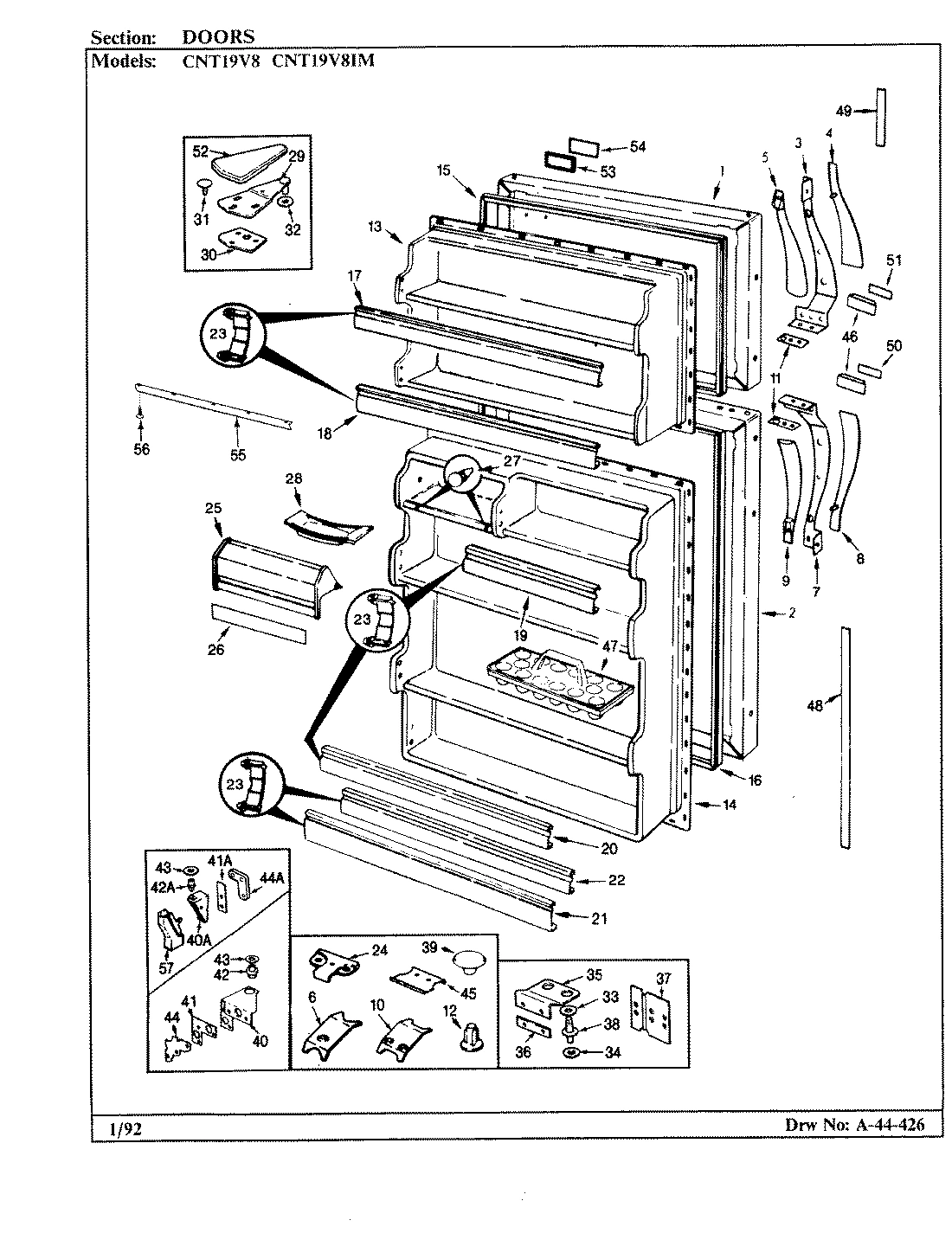

01 - DOOR
Common parts from model Whirlpool CNT19V8IMA REFRIGERATOR
1
DIVIDER, MULLION (ALM) WPL 684342AM Contact Us For Availability
1
FOAM TRAY WPL 675193 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 684743AM Contact Us For Availability
2
INSULATION WPL 685772 Contact Us For Availability
2
HEATER WIRE WPL 688311 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
SEAL WPL 688666 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
PANEL, F.F. DOOR (ALM) WPL 684733AM Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
3
INSULATION WPL 601402 Contact Us For Availability
3
WIRE HARNESS WPL 689031 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
DOOR HANDLE WPL 662551 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 685312 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
OVERLOAD WPL 6329417 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 681192 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
7
LEG, LEVELING WPL 686641 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
7
DOOR HANDLE WPL 662552 Contact Us For Availability
7
SCREW WPL 9986122 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
8
TUNNEL, AIR WPL 685923 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
INSERT WPL 606874 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
INSERT WPL 606882 Contact Us For Availability
10
KNOB, CONTROL WPL 686007 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
10
SCREW WPL 9986112 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664791 Contact Us For Availability
11
SEAL WPL 689462 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
11
SHIM HANDLE----NA WPL 687761 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
12
SHELF WPL 6043810 Contact Us For Availability
12
WIRE HARNESS WPL 679101 Contact Us For Availability
12
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
13
KNOB, TEMP. CONTROL WPL 686008 Contact Us For Availability
13
SCREW WPL 4000191 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
LINER, DOOR WPL 6592818 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675607 Contact Us For Availability
14
CUP, SHELF WPL 603131 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
SCREW WPL 652755 Contact Us For Availability
14
INNER PANEL WPL 688871 Contact Us For Availability
15
GASKET WPL 675582 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
TRIM,FREEZER SHELF WPL 6041438 Contact Us For Availability
15
UNION, COMPRESSION WPL 542671 Contact Us For Availability
15
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
COVER, PLENUM WPL 664805 Contact Us For Availability
16
VALVE, WATER WPL 601843 Contact Us For Availability
16
GASKET, F.F. DOOR WPL 661996 Contact Us For Availability
17
COVER, CRANK WPL 674931 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
17
NUT, INLET TUBING WPL 246851 Contact Us For Availability
17
TRIM, DOOR SHELF WPL 65151286 Contact Us For Availability
18
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
19
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
19
SCREW WPL 6527513 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
19
TRIM, DOOR SHELF WPL 65151287 Contact Us For Availability
20
SOCKET, LIGHT WPL 605771 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
TRIM, DOOR SHELF WPL 65151335 Contact Us For Availability
22
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
TRIM, DOOR SHELF WPL 65151285 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665565 Contact Us For Availability
23
DUCT, AIR (15` & 17` MODELS) WPL 684121 Contact Us For Availability
23
DUCT, AIR (19` & 21` MODELS) WPL 684122 Contact Us For Availability
23
DUCT, AIR (23` MODELS) WPL 684123 Contact Us For Availability
23
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
24
GROUND WIRE WPL 2967528 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
24
DOOR STOP WPL 6041910 Contact Us For Availability
25
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
25
SWITCH, LIGHT WPL 557321 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
PAN, ICE WPL 683271 Contact Us For Availability
25
DOOR, DAIRY WPL 6040643 Contact Us For Availability
26
TUBE, DRAIN WPL 545317 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
SCREW WPL 4000211 Contact Us For Availability
27
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
SCREW WPL 4010171 Contact Us For Availability
28
SUPPORT WPL 600965 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
28
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
28
TRAY, BUTTER WPL 299362 Contact Us For Availability
29
SUPPORT WPL 600964 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
29
SLEEVE, SENSOR ARM WPL 675562 Contact Us For Availability
29
HINGE, UPPER WPL 5370920 Contact Us For Availability
29
SCREW WPL 6527552 Contact Us For Availability
30
SUPPORT WPL 600966 Contact Us For Availability
30
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
30
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
30
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
SCREW WPL 4000371 Contact Us For Availability
31
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
31
CLAMP, SPRING WPL 603334 Contact Us For Availability
31
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
32
SHELF WPL 6660430 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
32
WASHER WPL 542331 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
33
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
34
PAN, MEAT WPL 665239 Contact Us For Availability
34
CLIP WPL 688251 Contact Us For Availability
34
WASHER WPL 542332 Contact Us For Availability
35
TRIM WPL 6623013 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
35
SCREW WPL 6527555 Contact Us For Availability
35
HINGE, CENTER WPL 688112 Contact Us For Availability
36
GLASS, CANTILEVER SPLIT SHELF WPL 6660423 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
36
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
37
TRIM, MEAT SHELF (FRONT) WPL 605246 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
37
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
38
SHELF, CRISPER WPL 6874313 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
38
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
39
SHELF, CRISPER WPL 687351 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
WIRE HARNESS WPL 688391 Contact Us For Availability
39
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
40
TRIM WPL 687444 Contact Us For Availability
40
SCREW WPL 4000171 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
HINGE, LOWER WPL 677146 Contact Us For Availability
41
TRIM, CRISPER SHELF (REAR) WPL 687981 Contact Us For Availability
41
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
42
SEAL WPL 687971 Contact Us For Availability
42
HINGE PIN WPL 687881 Contact Us For Availability
43
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
44
SCREW WPL 4031001 Contact Us For Availability
44
TAPPING PLATE WPL 657903 Contact Us For Availability
45
SLIDE, CONTROL WPL 687422 Contact Us For Availability
45
DOOR STOP WPL 600304 Contact Us For Availability
45
SCREW WPL 9986108 Contact Us For Availability
46
STUD, CRISPER SUPPORT WPL 688361 Contact Us For Availability
46
BEZEL WPL 606861 Contact Us For Availability
47
PAN, CRISPER WPL 60457495 Contact Us For Availability
47
TRAY, EGG WPL 600669 Contact Us For Availability
48
TRIM WPL 6623014 Contact Us For Availability
48
HANDLE EXT TRIM WPL 6045323 Contact Us For Availability
49
INSERT WPL 6057151 Contact Us For Availability
49
HANDLE EXT TRIM WPL 6045324 Contact Us For Availability
50
KICKPLATE WPL 601387 Contact Us For Availability
50
INSERT WPL 653406 Contact Us For Availability
51
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
51
INSERT WPL 653408 Contact Us For Availability
52
SCREW WPL 4020131 Contact Us For Availability
52
BRACKET, SWITCH WPL 605831 Contact Us For Availability
52
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
53
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
53
INSERT, NAMEPLATE WPL 669814 Contact Us For Availability
54
WHEEL WPL 298342 Contact Us For Availability
54
INSERT, NAMEPLATE WPL 6698211 Contact Us For Availability
55
PIN, WHEEL WPL 298352 Contact Us For Availability
55
GASKET WPL 689302 Contact Us For Availability
56
CLIP WPL 602161 Contact Us For Availability
56
CLIP, SECONDARY SEAL WPL 566865 Contact Us For Availability
57
TRIM,SHELF (FULL FRONT) WPL 6052428 Contact Us For Availability
59
FRAME, SHELF WPL 6057013 Contact Us For Availability
60
FRAME, SHELF WPL 6057025 Contact Us For Availability
62
TRIM, MEAT SHELF (REAR) WPL 652764 Contact Us For Availability
63
TRIM, SHELF (FULL REAR) WPL 6527621 Contact Us For Availability
64
GLASS, CANTILEVER SHE WPL 6660422 Contact Us For Availability
65
WPL 663331 WPL 663331 Contact Us For Availability
65
WPL 663332 WPL 663332 Contact Us For Availability
67
WPL 600921 WPL 600921 Contact Us For Availability
68
WPL 600932 WPL 600932 Contact Us For Availability
69
WPL 6009421 WPL 6009421 Contact Us For Availability
70
WPL 668141 WPL 668141 Contact Us For Availability
71
WPL 668131 WPL 668131 Contact Us For Availability
72
WPL 690371 WPL 690371 Contact Us For Availability
73
WPL 689891 WPL 689891 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1070993 Contact Us For Availability
× ![]()
Login and Registration Form
