Model Whirlpool CNT19C8H REFRIGERATOR – Common Parts & Diagrams
01 - DOORS

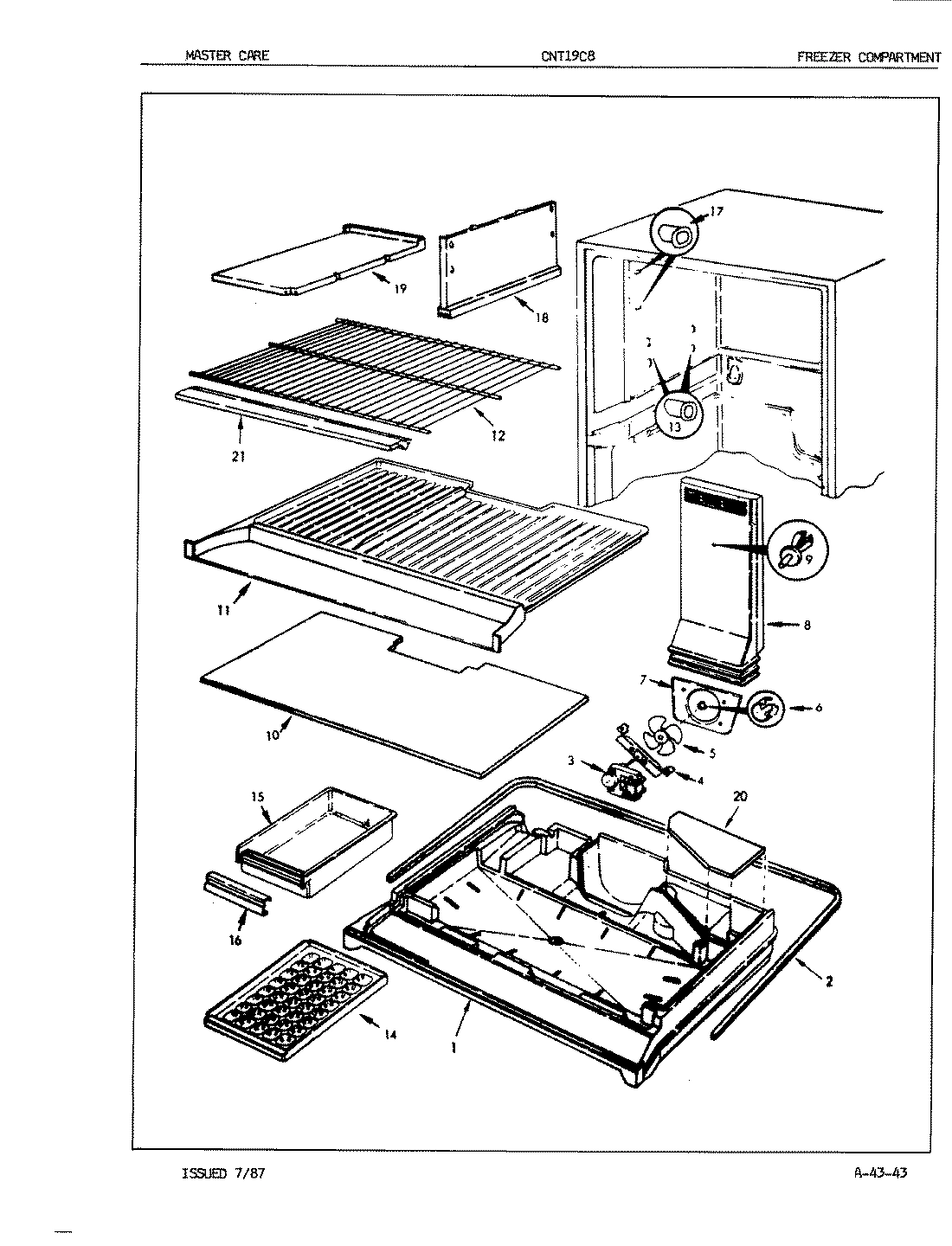

02 - FREEZER COMPARTMENT

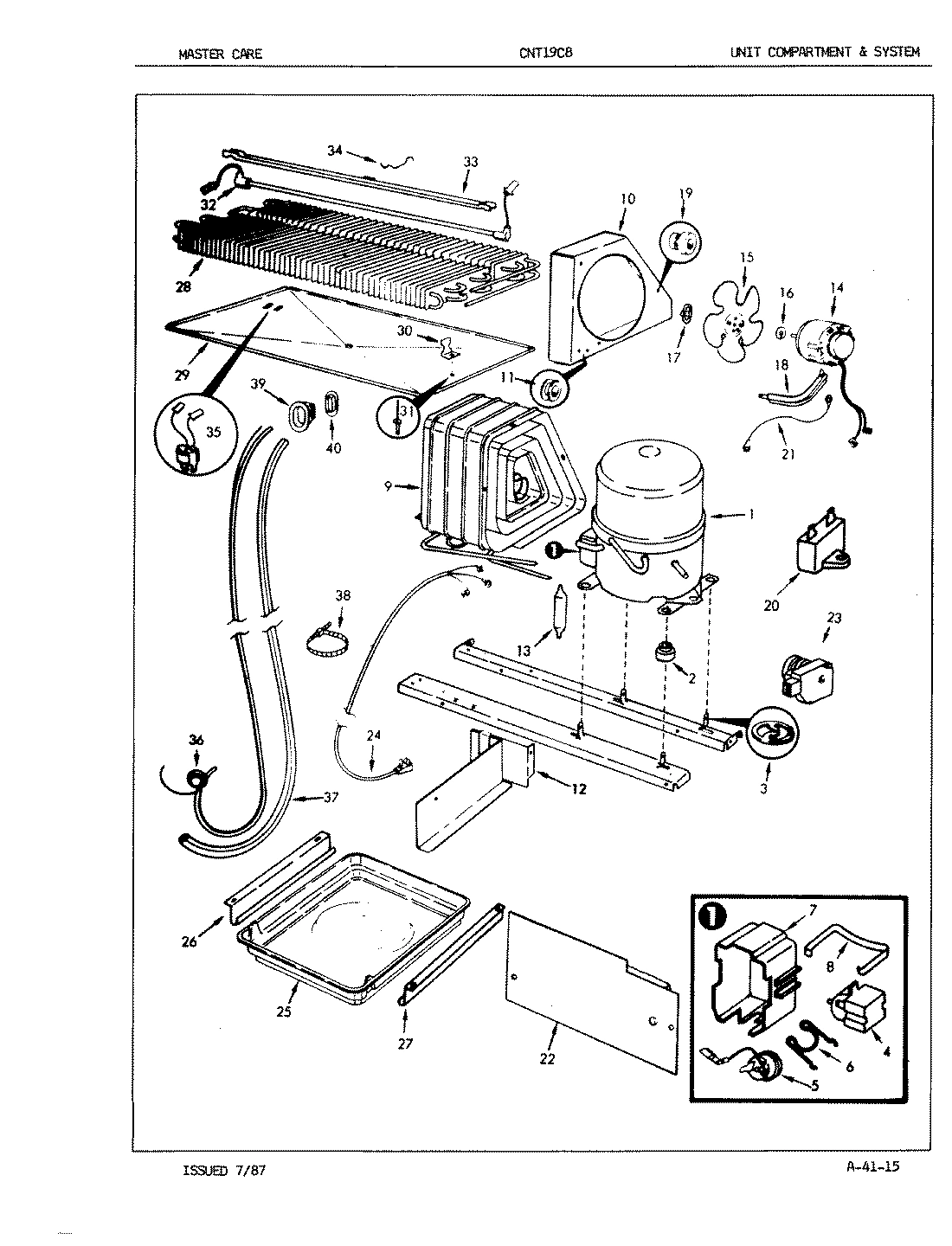

03 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool CNT19C8H REFRIGERATOR
1
OUTER PANEL WPL 6003316HW Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 666061 Contact Us For Availability
1
COMPRESSOR WPL RA997 Contact Us For Availability
2
OUTER PANEL WPL 6003254HW Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
SEAL WPL 663256 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
DOOR HANDLE WPL 662551 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
GROUND WIRE WPL 2967530 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
5
SCREW WPL 9986112 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
OVERLOAD WPL 6329410 Contact Us For Availability
6
INSERT WPL 653402 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
TRAY, EGG WPL 6006610 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
8
DOOR HANDLE WPL 662552 Contact Us For Availability
8
SCREW WPL 9986122 Contact Us For Availability
8
TUNNEL, AIR WPL 660443 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
INSERT WPL 606873 Contact Us For Availability
9
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
9
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
INSERT WPL 606882 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664032 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
INSERT WPL 653401 Contact Us For Availability
11
BOTTOM, FRZ. WPL 604742 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
SHIM WPL 604561 Contact Us For Availability
12
SHELF WPL 6032325 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
13
PLUG BUTTON WPL 557829 Contact Us For Availability
13
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
14
LINER, DOOR WPL 6592813 Contact Us For Availability
14
ICE CUBE TRAY WPL 601121 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
15
SCREW WPL 652755 Contact Us For Availability
15
LINER, DOOR WPL 6593322 Contact Us For Availability
15
PAN, ICE WPL 606531 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
16
GASKET, FRZ. DOOR WPL 661995 Contact Us For Availability
16
HANDLE WPL 602537 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
GASKET, F.F. DOOR WPL 661996 Contact Us For Availability
17
CUP, SHELF WPL 603131 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
18
DIVIDER WPL 601165 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
TRIM, DOOR SHELF WPL 65151130 Contact Us For Availability
19
SHELF WPL 606556 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
COVER, PLENUM WPL 664802 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
21
TRIM, DOOR SHELF WPL 65151154 Contact Us For Availability
21
TRIM WPL 6041450 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
TRIM, DOOR SHELF WPL 6515166 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
TRIM, DOOR SHELF WPL 65151142 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665562 Contact Us For Availability
24
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
HANDLE EXT WPL 6045314 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
26
DOOR, DAIRY WPL 6040628 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
INSERT WPL 6057320 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
BUMPER, DOOR WPL 282726 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
29
TRAY, BUTTER WPL 299362 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
30
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
30
COVER, UPPER HINGE (HW) WPL 6500312 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
PLUG BUTTON WPL 5614412 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
WASHER WPL 521851 Contact Us For Availability
34
SCREW WPL 998687 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
37
TAPPING PLATE WPL 606221 Contact Us For Availability
37
SCREW WPL 9986107 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
PLUG BUTTON WPL 561869 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
SCREW WPL 4030625 Contact Us For Availability
40
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
CLIP MOUNTING, TRIM AT REAR WPL 663311 Contact Us For Availability
41
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
42
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
43
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
44
WASHER WPL 542332 Contact Us For Availability
45
DOOR STOP WPL 600301 Contact Us For Availability
46
DOOR STOP WPL 604191 Contact Us For Availability
46
SCREW WPL 9986108 Contact Us For Availability
47
HANDLE EXT WPL 6045313 Contact Us For Availability
47
BEZEL WPL 606861 Contact Us For Availability
47
ORGANIZER, SHELF WPL 640976 Contact Us For Availability
47
ORGANIZER, SHELF WPL 640977 Contact Us For Availability
× ![]()
