Model Whirlpool CNT17V4A REFRIGERATOR – Common Parts & Diagrams
04 - ICE MAKER

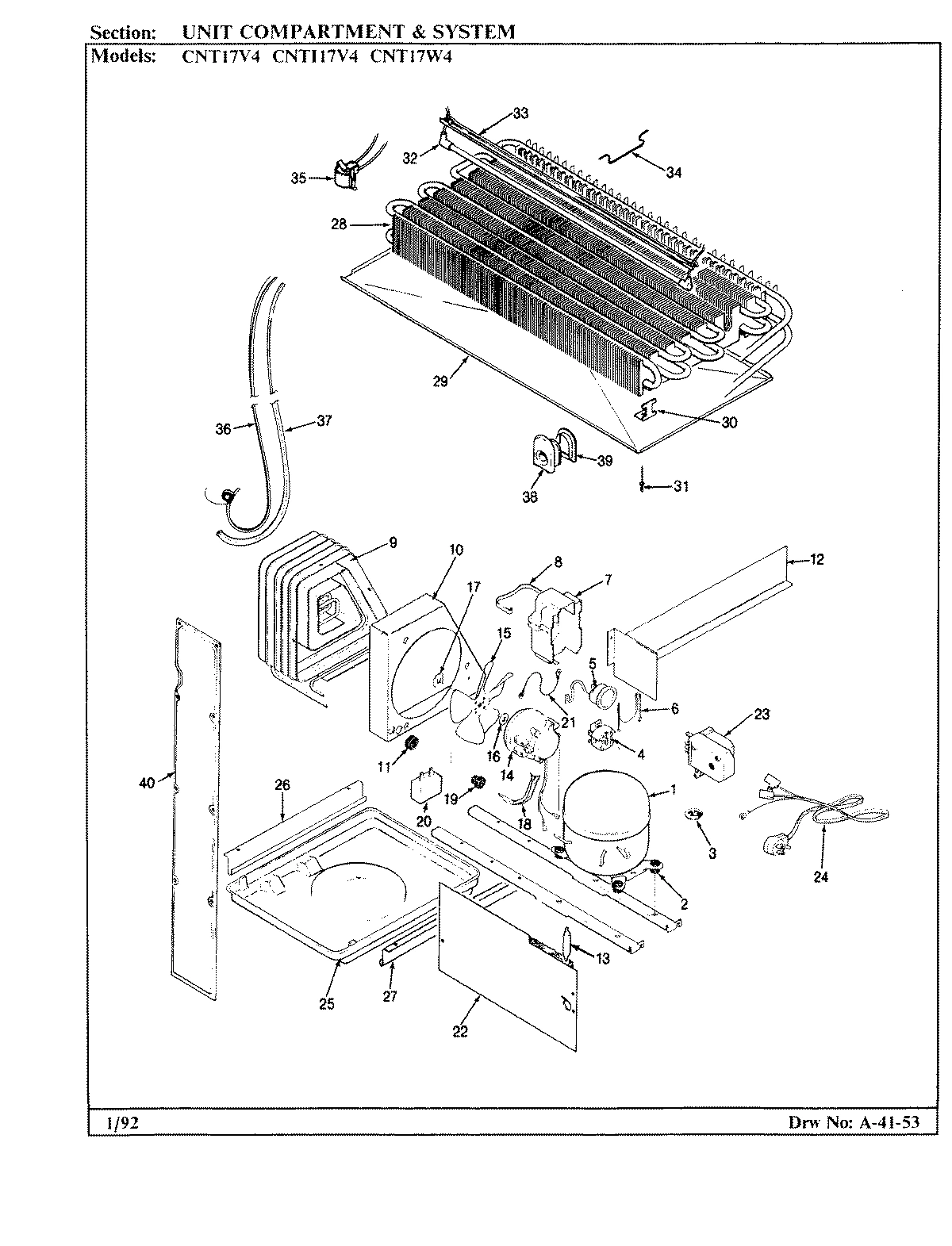

05 - UNIT COMPARTMENT & SYSTEM

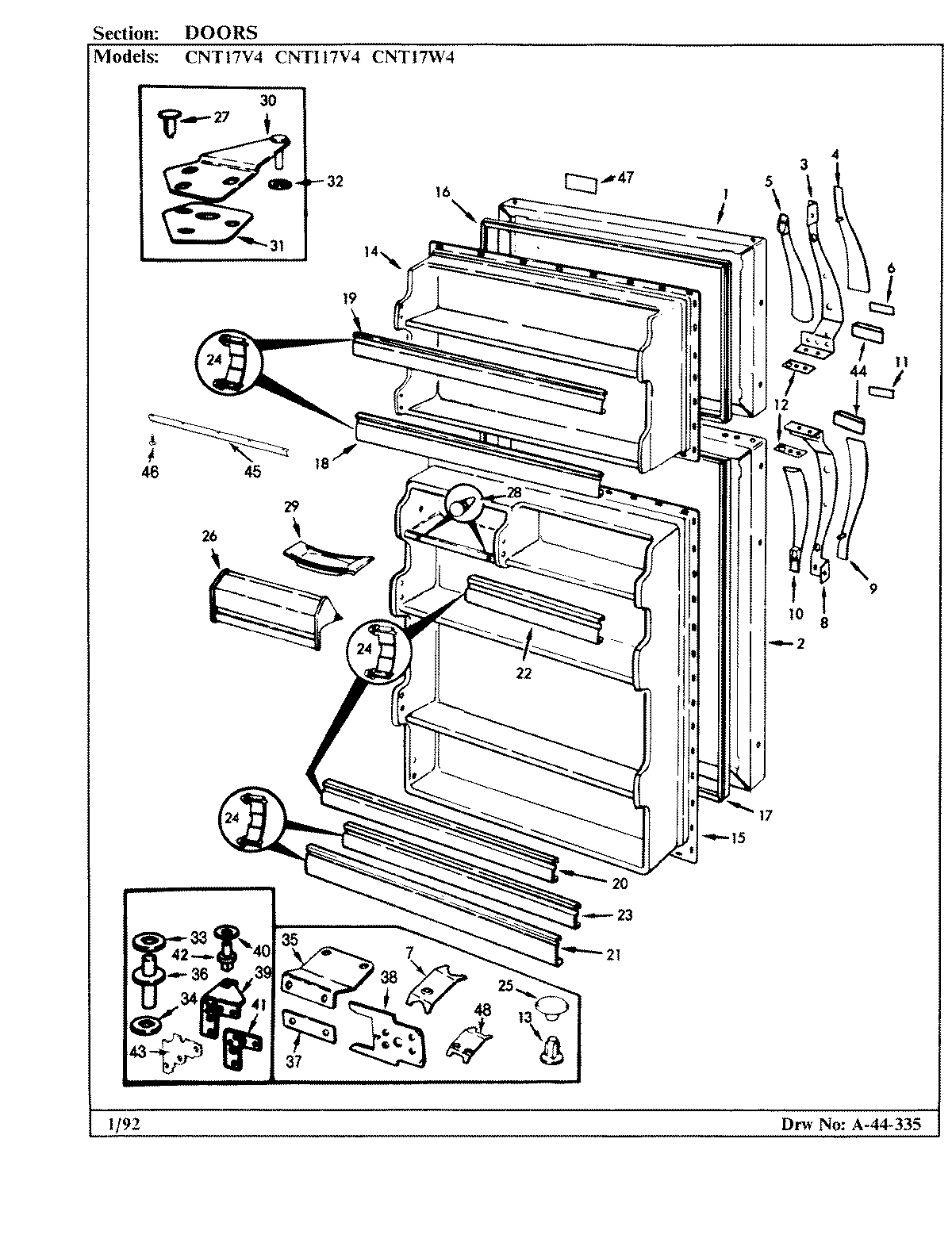

01 - DOORS

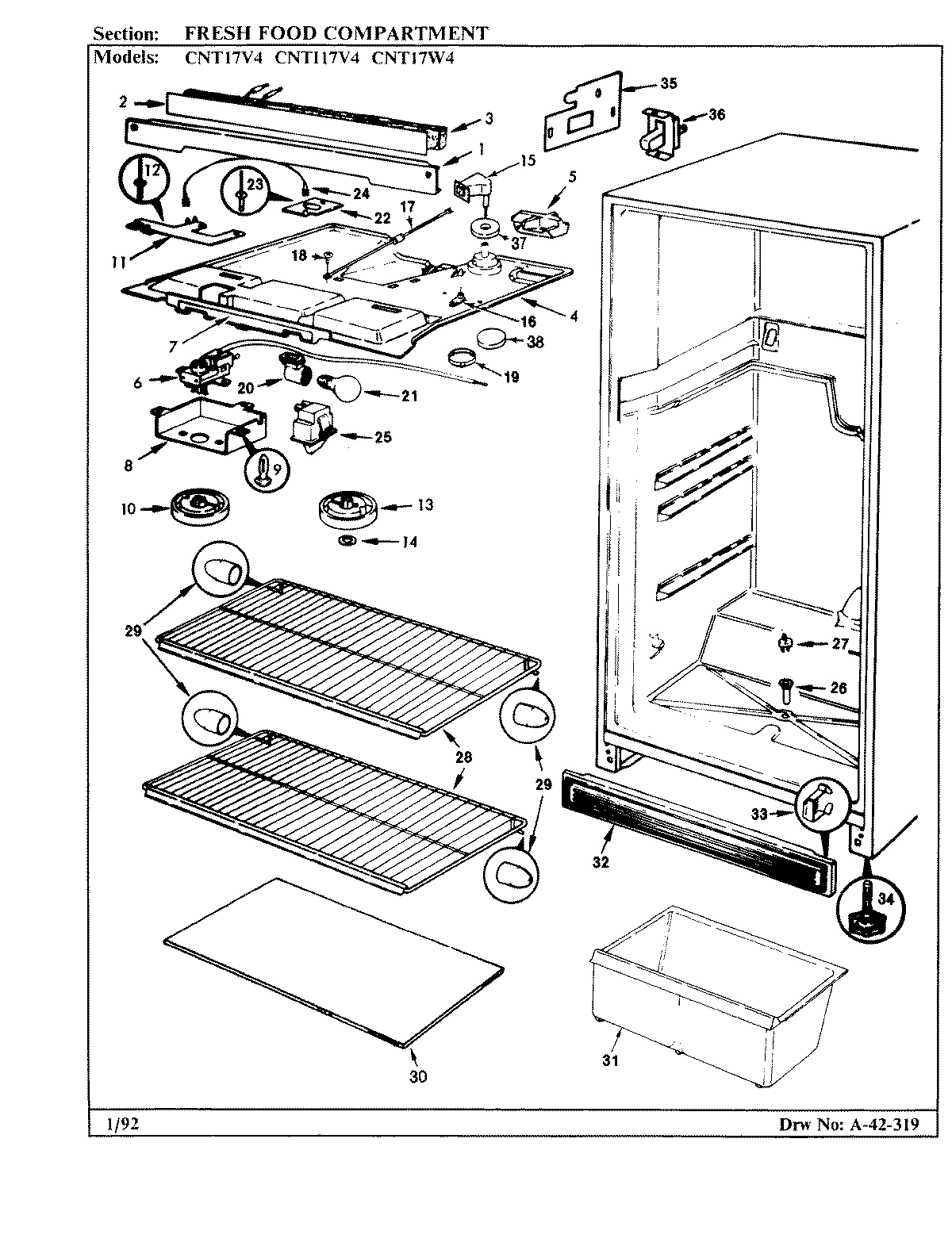

03 - FRESH FOOD COMPARTMENT

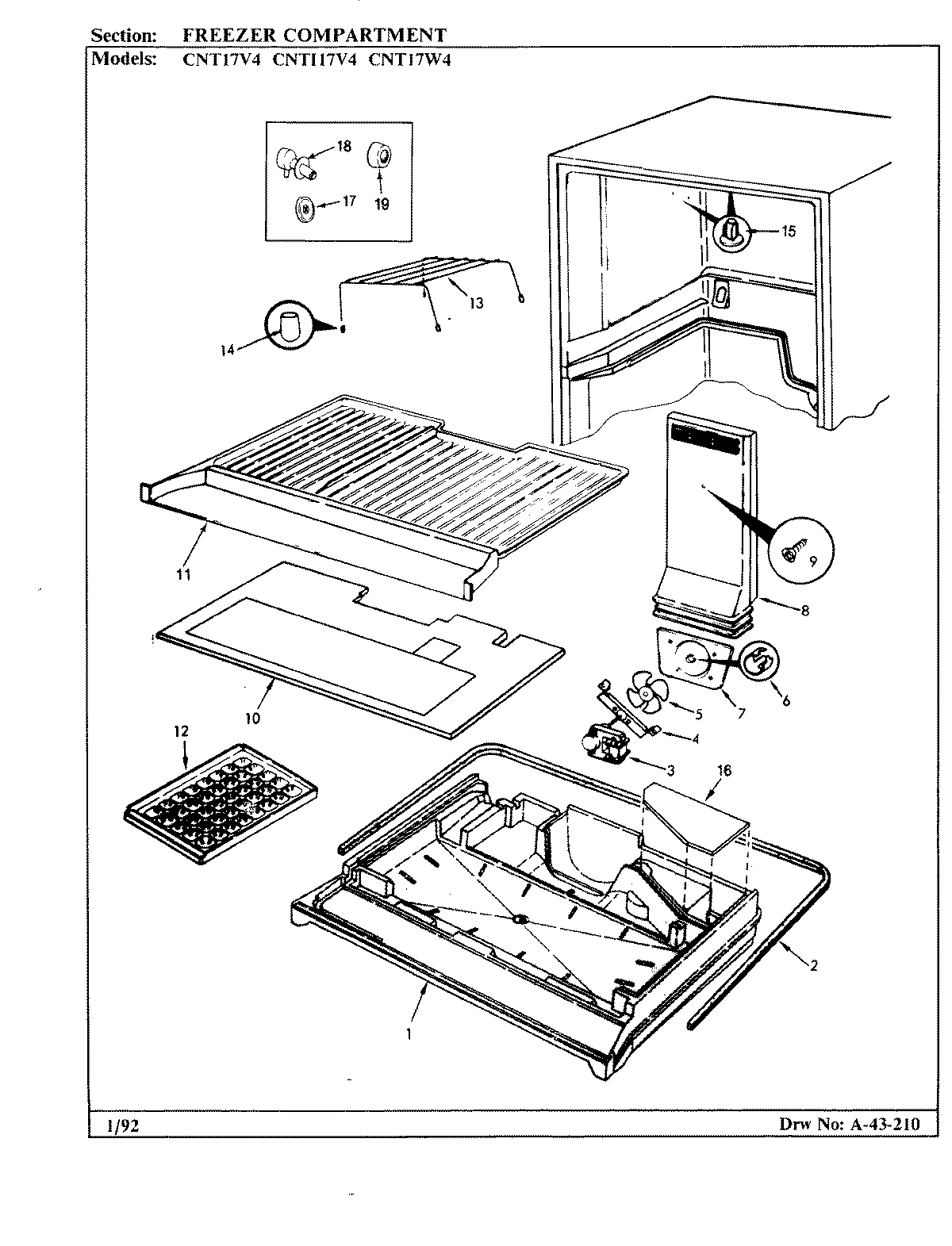

02 - FREEZER COMPARTMENT
Common parts from model Whirlpool CNT17V4A REFRIGERATOR
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 720441AM Contact Us For Availability
1
SCREW WPL 6527554 Contact Us For Availability
1
DIVIDER, MULLION (ALM) WPL 684341AM Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 675181 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
PANEL, F.F. DOOR (ALM) WPL 684711AM Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
INSULATION WPL 685771 Contact Us For Availability
2
HEATER WIRE WPL 688301 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
SEAL WPL 688661 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
DOOR HANDLE WPL 662551 Contact Us For Availability
3
INSULATION WPL 601401 Contact Us For Availability
3
WIRE HARNESS WPL 689031 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 685302 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
OVERLOAD WPL 6329412 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
INSERT WPL 653408 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 681193 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
7
INSERT WPL 6057144 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
DOOR HANDLE WPL 662552 Contact Us For Availability
8
SCREW WPL 9986112 Contact Us For Availability
8
SCREW WPL 9986122 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
8
TUNNEL, AIR WPL 685922 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA439911 Contact Us For Availability
9
INSERT WPL 606874 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
INSERT WPL 606882 Contact Us For Availability
10
KNOB, CONTROL WPL 686001 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
INSERT WPL 653406 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664601 Contact Us For Availability
11
SEAL WPL 689461 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
SHIM HANDLE----NA WPL 687761 Contact Us For Availability
12
ICE CUBE TRAY WPL 601121 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
13
KNOB, FRZ. WPL 686002 Contact Us For Availability
13
TIP WPL 245803 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684812 Contact Us For Availability
14
LINER, DOOR WPL 6592913 Contact Us For Availability
14
PLUG BUTTON WPL 669202 Contact Us For Availability
14
PLUG BUTTON WPL 675571 Contact Us For Availability
15
UNION, COMPRESSION WPL 542671 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
SCREW WPL 652755 Contact Us For Availability
15
LINER, F.F. DOOR WPL 659345 Contact Us For Availability
15
DAMPER WPL 675586 Contact Us For Availability
15
COVER, PLENUM WPL 664804 Contact Us For Availability
16
VALVE, WATER WPL 601843 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
GASKET, DOOR WPL 661993 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
16
TRIVET WPL 682592 Contact Us For Availability
17
NUT, INLET TUBING WPL 246851 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
GASKET, DOOR WPL 661994 Contact Us For Availability
17
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
17
CAP, CONNECTOR WPL 681871 Contact Us For Availability
18
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
TRIM, DOOR SHELF WPL 65151104 Contact Us For Availability
18
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
18
SCREW WPL 6527513 Contact Us For Availability
18
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
COVER, CRANK WPL 674931 Contact Us For Availability
19
CAP, GROMMET WPL 683871 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
20
SOCKET, LIGHT WPL 605771 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
TRIM, DOOR SHELF WPL 65151113 Contact Us For Availability
21
BULB, LIGHT WPL 681231 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
TRIM, DOOR SHELF WPL 6515130 Contact Us For Availability
22
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
23
DUCT, AIR (15` & 17` MODELS) WPL 684121 Contact Us For Availability
23
DUCT, AIR (19` & 21` MODELS) WPL 684122 Contact Us For Availability
23
DUCT, AIR (23` MODELS) WPL 684123 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665564 Contact Us For Availability
23
TRIM, DOOR SHELF WPL 6515195 Contact Us For Availability
23
RIVET WPL 263972 Contact Us For Availability
24
TUBE, WATER ENTRY WPL 676665 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
24
GROUND WIRE WPL 2967528 Contact Us For Availability
25
PAN, ICE WPL 683271 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
25
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
25
SWITCH, LIGHT WPL 557321 Contact Us For Availability
26
SCREW WPL 4000211 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
DOOR, DAIRY WPL 6040648 Contact Us For Availability
26
GROMMET WPL 545318 Contact Us For Availability
27
SCREW WPL 4010171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
27
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
28
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
28
EVAPORATOR WPL RA4362010 Contact Us For Availability
28
SHELF, WIRE WPL 602209 Contact Us For Availability
29
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
29
TRAY, BUTTER WPL 299362 Contact Us For Availability
30
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
HINGE, UPPER WPL 5370920 Contact Us For Availability
30
SCREW WPL 6527552 Contact Us For Availability
30
SHELF, CRISPER WPL 654243 Contact Us For Availability
31
CLAMP, SPRING WPL 603334 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
31
PAN, CRISPER WPL 6014540 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
32
WASHER WPL 542332 Contact Us For Availability
32
KICKPLATE WPL 601386 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
33
SCREW WPL 4000171 Contact Us For Availability
33
PAN, CRISPER WPL 574831 Contact Us For Availability
33
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
34
WASHER WPL 542331 Contact Us For Availability
34
LEG, LEVELING WPL 686641 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
35
SCREW WPL 6527555 Contact Us For Availability
35
HINGE, CENTER WPL 688112 Contact Us For Availability
35
SCREW WPL 4020131 Contact Us For Availability
35
BRACKET, SWITCH WPL 605831 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
36
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
36
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
37
WIRE TIE WPL 662231 Contact Us For Availability
37
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
37
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
38
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
38
DISC, CRANK COVER WPL 690371 Contact Us For Availability
39
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
39
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
39
WIRE HARNESS WPL 688391 Contact Us For Availability
39
HINGE, LOWER WPL 677146 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
40
WASHER WPL 674834 Contact Us For Availability
41
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
42
HINGE PIN WPL 687881 Contact Us For Availability
43
SCREW WPL 4031001 Contact Us For Availability
43
TAPPING PLATE WPL 657903 Contact Us For Availability
44
BEZEL WPL 606861 Contact Us For Availability
46
CLIP WPL 524474 Contact Us For Availability
48
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1070993 Contact Us For Availability
× ![]()
Login and Registration Form
