Model Whirlpool CNT17R4 REFRIGERATOR – Common Parts & Diagrams
01 - DOORS

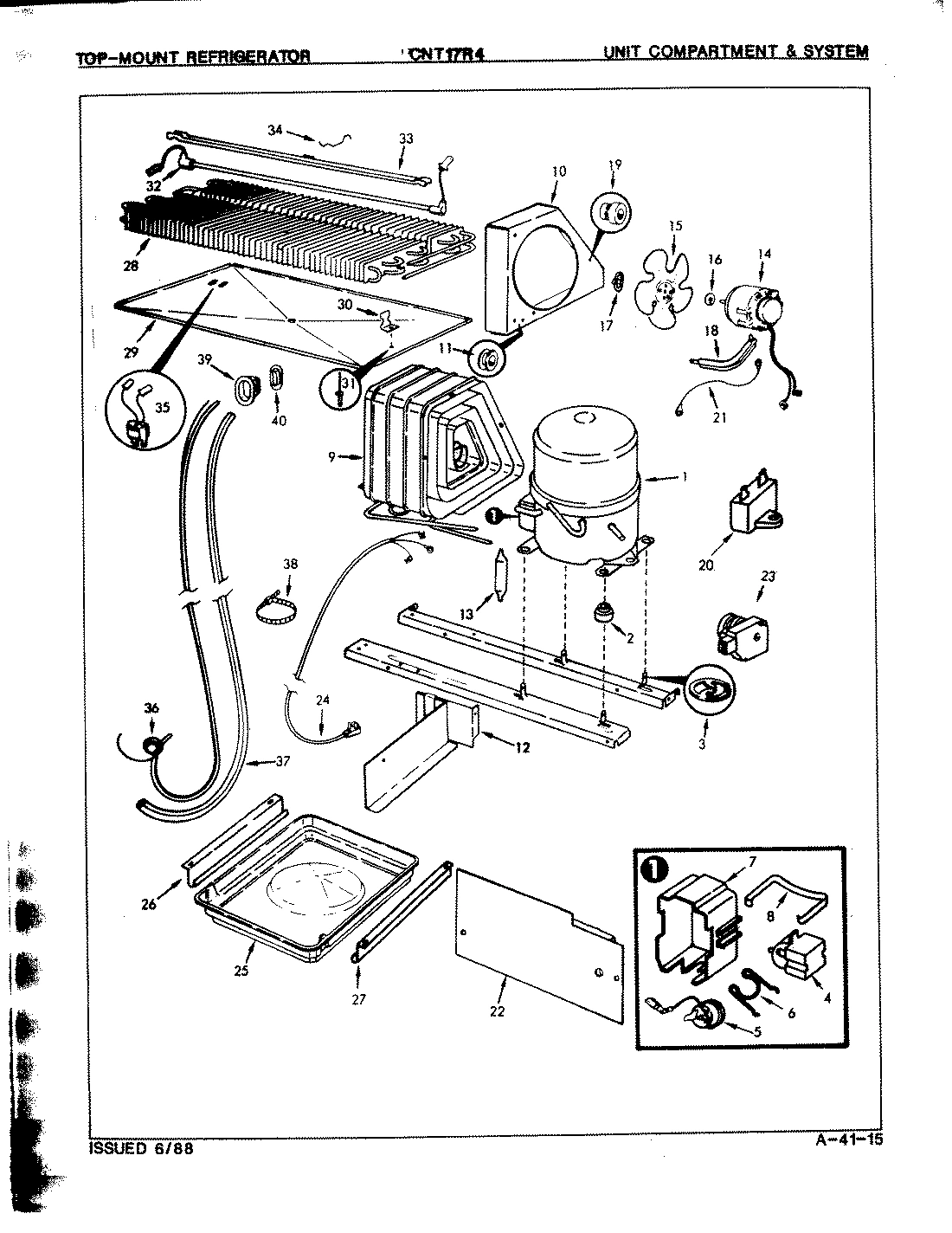

03 - UNIT COMPARTMENT & SYSTEM

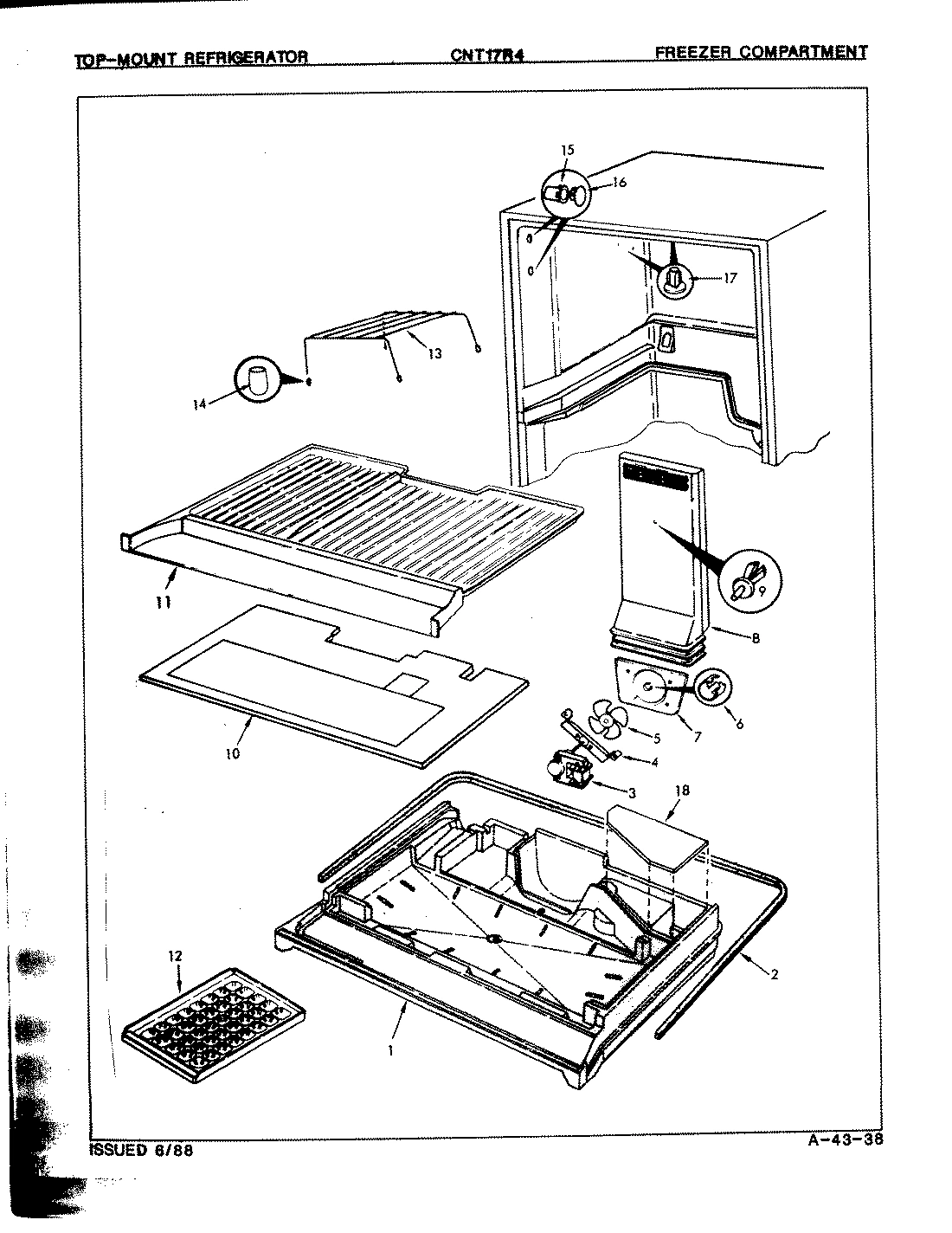

02 - FREEZER COMPARTMENT
Common parts from model Whirlpool CNT17R4 REFRIGERATOR
1
PANEL, OUTER DOOR WPL 6053915WW Contact Us For Availability
1
COMPRESSOR WPL RA1009 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 666051 Contact Us For Availability
2
PANEL, OUTER DOOR WPL 6053914WW Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SEAL WPL 663255 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
GROUND WIRE WPL 2967530 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
WIRE HARNESS WPL 605651 Contact Us For Availability
4
RELAY, START WPL 668581 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
FOAM PLUG WPL 495040900 Contact Us For Availability
5
INSERT WPL 599172 Contact Us For Availability
5
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
5
OVERLOAD WPL 6329415 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
6
P NUT WPL 294583 Contact Us For Availability
6
DOOR HANDLE WPL 596203 Contact Us For Availability
6
SCREW WPL 9986112 Contact Us For Availability
6
SCREW WPL 9986122 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
HANDLE TRIM WPL 5925612 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
INSERT WPL 599174 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
TUNNEL, AIR WPL 660442 Contact Us For Availability
9
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA439911 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
10
LINER, DOOR WPL 6592910 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
11
LINER, DOOR WPL 6593411 Contact Us For Availability
11
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
GASKET, DOOR WPL 661993 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
12
ICE CUBE TRAY WPL 601121 Contact Us For Availability
13
GASKET, DOOR WPL 661994 Contact Us For Availability
13
TRIVET WPL 583867 Contact Us For Availability
14
TRIM, DOOR SHELF WPL 65151104 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
TIP WPL 245803 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
15
CUP, SHELF WPL 603131 Contact Us For Availability
16
TRIM, DOOR SHELF WPL 65151113 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
17
PLUG WPL 603211 Contact Us For Availability
18
TRIM, DOOR SHELF WPL 6515130 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
COVER, PLENUM WPL 664801 Contact Us For Availability
19
TRIM, DOOR SHELF WPL 6515195 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
21
DOOR, DAIRY WPL 6040642 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
BUMPER, DOOR WPL 282726 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 657021 Contact Us For Availability
24
TRAY, BUTTER WPL 299362 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
26
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
WASHER WPL 521851 Contact Us For Availability
27
SCREW WPL 998687 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
28
EVAPORATOR WPL RA4362010 Contact Us For Availability
29
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
30
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
TAPPING PLATE WPL 606221 Contact Us For Availability
32
SCREW WPL 9986107 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
33
SCREW WPL 4030625 Contact Us For Availability
33
HINGE, LOWER WPL 6063012 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
WASHER WPL 542332 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
37
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
WIRE HARNESS WPL 668561 Contact Us For Availability
× ![]()
