Model Whirlpool CNT15V5A REFRIGERATOR – Common Parts & Diagrams

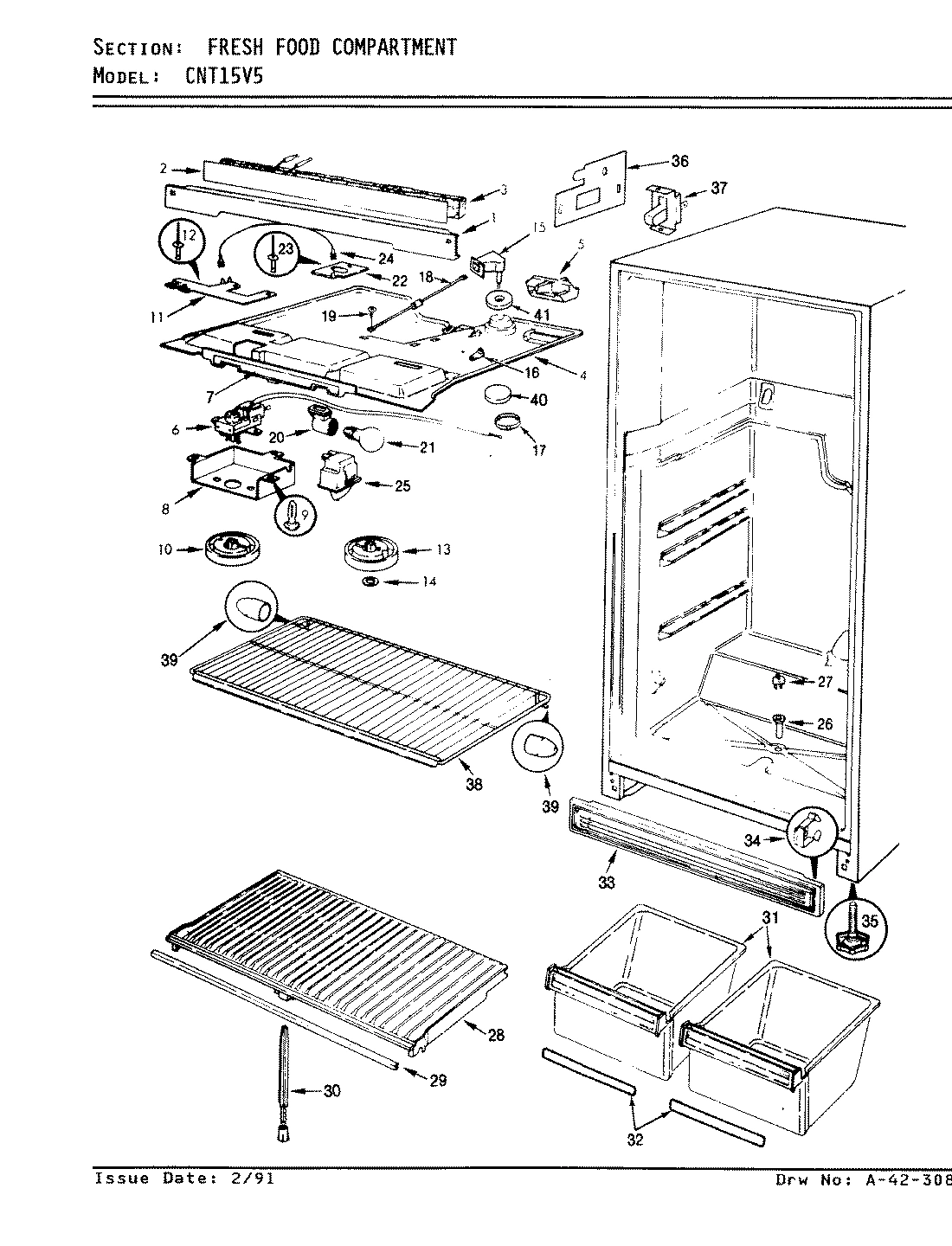

03 - FRESH FOOD COMPARTMENT
02 - FREEZER COMPARTMENT
01 - DOORS
04 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool CNT15V5A REFRIGERATOR
1
DIVIDER, MULLION (ALM) WPL 684341AM Contact Us For Availability
1
MULLION DIVIDER TRAY WPL 675182 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 684701AM Contact Us For Availability
2
INSULATION WPL 685771 Contact Us For Availability
2
HEATER WIRE WPL 688301 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
2
SEAL 72`` WPL 688665 Contact Us For Availability
2
PANEL, F.F. DOOR (ALM) WPL 684691AM Contact Us For Availability
2
DOOR INSULATION KIT WPL RA950561 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
INSULATION WPL 601401 Contact Us For Availability
3
WIRE HARNESS WPL 689031 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
WIRE HARNESS WPL 605651 Contact Us For Availability
3
DOOR HANDLE WPL 662551 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 685302 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
OVERLOAD WPL 6329412 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 681193 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
INSERT WPL 653408 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
INSERT, CONTROL WPL 6057164 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
BEZEL WPL 606861 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
8
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
8
TUNNEL, AIR WPL 685921 Contact Us For Availability
8
DOOR HANDLE WPL 662552 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
INSERT WPL 606874 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
KNOB, CONTROL WPL 686001 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
10
INSERT WPL 606882 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
11
BOTTOM, FRZ. WPL 664601 Contact Us For Availability
11
SEAL WPL 689461 Contact Us For Availability
11
INSERT WPL 653406 Contact Us For Availability
11
SCREW WPL 9986112 Contact Us For Availability
11
SCREW WPL 4140011 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
ICE CUBE TRAY WPL 601121 Contact Us For Availability
12
SHIM HANDLE----NA WPL 687761 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
13
KNOB, FRZ. WPL 686002 Contact Us For Availability
13
TRIVET WPL 682591 Contact Us For Availability
13
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
14
TIP WPL 245803 Contact Us For Availability
14
LINER, DOOR WPL 6593015 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675601 Contact Us For Availability
15
ORIFICE, DAMPER WPL 675581 Contact Us For Availability
15
COVER, PLENUM WPL 664804 Contact Us For Availability
15
SCREW WPL 652755 Contact Us For Availability
15
LINER, F.F. DOOR WPL 6593514 Contact Us For Availability
15
LINER, DOOR WPL 659352 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
16
PLUG BUTTON WPL 669202 Contact Us For Availability
16
PLUG BUTTON WPL 675571 Contact Us For Availability
16
GASKET, DOOR WPL 661991 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
COVER, CRANK WPL 674931 Contact Us For Availability
17
CLAMP, TUBING WPL 535168 Contact Us For Availability
17
SCREW WPL 652751 Contact Us For Availability
17
GASKET, DOOR WPL 661992 Contact Us For Availability
17
SPEEDNUT WPL 199141 Contact Us For Availability
18
ROD, FREEZER CONTROL WPL 674993 Contact Us For Availability
18
CLAMP, SPRING WPL 603334 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
TUBING WPL 675798 Contact Us For Availability
19
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
19
SCREW WPL 6527513 Contact Us For Availability
19
TRIM, DOOR SHELF WPL 65151113 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
SOCKET, LIGHT WPL 605771 Contact Us For Availability
20
CAP, GROMMET WPL 683871 Contact Us For Availability
20
TRIM, DOOR SHELF WPL 6515195 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
21
BULB, LIGHT WPL 681231 Contact Us For Availability
21
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
21
TRIM, DOOR SHELF WPL 6515124 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
22
CLIP WPL 655171 Contact Us For Availability
22
CAP, CONNECTOR WPL 681871 Contact Us For Availability
22
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663381 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
RIVET WPL 263972 Contact Us For Availability
23
DOOR, DAIRY WPL 6035817 Contact Us For Availability
23
DOOR, DAIRY WPL 690584 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 657021 Contact Us For Availability
24
GROUND WIRE WPL 2967528 Contact Us For Availability
24
BUMPER, DOOR WPL 282726 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
25
SWITCH, LIGHT WPL 669871 Contact Us For Availability
25
TRAY, BUTTER WPL 299362 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
26
GROMMET WPL 545318 Contact Us For Availability
26
INSERT, DAIRY DOOR WPL 6812817 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
HINGE, UPPER WPL 5370920 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
SHELF, CRISPER WPL 668341 Contact Us For Availability
28
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
28
EVAPORATOR WPL RA4362010 Contact Us For Availability
29
TRIM, CRISPER SHELF WPL 604549 Contact Us For Availability
29
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
30
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
30
WASHER WPL 542332 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
PAN, CRISPER WPL 68221116 Contact Us For Availability
31
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
INSERT WPL 6812920 Contact Us For Availability
32
WASHER WPL 542331 Contact Us For Availability
32
SCREW WPL 998687 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
33
KICKPLATE WPL 601386 Contact Us For Availability
33
HINGE, CENTER WPL 688112 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
34
SHIM, CENTER HINGE WPL 688121 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
LEG, LEVELING WPL 60128 Contact Us For Availability
35
SCREW WPL 6527524 Contact Us For Availability
35
TAPPING PLATE, CENTER HINGE WPL 683771 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
BRACKET, SWITCH WPL 605831 Contact Us For Availability
36
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
37
SCREW WPL 4020131 Contact Us For Availability
37
SWITCH, MULLION HEATER WPL 605851 Contact Us For Availability
37
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
SHELF, WIRE WPL 602209 Contact Us For Availability
38
SCREW WPL 4030625 Contact Us For Availability
38
HINGE, LOWER WPL 677146 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
HINGE PIN WPL 687881 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
WIRE HARNESS WPL 687111 Contact Us For Availability
41
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
42
DOOR STOP WPL 600301 Contact Us For Availability
43
SCREW WPL 9986122 Contact Us For Availability
43
DOOR STOP WPL 6041910 Contact Us For Availability
44
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
45
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
47
CLIP WPL 524474 Contact Us For Availability
48
SCREW WPL 4031001 Contact Us For Availability
48
TAPPING PLATE WPL 657903 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1070993 Contact Us For Availability
× ![]()
