Model Whirlpool CNT15M4A REFRIGERATOR – Common Parts & Diagrams
01 - DOORS

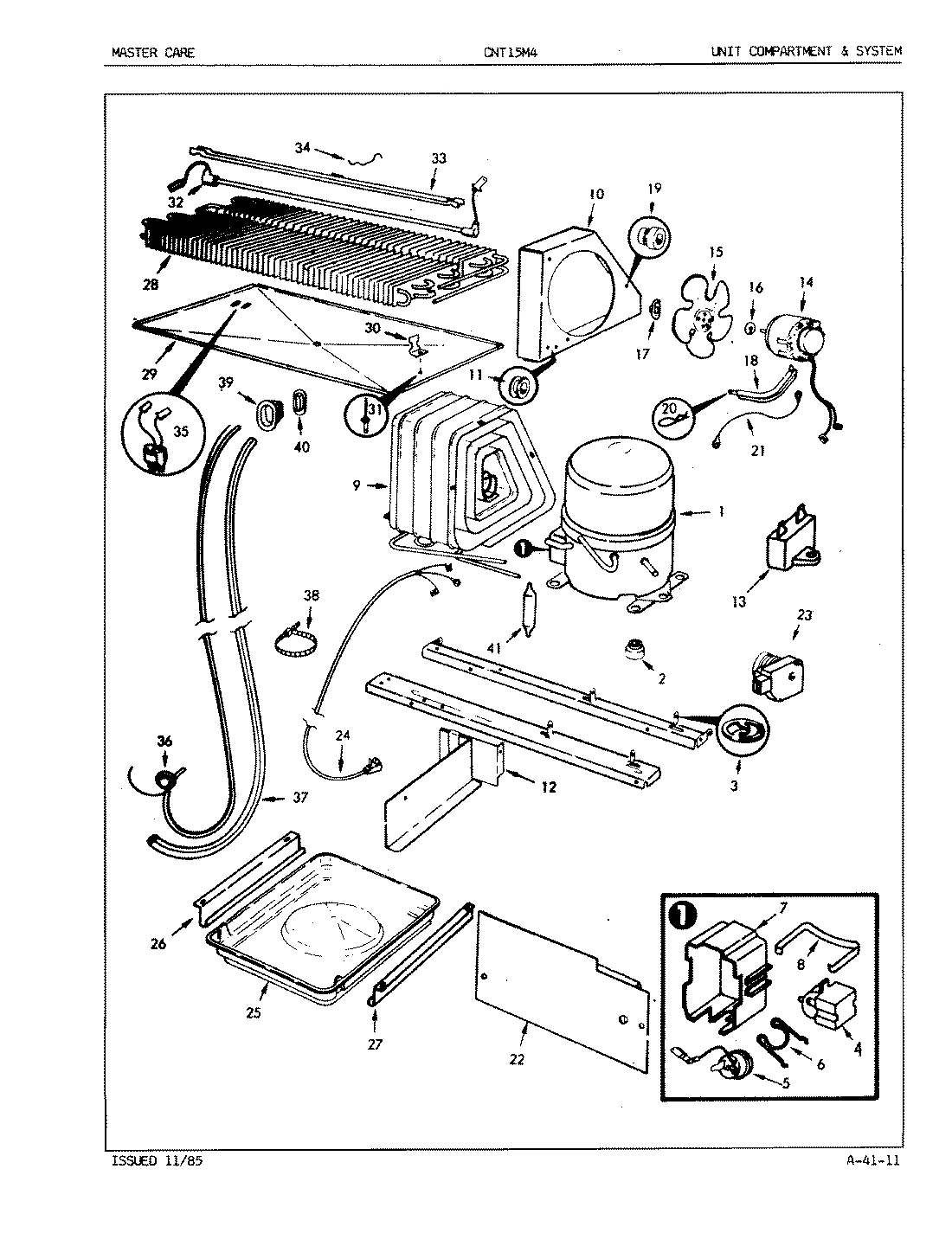

04 - UNIT COMPARTMENT & SYSTEM

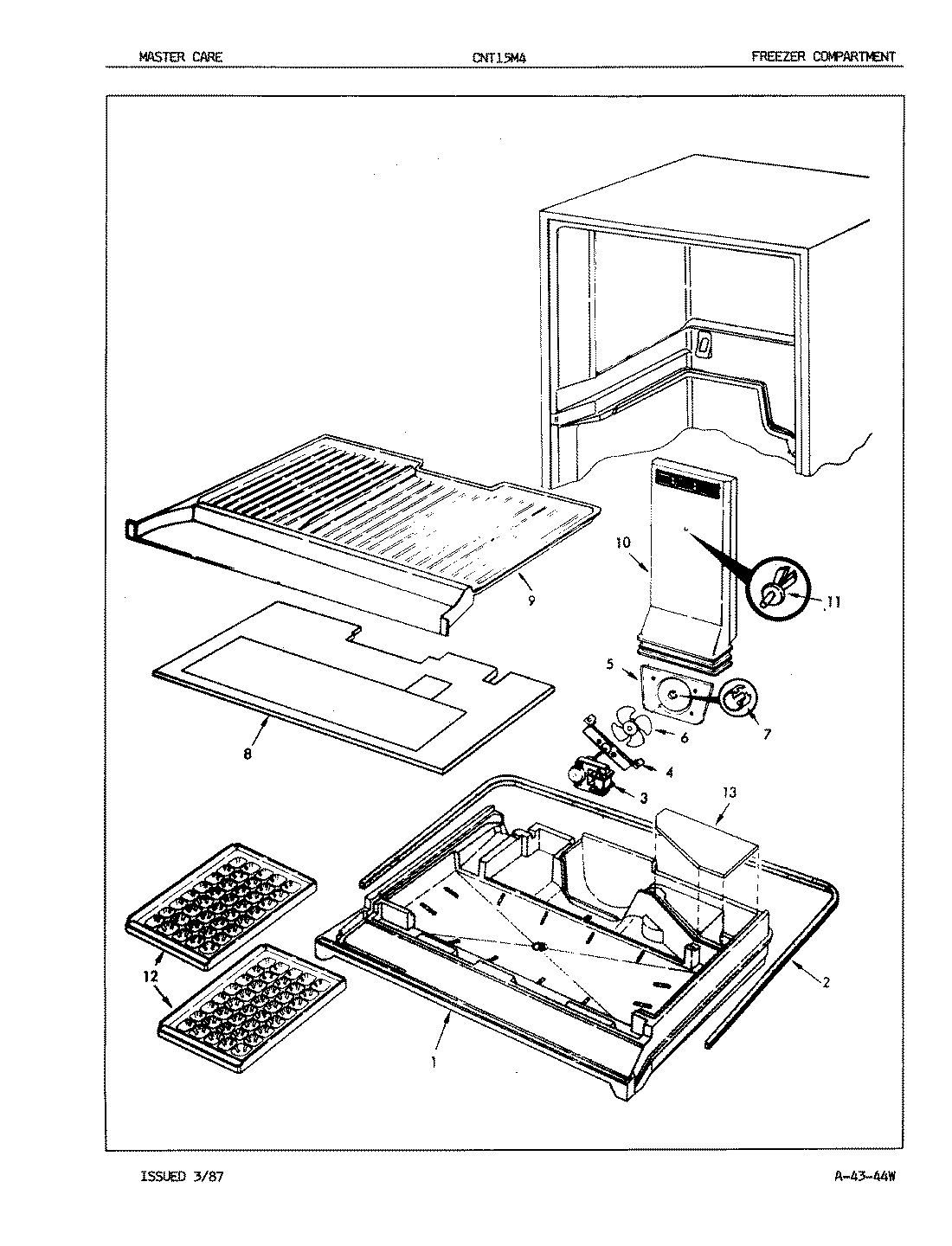

02 - FREEZER COMPARTMENT

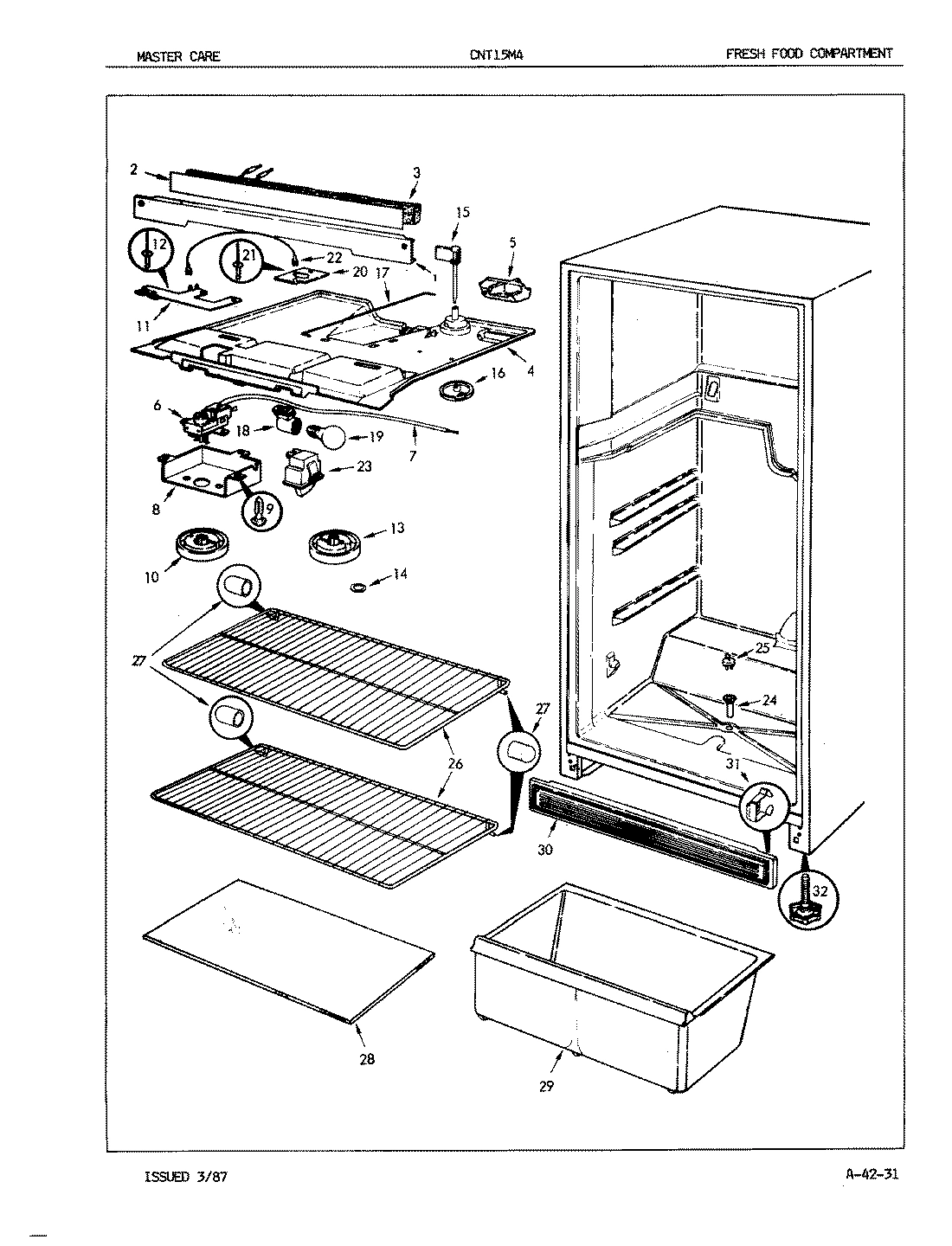

03 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool CNT15M4A REFRIGERATOR
1
OUTER PANEL WPL 600331AM Contact Us For Availability
1
COMPRESSOR WPL RA995 Contact Us For Availability
1
TRAY, DIVIDER WPL 605761 Contact Us For Availability
1
MULLION WPL 600207AM Contact Us For Availability
1
SCREW WPL 9986117 Contact Us For Availability
2
OUTER PANEL WPL 6003263AM Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
HEATER WIRE WPL 601057 Contact Us For Availability
3
HANDLE WPL 603613 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
INSULATION WPL 601401 Contact Us For Availability
3
WIRE HARNESS WPL 605601 Contact Us For Availability
4
RELAY, START WPL 658881 Contact Us For Availability
4
GROUND WIRE WPL 2967530 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
WIRE HARNESS WPL 605651 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
TOP, F.F. COMPARTMENT WPL 6008542 Contact Us For Availability
5
OVERLOAD WPL 632944 Contact Us For Availability
5
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
5
DEFLECTOR WPL 601202 Contact Us For Availability
6
INSERT WPL 653405 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
6
GROUND WIRE WPL 2967522 Contact Us For Availability
6
SCREW WPL 4060131 Contact Us For Availability
6
CONTROL, TEMPERATURE WPL 5288145 Contact Us For Availability
7
COVER, TERMINAL WPL 658851 Contact Us For Availability
7
PLASTIC TUBE WPL 400812 Contact Us For Availability
8
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
8
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
8
HANDLE WPL 603614 Contact Us For Availability
8
SCREW WPL 9986122 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SCREW WPL 4050121 Contact Us For Availability
8
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
PLUG WPL 603211 Contact Us For Availability
9
BOTTOM, FRZ. WPL 604741 Contact Us For Availability
10
CONDENSER SHROUD WPL 600212 Contact Us For Availability
10
TUNNEL, AIR WPL 600844 Contact Us For Availability
10
KNOB WPL 600611 Contact Us For Availability
11
INSERT WPL 653401 Contact Us For Availability
11
SCREW WPL 9986112 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
BRACKET, CONTROL WPL 601471 Contact Us For Availability
12
AIR DIVIDER WPL 606391 Contact Us For Availability
12
ICE CUBE TRAY WPL 601121 Contact Us For Availability
13
KNOB WPL 600613 Contact Us For Availability
14
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
14
FAN MOTOR WPL 2805613 Contact Us For Availability
14
SCREW WPL 4060281 Contact Us For Availability
14
WASHER, SPRING WPL 420092900 Contact Us For Availability
15
INNER PANEL WPL 600449 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
15
DAMPER WPL 600711 Contact Us For Availability
16
INNER PANEL WPL 600519 Contact Us For Availability
16
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
16
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
17
GASKET, DOOR WPL 604621 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
ROD WPL 600783 Contact Us For Availability
18
GASKET, DOOR WPL 604622 Contact Us For Availability
18
BRACKET WPL 600361 Contact Us For Availability
18
SOCKET, LIGHT WPL 605771 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
TRIM, DOOR SHELF WPL 6515195 Contact Us For Availability
20
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
20
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
21
TRIM, DOOR SHELF WPL 65151113 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
21
RIVET WPL 263972 Contact Us For Availability
22
TRIM, DOOR SHELF WPL 6515124 Contact Us For Availability
22
COVER WPL 606401 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
22
GROUND WIRE WPL 2967528 Contact Us For Availability
23
TRIM, DOOR SHELF WPL 65151193 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 653221 Contact Us For Availability
23
CORD, SWITCH/LIGHT WPL 5465328 Contact Us For Availability
23
SWITCH, LIGHT WPL 557321 Contact Us For Availability
24
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
24
GROMMET WPL 545318 Contact Us For Availability
25
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
25
PAN, DRAIN WPL 298394 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
26
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
26
SHELF, WIRE WPL 602209 Contact Us For Availability
27
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
27
TIP WPL 245803 Contact Us For Availability
28
BUSHING WPL 557811 Contact Us For Availability
28
EVAPORATOR WPL RA4362010 Contact Us For Availability
28
SHELF, CRISPER WPL 654243 Contact Us For Availability
29
WASHER WPL 521851 Contact Us For Availability
29
SCREW WPL 998687 Contact Us For Availability
29
TRAY, DRIP WPL 601017 Contact Us For Availability
29
PAN, CRISPER WPL 6014512 Contact Us For Availability
30
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
30
SCREW WPL 4000171 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
30
KICKPLATE WPL 6023718 Contact Us For Availability
31
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
32
TAPPING PLATE WPL 606221 Contact Us For Availability
32
SCREW WPL 9986107 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
32
LEG, LEVELING WPL 60128 Contact Us For Availability
33
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
PLUG BUTTON, (ALMOND) WPL 561866 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364513 Contact Us For Availability
37
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
CUP WPL 554241 Contact Us For Availability
38
WIRE TIE WPL 575763 Contact Us For Availability
39
SCREW WPL 4030625 Contact Us For Availability
39
WASHER WPL 542332 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
41
CAPACITOR, RUN WPL 658891 Contact Us For Availability
41
WIRE HARNESS WPL 660601 Contact Us For Availability
× ![]()
