Model Whirlpool CNSI22M9H REFRIGERATOR – Common Parts & Diagrams

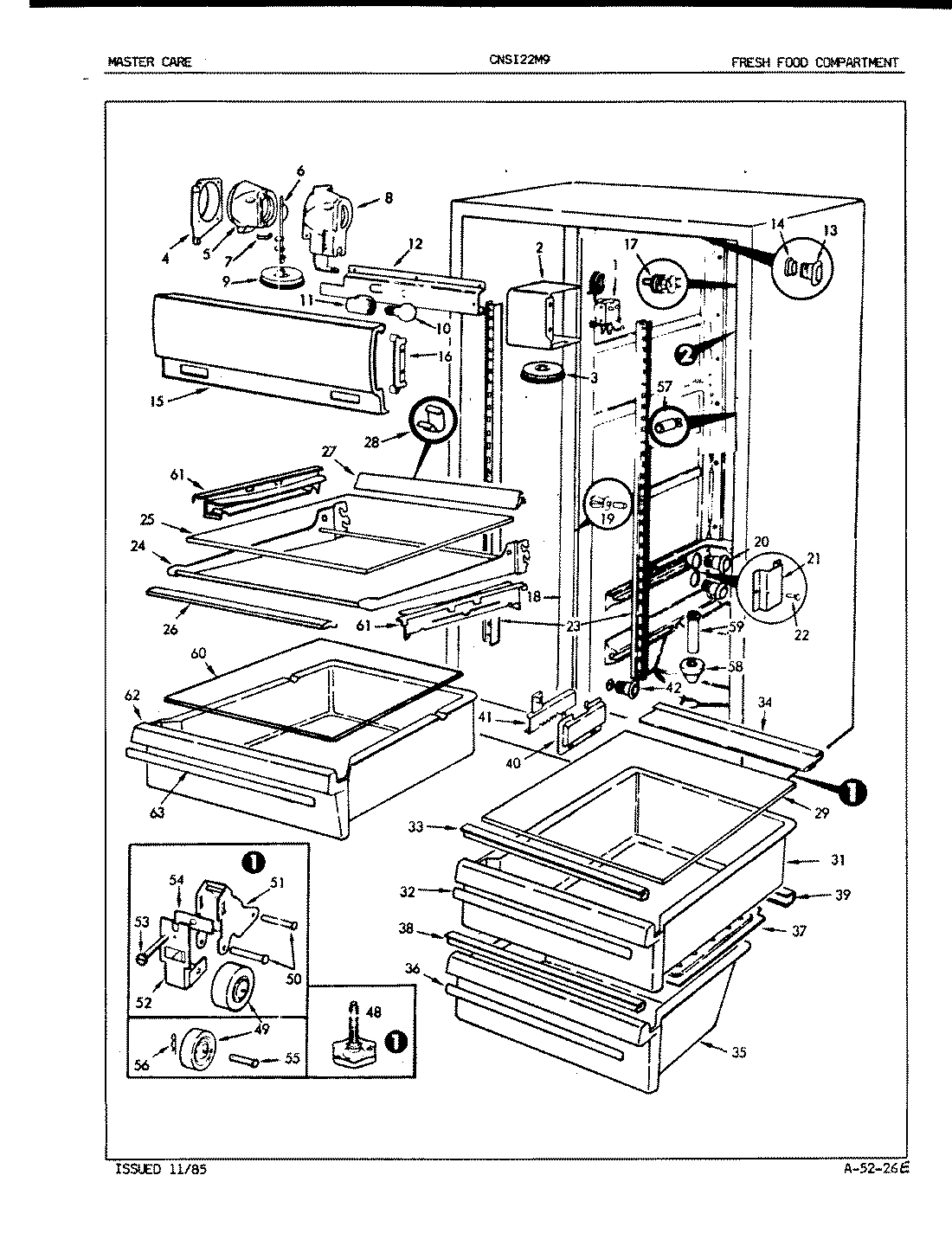

01 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool CNSI22M9H REFRIGERATOR
1
CONTROL, TEMPERATURE WPL 652682 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
3
KNOB WPL 298935 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
6
DAMPER WPL 525872 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
9
KNOB WPL 298936 Contact Us For Availability
9
SCREW WPL 402005103 Contact Us For Availability
11
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
12
HOUSING, LIGHT SOCKET & WIRES WPL 597402 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
15
SHIELD, LIGHT WPL 6557812 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
17
SWITCH WPL 564322 Contact Us For Availability
19
CLIP WPL 530604 Contact Us For Availability
20
AIR TUNNEL WPL 537261 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
23
SCREW WPL 4000371 Contact Us For Availability
23
SUPPORT WPL 583811 Contact Us For Availability
24
FRAME, SHELF WPL 656182 Contact Us For Availability
25
GLASS SHELF WPL 6559814 Contact Us For Availability
26
SHELF TRIM WPL 658032 Contact Us For Availability
27
TRIM WPL 6527613 Contact Us For Availability
28
CLIP WPL 653581 Contact Us For Availability
29
SHELF, CRISPER WPL 656872 Contact Us For Availability
31
PAN, CRISPER WPL 655742 Contact Us For Availability
32
INSERT WPL 6558342 Contact Us For Availability
33
CRISPER SEAL WPL 658042 Contact Us For Availability
34
SEAL, CRISPER PAN (FRONT) WPL 656502 Contact Us For Availability
35
PAN, MEAT WPL 655752 Contact Us For Availability
36
INSERT WPL 6558343 Contact Us For Availability
37
COVER, MEAT PAN WPL 656082 Contact Us For Availability
38
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
39
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
40
CONTROL HOUSING WPL 657371 Contact Us For Availability
41
CLIP WPL 566864 Contact Us For Availability
41
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
42
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
48
LEG, LEVELING WPL 60128 Contact Us For Availability
49
WHEEL WPL 298342 Contact Us For Availability
50
PIN, WHEEL WPL 649651 Contact Us For Availability
51
BRACKET, WHEEL WPL 627941 Contact Us For Availability
52
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
53
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
54
SCREW WPL 4000171 Contact Us For Availability
54
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
55
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
56
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
56
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
56
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
57
NYLON NUT WPL 195302 Contact Us For Availability
58
GROMMET WPL 555121 Contact Us For Availability
59
TUBE WPL 555131 Contact Us For Availability
60
GLASS SHELF WPL 6559816 Contact Us For Availability
61
RAIL, SLIDE WPL 656041 Contact Us For Availability
62
PAN, DELI WPL 655762 Contact Us For Availability
63
INSERT WPL 6558344 Contact Us For Availability
× ![]()
