Model Whirlpool CNS22V8A REFRIGERATOR – Common Parts & Diagrams

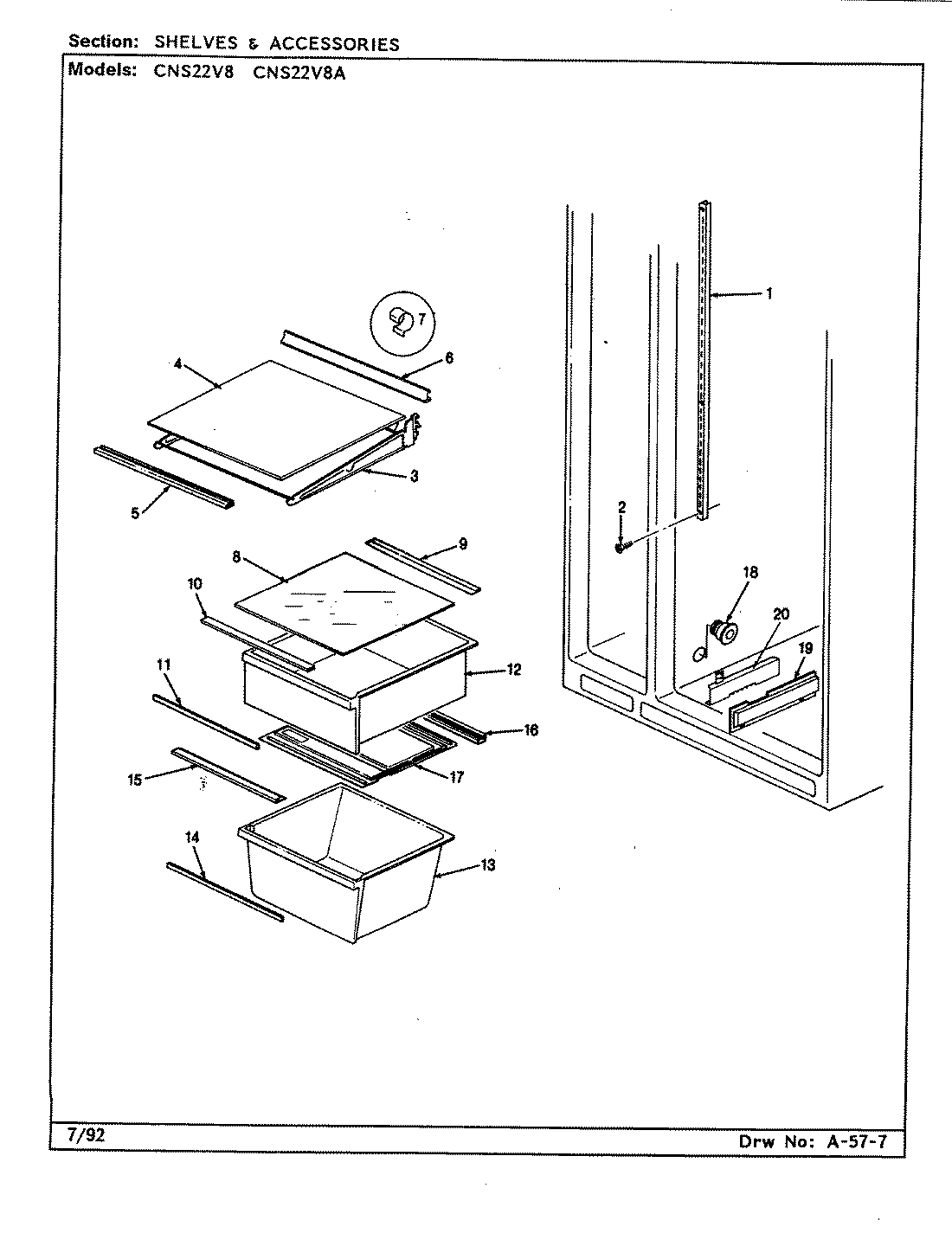

06 - SHELVES & ACCESSORIES

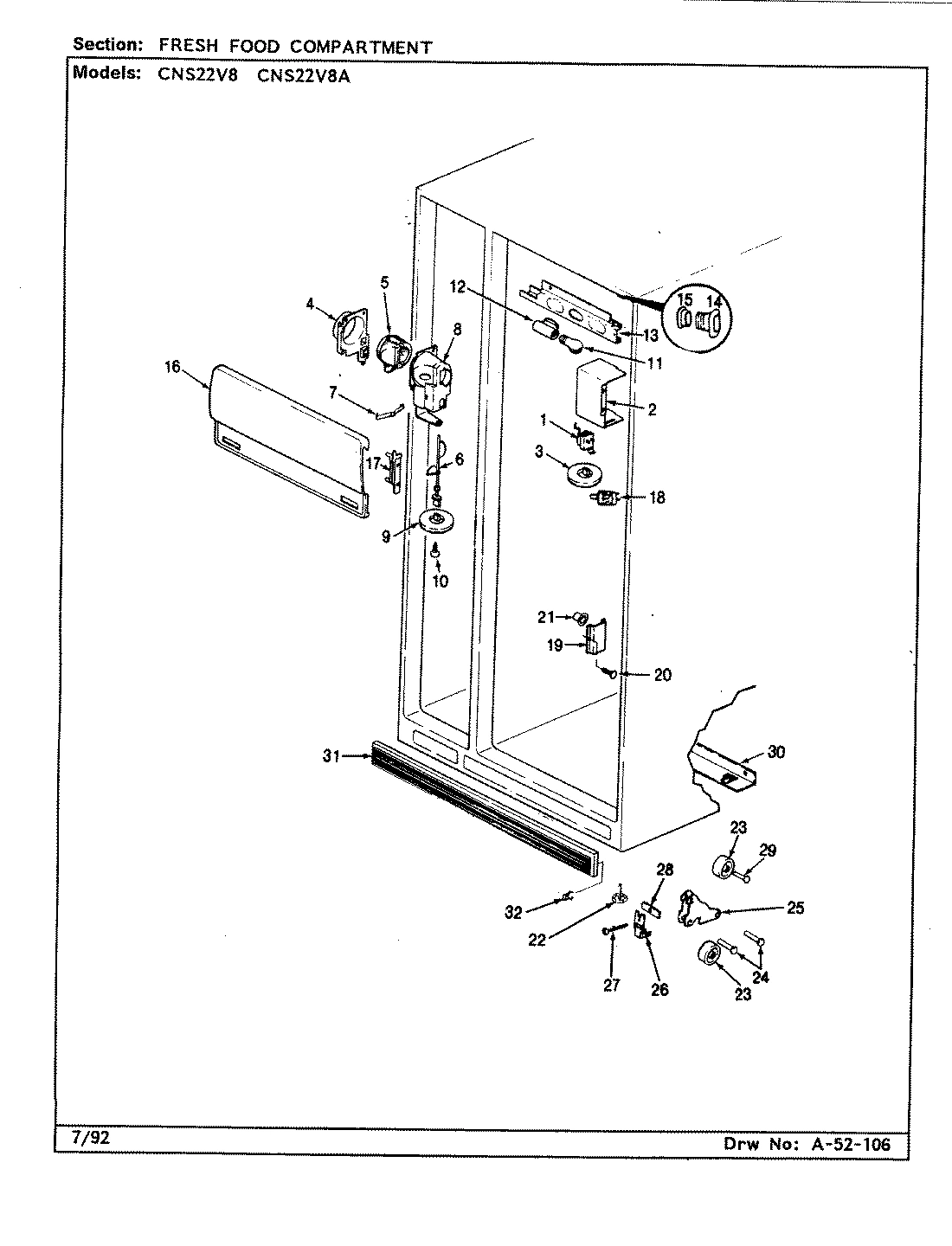

03 - FRESH FOOD COMPARTMENT

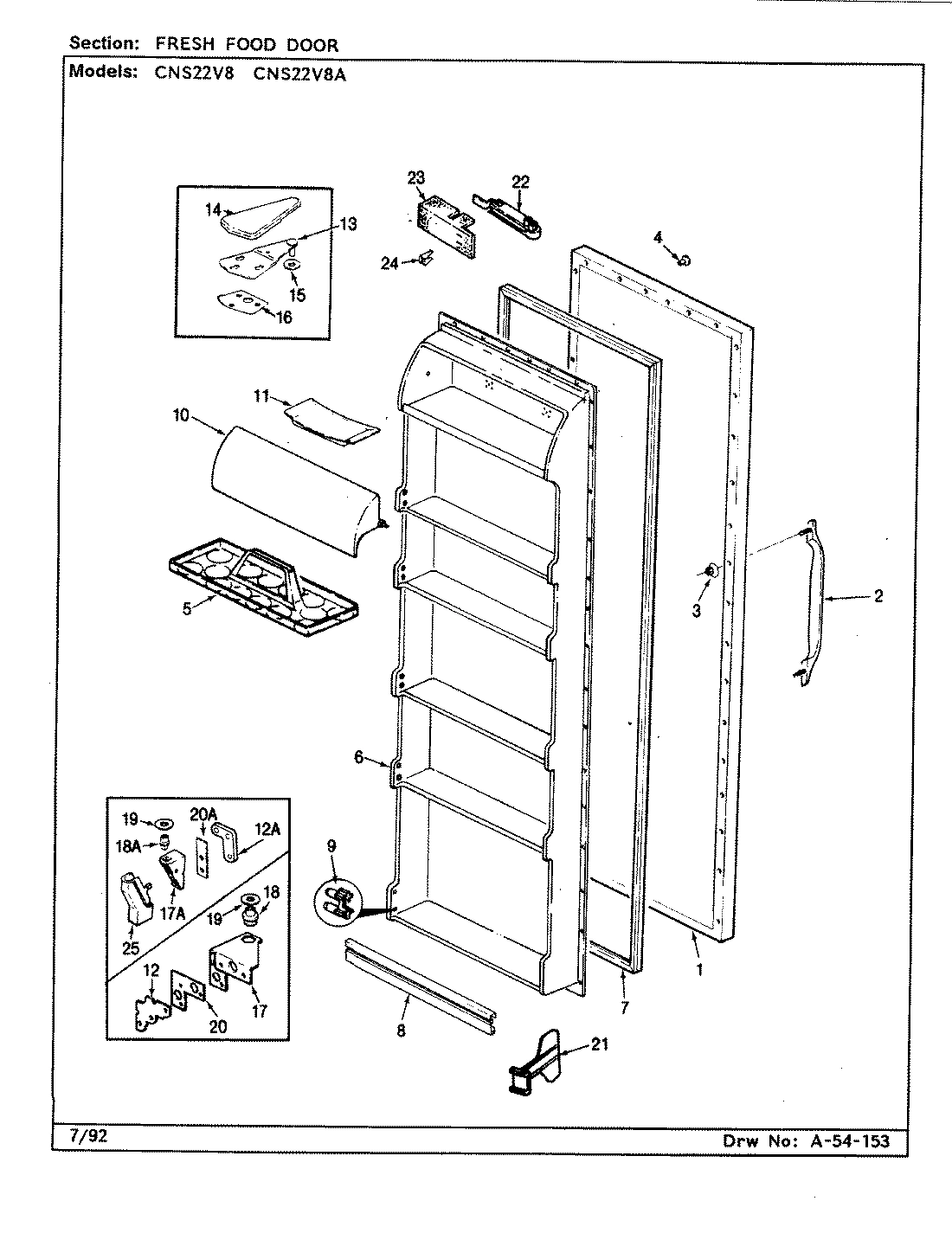

04 - FRESH FOOD DOOR

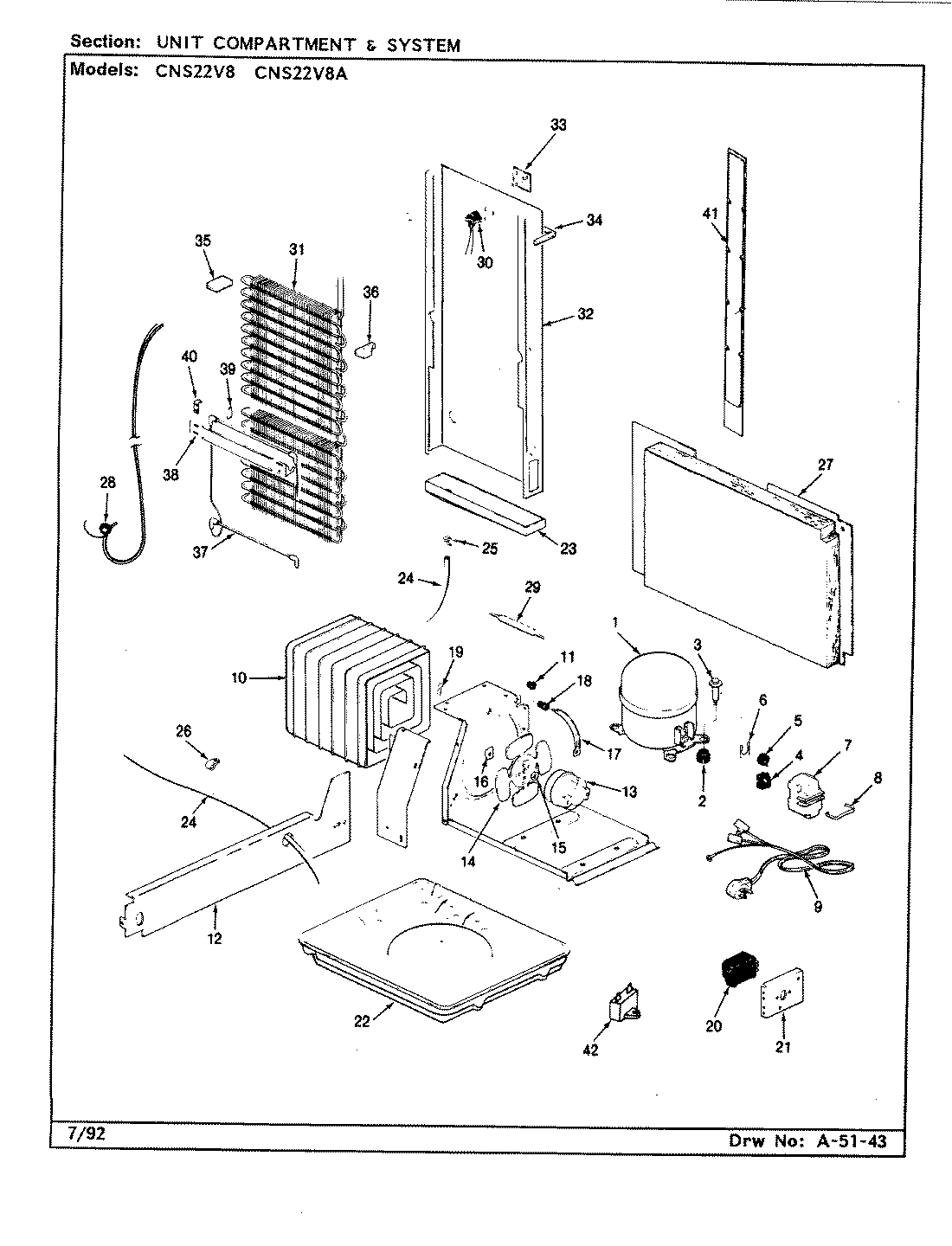

07 - UNIT COMPARTMENT & SYSTEM

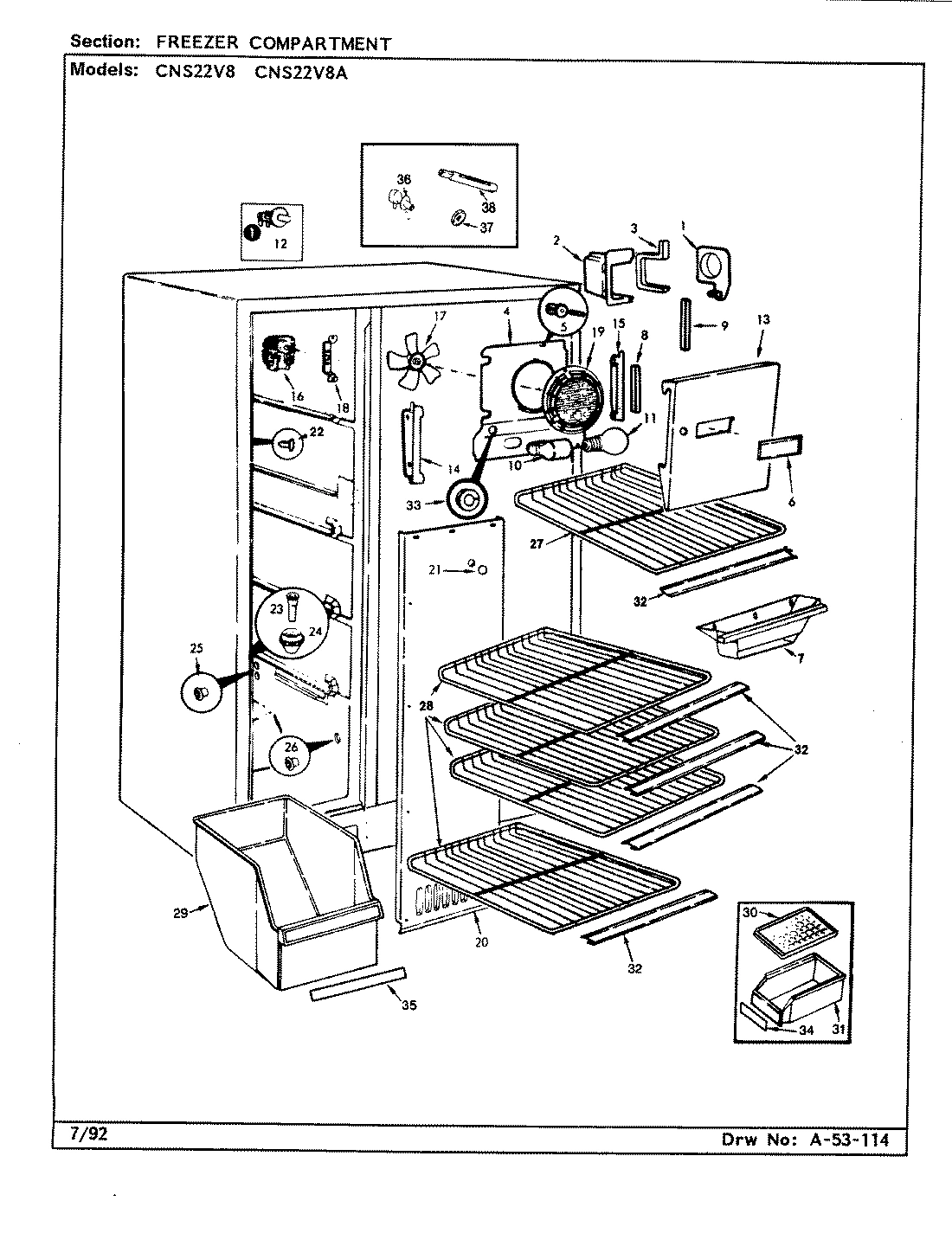

01 - FREEZER COMPARTMENT

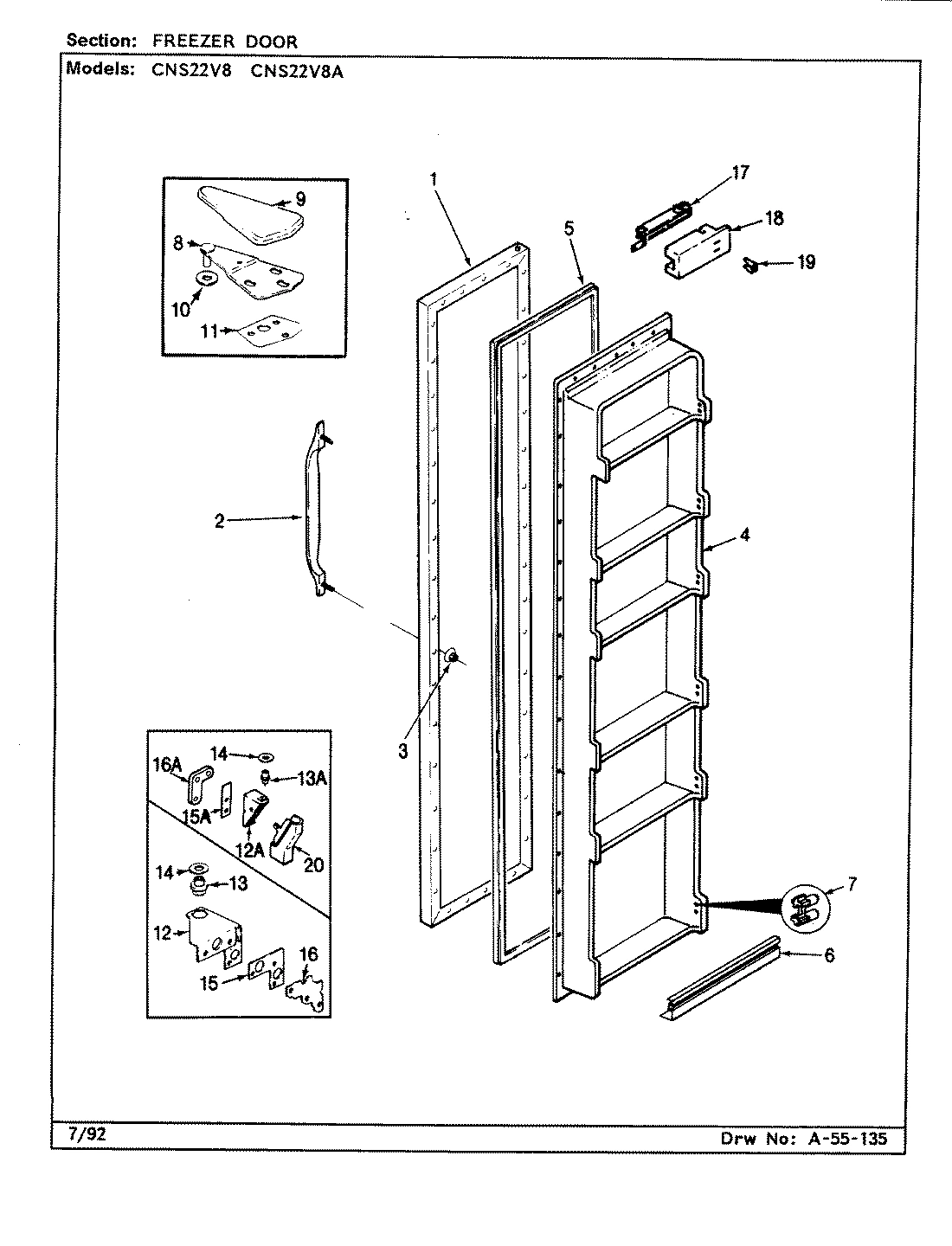

02 - FREEZER DOOR

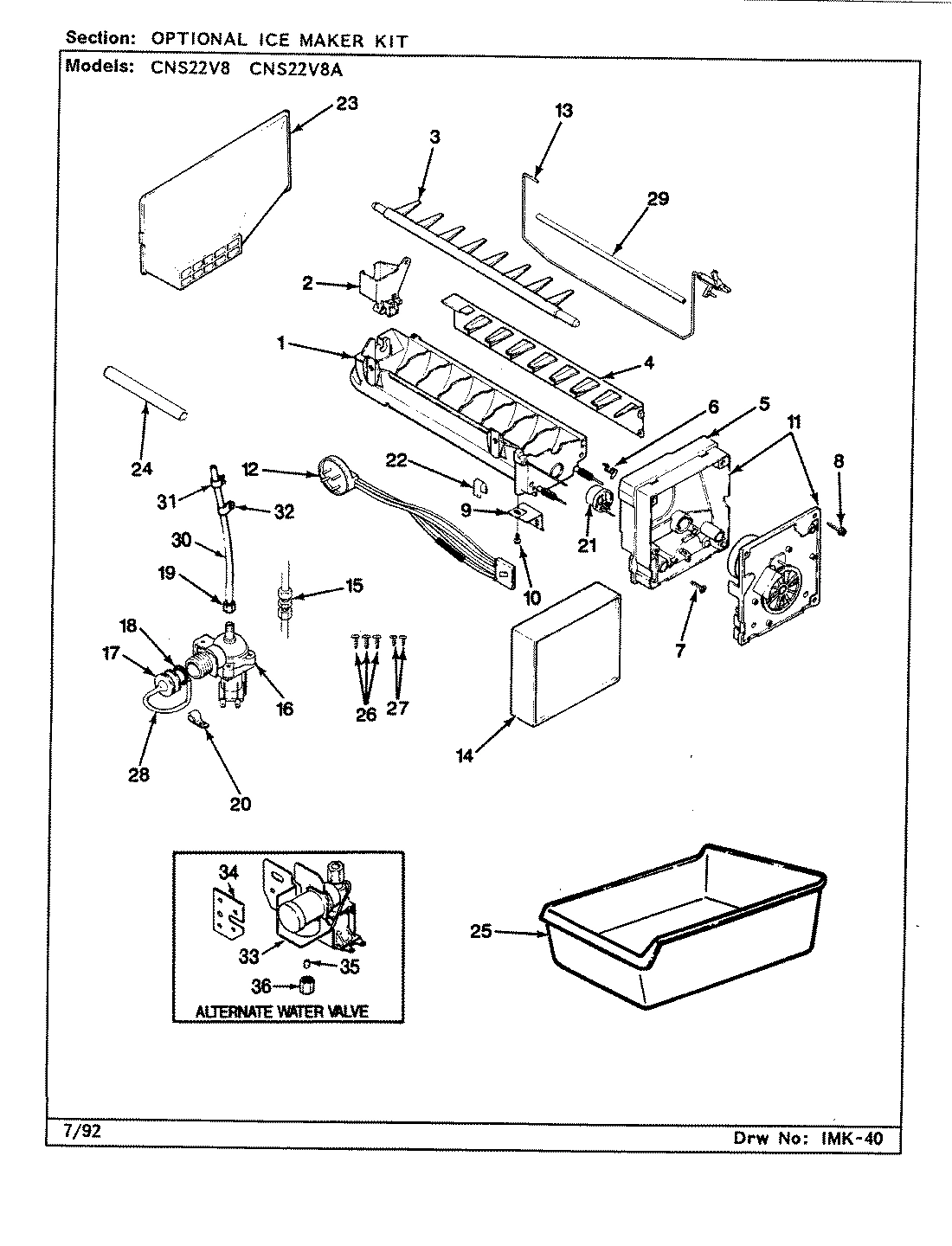

05 - OPTIONAL ICE MAKER KIT
Common parts from model Whirlpool CNS22V8A REFRIGERATOR
1
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 5288123 Contact Us For Availability
1
INSULATION, CONTROL WPL 676921 Contact Us For Availability
1
PANEL, OUTER DOOR WPL 684596AM Contact Us For Availability
1
INSULATION KIT WPL RA950601 Contact Us For Availability
1
COMPRESSOR WPL RA1017 Contact Us For Availability
1
ORIFICE WPL 544231 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 7204611AM Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
2
HANDLE WPL 6368611 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
3
FRAME, SHELF WPL 656185 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
3
FASTENER WPL 434003506 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
WIRE HARNESS, COMPRESSOR WPL 688411 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
4
SHELF, GLASS WPL 6660436 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
RETAINER, NAMEPLATE WPL 293561 Contact Us For Availability
4
SCREW WPL 652755 Contact Us For Availability
4
RELAY, START WPL 665883 Contact Us For Availability
4
COVER WPL 682472 Contact Us For Availability
4
INNER PANEL WPL 59433215 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
5
TRIM, SHELVES (FRONT) WPL 666492 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
TRAY, EGG WPL 600661 Contact Us For Availability
5
OVERLOAD WPL 6329418 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
5
GASKET WPL 6692928 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
6
TRIM, SHELVES (REAR) WPL 6527615 Contact Us For Availability
6
BAFFLE WPL 686131 Contact Us For Availability
6
LINER, F.F. DOOR WPL 6594510 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
INSERT----NA WPL 683251 Contact Us For Availability
6
TRIM, DOOR SHELF WPL 651513 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
7
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
GASKET WPL 669292 Contact Us For Availability
7
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
AIR DUCT ASM WPL 656931 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
8
SHELF, CRISPER WPL 6660438 Contact Us For Availability
8
SCREW WPL 4000531 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
8
TRIM, DOOR SHELF WPL 65151299 Contact Us For Availability
8
HINGE, UPPER WPL 5370922 Contact Us For Availability
8
SCREW WPL 6527552 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
SEAL WPL 689464 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
9
SEAL, CRISPER PAN (REAR) WPL 681572 Contact Us For Availability
9
KNOB WPL 2989312 Contact Us For Availability
9
COVER, UPPER HINGE (ALM) WPL 650033 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
9
SEAL WPL 6632533 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
10
SEAL, CRISPER PAN (FRONT) WPL 666502 Contact Us For Availability
10
SCREW WPL 4000011 Contact Us For Availability
10
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
10
DOOR, DAIRY WPL 66184446 Contact Us For Availability
10
WASHER WPL 521851 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
11
INSERT WPL 6812459 Contact Us For Availability
11
BULB, LIGHT (60W) WPL 557712 Contact Us For Availability
11
TRAY, BUTTER WPL 299362 Contact Us For Availability
11
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
SCREW,MOTOR TO MODULE ASSEMBLY WPL 951101 Contact Us For Availability
12
PAN, CRISPER WPL 6650912 Contact Us For Availability
12
SWITCH WPL 564322 Contact Us For Availability
12
SCREW WPL 4031001 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
12
SCREW WPL 998645 Contact Us For Availability
12
HINGE, LOWER WPL 677148 Contact Us For Availability
12
WIRE HARNESS WPL 679101 Contact Us For Availability
13
PAN, MEAT WPL 6651012 Contact Us For Availability
13
HOUSING, LIGHT SOCKET & WIRES WPL 597402 Contact Us For Availability
13
HINGE PIN WPL 687881 Contact Us For Availability
13
SCREW WPL 641391 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 675602 Contact Us For Availability
13
SHIELD WPL 686113 Contact Us For Availability
13
PIN, HINGE WPL 689771 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
14
INSERT WPL 6812460 Contact Us For Availability
14
TUNNEL WPL 574101 Contact Us For Availability
14
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 606832 Contact Us For Availability
14
SUPPORT WPL 536872 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
15
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
15
RETAINER WPL 574111 Contact Us For Availability
15
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
SUPPORT WPL 544242 Contact Us For Availability
15
UNION, COMPRESSION WPL 542671 Contact Us For Availability
16
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
16
SHIELD, LIGHT WPL 6557819 Contact Us For Availability
16
TAPPING PLATE WPL 659642 Contact Us For Availability
16
MOTOR WPL 564884 Contact Us For Availability
16
VALVE, WATER WPL 601843 Contact Us For Availability
17
COVER, MEAT PAN WPL 656084 Contact Us For Availability
17
SUPPORT WPL 536862 Contact Us For Availability
17
HINGE, LOWER WPL 6771410 Contact Us For Availability
17
DOOR CLOSURE WPL 544852 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
17
NUT, INLET TUBING WPL 246851 Contact Us For Availability
18
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
18
INSULATION, CLOSER WPL 526131 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
18
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
19
CLIP, SECONDARY SEAL WPL 566865 Contact Us For Availability
19
CONTROL HOUSING WPL 657372 Contact Us For Availability
19
AIR DEFLECTOR WPL 621281 Contact Us For Availability
19
SCREW WPL 4000171 Contact Us For Availability
19
BRACKET, CLOSER WPL 526141 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
SCREW WPL 4000221 Contact Us For Availability
19
FAN GRID WPL 626891 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
20
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 661282 Contact Us For Availability
20
SCREW WPL 40001512 Contact Us For Availability
20
COVER, COIL (LOWER) WPL 673357 Contact Us For Availability
20
GASKET WPL 686121 Contact Us For Availability
20
SCREW WPL 4000161 Contact Us For Availability
20
CLAMP, TUBING WPL 535168 Contact Us For Availability
21
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
21
ORGANIZER, SHELF WPL 6409711 Contact Us For Availability
21
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
21
PLUG BUTTON WPL 495015900 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
22
LEG, LEVELING WPL 686641 Contact Us For Availability
22
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
22
PAN, DRAIN WPL 682361 Contact Us For Availability
22
PLUG BUTTON WPL 675571 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
23
WHEEL WPL 298342 Contact Us For Availability
23
TROUGH, DRAIN WPL 535231 Contact Us For Availability
23
DRAIN TUBE WPL 265279 Contact Us For Availability
23
AIR DUCT WPL 682551 Contact Us For Availability
24
PIN, WHEEL WPL 649651 Contact Us For Availability
24
HOSE, DRAIN WPL 2691118 Contact Us For Availability
24
GROMMET WPL 525261 Contact Us For Availability
24
TUBE, FILL WPL 676663 Contact Us For Availability
24
TUBE, FILL WPL 683061 Contact Us For Availability
25
BRACKET, WHEEL WPL 627941 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
25
RETAINER WPL 676851 Contact Us For Availability
25
PAN, ICE WPL 683461 Contact Us For Availability
26
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
26
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
26
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
26
SCREW WPL 4000211 Contact Us For Availability
27
SCREW, WHEEL ADJUSTMENT WPL 564872 Contact Us For Availability
27
COVER WPL 663391 Contact Us For Availability
27
SHELF, 1 WPL 6660337 Contact Us For Availability
27
SCREW WPL 4010171 Contact Us For Availability
28
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
28
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
28
HEAT EXCHANGER WPL RA950901 Contact Us For Availability
28
SHELF, 2,3, & 4 WPL 6660342 Contact Us For Availability
28
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
28
INLET TUBE ASSY WPL 602193 Contact Us For Availability
29
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
29
DRAWER, FRZ. WPL 6651211 Contact Us For Availability
29
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
30
TUBE WPL 675796 No Longer Available
30
SCREW WPL 6527542 Contact Us For Availability
30
SUPPORT RAIL REAR WPL 672552 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208529 Contact Us For Availability
30
ICE CUBE TRAY WPL 601121 Contact Us For Availability
31
KICKPLATE WPL 564778 Contact Us For Availability
31
EVAPORATOR WPL RA436431 Contact Us For Availability
31
PAN WPL 665921 Contact Us For Availability
31
CLAMP, SPRING WPL 603334 Contact Us For Availability
32
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
32
SCREW, KICKPLATE MTG. WPL 9986101 Contact Us For Availability
32
HOUSING, EVAPORATOR WPL 688341 Contact Us For Availability
32
TRIM, SHELF WPL 666494 Contact Us For Availability
32
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
33
BOARD, TERMINAL WPL 558781 Contact Us For Availability
33
PLUG WPL 539331 Contact Us For Availability
34
SEAL WPL 6632517 Contact Us For Availability
34
INSERT WPL 6813413 Contact Us For Availability
35
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
35
INSERT WPL 6812458 Contact Us For Availability
36
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
36
EXTENSION,GROMMET TO FILL TUBE WPL 683042 Contact Us For Availability
36
CAP, FILL TUBE WPL 683261 Contact Us For Availability
37
HEATER, DEFROST WPL 5276414 Contact Us For Availability
37
GROMMET WPL 683961 Contact Us For Availability
38
REFLECTOR WPL 2991512 Contact Us For Availability
38
CAP, CONNECTOR WPL 681871 Contact Us For Availability
39
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
40
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
40
WIRE HARNESS WPL 688382 Contact Us For Availability
41
COVER WPL 663811 Contact Us For Availability
42
CAPACITOR, RUN WPL 658892 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1071002 Contact Us For Availability
× ![]()
Login and Registration Form
