Model Whirlpool CNS22V6 REFRIGERATOR – Common Parts & Diagrams

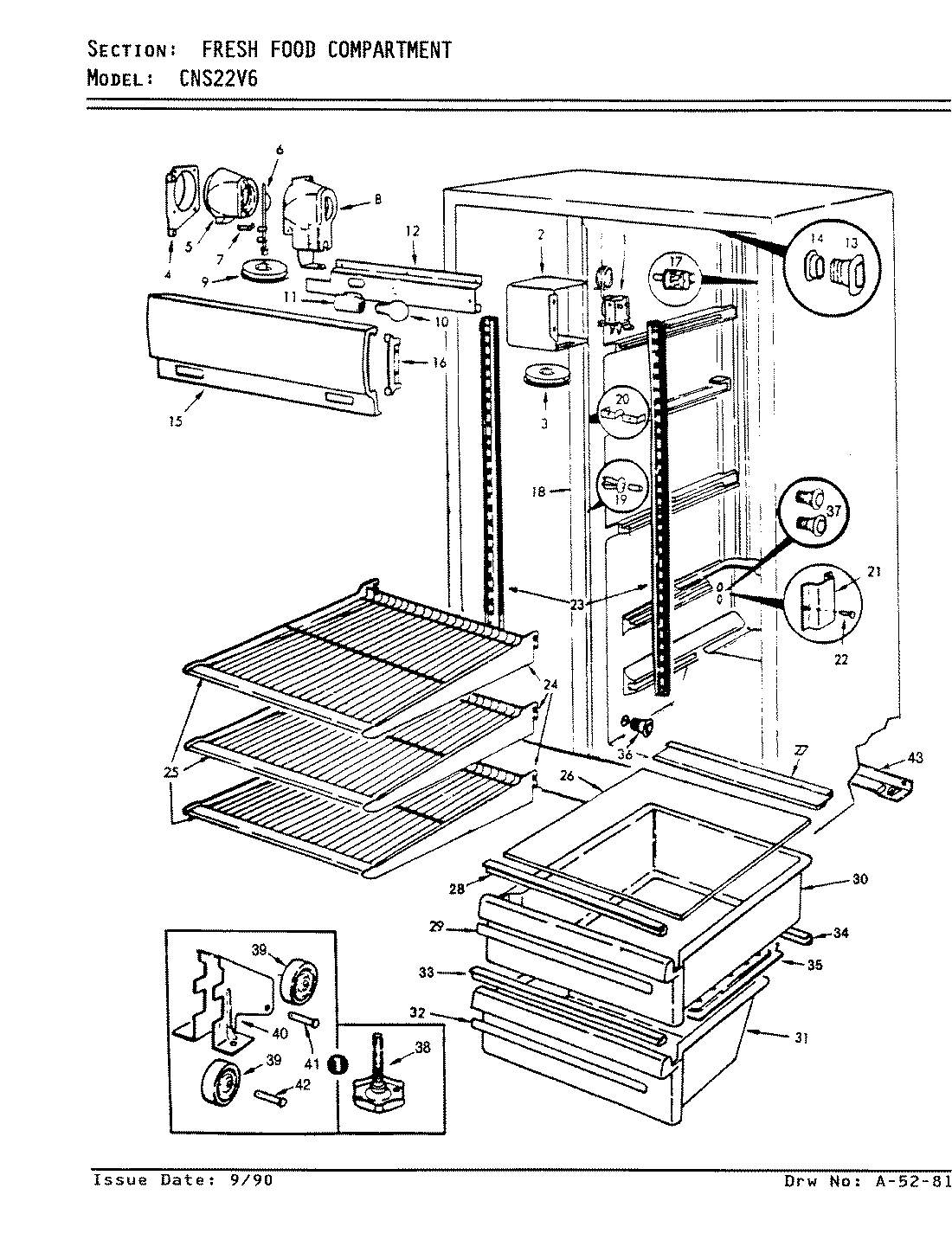

02 - FRESH FOOD COMPARTMENT

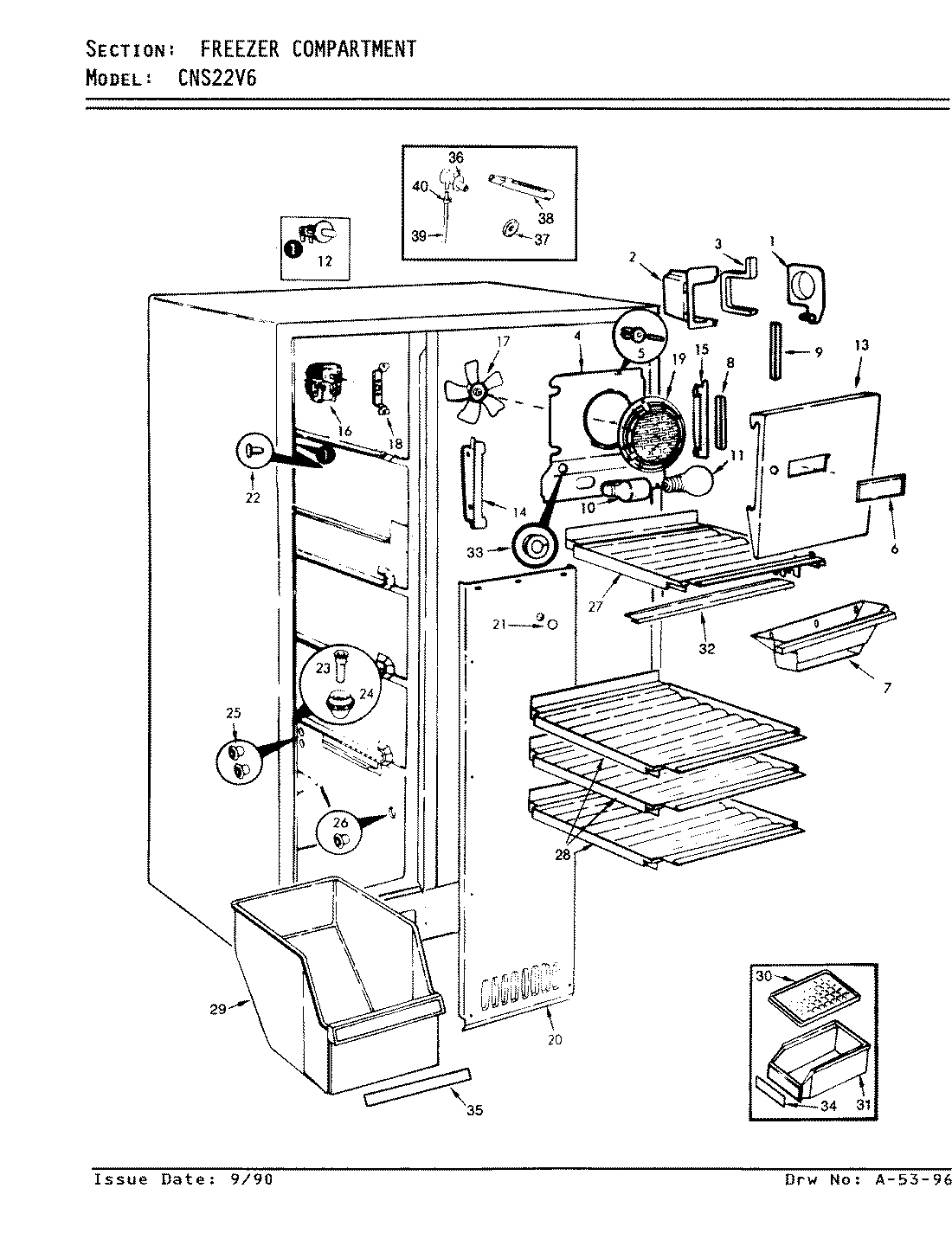

01 - FREEZER COMPARTMENT

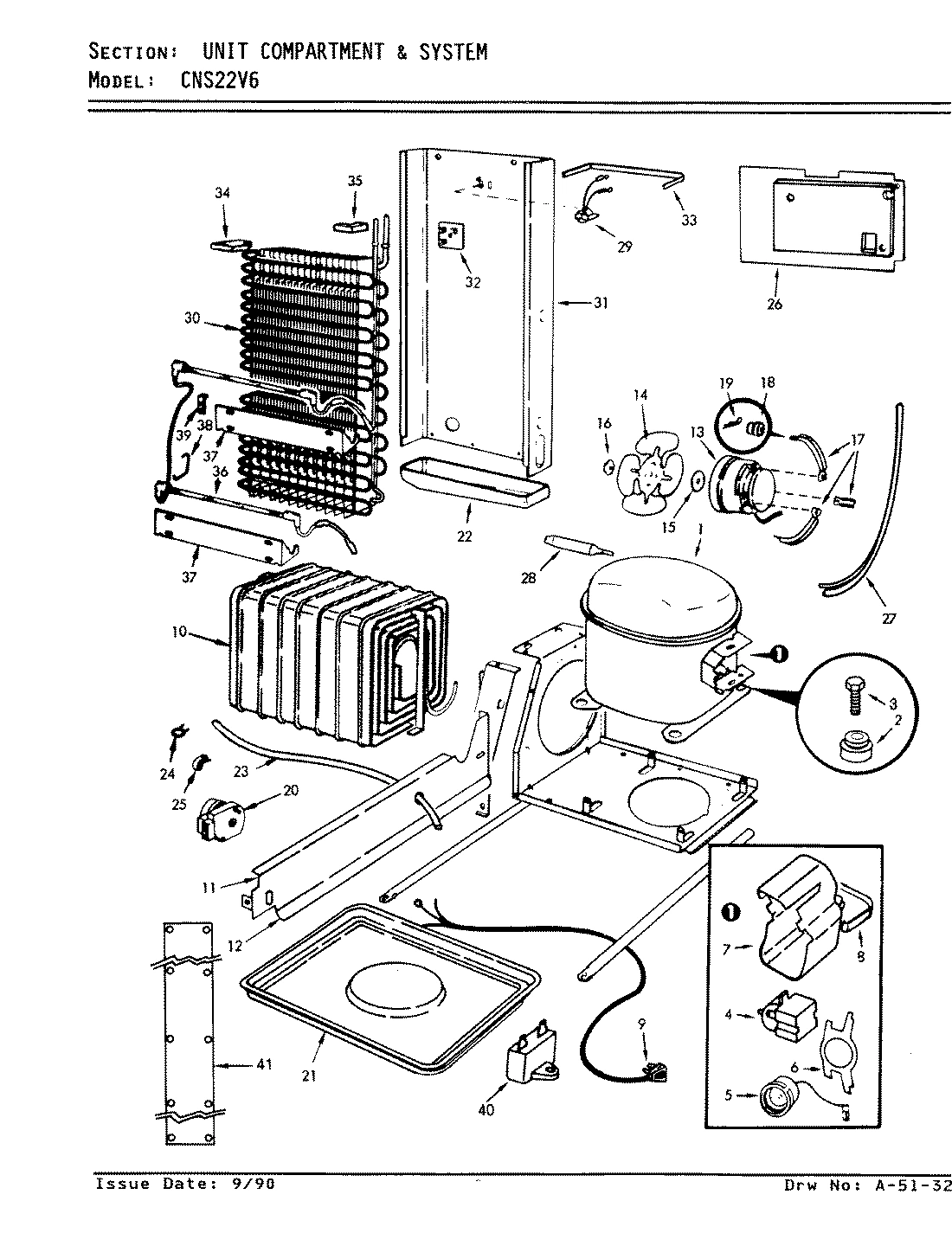

03 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool CNS22V6 REFRIGERATOR
1
CONTROL, TEMPERATURE WPL 5288123 Contact Us For Availability
1
INSULATION, CONTROL WPL 676921 Contact Us For Availability
1
ORIFICE WPL 544231 Contact Us For Availability
1
COMPRESSOR WPL RA1018 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
KNOB, TEMP. CONTROL WPL 298937 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
COVER, COIL WPL 6269031 Contact Us For Availability
4
RELAY, START WPL 665883 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
5
OVERLOAD WPL 6329418 Contact Us For Availability
6
DAMPER WPL 525872 Contact Us For Availability
6
INSERT WPL 683252 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
AIR DUCT ASM WPL 656931 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
8
SEAL, FOAM TRAY WPL 6632514 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
KNOB WPL 2989312 Contact Us For Availability
9
SCREW WPL 402005103 Contact Us For Availability
9
SEAL WPL 6632533 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
10
BULB, LIGHT (60W) WPL 557712 Contact Us For Availability
10
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
11
BAFFLE WPL 298384 Contact Us For Availability
12
HOUSING, LIGHT SOCKET & WIRES WPL 597402 Contact Us For Availability
12
SWITCH WPL 564322 Contact Us For Availability
12
SPACER WPL 655121 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
12
SCREW WPL 998645 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
13
SHIELD WPL 686113 Contact Us For Availability
13
SCREW WPL 641391 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 675602 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
14
SUPPORT WPL 536872 Contact Us For Availability
15
SHIELD, LIGHT WPL 6557819 Contact Us For Availability
15
SUPPORT WPL 544242 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
16
PLUG WPL 495032900 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
16
MOTOR WPL 564884 Contact Us For Availability
17
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
18
MULLION BAR (WHITE) WPL 670001WW Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
STUD, (WHITE) WPL 5992013 Contact Us For Availability
19
SCREW WPL 4000221 Contact Us For Availability
19
FAN GRID WPL 626891 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
20
CLIP WPL 530604 Contact Us For Availability
20
COVER, COIL WPL 652244 Contact Us For Availability
20
GASKET WPL 686121 Contact Us For Availability
20
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 661282 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
21
PLUG BUTTON WPL 495015900 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
21
PAN, DRAIN WPL 682361 Contact Us For Availability
22
PLUG BUTTON WPL 675571 Contact Us For Availability
22
TROUGH, DRAIN WPL 535231 Contact Us For Availability
23
SCREW WPL 4000371 Contact Us For Availability
23
SUPPORT WPL 583811 Contact Us For Availability
23
DRAIN TUBE WPL 265279 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
24
SHELF, WIRE WPL 656062 Contact Us For Availability
24
GROMMET WPL 525261 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
25
TRIM, SHELVES (FRONT) WPL 666492 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
26
SHELF, CRISPER WPL 656872 Contact Us For Availability
26
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
27
CRISPER SEAL WPL 660922 Contact Us For Availability
27
SHELF WPL 6660322 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA4364510 Contact Us For Availability
28
SEAL, CRISPER PAN (FRONT) WPL 666502 Contact Us For Availability
28
SHELF WPL 6660325 Contact Us For Availability
29
INSERT WPL 6812459 Contact Us For Availability
29
DRAWER, FRZ. WPL 657716 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
30
PAN, CRISPER WPL 6576913 Contact Us For Availability
30
ICE CUBE TRAY WPL 601121 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
31
PAN WPL 6577010 Contact Us For Availability
31
PAN WPL 665921 Contact Us For Availability
31
HOUSING, FREEZER COIL WPL 650331 Contact Us For Availability
32
INSERT WPL 6812460 Contact Us For Availability
32
TRIM, SHELF WPL 666494 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
33
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
33
PLUG WPL 539331 Contact Us For Availability
33
SEAL WPL 6632517 Contact Us For Availability
34
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
34
INSERT WPL 6813413 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
35
COVER, MEAT PAN WPL 656084 Contact Us For Availability
35
INSERT WPL 6812458 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
36
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
36
GROMMET WPL 683961 Contact Us For Availability
36
HEATER, DEFROST WPL 676791 Contact Us For Availability
37
AIR TUNNEL WPL 537261 Contact Us For Availability
37
CAP, CONNECTOR WPL 681871 Contact Us For Availability
37
REFLECTOR WPL 676801 Contact Us For Availability
38
LEG, LEVELING WPL 60128 Contact Us For Availability
38
EXTENSION,GROMMET TO FILL TUBE WPL 683042 Contact Us For Availability
38
CAP, FILL TUBE WPL 683261 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
39
FUNNEL-KIT WPL 675792 Contact Us For Availability
39
WHEEL WPL 298342 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
WIRE HARNESS WPL 673561 Contact Us For Availability
39
MAIN WIRE HARNESS WPL 682512 Contact Us For Availability
40
SCREW WPL 4000621 Contact Us For Availability
40
BRACKET WPL 528461 Contact Us For Availability
40
CLAMP, SPRING WPL 603334 Contact Us For Availability
40
CAPACITOR, RUN WPL 658892 Contact Us For Availability
41
SCREW WPL 4000171 Contact Us For Availability
41
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
41
COVER WPL 663811 Contact Us For Availability
42
PIN, WHEEL WPL 649651 Contact Us For Availability
43
SCREW WPL 6527542 Contact Us For Availability
43
SUPPORT RAIL REAR WPL 672552 Contact Us For Availability
× ![]()
