Model Whirlpool CNS20M4A REFRIGERATOR – Common Parts & Diagrams
01 - FREEZER COMPARTMENT

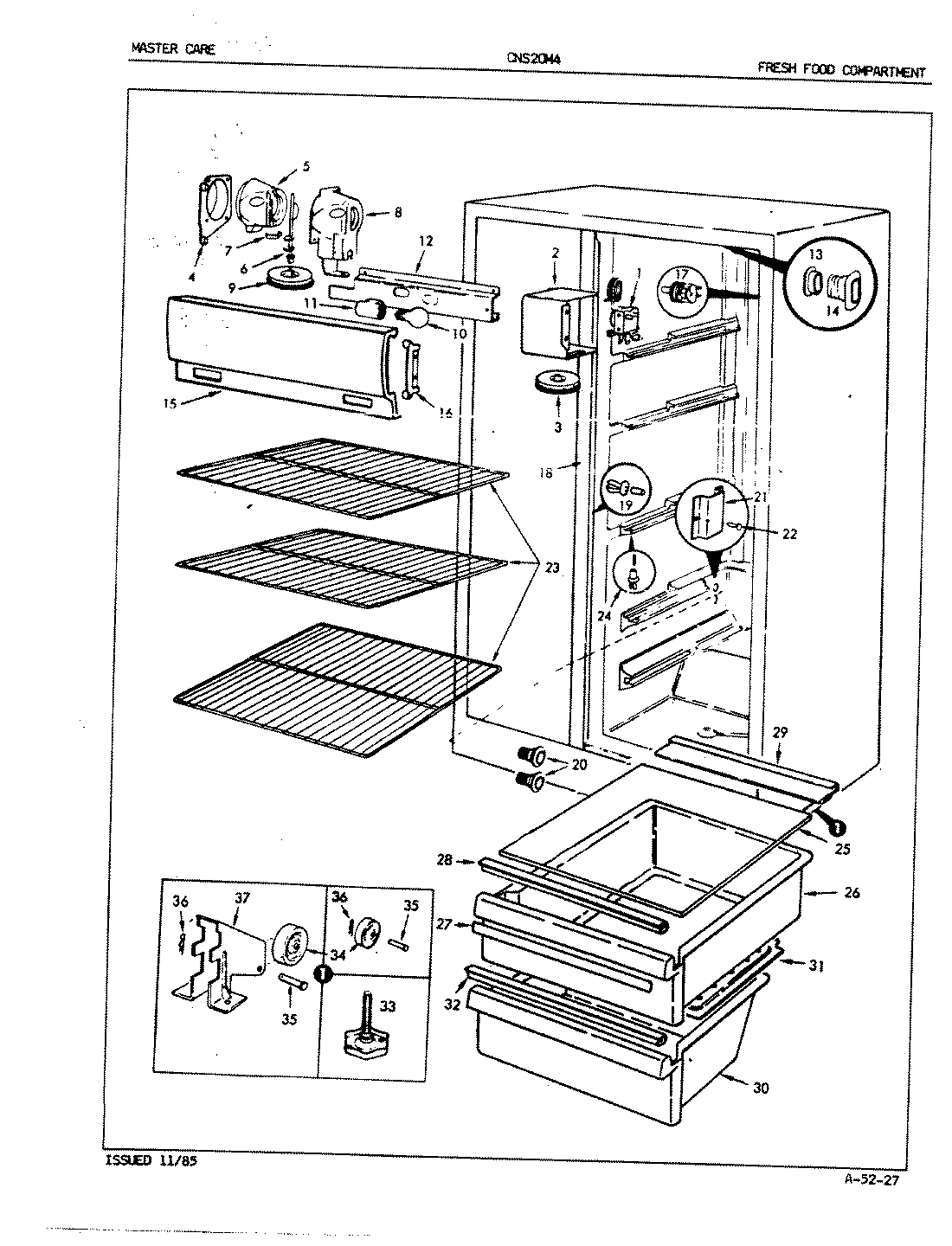

03 - FRESH FOOD COMPARTMENT

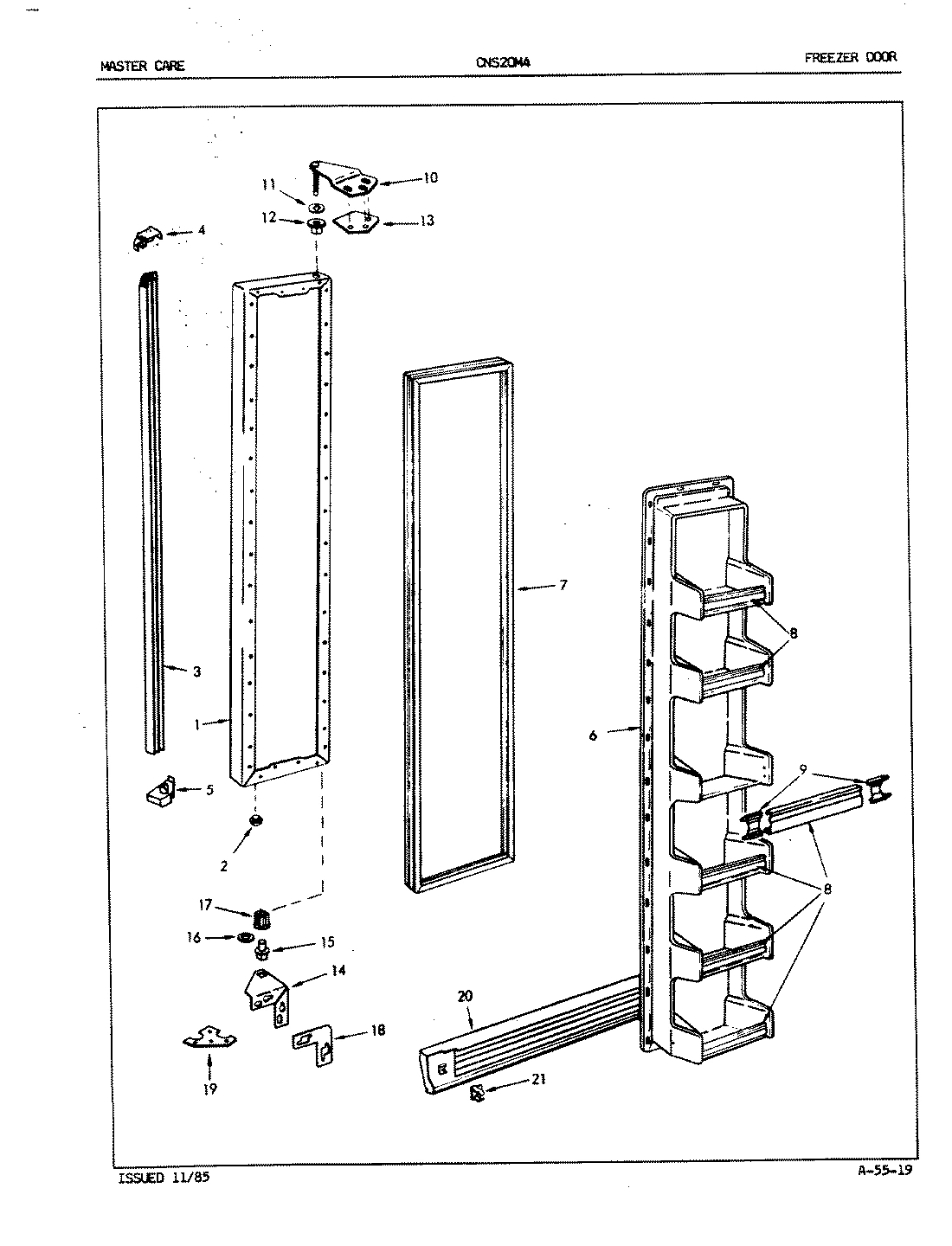

02 - FREEZER DOOR

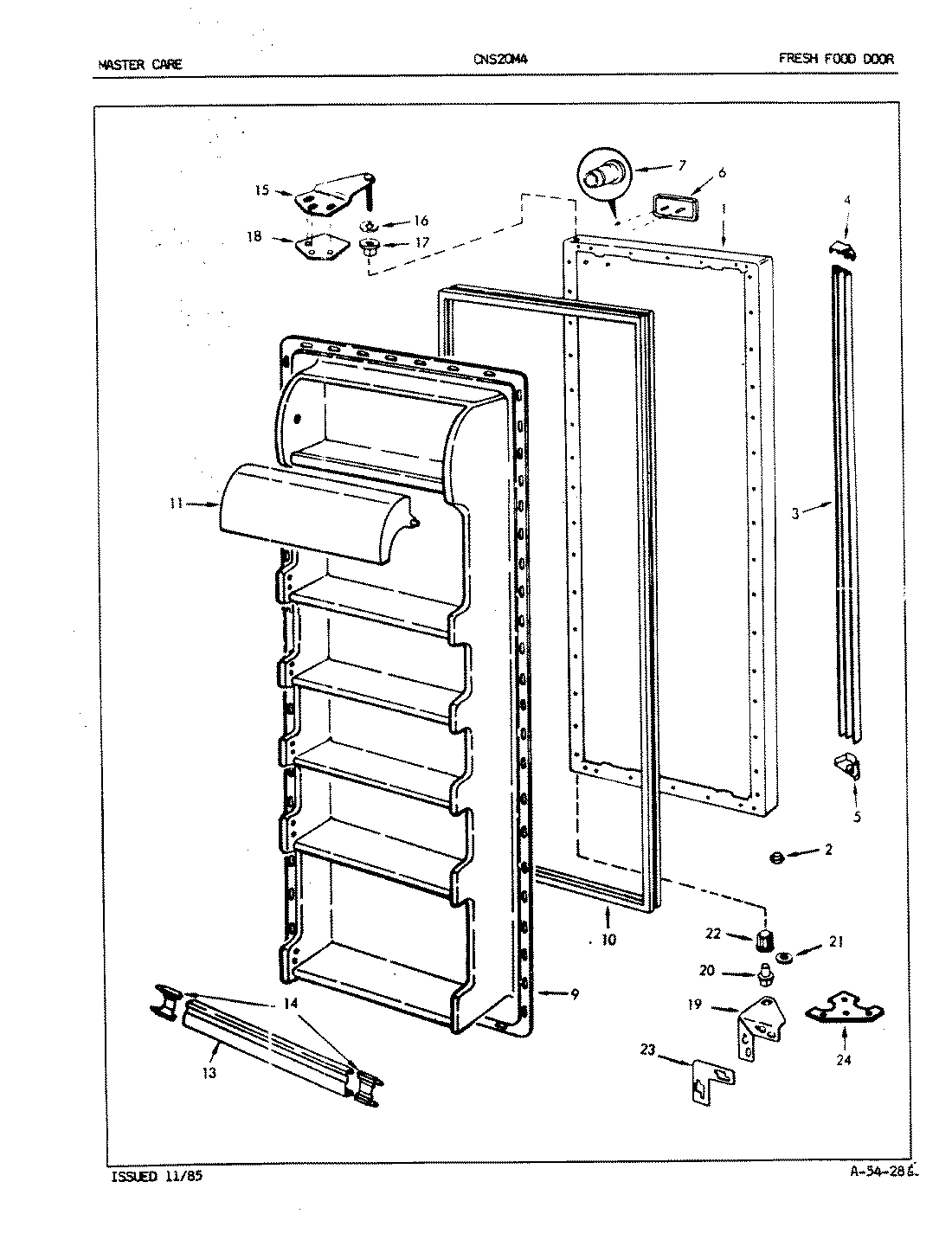

04 - FRESH FOOD DOOR

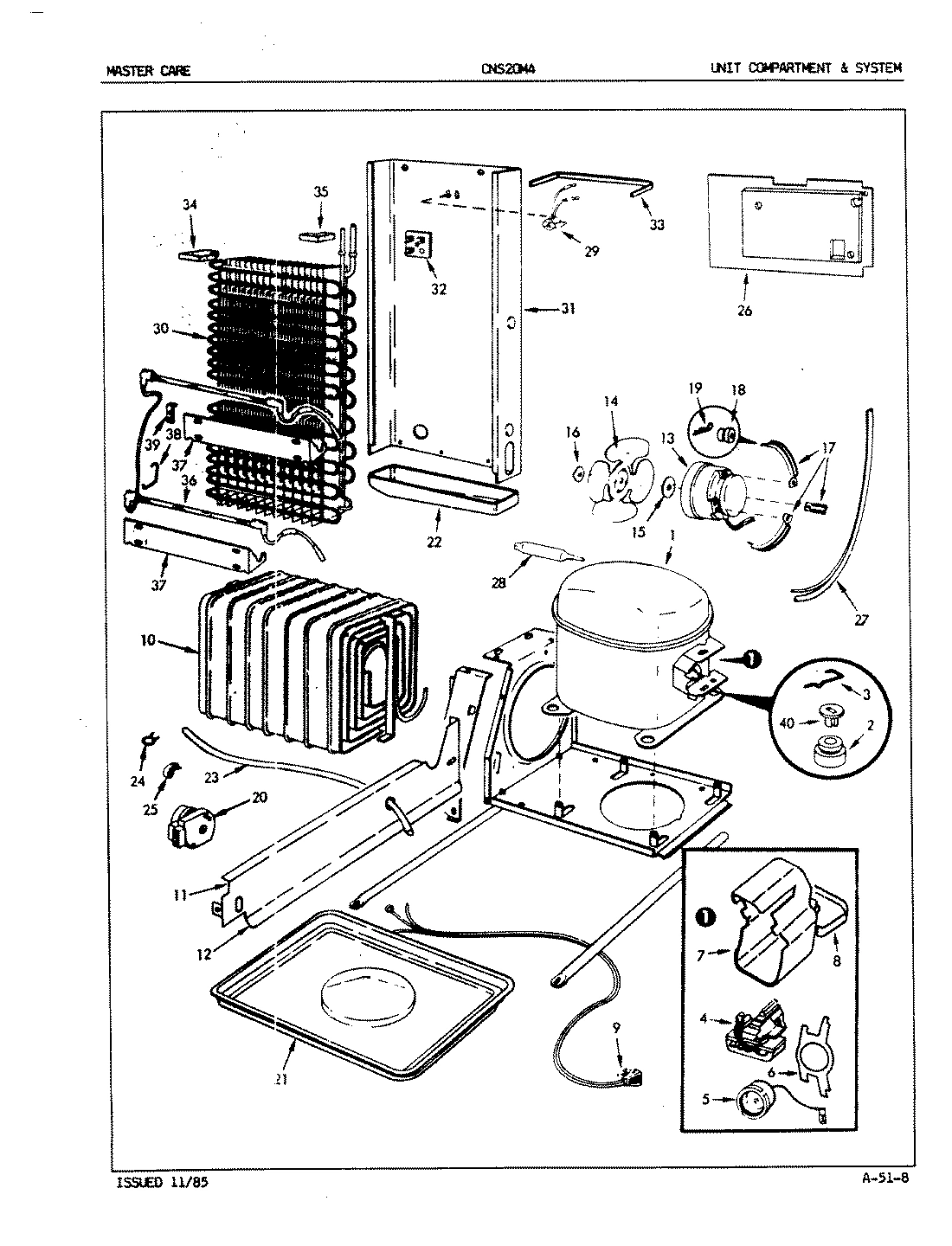

05 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool CNS20M4A REFRIGERATOR
1
ORIFICE WPL 544231 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 652682 Contact Us For Availability
1
OUTER PANEL WPL 5376656AM Contact Us For Availability
1
OUTER PANEL WPL 5376661AM Contact Us For Availability
1
COMPRESSOR WPL RA990 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
2
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
2
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
3
KNOB WPL 298935 Contact Us For Availability
3
SCREW WPL 4021001 Contact Us For Availability
3
WASHER WPL 4200631 Contact Us For Availability
3
HANDLE WPL 5683536 Contact Us For Availability
3
SUB 62165-1 WPL 527781 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
COVER, COIL WPL 6269031 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
END CAP WPL 579471 Contact Us For Availability
4
RELAY WPL 9286106 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
END CAP WPL 579472 Contact Us For Availability
5
SCREW WPL 4020767 Contact Us For Availability
5
SCREW WPL 4020777 Contact Us For Availability
5
OVERLOAD WPL 5306772 Contact Us For Availability
6
INSERT WPL 657061 Contact Us For Availability
6
DAMPER WPL 525872 Contact Us For Availability
6
INNER PANEL WPL 59433156 Contact Us For Availability
6
NAMEPLATE WPL 574931 Contact Us For Availability
6
CLIP, OVERLOAD WPL 651901 Contact Us For Availability
7
AIR DUCT ASM WPL 656931 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
GASKET, DOOR WPL 5371223 Contact Us For Availability
7
RETAINER, NAMEPLATE WPL 652111 Contact Us For Availability
7
COVER, TERMINAL WPL 651891 Contact Us For Availability
8
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
8
SCREW WPL 4000271 Contact Us For Availability
8
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
8
TRIM, DOOR SHELF WPL 651514 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 651911 Contact Us For Availability
9
COIL SEAL WPL 528246 Contact Us For Availability
9
KNOB WPL 298936 Contact Us For Availability
9
SCREW WPL 402005103 Contact Us For Availability
9
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
9
LINER, DOOR WPL 656436 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
10
GASKET WPL 537127 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
FLANGE HEATER WPL RA436841 Contact Us For Availability
11
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
11
DOOR, BUTTER WPL 6558945 Contact Us For Availability
11
BAFFLE WPL 298384 Contact Us For Availability
12
HOUSING WPL 597401 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 654931 Contact Us For Availability
12
SCREW WPL 998645 Contact Us For Availability
13
SHIELD, LIGHT WPL 656543 Contact Us For Availability
13
TUNNEL WPL 574101 Contact Us For Availability
13
TRIM, DOOR SHELF WPL 65151220 Contact Us For Availability
13
FAN MOTOR WPL 280569 Contact Us For Availability
13
SCREW WPL 641391 Contact Us For Availability
14
SUPPORT WPL 536872 Contact Us For Availability
14
RETAINER WPL 574111 Contact Us For Availability
14
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
14
HINER, LOWER (CHROME) WPL 6063010 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
15
SUPPORT WPL 544242 Contact Us For Availability
15
SHIELD, LIGHT WPL 6557811 Contact Us For Availability
15
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
15
SCREW WPL 998687 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
16
MOTOR, FAN FREEZER WPL 564883 Contact Us For Availability
16
SCREW WPL 4000171 Contact Us For Availability
16
SUPPORT WPL 536862 Contact Us For Availability
16
WASHER WPL 521851 Contact Us For Availability
17
SWITCH WPL 564322 Contact Us For Availability
17
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
17
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
18
MULLION WPL 590261AM Contact Us For Availability
18
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
SCREW WPL 4000221 Contact Us For Availability
19
FAN GRID WPL 626891 Contact Us For Availability
19
CLIP WPL 530604 Contact Us For Availability
19
STUD (ALM) WPL 599206 Contact Us For Availability
19
SCREW WPL 4030625 Contact Us For Availability
19
HINGE, LOWER WPL 6063012 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
20
COVER, COIL WPL 652244 Contact Us For Availability
20
AIR TUNNEL WPL 537261 Contact Us For Availability
20
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
20
KICKPLATE WPL 5843745 Contact Us For Availability
20
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 657021 Contact Us For Availability
21
PLUG BUTTON WPL 495015900 Contact Us For Availability
21
AIR DEFLECTOR WPL 621281 Contact Us For Availability
21
WASHER WPL 542331 Contact Us For Availability
21
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
21
PAN, DRAIN WPL 298394 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
22
NUT WPL 538211 Contact Us For Availability
22
CUP WPL 554241 Contact Us For Availability
22
TROUGH, DRAIN WPL 535232 Contact Us For Availability
23
DRAIN TUBE WPL 265275 Contact Us For Availability
23
SHELF WPL 2986954 Contact Us For Availability
23
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
23
HOSE, DRAIN WPL 2691118 Contact Us For Availability
24
GROMMET WPL 525261 Contact Us For Availability
24
STUD WPL 216979 Contact Us For Availability
24
TAPPING PLATE, LOWER HINGE WPL 659641 Contact Us For Availability
24
NAMEPLATE WPL 624425 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
25
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
25
SHELF, CRISPER (GLASS) WPL 656871 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
26
PAN, CRISPER WPL 657694 Contact Us For Availability
26
COVER WPL 660331 Contact Us For Availability
27
SHELF, FRZ. WPL 656513 Contact Us For Availability
27
TRIM, CRISPER PAN WPL 6558352 Contact Us For Availability
27
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
27
HEAT EXCHANGER WPL RA436451 Contact Us For Availability
28
SHELF, FRZ. No.2,3,4 WPL 656511 Contact Us For Availability
28
SEAL WPL 658041 Contact Us For Availability
29
SEAL, CRISPER PAN (FRONT) WPL 656501 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
30
DRAWER, FRZ. WPL 657713 Contact Us For Availability
30
PAN, MEAT WPL 657703 Contact Us For Availability
30
EVAPORATOR WPL RA436431 Contact Us For Availability
31
TRIM, FREEZER DRAWER WPL 6558353 Contact Us For Availability
31
COVER, MEAT PAN WPL 656081 Contact Us For Availability
31
HOUSING, FREEZER COIL WPL 650331 Contact Us For Availability
32
ICE CUBE TRAY WPL 601121 Contact Us For Availability
32
SEAL, MEAT PAN (FRONT) WPL 656481 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
33
LEG, LEVELING WPL 60128 Contact Us For Availability
33
SEAL,HOUSING TO LINER WPL 520779 Contact Us For Availability
34
WHEEL WPL 298342 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
35
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
36
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
36
HEATER, DEFROST WPL 5276414 Contact Us For Availability
37
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
37
SCREW WPL 4000621 Contact Us For Availability
37
BRACKET WPL 528461 Contact Us For Availability
37
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
37
REFLECTOR WPL 2991512 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
40
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
40
WIRE HARNESS WPL 599401 Contact Us For Availability
× ![]()
