Model Whirlpool CMW22A6 MICROWAVE – Common Parts & Diagrams
01 - CAVITY

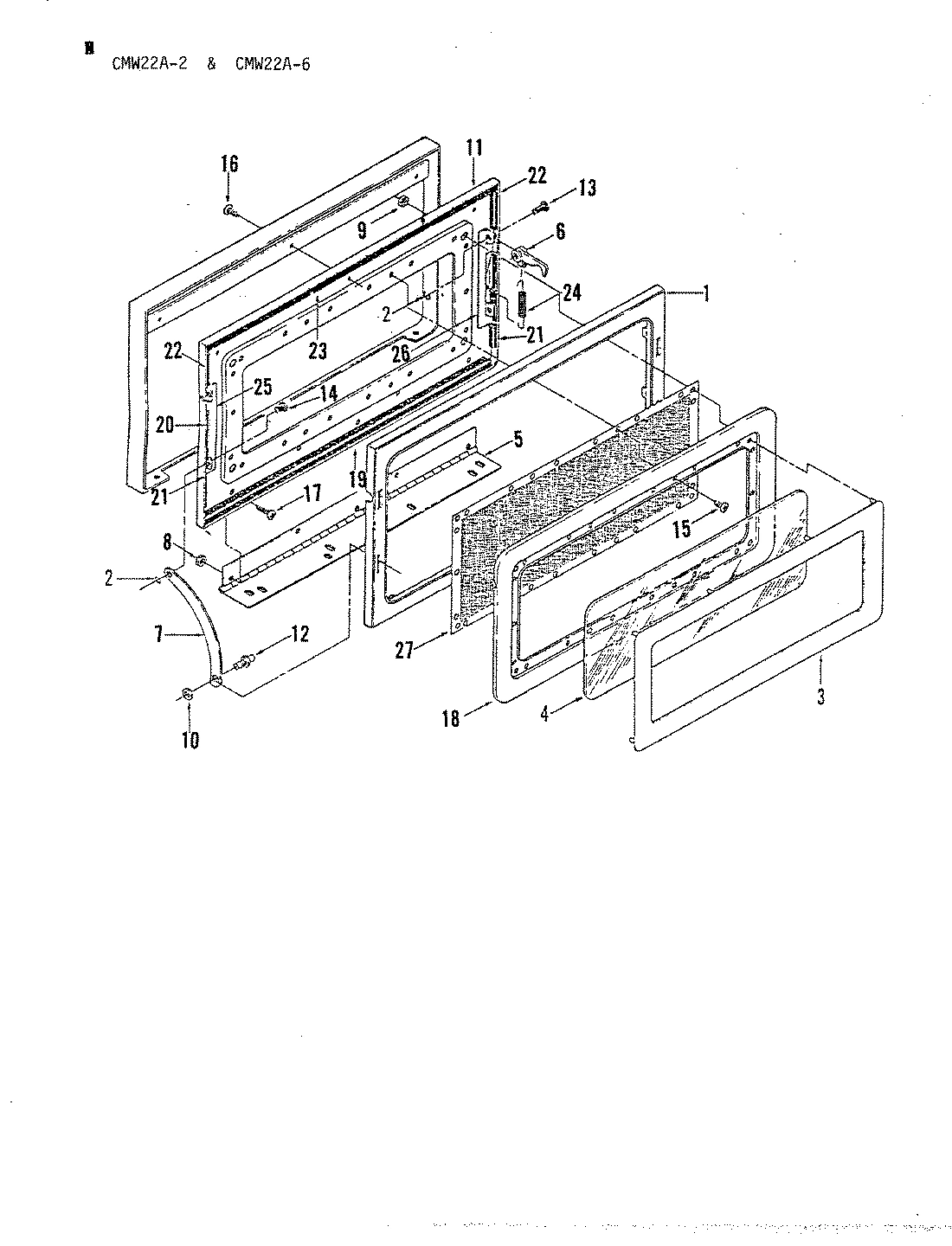

04 - DOOR

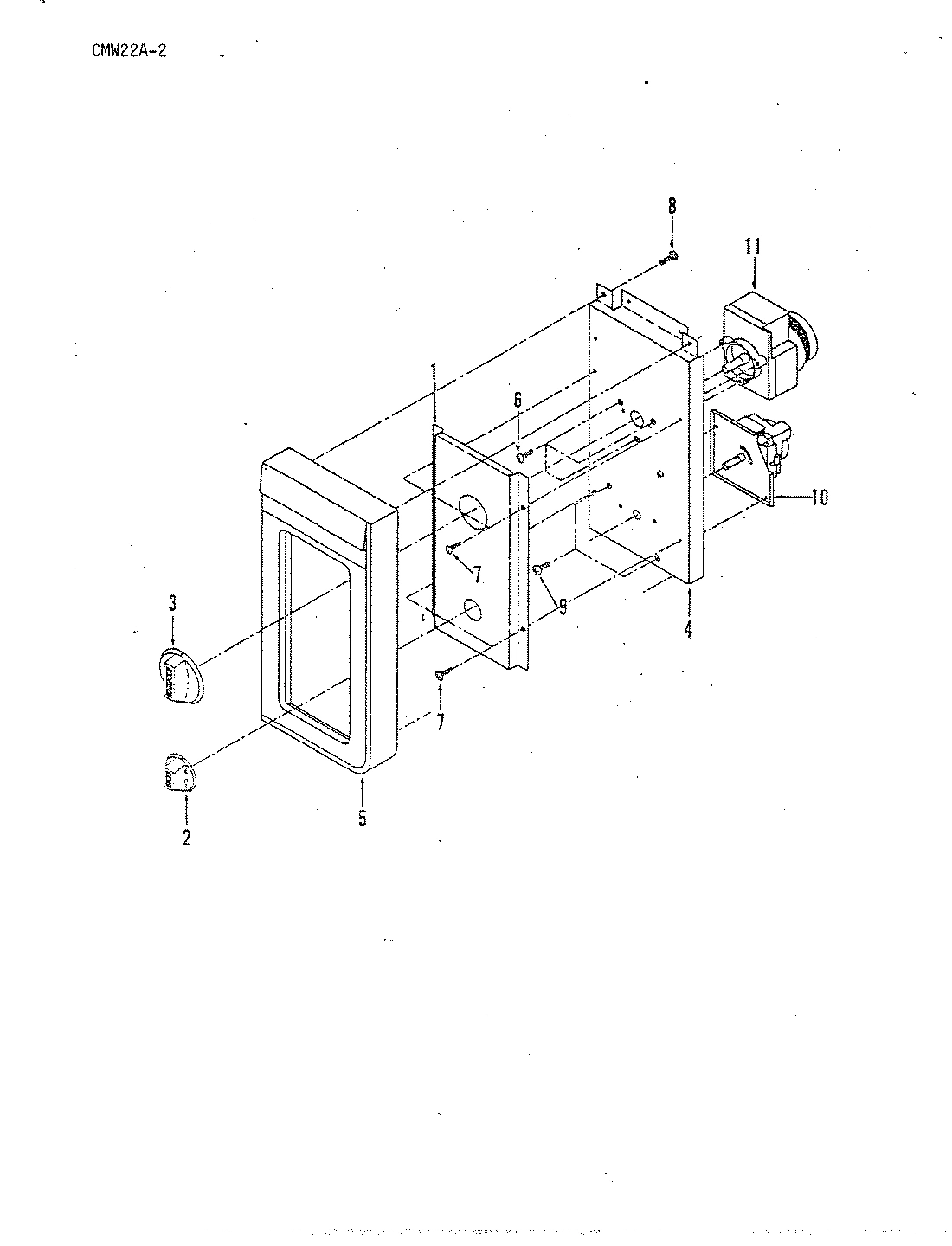

02 - CONTROL PANEL (CMW22A2)

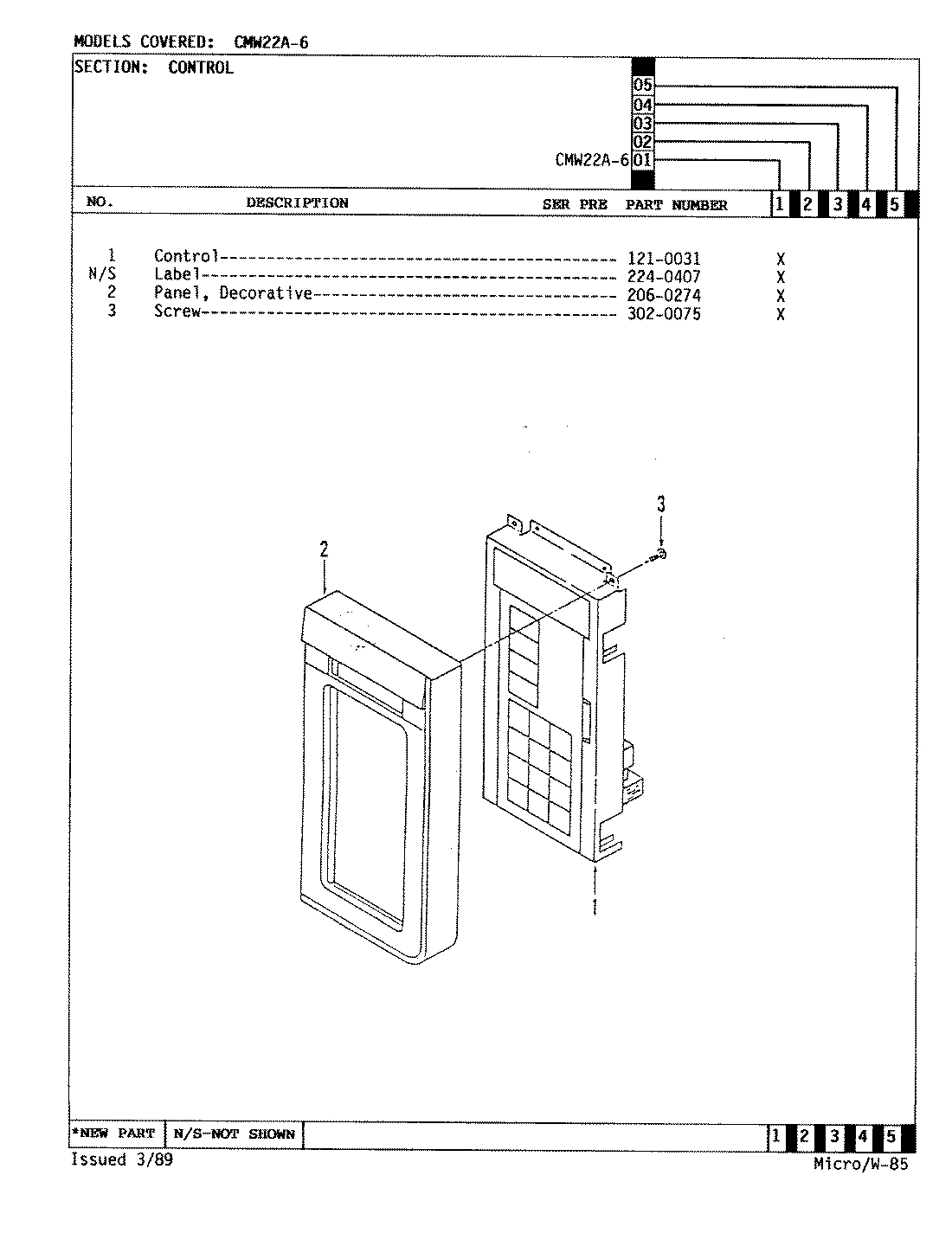

03 - CONTROL PANEL (CMW22A6)
Common parts from model Whirlpool CMW22A6 MICROWAVE
1
BAFFLE, AIR WPL 02320004 Contact Us For Availability
1
CHOKE, FILLER WPL Y02100098 Contact Us For Availability
1
LABEL, RELAMPING WPL 02240407 Contact Us For Availability
1
BOARD, CONTROL WPL 01210031 Contact Us For Availability
2
BAFFLE, AIR WPL 02320003 Contact Us For Availability
2
CLIP WPL Y03110054 Contact Us For Availability
2
KNOB, DEFROST TIMER WPL 02330049 Contact Us For Availability
2
PANEL, DECORATIVE WPL 02060274 Contact Us For Availability
3
BAFFLE, AIR WPL 02320005 Contact Us For Availability
3
COVER, DOOR SCREW WPL 02300030 Contact Us For Availability
3
KNOB, TIMER WPL 02330048 Contact Us For Availability
3
SCREW WPL 03020075 Contact Us For Availability
4
BLADE, STIRRER WPL 02360047 Contact Us For Availability
4
GLASS, INNER WPL 02220080 Contact Us For Availability
4
PANEL, CONTROL MNTG WPL 02060236 Contact Us For Availability
5
BOTTOM, CABINET WPL 02140048 Contact Us For Availability
5
HINGE WPL 02200018 Contact Us For Availability
5
PANEL, DECORATIVE WPL 02060273 Contact Us For Availability
6
BRACE, TOP WPL 02020022 Contact Us For Availability
6
LATCH, DOOR WPL 02190052 Contact Us For Availability
6
SCREW WPL 03020041 Contact Us For Availability
7
BRACKET, BLOWER WPL 02030124 Contact Us For Availability
7
LEVER, HINGE STOP WPL 02180011 Contact Us For Availability
8
BRACKET, CAPACITOR WPL 02030127 Contact Us For Availability
8
NUT WPL 03050003 Contact Us For Availability
9
BRACKET, INTERLOCK WPL 02030134 Contact Us For Availability
9
BRACKET, INTERLOCK WPL 02030135 Contact Us For Availability
9
NUT WPL 03050040 Contact Us For Availability
9
TAPE, PROTECTIVE 1``X 8`` WPL Y02310165 Contact Us For Availability
9
TAPE, PROTECTIVE 1`` WIDE WPL Y05070028 Contact Us For Availability
10
BRACKET, UNIT MNTG. WPL 02030125 Contact Us For Availability
10
BRACKET, UNIT MNTG. WPL 02030126 Contact Us For Availability
10
NUT WPL 03050036 Contact Us For Availability
10
TIMER WPL 01070039 Contact Us For Availability
11
BUSHING, STIRRER WPL 02360053 Contact Us For Availability
11
PANEL ASSEMBLY WPL 02060235 Contact Us For Availability
11
TIMER WPL 01070038 Contact Us For Availability
12
CABINET WPL 02140047 Contact Us For Availability
12
PIN WPL 03070039 Contact Us For Availability
13
PIN WPL 03070038 Contact Us For Availability
14
+ CAVITY WPL 04021033 Contact Us For Availability
14
PIN WPL 03070037 Contact Us For Availability
15
CLIP CANOE WPL Y03110021 Contact Us For Availability
15
SCREW WPL 03020077 Contact Us For Availability
17
CLIP, STIRRER BUSHIN WPL 03110065 Contact Us For Availability
18
COMPONENT MNTG PLATE WPL 02040061 Contact Us For Availability
18
SEAL PLATE WPL 02040060 Contact Us For Availability
19
CORD, POWER WPL 01080052 Contact Us For Availability
19
COVER, MAGNETRON WPL 02300034 Contact Us For Availability
19
SEAL WPL 02120125 Contact Us For Availability
20
COVER, STIRRER WPL 02300028 Contact Us For Availability
20
SEAL WPL 02120128 Contact Us For Availability
21
DIODE WPL 01030011 Contact Us For Availability
22
GASKET SHELF FRONT WPL 02100023 Contact Us For Availability
22
FOOT, BASE WPL Y02230009 Contact Us For Availability
22
SEAL WPL 02120126 Contact Us For Availability
23
GASKET, MAGNETRON WPL 02310132 Contact Us For Availability
23
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
23
SEAL WPL 02120124 Contact Us For Availability
23
SPACER WPL 03120066 Contact Us For Availability
24
HOUSING, BLOWER WPL 02170122 Contact Us For Availability
24
LENS, BULB WPL Y02400007 Contact Us For Availability
24
SPRING WPL 03180026 Contact Us For Availability
25
BULB, LIGHT WPL Y01060024 Contact Us For Availability
25
SUPPORT WPL 02010037 Contact Us For Availability
26
MAGNETRON WPL 01040005 Contact Us For Availability
26
SUPPORT WPL 02010038 Contact Us For Availability
27
MOTOR, BLOWER WPL 01110018 Contact Us For Availability
27
WINDOW, SCREEN WPL 02260008 Contact Us For Availability
28
NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability
30
ROLLER DOOR WPL 02210009 Contact Us For Availability
30
SCREW WPL 03020019 Contact Us For Availability
30
FILTER-INNER WPL 2010033 Contact Us For Availability
30
RIVET, POP WPL Y03060004 Contact Us For Availability
31
8 AX 3/8 THSMS WPL 03020044 Contact Us For Availability
32
SCREW WPL 03020049 Contact Us For Availability
33
SCREW WPL 03020070 Contact Us For Availability
34
SCREW WPL 03020080 Contact Us For Availability
35
SCREW WPL 03020081 Contact Us For Availability
36
SCREW WPL 03010094 Contact Us For Availability
37
SCREW WPL Y03010140 Contact Us For Availability
38
SCREW WPL 03010074 Contact Us For Availability
39
SCREW WPL 03010124 Contact Us For Availability
40
SCREW WPL 03010138 Contact Us For Availability
41
SHAFT, STIRRER WPL 02360052 Contact Us For Availability
42
SHELF WPL 02280017 Contact Us For Availability
43
LAMP SOCKET WPL 01100033 Contact Us For Availability
44
SPRING, DOOR WPL 03180027 Contact Us For Availability
45
STRAIN, RELIEF WPL 03150023 Contact Us For Availability
46
SUPPORT, BLOWER WPL 02010035 Contact Us For Availability
47
SUPPORT, INTERLOCK WPL 02010041 Contact Us For Availability
47
SUPPORT, INTERLOCK WPL 02010042 Contact Us For Availability
48
SUPPORT, TRANSFORMER WPL 02010036 Contact Us For Availability
49
SWITCH WPL 01140046 Contact Us For Availability
49
SWITCH WPL 01140047 Contact Us For Availability
50
SWITCH WPL 01140044 Contact Us For Availability
50
SWITCH WPL 01140045 Contact Us For Availability
50
TAPE, FOAM WPL 02310134 Contact Us For Availability
50
TAPE, FOAM WPL 02310135 Contact Us For Availability
50
TAPE, FOAM WPL 02310136 Contact Us For Availability
50
TAPE, FOAM WPL 02310137 Contact Us For Availability
50
TAPE, FOAM WPL 02310138 Contact Us For Availability
50
SWITCH, TEMPERATURE LIMIT WPL Y01180008 Contact Us For Availability
51
TRANSFORMER WPL 01130027 Contact Us For Availability
52
WHEEL, BLOWER WPL Y01110017 Contact Us For Availability
53
WIRE, HARNESS WPL 04010175 Contact Us For Availability
53
WIRE, LEAD WPL 04060517 Contact Us For Availability
53
WIRE, LEAD WPL 04060518 Contact Us For Availability
53
WIRE, LEAD WPL 04060524 Contact Us For Availability
53
3`` GRAY WIRE WPL Y04060344 Contact Us For Availability
× ![]()
