Model Maytag CMA2000B3 COMMERCIAL MICROWAVE – Common Parts & Diagrams
01 - MISCELLAEOUS INFORMATION
02 - DOOR ASSEMBLY
03 - OUTER CASE & DOOR REMOVAL
04 - CONTROL & BLOWER/TRIAC ASSEMBLIES
05 - OVEN CAVITY & STIRRER SYSTEM
06 - CIRCUIT BOARD/HIGH VOLTAGE & OVEN RACK

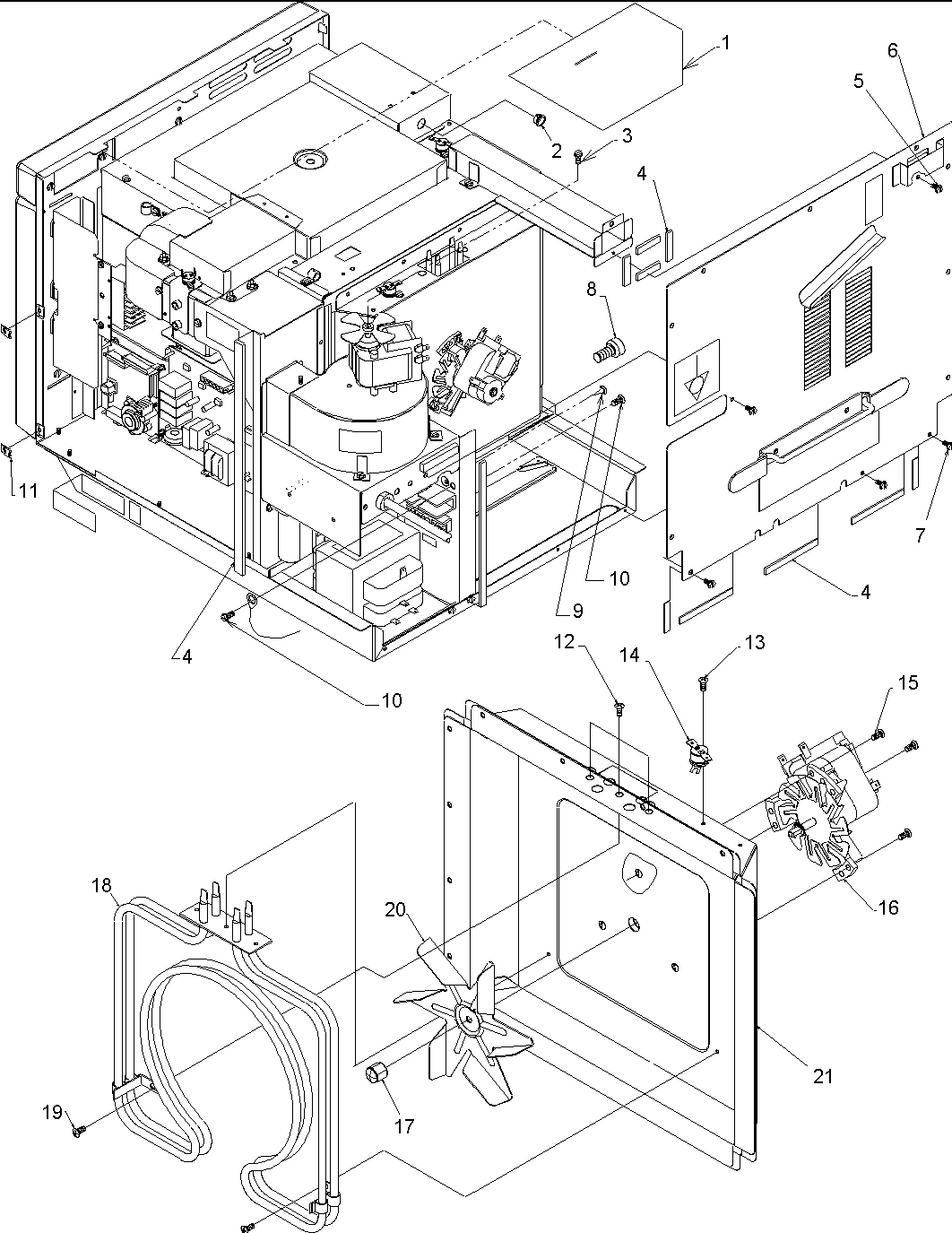

07 - REAR ACCESS PANEL & HEATER BOX ASSEMBLY
08 - OVEN CAVITY ASSEMBLY
09 - OUTER CABINET ASSEMBLY

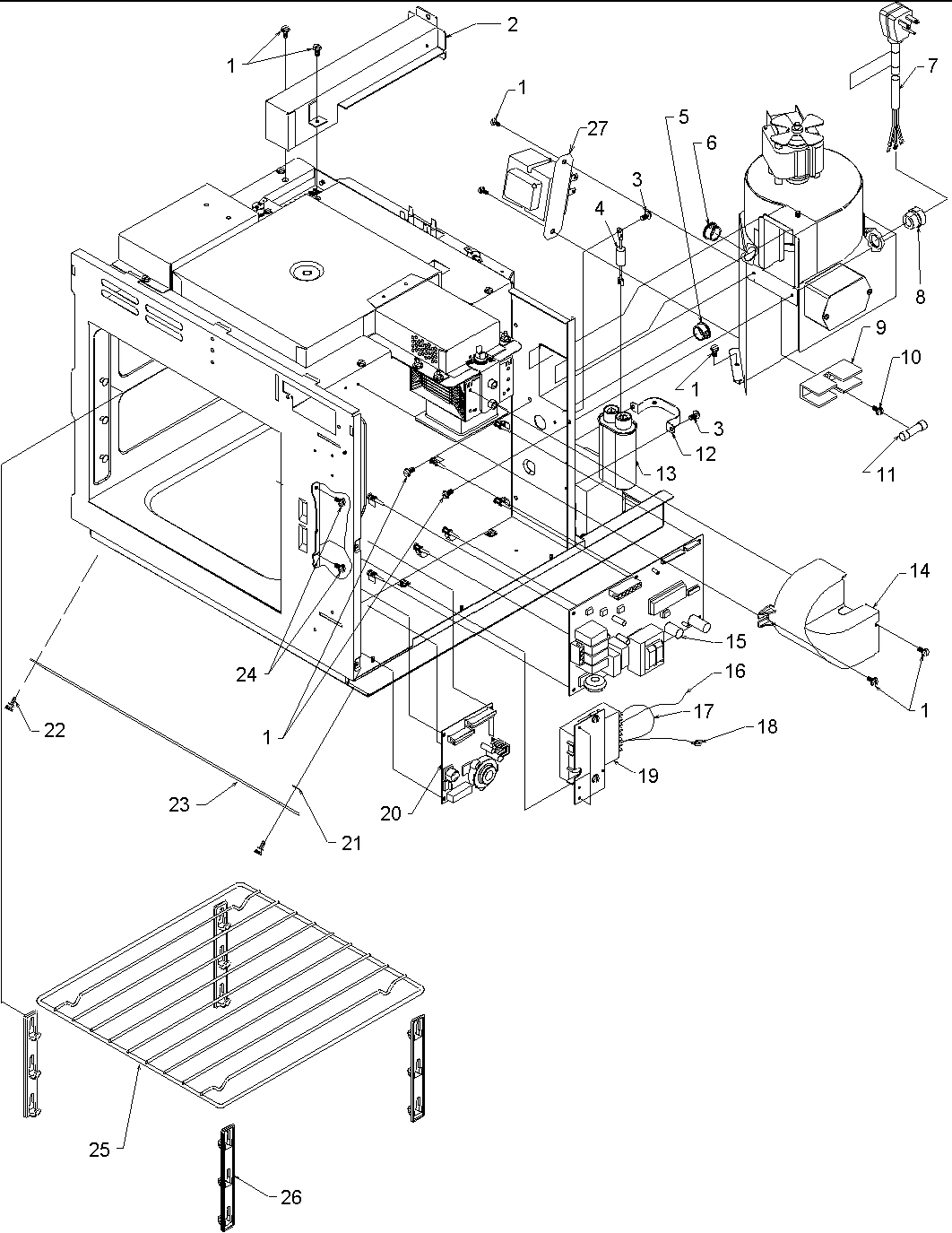

01 - Circuit Board/High Voltage & Oven Rack

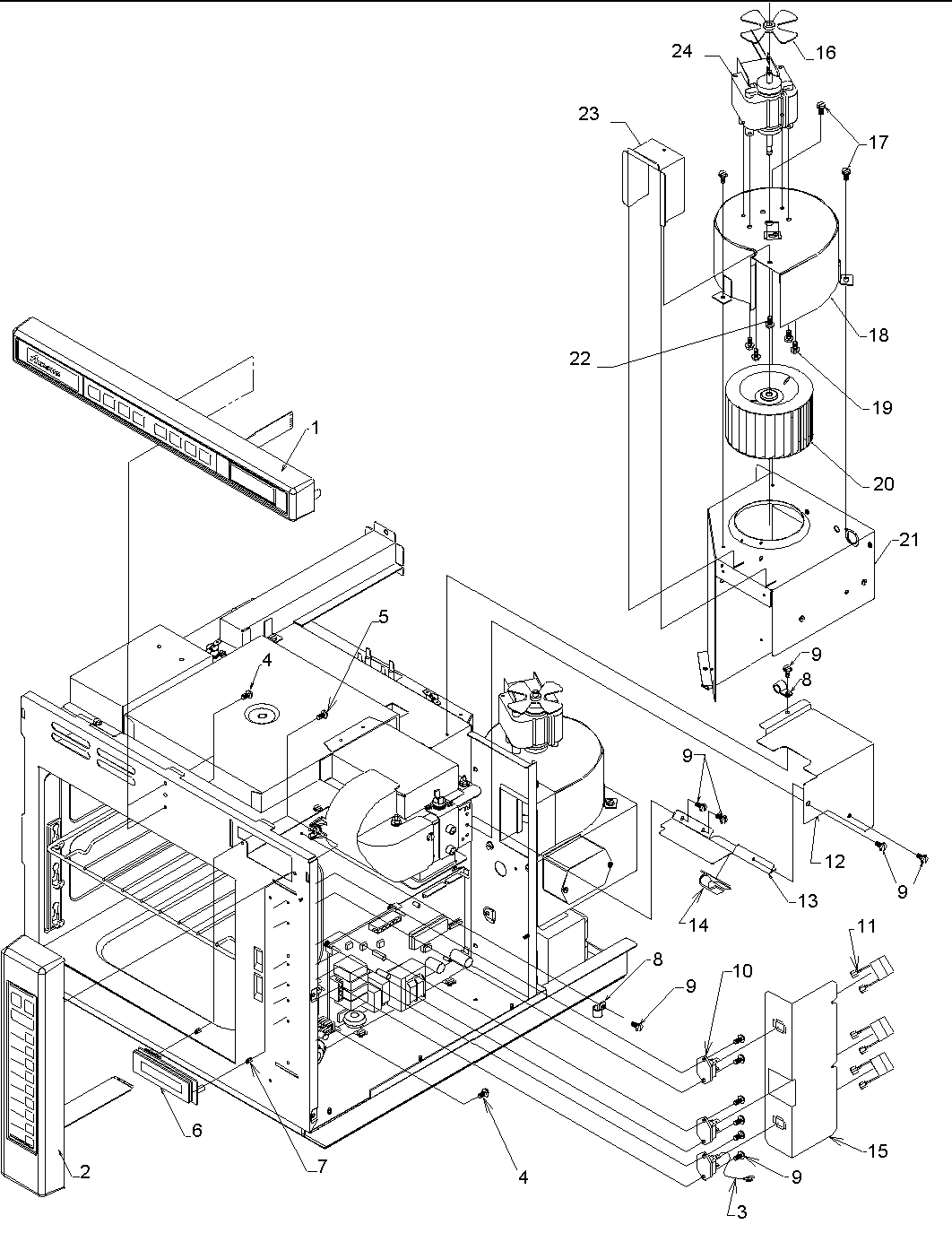

02 - Control & Blower/Triac Assemblies

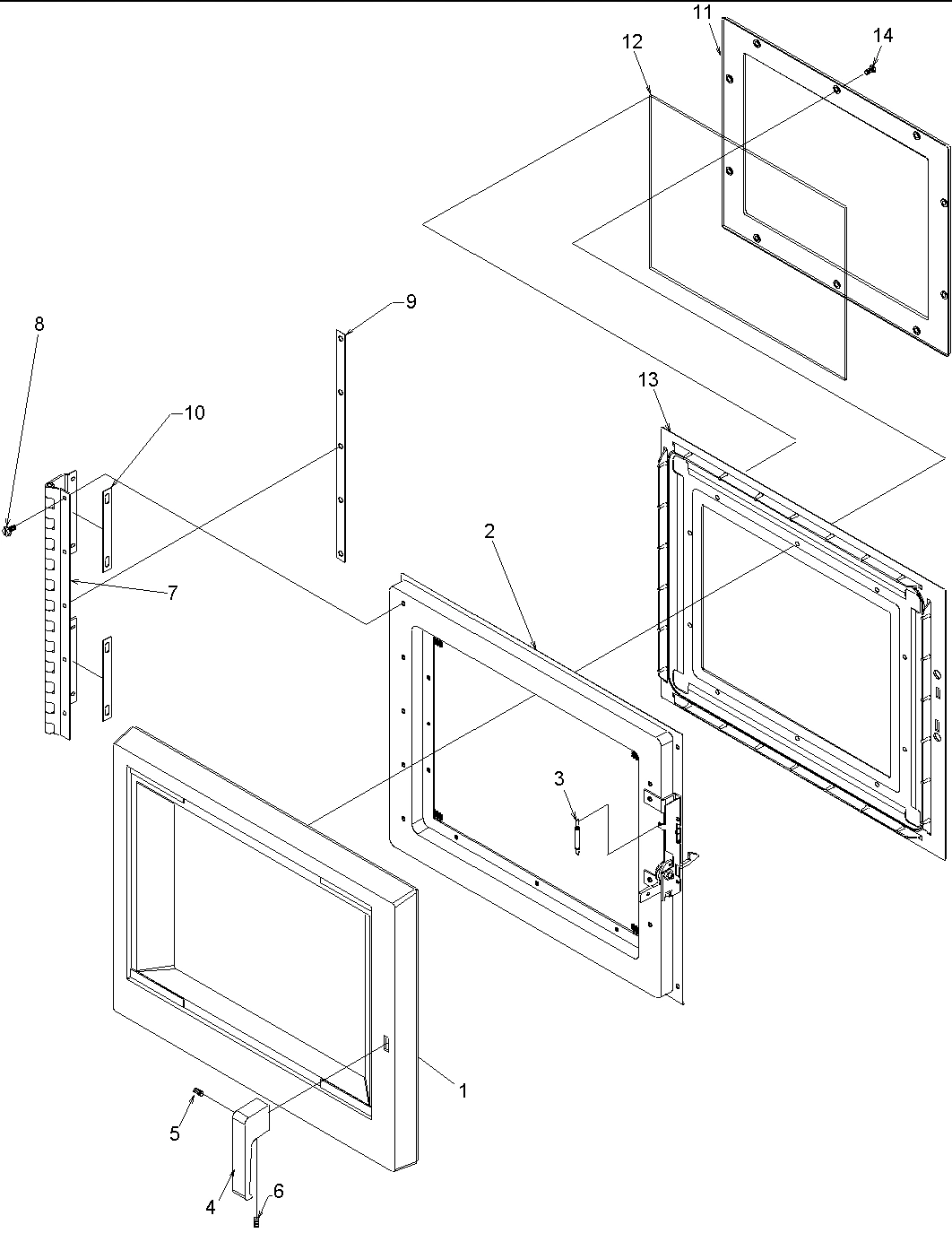

03 - Door Assembly

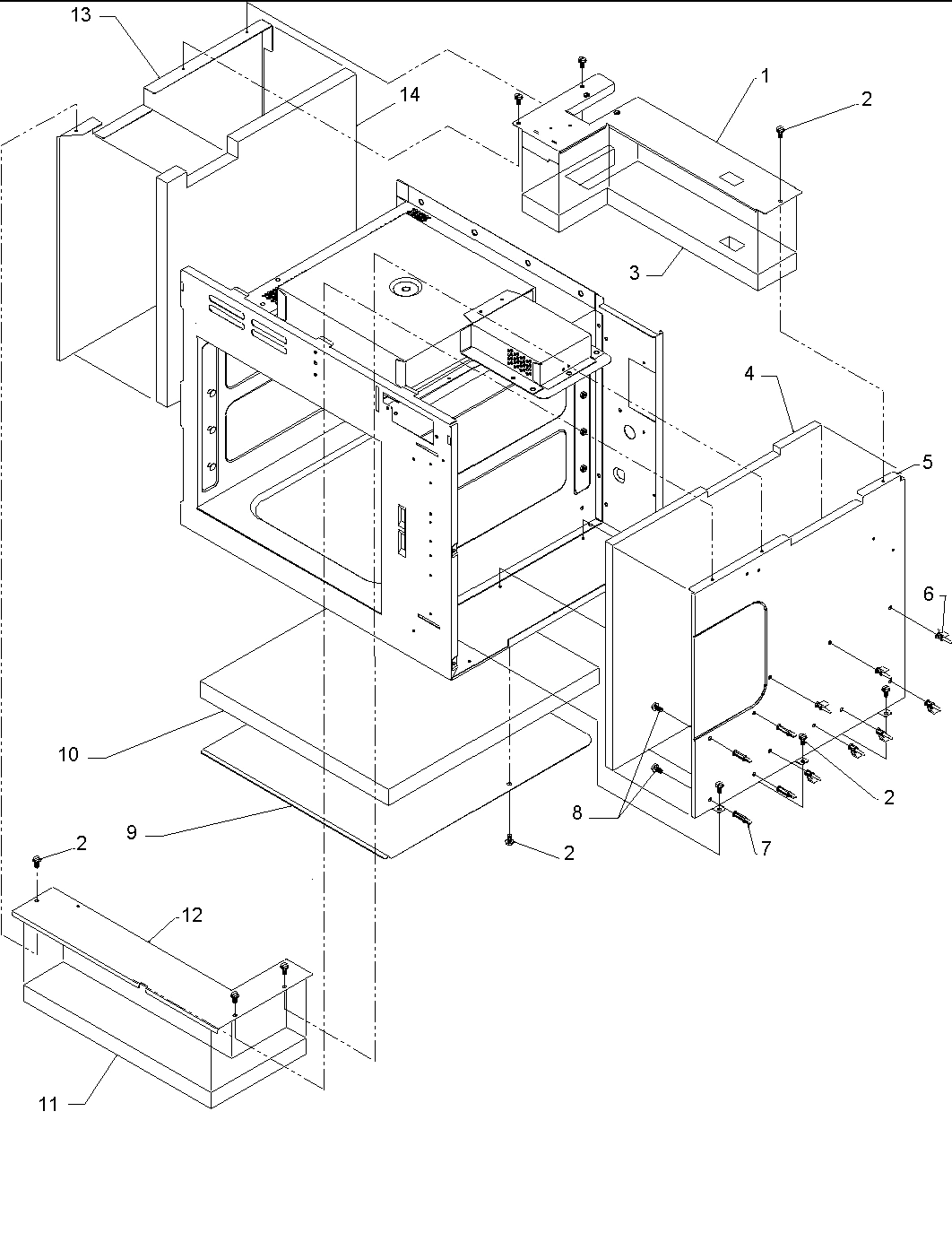

04 - Outer Cabinet Assembly

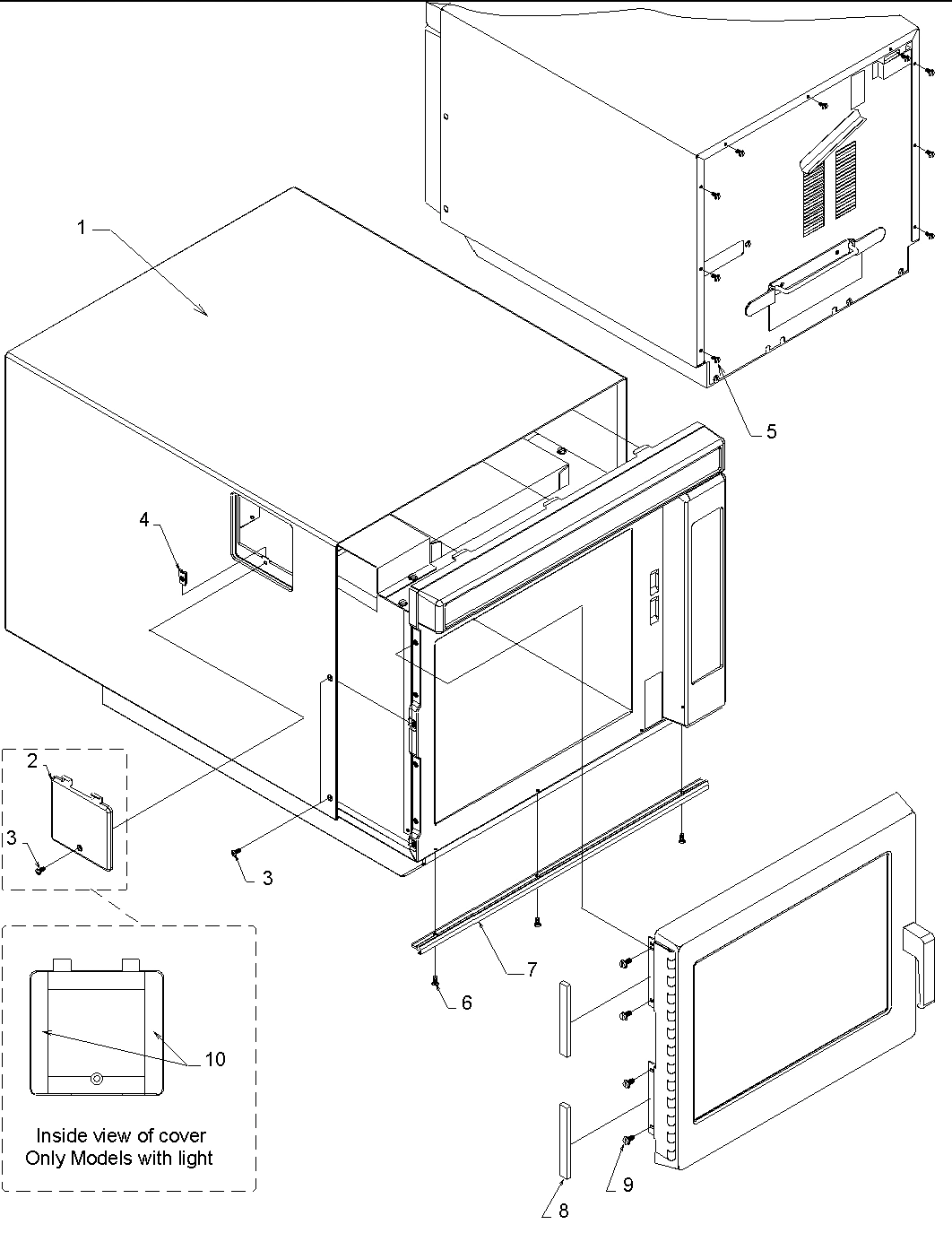

05 - Outer Case & Door Removal

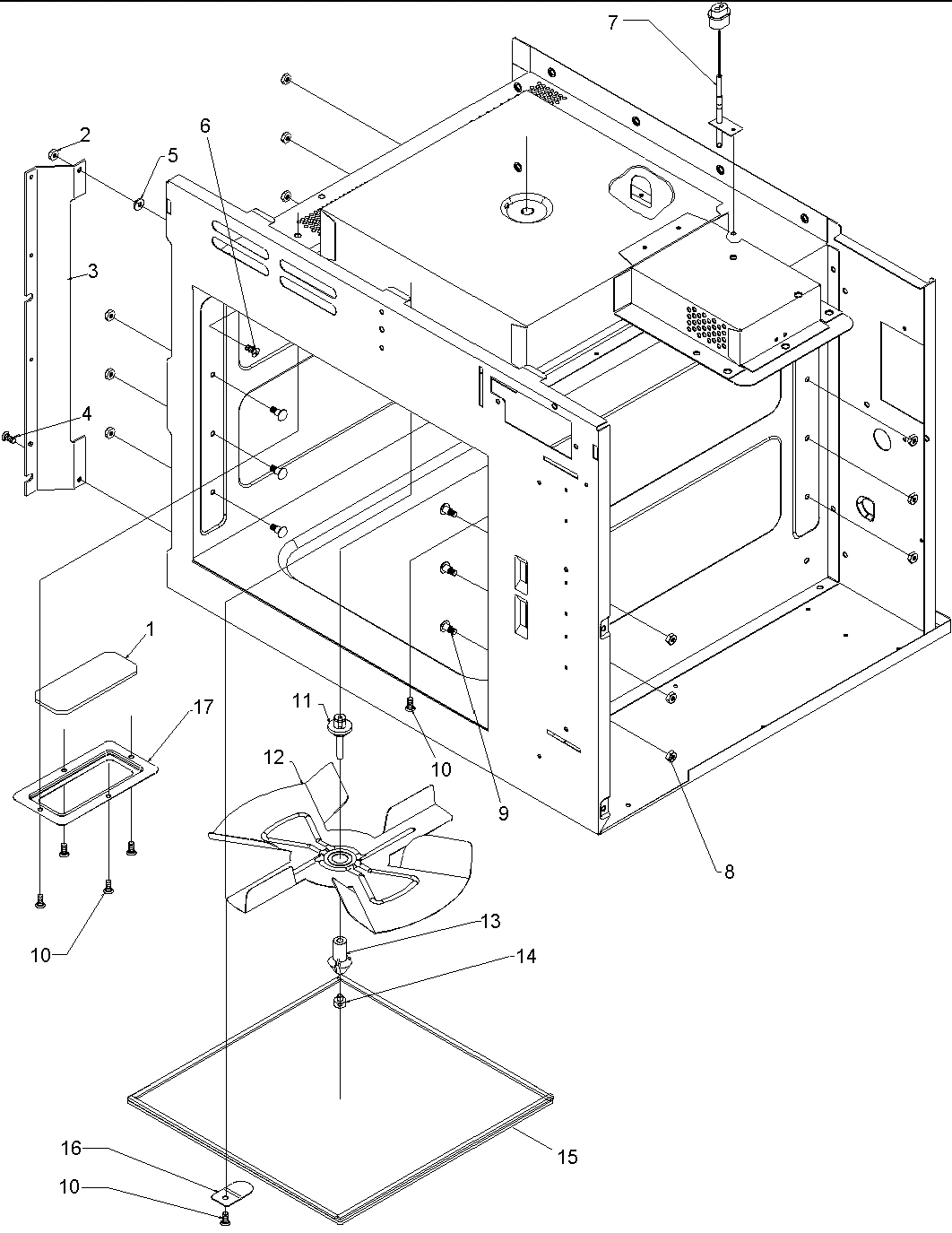

06 - Oven Cavity & Stirrer System

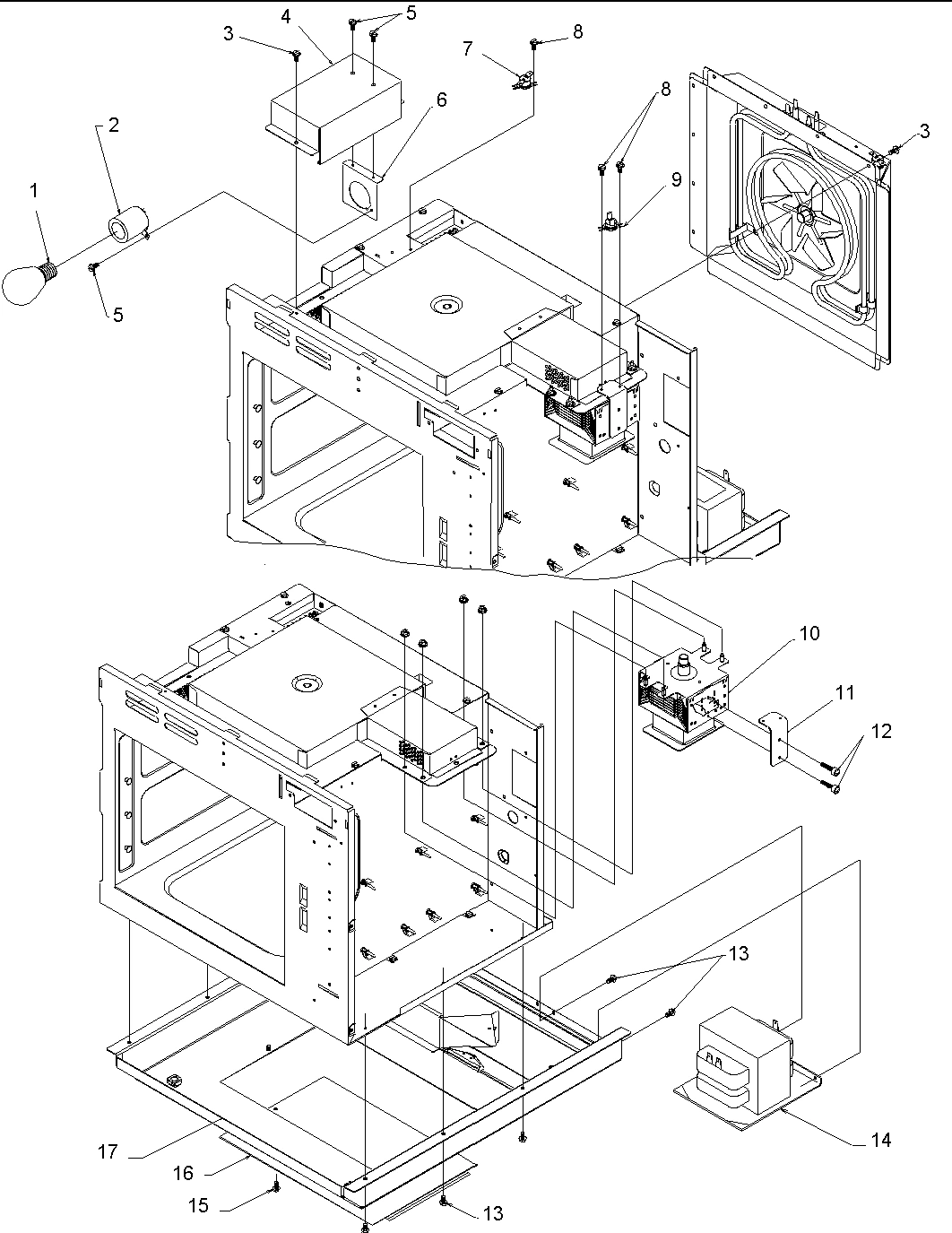

07 - Oven Cavity Assembly
08 - Rear Access Panel & Heater Box Assembly
Common parts from model Maytag CMA2000B3 COMMERCIAL MICROWAVE
1
WRAPPER-OC (SS) MAY 10908901 Contact Us For Availability
1
TOUCH PANEL(TOP) AMANA MAY R0156991 Contact Us For Availability
1
MAY 12047501 MAY 12047501 Contact Us For Availability
1
BULB, LIGHT(240) MAY A0282802 Contact Us For Availability
1
RETAINER-TOP BACK INSUL MAY 10977401 Contact Us For Availability
1
ASSY, OUTER DOOR MAY R0150113 Contact Us For Availability
1
MAY 10986901 MAY 10986901 Contact Us For Availability
2
DOOR ASSY MAY R0156922 Contact Us For Availability
2
MAY 10785602 MAY 10785602 Contact Us For Availability
2
TOUCH PANEL (SIDE) MAY R0156993 Contact Us For Availability
2
NUT K MAY M0282005 Contact Us For Availability
2
FLUE DUCT WELD MAY 12002901 Contact Us For Availability
2
BUSHING MAY A3293501 Contact Us For Availability
2
MAY 12027401 MAY 12027401 Contact Us For Availability
3
MAY C8893502 MAY C8893502 Contact Us For Availability
3
MAY M0249619 MAY M0249619 Contact Us For Availability
3
MAY 10901306 MAY 10901306 Contact Us For Availability
3
MAY 12189002 MAY 12189002 Contact Us For Availability
3
SCREW MAY M0234114 Contact Us For Availability
3
INSUL- TOP BACK RETAINER MAY 12000701 Contact Us For Availability
4
MAY 10822301 MAY 10822301 Contact Us For Availability
4
MAY M0218118 MAY M0218118 Contact Us For Availability
4
MAY M0231717 MAY M0231717 Contact Us For Availability
4
MAY B8383102 MAY B8383102 Contact Us For Availability
4
MAY A3030301 MAY A3030301 Contact Us For Availability
4
MAY 10999602 MAY 10999602 Contact Us For Availability
4
INSUL- SIDE RETAINER RT MAY 12000401 Contact Us For Availability
4
MAY M0288213 MAY M0288213 Contact Us For Availability
5
SET SCREW No.10 X .25 MAY 5051032202 Contact Us For Availability
5
MAY M0223416 MAY M0223416 Contact Us For Availability
5
SNAP BUSHING MAY M0571001 Contact Us For Availability
5
RETAINER-SIDE INSUL RT MAY 10977102 Contact Us For Availability
5
MAY M0270526 MAY M0270526 Contact Us For Availability
6
SCREW, SET MAY M0208342 Contact Us For Availability
6
MAY M0234016 MAY M0234016 Contact Us For Availability
6
MAY 12040201 MAY 12040201 Contact Us For Availability
6
MAY M0202557 MAY M0202557 Contact Us For Availability
6
MAY M0571003 MAY M0571003 Contact Us For Availability
6
ACCESS PAN WELD (BLK) MAY 12002804 Contact Us For Availability
6
MAY 10978501 MAY 10978501 Contact Us For Availability
6
SUPPORT P-C BD A MAY M0590602 Contact Us For Availability
7
HINGE-DOOR MAY C8961805 Contact Us For Availability
7
MAY M0800401 MAY M0800401 Contact Us For Availability
7
MAY M0216716 MAY M0216716 Contact Us For Availability
7
MAY 12000201 MAY 12000201 Contact Us For Availability
7
MAY 10098907 MAY 10098907 Contact Us For Availability
7
THERMAL PROTECTOR MAY B5684102 Contact Us For Availability
7
SUPPORT P.C. BOARD MAY M0580505 Contact Us For Availability
7
MAY 10909001 MAY 10909001 Contact Us For Availability
8
MAY A3263904 MAY A3263904 Contact Us For Availability
8
MAY M0102305 MAY M0102305 Contact Us For Availability
8
MAY M0282007 MAY M0282007 Contact Us For Availability
8
STRAIN RELIEF MAY M0370003 Contact Us For Availability
8
MAY M0310016 MAY M0310016 Contact Us For Availability
8
No.6 F X 1/4`` SCREW (25) MAY 5043-W Contact Us For Availability
9
GASKET MAY 12083101 Contact Us For Availability
9
MAY 12030101 MAY 12030101 Contact Us For Availability
9
FUSE HOLDER MAY 10091101 Contact Us For Availability
9
MAY M0310015 MAY M0310015 Contact Us For Availability
9
CUTOUT-THERMAL MAY B5684119 Contact Us For Availability
9
RETAINER-BOTTOM INSUL MAY 10977501 Contact Us For Availability
010
MAY A3030302 MAY A3030302 Contact Us For Availability
10
GASKET MAY 12083001 Contact Us For Availability
10
MAY D7681501 MAY D7681501 Contact Us For Availability
10
SCREW MAY M0213802 Contact Us For Availability
10
MAY 10489402 MAY 10489402 Contact Us For Availability
10
INSUL-BOTTOM RETAINER MAY 12000703 Contact Us For Availability
11
MAY 12022401 MAY 12022401 Contact Us For Availability
11
MAY 10172901 MAY 10172901 Contact Us For Availability
11
MAY 12004401 MAY 12004401 Contact Us For Availability
11
MAY M0805201 MAY M0805201 Contact Us For Availability
11
MAY M0287001 MAY M0287001 Contact Us For Availability
11
MAY 10999501 MAY 10999501 Contact Us For Availability
11
INSUL- TOP FRONT RETAINER MAY 12000702 Contact Us For Availability
12
MAY C8960501 MAY C8960501 Contact Us For Availability
12
MAY 10978702 MAY 10978702 Contact Us For Availability
12
KIT, STIRRER BLADE MAY 10825902 Contact Us For Availability
12
MAY A4055405 MAY A4055405 Contact Us For Availability
12
SCREW MAY M0223328 Contact Us For Availability
12
MAY M0229916 MAY M0229916 Contact Us For Availability
12
RETAINER-TOP FRONT INSUL MAY 10978002 Contact Us For Availability
13
COVER-CHOKE W/GSKT MAY 12022601 Contact Us For Availability
13
MAY 10978601 MAY 10978601 Contact Us For Availability
13
KIT,STIRRER BLADE MAY 12004501 Contact Us For Availability
13
CAPACITOR MAY D8547936 Contact Us For Availability
13
MAY M0232012 MAY M0232012 Contact Us For Availability
13
RETAINER-SIDE INSUL LT MAY 10977301 Contact Us For Availability
14
MAY M0238420 MAY M0238420 Contact Us For Availability
14
KIT,STIRRER BLADE MAY 12004601 Contact Us For Availability
14
MAY 12018101 MAY 12018101 Contact Us For Availability
14
M4D69 PROTECTOR MAY 31866P01 Contact Us For Availability
14
TRANSFORMER-HV MAY 10788602 Contact Us For Availability
14
INSUL- SIDE RETAINER LT MAY 12000501 Contact Us For Availability
15
MAY 12210101 MAY 12210101 Contact Us For Availability
15
ASSY, STIRRER COVER MAY R0150115 Contact Us For Availability
15
BOARD, H.V. MAY 12028704 Contact Us For Availability
15
MAY M0216529 MAY M0216529 Contact Us For Availability
15
MAY M0213815 MAY M0213815 Contact Us For Availability
16
MAY B5706704 MAY B5706704 Contact Us For Availability
16
RETAINER-TRAY MAY 12188901 Contact Us For Availability
16
MAY 10901307 MAY 10901307 Contact Us For Availability
16
MOTOR-BLOWER MAY 10999702 Contact Us For Availability
16
MAY 10782402 MAY 10782402 Contact Us For Availability
017
NUT, CAP MAY NLA Contact Us For Availability
17
MAY M0231704 MAY M0231704 Contact Us For Availability
17
RETAINER, OVEN LIGHT GLASS MAY 10978201 Contact Us For Availability
17
MAY 10901308 MAY 10901308 Contact Us For Availability
17
MAY R0150116 MAY R0150116 Contact Us For Availability
17
MAY 12004901 MAY 12004901 Contact Us For Availability
18
SCROLL WELD MAY 10797203 Contact Us For Availability
18
ASS`Y, CALROD MAY 12000101 Contact Us For Availability
19
MAY M0253916 MAY M0253916 Contact Us For Availability
19
KIT, INTERLOCK MAY R0150155 Contact Us For Availability
20
MAY C3670808 MAY C3670808 Contact Us For Availability
20
FAN BLADE MAY 12004801 Contact Us For Availability
20
MAY 12305802 MAY 12305802 Contact Us For Availability
21
WELD,BLOWER BRKT MAY 12000810 Contact Us For Availability
21
MAY M0274066 MAY M0274066 Contact Us For Availability
21
HEATER BOX WELD MAY 12020002 Contact Us For Availability
22
MAY M0209701 MAY M0209701 Contact Us For Availability
23
MAY 10977801 MAY 10977801 Contact Us For Availability
24
MAY 10773302 MAY 10773302 Contact Us For Availability
24
MAY M0253504 MAY M0253504 Contact Us For Availability
25
MAY 12233301 MAY 12233301 Contact Us For Availability
26
MAY 12029301 MAY 12029301 Contact Us For Availability
NI
HARNESS-LV/DISPLAY MAY 12029401 Contact Us For Availability
NI
HARNESS-LVB/HVB MAY 12029501 Contact Us For Availability
× ![]()
