Model LG CM9950 – Common Parts & Diagrams

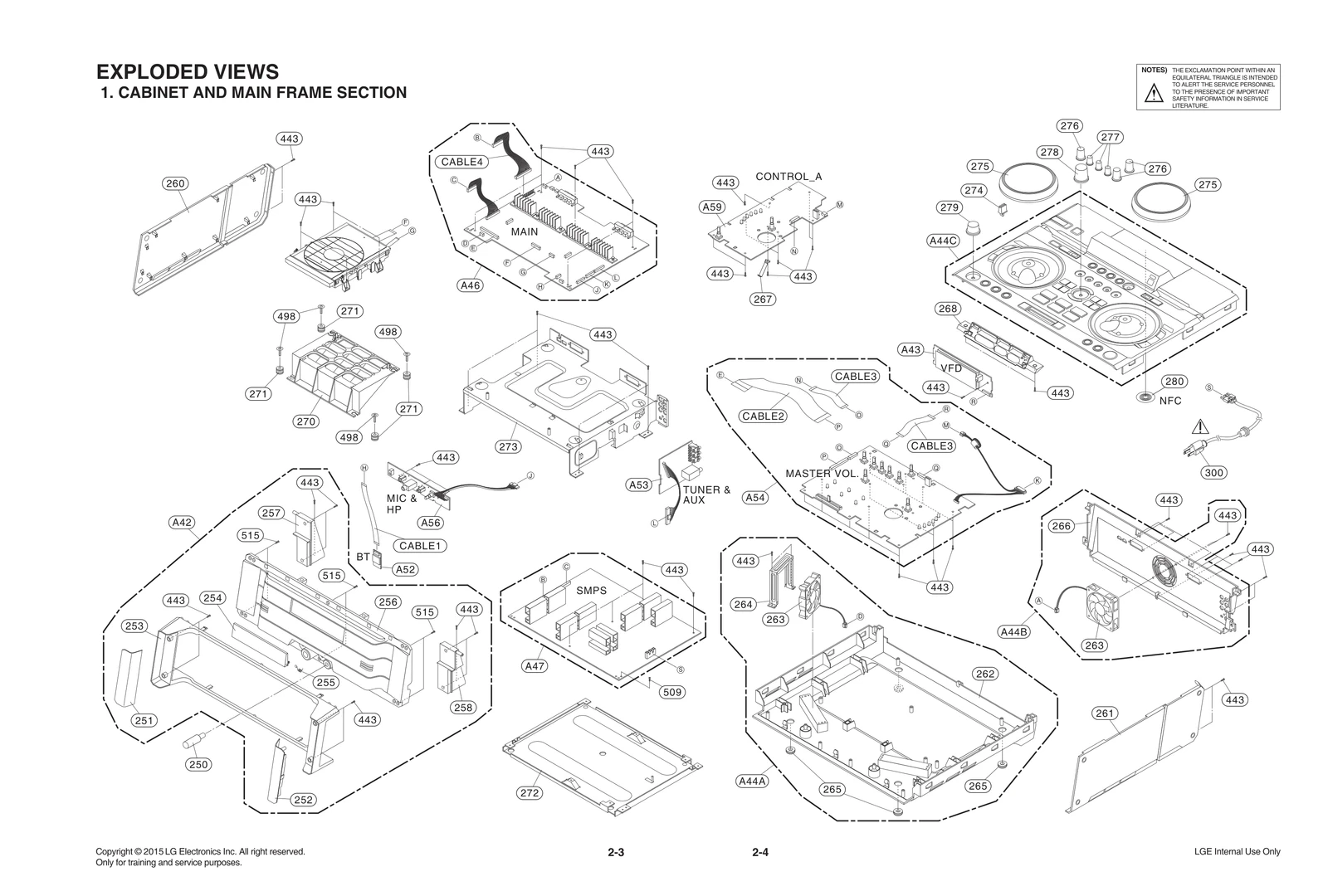

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Common parts from model LG CM9950
250
Knob LGE MEY57746504 Contact Us For Availability
251
Holder LGE MEG64179001 Contact Us For Availability
252
Holder LGE MEG64179101 Contact Us For Availability
253
Holder LGE MEG64139101 Contact Us For Availability
254
Door LGE MCV63253401 Contact Us For Availability
255
SPRING LGE 4970R-0146C Contact Us For Availability
256
Panel,Front LGE MGC63780902 Contact Us For Availability
257
Holder LGE MEG64159001 Contact Us For Availability
258
Holder LGE MEG64178901 Contact Us For Availability
260
Cover Assembly LGE ACQ88014902 Contact Us For Availability
261
Cover Assembly LGE ACQ88015002 Contact Us For Availability
262
Frame LGE MDQ64197101 Contact Us For Availability
263
Fan Module LGE EAL60700911 Contact Us For Availability
264
Bracket LGE MAZ63859601 Contact Us For Availability
265
Damper LGE MCQ67393201 Contact Us For Availability
266
Panel,Rear LGE MGC63804005 Contact Us For Availability
267
Plate,Ground LGE MGJ64583401 Contact Us For Availability
268
Supporter LGE MJH63774801 Contact Us For Availability
270
Holder LGE MEG64179201 Contact Us For Availability
271
Damper LGE MCQ38556901 Contact Us For Availability
272
Bracket LGE MAZ64567901 Contact Us For Availability
273
Bracket LGE MAZ64587301 Contact Us For Availability
274
Knob LGE MEY62914901 Contact Us For Availability
275
Knob LGE MEY63314202 Contact Us For Availability
276
Knob LGE MEY63314301 Contact Us For Availability
277
Knob LGE MEY63314401 Contact Us For Availability
278
Knob LGE MEY63373801 Contact Us For Availability
279
Knob LGE MEY63373901 Contact Us For Availability
280
Module,Assembly LGE EAT61873302 Contact Us For Availability
280
Module,Assembly LGE EAT61873303 Contact Us For Availability
300
Power Cord LGE EAD62608202 Contact Us For Availability
300
Power Cord,Attach LGE EAD62608221 Contact Us For Availability
443
SCREW,DRAWING LGE 1SZZR-0098M Contact Us For Availability
498
Screw,Customized LGE 353-100AAAB Contact Us For Availability
509
SCREW,DRAWING LGE 1SZZR-0076A Contact Us For Availability
515
Screw,Customized LGE FAB33079001 Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76873515 Contact Us For Availability
802
Box,Master LGE MAY66852240 Contact Us For Availability
803
Packing LGE MFZ63331491 Contact Us For Availability
804
Bag LGE 3880SCS001W Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
825
Antenna,T LGE EAA56671903 Contact Us For Availability
826
FILTER(CIRC),EMC LGE 6210VH0004B Contact Us For Availability
826A
Filter,Ferrite Core LGE 6210VH0004C Contact Us For Availability
826A
Filter,Ferrite Core LGE 6210VH0004D Contact Us For Availability
900
Remote Controller Assembly LGE AKB73655771 Contact Us For Availability
1001
Clamp Assembly LGE ACA73149601 Contact Us For Availability
1002
Cover LGE MCK66956902 Contact Us For Availability
1003
Clamp LGE MBU62365501 Contact Us For Availability
1004
Magnet,Ferrite LGE RAB33072001 Contact Us For Availability
1005
Plate LGE MGJ63182401 Contact Us For Availability
1011
Base LGE MAM62647901 Contact Us For Availability
1012
Guide LGE MEA62870901 Contact Us For Availability
1013
Gear LGE MDT62367501 Contact Us For Availability
1015
BELT LGE 4400R-0010A Contact Us For Availability
1016
Gear LGE MDT62367401 Contact Us For Availability
1018
Motor,DC LGE EAU62065801 Contact Us For Availability
1018
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1019
PULLEY LGE 4560R-1016A Contact Us For Availability
1019
PULLEY LGE 4560H-1005A Contact Us For Availability
1020
Base LGE MAM62667101 Contact Us For Availability
1024
Damper LGE MCQ38556902 Contact Us For Availability
1026
Tray LGE MJS62532201 Contact Us For Availability
1026
Tray LGE MJS62532202 Contact Us For Availability
1030
Cable,FFC LGE EAD62056604 Contact Us For Availability
1043
Switch,Detector LGE 6600HXF102A Contact Us For Availability
1043
Switch,Micro LGE 6600KW3004G Contact Us For Availability
1043
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1045
Cable,FFC LGE EAD62056801 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ60673606 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1439
SCREW, LGE 1SZZH-1007B Contact Us For Availability
A001
Cover Assembly LGE ACQ86011801 Contact Us For Availability
A005
PCB Assembly,Deck LGE EBR74553001 Contact Us For Availability
A006
Motor Assembly,DC LGE EAU62123301 Contact Us For Availability
A42
Panel Assembly,Front LGE AGL75012706 Contact Us For Availability
A43
PCB Assembly LGE EBR80669602 Contact Us For Availability
A44A
Frame Assembly LGE ADV75365601 Contact Us For Availability
A44B
Panel Assembly,Rear LGE AGL75033604 Contact Us For Availability
A44C
Frame Assembly LGE ADV75365509 Contact Us For Availability
A46
Option Code Assembly LGE EBR80444108 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR80269202 Contact Us For Availability
A52
Module,Bluetooth LGE EAT62833601 Contact Us For Availability
A53
PCB Assembly LGE EBR80690002 Contact Us For Availability
A54
PCB Assembly LGE EBR79759603 Contact Us For Availability
A56
PCB Assembly LGE EBR80669702 Contact Us For Availability
A59
PCB Assembly LGE EBR80650302 Contact Us For Availability
A60L
Speaker System Total LGE TCG36228303 Contact Us For Availability
A60R
Speaker System Total LGE TCG36228403 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62130029 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD43523206 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD61048310 Contact Us For Availability
CABLE4
Harness,Single LGE 6631R-G007D Contact Us For Availability
× ![]()
