Model Whirlpool CM47JW-14T MICROWAVE – Common Parts & Diagrams

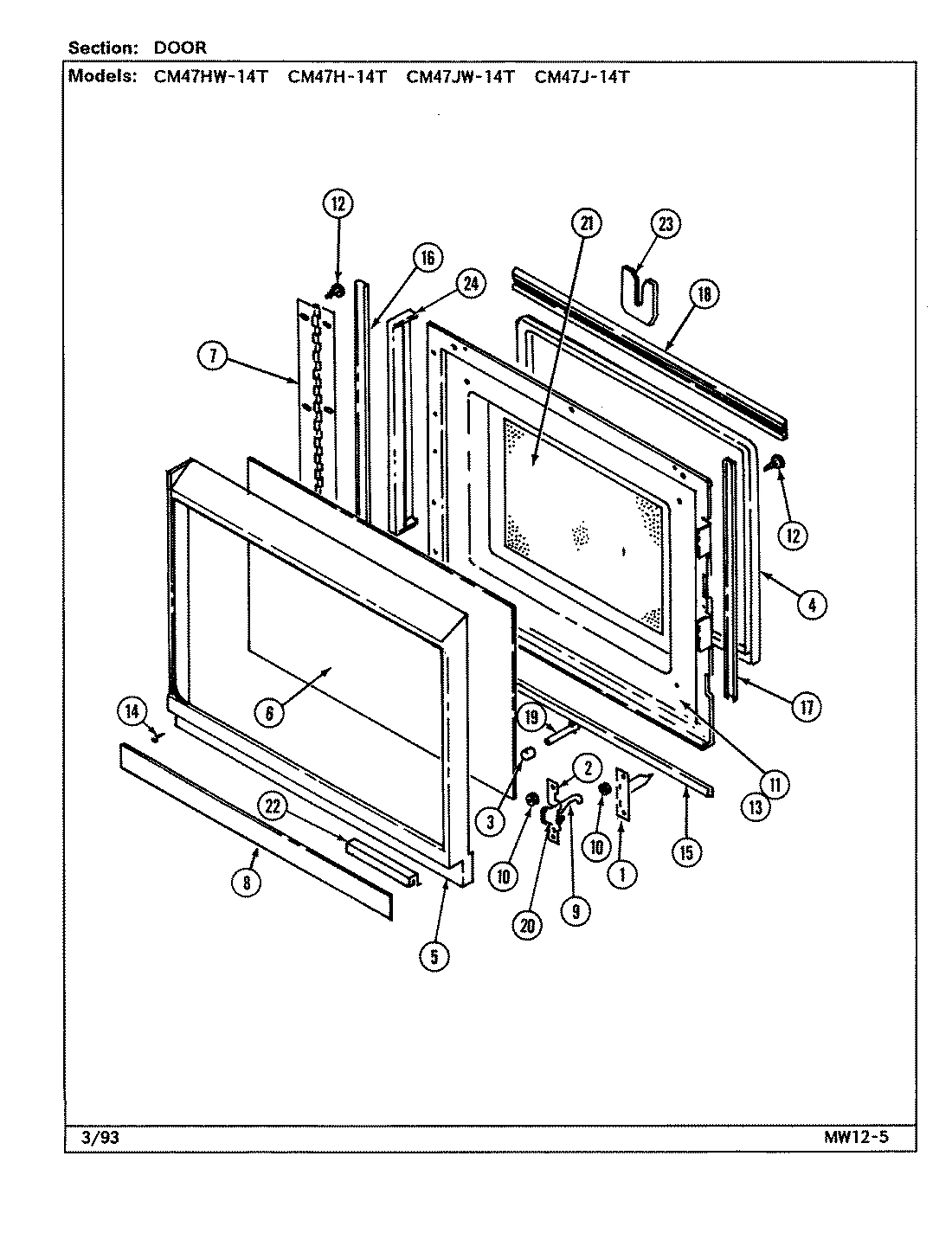

03 - DOOR

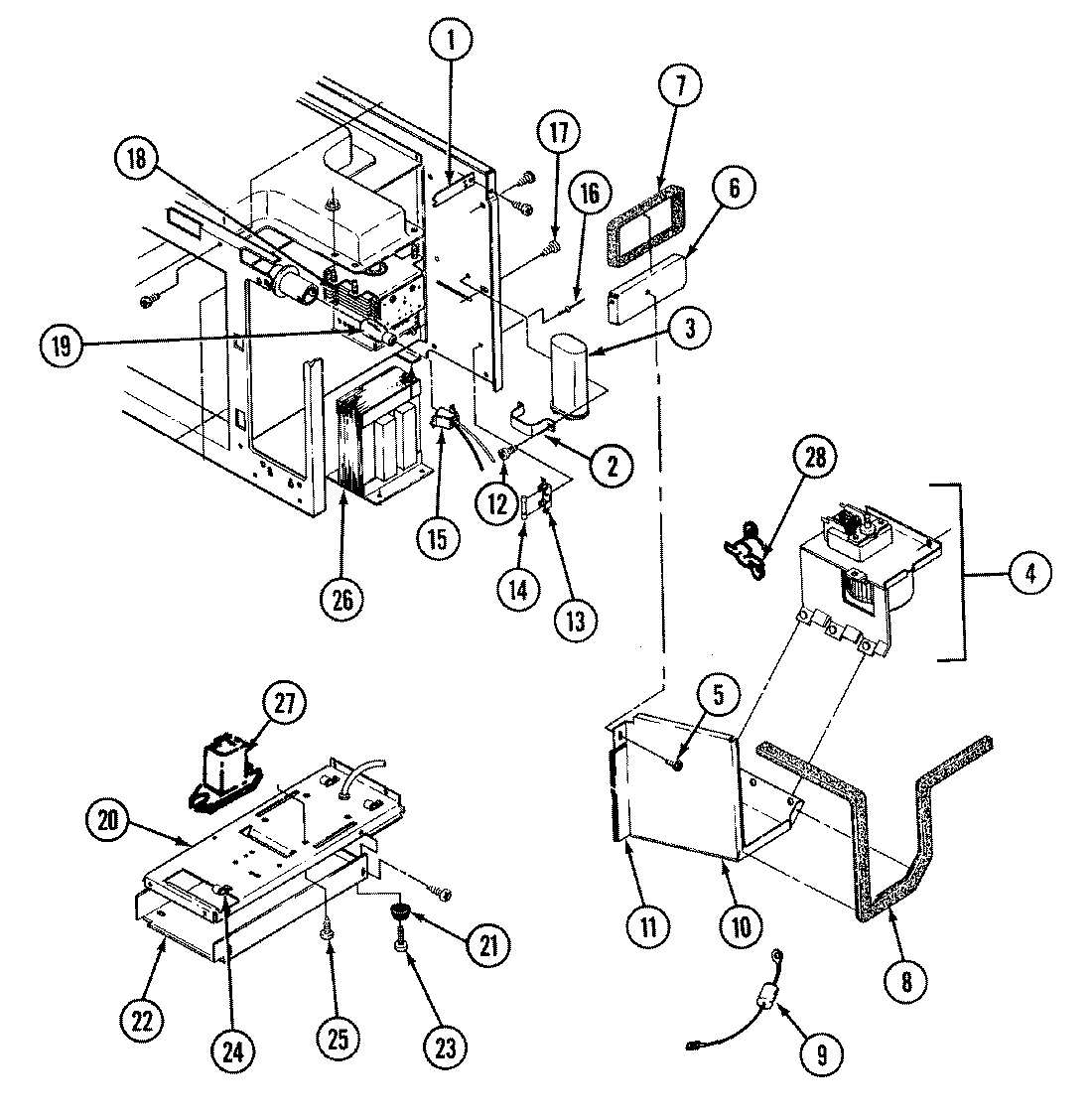

05 - INTERNAL CONTROLS

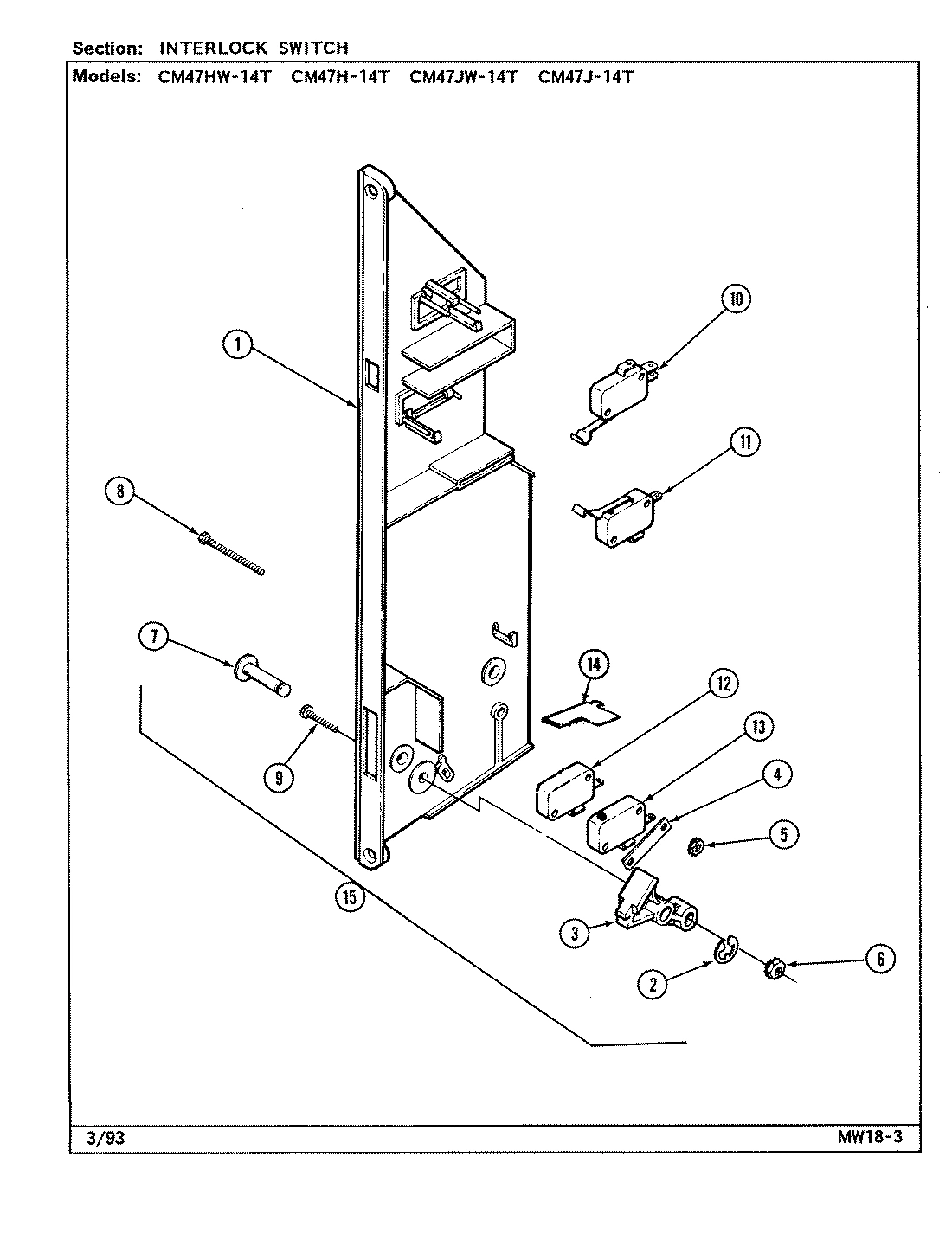

04 - INTERLOCK SWITCH

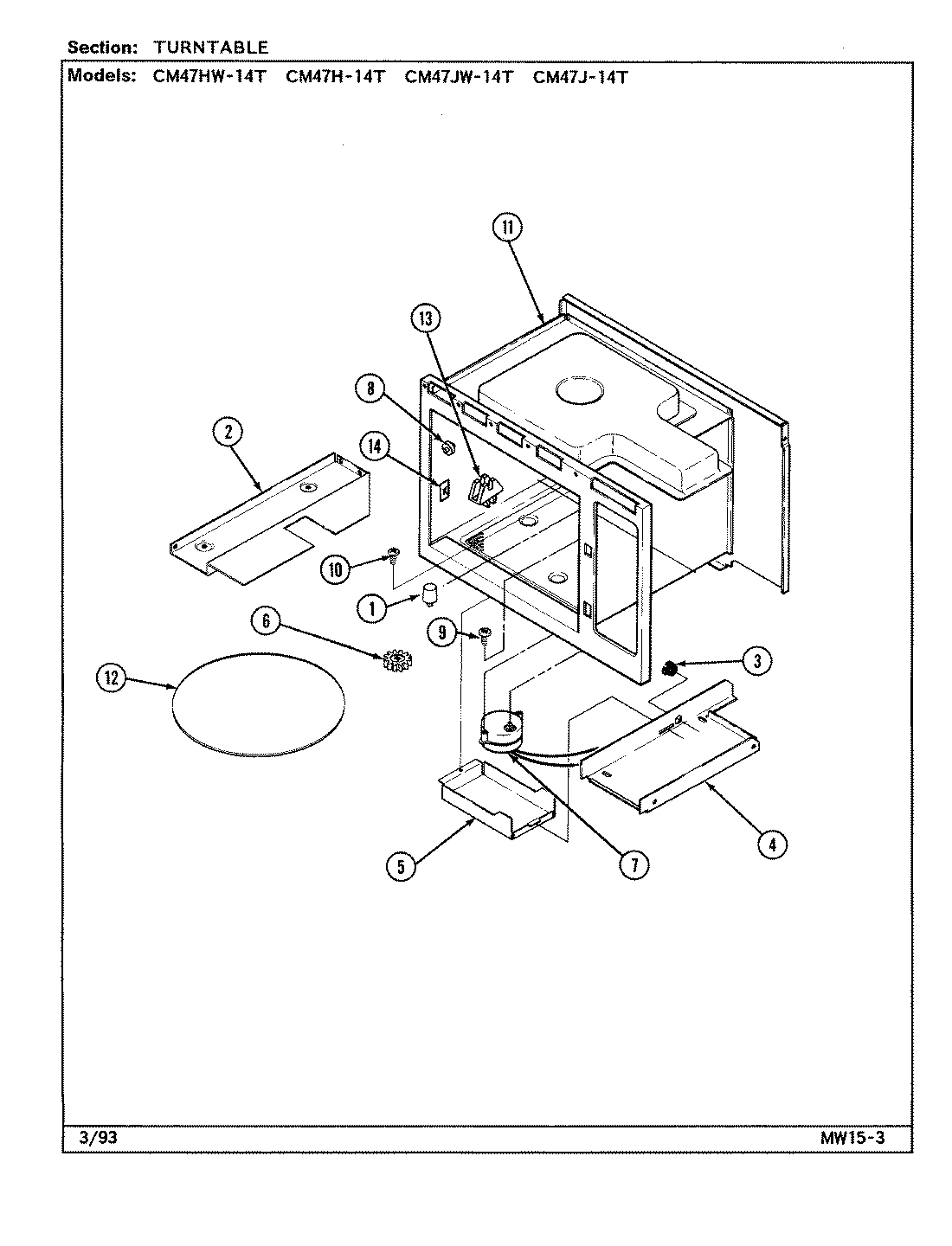

06 - TURNTABLE

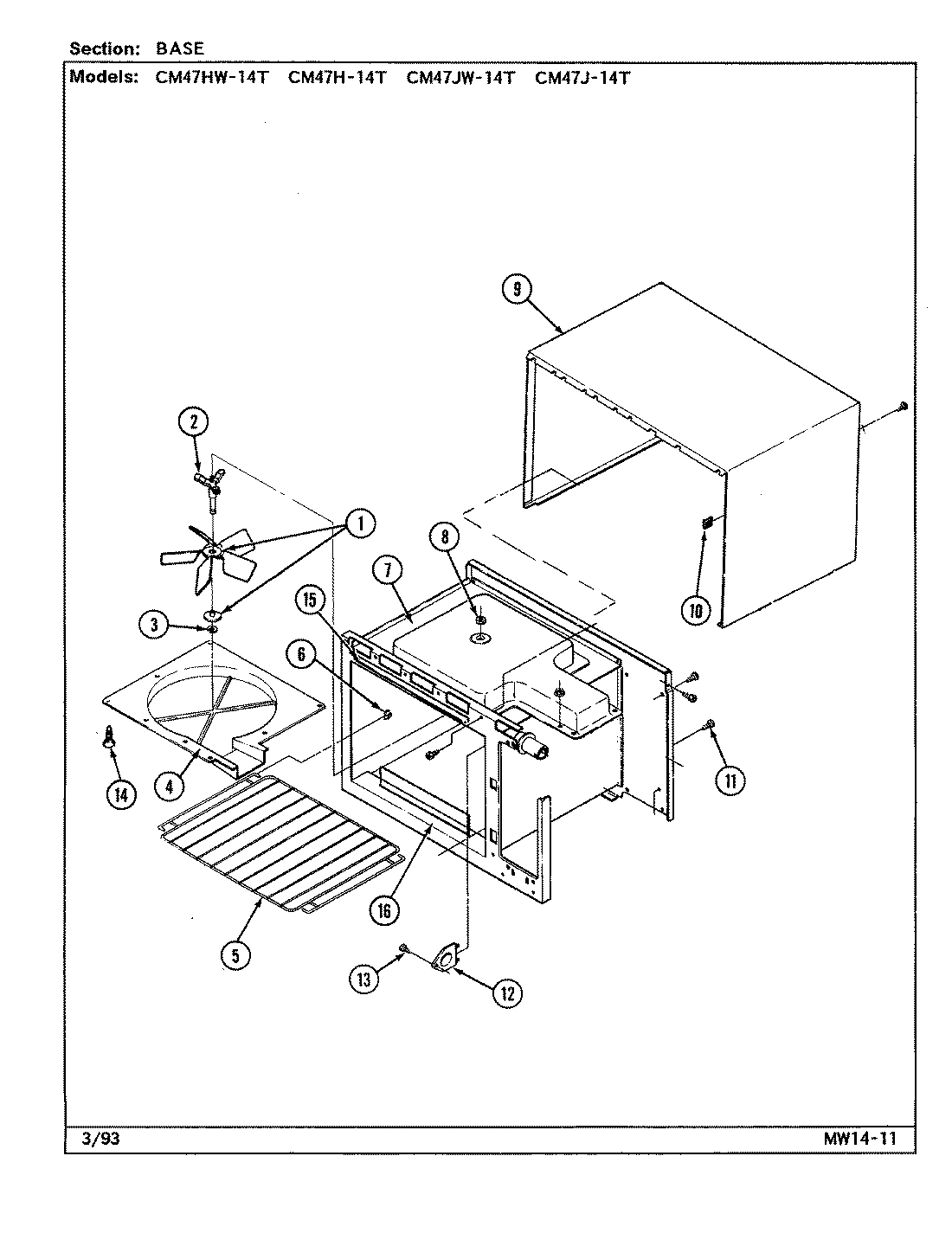

01 - BASE

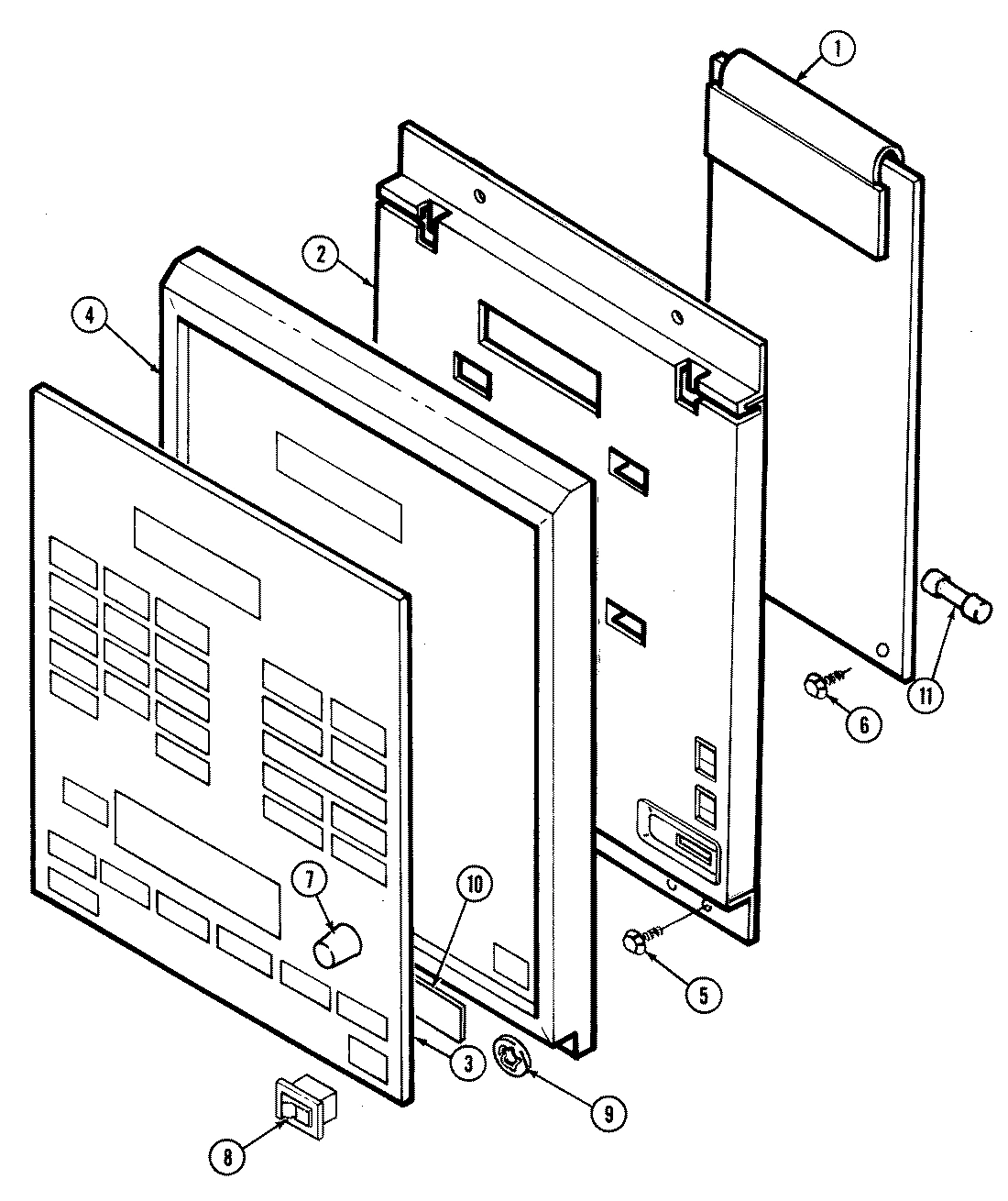

02 - CONTROL PANEL
Common parts from model Whirlpool CM47JW-14T MICROWAVE
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
1
BRACE, SUPPORT (LOWER) WPL Y02020028 Contact Us For Availability
1
BRACKET, INTERLOCK WPL Y02030133 Contact Us For Availability
1
PIN, PIVOT WPL Y03070041 Contact Us For Availability
1
BLADE, BUSHING ASSEMBLY WPL 04021190 Contact Us For Availability
1
BOARD, CONTROL WPL 01210105 Contact Us For Availability
1
BOARD, CONTROL (T-CLOCK) WPL Y01210108 Contact Us For Availability
2
BRACKET, DOOR LATCH WPL Y02030116 Contact Us For Availability
2
BRACKET WPL 02030123 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
2
BRACE, LOWER LEFT SUPPORT WPL 04021484 Contact Us For Availability
2
SHAFT, STIRRER WPL 02360058 Contact Us For Availability
2
BRACKET, CONTROL MTG WPL 02030176 Contact Us For Availability
3
BUMPER WPL Y02100135 Contact Us For Availability
3
RESISTOR, BLEEDER WPL 01010008 Contact Us For Availability
3
CAPACITOR WPL Y01020023 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
3
BUSHING WPL Y03140008 Contact Us For Availability
3
CLIP, STIRRER WPL Y03110055 Contact Us For Availability
3
SWITCH CONTROL PANEL WPL Y02060372 Contact Us For Availability
4
CHOKE, FILLER (WHT) WPL Y02100080 Contact Us For Availability
4
MOTOR, BLOWER WPL 01110029 Contact Us For Availability
4
BLOWER ASSEMBLY WPL 04021191 Contact Us For Availability
4
BRACKET, BLOWER SUPPORT WPL Y02030144 Contact Us For Availability
4
HOUSING, BLOWER WPL Y02170119 Contact Us For Availability
4
COVER, MTG PLATE WPL 02300039 Contact Us For Availability
4
INSULATOR, SWITCH WPL Y01100043 Contact Us For Availability
4
COVER, STIRRER WPL Y02300045 Contact Us For Availability
4
PANEL, CONTROL WPL 02100269 Contact Us For Availability
5
TRIM (WHT) WPL 04021495 Contact Us For Availability
5
NUT WPL Y03050001 Contact Us For Availability
5
COVER, MOTOR TURNTABLE WPL Y02300050 Contact Us For Availability
5
RACK, OVEN WPL Y02410004 Contact Us For Availability
5
SCREW WPL 03020061 Contact Us For Availability
6
GLASS, OUTER DOOR WPL 02220112 Contact Us For Availability
6
SUPPORT, DUCT MAGNETRON WPL Y02170111 Contact Us For Availability
6
NUT WPL 03050003 Contact Us For Availability
6
GEAR, TURNTABLE WPL Y02450002 Contact Us For Availability
6
SUPPORT, RACK WPL 02010031 Contact Us For Availability
6
WIRE ASSY WPL 04010273 Contact Us For Availability
7
HINGE WPL 02200021 Contact Us For Availability
7
TAPE, FOAM WPL 02310109 Contact Us For Availability
7
PIN, LEVER & PIVOT LATCH WPL Y03070031 Contact Us For Availability
7
MOTOR, TURNTABLE WPL 01110022 Contact Us For Availability
7
CAVITY WPL 04021615 Contact Us For Availability
7
KNOB, CLOCK (WHT) WPL 7711P43260 Contact Us For Availability
8
TAPE, FOAM WPL 02310070 Contact Us For Availability
8
SCREW WPL 03010117 Contact Us For Availability
8
ROLLER WPL 02210011 Contact Us For Availability
8
NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability
9
LATCH, DOOR WPL 02190056 Contact Us For Availability
9
DIODE WPL Y04010206 Contact Us For Availability
9
SCREW WPL 03010114 Contact Us For Availability
9
SCREW WPL 03010151 Contact Us For Availability
9
CABINET WPL 02140097 Contact Us For Availability
9
CLIP, SWITCH WPL 03110069 Contact Us For Availability
10
INSERT DOOR/CONTROL (WHITE) WPL Y02100223 Contact Us For Availability
10
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
10
SCREW WPL Y03020076 Contact Us For Availability
10
SWITCH, LOGIC WPL Y01140085 Contact Us For Availability
10
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
10
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
11
PANEL, INNER DOOR (BLK) WPL 04021377 Contact Us For Availability
11
TAPE, FOAM WPL 02310071 Contact Us For Availability
11
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
11
SWITCH, MONITOR WPL Y01140084 Contact Us For Availability
11
CAVITY WPL 04021491 Contact Us For Availability
12
SCREW, 6-32 X 3/8 PH BLACK WPL Y03010157 Contact Us For Availability
12
SWITCH, PRIMARY WPL 01140083 Contact Us For Availability
12
TURNTABLE WPL Y02460009 Contact Us For Availability
12
LENS, BULB WPL Y02400007 Contact Us For Availability
13
SCREW WPL Y03010118 Contact Us For Availability
13
SCREW WPL 03010138 Contact Us For Availability
13
SWITCH, TERTIARY (LOGIC) WPL Y01140086 Contact Us For Availability
13
SUPPORT, ROLLER WPL Y02100186 Contact Us For Availability
14
LEVER, INTERLOCK SWITCH WPL Y02180016 Contact Us For Availability
14
CLIP - PUSH ON WPL Y03110070 Contact Us For Availability
14
CLIP WPL Y03110050 Contact Us For Availability
15
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
15
RECEPTACLE, LIGHT WPL 01100045 Contact Us For Availability
15
INTERLOCK SWITCH ASSEMBLY WPL Y04021550 Contact Us For Availability
15
LABEL, COOKING GUIDE WPL Y02240782 Contact Us For Availability
16
SEAL, HINGE SIDE WPL Y02120121 Contact Us For Availability
16
COVER, FRONT EDGE WPL 02300057 Contact Us For Availability
17
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
18
SEAL, TOP WPL 02120153 Contact Us For Availability
18
MAGNETRON WPL 01040004 Contact Us For Availability
19
SPACER, DOOR WINDOW WPL Y03120069 Contact Us For Availability
19
BULB, LIGHT WPL Y01060024 Contact Us For Availability
20
SPRING, DOOR LATCH WPL Y03180023 Contact Us For Availability
20
COMPONENT MTG. PLATE WPL 02040110 Contact Us For Availability
21
WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability
21
FOOT, BASE WPL 02230012 Contact Us For Availability
22
EXTRUSION, HANDLE (WHT) WPL 02120166 Contact Us For Availability
23
SHIM WPL Y03120064 Contact Us For Availability
24
TRIM (WHITE) WPL 02100231 Contact Us For Availability
24
CLIP, WIRE HARNESS WPL 03110022 Contact Us For Availability
25
SCREW WPL 03010094 Contact Us For Availability
26
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
27
RELAY WPL 01120033 Contact Us For Availability
28
SWITCH, TEMP LIMIT WPL 01180010 Contact Us For Availability
28
6A X 3/8 PHSMS WPL 03020047 Contact Us For Availability
28
CLIP, STIRRER WPL 03110066 Contact Us For Availability
28
WIRE HARNESS WPL 04010262 Contact Us For Availability
28
HV LEAD WIRE (8 ``) WPL Y04060532 Contact Us For Availability
28
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
NI
MANUAL, USE & CARE WPL Y06010311 Contact Us For Availability
× ![]()
